Model Whirlpool BHAC1400FS0 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT, LITERATURE

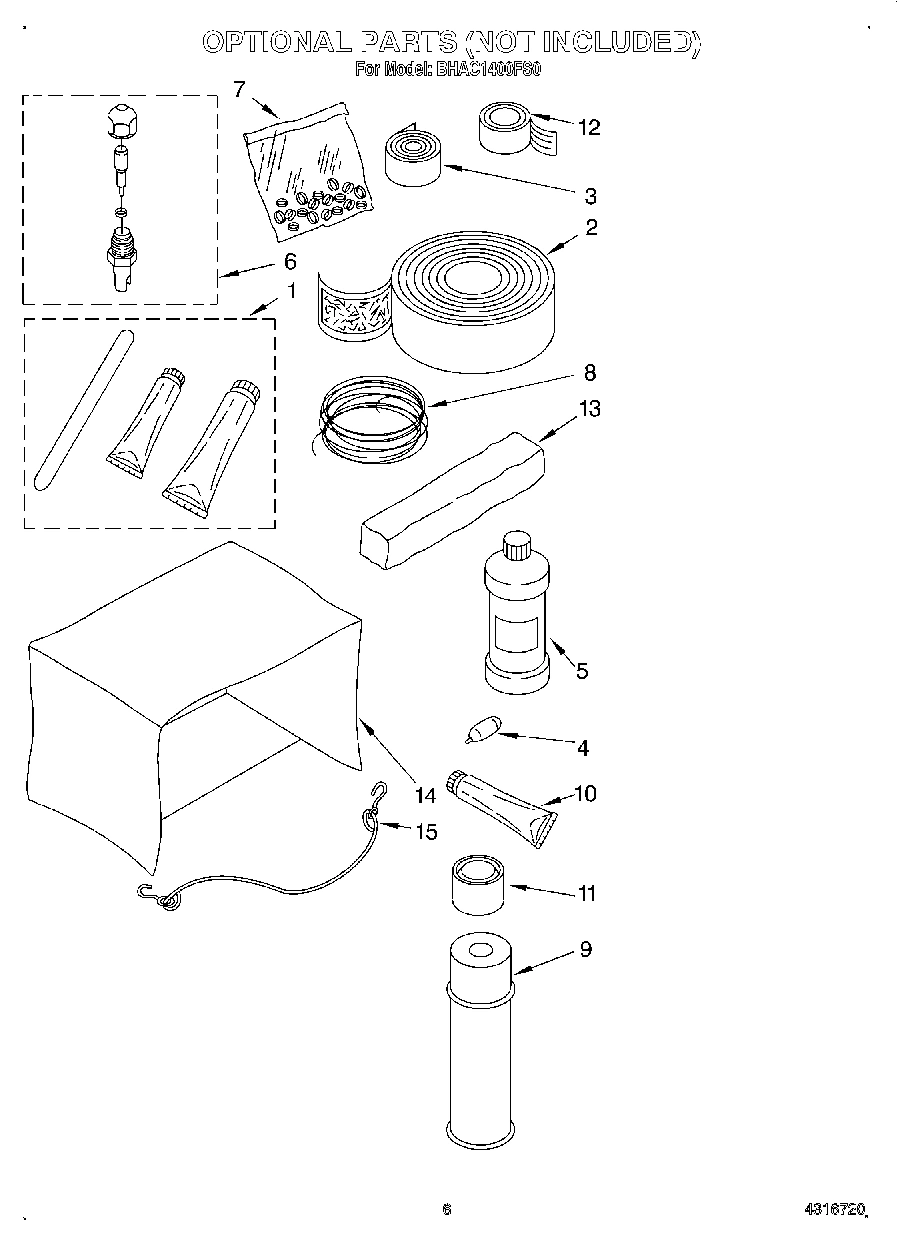

04 - OPTIONAL
05 - INSTALLATION
03 - CABINET

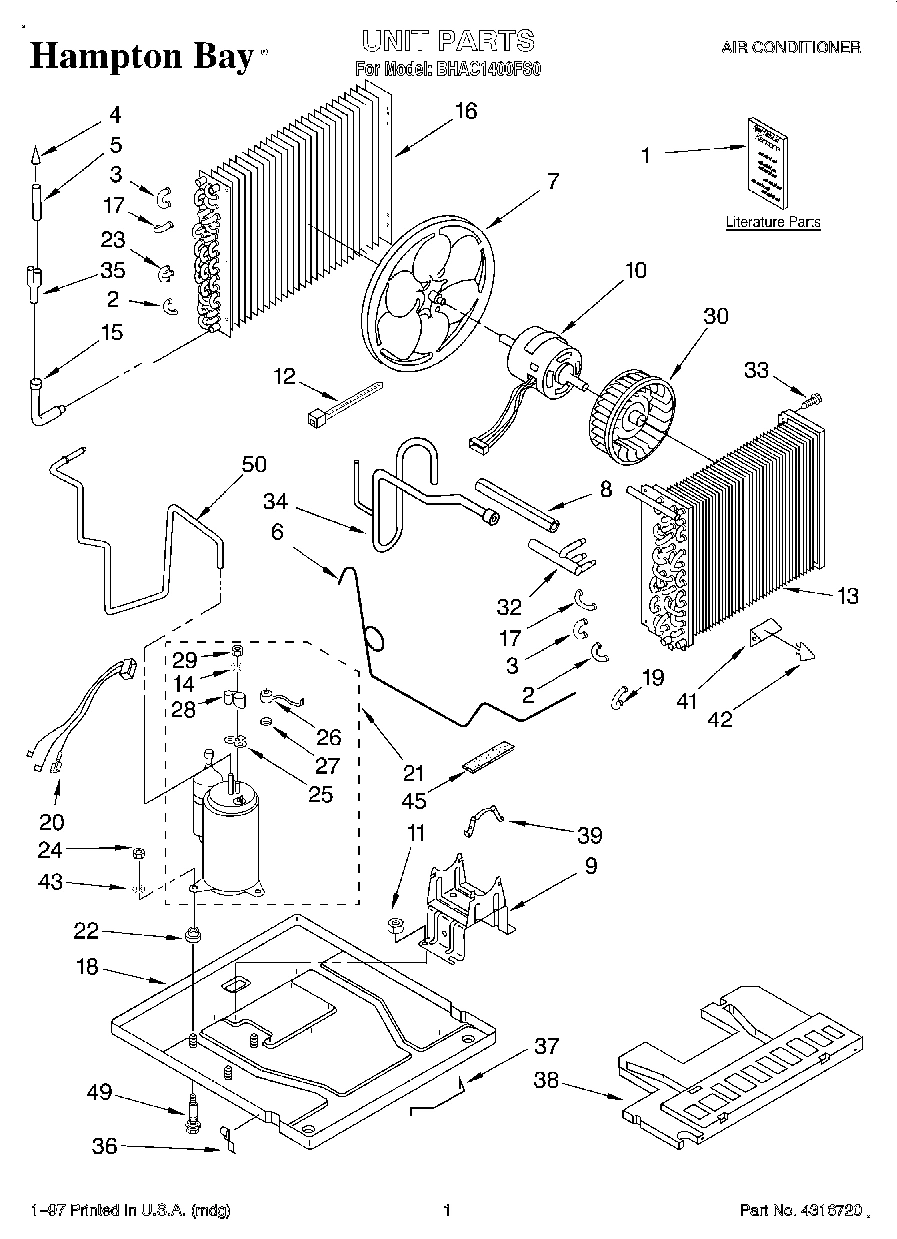

02 - AIRFLOW & CONTROL
Common parts from model Whirlpool BHAC1400FS0 ROOM AIR CONDITIONER
Instructions, Installation (Wide Window Kit) WPL LIT1155965 Contact Us For Availability
Instructions, Installation (Standard Mounting WPL LIT1166072 Contact Us For Availability
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Standard Installation WPL 1162147 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1161335 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Seal, Top Mounting Angle WPL 1163784 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Door, Air WPL 1160652 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Spring, Door WPL 1160653 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Insulation, Cabinet (Top) WPL 1167203 Contact Us For Availability
5
Clamp, Wiring WPL 1163775 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Cabinet Front WPL 1165585 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1162099 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Seal, Anti-Rub (2) WPL 1162616 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Cable, Appliance WPL 1167644 Contact Us For Availability
12
Board, Filler WPL 1166266 Contact Us For Availability
12
Control, Shaft WPL 1161504 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
CAPACITOR WPL 1162606 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
16
Condenser WPL 1161332 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
17
Bend, Return Condenser (1) Evaporator (3) WPL 1156329 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Louver, Verticle WPL 1167096 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Base WPL 1161523 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend (2) WPL 1158407 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Link, Vertical Louver (2) WPL 1162077 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1160709 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1161054 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1164167 Contact Us For Availability
20
Panel, Control WPL 1160676 Contact Us For Availability
21
Compressor WPL 1157102 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1165587 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Louver, Horizontal W/Handle (2) WPL 1165586 Contact Us For Availability
22
Wire, Control Fresh Air WPL 1162063 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Front, Complete WPL 1165060 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1165588 Contact Us For Availability
24
Dividing Wall WPL 1164483 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1165589 Contact Us For Availability
26
Overload, Protector WPL 1155007 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Switch, Rotary WPL 1157650 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Actuator, Louver (2) WPL 1162078 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
29
Filter WPL 1165591 Contact Us For Availability
29
Cup, Condensate Drain WPL 997285 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Cam, Exhaust WPL 647882 Contact Us For Availability
32
Manifold, Suction WPL 1161502 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
32
Bushing, Shaft WPL 647879 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Tube, Suction WPL 1163922 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 1161313 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1169560 Contact Us For Availability
36
Shaft, Control Exhaust WPL 993262 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escutcheon WPL 470036 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1167524 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
38
Knob (3) WPL 1167617 Contact Us For Availability
38
Control Box (R.S.) WPL 1161704 Contact Us For Availability
39
Control Box (L.S.) WPL 1164515 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
41
Cover, Top WPL 1160710 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Wire, Control Exhaust WPL 1161333 Contact Us For Availability
45
Insul. Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1168919 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Discharge WPL 1167366 Contact Us For Availability
× ![]()
