Model Whirlpool BHAC0830XS0 ROOM AIR CONDITIONER – Common Parts & Diagrams
03 - AIR FLOW AND CONTROL
01 - CABINET AND FRONT

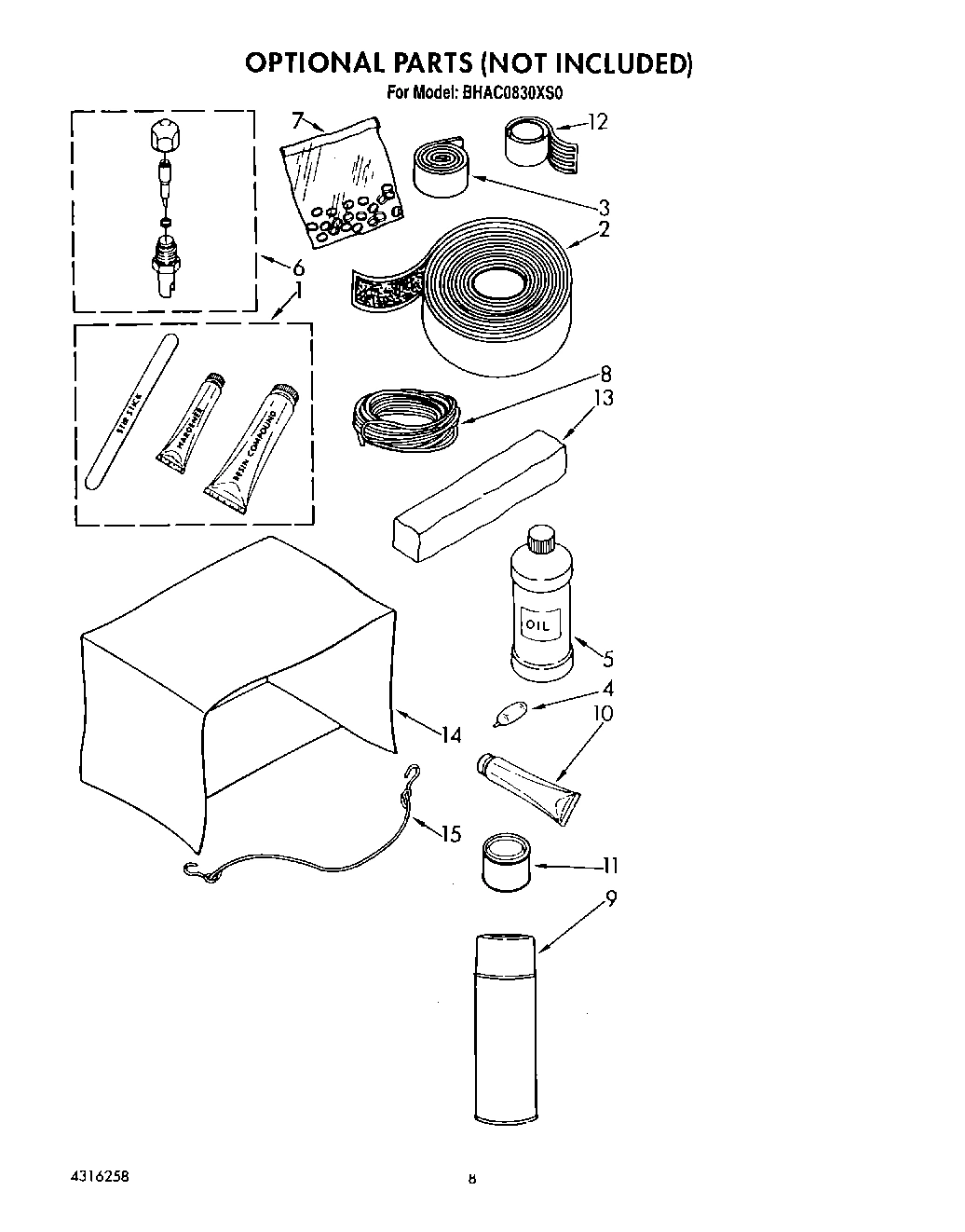

05 - OPTIONAL

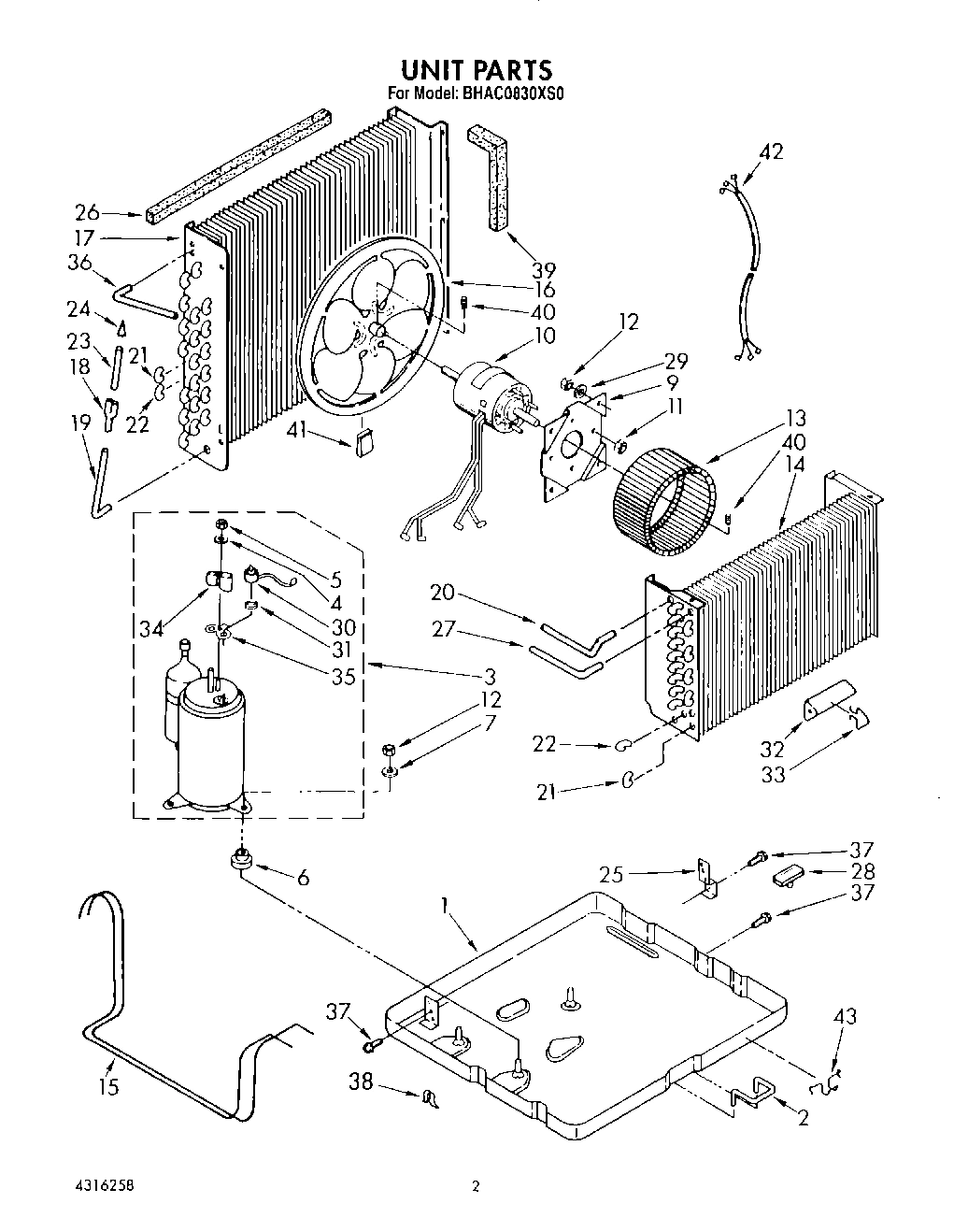

02 - UNIT , LITERATURE

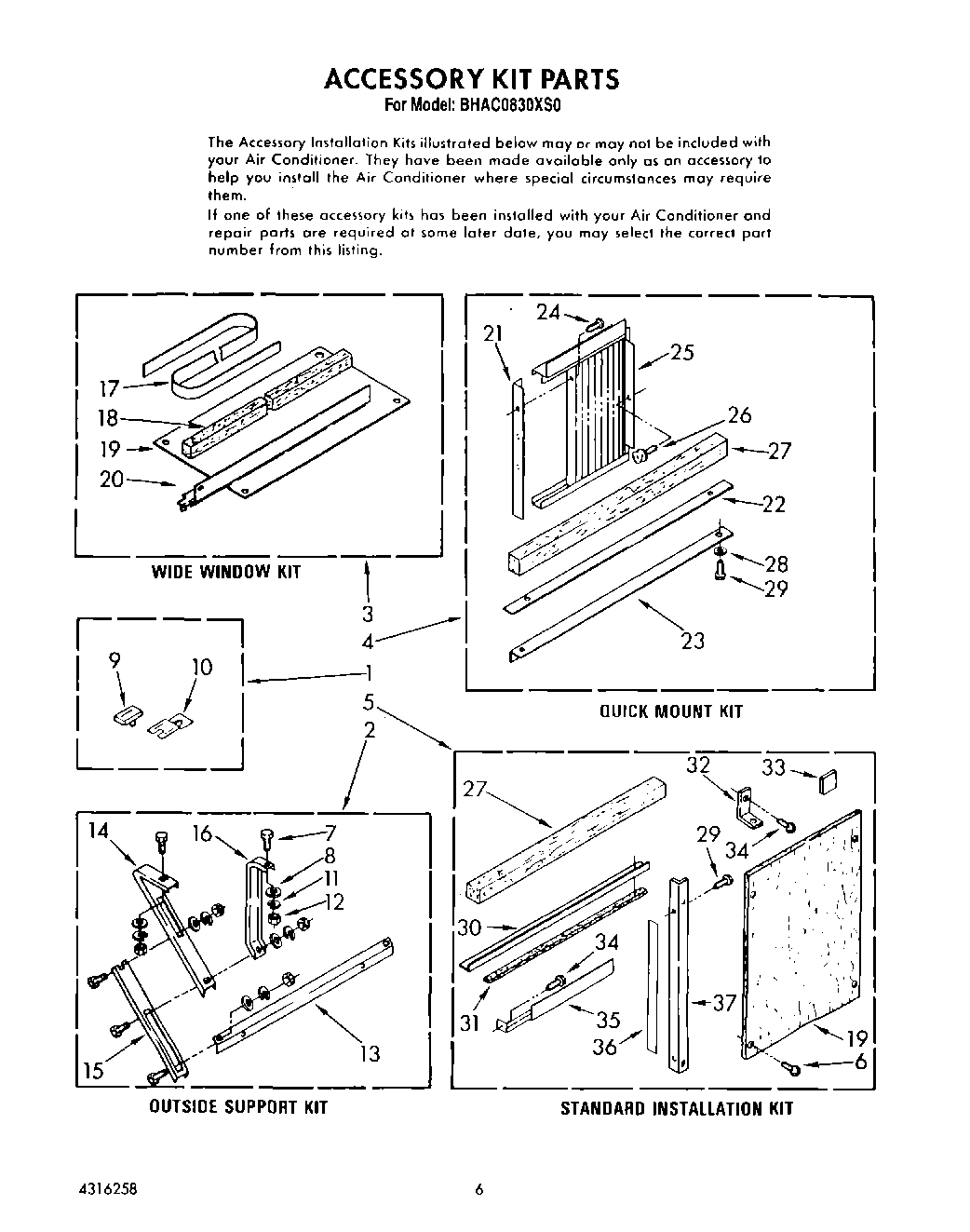

04 - ACCESSORY KIT
Common parts from model Whirlpool BHAC0830XS0 ROOM AIR CONDITIONER
1
Cabinet WPL 1157350 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Base WPL 951481 Contact Us For Availability
1
kit, condensate cup WPL 978829 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Wire, Ground WPL 857017 Contact Us For Availability
3
compressor WPL 813535 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
4
Screw, Mach 8-32 x 3/8 WPL 488853 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Gasket, Nut WPL 950037 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
escutcheon, control WPL 1159344 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Spacer, Plate (3) WPL 470036 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
8
Knob, Control WPL 953054 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Front, Cabinet (Complete Assembly) WPL 953021 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
10
front, cabinet WPL 953017 Contact Us For Availability
10
Motor, Fan WPL 947785 Contact Us For Availability
10
support, cup WPL 9955075 Contact Us For Availability
11
Lockwasher WPL 486009 No Longer Available
11
Filter, Air WPL 648008 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Retainer, Filter WPL 476707 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Evaporator WPL 951669 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Restrictor (Length 25.5``) WPL 951487 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
16
louver, vertical WPL 953069 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
17
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
17
Handle, Vertical Louver WPL 953159 Contact Us For Availability
17
Condenser WPL 951488 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
18
Link, Vert. Louver (2) WPL 953067 Contact Us For Availability
18
Tube, Flow Divider WPL 947364 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
19
Tube, Condensate WPL 49181 Contact Us For Availability
19
Spring, Detent (2) WPL 641484 Contact Us For Availability
19
Tube, Outlet WPL 950814 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
20
Shroud, Condenser WPL 647862 Contact Us For Availability
20
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
20
Tube, Inlet WPL 852454 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
21
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
22
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
22
bend, return condenser (4) evaporator (10) WPL 1155631 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
23
Retainer, Shroud Cover (3) WPL 647873 Contact Us For Availability
23
Tube, Outlet (Includes Illus. 24) WPL 950825 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
24
Cover, Hole WPL 1157126 Contact Us For Availability
24
Strainer, Tube WPL 49599 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
25
Fuse, Heater WPL 484451 Contact Us For Availability
25
support, condenser R.S. WPL 647284 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
26
Seal, Condenser Top WPL 649609 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
27
Deflector, Heat Assembly WPL 857224 Contact Us For Availability
27
Tube, Outlet WPL 647949 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
28
Switch, Limit WPL 997418 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
29
Washer, Shim WPL 470280 Contact Us For Availability
30
Heater, Air WPL 951818 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
34
Cover, Evaporator WPL 856957 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
box, control WPL 952380 Contact Us For Availability
36
Tube, 90~ Connect WPL 994257 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
37
Wire, Control WPL 859370 Contact Us For Availability
37
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
37
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
37
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Instructions, Installation (Kit, Condensate C WPL 978930 Contact Us For Availability
37
Instructions, Installation (Kit, Standard Ins WPL 993380 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
39
Control, Temperature WPL 997421 Contact Us For Availability
39
Seal, Condenser R.S. Header WPL 649610 Contact Us For Availability
40
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Contactor WPL 997422 Contact Us For Availability
41
Clip, Balancing WPL 876034 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
43
Clip, Cabinet Front Mtg (2) WPL 949634 Contact Us For Availability
44
Cable, Appliance WPL 859444 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Door, Exhaust WPL 649720 Contact Us For Availability
48
spring, door WPL 859639 Contact Us For Availability
49
Bushing WPL 647879 Contact Us For Availability
50
Shaft, Control WPL 852023 Contact Us For Availability
51
Spring, Washer WPL 647881 Contact Us For Availability
53
Cam WPL 647882 Contact Us For Availability
54
switch, rotary WPL 1158090 Contact Us For Availability
× ![]()
