Model Whirlpool BHAC0830AS0 ROOM AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET
01 - UNIT, LITERATURE

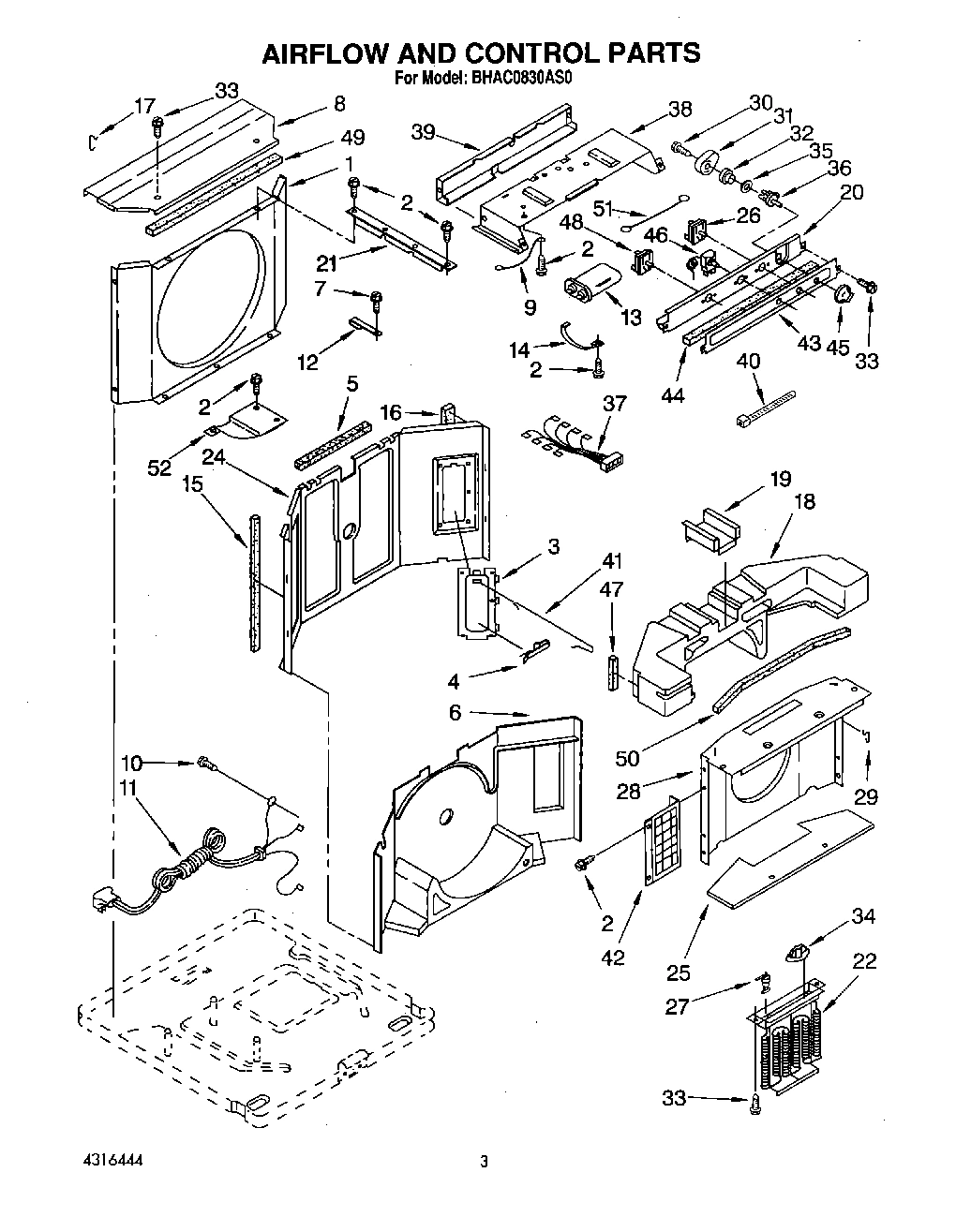

02 - AIRFLOW AND CONTROL

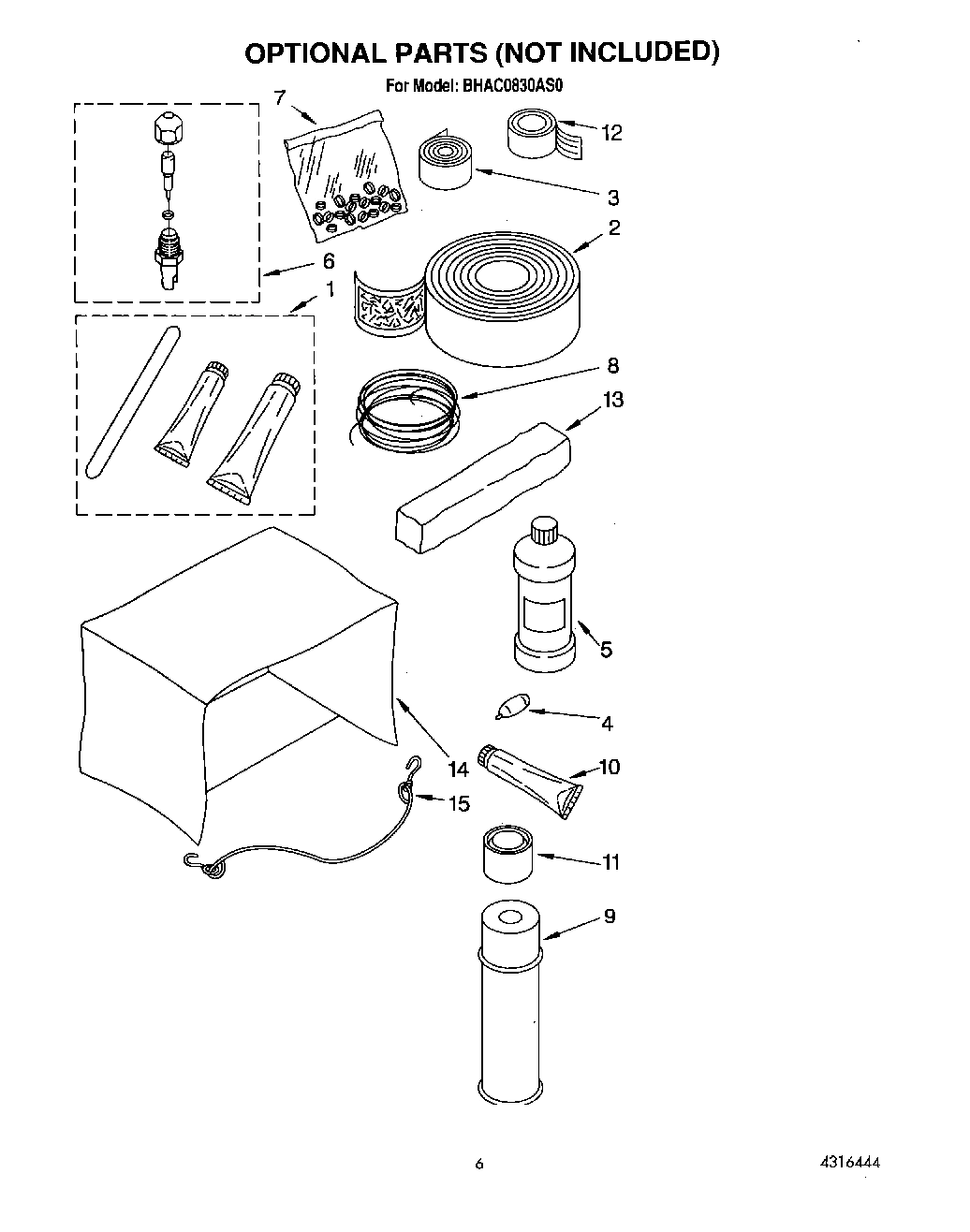

04 - OPTIONALS
Common parts from model Whirlpool BHAC0830AS0 ROOM AIR CONDITIONER
Use And Care Guide WPL LIT1162825 Contact Us For Availability
Instructions, Installation WPL LIT1162826 Contact Us For Availability
Tech Sheet WPL LIT1164413 Contact Us For Availability
Wiring Diagram WPL LIT1164415 Contact Us For Availability
1
Bend, Return Evaporator (3) Condenser (16) WPL 708531 Contact Us For Availability
1
Shroud, Condenser WPL 1159604 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Evaporator (9) Condenser (4) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (1) WPL 1156329 Contact Us For Availability
3
Door, Exhaust WPL 1157193 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Spring, Door WPL 998178 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 951437 Contact Us For Availability
5
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1158982 Contact Us For Availability
6
Scroll (Lower) WPL 1158771 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
7
Screw WPL 1161561 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
8
Top, Condenser WPL 1156963 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1157655 Contact Us For Availability
11
Cord, Appliance WPL 1161356 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Strap, Dividing Wall WPL 1159002 Contact Us For Availability
13
Evaporator WPL 1158998 Contact Us For Availability
13
Capacitor WPL 1157631 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cup, Condensate Drain WPL 997285 Contact Us For Availability
15
Seal, Left Side WPL 1158514 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1158996 Contact Us For Availability
16
Seal, Right Side WPL 1158515 Contact Us For Availability
17
Curtain Assembly (Right Side) WPL 1164406 Contact Us For Availability
17
Clip, Shroud (2) WPL 994686 Contact Us For Availability
18
Base WPL 1162623 Contact Us For Availability
18
Scroll, Upper WPL 1158772 Contact Us For Availability
19
Seal, Strip WPL 1159289 Contact Us For Availability
19
Tube, Connecting WPL 1155580 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
20
Cartridge, Complete WPL 1156972 Contact Us For Availability
20
Tube, Discharge WPL 1156995 Contact Us For Availability
20
Panel, Control WPL 1160037 Contact Us For Availability
21
Horzontal Louver WPL 1159333 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
22
Ribs, Vertical WPL 1156975 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Element, Heater (Includes Illus. Nos. 27, 34, WPL 1159775 Contact Us For Availability
23
Front, Complete WPL 1161557 Contact Us For Availability
23
Cover, Pan WPL 1159664 Contact Us For Availability
24
Seal, (2) WPL 1161746 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
25
Seal WPL 1159081 Contact Us For Availability
25
Seal, Evaporator Shroud WPL 1160057 Contact Us For Availability
26
Seal (2) WPL 1159079 Contact Us For Availability
26
Switch, Rotary WPL 1164408 Contact Us For Availability
27
Thumbscrew (2) WPL 475581 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Fuse WPL 1160510 Contact Us For Availability
28
Seal (2) WPL 1161205 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1161022 Contact Us For Availability
29
Filter WPL 1156976 Contact Us For Availability
29
Clip, Shroud WPL 1158257 Contact Us For Availability
30
Screw, Wood 8 x 3/4 WPL 488255 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1161550 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Bracket, Window Lock WPL 644228 Contact Us For Availability
31
Harness, Compressor WPL 1158044 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Sleeve (3) WPL 858148 Contact Us For Availability
34
Switch, Limit WPL 1160509 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Tube, Suction Asy WPL 1163990 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
37
Harness, Wiring Control Box WPL 1161150 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
43
Escutcheon WPL 1164101 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1161021 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Switch, Fan WPL 1160038 Contact Us For Availability
50
Seal WPL 1160947 Contact Us For Availability
51
Wire, Elect WPL 1156982 Contact Us For Availability
52
Cup, Condensate WPL 1159580 Contact Us For Availability
× ![]()
