Model LG BH9431PW – Common Parts & Diagrams
Diagram 0
Diagram 1

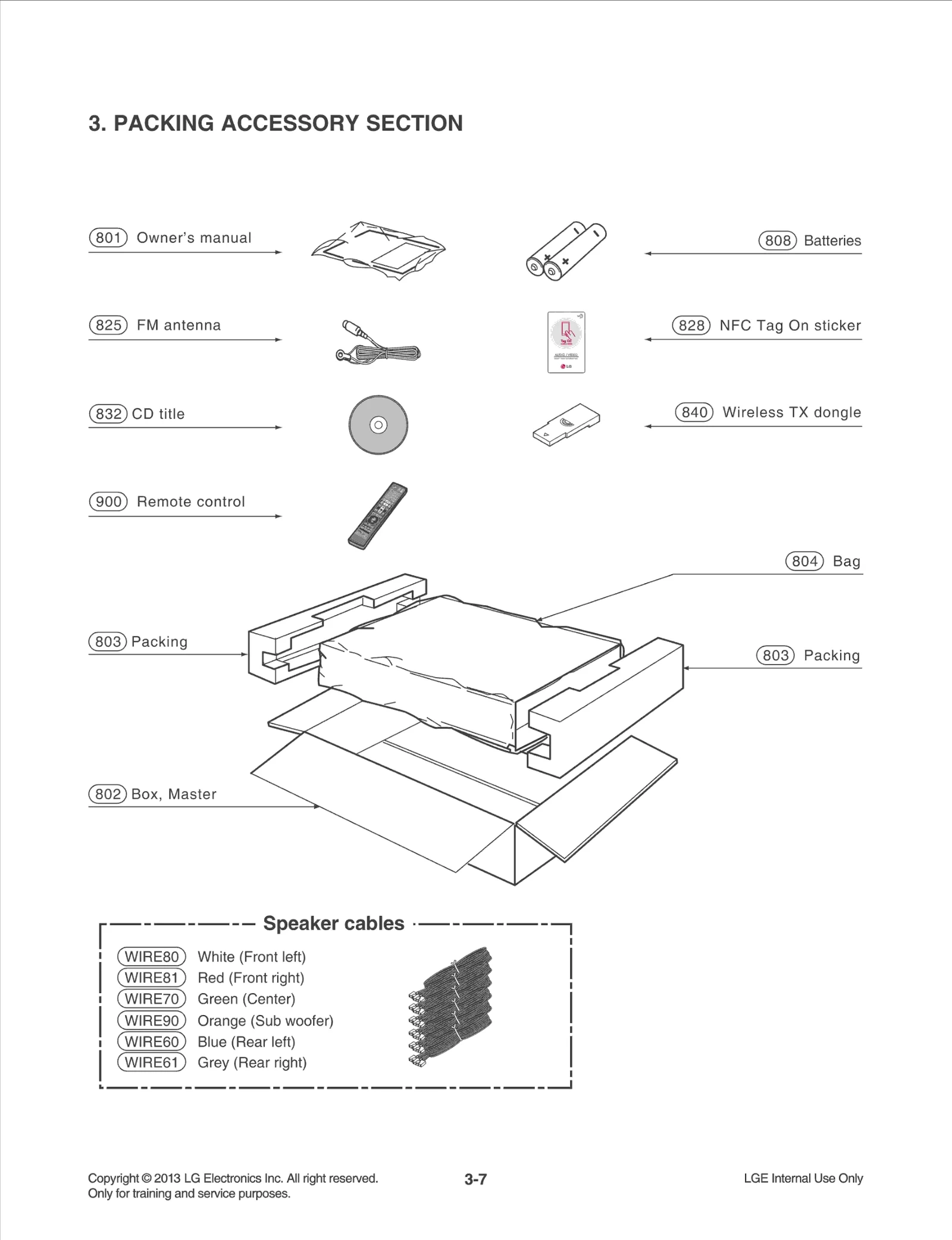

Diagram 2

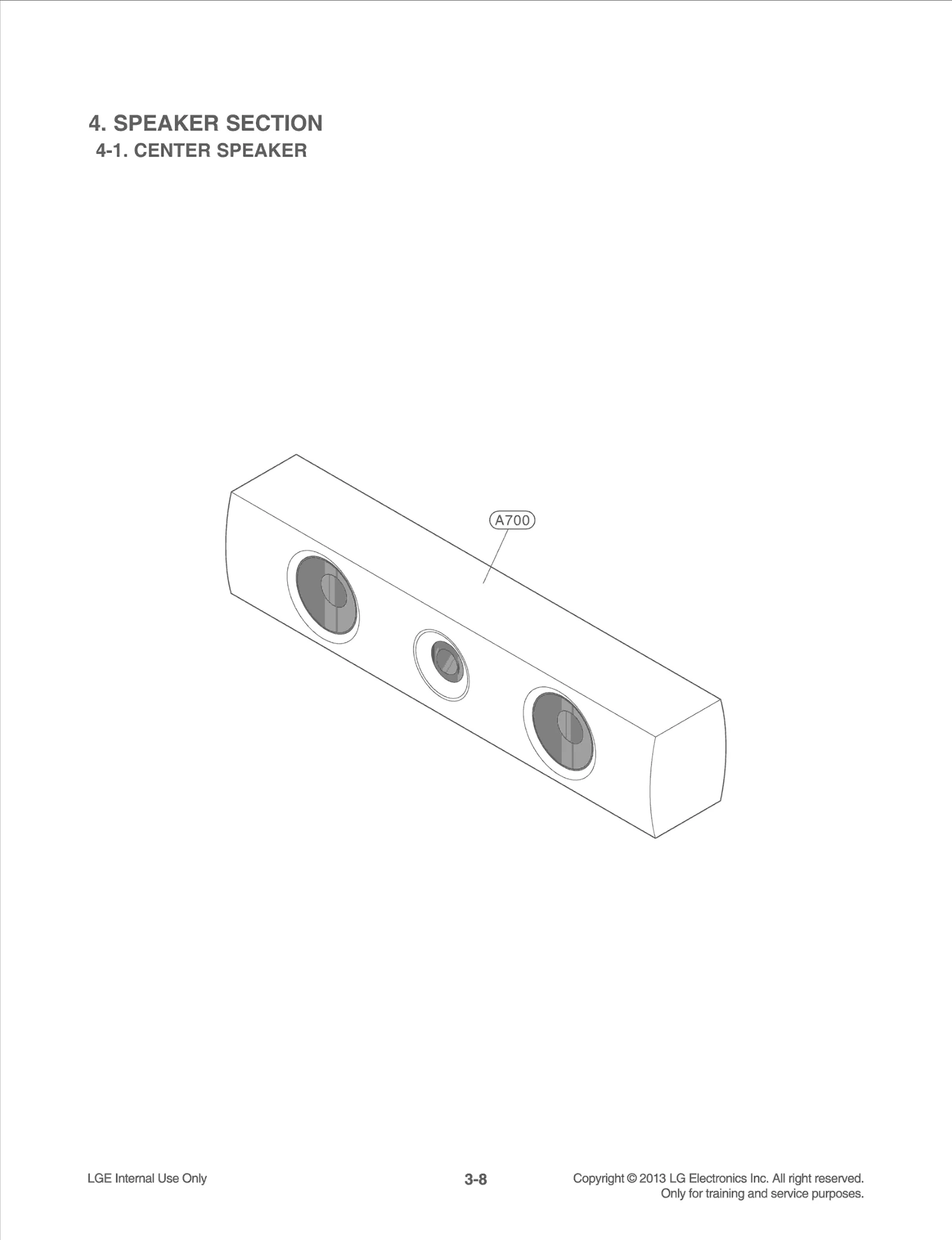

Diagram 3

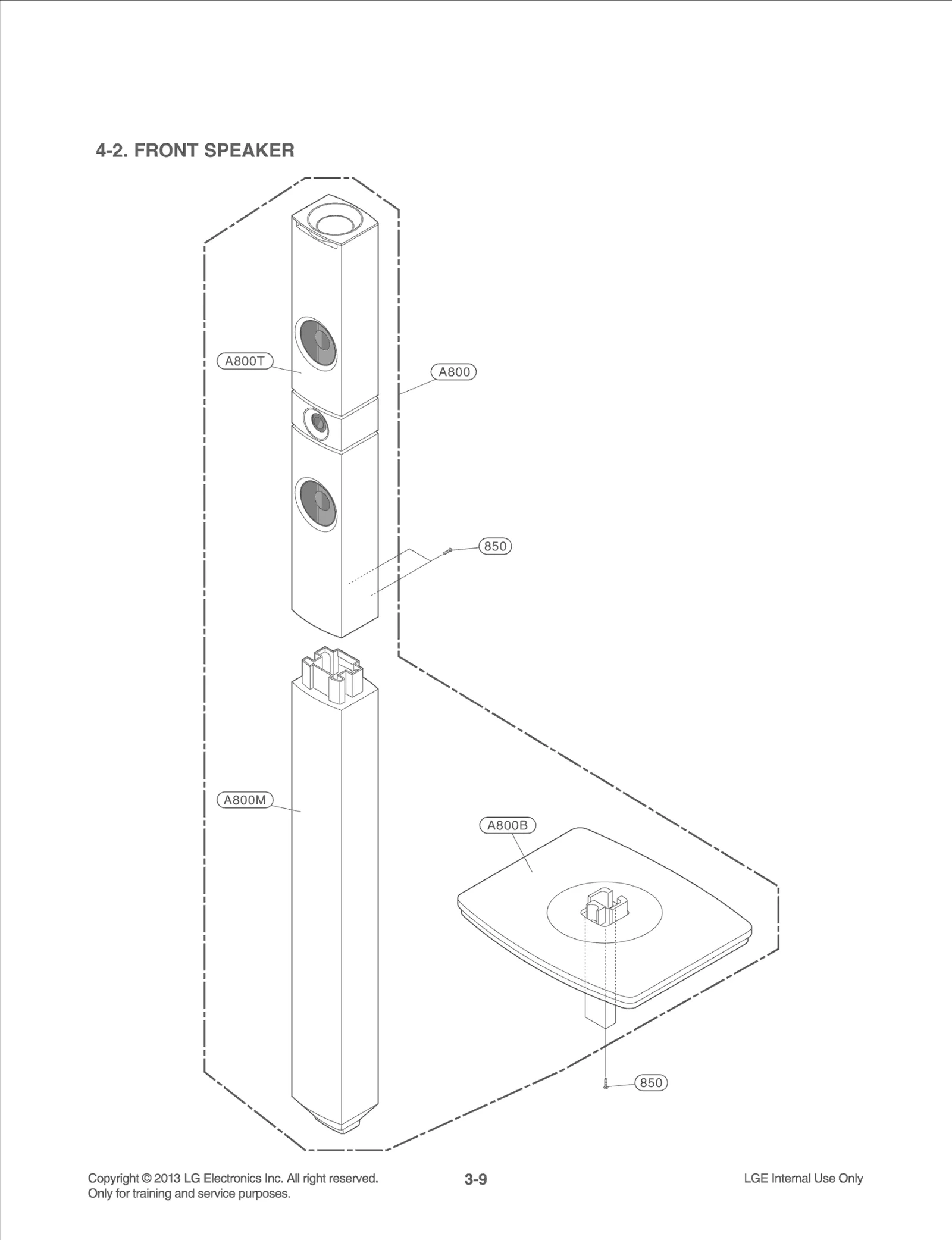

Diagram 4

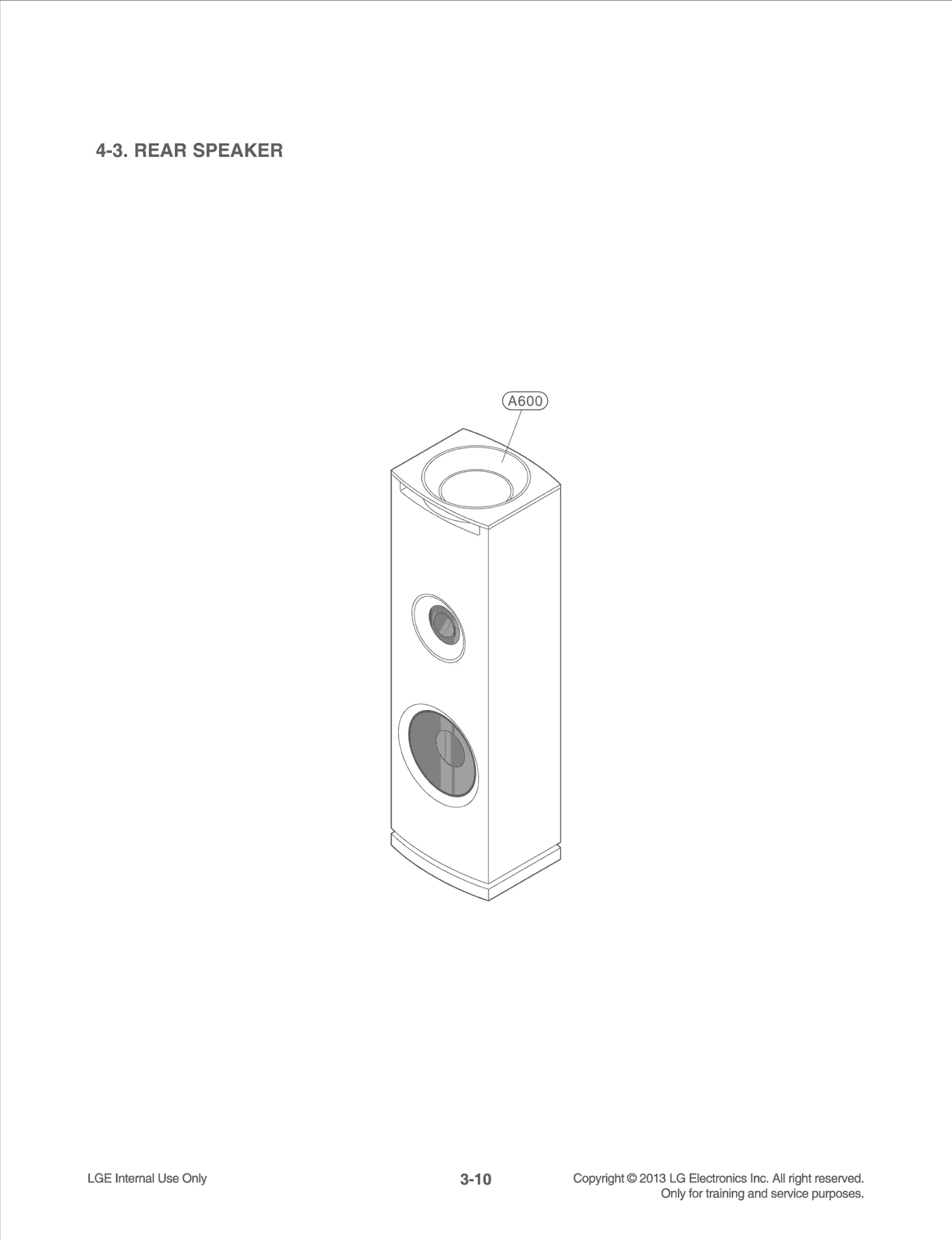

Diagram 5

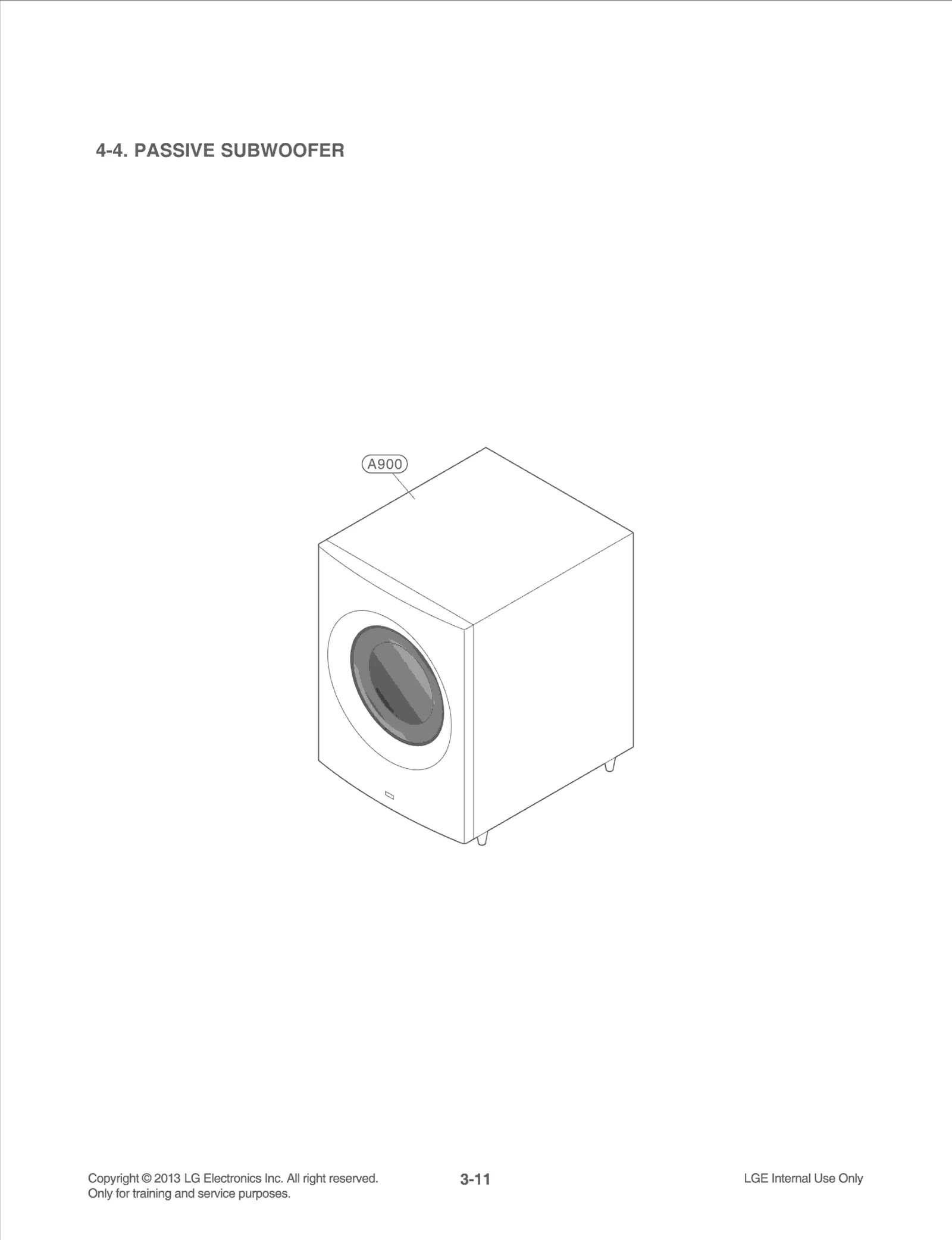

Diagram 6

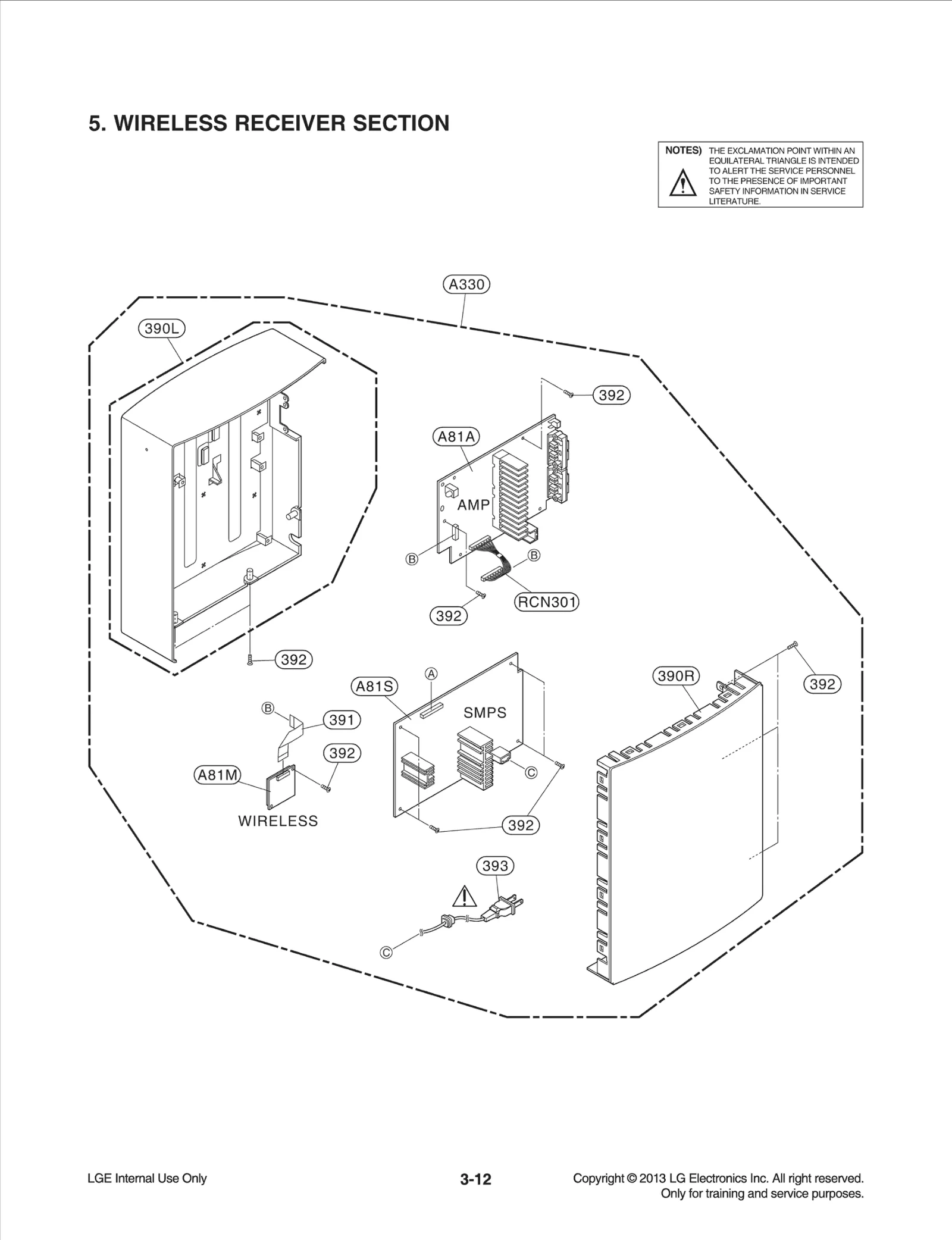

Diagram 7
Diagram 8
Common parts from model LG BH9431PW
250
Case Assembly LGE ABQ74183826 Contact Us For Availability
250L
Cover LGE MCK67492602 Contact Us For Availability
250R
Cover LGE MCK67492702 Contact Us For Availability
260
Chassis LGE MBS62385702 Contact Us For Availability
261
RUBBER LGE 5040R-0069Q Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
269
Bracket LGE MAZ63688301 Contact Us For Availability
275
PLATE LGE 3300RCH001B Contact Us For Availability
276
Plate LGE 3300R-D079H Contact Us For Availability
281
Cover LGE MCK67058501 Contact Us For Availability
282
Sheet LGE MHK63988601 Contact Us For Availability
283
Parts Assembly,Packing LGE AGM74089001 Contact Us For Availability
284
Sheet LGE MHK63988602 Contact Us For Availability
300
Power Cord LGE EAD60816612 Contact Us For Availability
320
Panel,Rear LGE MGC63019401 Contact Us For Availability
390L
Cover Assembly LGE ACQ86368502 Contact Us For Availability
390R
Cover Assembly LGE ACQ86368602 Contact Us For Availability
391
Cable,FFC LGE EAD62131504 Contact Us For Availability
392
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
393
Power Cord LGE EAD60816620 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75877022 Contact Us For Availability
802
Box,Master LGE MAY65956807 Contact Us For Availability
803
Packing LGE MFZ63588108 Contact Us For Availability
804
Bag LGE MAF58050905 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
828
Accessory,Wireless LGE EBX61809401 Contact Us For Availability
832
Title LGE SAC35693702 Contact Us For Availability
840
PCB Assembly LGE EBR75261801 Contact Us For Availability
850
Screw,Machine LGE FAB30260401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73775604 Contact Us For Availability
1001
Cover LGE MCK66964901 Contact Us For Availability
1002
Guide LGE MEA62870001 Contact Us For Availability
1003
Lever LGE MFC62469601 Contact Us For Availability
1004
Lever LGE MFC62469701 Contact Us For Availability
1005
Spring LGE MHY39334801 Contact Us For Availability
1006
Spring LGE MHY62824731 Contact Us For Availability
1007
Spring LGE MHY62824721 Contact Us For Availability
1008
Spring LGE MHY62824711 Contact Us For Availability
1009
Spring LGE MHY62824701 Contact Us For Availability
1011
Base LGE MAM62664101 Contact Us For Availability
1012
Guide LGE MEA62870101 Contact Us For Availability
1013
Plate LGE MGJ63181401 Contact Us For Availability
1014
Lever LGE MFC62469801 Contact Us For Availability
1015
Belt LGE MAS62103801 Contact Us For Availability
1016
Door LGE MCV62493301 Contact Us For Availability
1017
Sheet LGE MHK63610301 Contact Us For Availability
1020
Base LGE MAM62644001 Contact Us For Availability
1021
Cover LGE MCK67489201 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1030
Cable,FFC LGE EAD62116703 Contact Us For Availability
1031
Cable,FFC LGE EAD62038901 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522404 Contact Us For Availability
1435
Screw,Customized LGE FAB31442001 Contact Us For Availability
1436
Screw,Customized LGE FAB31442101 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1438
Screw,Customized LGE 353-028H Contact Us For Availability
A001
PCB Assembly,Deck LGE EBR76241101 Contact Us For Availability
A002
Holder Assembly LGE AEJ73539501 Contact Us For Availability
A003
Frame Assembly LGE ADV74147301 Contact Us For Availability
A004
Motor Assembly,DC LGE EAU61704301 Contact Us For Availability
A005
Gear Assembly LGE ADY73009301 Contact Us For Availability
A41
PCB Assembly LGE EBR76761601 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL74117402 Contact Us For Availability
A44
Frame Assembly LGE ADV74447701 Contact Us For Availability
A45
PCB Assembly LGE EBR76753401 Contact Us For Availability
A46
Option Code Assembly LGE EBR76383503 Contact Us For Availability
A47
PCB Assembly LGE EBR76561003 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR76762801 Contact Us For Availability
A51
Module,WLAN LGE EAT61853501 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A53
PCB Assembly,Keypad LGE EBR76712101 Contact Us For Availability
A81A
PCB Assembly LGE EBR76733801 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR76786401 Contact Us For Availability
A330
Board Assembly LGE AAX73950601 Contact Us For Availability
A600
Speaker System Total LGE TCG35489651 Contact Us For Availability
A700
Speaker System Total LGE TCG35489851 Contact Us For Availability
A800
Speaker System Total LGE TCG35489951 Contact Us For Availability
A800B
Base Assembly LGE AAN74256201 Contact Us For Availability
A800M
Cover Assembly LGE ACQ86452202 Contact Us For Availability
A800T
Cover Assembly LGE ACQ86452203 Contact Us For Availability
A900
Speaker System Total LGE TCG35348957 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986801 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
C1A4
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C1A5
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2P3
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C2U2
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C5D4
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C5G0
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C152
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C161
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C169
Capacitor,Ceramic,Chip LGE 0CK332BKF6A Contact Us For Availability
C173
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C182
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C184
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C195
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C235
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C308
Capacitor,AL,Chip LGE 0CH8226C621 Contact Us For Availability
C309
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C314
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C319
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C322
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C325
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C327
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C328
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C436
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
C600
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C710
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C748
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,AL,Radial LGE 0CE127JV640 Contact Us For Availability
C904
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C906
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C908
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C910
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C910
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C911
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C912
CAPACITOR LGE 624-087D Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C913
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C914
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C916
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C918
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C919
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C920
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C925
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C927
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE108CK650 Contact Us For Availability
C937
Capacitor,Ceramic,Chip LGE 0CH4470K416 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA302
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CA402
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
CABLE1
Cable,FFC LGE EAD42794704 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62118002 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62113105 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62228004 Contact Us For Availability
CABLE5
Harness,Single LGE EAD35863007 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD62041901 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN105
Connector,Wafer LGE EAG61452601 Contact Us For Availability
CN152
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
CN201
Connector,Wafer LGE EAG63192901 Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE 6630R-FB11R Contact Us For Availability
CN302
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN401
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
CN601
Connector,BtoB LGE 6630R-BF07R Contact Us For Availability
CN801
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN802
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN901
Harness,Single LGE EAD52412103 Contact Us For Availability
CN901
WAFER LGE 6602T25008J Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
D101
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D401
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D801
Diode,TVS LGE EAH61515001 Contact Us For Availability
D807
Diode,TVS LGE EAH56919501 Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D901
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D902
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D903
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D913
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D924
Diode,Switching LGE EAH30982401 Contact Us For Availability
D925
Diode,Rectifier LGE EAH61233501 Contact Us For Availability
D928
Diode,Schottky LGE EAH60705801 Contact Us For Availability
D951
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D951
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
DIS301
VFD LGE EAJ60868413 Contact Us For Availability
DIS301
VFD LGE EAJ60868410 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
FB903
Filter,Bead LGE EAM38769505 Contact Us For Availability
FL902
Filter,Line Noise LGE EAM60672506 Contact Us For Availability
FR952
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
IC3T1A
S/W,System Program LGE SAA36297201 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36296701 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101
IC,EEPROM LGE EAN60743402 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC151
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC155
IC,LDO Voltage Regulator LGE EAN62401401 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC302
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC401
IC,Digital Signal Processors LGE EAN62673601 Contact Us For Availability
IC402
IC,SDRAM LGE EAN62627901 Contact Us For Availability
IC402
IC,SDRAM LGE EAN62333202 Contact Us For Availability
IC403A
S/W,System Program LGE SAA36296901 Contact Us For Availability
IC405
IC,LDO Voltage Regul LGE EAN37068001 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62626903 Contact Us For Availability
IC502
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61859702 Contact Us For Availability
IC506A
S/W,System Program LGE SAA36296601 Contact Us For Availability
IC601
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC602
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
IC801
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62388901 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN61926001 Contact Us For Availability
IC903
IC,Voltage Regulator LGE EAN37663801 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK2U3
Connector,USB LGE EAG63217801 Contact Us For Availability
JK201
Jack,RCA LGE EAG63036711 Contact Us For Availability
JK802
Connector,HDMI LGE EAG62611205 Contact Us For Availability
JK804
Jack,Modular LGE EAG63393501 Contact Us For Availability
L150
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L201
Inductor,Multilayer,Chip LGE EAP39314704 Contact Us For Availability
L704
Filter,Bead LGE EAM42641607 Contact Us For Availability
L716
Coil,Choke LGE EAP62127101 Contact Us For Availability
L922
COIL,RF LGE 6140RCC003H Contact Us For Availability
LB403
Filter,Bead LGE EAM60887204 Contact Us For Availability
LB806
Filter,Bead LGE EAM62155401 Contact Us For Availability
LD5
LED,Chip LGE EAV61312301 Contact Us For Availability
LF901
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
LF902
Filter,Line Noise LGE EAM61230102 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC902
Photo,Coupler LGE EAV61253101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q105
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q304
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q901
FET LGE 0TFFN10009A Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q901
FET LGE 0TFST10008A Contact Us For Availability
Q910
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q910
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q912
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q913
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q913
TR,Bipolar LGE 0TRAU80028A Contact Us For Availability
Q915
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q916
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q951
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R1B8
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1C2
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R1E3
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R1F6
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1H0
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R1H2
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1H5
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R1H6
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R1H7
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1H9
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1K7
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R1K8
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R1M2
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R1M4
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R1M5
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R1N2
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R1N4
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R3T19
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R5D1
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R103
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R305
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R337
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R355
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R490
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R491
Resistor,Chip LGE 0RH4700C422 Contact Us For Availability
R492
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R509
Resistor,Chip LGE ERHY0008207 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R536
Resistor,Chip LGE EBC61155501 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R584
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R600
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R746
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R833
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0182F608 Contact Us For Availability
R903
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0390K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R906
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R907
Resistor,Metal Oxide Film LGE EBC62498201 Contact Us For Availability
R911
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R913
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R918
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R925
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R926
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R927
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R934
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R937
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R941
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R942
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R944
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R946
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R947
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R948
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R951
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R951
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R952
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM 6.8 LGE 0RD6801F608 Contact Us For Availability
R954
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R954
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R957
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R961
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
RC3A7
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
RC3A9
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
RC3B4
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
RC3B6
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
RC3C0
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
RC3D1
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
RC3D7
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
RC301
Receiver Module LGE EAV41920002 Contact Us For Availability
RC309
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
RC380
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
RC386
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
RC390
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
RCN301
Harness,Single LGE EAD43572707 Contact Us For Availability
RCN303
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
RD303
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
RIC301
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
RIC302
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
RIC304
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
RIC305A
S/W,System Program LGE SAA35932204 Contact Us For Availability
RIC306
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
RIC307
IC,LDO Voltage Regulator LGE EAN62006101 Contact Us For Availability
RIC312
IC,DC,DC Converter LGE EAN61127301 Contact Us For Availability
RL309
Filter,Bead LGE EAM38769502 Contact Us For Availability
RL317
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
RLED301
LED Assembly LGE EAV61919501 Contact Us For Availability
RQ303
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
RQ308
FET LGE EBK62033601 Contact Us For Availability
RR3C6
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
RR3J3
Resistor,Chip LGE EBC42830501 Contact Us For Availability
RR3J7
Resistor,Chip LGE ERHZ0000219 Contact Us For Availability
RR303
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
RR305
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
RR321
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
RR364
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
RR368
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
RR370
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
RR371
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
RR377
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
RR387
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
RSW301
Switch,Tact LGE EBF52268801 Contact Us For Availability
RTM302
Connector,Terminal Block LGE EAG63374002 Contact Us For Availability
RX303
Crystal LGE 6212AB2192K Contact Us For Availability
RZD305
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
RZD306
Diode,Zener LGE EAH39305801 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770137 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770136 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH910
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
TM702
Connector,Terminal Block LGE EAG63374005 Contact Us For Availability
TUN201
Tuner,Analog LGE EBL60740004 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
Cable,Assembly LGE EAD62377116 Contact Us For Availability
WIRE61
Cable,Assembly LGE EAD62377115 Contact Us For Availability
WIRE70
Cable,Assembly LGE EAD62377101 Contact Us For Availability
WIRE80
Cable,Assembly LGE EAD62377117 Contact Us For Availability
WIRE81
Cable,Assembly LGE EAD62377118 Contact Us For Availability
WIRE90
Cable,Assembly LGE EAD62377103 Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
X650
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
ZD301
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD903
Diode,Zener LGE EAH43050901 Contact Us For Availability
ZD903
Diode,Zener LGE EAH61132701 Contact Us For Availability
ZD903
Diode,Zener LGE EAH61433901 Contact Us For Availability
ZD904
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
ZD905
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD906
Diode,Zener LGE 0DZPH00108A Contact Us For Availability
ZD908
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AJ Contact Us For Availability
ZD909
Diode,Zener LGE EAH61433801 Contact Us For Availability
× ![]()
Login and Registration Form
