Model LG BH9420PW – Common Parts & Diagrams
Diagram 0
Diagram 1

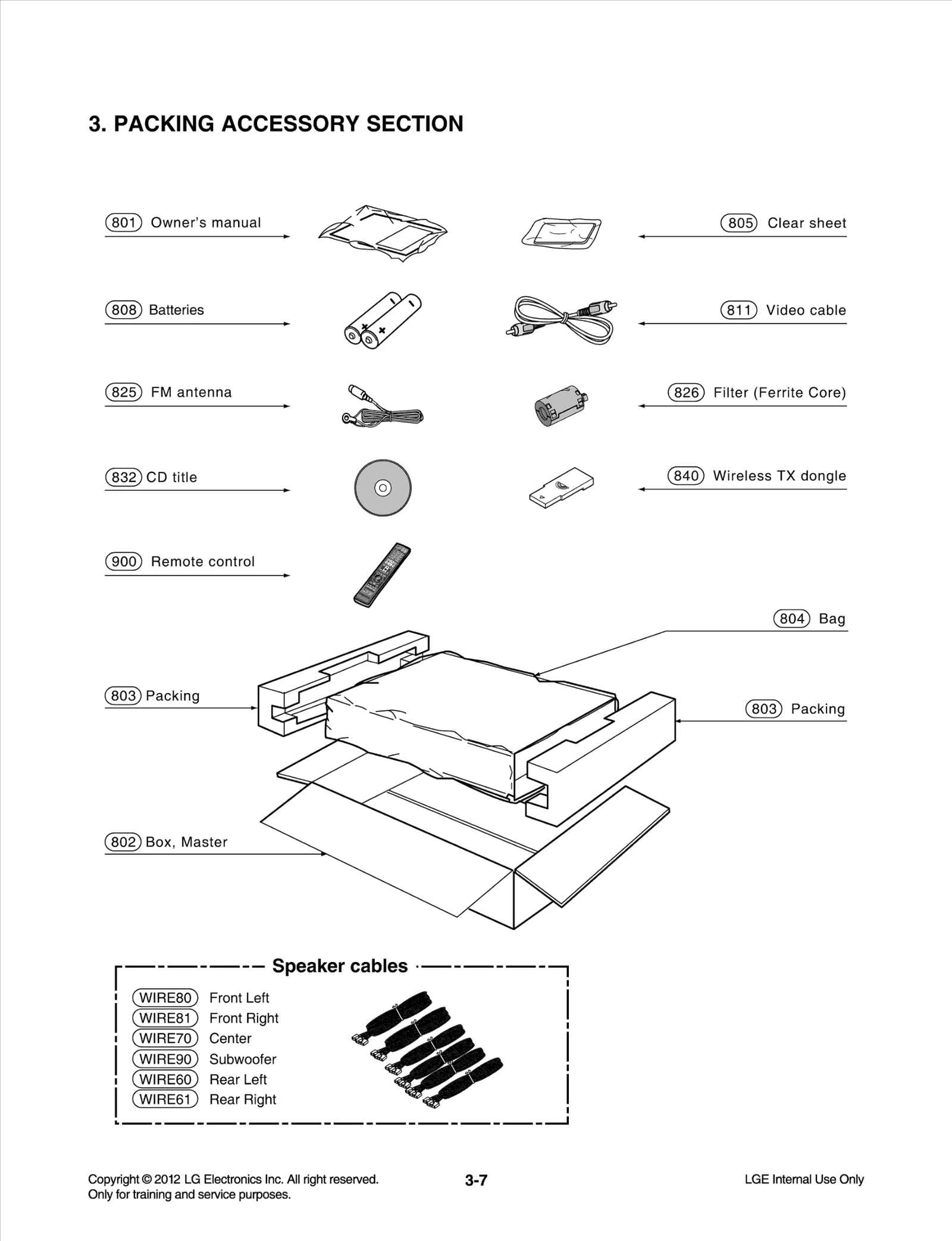

Diagram 2

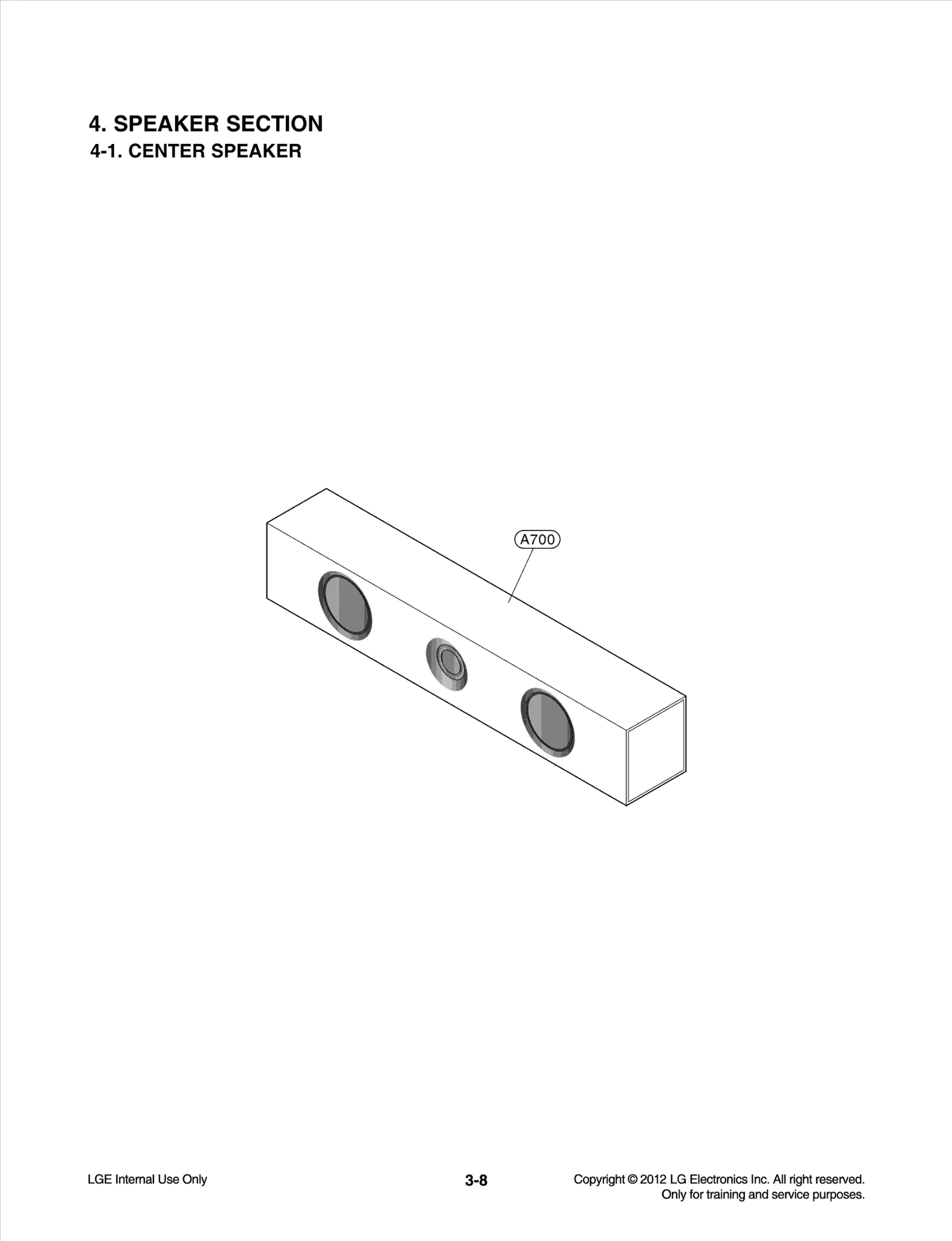

Diagram 3

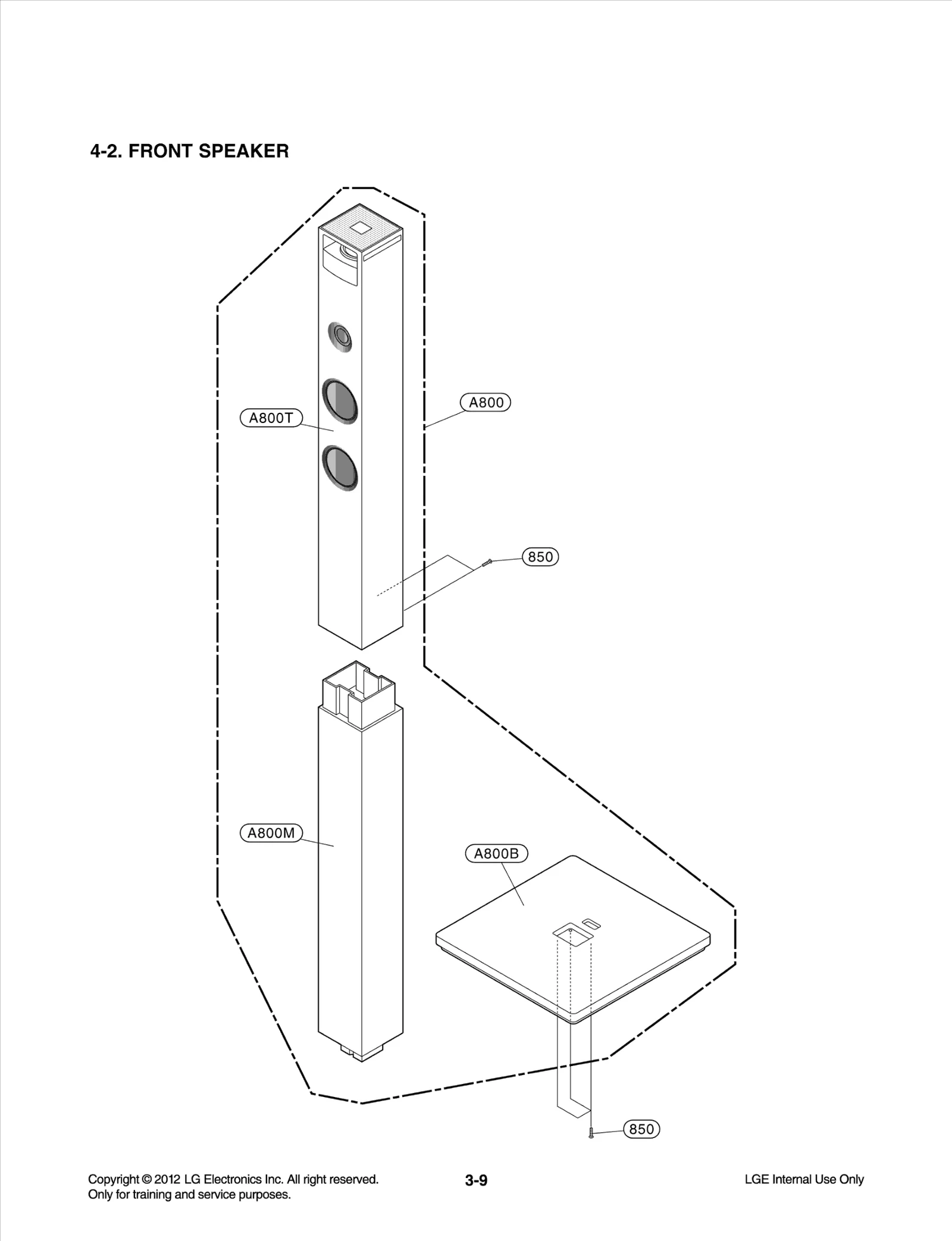

Diagram 4

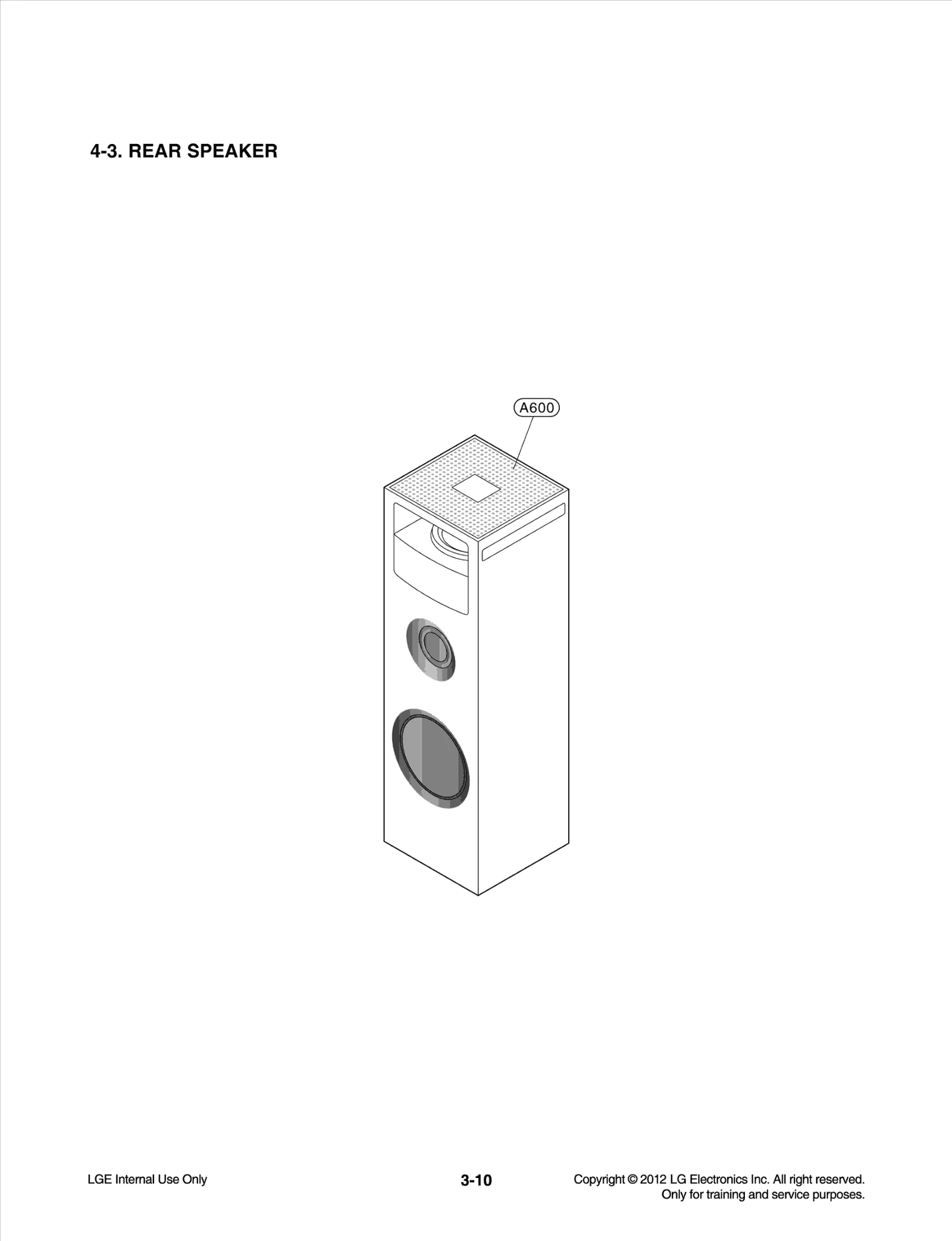

Diagram 5

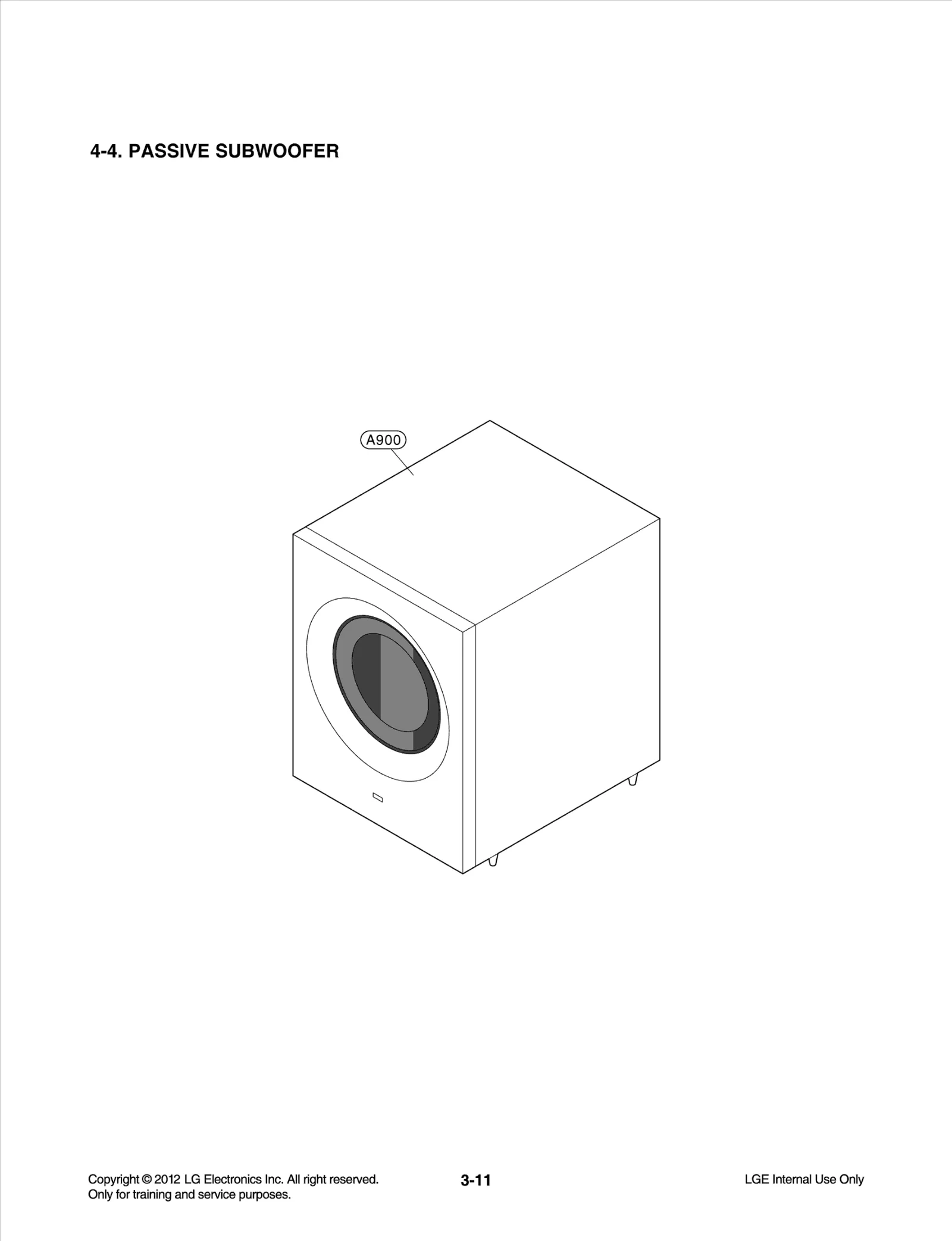

Diagram 6

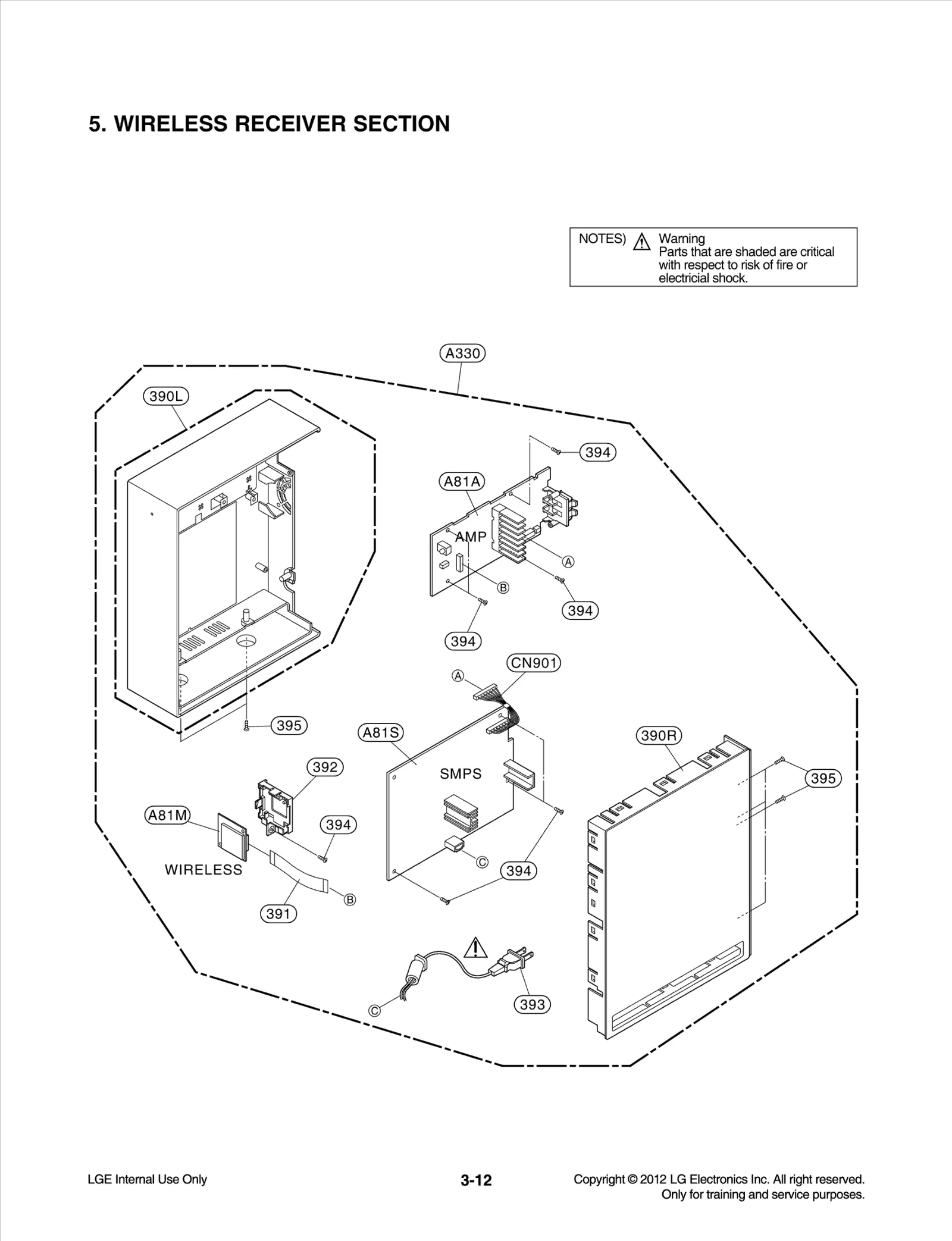

Diagram 7
Common parts from model LG BH9420PW
250
Case Assembly LGE ABQ73980715 Contact Us For Availability
250L
Cover LGE MCK66955503 Contact Us For Availability
250R
Cover LGE MCK66955504 Contact Us For Availability
260
Chassis LGE MBS62385701 Contact Us For Availability
261
RUBBER LGE 5040R-0069Q Contact Us For Availability
262
Cover LGE MCK66955601 Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
275
Plate LGE 3300RCH001C Contact Us For Availability
285
Gasket LGE MDS63914701 Contact Us For Availability
300
Power Cord LGE EAD60816612 Contact Us For Availability
320
Panel,Rear LGE MGC62699607 Contact Us For Availability
390L
Cover Assembly LGE ACQ85928301 Contact Us For Availability
390R
Cover LGE MCK67107001 Contact Us For Availability
391
Cable,FFC LGE EAD62096101 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
393
Power Cord LGE EAD60816602 Contact Us For Availability
394
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
395
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75694165 Contact Us For Availability
802
Box,Master LGE MAY65251039 Contact Us For Availability
803
Packing LGE MFZ63331405 Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
805
Sheet LGE MHK37290703 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
825
Antenna,T LGE EAA56671902 Contact Us For Availability
832
Title LGE SAC35493501 Contact Us For Availability
840
PCB Assembly LGE EBR75261801 Contact Us For Availability
850
Screw,Customized LGE FAB31421101 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655501 Contact Us For Availability
1001
Cover LGE MCK66964901 Contact Us For Availability
1002
Guide LGE MEA62870001 Contact Us For Availability
1003
Lever LGE MFC62469601 Contact Us For Availability
1004
Lever LGE MFC62469701 Contact Us For Availability
1005
Spring LGE MHY39334801 Contact Us For Availability
1006
Spring LGE MHY62824731 Contact Us For Availability
1007
Spring LGE MHY62824721 Contact Us For Availability
1008
Spring LGE MHY62824711 Contact Us For Availability
1009
Spring LGE MHY62824701 Contact Us For Availability
1011
Base LGE MAM62664101 Contact Us For Availability
1012
Guide LGE MEA62870101 Contact Us For Availability
1013
Plate LGE MGJ63181401 Contact Us For Availability
1014
Lever LGE MFC62469801 Contact Us For Availability
1015
Belt LGE MAS62103801 Contact Us For Availability
1016
Door LGE MCV62493301 Contact Us For Availability
1017
Sheet LGE MHK63610301 Contact Us For Availability
1020
Base LGE MAM62644001 Contact Us For Availability
1021
Cover LGE MCK66965001 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1030
Cable,FFC LGE EAD62038801 Contact Us For Availability
1031
Cable,FFC LGE EAD62038901 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522401 Contact Us For Availability
1435
Screw,Customized LGE FAB31442001 Contact Us For Availability
1436
Screw,Customized LGE FAB31442101 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1438
Screw,Customized LGE 353-028H Contact Us For Availability
A001
PCB Assembly,Deck LGE EBR74305501 Contact Us For Availability
A002
Holder Assembly LGE AEJ73539501 Contact Us For Availability
A003
Frame Assembly LGE ADV74147301 Contact Us For Availability
A004
Motor Assembly,DC LGE EAU61704301 Contact Us For Availability
A005
Gear Assembly LGE ADY73009301 Contact Us For Availability
A41
PCB Assembly LGE EBR74875001 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL73872504 Contact Us For Availability
A44
Frame Assembly LGE ADV74225608 Contact Us For Availability
A45
PCB Assembly LGE EBR74984001 Contact Us For Availability
A46
Option Code Assembly LGE EBR74935402 Contact Us For Availability
A47
PCB Assembly LGE EBR74826323 Contact Us For Availability
A50
PCB Assembly LGE EBR74874401 Contact Us For Availability
A51
Module,WLAN LGE EAT61613201 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61633101 Contact Us For Availability
A81A
PCB Assembly LGE EBR74914401 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR73087251 Contact Us For Availability
A330
Board Assembly LGE AAX73748107 Contact Us For Availability
A600
Front Speaker System LGE TCG35209757 Contact Us For Availability
A700
Center Speaker System LGE TCG35248657 Contact Us For Availability
A800
Front Speaker System LGE TCG35188557 Contact Us For Availability
A800B
Base Assembly LGE AAN73930701 Contact Us For Availability
A800M
Cover Assembly LGE ACQ85735604 Contact Us For Availability
A800T
Cover Assembly LGE ACQ85735601 Contact Us For Availability
A900
Pasive Woofer LGE TCG35188657 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD42794704 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62118001 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62113103 Contact Us For Availability
CABLE4
Harness,Single LGE EAD35863007 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62113005 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
CN901
Harness,Single LGE EAD52412103 Contact Us For Availability
WIRE60
Cable,Assembly LGE EAD61811010 Contact Us For Availability
WIRE61
Cable,Assembly LGE EAD61811011 Contact Us For Availability
WIRE70
Cable,Assembly LGE EAD61811001 Contact Us For Availability
WIRE80
Cable,Assembly LGE EAD61811003 Contact Us For Availability
WIRE81
Cable,Assembly LGE EAD61811004 Contact Us For Availability
WIRE90
Cable,Assembly LGE EAD61811009 Contact Us For Availability
× ![]()
