Model LG BH6820SW – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG BH6820SW
260
Chassis LGE MBS62406102 Contact Us For Availability
261
Damper LGE MCQ32325001 Contact Us For Availability
262
Cover LGE MCK66955601 Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
281
Cover LGE MCK66976801 Contact Us For Availability
300
Power Cord LGE EAD60816723 Contact Us For Availability
300
Power Cord LGE EAD61311904 Contact Us For Availability
320
Panel,Rear LGE MGC62720711 Contact Us For Availability
390L
Cover Assembly LGE ACQ85928301 Contact Us For Availability
390R
Cover LGE MCK67107001 Contact Us For Availability
391
Cable,FFC LGE EAD62131501 Contact Us For Availability
391
Cable,FFC LGE EAD62096101 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
393
Power Cord LGE EAD60816717 Contact Us For Availability
394
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
395
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability

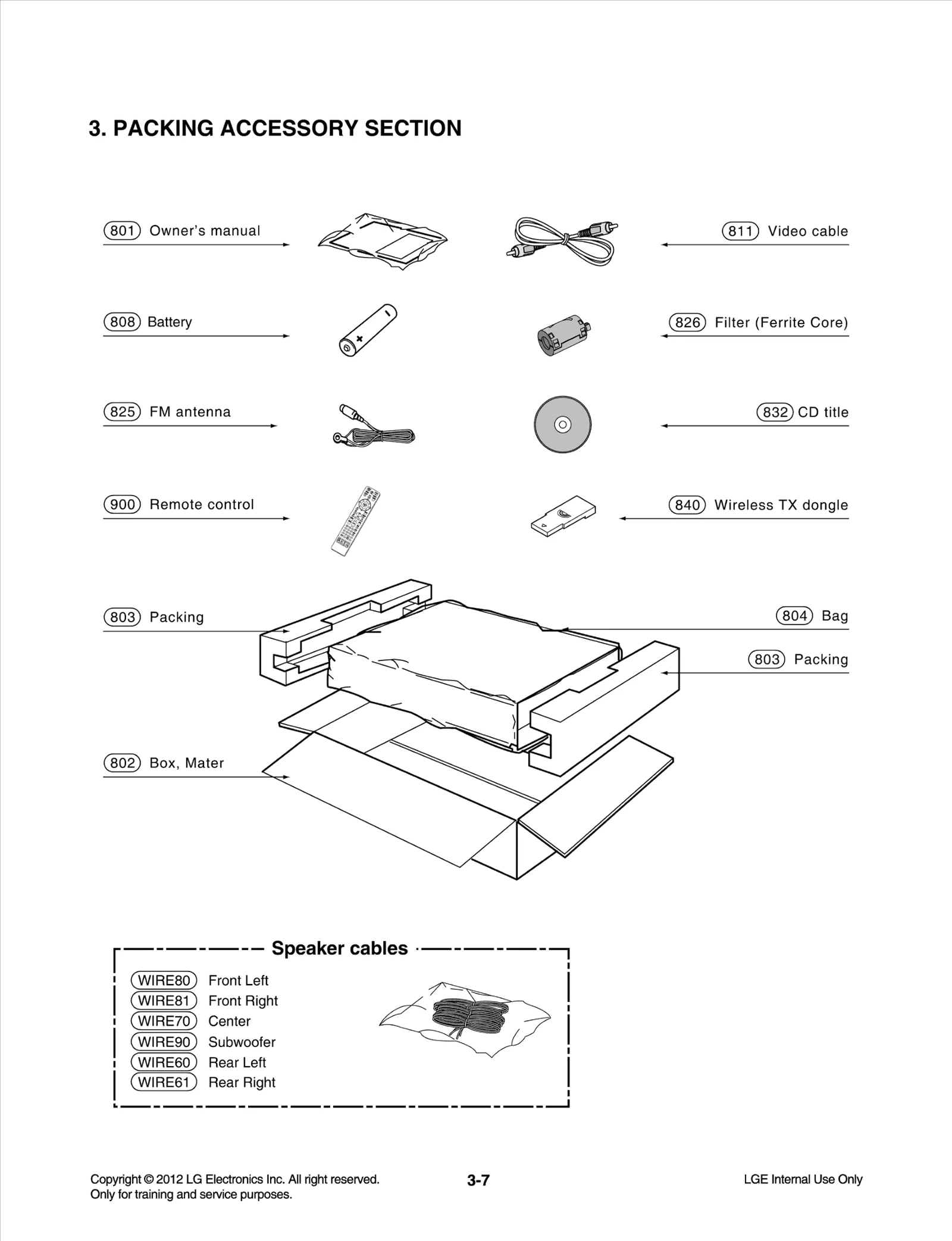

801
Manual Assembly,Owners LGE AFN75694166 Contact Us For Availability
802
Box,Master LGE MAY65531113 Contact Us For Availability
803
Packing LGE MFZ63331403 Contact Us For Availability
804
Bag LGE MAF62209401 Contact Us For Availability
808
Battery,Manganese LGE 6910F00010B Contact Us For Availability
808
Primary Cell Battery,Carbon Zinc LGE EAC42053702 Contact Us For Availability
808
Battery,Manganese LGE EAC42053701 Contact Us For Availability
811
Cable,Assembly LGE EAD38884521 Contact Us For Availability
811
Cable,Assembly LGE 6850R-PAA5M Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
825
Antenna,T LGE EAA56671902 Contact Us For Availability
832
Title LGE SAC35474802 Contact Us For Availability
840
PCB Assembly LGE EBR75261801 Contact Us For Availability
1001
Clamp Assembly LGE ACA73189401 Contact Us For Availability
1002
Cover LGE MCK66956901 Contact Us For Availability
1003
Clamp LGE MBU62345801 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB33072101 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM62647801 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62532201 Contact Us For Availability
1030
Cable,FFC LGE EAD61048209 Contact Us For Availability
1035
Cable,FFC LGE EAD61049005 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522401 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522402 Contact Us For Availability
1050
Cover LGE MCK66957001 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ85947901 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74672402 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU61324101 Contact Us For Availability
A41
PCB Assembly LGE EBR74875051 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL73954706 Contact Us For Availability
A44
Frame Assembly LGE ADV74287406 Contact Us For Availability
A45
PCB Assembly LGE EBR75004001 Contact Us For Availability
A46
Option Code Assembly LGE EBR74987002 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR75052901 Contact Us For Availability
A50
PCB Assembly LGE EBR74961701 Contact Us For Availability
A51
Module,WLAN LGE EAT61613201 Contact Us For Availability
A81A
PCB Assembly LGE EBR74914451 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR72919451 Contact Us For Availability

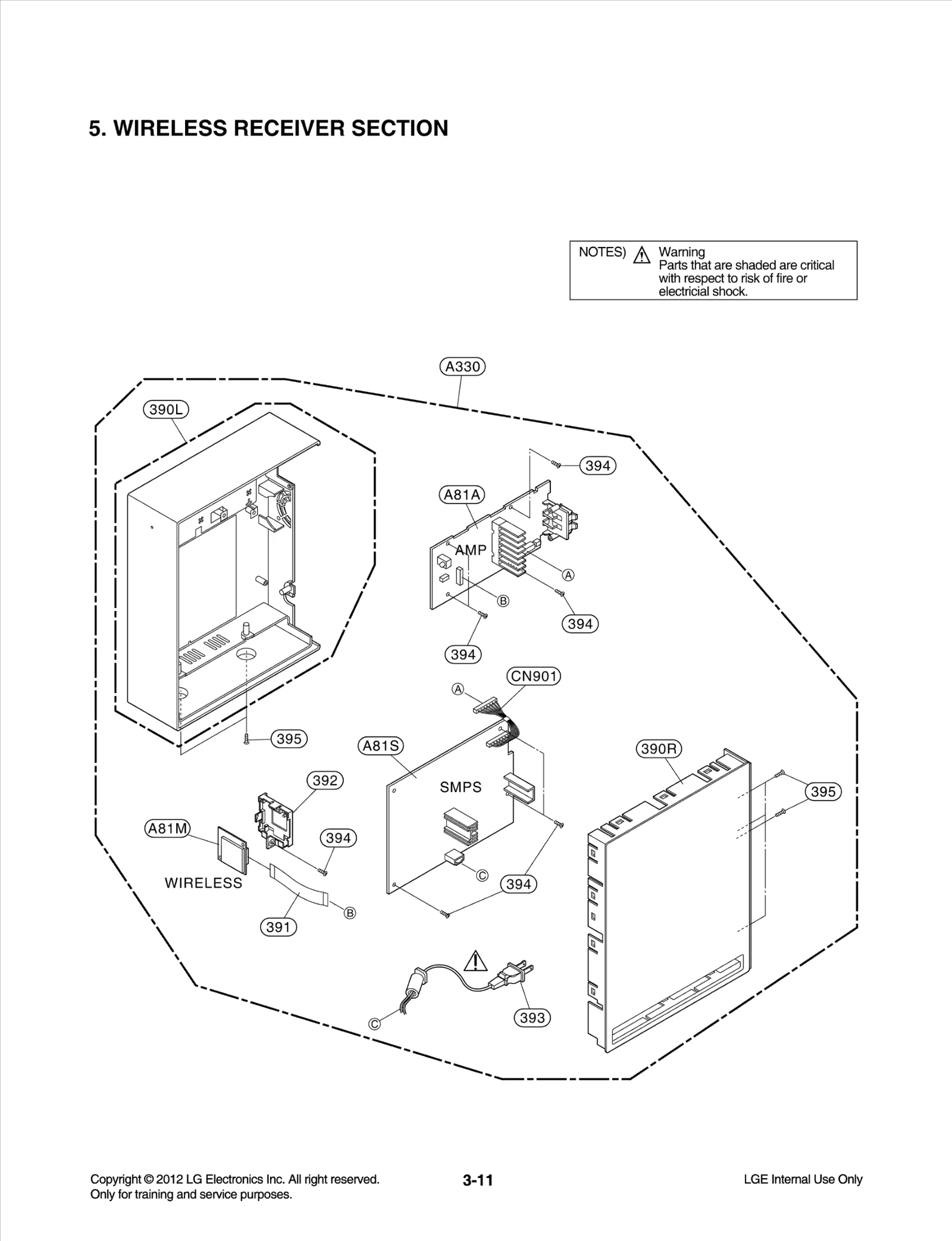

A330
Board Assembly LGE AAX73788901 Contact Us For Availability

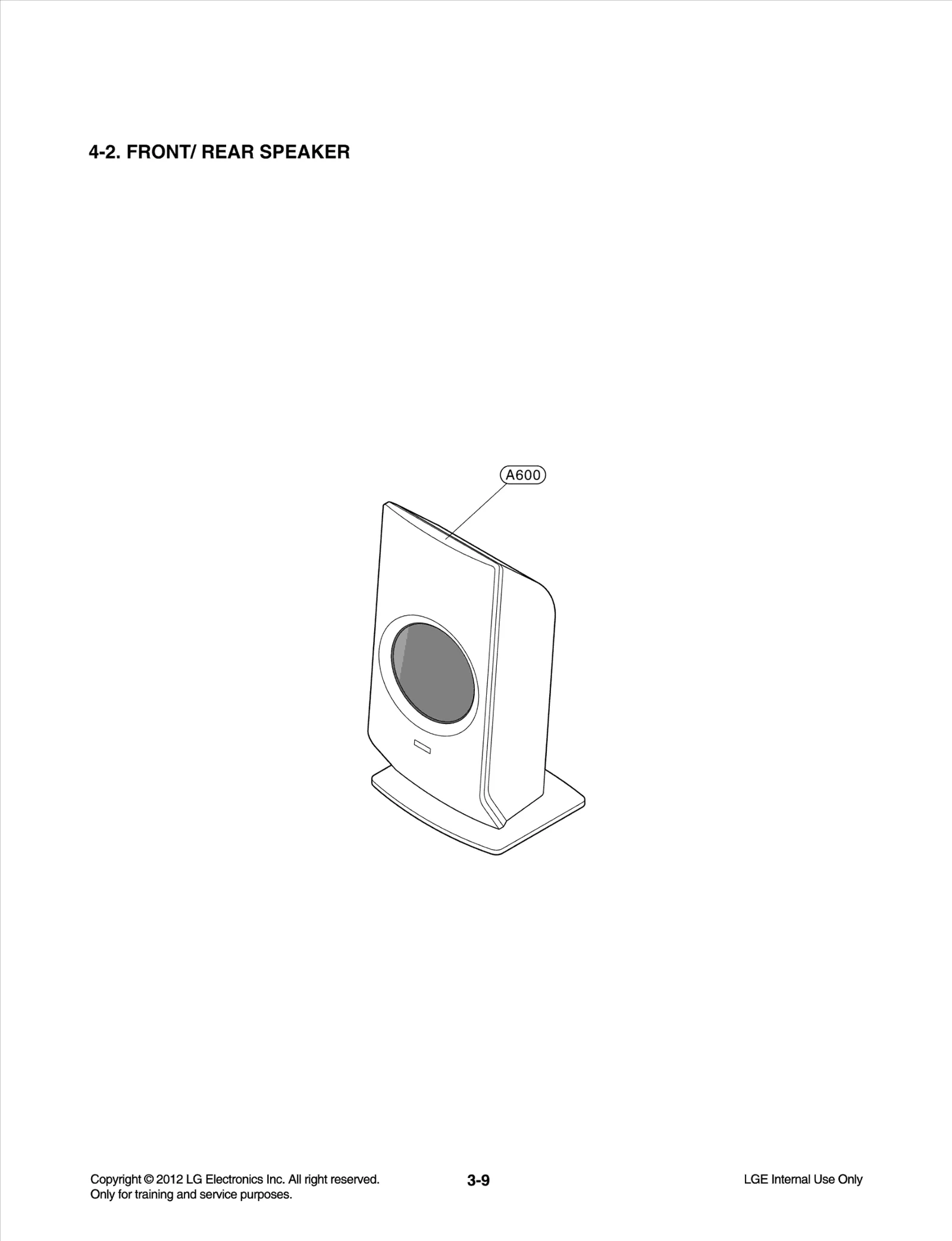

A600
External Wireless Speaker System LGE TCG35251507 Contact Us For Availability

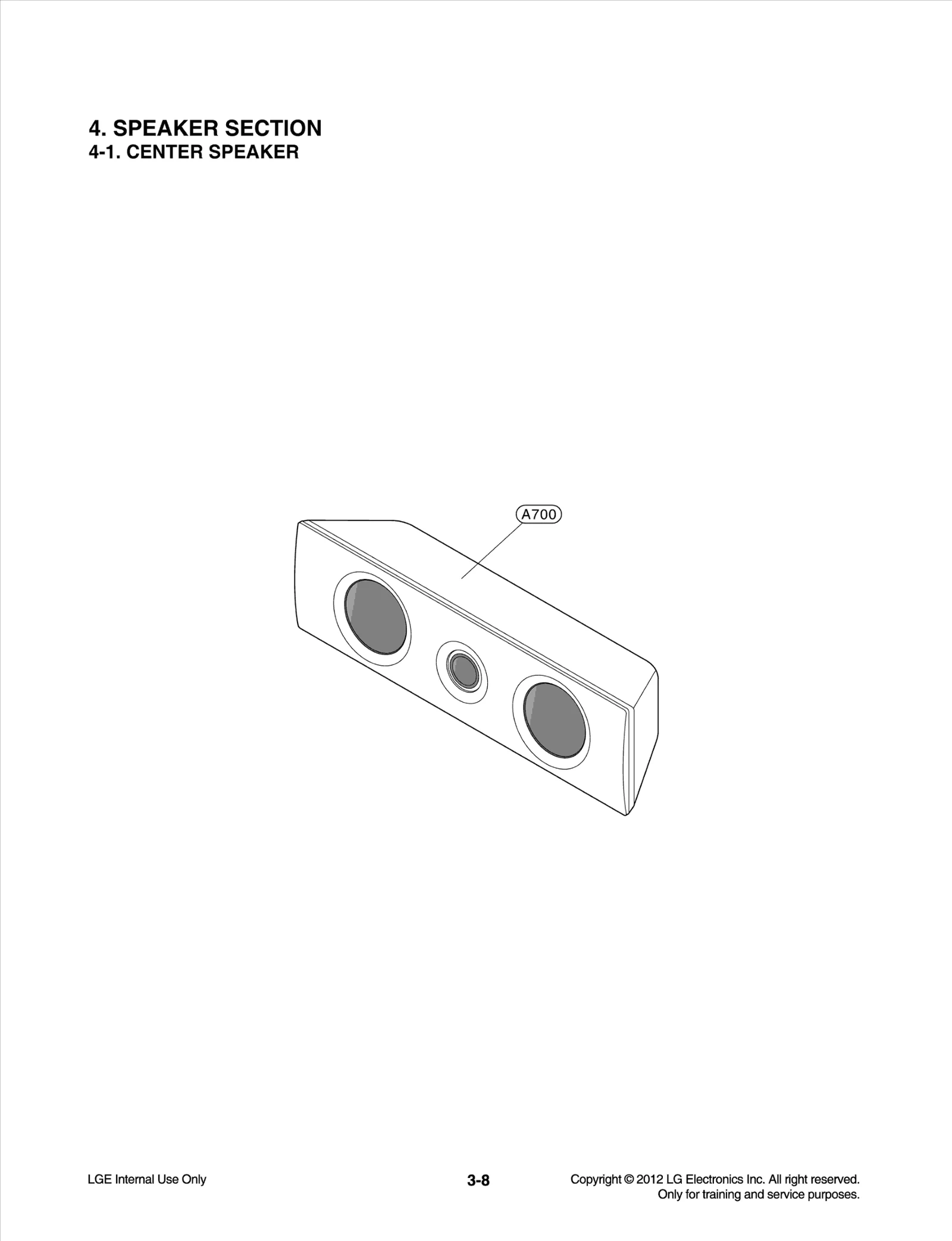

A700
External Wireless Speaker System LGE TCG35251607 Contact Us For Availability

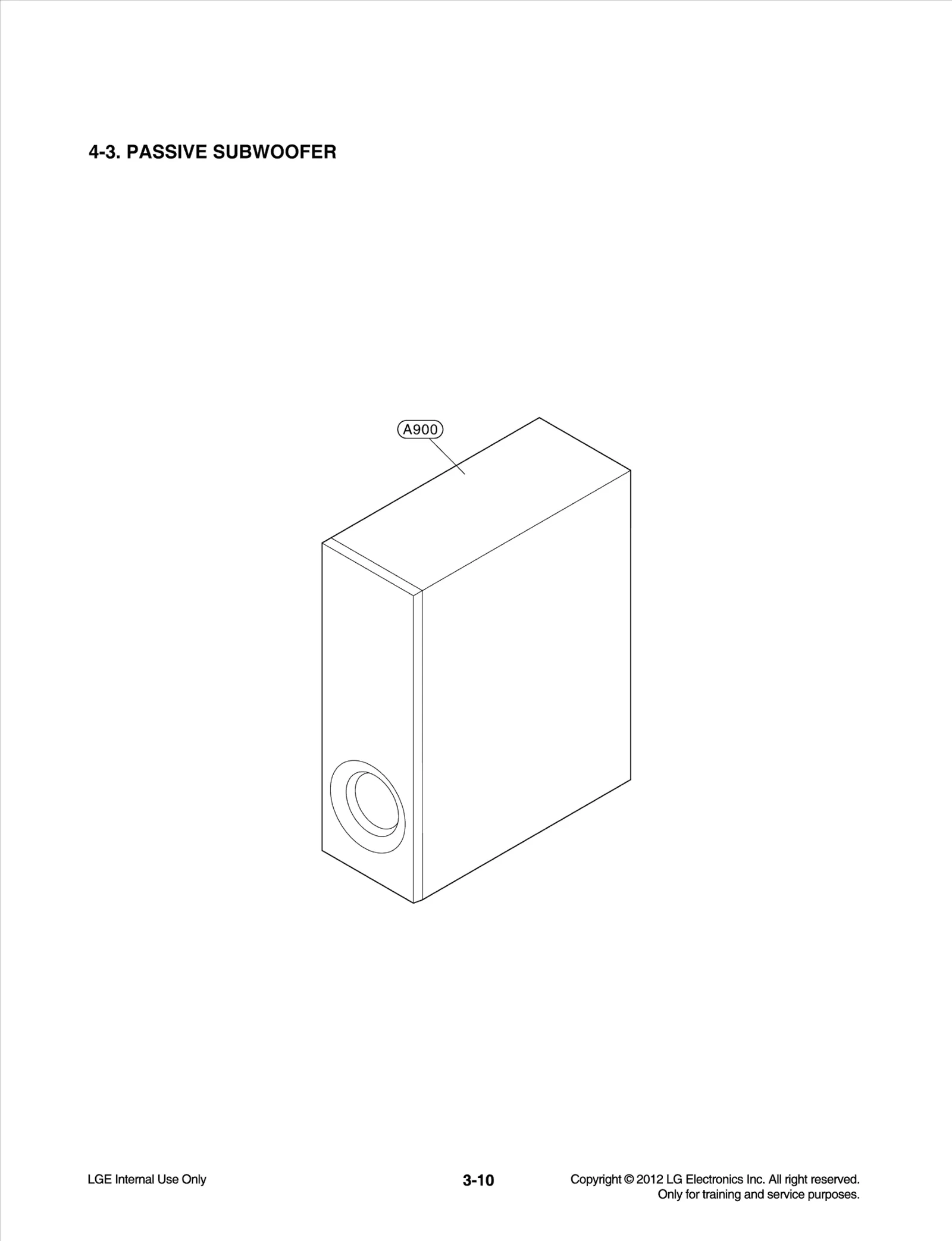

A900
External Wireless Speaker System LGE TCG35250907 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
BD901
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C1A1
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C1E8
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1E9
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1F1
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C1G4
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C1G7
Capacitor,Ceramic,Ch LGE 0CK472BHG6A Contact Us For Availability
C1H2
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C2P2
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C5C2
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C7A9
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C101
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C127
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C224
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C232
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C238
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C246
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C304
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C309
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C319
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C551
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C592
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C626
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C638
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C710
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C711
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C718
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C732
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C745
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C752
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C759
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C761
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C768
Capacitor,Ceramic,Chip LGE 0CK392BK5CA Contact Us For Availability
C776
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C901
Capacitor,AL,Radial LGE EAE30396901 Contact Us For Availability
C903
Capacitor,AL,Chip LGE 0CZZR00033A Contact Us For Availability
C904
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C906
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C908
Capacitor,Film,DIP LGE 0CQ2222K409 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C910
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C917
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C920
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C920
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C922
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C923
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C925
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C931
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C933
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C938
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C950
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C952
CAPACITOR LGE 624-087D Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C954
Capacitor,Ceramic,Axial LGE 0CN1050K949 Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C956
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C958
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C959
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C960
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C962
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C966
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
CA108
Capacitor,AL,Chip LGE 0CZZQE3009A Contact Us For Availability
CA217
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
CA510
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
CA511
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
CA702
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35201501 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62113104 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62040501 Contact Us For Availability
CABLE4
Harness,Single LGE EAD35863003 Contact Us For Availability
CF809
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CN101
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN103
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN150
Connector,Wafer LGE EAG61452601 Contact Us For Availability
CN201
Connector,Wafer LGE EAG63192901 Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
CN250
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
CN252
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN305
Connector,FFC/FPC/PIC LGE 6630R-FB11R Contact Us For Availability
CN401
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
CN601
Connector,BtoB LGE 6630R-BF07R Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
CN901
Harness,Single LGE EAD52412106 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
D201
Diode,Switching LGE EAH35293601 Contact Us For Availability
D301
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D902
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
D904
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D918
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D922
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D922
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D931
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D933
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D950
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D951
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D952
Diode,Switching LGE EAH31951401 Contact Us For Availability
D955
Diode,Schottky LGE EAH43054501 Contact Us For Availability
D955
Diode,Switching LGE EAH30982402 Contact Us For Availability
D958
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
DIS301
VFD LGE EAJ60868410 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35933401 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35961202 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC155
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC203
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62230601 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61829201 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61859701 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC504A
S/W,System Program LGE SAA35933301 Contact Us For Availability
IC505
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC601
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC602
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62395901 Contact Us For Availability
IC701
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC902
IC,PMIC LGE 0IPMG00075A Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC953
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK2P4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK2U3
Connector,USB LGE EAG63217801 Contact Us For Availability
JK203
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK250
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK251
Jack,RCA LGE EAG63211901 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611202 Contact Us For Availability
L1E1
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L1E4
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
L2V1
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L2V5
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L201
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L213
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L650
Filter,Bead LGE EAM42641607 Contact Us For Availability
L951
Coil,Choke LGE EAP60792101 Contact Us For Availability
L951
COIL,CHOKE LGE 633-088G Contact Us For Availability
LF901
FILTER(CIRC),EMC LGE 6200JB8014B Contact Us For Availability
LF901
Filter,Line Noise LGE EAM60672505 Contact Us For Availability
PC902
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC902
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC902
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q302
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q901
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q902
FET LGE EBK61572401 Contact Us For Availability
Q903
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q903
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q904
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q904
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q904
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q905
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q954
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q954
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R1A6
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R1C1
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R1C2
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R1F4
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1F5
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1G0
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R1G2
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R1G4
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R1H5
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R1H6
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R1H7
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2A1
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R2P1
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R2V1
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R8C0
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R303
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R306
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R345
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R591
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R600
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R703
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R717
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R718
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R736
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R740
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R758
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R784
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R787
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R790
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R861
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R915
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R916
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R917
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R918
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R924
Resistor,Metal Film LGE 0RN3001F409 Contact Us For Availability
R925
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R925
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R926
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R928
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R930
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
R931
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R936
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD2702F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R956
Resistor,Carbon Film LGE 0RD0681F609 Contact Us For Availability
R958
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R959
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R962
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R964
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R965
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R967
RESISTOR (METAL FILM) LGE 0RN1802F409 Contact Us For Availability
R969
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R970
Resistor,Metal Film LGE 0RN3901F409 Contact Us For Availability
R973
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R978
Resistor,Carbon Film LGE 0RD3303F609 Contact Us For Availability
R980
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
RC301
Receiver Module LGE EAV41920002 Contact Us For Availability
RC308
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
RC315
Capacitor,Ceramic,Chip LGE 0CH1222K566 Contact Us For Availability
RC321
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
RC328
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
RC371
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
RC380
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
RCN301
WAFER LGE 6602T25008J Contact Us For Availability
RCN303
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
RIC301
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
RIC303
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
RIC304
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
RIC305A
S/W,System Program LGE SAA35932201 Contact Us For Availability
RIC306
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
RJK301
Connector,Terminal Block LGE 6640000029C Contact Us For Availability
RL305
Coil,Choke LGE EAP62127101 Contact Us For Availability
RL309
Inductor,Multilayer,Chip LGE EAP60946212 Contact Us For Availability
RLED301
LED Assembly LGE EAV61493801 Contact Us For Availability
RQ303
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
RQ308
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
RR3A5
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
RR3C6
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
RR305
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
RR312
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
RR318
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
RR320
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
RR321
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
RR323
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
RR387
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
RR393
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
RSW301
Switch,Tact LGE EBF52268801 Contact Us For Availability
RX301
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
RX301
Crystal LGE EAW61645204 Contact Us For Availability
RX303
Crystal LGE 6212AB2192K Contact Us For Availability
RX303
Crystal LGE EAW61645210 Contact Us For Availability
SW306
Switch,Tact LGE 6600R000005 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770120 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770129 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770130 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TM700
Connector,Terminal Block LGE 6640000070E Contact Us For Availability
TUN01
Tuner,Analog LGE EBL60740004 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR72912703 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR72912701 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR72912702 Contact Us For Availability
WIRE90
PCB Assembly,Sub LGE EBR72912704 Contact Us For Availability
X101
Crystal LGE EAW61645203 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X501
Crystal LGE EAW61645208 Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD602
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD910
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD912
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD913
Diode,Zener LGE 0DZSE00154A Contact Us For Availability
ZD914
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD916
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD917
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD933
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD951
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
× ![]()
Login and Registration Form
