Model LG BH6730S – Common Parts & Diagrams

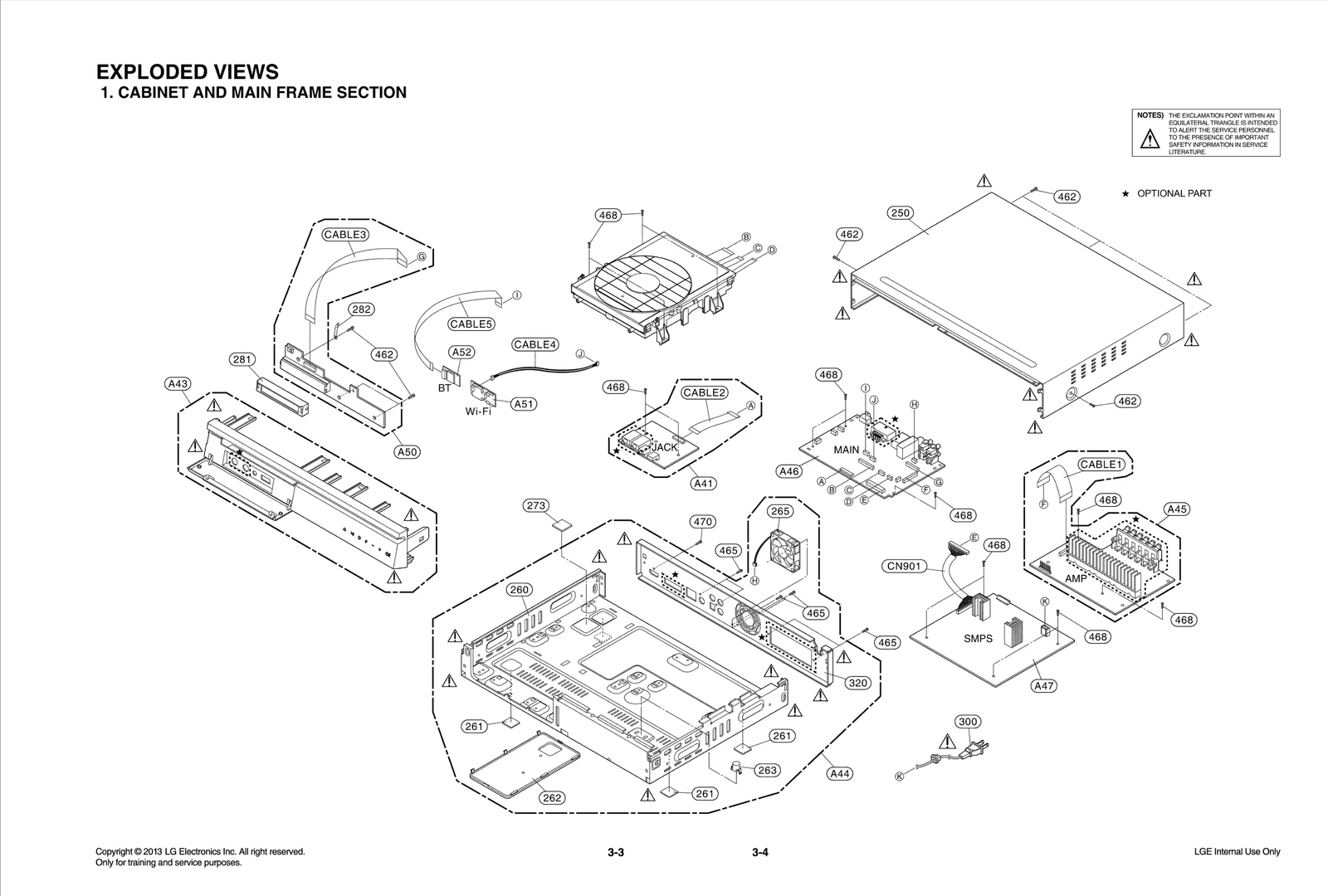

Diagram 0

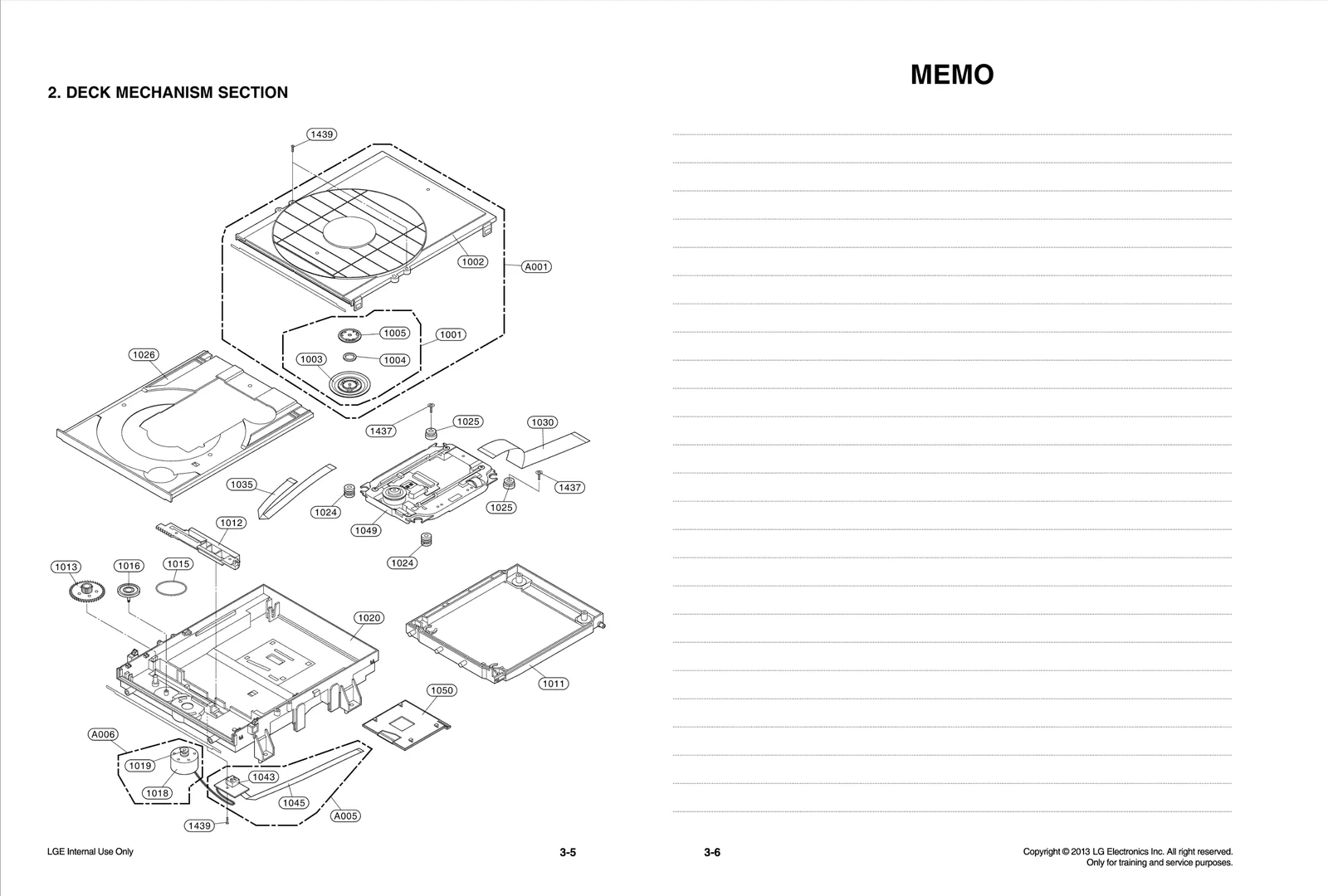

Diagram 1

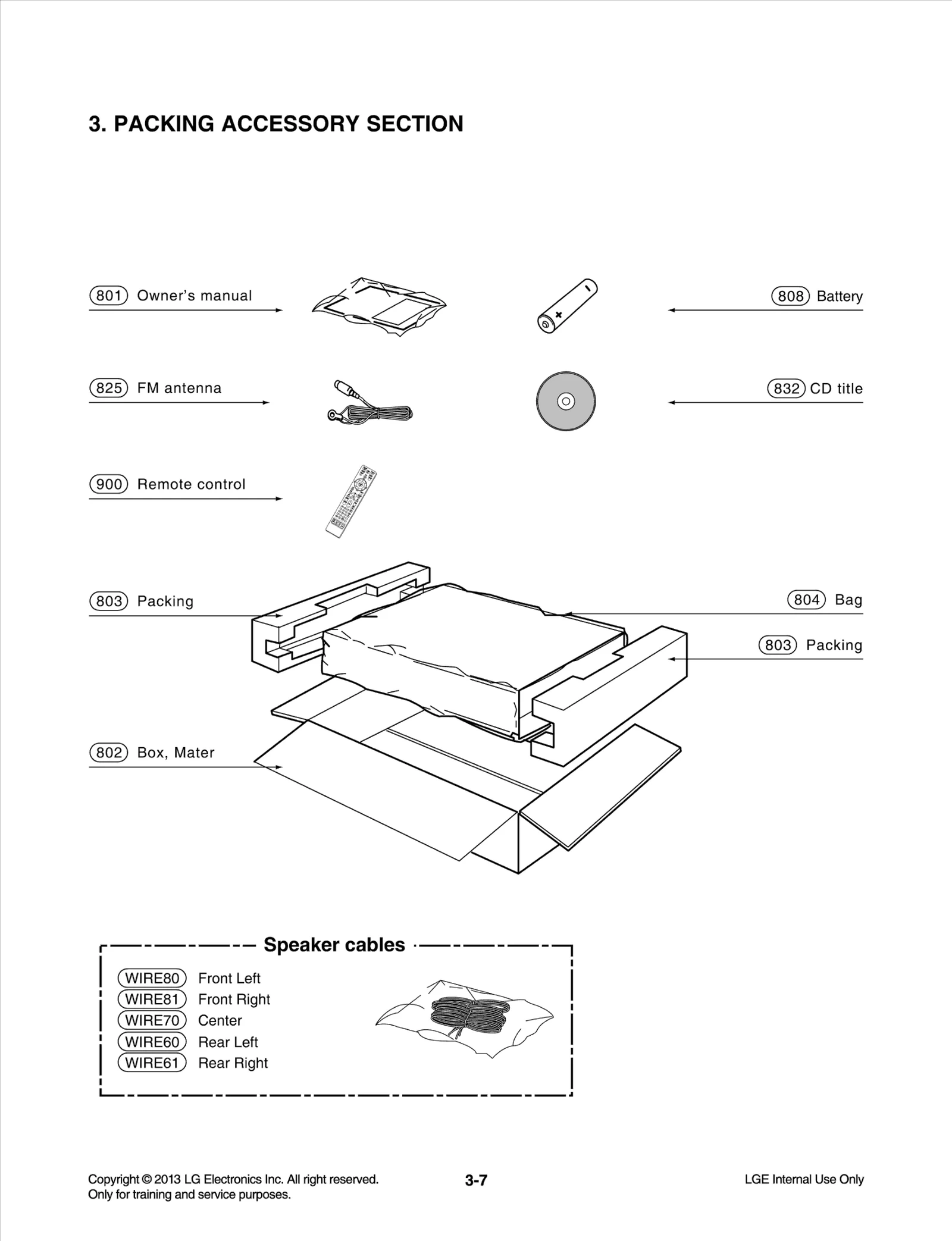

Diagram 2

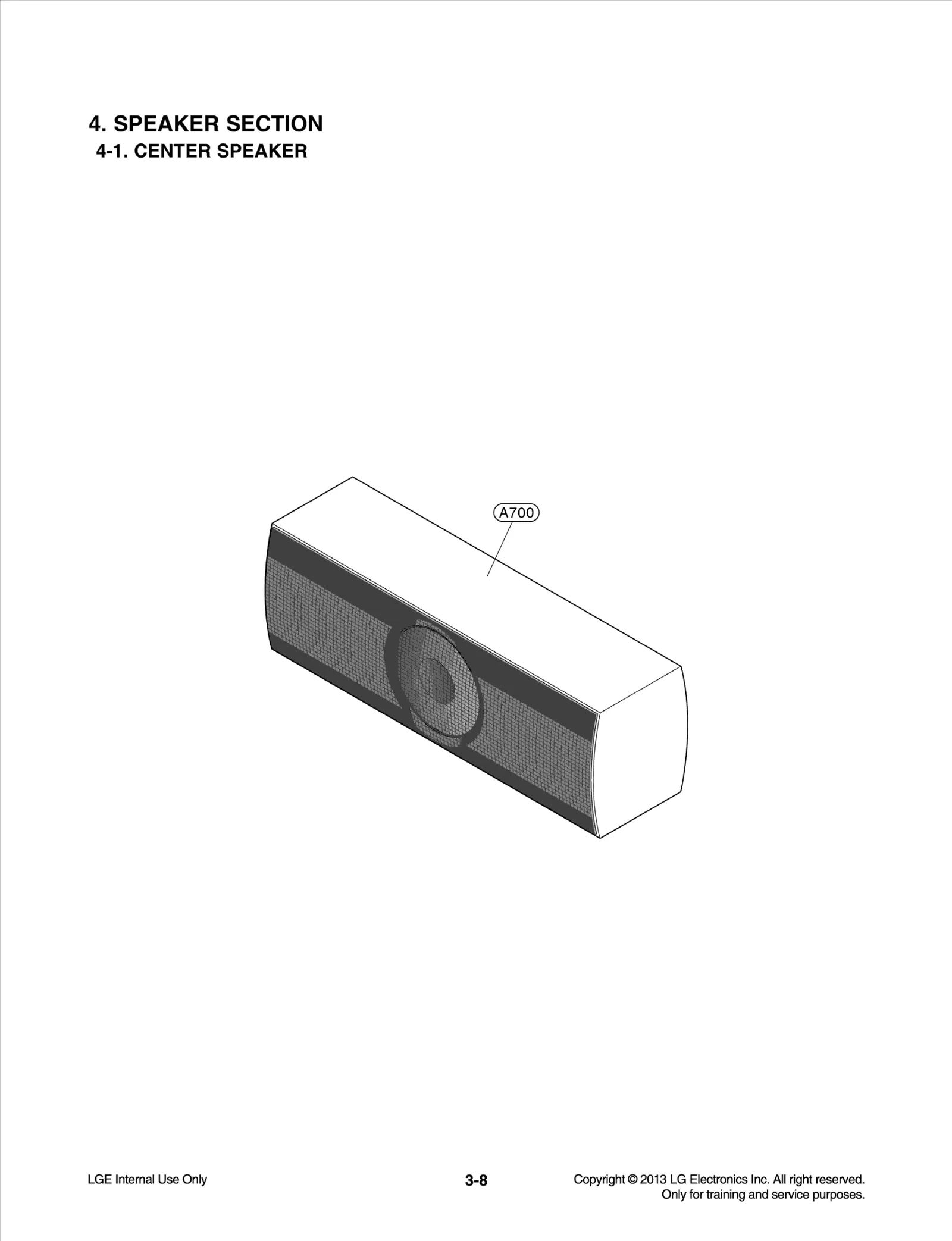

Diagram 3

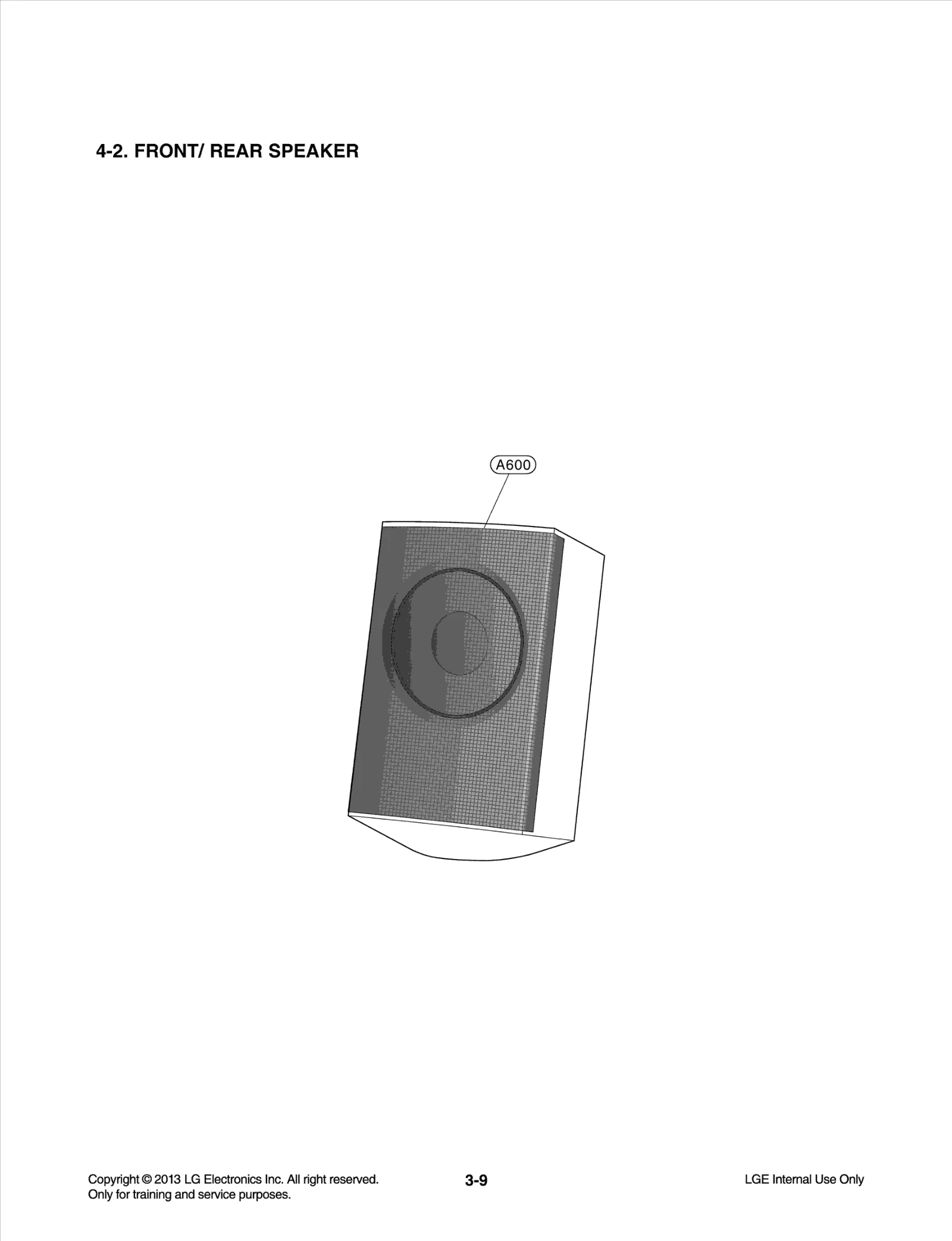

Diagram 4

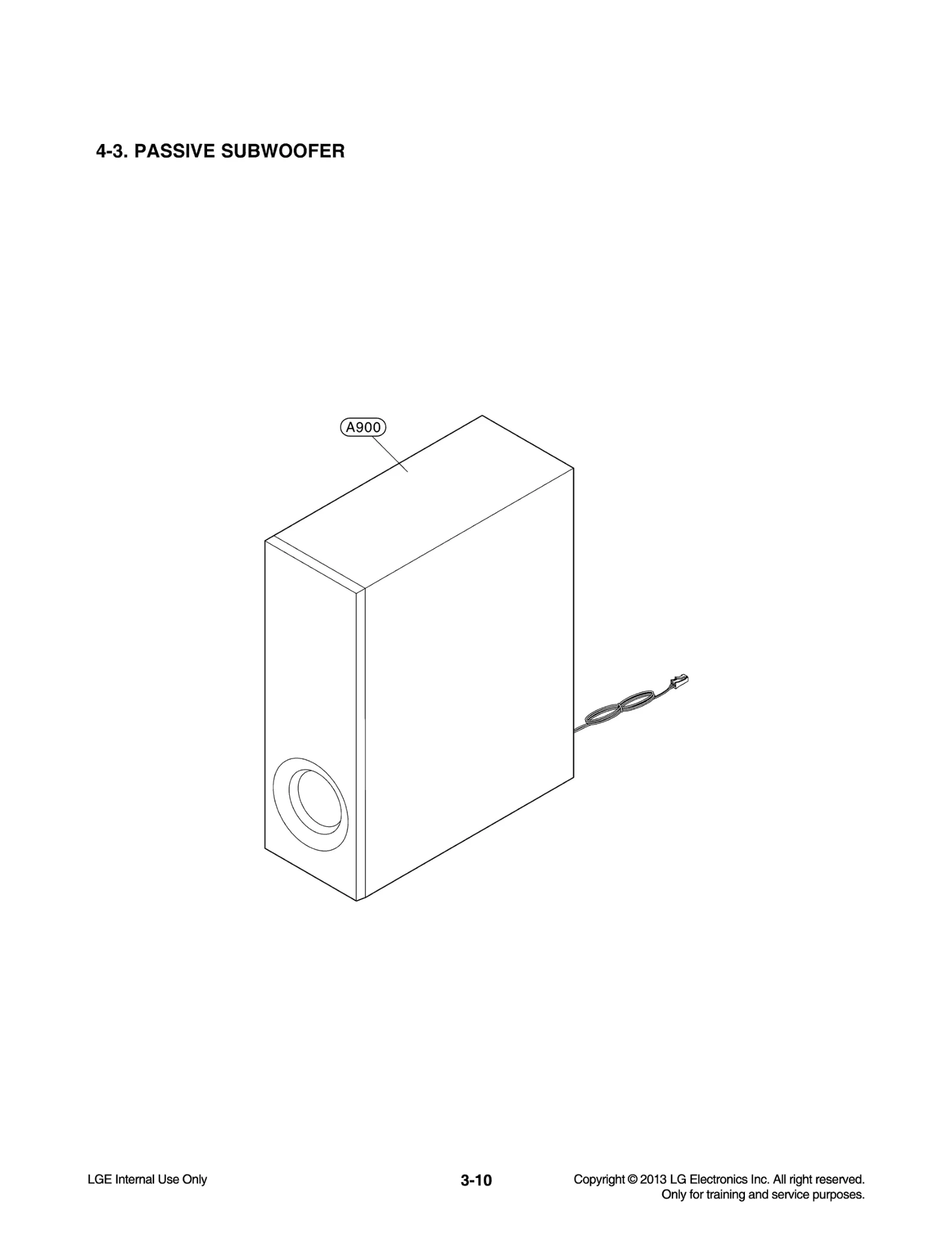

Diagram 5
Diagram 6
Common parts from model LG BH6730S
250
Case LGE MBN62627502 Contact Us For Availability
260
Chassis LGE MBS62406103 Contact Us For Availability
261
Damper LGE MCQ32325001 Contact Us For Availability
262
Cover LGE MCK66955601 Contact Us For Availability
263
Holder LGE MEG58371703 Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
273
Damper LGE MCQ62096422 Contact Us For Availability
281
Cover LGE MCK66976801 Contact Us For Availability
282
Clamp LGE MBU62605601 Contact Us For Availability
300
Power Cord LGE EAD60816723 Contact Us For Availability
320
Panel,Rear LGE MGC63061104 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75892378 Contact Us For Availability
802
Box,Master LGE MAY65847702 Contact Us For Availability
803
Packing LGE MFZ63510701 Contact Us For Availability
804
Bag LGE MAF62209401 Contact Us For Availability
808
Battery,Manganese LGE EAC42053701 Contact Us For Availability
808
Battery,Manganese LGE 6910F00010B Contact Us For Availability
808
Primary Cell Battery,Carbon Zinc LGE EAC42053702 Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
832
Title LGE SAC35714501 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73775804 Contact Us For Availability
1001
Clamp Assembly LGE ACA73189401 Contact Us For Availability
1002
Cover LGE MCK66956901 Contact Us For Availability
1003
Clamp LGE MBU62345801 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB33072101 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM62647801 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62532101 Contact Us For Availability
1030
Cable,FFC LGE EAD61048209 Contact Us For Availability
1035
Cable,FFC LGE EAD61049005 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522404 Contact Us For Availability
1050
Cover LGE MCK66957001 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ85947901 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74672402 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A41
PCB Assembly LGE EBR76856501 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL74116804 Contact Us For Availability
A44
Frame Assembly LGE ADV74447605 Contact Us For Availability
A45
PCB Assembly LGE EBR76761801 Contact Us For Availability
A46
Option Code Assembly LGE EBR76383705 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR76712801 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR76721801 Contact Us For Availability
A51
Module,WLAN LGE EAT61613201 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A600
Speaker System Total LGE TCG35390707 Contact Us For Availability
A700
Center Speaker System LGE TCG35528907 Contact Us For Availability
A900
Speaker System Total LGE TCG35349907 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C2U2
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C7C3
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C117
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C127
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C163
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C177
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C178
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C181
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C186
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C188
Capacitor,Ceramic,Chip LGE 0CK332BKF6A Contact Us For Availability
C189
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C199
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C203
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
C232
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C234
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C237
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C309
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C311
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C319
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C333
Capacitor,AL,Chip LGE 0CE226VK6DC Contact Us For Availability
C341
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C345
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C518
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C577
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C600
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C641
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C711
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C734
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
C754
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C755
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C766
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C773
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C776
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C795
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C797
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C827
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C901
Capacitor,AL,Radial LGE EAE62288201 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C904
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C910
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C911
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C918
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C920
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C921
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C923
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C926
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C950
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C954
Capacitor,Ceramic,Axial LGE 0CN1050K949 Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C956
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C958
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C959
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C960
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C965
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C966
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
CA150
Capacitor,AL,Chip LGE 0CZZQE3009A Contact Us For Availability
CA303
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA305
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD42794704 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62118003 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62113106 Contact Us For Availability
CABLE4
Harness,Single LGE EAD35863011 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62246506 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN150
Connector,Wafer LGE EAG61452602 Contact Us For Availability
CN250
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
CN251
Connector,FFC/FPC/PIC LGE 6630R-FB11R Contact Us For Availability
CN252
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN253
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN302
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN305
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
CN600
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
CN601
Connector,BtoB LGE 6630R-BF07R Contact Us For Availability
CN901
Harness,Single LGE EAD52412103 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
D101
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D801
Diode,TVS LGE EAH61515001 Contact Us For Availability
D804
Diode,TVS LGE EAH56919501 Contact Us For Availability
D901
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D902
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D902
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
D918
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D951
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D953
Diode,Switching LGE EAH31951401 Contact Us For Availability
D955
Diode,Switching LGE EAH30982402 Contact Us For Availability
D955
Diode,Schottky LGE EAH43054501 Contact Us For Availability
D959
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
DIS301
VFD LGE EAJ60868410 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36297401 Contact Us For Availability
IC102A
S/W,System Program LGE SAA36297603 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC150
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC153
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC154
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC155
IC,LDO Voltage Regulator LGE EAN62401401 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC302
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62230602 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61859702 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC504A
S/W,System Program LGE SAA36297301 Contact Us For Availability
IC505
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC600
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC602
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC801
IC,I/O Support Chip LGE EAN62352301 Contact Us For Availability
IC803
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC953
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC953
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK2P4
Jack,Phone LGE 6612F00091B Contact Us For Availability
JK2U3
Connector,USB LGE EAG63217801 Contact Us For Availability
JK203
Jack,RCA LGE EAG63036711 Contact Us For Availability
JK250
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611205 Contact Us For Availability
L2P2
Filter,Bead LGE EAM56488801 Contact Us For Availability
L2V5
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
L154
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L155
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L155
Inductor,Wire Wound,Chip LGE EAP62286201 Contact Us For Availability
L201
Inductor,Multilayer,Chip LGE EAP39314704 Contact Us For Availability
L305
Filter,Bead LGE EAM62155401 Contact Us For Availability
L708
Filter,Bead LGE EAM42641607 Contact Us For Availability
L714
Coil,Choke LGE EAP62127101 Contact Us For Availability
L951
Coil,Choke LGE EAP60792101 Contact Us For Availability
L951
COIL,CHOKE LGE 633-088G Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230101 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM60672505 Contact Us For Availability
PC902
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC902
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC902
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q106
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q301
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q302
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q308
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q702
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q901
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q902
FET LGE EBK61572401 Contact Us For Availability
Q903
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q903
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q904
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q904
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q904
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q905
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q954
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R1A7
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1B4
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R1B8
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1C7
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R1E8
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1F5
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R2A1
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R2P2
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R2P3
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R158
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R159
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R161
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R170
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R177
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R193
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R195
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R220
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R303
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R306
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R335
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R599
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R600
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R608
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R702
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R718
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R721
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R726
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R740
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R814
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R834
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R910
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R913
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R915
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R918
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R922
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R925
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R926
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R930
R METAL FILM LGE 0RN1201F409 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD0681F609 Contact Us For Availability
R958
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R959
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R961
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R962
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R964
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R965
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R967
RESISTOR (METAL FILM) LGE 0RN1802F409 Contact Us For Availability
R968
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R969
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R970
Resistor,Metal Film LGE 0RN3901F409 Contact Us For Availability
R972
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R973
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R978
Resistor,Carbon Film LGE 0RD3303F609 Contact Us For Availability
RC301
Receiver Module LGE EAV61333201 Contact Us For Availability
SW307
Switch,Tact LGE 6600R000005 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770129 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770130 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374010 Contact Us For Availability
TUN201
Tuner,Analog LGE EBL60740004 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72896215 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72896216 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR72896213 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR72896211 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR72896212 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
X650
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
ZD601
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD602
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD910
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD911
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD912
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD913
Diode,Zener LGE 0DZSE00154A Contact Us For Availability
ZD914
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD917
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD951
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
× ![]()
Login and Registration Form
