Model LG BGE-103H – Common Parts & Diagrams

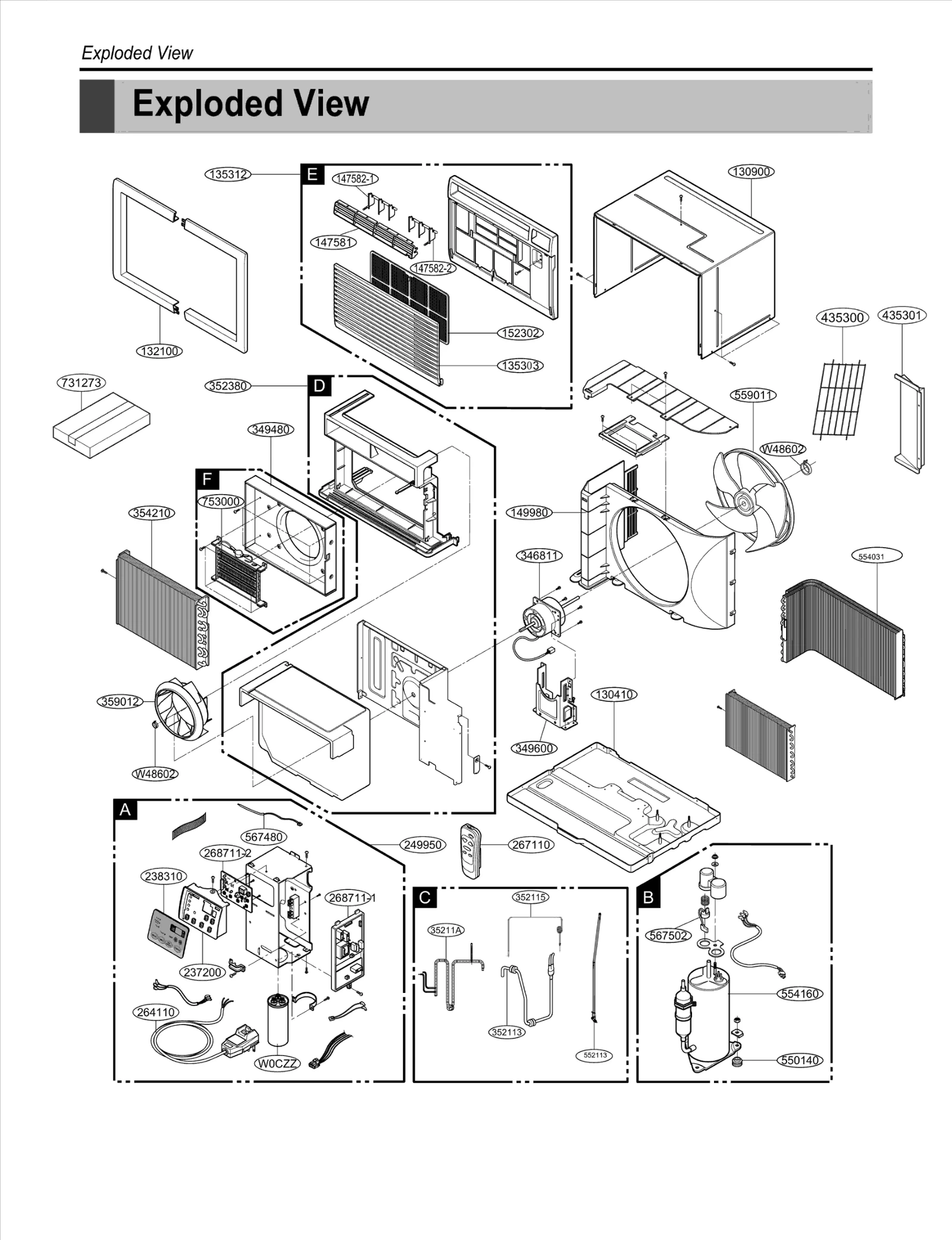

Diagram 0
Diagram 1
Common parts from model LG BGE-103H
135312
Grille Assembly,Front LGE 3531A20055K Contact Us For Availability
135313
Grille,Inlet LGE 3530A20020B Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A20009A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
238310
Escutcheon LGE MDD37791801 Contact Us For Availability
249940
Case,Control LGE 4994A10096A Contact Us For Availability
249950
Case Assembly,Control LGE ABQ73187606 Contact Us For Availability
267110
REMOTE CONTROLLER ASSEMBLY LGE 6711A20093A Contact Us For Availability
268711-1
PCB Assembly,Display LGE EBR30852201 Contact Us For Availability
268711-2
PCB Assembly,Main LGE EBR39264504 Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20041C Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352113
Tube Assembly,Discharge LGE 5211A21421R Contact Us For Availability
352380
AIR GUIDE ASSEMBLY LGE 5239A10002G Contact Us For Availability
435300
Grille,Rear LGE 3530A30007B Contact Us For Availability
550140
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
552102
Tube Assembly,Return Bending LGE 3H02787L Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
731273
INSTALL PART ASSY, SINGLE LGE 3127A20017B Contact Us For Availability
W1NHA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
× ![]()
