Model Whirlpool BGC430WB0 BUILT-IN GAS OVEN – Common Parts & Diagrams

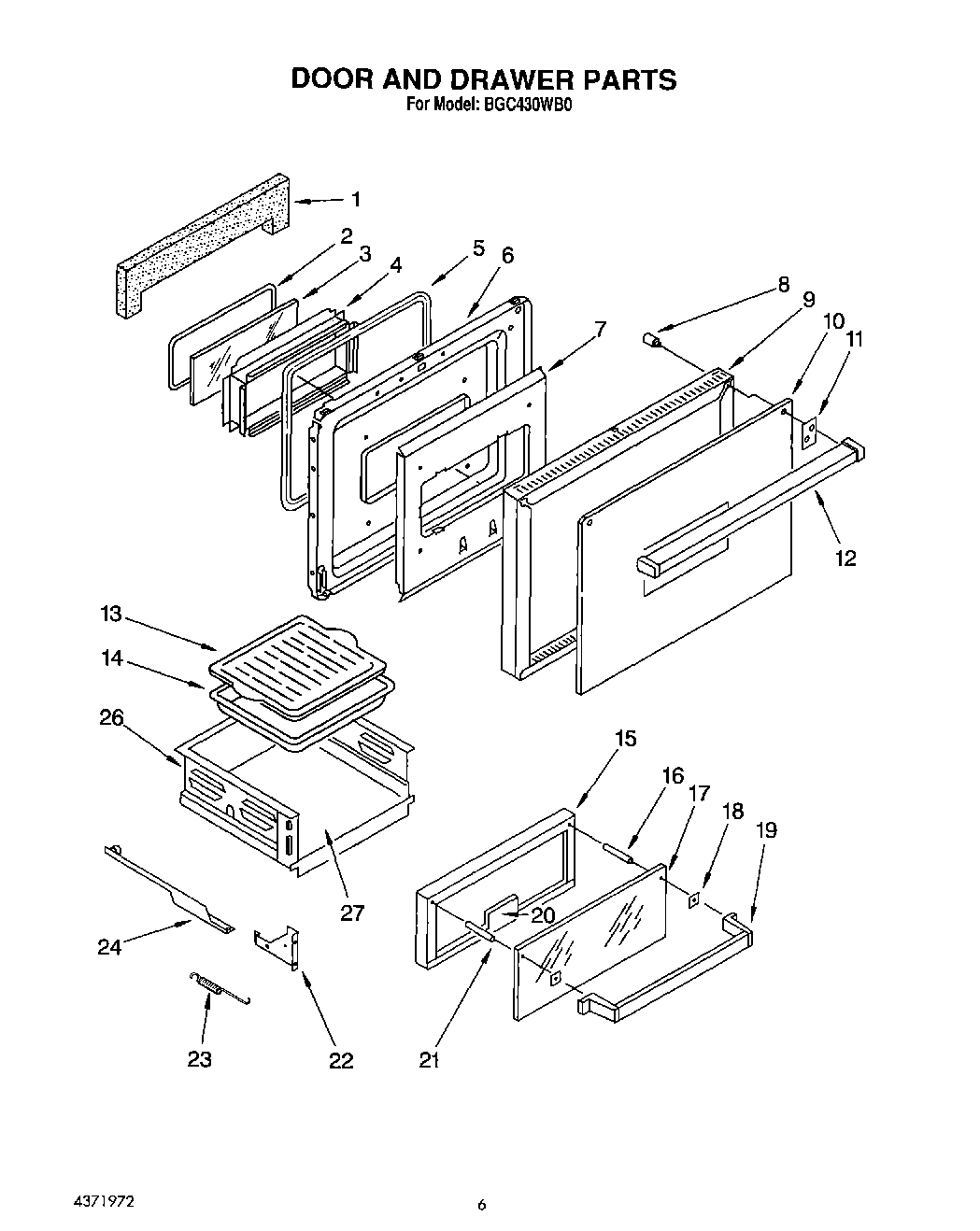

05 - DOOR AND DRAWER, LIT/OPTIONAL

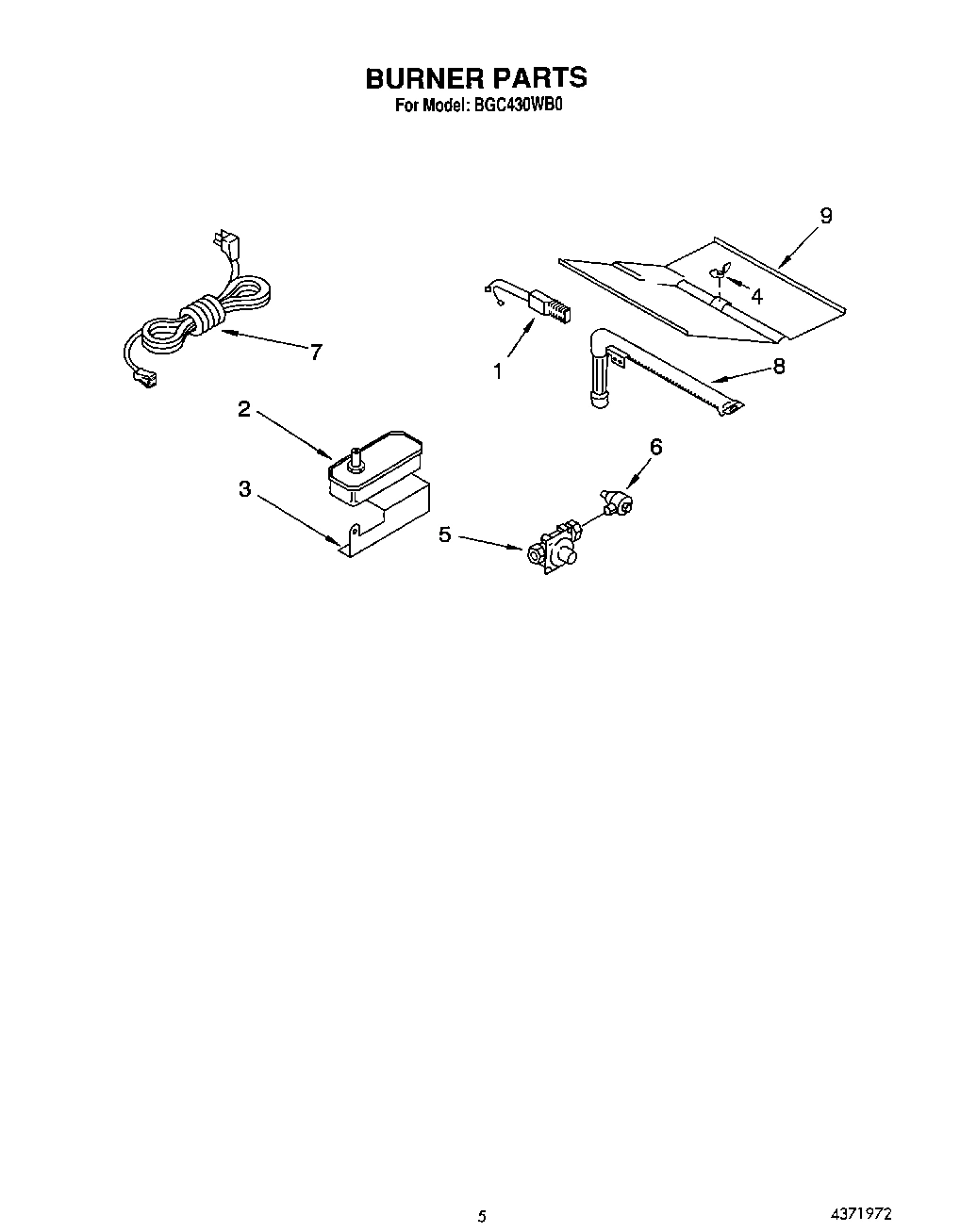

04 - BURNER
02 - OVEN
03 - CONTROL PANEL
Common parts from model Whirlpool BGC430WB0 BUILT-IN GAS OVEN
Installation Instructions WPL LIT816767 Contact Us For Availability
Guide, Use And Care WPL LIT816769 Contact Us For Availability
1
Insulation, Door WPL 816450 Contact Us For Availability
1
Screw, No.8x32x3/8 (2) WPL 877919 Contact Us For Availability
1
Switch, Oven Light WPL 816963 Contact Us For Availability
2
Seal, Window WPL 816376 Contact Us For Availability
2
Valve, Safety WPL 816927 Contact Us For Availability
2
Bezel, Switch WPL 816332 Contact Us For Availability
3
Glass, Inner Door WPL 816377 Contact Us For Availability
3
Screw, No.10x24x1/2 (4) WPL 241428 Contact Us For Availability
3
Bracket, Support WPL 816925 Contact Us For Availability
3
Cover, Front WPL 816414 Contact Us For Availability
3
Plate, Instrument Mtg. WPL 816959 Contact Us For Availability
4
Collar, Glass WPL 816934 Contact Us For Availability
4
Nut, Wing WPL 816873 Contact Us For Availability
4
Shield, Top And Sides WPL 816967 Contact Us For Availability
4
Knob, Thermostat WPL 816952 Contact Us For Availability
5
Seal-Oven Door WPL 816417 Contact Us For Availability
5
Regulator WPL 816926 Contact Us For Availability
5
Box, Flue WPL 816852 Contact Us For Availability
5
Spacer, Dial WPL 816962 Contact Us For Availability
6
Liner, Door WPL 816933 Contact Us For Availability
6
Valve, Shut Off WPL 816821 Contact Us For Availability
6
Insulation WPL 816866 Contact Us For Availability
6
Bumper, Rubber (4) WPL 816961 Contact Us For Availability
7
Panel, Airwash WPL 816508 Contact Us For Availability
7
Cord, Power WPL 816818 Contact Us For Availability
7
Shield, Oven Top WPL 816972 Contact Us For Availability
8
Spacer, Handle (2) WPL 816720 Contact Us For Availability
8
Burner, Bake WPL 816825 Contact Us For Availability
8
Insulation, Back WPL 816950 Contact Us For Availability
9
Screw, No.8x18x1/2 (3) WPL 314933 Contact Us For Availability
9
Frame, Door WPL 816840 Contact Us For Availability
9
Baffle, Bake WPL 816922 Contact Us For Availability
9
Insulation, Bottom WPL 816949 Contact Us For Availability
9
Clock WPL 816956 Contact Us For Availability
10
Glass, Outer Door WPL 816833 Contact Us For Availability
10
Insulation, Top WPL 816948 Contact Us For Availability
10
Light, Indicator WPL 816958 Contact Us For Availability
11
Thermostat WPL 4371969 Contact Us For Availability
12
Screw, No.10x24x21/4 (2) WPL 816359 Contact Us For Availability
12
Box, Burner WPL 816923 Contact Us For Availability
12
Bracket, Timer WPL 816955 Contact Us For Availability
13
Grid, Broiler WPL 816947 Contact Us For Availability
13
Bottom, Oven WPL 816814 Contact Us For Availability
13
End Cap (Right Side) WPL 816829 Contact Us For Availability
13
End Cap (Left Side) WPL 816830 Contact Us For Availability
14
Pan, Broiler WPL 816954 Contact Us For Availability
14
Spacer, Oven (2) WPL 4371971 Contact Us For Availability
15
Trim, Drawer WPL 816943 Contact Us For Availability
15
Spring, Door (2) WPL 816287 Contact Us For Availability
16
Hinge, Door (2) WPL 816932 Contact Us For Availability
16
Screw, No.6x18x1/4 (3) WPL 487010 Contact Us For Availability
16
Deflector, Heat WPL 816850 Contact Us For Availability
17
Panel, Glass WPL 816842 Contact Us For Availability
17
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
18
Spacer, Handle (2) WPL 816440 Contact Us For Availability
18
Shield, Vent WPL 816965 Contact Us For Availability
18
Trim, Center Vent WPL 816944 Contact Us For Availability
19
Screw, No.10x24x5/8 (2) WPL 816270 Contact Us For Availability
19
Handle, Drawer WPL 816834 Contact Us For Availability
19
Frame, Front WPL 816945 Contact Us For Availability
20
Panel, Inner Door WPL 816939 Contact Us For Availability
20
Cover, Thermo Bulb WPL 816930 Contact Us For Availability
21
Spacer, Handle (2) WPL 816941 Contact Us For Availability
21
Shield, Flue Bottom WPL 816889 Contact Us For Availability
22
Hinge, Broiler (Right Hand) WPL 816937 Contact Us For Availability
22
Hinge, Broiler (Left Hand) WPL 816938 Contact Us For Availability
22
Shield, Flue Top WPL 816968 Contact Us For Availability
23
Spring, Broiler (2) WPL 816942 Contact Us For Availability
23
Retainer, Door WPL 816379 Contact Us For Availability
24
Track, Broiler (Right Side) WPL 816896 Contact Us For Availability
24
Track, Broiler (Left Side) WPL 816897 Contact Us For Availability
24
Support, Oven Front (2) WPL 816893 Contact Us For Availability
25
Support, Height Adjustment (2) WPL 816284 Contact Us For Availability
26
Screw, No.8x18x3/8 (4) WPL 816755 Contact Us For Availability
26
Drawer, Broiler WPL 816935 Contact Us For Availability
26
Spacer, Rubber (4) WPL 816909 Contact Us For Availability
27
Panel, Broiler Drawer Bottom WPL 816940 Contact Us For Availability
27
Switch, Oven Light WPL 4371452 Contact Us For Availability
29
Knob, Clock WPL 816951 Contact Us For Availability
30
Screw, No.6x32x1/2 (6) WPL 816325 Contact Us For Availability
30
Trim, Top WPL 816983 Contact Us For Availability
31
Retainer, Lens WPL 816647 Contact Us For Availability
34
Panel, Control WPL 816946 Contact Us For Availability
35
Cover, Control WPL 816931 Contact Us For Availability
38
Trim, Inner (Right Side) WPL 816899 Contact Us For Availability
38
Trim, Inner (Left Side) WPL 816900 Contact Us For Availability
39
Shield, Insulation (Base) WPL 816887 Contact Us For Availability
40
Liner, Oven WPL 816953 Contact Us For Availability
42
Trim, Control Panel (2) WPL 816898 Contact Us For Availability
43
Screw, No.8x22x5/16 (8) WPL 313823 Contact Us For Availability
43
Shield, Controls WPL 816957 Contact Us For Availability
45
Wrapper, Back And Sides WPL 816905 Contact Us For Availability
49
Trim, Outer Side WPL 816848 Contact Us For Availability
51
Rack, Oven WPL 816342 Contact Us For Availability
62
Flue, Adaptor WPL 816851 Contact Us For Availability
63
Channel, Hinge WPL 816388 Contact Us For Availability
67
Shield, Housing WPL 816929 Contact Us For Availability
68
Screw (2) WPL 816410 Contact Us For Availability
68
Trim, Base WPL 816901 Contact Us For Availability
69
Shield, Oven Bottom WPL 816908 Contact Us For Availability
× ![]()
