Model Whirlpool BFRH183 ROOM AIR CONDITIONER – Common Parts & Diagrams

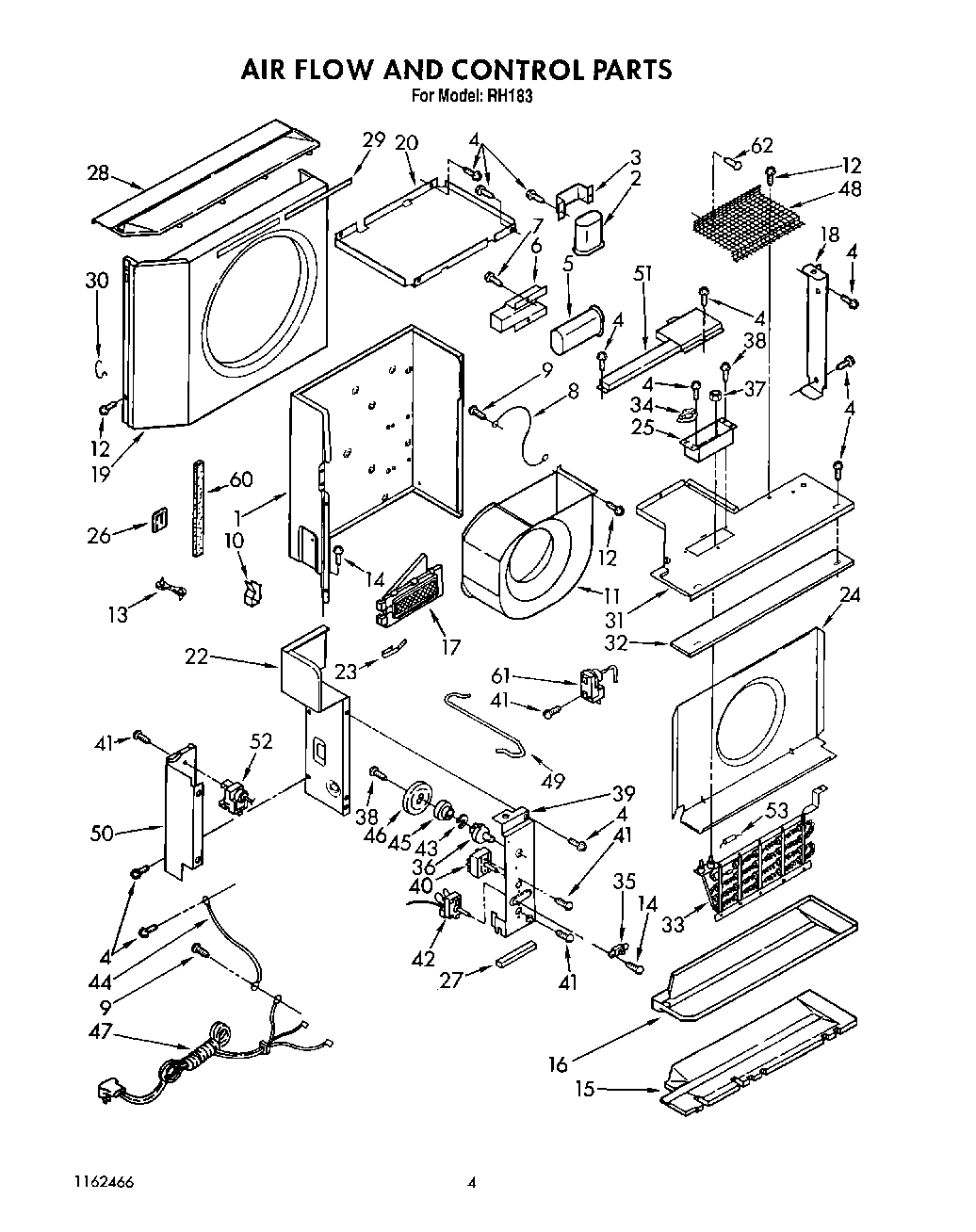

03 - AIR FLOW AND CONTROL

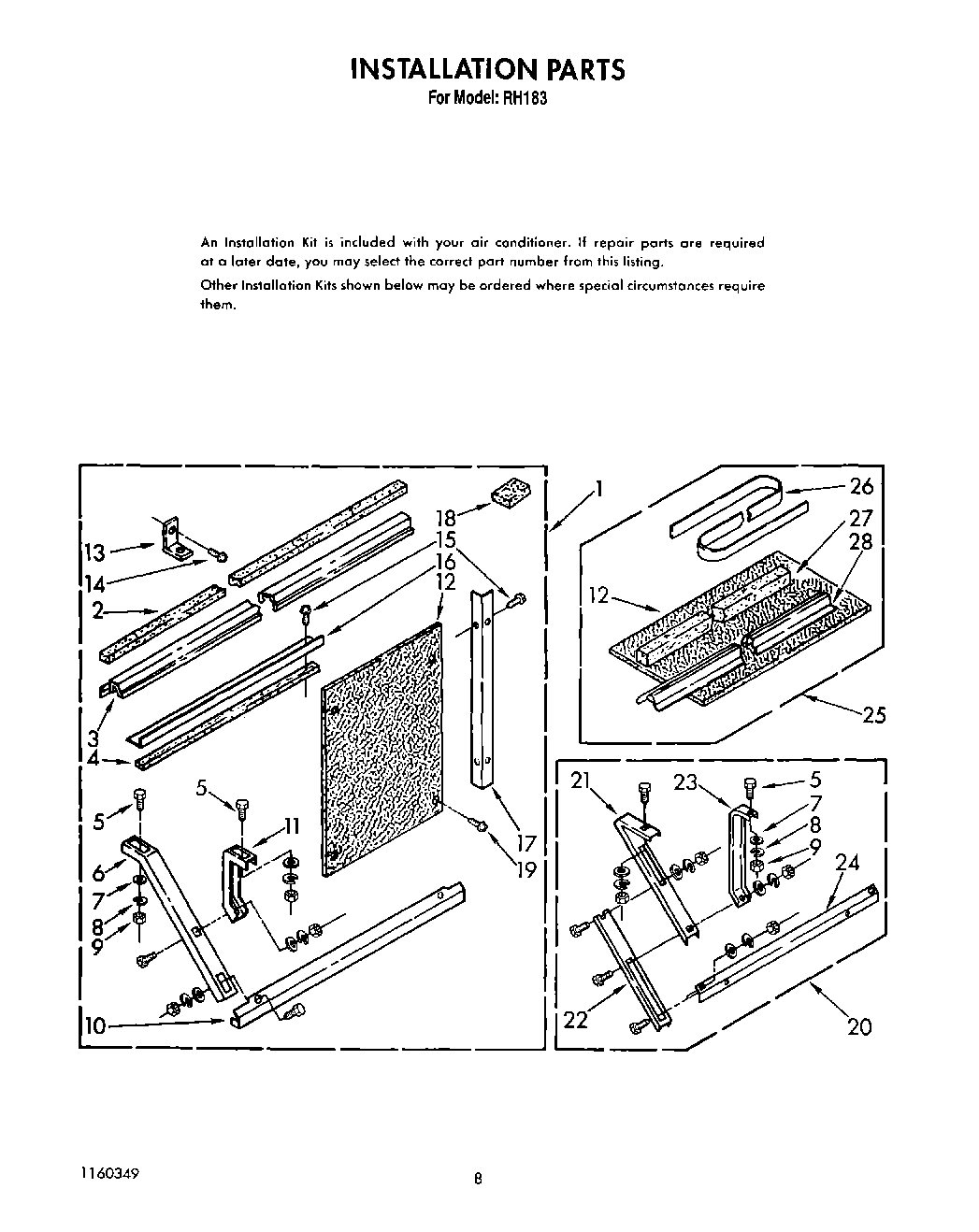

05 - INSTALLATION
06 - OPTIONAL
02 - UNIT, LIT/OPTIONAL
04 - CABINET
Common parts from model Whirlpool BFRH183 ROOM AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Kit, Standard Installation WPL 1160600 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Wiring Diagram WPL LIT1157106 Contact Us For Availability
1
Sheet, Tech WPL LIT1157161 Contact Us For Availability
1
Operation Guide WPL LIT1162435 Contact Us For Availability
1
List, Repair Parts WPL LIT1162466 Contact Us For Availability
1
Handle, Vertical WPL 852010 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
Louver, Vertical WPL 649957 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Compressor WPL 484348 Contact Us For Availability
3
Cabinet Also Order: WPL 1157805 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Valve, Condensate WPL 998612 Contact Us For Availability
4
Seal, Front (3) WPL 649725 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Strainer And Tube Asm. (Includes Illus 20) WPL 1155598 Contact Us For Availability
5
Bag, Accessory WPL 993848 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Grommet (4) WPL 475041 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Sleeve (4) WPL 858116 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Nut, Lock (4) WPL 858121 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Cabinet Front Assembly WPL 1159843 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Motor, Fan WPL 1159837 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Wheel, Blower WPL 948217 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Evaporator WPL 1156255 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Restrictor (3) WPL 1159870 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Hard Start Kit (Use With 484395 Compressor) WPL 484274 Contact Us For Availability
16
Blade, Fan WPL 997226 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Relay, Start WPL 484275 Contact Us For Availability
17
Condenser WPL 1159208 Contact Us For Availability
18
Adapter, Evaporator WPL 997397 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Capacitor, Start WPL 467614 Contact Us For Availability
18
Base, Unit WPL 997367 Contact Us For Availability
19
Shroud, Condenser WPL 953028 Contact Us For Availability
19
Bend, Return (3-Way) WPL 953168 Contact Us For Availability
20
Support, Unit (2) WPL 1156536 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Strainer WPL 49599 Contact Us For Availability
20
Wire, Ground (Base To Cabinet) WPL 857022 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Bracket, Capacitor WPL 35564 Contact Us For Availability
21
Bend, Return Evaporator (7) Condenser (21) WPL 855199 Contact Us For Availability
22
Extension, Dividing WPL 1158150 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Mult WPL 90654 Contact Us For Availability
22
Bend, Return Evaporator (16) Condenser (16) WPL 854624 Contact Us For Availability
23
Spring, Door WPL 859369 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Tube, Flow Divider WPL 1162473 Contact Us For Availability
23
Screw, 8-32 x 32 WPL 488853 Contact Us For Availability
24
Deflector, Heat WPL 952169 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Tube, 90~ WPL 950814 Contact Us For Availability
25
Bracket, Mtg. (Heater) WPL 854990 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
WPL 45571 WPL 45571 Contact Us For Availability
25
Nut, Hex 1/4-20 WPL 489005 Contact Us For Availability
26
Seal, Outlet Tube WPL 1162510 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
WPL 484220 WPL 484220 Contact Us For Availability
26
Bend, Return (2) (Evaporator) Condenser (3) WPL 855457 Contact Us For Availability
27
Seal, Access Cover WPL 1162509 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Tube, Maniflod (Evaporator) WPL 1156258 Contact Us For Availability
27
Screw, Front (2) WPL 1157141 Contact Us For Availability
28
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Bend, Return (1) WPL 855644 Contact Us For Availability
28
Retainer, Filter WPL 476707 Contact Us For Availability
29
Seal, Strip Louver (2) WPL 997266 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
30
Clip, Shroud (2) WPL 994686 Contact Us For Availability
30
Connection, Tube (Rear) WPL 997235 Contact Us For Availability
30
Filter, Air WPL 649958 Contact Us For Availability
31
Cover, Evaporator WPL 997396 Contact Us For Availability
31
Clip, Mtg. (3) (Base To Front) WPL 852272 Contact Us For Availability
31
Clip, Front (2) WPL 1157140 Contact Us For Availability
32
Insulation, Cover WPL 948239 Contact Us For Availability
32
Anticipator, Temperature WPL 996773 Contact Us For Availability
33
Heater, Air WPL 1158583 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
34
Switch, Limit WPL 995674 Contact Us For Availability
34
Cover, Terminal WPL 948515 Contact Us For Availability
35
Switch, Sliding WPL 950529 Contact Us For Availability
36
Shaft, Control WPL 852868 Contact Us For Availability
36
Gasket, Terminal Cover WPL 947029 Contact Us For Availability
37
Retainer, Horizontal Louver WPL 855998 Contact Us For Availability
38
Screw, No.8-15 WPL 489092 Contact Us For Availability
38
Insulation WPL 1160729 Contact Us For Availability
39
Panel, Control WPL 950545 Contact Us For Availability
39
Seal, Access Cover WPL 853170 Contact Us For Availability
39
Plate, Escutcheon WPL 1161133 Contact Us For Availability
40
Switch, Rotary WPL 1160356 Contact Us For Availability
40
Insulation, Base WPL 997236 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
41
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
41
Front, Cabinet WPL 1159844 Contact Us For Availability
42
Control, Temperature WPL 1155809 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
43
Washer, Spring WPL 647881 Contact Us For Availability
43
Valve, Reversing WPL 465260 Contact Us For Availability
44
Wire, Ground WPL 952477 Contact Us For Availability
44
Coil, Solenoid WPL 952293 Contact Us For Availability
45
Bushing, Control WPL 647879 Contact Us For Availability
46
Cam, Exhaust WPL 647882 Contact Us For Availability
47
Cable, Appliance WPL 649125 Contact Us For Availability
47
Bushing, Base WPL 948130 Contact Us For Availability
47
Knob, Control (3) WPL 953054 Contact Us For Availability
48
Guard, Impeller WPL 1160859 Contact Us For Availability
48
Clamp, Restrictor Tube (2) WPL 642684 Contact Us For Availability
48
Seal, Cabinet (Top) WPL 1157053 Contact Us For Availability
48
Seal, Cabinet (Right Side) WPL 1157054 Contact Us For Availability
48
Seal, Cabinet (Left Side) WPL 1157055 Contact Us For Availability
49
wire, control (blue) WPL 647883 Contact Us For Availability
50
Cover, Control WPL 952208 Contact Us For Availability
51
Cover, Heater WPL 998601 Contact Us For Availability
52
Thermostat, Deicer WPL 950636 Contact Us For Availability
52
Hard Start Kit WPL 484381 Contact Us For Availability
53
Fuse, Heater WPL 484277 Contact Us For Availability
53
xBracket, Capacitor WPL 41629 Contact Us For Availability
54
Rack, Horizontal WPL 853772 Contact Us For Availability
55
Adapter WPL 350914 Contact Us For Availability
55
Handle, Vertical Louver (2) WPL 947267 Contact Us For Availability
56
xCap, Capacitor WPL 484340 Contact Us For Availability
57
xRelay WPL 484363 Contact Us For Availability
57
Clip, Retainer WPL 855999 Contact Us For Availability
58
xWire WPL 485609 Contact Us For Availability
58
Instruction Sheet WPL 485887 Contact Us For Availability
58
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
59
xScrew (2) WPL 487880 Contact Us For Availability
60
Seal, Strip WPL 997265 Contact Us For Availability
60
Louver, Horizontal WPL 947269 Contact Us For Availability
61
Control, Outside Temperature WPL 1155807 Contact Us For Availability
61
xCapacitor WPL 587164 Contact Us For Availability
62
Clip, Impeller (2) WPL 1161162 Contact Us For Availability
63
Co WPL 997234 Contact Us For Availability
× ![]()
