Model Whirlpool BFR51 ROOM AIR CONDITIONER – Common Parts & Diagrams
03 - AIR FLOW AND CONTROL
05 - OPTIONAL

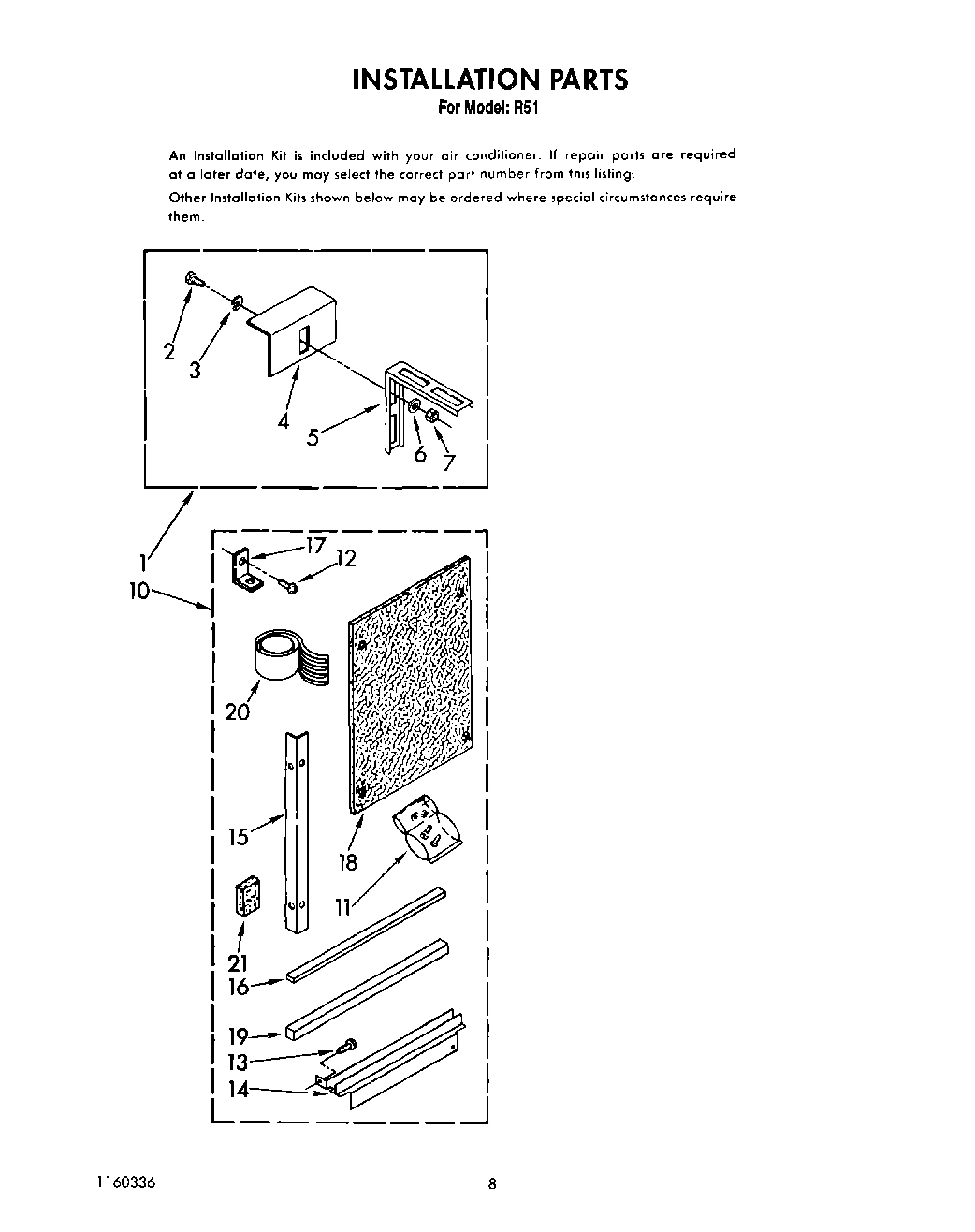

06 - INSTALLATION

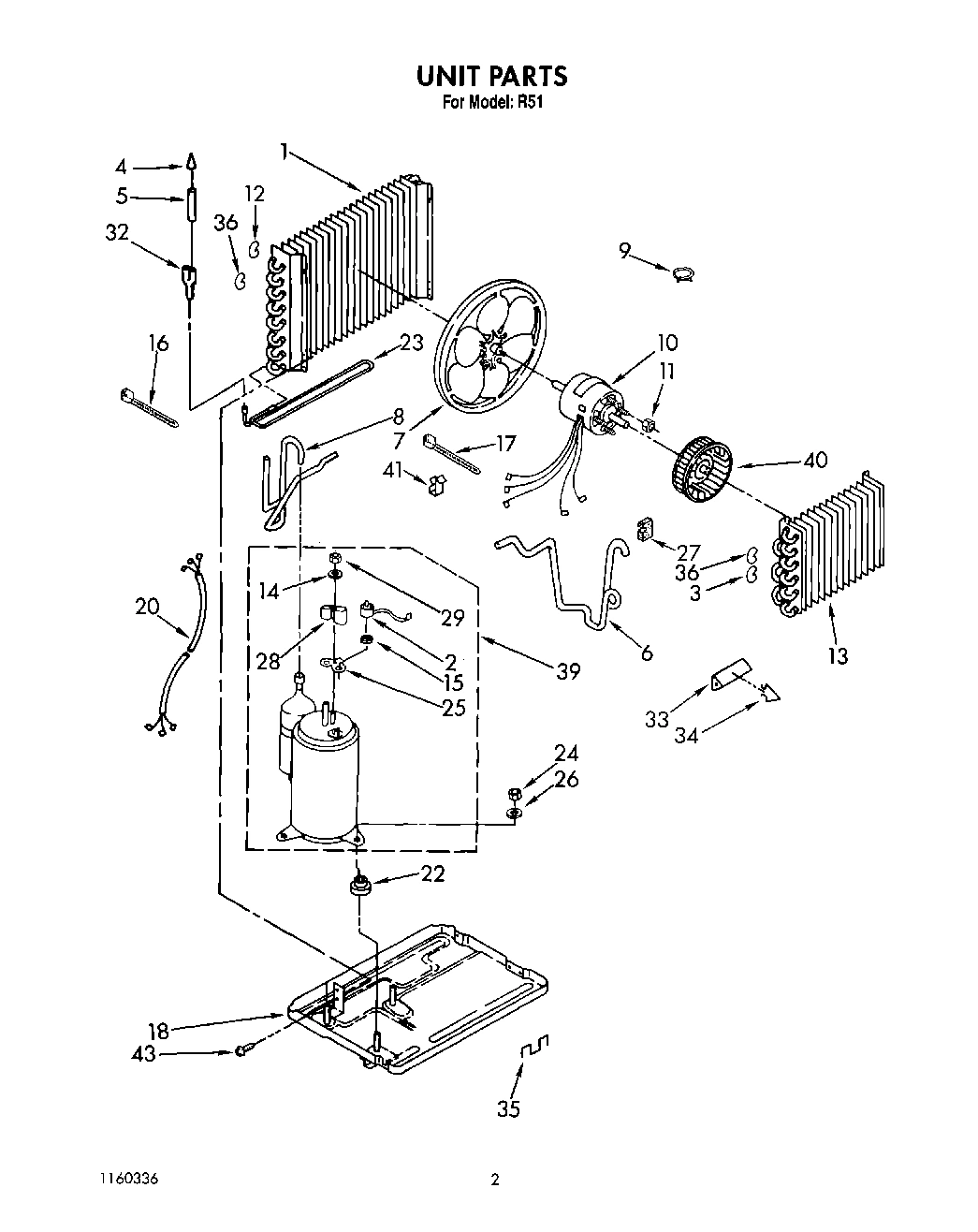

02 - UNIT, LIT/OPTIONAL

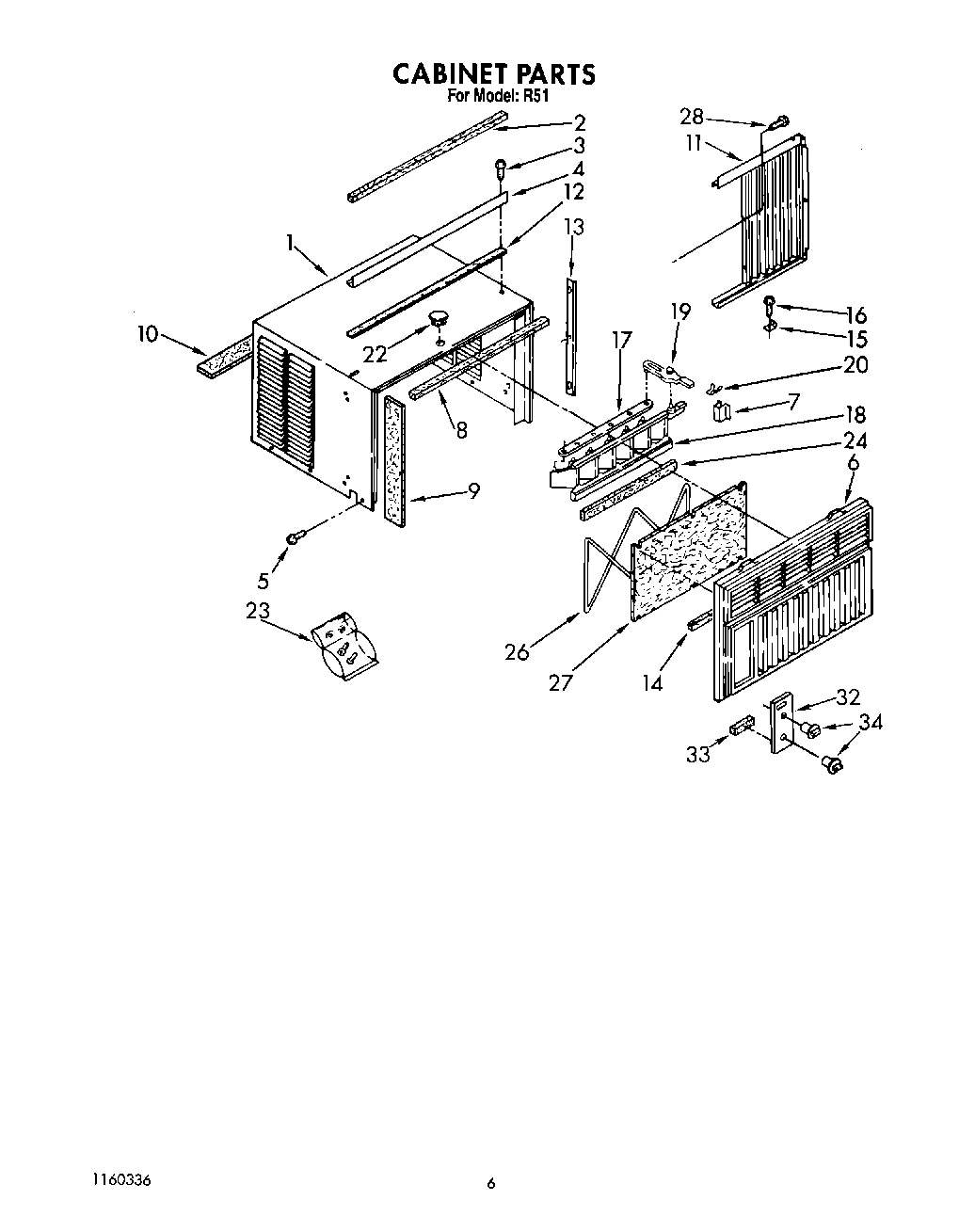

04 - CABINET
Common parts from model Whirlpool BFR51 ROOM AIR CONDITIONER
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Tech Sheet WPL LIT1158488 Contact Us For Availability
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Guide, Operation WPL LIT1160305 Contact Us For Availability
List, Repair Parts WPL LIT1160336 Contact Us For Availability
Wiring Diagram WPL LIT950514 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Condenser WPL 1157934 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Overload WPL 1156601 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return WPL 708531 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1159203 Contact Us For Availability
6
Front, Cabinet WPL 1159799 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Tube, Suction WPL 1160738 Contact Us For Availability
8
Seal, Top WPL 1159283 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1158636 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Curtain (Right Side) WPL 646154 Contact Us For Availability
11
Curtain (Left Side) WPL 646158 Contact Us For Availability
12
Return Bend (12) WPL 1157936 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Evaporator WPL 1157931 Contact Us For Availability
13
Retainer, Curtain WPL 646160 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
17
Screw, ST 8-32 x 3/8 WPL 488624 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Control, Temperature WPL 950403 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Orifice, Air Housing WPL 1157950 Contact Us For Availability
20
Wire Assembly WPL 1160302 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Seal, Barrier WPL 1158323 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Pan, Evaporator WPL 1157948 Contact Us For Availability
23
Tube, Condenser Extension WPL 1160799 Contact Us For Availability
23
Bag, Accessory WPL 476180 Contact Us For Availability
24
Actuator, Door WPL 953066 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Spring, Detent WPL 858765 Contact Us For Availability
26
Hood, Air Housing WPL 1158276 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Wire, Jumper WPL 1158937 Contact Us For Availability
27
Sealer, Tube WPL 1159316 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
28
Switch, Rocker WPL 950519 Contact Us For Availability
28
Screw (4) WPL 1161561 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Screw WPL 1159222 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
32
Plate, Escutcheon WPL 1160313 Contact Us For Availability
33
Housing, Air WPL 1157949 Contact Us For Availability
33
Anticipator WPL 996773 Contact Us For Availability
34
Knob, Control (2) WPL 1158639 Contact Us For Availability
34
Temperature WPL 475577 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Insulation, Door WPL 1158283 Contact Us For Availability
36
Bend, Return (4) WPL 708532 Contact Us For Availability
37
Seal, Tube WPL 1159443 Contact Us For Availability
38
Guard, Edge WPL 1161208 Contact Us For Availability
39
Compressor WPL 1156600 Contact Us For Availability
40
Wheel, Blower WPL 1158986 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
