Model Whirlpool BFR101 ROOM AIR CONDITIONER – Common Parts & Diagrams

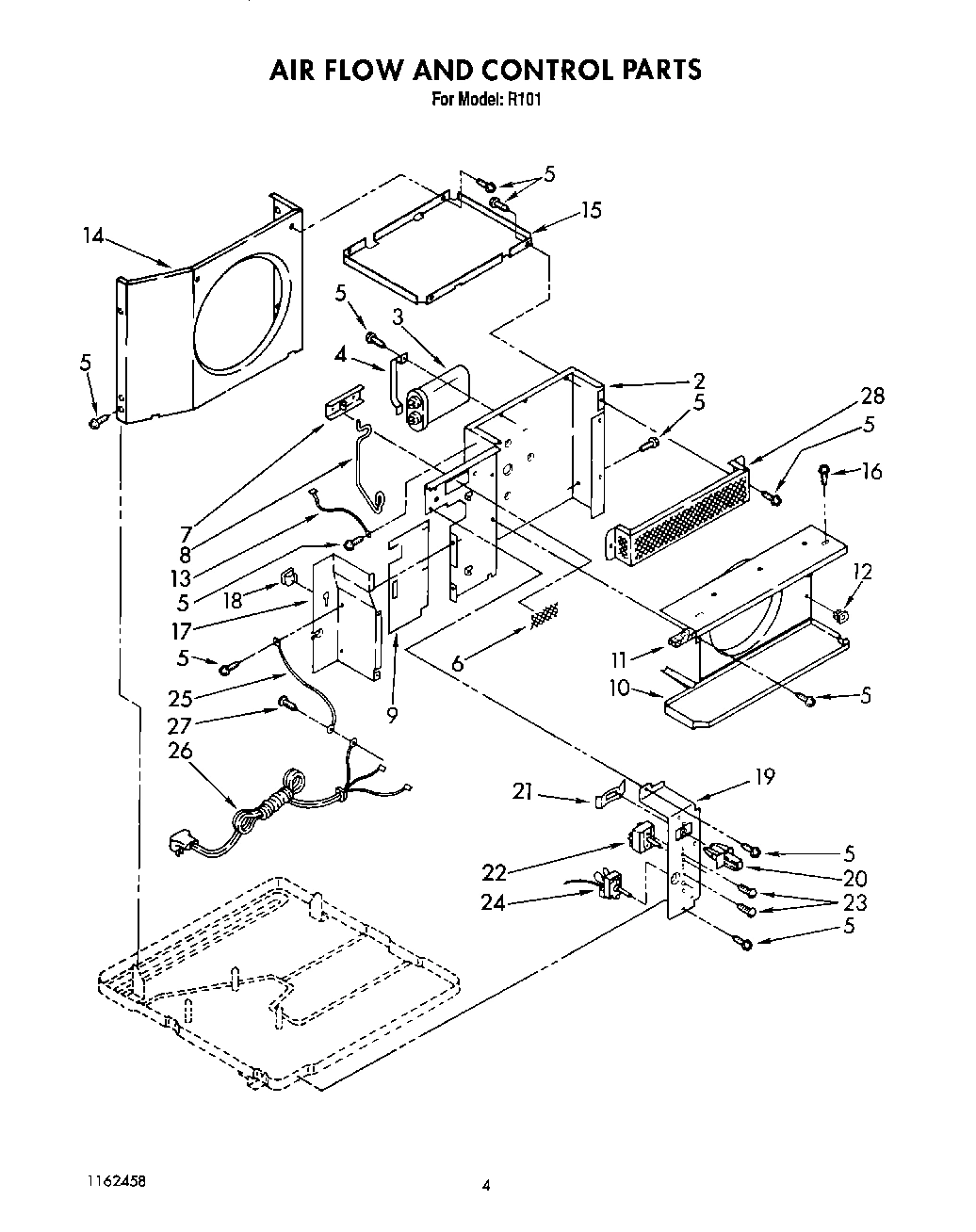

03 - AIR FLOW AND CONTROL

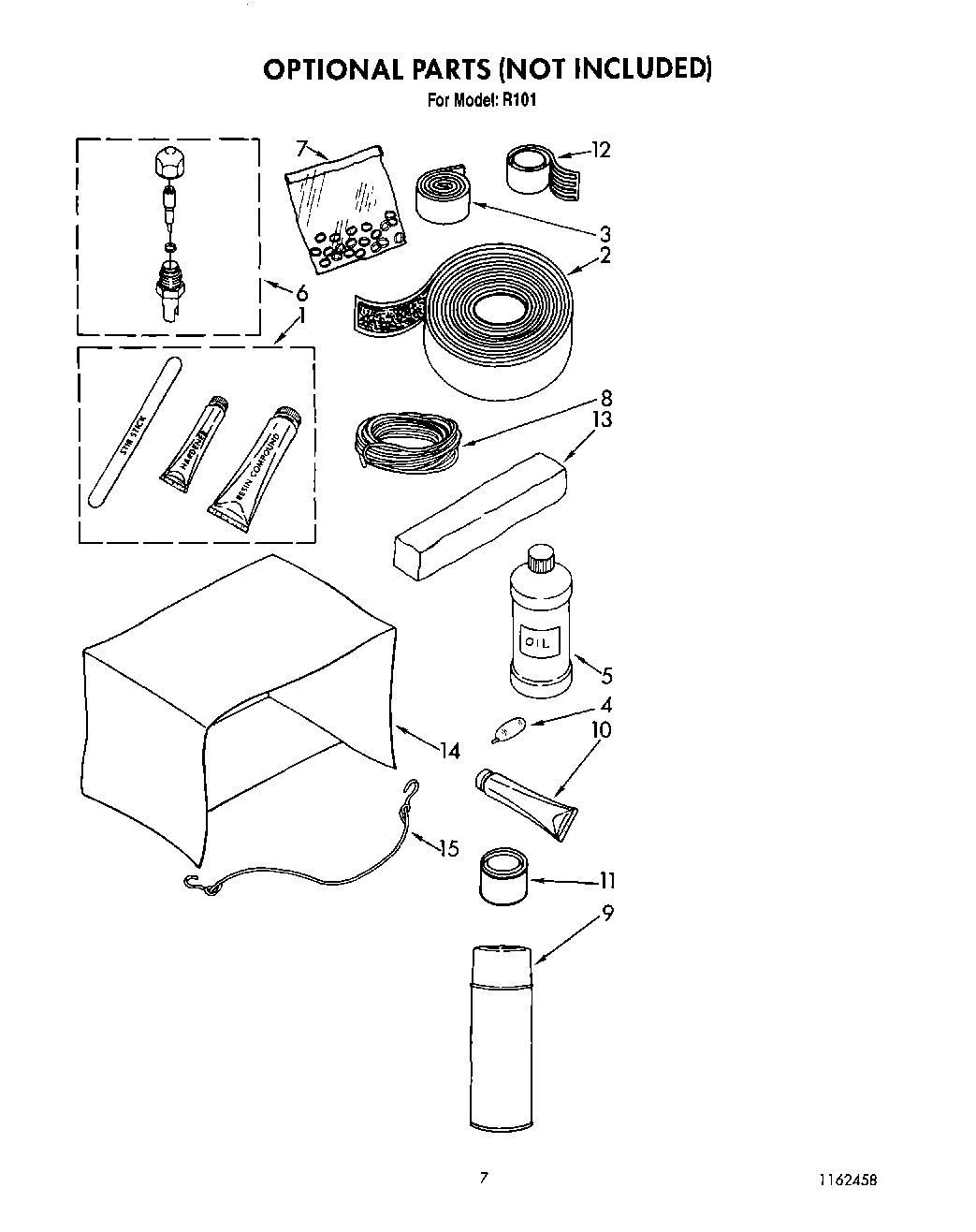

05 - OPTIONAL
02 - UNIT, LIT/OPTIONAL
04 - CABINET
Common parts from model Whirlpool BFR101 ROOM AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Diagram, Wiring WPL LIT1160383 Contact Us For Availability
1
Tech Sheet WPL LIT1160393 Contact Us For Availability
1
Guide, Operation WPL LIT1162433 Contact Us For Availability
1
List, Repair Parts WPL LIT1162458 Contact Us For Availability
1
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 952710 Contact Us For Availability
2
Cabinet WPL 1157124 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 951865 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Clip, Cabinet Front Mtg (2) WPL 949634 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Spring, Overload WPL 950032 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Gasket, Nut WPL 950037 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 950020 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
10
Screw, SG No.8 x 3/8 (6) WPL 1161561 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Motor, Fan WPL 947852 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Spring, Detent WPL 641484 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Plate, Escutcheon WPL 1160396 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Knob, Control (2) WPL 953054 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Evaporator WPL 1156532 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Tube, Restrictor WPL 1158806 Contact Us For Availability
19
Front, Cabinet WPL 1159826 Contact Us For Availability
20
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
20
Condenser WPL 1155550 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
Bend, Return Condenser (16) Evaporator (12) WPL 708531 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 948303 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (2) WPL 708532 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Filter, Air WPL 855246 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 951437 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 646306 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw, Thumb (2) WPL 475581 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
30
Clip, Vertical Louver (2) WPL 1158294 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend, Return (2) WPL 1158407 Contact Us For Availability
38
Bend, Return (2) WPL 1156533 Contact Us For Availability
40
Base WPL 950019 Contact Us For Availability
41
Tube, Suction WPL 1159583 Contact Us For Availability
42
Tube, Discharge WPL 1158807 Contact Us For Availability
× ![]()
