Model GE BFNE6BJP113CW01 General Electric Model BFNE6BJP113CW01 – Common Parts & Diagrams

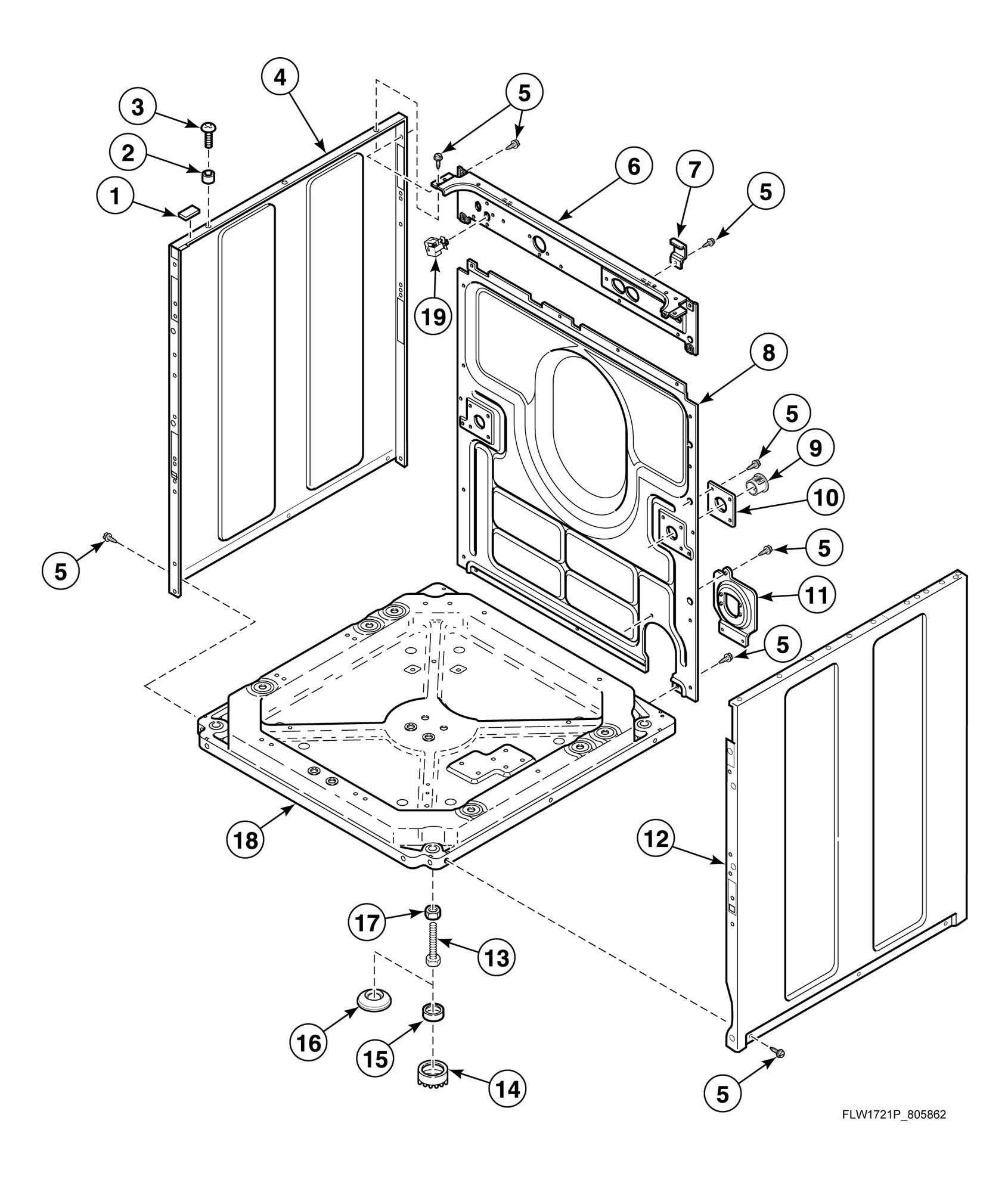

Washer Base, Side Panels and Rear Panel

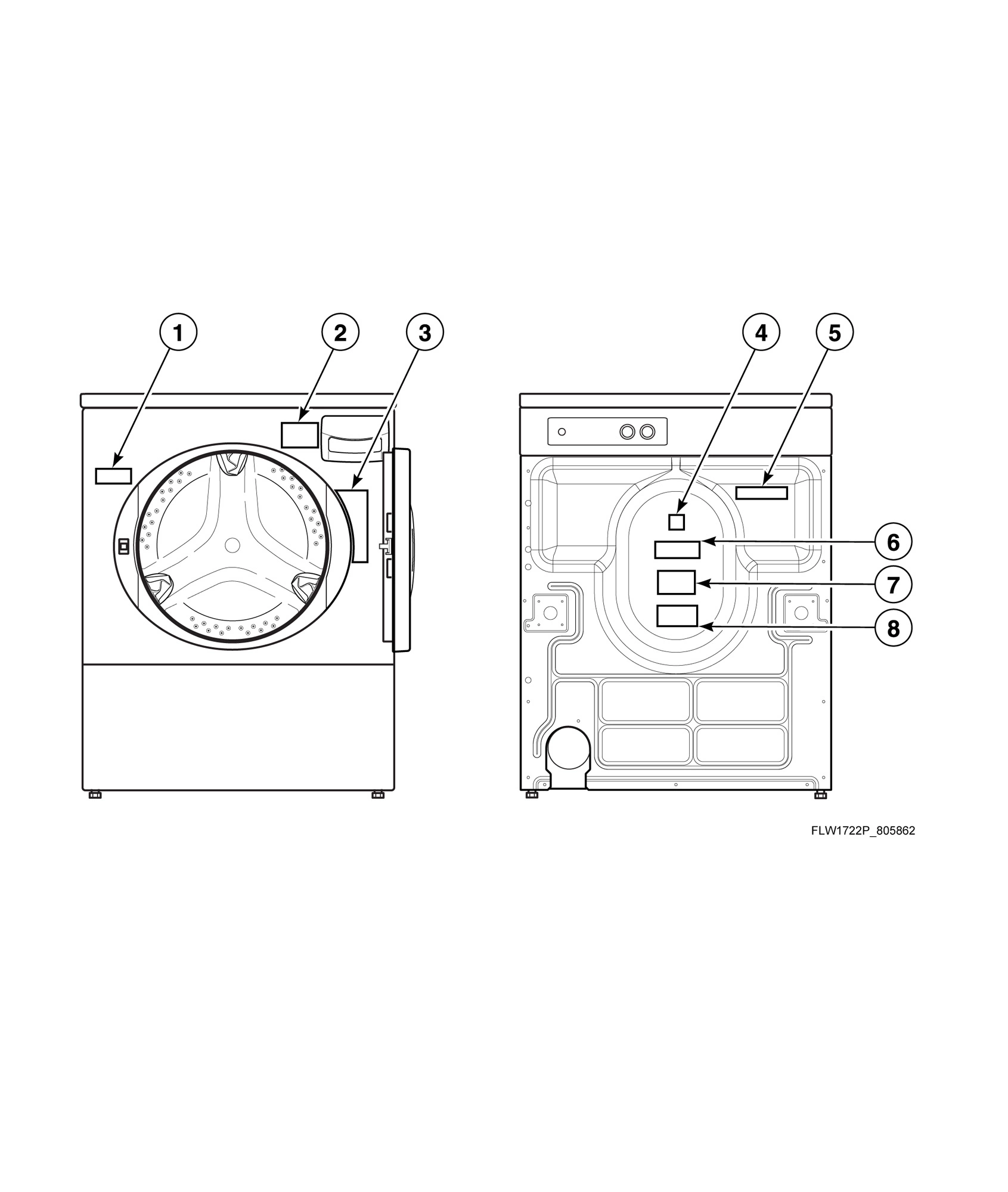

Washer Labels

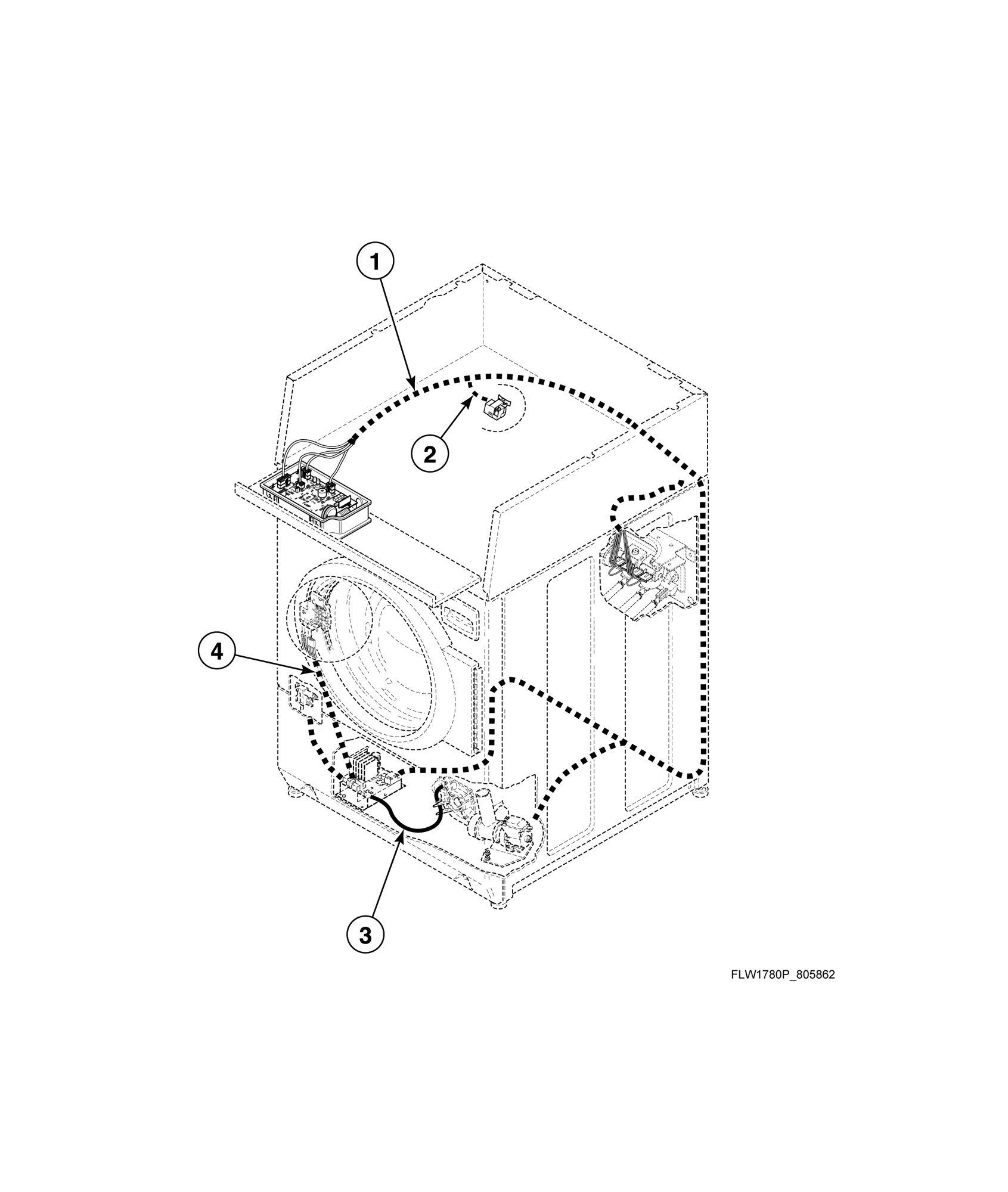

Wire Harnesses and Wires

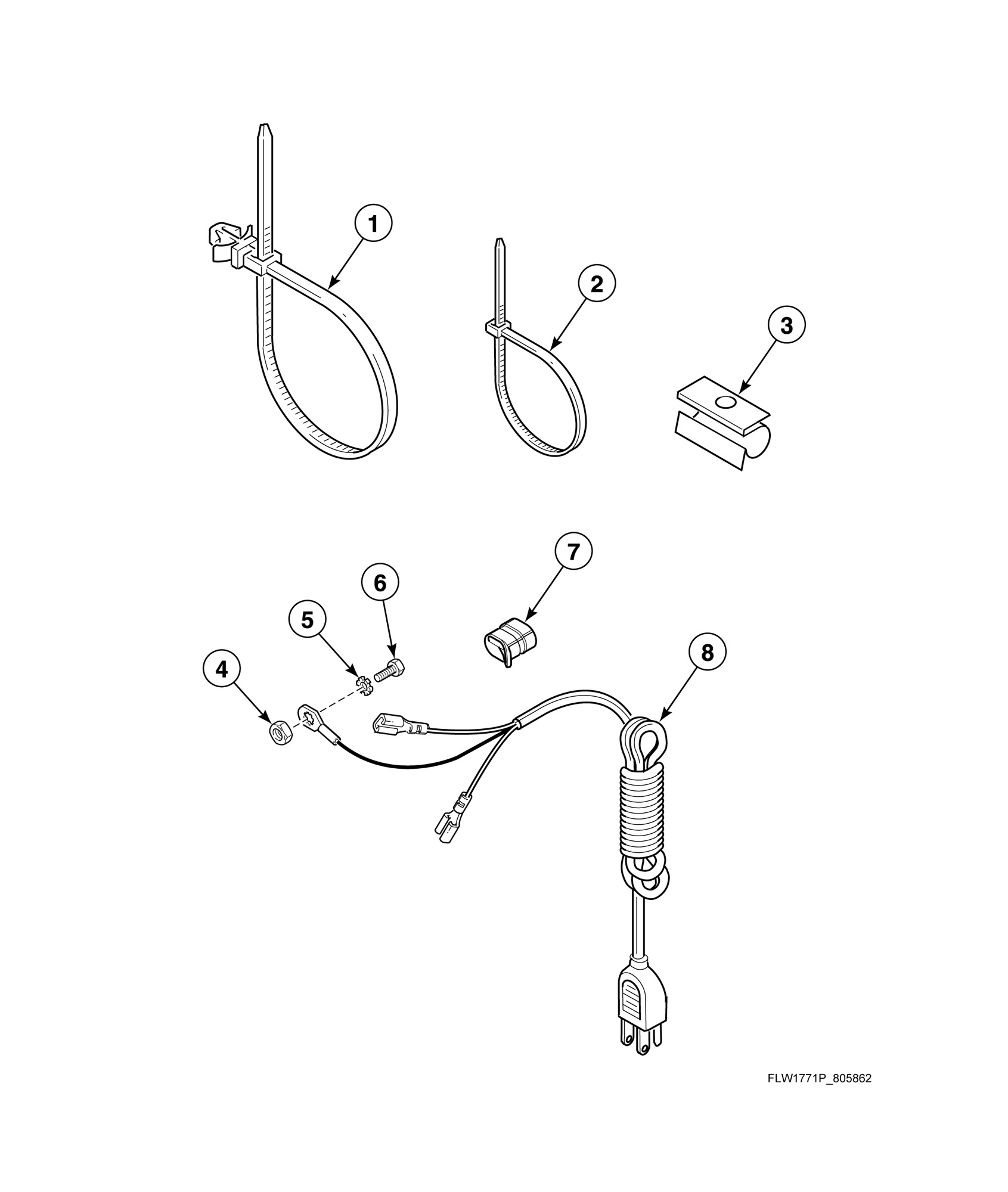

Wire Ties, Clips and Lead-In Cord
Common parts from model GE BFNE6BJP113CW01 General Electric Model BFNE6BJP113CW01
1
Notice Label GEN 803011 Contact Us For Availability
1
Front Control Harness GEN 806031 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Pressure Sensor Harness GEN 804433 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Warning Label (Comment: English, Reduce fire GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Brazilian Portuguese, GEN 804500 Contact Us For Availability
3
Warning Label (Comment: Arabic, Reduce fire r GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Japanese, Reduce fire GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Chinese, Reduce fire GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Korean, Reduce fire r GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Thai, Reduce fire ris GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Vietnamese, Reduce fi GEN 806550 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Gray) GEN 800004DG Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, White, Incl GEN 800004WP Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Stainless GEN 802525P Contact Us For Availability
4
Notice Label GEN D516073 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
4
Nut GEN 03673 Contact Us For Availability
5
Screw GEN D503661 Contact Us For Availability
5
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
5
Warning Label (Comment: Brazilian Portuguese, GEN 804582 Contact Us For Availability
5
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
5
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
5
Washer GEN 03815 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
6
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
6
Screw GEN 20530 Contact Us For Availability
7
NOT ON YOUR MODEL GEN - Contact Us For Availability
7
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
7
Electrical Shock Label GEN F8211201 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
8
GEN D500049 GEN D500049 Contact Us For Availability
8
GEN D500314 GEN D500314 Contact Us For Availability
8
GEN F8211301 GEN F8211301 Contact Us For Availability
8
Lead-In Cord GEN 202777 Contact Us For Availability
9
Shipping Plug GEN 803859 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Paint (Comment: Gray) GEN 806436P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
