Model Whirlpool BFD200 DEHUMIDIFIER – Common Parts & Diagrams
04 - SECTION
02 - SECTION
03 - SECTION
01 - SECTION

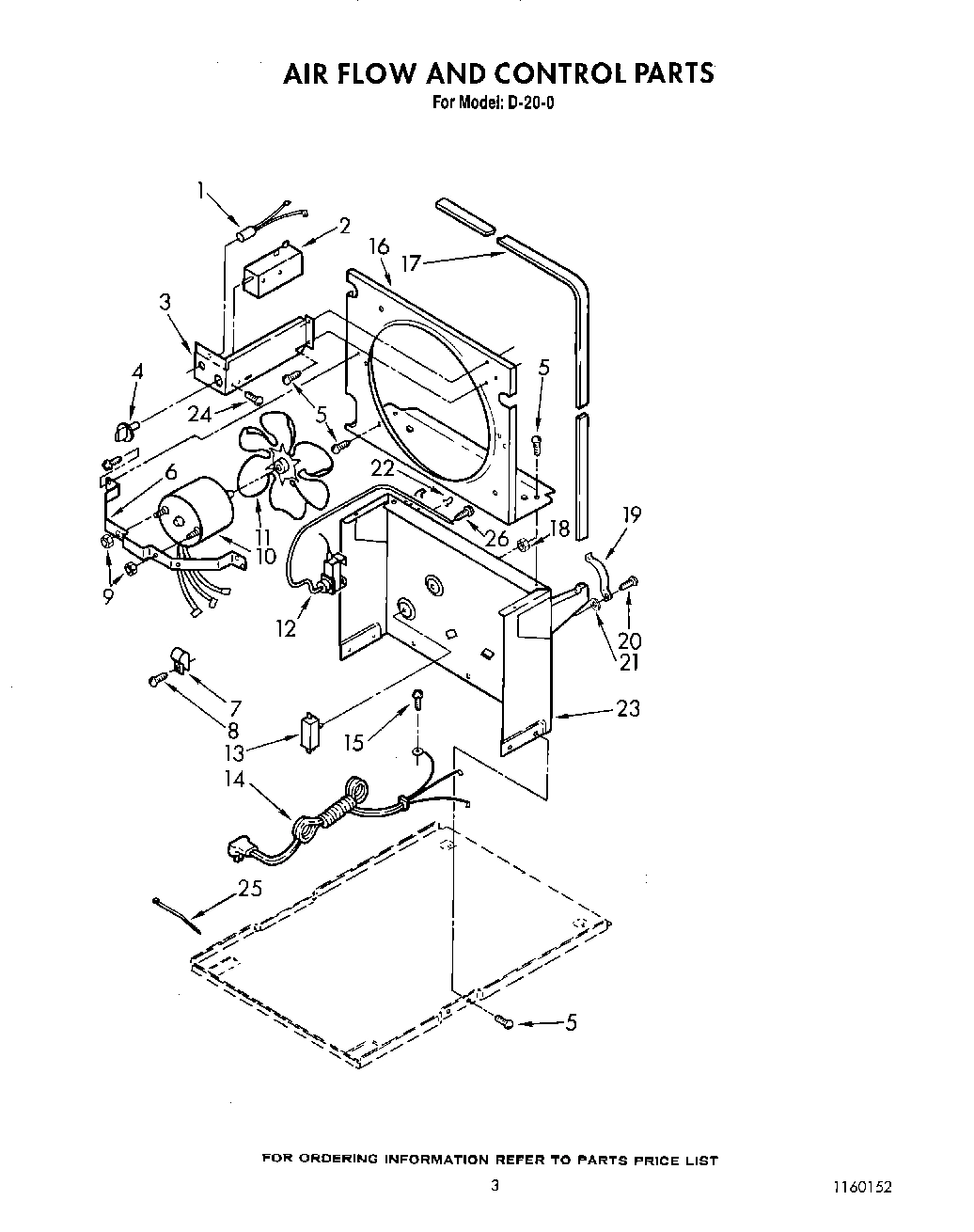

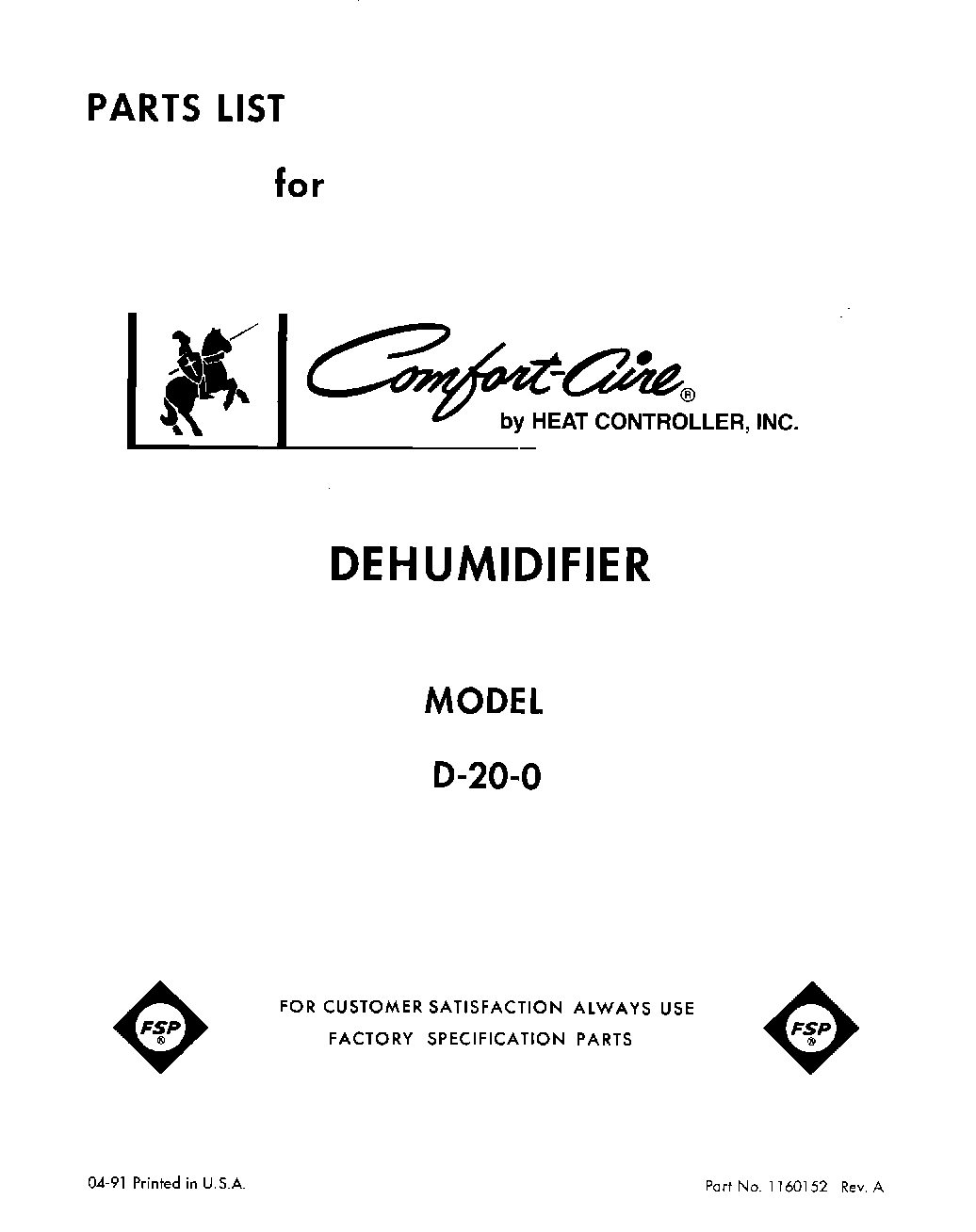

Common parts from model Whirlpool BFD200 DEHUMIDIFIER
1
Tube, Restrictor (Length 35.0``) WPL 1157397 Contact Us For Availability
1
Light, Indicator WPL 1155666 Contact Us For Availability
2
Humidistat, Control WPL 1155848 Contact Us For Availability
3
Strainer, Tube WPL 474013 Contact Us For Availability
3
Bracket, Control WPL 951285 Contact Us For Availability
4
Tube, Outlet (Includes No.3) WPL 1159239 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
5
Condenser WPL 1159671 Contact Us For Availability
5
Screw, SM 8 x 3/8 WPL 488624 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
8
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
8
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
8
Cup, Condensate Pan WPL 646753 Contact Us For Availability
8
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
8
Pan, Condensate WPL 951901 Contact Us For Availability
8
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
8
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
List, Repair Parts WPL LIT1160152 Contact Us For Availability
8
Manual, Owners WPL LIT1160157 Contact Us For Availability
8
Sheet, Tech WPL LIT1160160 Contact Us For Availability
8
Diagram, Wiring WPL LIT1160263 Contact Us For Availability
10
Overload, Protector WPL 1159668 Contact Us For Availability
10
Motor, Fan WPL 1156859 Contact Us For Availability
11
Relay, Start WPL 758637 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
12
Cover, Terminal WPL 1157582 Contact Us For Availability
12
Thermostat, De-Icer WPL 1155109 Contact Us For Availability
13
Retainer, Cover WPL 938384 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1157554 Contact Us For Availability
14
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
22
Roll Pin (2) WPL 489015 Contact Us For Availability
22
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Roller (2) WPL 998726 Contact Us For Availability
24
Screw, 8 X 1/4 WPL 145450 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 485780 Contact Us For Availability
26
Retainer, Cover WPL 549342 Contact Us For Availability
27
Cover, Terminal WPL 549336 Contact Us For Availability
28
Overload, Protector WPL 649833 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
30
Relay WPL 549339 Contact Us For Availability
31
Glide (2) WPL 951886 Contact Us For Availability
× ![]()
