Model LG BF60RG – Common Parts & Diagrams

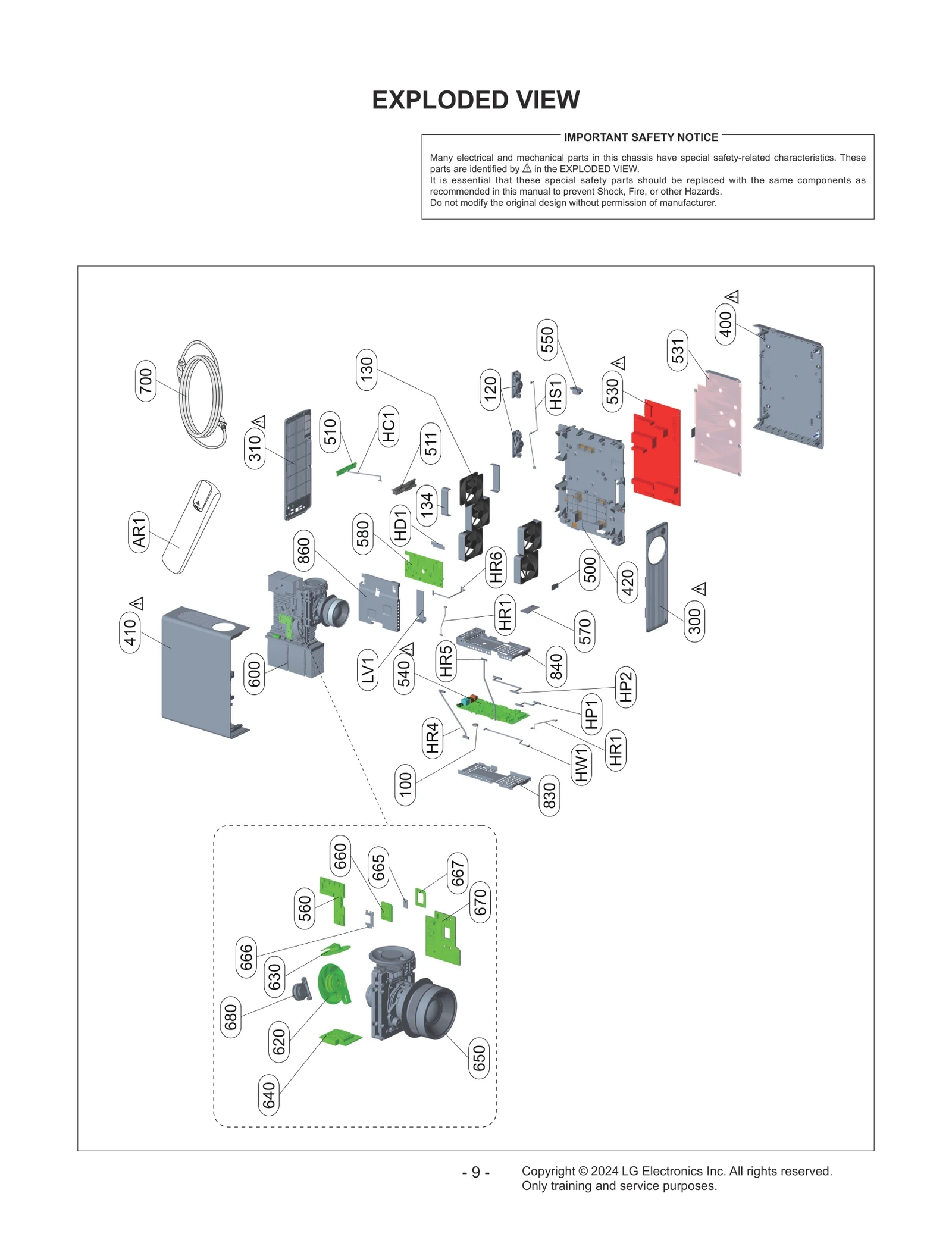

Diagram 0
Common parts from model LG BF60RG
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
120
Speaker,Full Range LGE EAB35995526 Contact Us For Availability
134
Gasket LGE MDS64155513 Contact Us For Availability
300
Case Assembly LGE ABQ30007206 Contact Us For Availability
310
Case Assembly LGE ABQ30007317 Contact Us For Availability
400
Case Assembly LGE ABQ30007101 Contact Us For Availability
420
Case Assembly LGE ABQ30007408 Contact Us For Availability
500
Chassis Assembly LGE EBT66463204 Contact Us For Availability
531
Plate,Shield LGE MGJ66913608 Contact Us For Availability
540
Chassis Assembly LGE EBT67704802 Contact Us For Availability
560
Chassis Assembly LGE EBT67205102 Contact Us For Availability
580
Chassis Assembly LGE EBT67705002 Contact Us For Availability
600
Lens Assembly LGE AFD74572602 Contact Us For Availability
600
Chassis Assembly LGE EBT67705122 Contact Us For Availability
630
Filter LGE MDJ66346401 Contact Us For Availability
640
Chassis Assembly LGE EBT67228902 Contact Us For Availability
660
IC,ASIC LGE EAN66295401 Contact Us For Availability
666
Supporter LGE MJH66340001 Contact Us For Availability
666
Supporter LGE MJH66340002 Contact Us For Availability
667
Socket,IC LGE EAG63391302 Contact Us For Availability
670
Chassis Assembly LGE EBT67229202 Contact Us For Availability
680
Lens LGE MFB65487501 Contact Us For Availability
830
Plate,Shield LGE MGJ66988001 Contact Us For Availability
840
Plate,Shield LGE MGJ66972203 Contact Us For Availability
HC1
Harness,Single LGE EAD63970107 Contact Us For Availability
HD1
PCB,Flexible LGE EAX69112802 Contact Us For Availability
HD1
PCB,Flexible LGE EAX69112801 Contact Us For Availability
HP1
Harness,Single LGE EAD65874001 Contact Us For Availability
HP2
Harness,Single LGE EAD65834501 Contact Us For Availability
HR1
Harness,Single LGE EAD64808602 Contact Us For Availability
HR4
Harness,Single LGE EAD64666702 Contact Us For Availability
HR5
Harness,Single LGE EAD65166702 Contact Us For Availability
HR6
Harness,Single LGE EAD64126115 Contact Us For Availability
HS1
Harness,Multi LGE EAD64548117 Contact Us For Availability
HW1
Harness,Single LGE EAD64491605 Contact Us For Availability
× ![]()
