Model Whirlpool BES450WB1 BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams

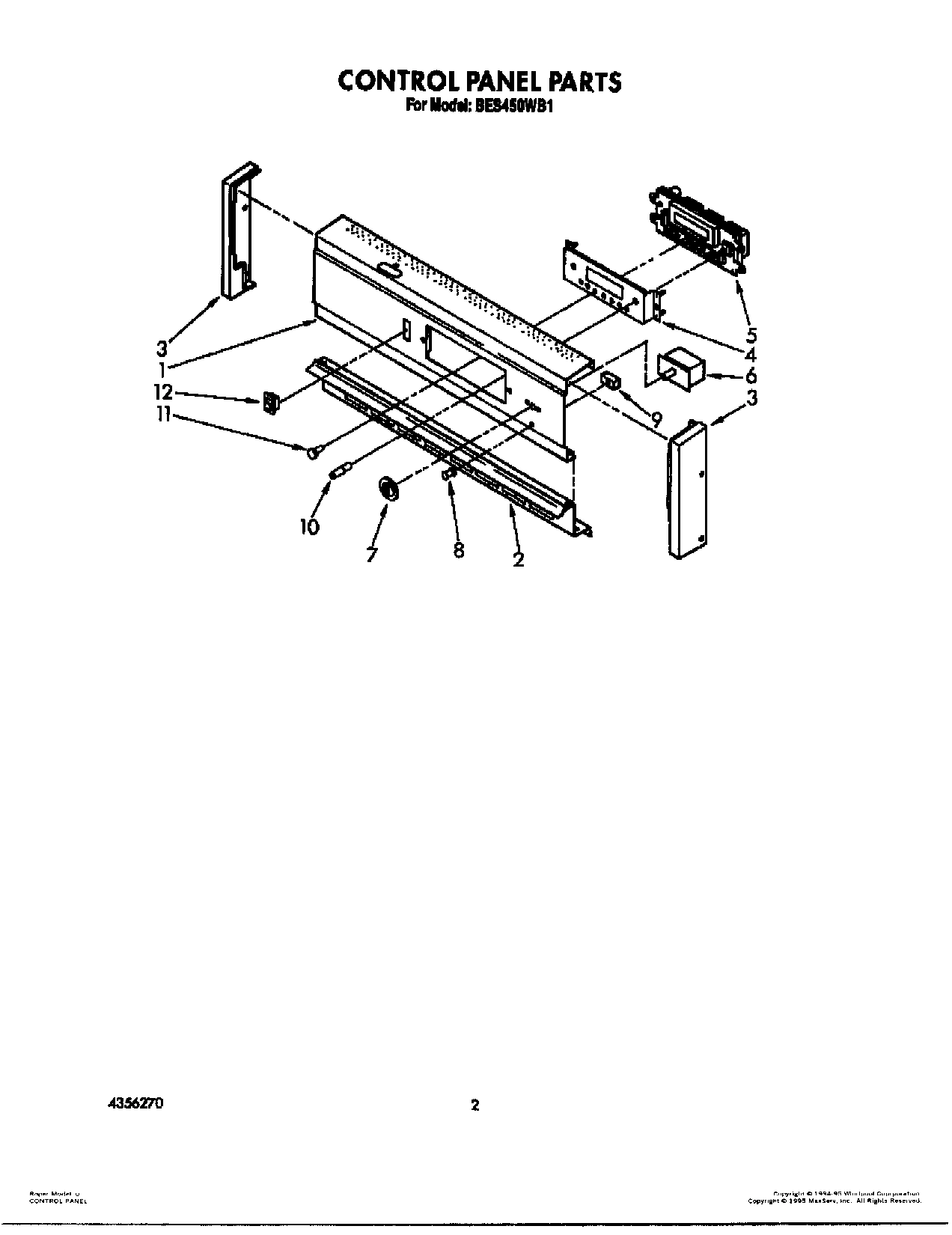

02 - CONTROL PANEL

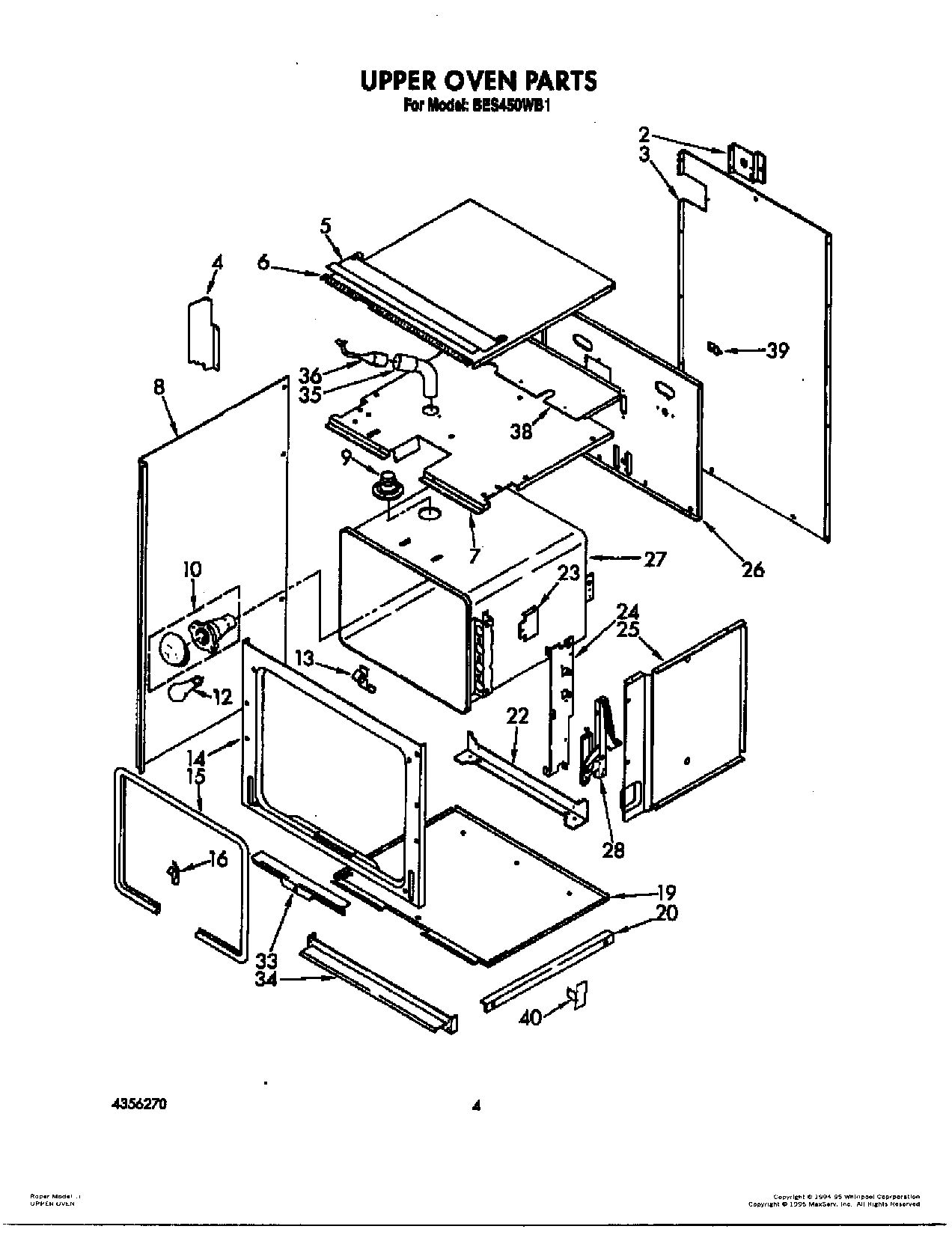

04 - UPPER OVEN
01 - COVER
03 - COMPONENT SHELF AND LATCH
09 - WIRING HARNESS
08 - LOWER OVEN DOOR
06 - OVEN LINER
05 - LOWER OVEN
07 - UPPER OVEN DOOR
Common parts from model Whirlpool BES450WB1 BUILT-IN ELECTRIC OVEN
1
Liner, Oven (Upper) WPL 3177461 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Shelf, Component WPL 3178090 Contact Us For Availability
1
Wiring Harness Latch Switch WPL 3181193 Contact Us For Availability
1
Liner, Door WPL 3177598 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3177597 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
3
End Cap (Right) WPL 3180678 Contact Us For Availability
3
Cabinet, Back WPL 3177624 Contact Us For Availability
3
Top, Module WPL 3177437 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Wiring Harness (Lower Oven) WPL 3180618 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
4
Lens, Clock WPL 3180746 Contact Us For Availability
4
Baffle, End Cap (Left Hand) WPL 3181961 Contact Us For Availability
4
Baffle, End Cap (Right Hand) WPL 3181962 Contact Us For Availability
4
Switch, Latch WPL 3178670 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Wiring Harness (Upper Oven) WPL 3180619 Contact Us For Availability
4
Window Pack WPL 4169572 Contact Us For Availability
4
Tube, Vent WPL 3181700 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
5
Control, Upper Oven WPL 3180745 Contact Us For Availability
5
Nut (4) WPL 3181004 Contact Us For Availability
5
Baffle, Control Back WPL 3181758 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Liner, Oven WPL 3180803 Contact Us For Availability
5
Bracket, Element WPL 3180694 Contact Us For Availability
6
Screw (2) WPL 3178002 Contact Us For Availability
6
Thermostat, Lower Oven WPL 3178284 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Cabinet, Top WPL 3178139 Contact Us For Availability
6
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven WPL 3180866 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
7
Knob, Thermostat WPL 3180949 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Screw (2) WPL 3179950 Contact Us For Availability
7
Screw (4) WPL 309133 Contact Us For Availability
7
Clip, Glass (16) WPL 310706 Contact Us For Availability
7
Glass, Door WPL 3180637 Contact Us For Availability
8
Lens, Indicator WPL 3180920 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177440 Contact Us For Availability
8
Knob, Latch Handle WPL 3183293 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Sensor, Heat (Upper Oven) WPL 3148440 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Indicator, Light WPL 314031 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Frame, Door WPL 3180635 Contact Us For Availability
10
Knob, Bit Generator WPL 3149784 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Handle, Door WPL 3180654 Contact Us For Availability
10
Screw (4) WPL 3181924 Contact Us For Availability
11
Set Button, Knob WPL 3149780 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Screw (2) WPL 3179116 Contact Us For Availability
11
Clip (2) WPL 3181850 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Frame, Door WPL 3177704 Contact Us For Availability
13
Seal, Door WPL 3179814 Contact Us For Availability
13
Extension, Shelf WPL 3178133 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Frame, Front WPL 3177705 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Bumper, Door Glass WPL 3181723 Contact Us For Availability
16
Bottom, Oven WPL 3177552 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
17
Baffle, Air WPL 3180693 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
18
Shield, Heat WPL 3180690 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
21
Support, Oevn WPL 3177434 Contact Us For Availability
22
Back, Module WPL 3177558 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Cover, Latch Mtg. WPL 3180126 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
25
Screw (4) WPL 3179795 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
26
Button, Plug WPL 3185108 Contact Us For Availability
27
Button, Plug WPL 3185109 Contact Us For Availability
28
Tube, Vent WPL 3179945 Contact Us For Availability
29
Tube, Vent WPL 3181964 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (8) WPL 3179776 Contact Us For Availability
34
Screw (4) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim WPL 3182118 Contact Us For Availability
34
Trim, Lower Vent WPL 3177784 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
35
Screw WPL 4159445 Contact Us For Availability
35
Cover, Cap Tube WPL 4168203 Contact Us For Availability
35
Insulation, Wrap WPL 3177865 Contact Us For Availability
35
Insulation, Back WPL 3177870 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179924 Contact Us For Availability
40
Screw (2) WPL 4173601 Contact Us For Availability
40
Insert, Middle Vent Trim WPL 3182286 Contact Us For Availability
× ![]()
