Model Whirlpool BES430WB0 BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams

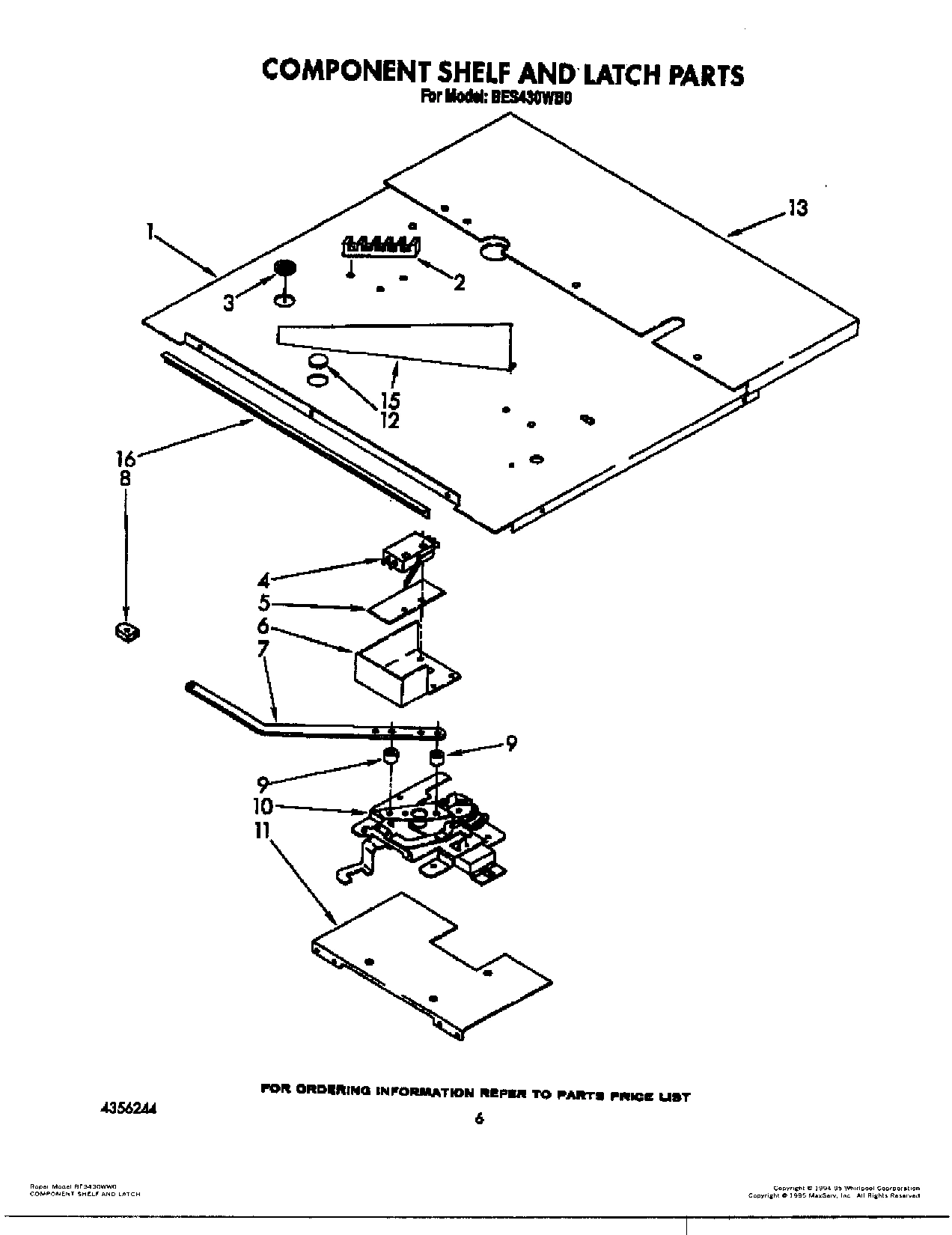

05 - COMPONENT SHELF AND LATCH

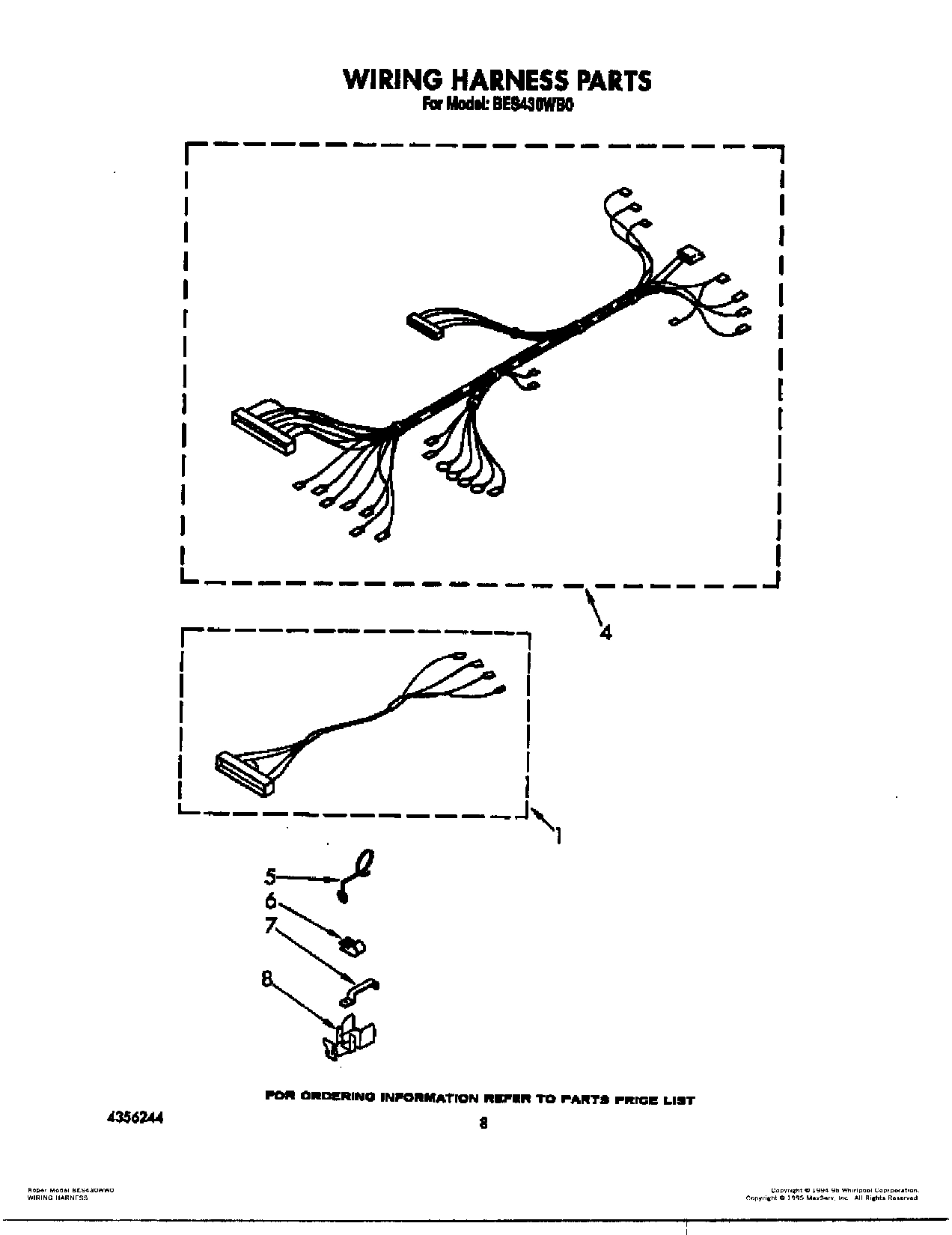

07 - WIRING HARNESS
04 - OVEN
06 - OVEN LINER
01 - COVER
03 - OVEN DOOR
02 - CONTROL PANEL
Common parts from model Whirlpool BES430WB0 BUILT-IN ELECTRIC OVEN
Use & Care Guide WPL LIT3177069 Contact Us For Availability
Tech Sheet WPL LIT3180719 Contact Us For Availability
Installation Instructions WPL LIT3180938 Contact Us For Availability
Repair Parts List WPL LIT4356244 Contact Us For Availability
1
Wiring Harness (Latch Assembly) WPL 3181193 Contact Us For Availability
1
Liner, Oven WPL 3177461 Contact Us For Availability
1
Liner, Door WPL 3177591 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
1
Panel, Control (Black) WPL 3180708 Contact Us For Availability
1
Panel, Control (White) WPL 3180709 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Seal, Window WPL 3178584 Contact Us For Availability
2
Insert, Control Panel (Flat Black) WPL 3180643 Contact Us For Availability
2
Insert, Control Panel (White) WPL 3180644 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
3
Cabinet, Back WPL 3177626 Contact Us For Availability
3
End Cap (Screw, White Unit (6)) WPL 4168863 Contact Us For Availability
3
Spacer, Window WPL 3179694 Contact Us For Availability
3
End Cap (Black, Left) WPL 3180677 Contact Us For Availability
3
End Cap (Black, Right) WPL 3180678 Contact Us For Availability
3
End Cap (White, Left) WPL 3180679 Contact Us For Availability
3
End Cap (White, Right) WPL 3180680 Contact Us For Availability
3
End Cap (Screw, Black Unit (6)) WPL 4173601 Contact Us For Availability
4
Switch, Latch WPL 3178670 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Baffle, Endcap (Screw (4)) WPL 254225 Contact Us For Availability
4
Wiring Harness WPL 3180619 Contact Us For Availability
4
Baffle, End Cap (Left Hand) WPL 3181961 Contact Us For Availability
4
Baffle, End Cap (Right Hand) WPL 3181962 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
4
Lens, Clock WPL 3180746 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Standoff, Wire WPL 3179668 Contact Us For Availability
5
Baffle, Control Back WPL 3181758 Contact Us For Availability
5
Screw, (2) WPL 4159445 Contact Us For Availability
5
Bracket, Element WPL 3180694 Contact Us For Availability
5
Retainer, Insulation WPL 3177719 Contact Us For Availability
5
Oven, Control WPL 3180745 Contact Us For Availability
5
Nut (4) WPL 3181004 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Cabinet, Top WPL 3178139 Contact Us For Availability
6
Rack, Oven WPL 3180866 Contact Us For Availability
6
Bracket, Glass Mounting (2) WPL 4163855 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
7
Screw (2) WPL 3179950 Contact Us For Availability
7
Top, Module WPL 3177437 Contact Us For Availability
7
Screw (2) WPL 3179117 Contact Us For Availability
7
Glass, Door (Screw (6)) WPL 307748 Contact Us For Availability
7
Glass, Door (Clip, Glass (16)) WPL 310706 Contact Us For Availability
7
Glass, Door (Black) WPL 3180637 Contact Us For Availability
7
Glass, Door (White) WPL 3180639 Contact Us For Availability
8
Knob, Latch Handle WPL 311253 Contact Us For Availability
8
Screw (4) WPL 309133 Contact Us For Availability
8
Side, Cabinet (R.H. & L.H.) WPL 3177442 Contact Us For Availability
8
Sensor, Heat WPL 3148440 Contact Us For Availability
8
Screw WPL 4159372 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Spacer, Handle WPL 3177986 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Frame, Door (White) WPL 3180633 Contact Us For Availability
9
Frame, Door (Black) WPL 3180635 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Handle, Door (White) WPL 3180652 Contact Us For Availability
10
Handle, Door (Black) WPL 3180654 Contact Us For Availability
10
Knob, Bit Generator (Gloss Black) WPL 3149784 Contact Us For Availability
10
Knob, Bit Generator (White) WPL 3149785 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Clip, Handle (2) WPL 3181850 Contact Us For Availability
11
Screw (4) WPL 3181924 Contact Us For Availability
11
Button, Set (8) (Black) WPL 3149780 Contact Us For Availability
11
Button, Set (8) (White) WPL 3149781 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Retainer, Glass WPL 4167975 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Frame, Front WPL 3177705 Contact Us For Availability
14
Screw (4) WPL 3179776 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Baffle, Air WPL 3180693 Contact Us For Availability
15
Seal, Door WPL 3179814 Contact Us For Availability
15
Bumper, Door Glass WPL 3181723 Contact Us For Availability
16
Shield, Heat WPL 3180690 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
19
Bottom, Module WPL 3177622 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Back, Module WPL 3177558 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3185109 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Black) WPL 3177784 Contact Us For Availability
34
Vent, Lower Trim (Brushed Chrome) WPL 3177786 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179922 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179924 Contact Us For Availability
38
Extension, Shelf WPL 3178133 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Bottom, Oven WPL 3177552 Contact Us For Availability
40
Insulation, Wrap WPL 3177865 Contact Us For Availability
40
Insulation, Back WPL 3177870 Contact Us For Availability
× ![]()
