Model Whirlpool BEP410WB0 BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams

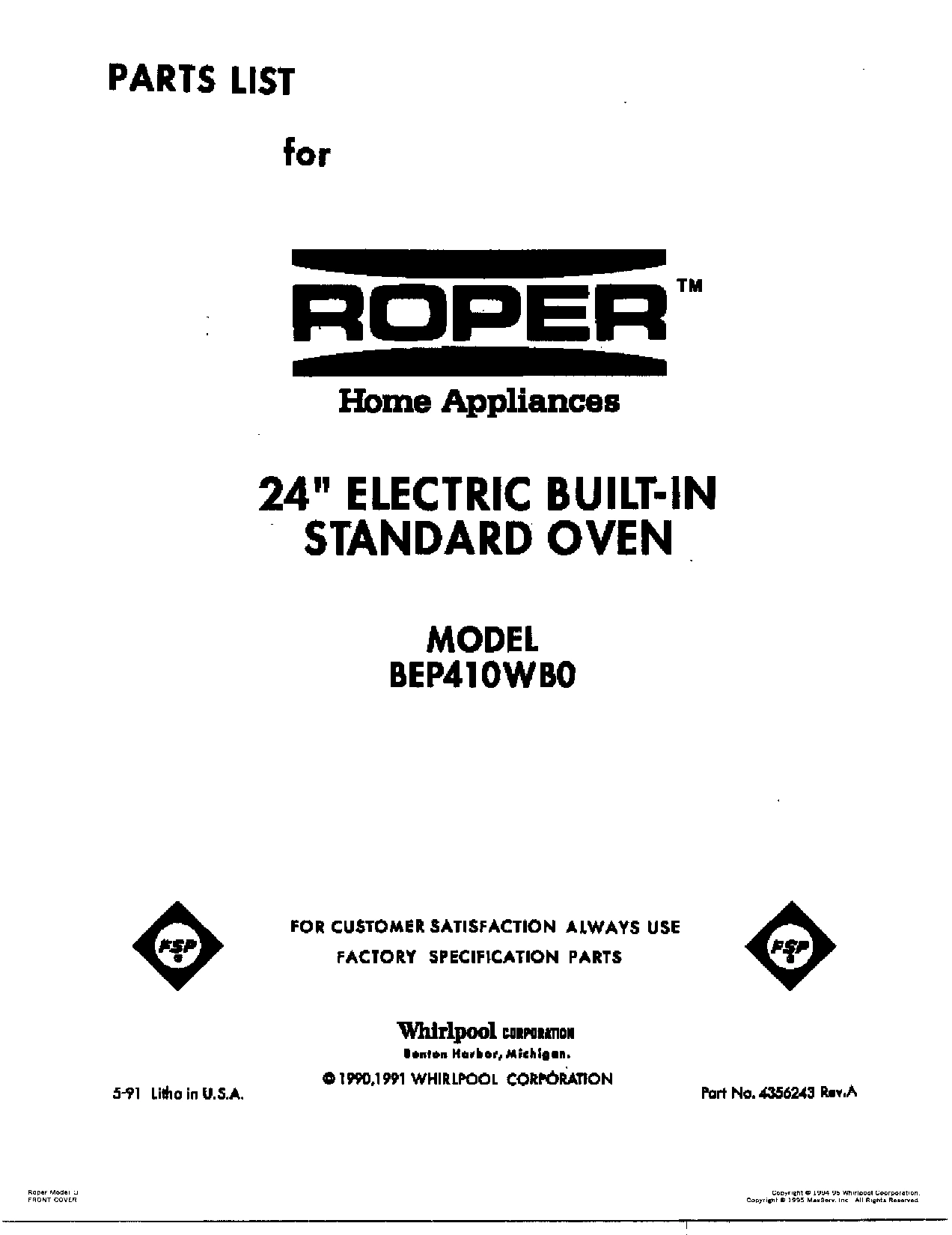

01 - COVER

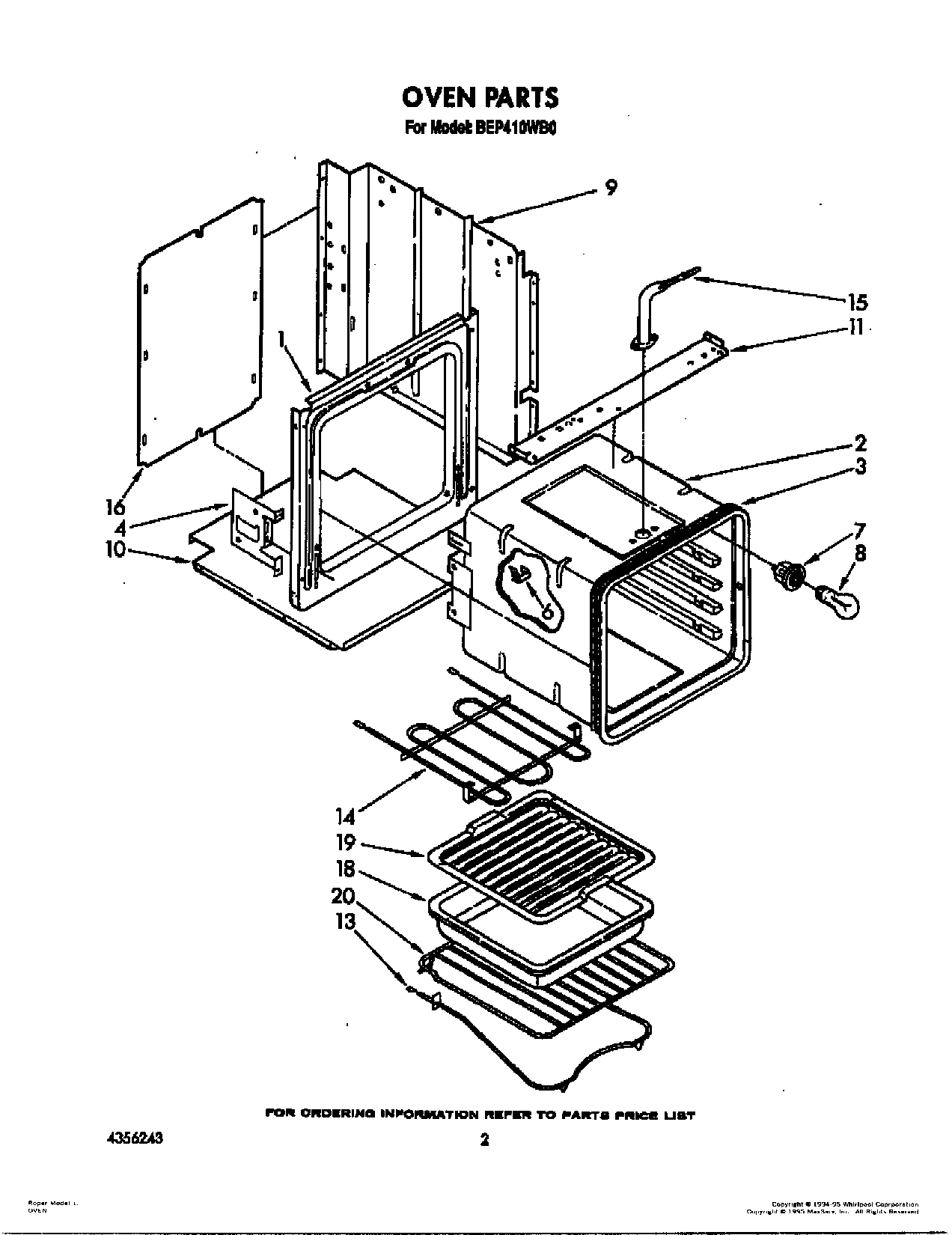

02 - OVEN PARTS
04 - OVEN DOOR
05 - WIRING HARNESS
03 - CONTROL PANEL
Common parts from model Whirlpool BEP410WB0 BUILT-IN ELECTRIC OVEN
1
Bar, Torsion (Pushnut (2)) WPL 255280 Contact Us For Availability
1
Bar, Torsion (R.H.) WPL 327741 Contact Us For Availability
1
Bar, Torsion (L.H.) WPL 327742 Contact Us For Availability
1
Harness, Wire (Main) WPL 311502 Contact Us For Availability
1
End Cap (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability
1
End Cap (Left Side) WPL 3181001 Contact Us For Availability
1
End Cap (Right Side) WPL 3181002 Contact Us For Availability
2
Nut, Snap-In (2) WPL 258093 Contact Us For Availability
2
Liner, Door 24`` WPL 3172551 Contact Us For Availability
2
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
2
Receptacle, Housing WPL 307772 Contact Us For Availability
2
Trim, Center WPL 3148703 Contact Us For Availability
3
Trim, Bottom WPL 3181005 Contact Us For Availability
4
Baffle WPL 258991 Contact Us For Availability
4
Trim, Upper WPL 3181003 Contact Us For Availability
5
Spacer (4) WPL 3170094 Contact Us For Availability
6
Panel, Control WPL 3180628 Contact Us For Availability
7
screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability
7
Support, Torsion Bar (2) WPL 258921 Contact Us For Availability
7
Lens, Indicator WPL 3180920 Contact Us For Availability
8
Stop, Door (Washer, Fibre) WPL 229364 Contact Us For Availability
8
Stop, Door (Right Hand) WPL 252138 Contact Us For Availability
8
Stop, Door (Left Hand) WPL 252139 Contact Us For Availability
9
Seal, Window WPL 307852 Contact Us For Availability
10
Cover (Top) WPL 312004 Contact Us For Availability
10
Glass, Inner WPL 258989 Contact Us For Availability
10
Thermostat (Alt.) WPL 310862 Contact Us For Availability
10
Thermostat (Alt.) WPL 311496 Contact Us For Availability
10
Thermostat WPL 660565 Contact Us For Availability
11
Indicator Light (250V) WPL 314031 Contact Us For Availability
11
Baffle, Top Insulation WPL 255575 Contact Us For Availability
11
Bumper (4) WPL 312783 Contact Us For Availability
12
Selector Switch (4 Position) WPL 310866 Contact Us For Availability
14
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
14
Frame, Door WPL 3181010 Contact Us For Availability
14
Timer, Automatic (Includes Illus. 15) WPL 3181009 Contact Us For Availability
15
Vent, Built-In Oven WPL 311382 Contact Us For Availability
15
Top, Door Frame WPL 311460 Contact Us For Availability
15
Motor, Timer WPL 309822 Contact Us For Availability
16
Cover, Rear WPL 257975 Contact Us For Availability
16
Hold-Down, Glass WPL 310705 Contact Us For Availability
16
Knob, Thermostat (Adjustable) WPL 3180949 Contact Us For Availability
19
Glass, Outer WPL 311589 Contact Us For Availability
20
Rack, Oven (2) WPL 254426 Contact Us For Availability
20
Clip, Glass (7) WPL 310706 Contact Us For Availability
20
Screw (8) WPL 311056 Contact Us For Availability
20
Knob, Selector WPL 3181006 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
WPL 313523 WPL 313523 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Handle, Door WPL 3180945 Contact Us For Availability
22
Screw, Black (4) WPL 3181987 Contact Us For Availability
22
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
22
Coffee WPL 261886 Contact Us For Availability
22
Coffee (Uncut) WPL 261887 Contact Us For Availability
22
New Avocado WPL 261888 Contact Us For Availability
22
Harvest Gold WPL 261890 Contact Us For Availability
22
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
24
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
24
Clip (2) WPL 311506 Contact Us For Availability
× ![]()
