Model GE BEH50DCEHSBA Hybrid Water Heater – Common Parts & Diagrams

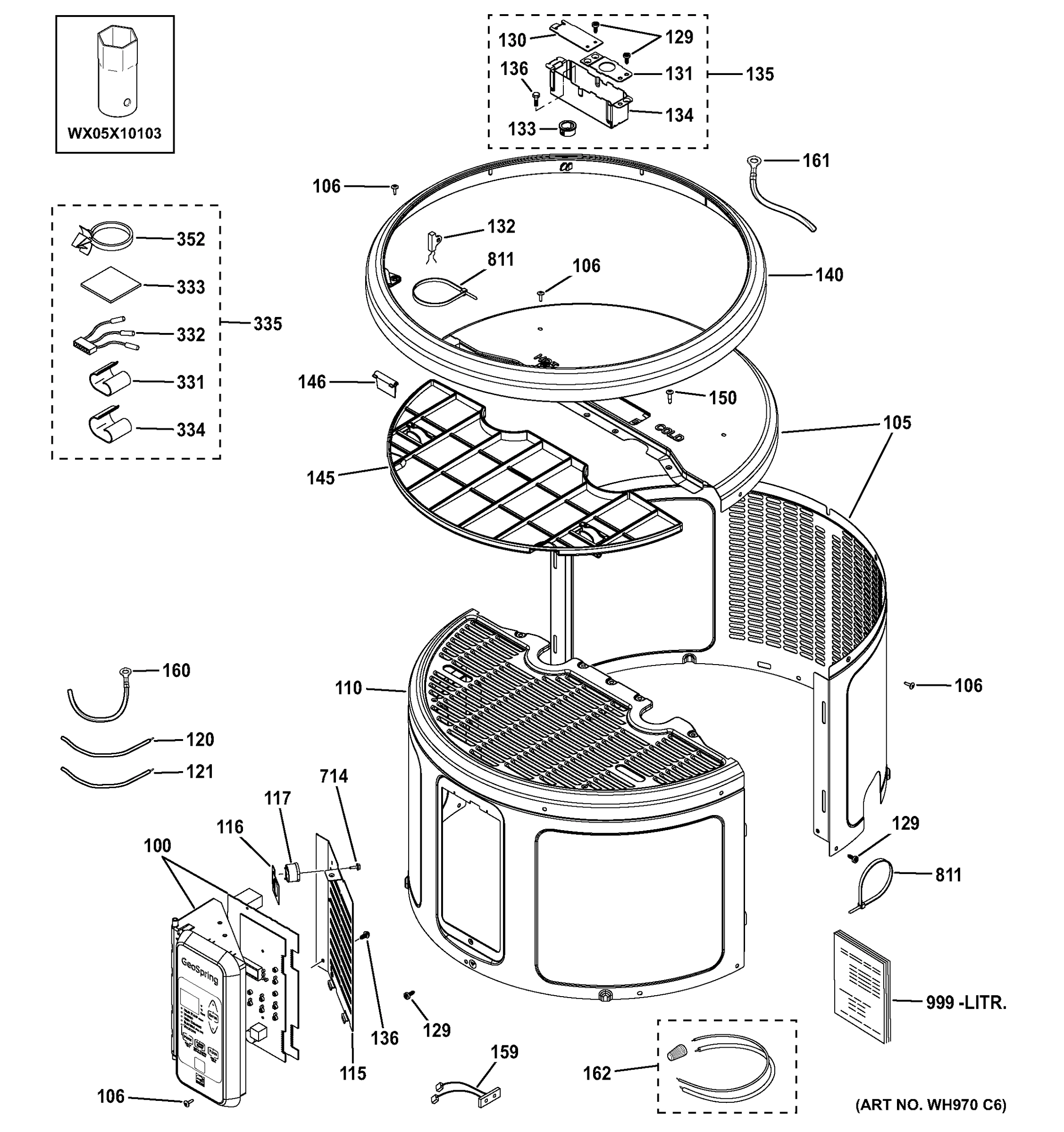

CONTROL PANEL & SHROUD

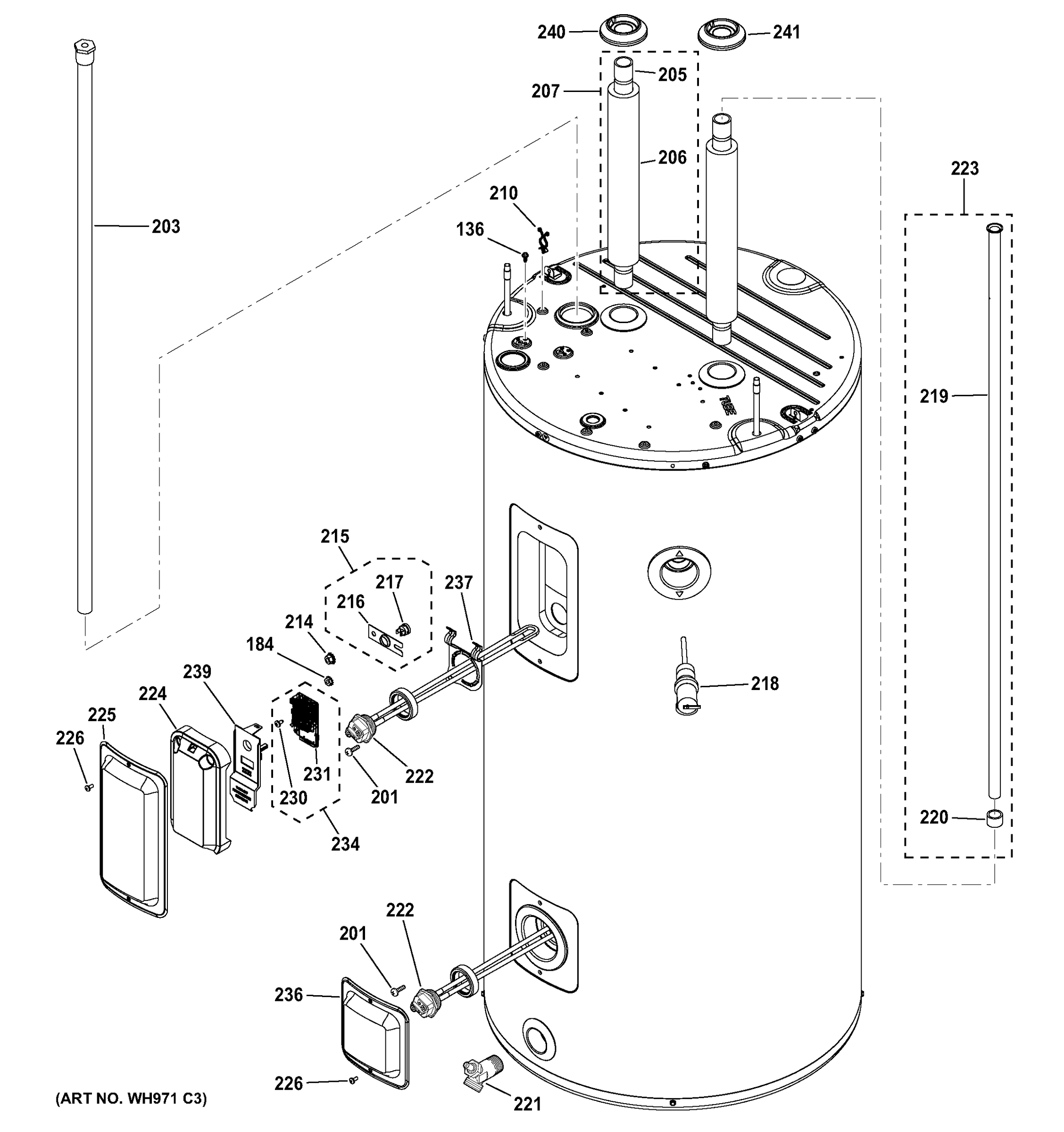

BODY PARTS
MACHINE COMPARTMENT
Common parts from model GE BEH50DCEHSBA Hybrid Water Heater
120
WIRE (E-D) YELLOW GEN WS19X10033 Contact Us For Availability
121
WIRE (E-E) BLUE GEN WS19X10036 Contact Us For Availability
129
SCR 10-32 GX PNT20 1/2 S GEN WS02X10086 Contact Us For Availability
130
COVER ACCESS J- BOX GEN WS01X10048 Contact Us For Availability
131
COVER FIXED J- BOX GEN WS01X10049 Contact Us For Availability
132
SENSOR T5 GEN WS17X10008 Contact Us For Availability
133
GROMMET DC (J-BOX) GEN WS02X10072 Contact Us For Availability
134
CAVITY JUNCTION BOX GEN WS01X10047 Contact Us For Availability
135
JUNCTION BOX ASM GEN WS35X10073 Contact Us For Availability
140
TRIM RING GEN WS31X10061 Contact Us For Availability
145
FILTER AIR GEN WS31X10058 Contact Us For Availability
146
COVER AIR FILTER SNAP GEN WS01X10053 Contact Us For Availability
150
SCR 8-18 B PNT 3/4 S RED GEN WS02X10084 Contact Us For Availability
159
T2 WIRE REPAIR KIT GEN WS19X10040 Contact Us For Availability
160
GROUND WIRE TO ENCLOSURE GEN WS19X10037 Contact Us For Availability
161
GROUND WIRE TO J-BOX GEN WS19X10038 Contact Us For Availability
162
WIRE L1-L2 REPAIR KIT GEN WS19X10039 Contact Us For Availability
184
NUT KEPS 10-32 SPECIAL GEN WH02X10300 Contact Us For Availability
201
SCR 10-32 PNUP 13/32 S GEN WS02X10077 Contact Us For Availability
203
ROD ANODE GEN WS02X10071 Contact Us For Availability
205
PIPE EXTENSION TRAP GEN WS07X10032 Contact Us For Availability
207
PIPE EXTENTION ASM GEN WS35X10070 Contact Us For Availability
214
1/4-20 HEX NUT - LOCKING GEN WS02X10075 Contact Us For Availability
215
T2 TANK THERMISTOR ASM GEN WS17X10013 Contact Us For Availability
216
BRACKET THERMISTOR T2 GEN WS28X10074 Contact Us For Availability
217
TANK THERMISTOR T2 GEN WS17X10006 Contact Us For Availability
218
VALVE, TEMP/PRESSURE REL GEN WS06X10014 Contact Us For Availability
219
DIPTUBE GEN WS08X10015 Contact Us For Availability
220
SEAL DIPTUBE GEN WS03X10076 Contact Us For Availability
221
VALVE DRAIN STRAIGHT GEN WS06X20221 Contact Us For Availability
222
ELEMENT HEATING W GASKET GEN WS51X10002 Contact Us For Availability
223
DIP TUBE AND SEAL GEN WS35X10072 Contact Us For Availability
224
COVER ELMNT (UPPER) EPS GEN WS82X10006 Contact Us For Availability
225
COVER ELMNT METAL U. RED GEN WS31X10055 Contact Us For Availability
226
SCR T20H TAMPER PROOF GEN WS02X10074 Contact Us For Availability
231
TCO (THERMAL CUT OUT) GEN WS17X10009 Contact Us For Availability
234
TCO DLB AND SCREWS GEN WS17X10012 Contact Us For Availability
236
COVER ELMNT METAL L. RED GEN WS31X10056 Contact Us For Availability
239
BARRIER DIELECTRIC GEN WS34X10026 Contact Us For Availability
240
GROMMET OUTLET, RED GEN WS01X10050 Contact Us For Availability
241
GROMMET INLET, BLUE GEN WS01X10051 Contact Us For Availability
300
COMPRESSOR GEN WS87X10005 Contact Us For Availability
306
COVER ELECTRIC COMP GEN WS31X10054 Contact Us For Availability
313
CONDENSATE DRAIN PAN GEN WS28X10079 Contact Us For Availability
315
SCR 10-32 HXW 2 1/2 S GEN WS02X10085 Contact Us For Availability
325
COMPRESSOR KIT GEN WS87X10004 Contact Us For Availability
326
OVERLOAD GEN WS08X10018 Contact Us For Availability
327
RELAY START GEN WS07X10036 Contact Us For Availability
335
SENSOR ASM GEN WS17X10014 Contact Us For Availability
340
EEV COIL GEN WS17X10010 Contact Us For Availability
341
EEV VALVE ASM KIT GEN WS35X10068 Contact Us For Availability
348
WIRE (G-B) GRD COMPRESSO GEN WS19X10034 Contact Us For Availability
350
MOTOR FAN GEN WS26X10026 Contact Us For Availability
351
FLANGE FAN GEN WS28X10076 Contact Us For Availability
354
FAN MOTOR ASM GEN WS26X10028 Contact Us For Availability
360
FAN SHROUD ASM GEN WS35X10069 Contact Us For Availability
362
SEAL FOAM EVAP GEN WS16X10002 Contact Us For Availability
367
SCR 8-32 GX IHX 3/8 SCA GEN WR01X10757 Contact Us For Availability
370
BLADE FAN GEN WS26X10027 Contact Us For Availability
374
FAN BLADE ASM GEN WS26X10029 Contact Us For Availability
380
EVAPORATOR KIT GEN WS85X10005 Contact Us For Availability
385
ACCUMULATOR ASM GEN WS86X10003 Contact Us For Availability
388
FILTER DRYER ASM GEN WS86X10002 Contact Us For Availability
736
CLIP COMPRESSOR MOUNT GEN WR02X8203 Contact Us For Availability
999
PM MINI-MANUAL GEN 3175030 Contact Us For Availability
999
PM USE AND CARE GEN 4950281 Contact Us For Availability
× ![]()
