Model Whirlpool BEA30AEAIM0 STAND MIXER – Common Parts & Diagrams

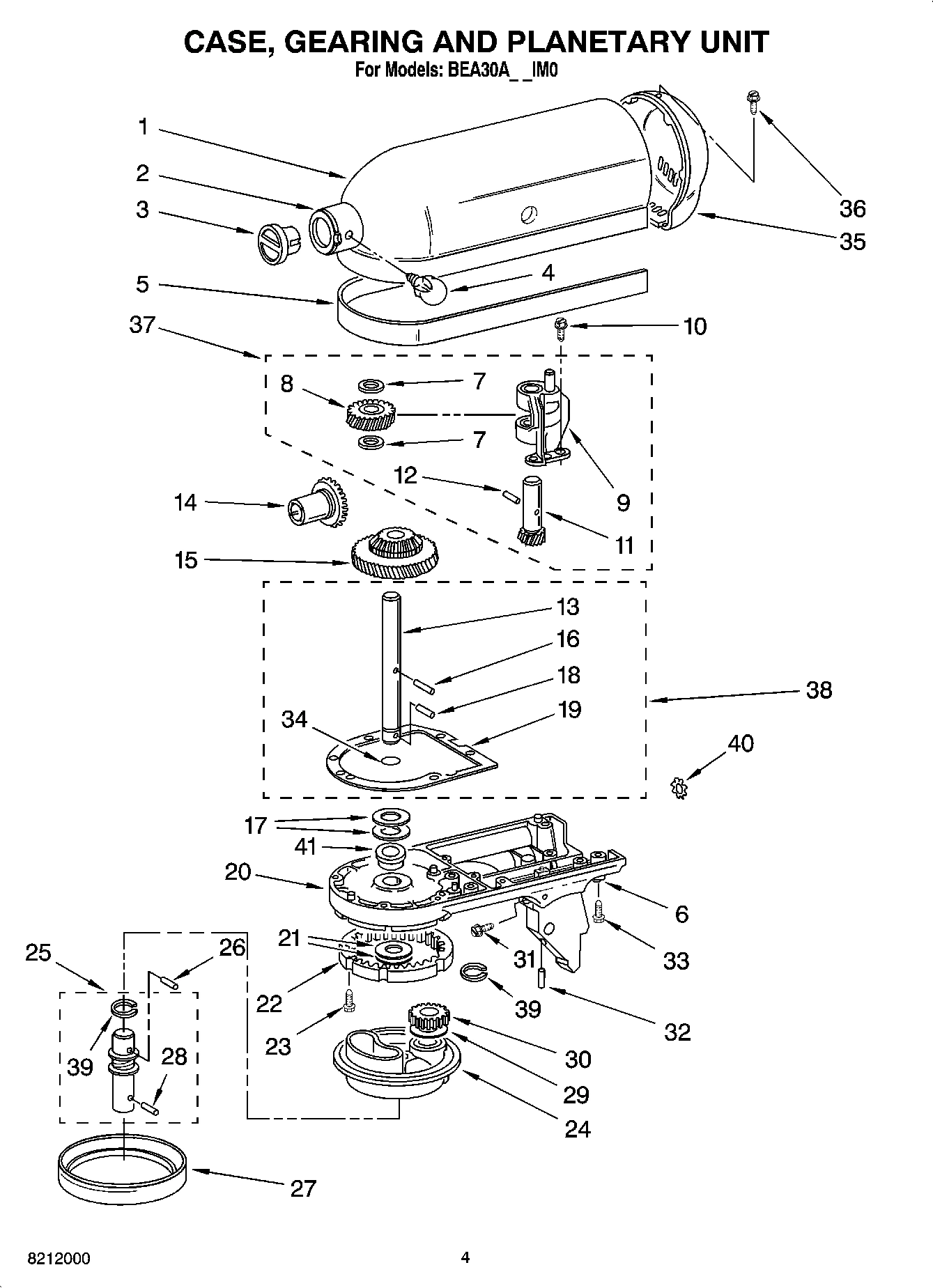

03 - CASE, GEARING AND PLANETARY UNIT

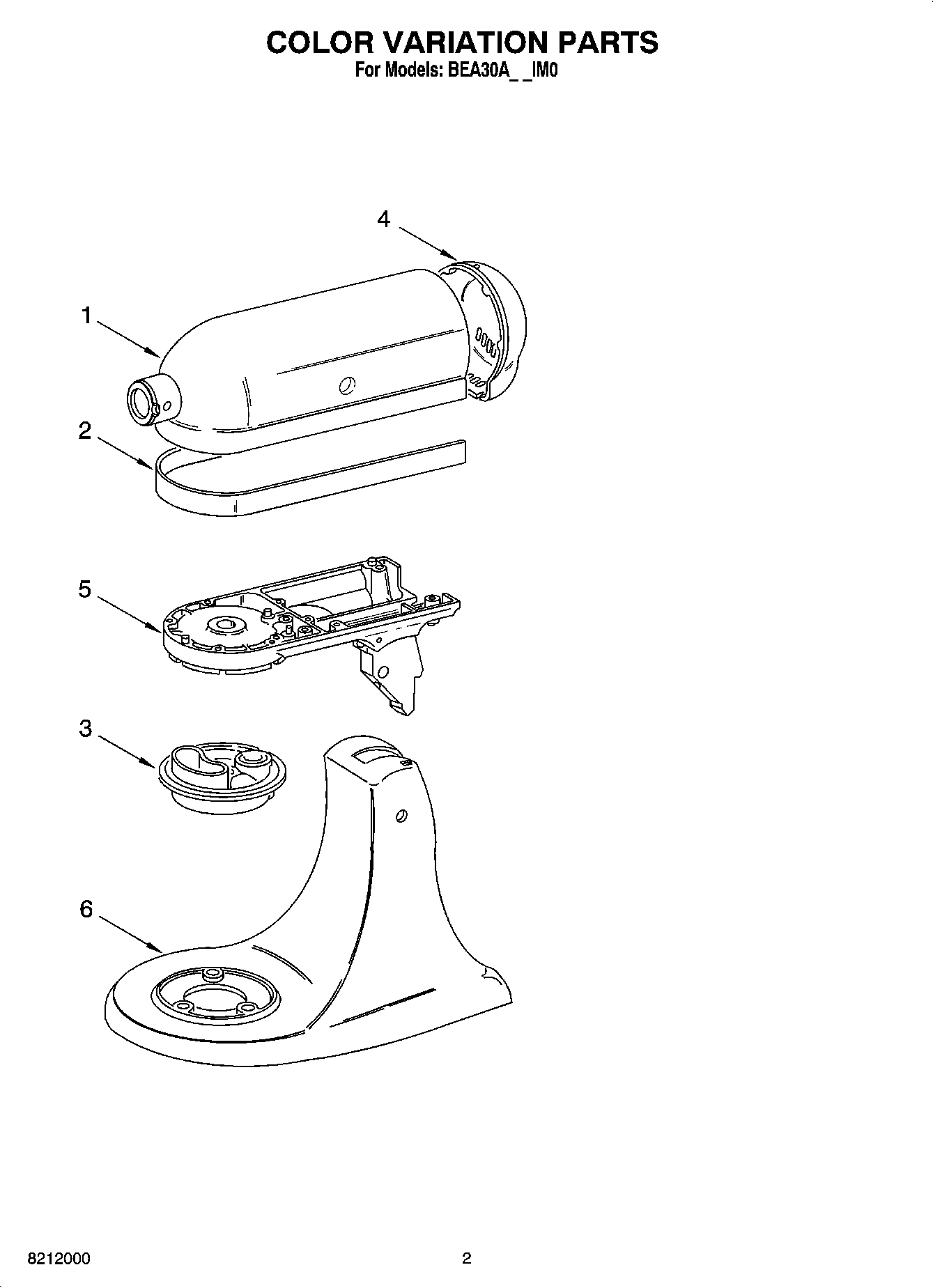

01 - COLOR VARIATION PARTS

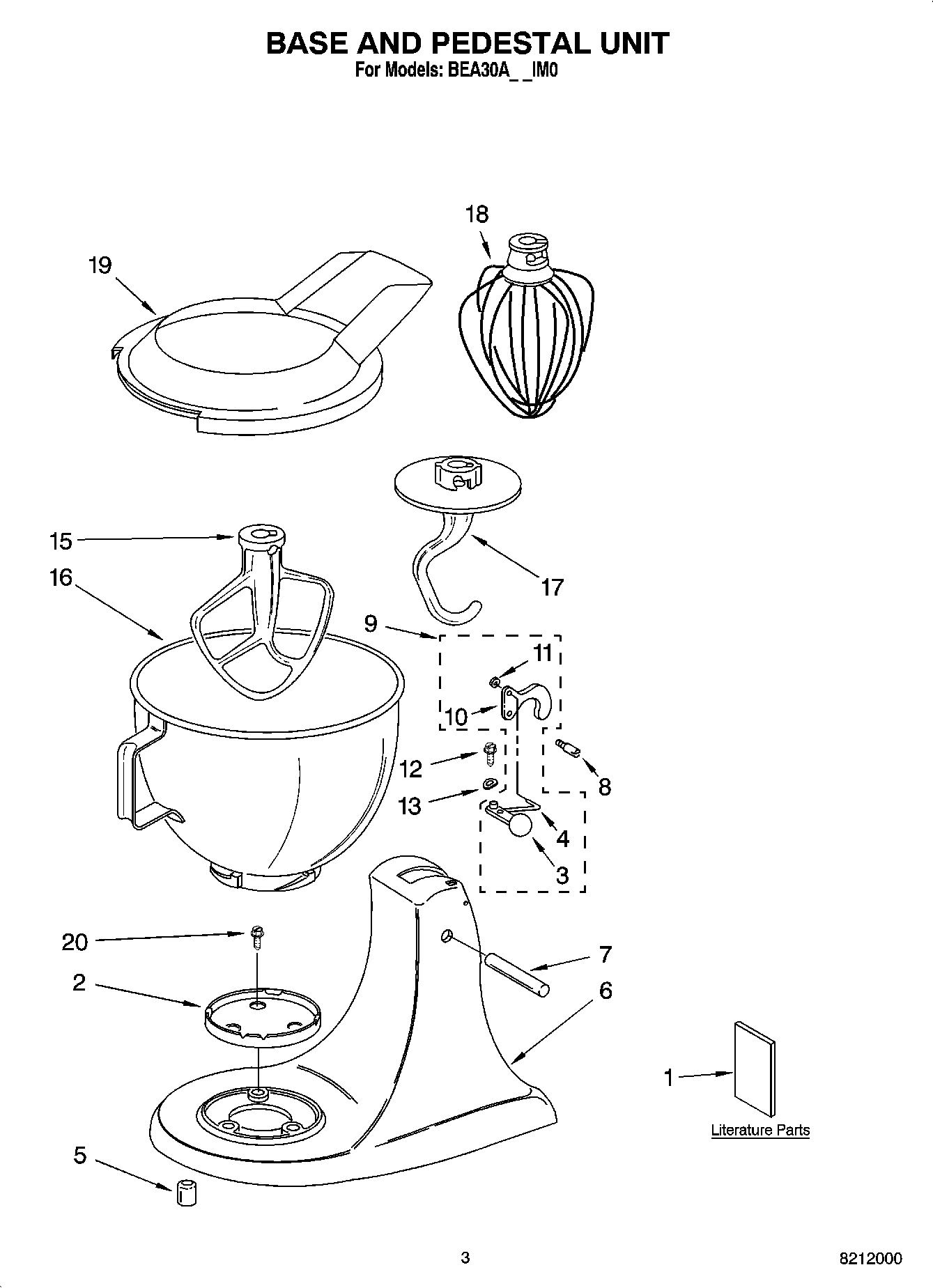

02 - BASE AND PEDESTAL UNIT

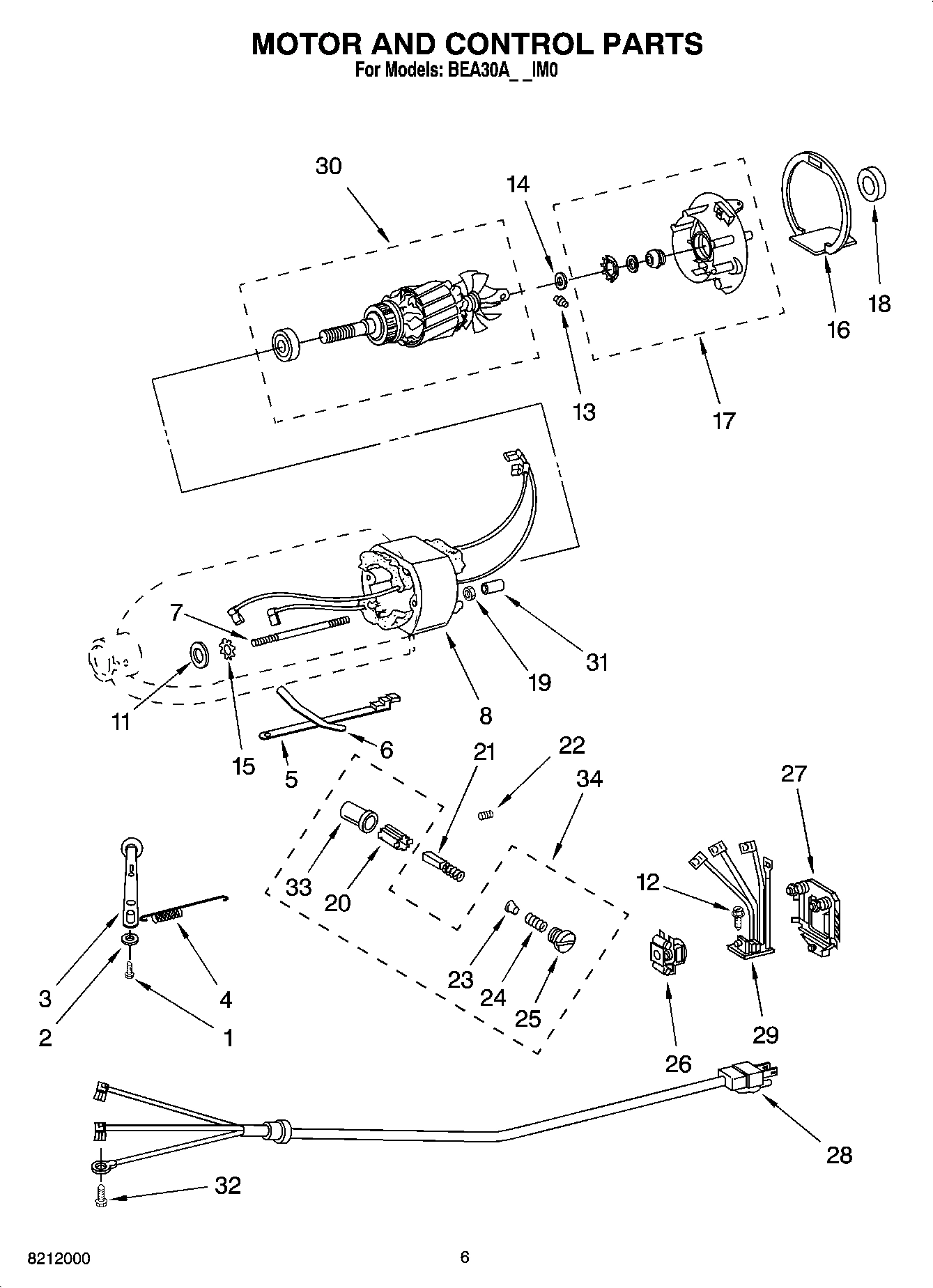

04 - MOTOR AND CONTROL PARTS, ACCESSORY PARTS
Common parts from model Whirlpool BEA30AEAIM0 STAND MIXER
1
Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability
1
Motor Housing (Chrome) WPL 24029119 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability
1
Motor Housing (Cobalt Blue) WPL 2402917 Contact Us For Availability
1
Use & Care Guide WPL 9706086 Contact Us For Availability
2
Trim Band WPL 9706004 Contact Us For Availability
3
Planetary (Blue) WPL 24028610 Contact Us For Availability
3
PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability
3
Planetary-Chrome WPL 24028621 Contact Us For Availability
3
Planetary (Red) WPL 24028623 Contact Us For Availability
4
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
4
End Cover-Chrome WPL 24025320 Contact Us For Availability
4
End Cover (Red) WPL 24025322 Contact Us For Availability
4
End Cover (Blue) WPL 2402538 Contact Us For Availability
5
Foot, Base WPL 115792 Contact Us For Availability
5
Link, Speed & Cam WPL 3184176 Contact Us For Availability
5
Lower Gearcase (Blue) WPL 24035031 Contact Us For Availability
5
LOWER GEARCASE (ONYX BLACK) WPL 24035056 Contact Us For Availability
5
Lower Gearcase (Red) WPL 24035084 Contact Us For Availability
6
PEDESTAL-Onyx Black WPL 24015113 Contact Us For Availability
6
Pedestal (Red) WPL 24015120 Contact Us For Availability
6
Pedestal (Blue) WPL 2401518 Contact Us For Availability
6
PEDESTAL-Chrome WPL 4176335 Contact Us For Availability
6
Pedestal WPL ARI20732A9 Contact Us For Availability
16
SEAL, END WPL 2407751 Contact Us For Availability
18
Washer, Felt WPL 3180238 Contact Us For Availability
20
Screw, 10-24 x 1/2`` WPL 3400020 Contact Us For Availability
27
Control Plate Assembly WPL 2409042 Contact Us For Availability
28
Power Cord (Black) WPL 9707940 Contact Us For Availability
34
Bowl Cover, Plastic Non-Sealing WPL 3177924 Contact Us For Availability
34
Bowl, 3 Qt. (KSM103 & KSM110) WPL 3180262 Contact Us For Availability
34
Cover, Decorative WPL 3180617 Contact Us For Availability
34
Food Tray (FT) WPL 4162838 Contact Us For Availability
34
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
34
JUICER (JE) WPL 4164748 Contact Us For Availability
34
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
34
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
34
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
34
FRUIT/VEGETAB WPL 4164774 Contact Us For Availability
34
WPL 4164775 WPL 4164775 Contact Us For Availability
34
WPL 4164778 WPL 4164778 Contact Us For Availability
34
WPL 4164803 WPL 4164803 Contact Us For Availability
34
WPL 4164824 WPL 4164824 Contact Us For Availability
34
WPL 4164839 WPL 4164839 Contact Us For Availability
34
WPL 8211924 WPL 8211924 Contact Us For Availability
34
WPL 9707963 WPL 9707963 Contact Us For Availability
34
WPL ARI20738A6 WPL ARI20738A6 Contact Us For Availability
35
Cover, End WPL ARI20737A2 Contact Us For Availability
37
Worm Gear Bracket And Gear (Incls. WPL 2403092 Contact Us For Availability
× ![]()
