Model Whirlpool BE93 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - UNIT, LIT/OPTIONAL
04 - CABINET AND FRONT PANEL

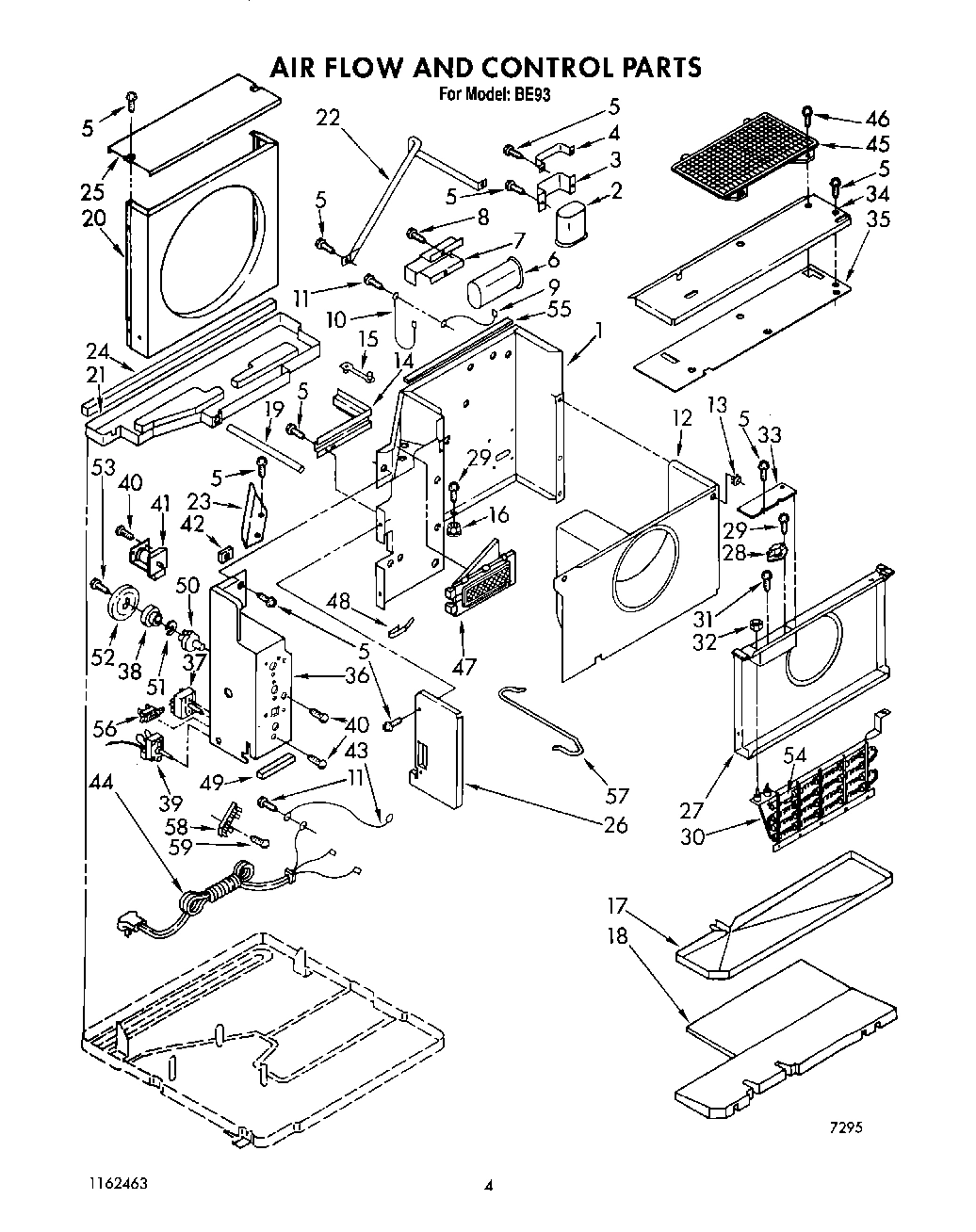

03 - AIR FLOW AND CONTROL

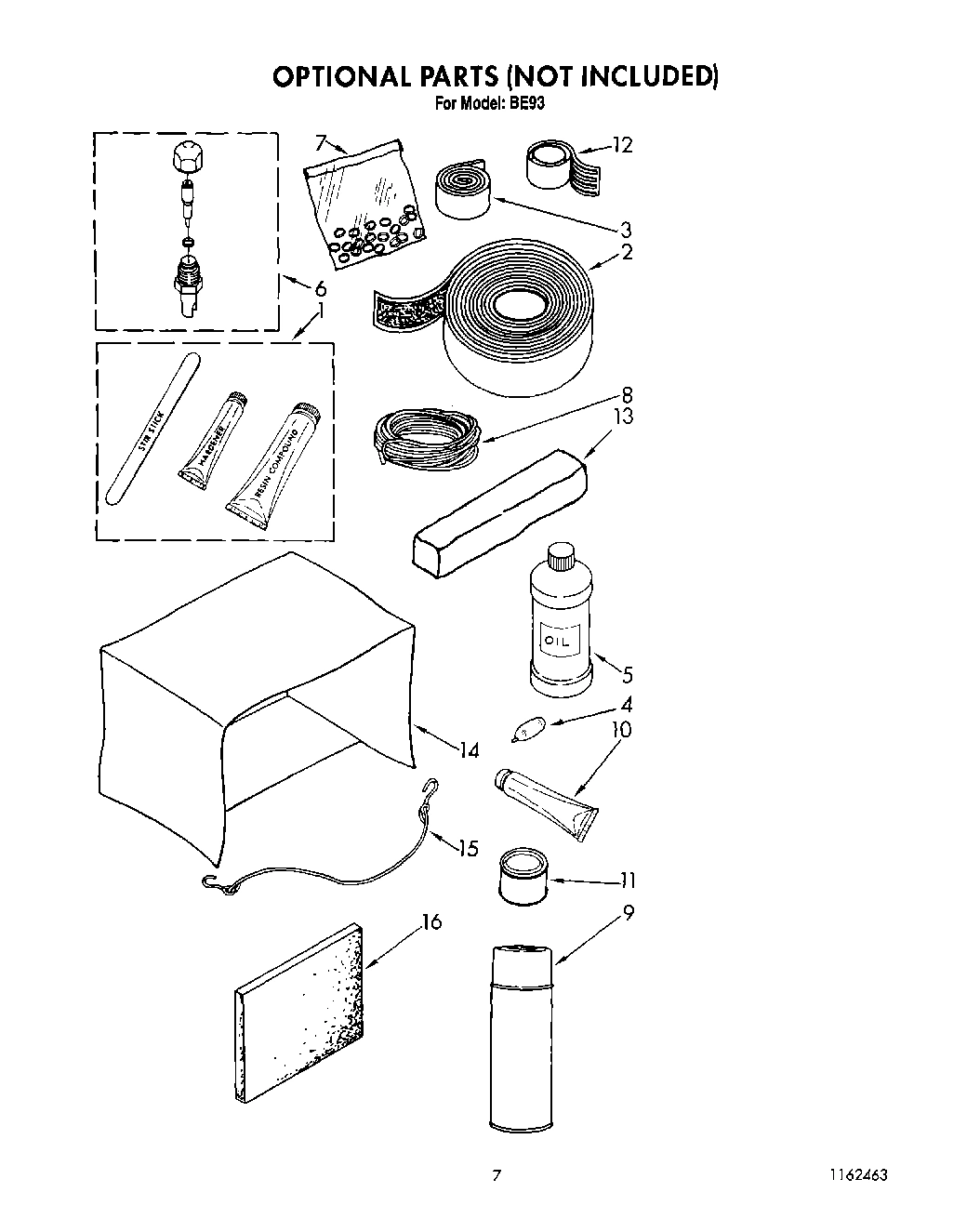

05 - OPTIONAL
Common parts from model Whirlpool BE93 ROOM AIR CONDITIONER
1
Front Assembly, Cabinet (Complete) WPL 1160230 Contact Us For Availability
1
Wall, Dividing WPL 998003 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Frame, Front WPL 1160231 Contact Us For Availability
2
Capacitor, Running WPL 999785 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Front (Middle) WPL 647914 Contact Us For Availability
3
Bracket, Running Capacitor WPL 852992 Contact Us For Availability
4
Filter, Air WPL 648008 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Retainer, Filter WPL 476707 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Louver, Vertical WPL 953068 Contact Us For Availability
6
Capacitor, Fan WPL 999757 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Handle, Louver WPL 953159 Contact Us For Availability
7
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Link, Louver (2) WPL 953067 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Spring, Clip (2) WPL 641484 Contact Us For Availability
9
Wire, Ground WPL 998010 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Plate, Escutcheon WPL 1160235 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
11
Spacer, Escutcheon (3) WPL 470036 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Knob, Control (3) WPL 953054 Contact Us For Availability
12
Housing, Blower Wheel WPL 852875 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Seal WPL 649198 Contact Us For Availability
13
Fastener, snap WPL 487808 Contact Us For Availability
14
Cover, Winter (22 x 15 x 3 x 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 x 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Evaporator WPL 950174 Contact Us For Availability
14
Cabinet WPL 1161146 Contact Us For Availability
14
Channel, Wiring WPL 852317 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Restrictor (2) (33.0`` Length) WPL 951539 Contact Us For Availability
15
Insulation, Top WPL 649973 Contact Us For Availability
15
Clip, Wiring WPL 948279 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
Insulation, Cabinet (L.S.) WPL 857271 Contact Us For Availability
16
Insulation, Cabinet (Right Side) WPL 647847 Contact Us For Availability
16
Clip, Speed WPL 853831 Contact Us For Availability
16
Insulation, Cabinet (Left Side) WPL 647848 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 950157 Contact Us For Availability
17
Condenser WPL 951538 Contact Us For Availability
17
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
18
Tube, 90~ Connect WPL 950814 Contact Us For Availability
18
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
19
Tube, Flow Divider WPL 947364 Contact Us For Availability
19
Seal, Bottom WPL 647854 Contact Us For Availability
19
Tube, Condensate WPL 465777 Contact Us For Availability
20
Bend, Return (3-Way) WPL 476078 Contact Us For Availability
20
Grommet WPL 647849 Contact Us For Availability
20
Shroud, Condenser WPL 853356 Contact Us For Availability
21
Bend, Return Condenser (22) Evaporator (15) WPL 855199 Contact Us For Availability
21
Screw, Front (2) WPL 1157141 Contact Us For Availability
21
Pan, Condenser Condensate WPL 853391 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (4) WPL 854624 Contact Us For Availability
22
Clip, Front (2) WPL 1157140 Contact Us For Availability
22
Support, Unit WPL 852318 Contact Us For Availability
23
Tube, Outlet (Includes No.24) WPL 951437 Contact Us For Availability
23
Guide, Wire WPL 857256 Contact Us For Availability
24
Strainer, Tube WPL 49599 Contact Us For Availability
24
Seal, Condenser Pan WPL 853329 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
26
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
27
Deflector, Heat Assembly WPL 857224 Contact Us For Availability
28
Cup, Condensate WPL 647850 Contact Us For Availability
28
Switch, Limit WPL 995674 Contact Us For Availability
29
Spring, Overload WPL 950032 Contact Us For Availability
29
Screw, Sheet Metal No.8 x 3/8A WPL 488624 Contact Us For Availability
30
Gasket, Nut WPL 950037 Contact Us For Availability
30
Heater, Air WPL 1158583 Contact Us For Availability
31
Tube, Outlet WPL 993755 Contact Us For Availability
32
Anticipator, Temperature WPL 484238 Contact Us For Availability
33
Clip, Anticipator WPL 642080 Contact Us For Availability
33
Cover, Wire Enclosure WPL 857203 Contact Us For Availability
34
Cover, Shroud (Evaporator) WPL 948227 Contact Us For Availability
35
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
36
Tube, Outlet WPL 993756 Contact Us For Availability
36
Box, Control WPL 1160409 Contact Us For Availability
37
Switch, Rotary WPL 1160355 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Bushing, Shaft WPL 647879 Contact Us For Availability
39
Control, Temperature WPL 1155806 Contact Us For Availability
40
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
41
Contactor WPL 858771 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Grommet, Wiring WPL 647865 Contact Us For Availability
43
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
43
Ground, Wire WPL 857634 Contact Us For Availability
44
Cable, Appliance WPL 649125 Contact Us For Availability
45
Guard, Impeller WPL 997949 Contact Us For Availability
47
Door, Exhaust WPL 649720 Contact Us For Availability
48
Spring, Door WPL 859369 Contact Us For Availability
50
Shaft, Control WPL 852023 Contact Us For Availability
51
Spring, Washer WPL 647881 Contact Us For Availability
52
Cam, Control WPL 647882 Contact Us For Availability
53
Screw, 8-16 x 5/8 WPL 489092 Contact Us For Availability
54
Fuse, Heater WPL 876903 Contact Us For Availability
56
WPL 950529 WPL 950529 Contact Us For Availability
57
WPL 859370 WPL 859370 Contact Us For Availability
58
WPL 855634 WPL 855634 Contact Us For Availability
59
WPL 488966 WPL 488966 Contact Us For Availability
× ![]()
