Model LG BE12LU38 BD Writer External – Common Parts & Diagrams

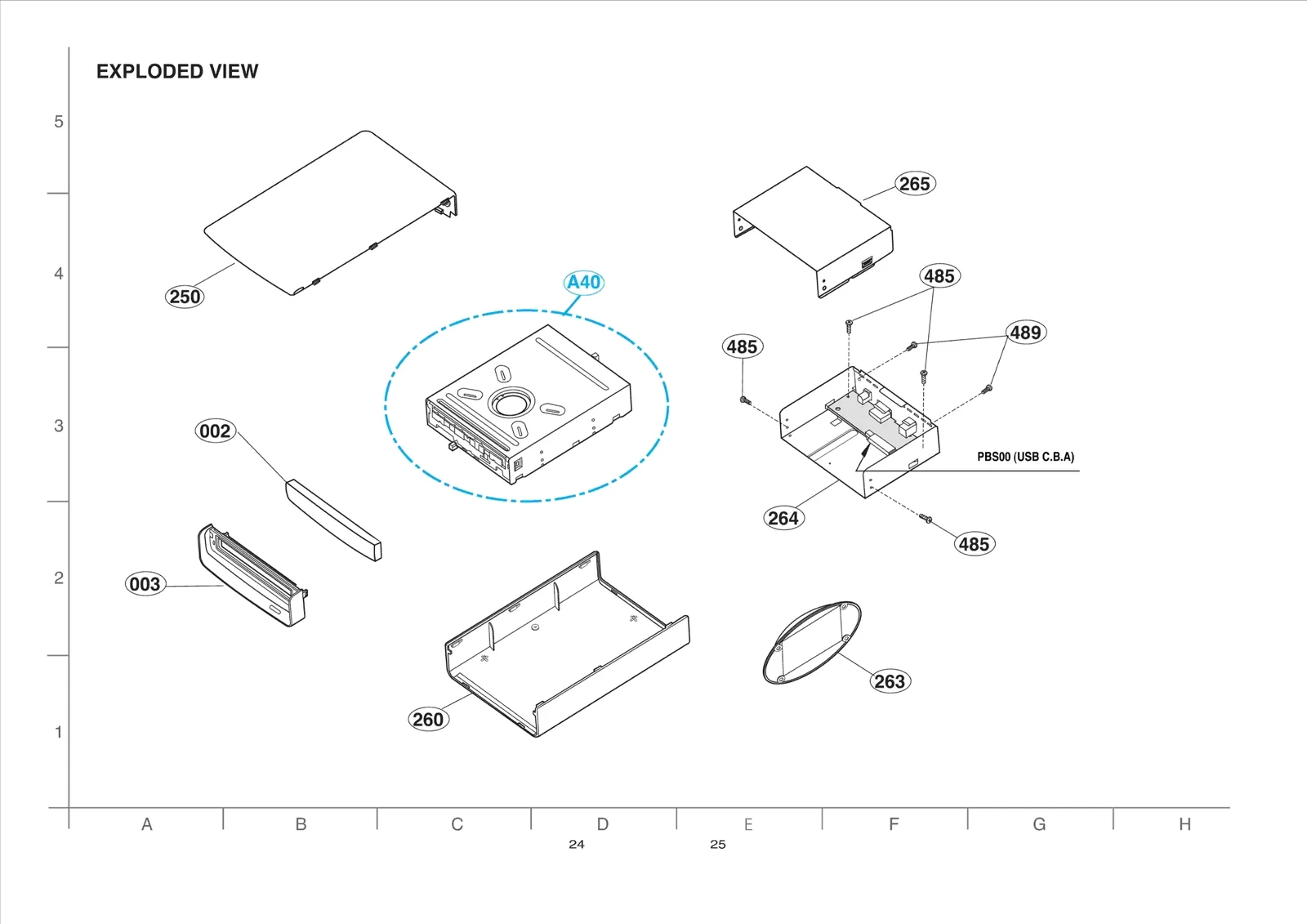

Diagram 0
Diagram 1
Common parts from model LG BE12LU38 BD Writer External
001
Case Assembly LGE ABQ72924601 Contact Us For Availability
003
Bezel Assembly LGE AAU72992501 Contact Us For Availability
005
Clamp Assembly LGE ACA33509501 Contact Us For Availability
250
Cover LGE MCK39668201 Contact Us For Availability
250
Cover LGE MCK60869601 Contact Us For Availability
265
Housing LGE MEK39518401 Contact Us For Availability
485
Screw,Customized LGE 1SZZH-1215A Contact Us For Availability
806
Box LGE 3890H-1057G Contact Us For Availability
807
Bag LGE MAF42341401 Contact Us For Availability
808
Packing LGE MFZ61873201 Contact Us For Availability
C101
Capacitor,AL,Chip LGE EAE60683001 Contact Us For Availability
C101
Capacitor,AL,Chip LGE EAE60138101 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH4010K012 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C206
CAPACITOR,FIXED CERA LGE 0CK106EFG7A Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CC150BK41A Contact Us For Availability
C321
Capacitor,Ceramic,Chip LGE 0CK223BF56A Contact Us For Availability
C324
Capacitor,Ceramic,Chip LGE 0CK104BDG7A Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE 0CK683BF5CA Contact Us For Availability
C340
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CK222BK56A Contact Us For Availability
C350
Capacitor,Ceramic,Chip LGE 0CC470BK41A Contact Us For Availability
C355
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C358
Capacitor,Ceramic,Chip LGE 0CK561BK56A Contact Us For Availability
C362
Capacitor,Ceramic,Chip LGE 0CK105CC5CA Contact Us For Availability
C363
Capacitor,Ceramic,Chip LGE 0CK152BK5CA Contact Us For Availability
C374
Capacitor,Ceramic,Ch LGE 0CZZB00068A Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE 0CK104BF94A Contact Us For Availability
C408
Capacitor,Ceramic,Chip LGE 0CK333BD56A Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE 0CK104BD56A Contact Us For Availability
C505
Capacitor,Ceramic,Chip LGE 0CC101BK41A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C523
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C535
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C535
Capacitor,AL,Chip LGE DCH8107F621 Contact Us For Availability
C541
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C554
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C556
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C557
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C558
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE 0CK106DC66A Contact Us For Availability
CN504
JACK,PHONE LGE 6612F00100A Contact Us For Availability
D201
Diode,Schottky LGE EAH60701501 Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DSAU00168A Contact Us For Availability
IC101
IC,Data Controller LGE EAN30331001 Contact Us For Availability
IC201
IC,LDO Voltage Regulator LGE EAN39118903 Contact Us For Availability
IC202
IC,Analog Switch LGE EAN36675502 Contact Us For Availability
IC203
IC,LDO Voltage Regulator LGE EAN39118904 Contact Us For Availability
IC204
IC,LDO Voltage Regulator LGE EAN41406803 Contact Us For Availability
IC303
IC,Digital Signal Processors LGE EAN60059405 Contact Us For Availability
IC401
IC,Motor Driver LGE EAN36134702 Contact Us For Availability
IC501
IC,Data Controller LGE EAN42942102 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42433101 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42668301 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN42433602 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN37012501 Contact Us For Availability
L307
Filter,Bead LGE EAM31506401 Contact Us For Availability
L501
INDUCTOR,CHIP LGE 0LCTD00041A Contact Us For Availability
L501
INDUCTOR,CHIP LGE 0LCSH00014A Contact Us For Availability
L503
Filter,Bead LGE 6200JB8010M Contact Us For Availability
Q302
TR,Bipolar LGE EBK51439903 Contact Us For Availability
Q302
TR,Bipolar LGE EBK51439902 Contact Us For Availability
Q303
TR,Array LGE EBK57025101 Contact Us For Availability
Q303
TR,Array LGE EBK56604801 Contact Us For Availability
R101
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R102
Resistor,Chip LGE 0RH5603C622 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R217
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R328
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R344
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R345
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R347
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R358
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R360
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R370
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R372
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R402
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R501
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R512
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R518
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R523
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R528
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R535
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R536
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R738
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
RA301
Resistor,Array LGE 0RR0822Q62A Contact Us For Availability
RA302
Resistor,Array LGE 0RR0332Q62A Contact Us For Availability
RA502
Filter,Bead LGE 6200J000179 Contact Us For Availability
SW03
Switch,Detector LGE 6600HXF105B Contact Us For Availability
SW03
Switch,Detector LGE EBF55683201 Contact Us For Availability
SW1
Switch,Slide LGE EBF61214801 Contact Us For Availability
SW101
RESISTOR,METAL GLAZE LGE 0RJ0000H680 Contact Us For Availability
X301
Crystal LGE EAW59495101 Contact Us For Availability
X501
Crystal LGE 6212AB2876A Contact Us For Availability
× ![]()
