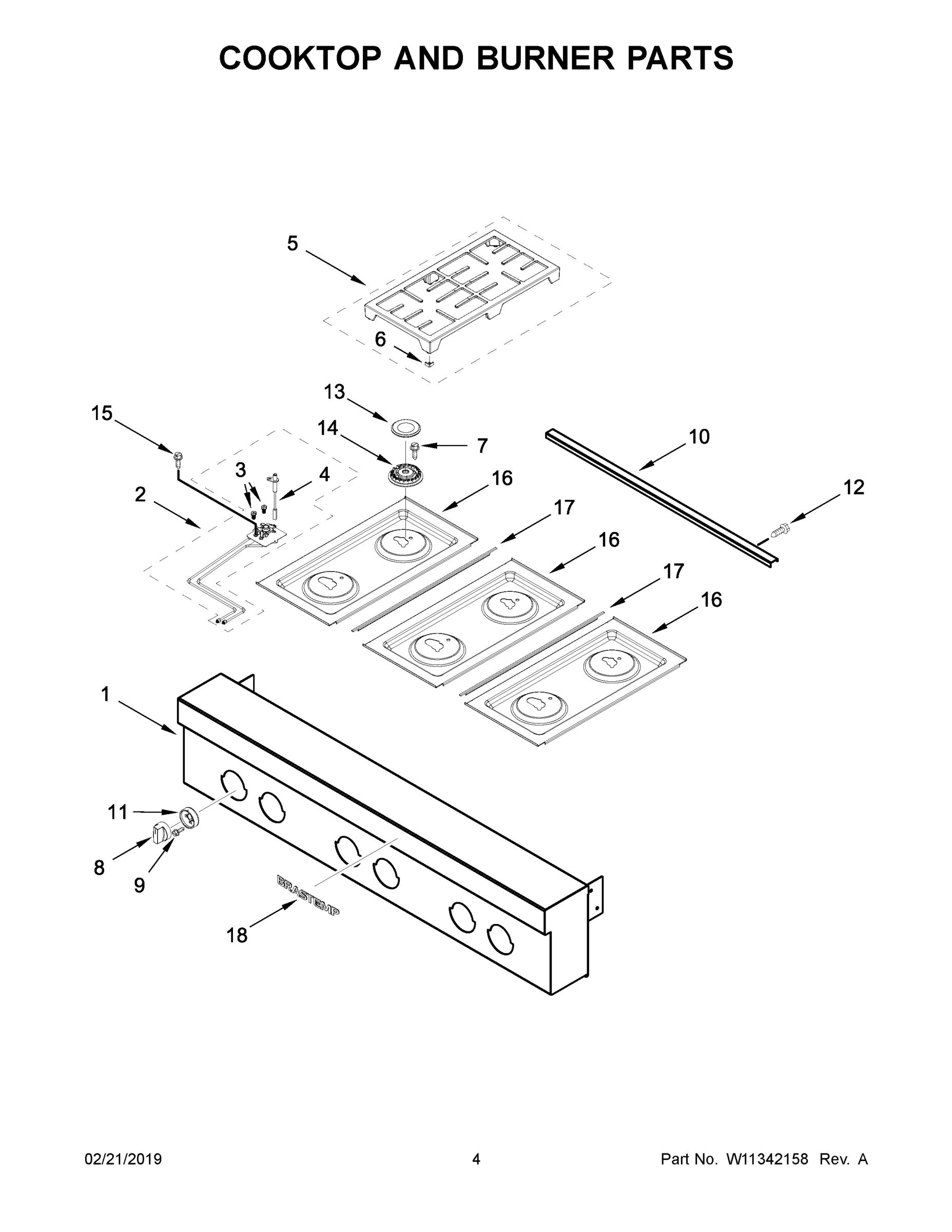

Model Whirlpool BDR90ARNNA00 COOKTOP, GAS, 36 INCH – Common Parts & Diagrams

2
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT AND RIGH
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT AND RIGH WPL W11315822 Contact Us For Availability
View on Model
2A
ASSEMBLY, ORIFICE HOLDER (LEFT REAR AND RIGHT
ASSEMBLY, ORIFICE HOLDER (LEFT REAR AND RIGHT WPL W11315820 Contact Us For Availability
View on Model
2B
ASSEMBLY, ORIFICE HOLDER (CENTER FRONT)
ASSEMBLY, ORIFICE HOLDER (CENTER FRONT) WPL W11315823 Contact Us For Availability
View on Model
2C
ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
ASSEMBLY, ORIFICE HOLDER (CENTER REAR) WPL W11315821 Contact Us For Availability
View on Model
3
ORIFICE, MAIN (12.0K BTU LP) (ALL BUT CENTER
ORIFICE, MAIN (12.0K BTU LP) (ALL BUT CENTER WPL W11305341 Contact Us For Availability
View on Model
3A
ORIFICE, SIMMER (2.5K BTU LP) (LEFT FRONT, CE
ORIFICE, SIMMER (2.5K BTU LP) (LEFT FRONT, CE WPL W11305342 Contact Us For Availability
View on Model
7
SCREW (LEFT FRONT AND RIGHT FRONT)
SCREW (LEFT FRONT AND RIGHT FRONT) WPL W11196030 Contact Us For Availability
View on Model
8
TUBE, MANIFOLD SUPPLY (LEFT)
TUBE, MANIFOLD SUPPLY (LEFT) WPL W10892347 Contact Us For Availability
View on Model
8
KNOB, DUAL (STAINLESS (LEFT FRONT AND RIGHT F
KNOB, DUAL (STAINLESS (LEFT FRONT AND RIGHT F WPL W11314310 Contact Us For Availability
View on Model
8A
TUBE, MANIFOLD SUPPLY (CENTER)
TUBE, MANIFOLD SUPPLY (CENTER) WPL W10892445 Contact Us For Availability
View on Model
8A
KNOB, SINGLE (STAINLESS (LEFT REAR, CENTER FR
KNOB, SINGLE (STAINLESS (LEFT REAR, CENTER FR WPL W11314311 Contact Us For Availability
View on Model
8B
TUBE, MANIFOLD SUPPLY (RIGHT)
TUBE, MANIFOLD SUPPLY (RIGHT) WPL W10892450 Contact Us For Availability
View on Model
11
BEZEL, FRONT (STAINLESS)
BEZEL, FRONT (STAINLESS) WPL W11314224 Contact Us For Availability
View on Model
11A
BEZEL, REAR (STAINLESS)
BEZEL, REAR (STAINLESS) WPL W11314227 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 7101P33860 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
18
WPL W11292869
WPL W11292869 WPL W11292869 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
View on Model
NI
CORD, POWER
CORD, POWER WPL W11303495 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO
ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE)
ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, BACKSPLASH KIT, HIGH ALTITUD
ACCESSORY PARTS, BACKSPLASH KIT, HIGH ALTITUD WPL W11238043 Contact Us For Availability
View on Model
