Model Whirlpool BDE7500 ELECTRIC DRYER – Common Parts & Diagrams

Common parts from model Whirlpool BDE7500 ELECTRIC DRYER

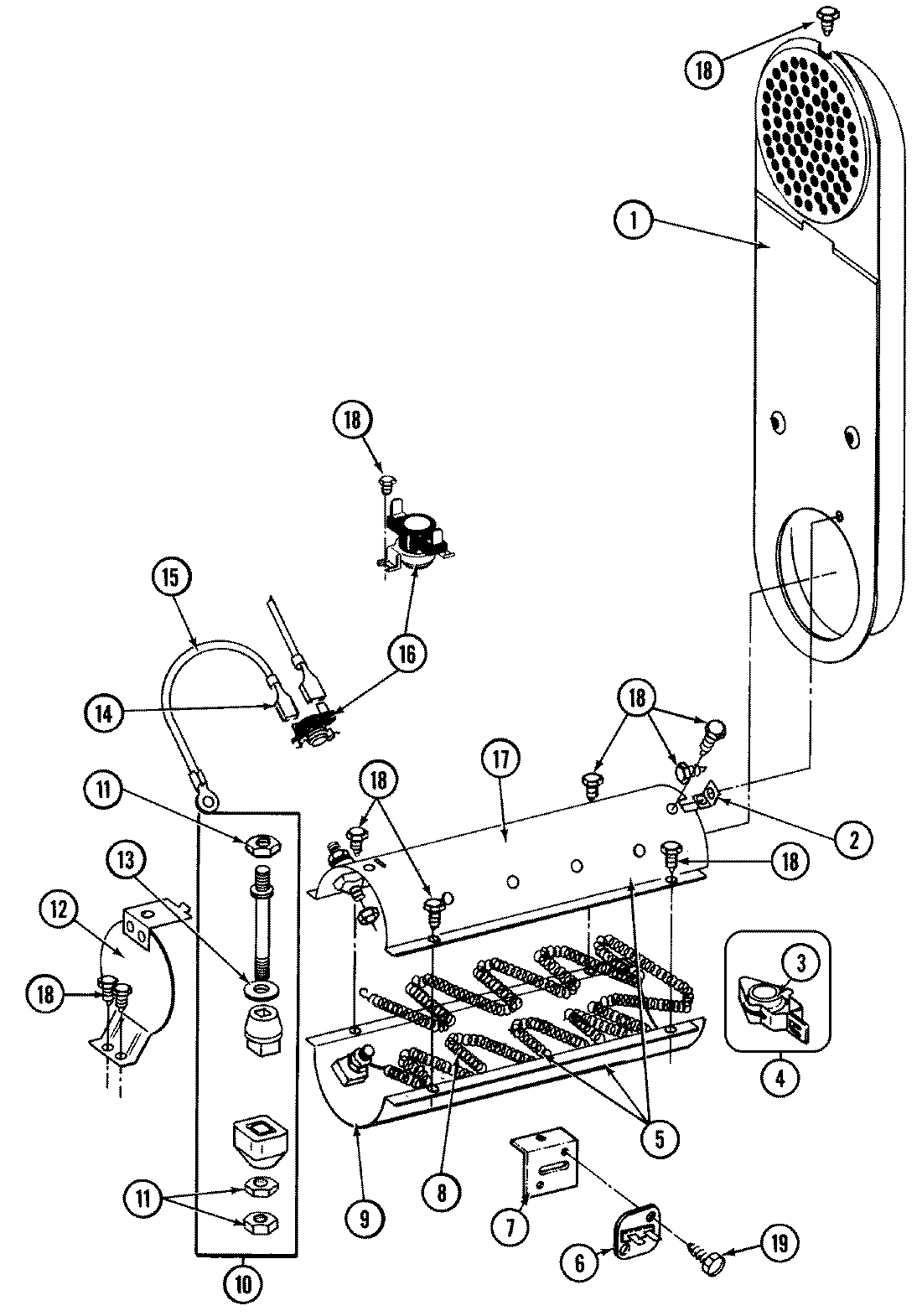

01 - INLET DUCT & HEATER ASSEMBLY

Print

• This Diagram
• All Diagrams

2

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

View on Model

3

INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability

View on Model

4

WPY303881 Whirlpool Clip and Insulator Backorder WPL WPY303881 View Details $9.50

View on Model

5

HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability

View on Model

6

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 View Details $35.00

View on Model

7

MOUNTING BRACKET WPL 315046 Contact Us For Availability

View on Model

8

WPY313538 Whirlpool Heater Element In Stock WPL WPY313538 View Details $26.96

View on Model

9

HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability

View on Model

10

Y304596 Whirlpool Terminal Insulator Assembly Backorder WPL Y304596 View Details $12.31

View on Model

11

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 View Details $2.60

View on Model

12

HEATER SHIELD WPL 304124 Contact Us For Availability

View on Model

13

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 View Details $2.60

View on Model

14

WIRE TERMINAL WPL 210745 Contact Us For Availability

View on Model

15

WPY304693 Whirlpool Wire Jumper In Stock WPL WPY304693 View Details $3.84

View on Model

16

WP303396 Whirlpool Thermostat In Stock WPL WP303396 View Details $15.79

View on Model

16

WP303896 Whirlpool High Limit Thermostat Backorder WPL WP303896 View Details $50.79

View on Model

17

HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability

View on Model

18

WP90767 Whirlpool Screw In Stock WPL WP90767 View Details $2.60

View on Model

×
