Model LG BD650 – Common Parts & Diagrams
Diagram 0
Diagram 1

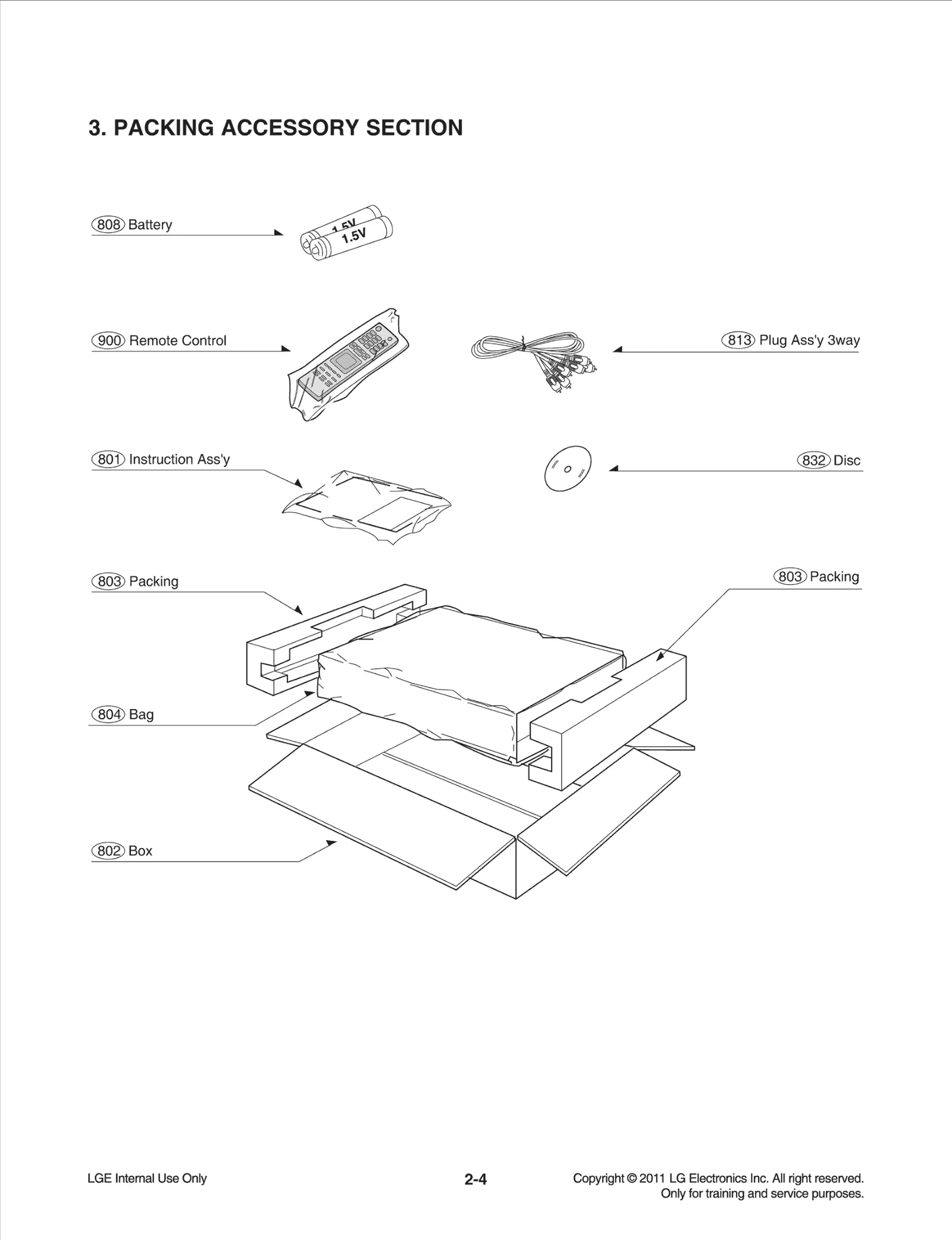

Diagram 2
Diagram 3
Common parts from model LG BD650
250
Case LGE MBN62284201 Contact Us For Availability
260
Chassis LGE MBS62145401 Contact Us For Availability
261
Damper LGE MCQ32325007 Contact Us For Availability
268
Fan Module LGE EAL60920901 Contact Us For Availability
275
Plate LGE 3300R-0211A Contact Us For Availability
283
Door LGE MCV62193301 Contact Us For Availability
287
Cover LGE MCK66013401 Contact Us For Availability
300
Power Cord LGE EAD60816603 Contact Us For Availability
320
Panel,Rear LGE MGC62299902 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75032004 Contact Us For Availability
802
Box,Master LGE MAY64966678 Contact Us For Availability
803
Packing LGE MFZ47272631 Contact Us For Availability
804
BAG LGE 3880SCS001G Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
813
Cable,Assembly LGE EAD38884523 Contact Us For Availability
832
Title LGE SAC35095303 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73375501 Contact Us For Availability
1001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1002
Cover LGE MCK66030401 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1011
Base LGE MAM62246401 Contact Us For Availability
1012
Guide LGE MEA62411101 Contact Us For Availability
1013
Gear LGE MDT62067301 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT62067401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62225701 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62172201 Contact Us For Availability
1030
Cable,FFC LGE EAD61049003 Contact Us For Availability
1031
Cable,FFC LGE EAD61048203 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD54155309 Contact Us For Availability
1049
Traverse Assembly LGE EAZ61122502 Contact Us For Availability
1050
Cover LGE MCK66014301 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
Screw,Customized LGE FAB30840501 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ84674701 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307138 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL73473001 Contact Us For Availability
A44
Frame Assembly LGE ADV73765602 Contact Us For Availability
A46
Option Code Assembly LGE EBR72887203 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR72901907 Contact Us For Availability
A50
PCB Assembly,Main LGE EBR72799611 Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BC101
Filter,Bead LGE EAM56488801 Contact Us For Availability
BD101
Diode,Rectifier LGE 0DRRE00060A Contact Us For Availability
C102
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C104
CAPACITOR,DRAWING LGE 0CZZR00011D Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C113
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE477NH638 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C128
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C212
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C217
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C241
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C242
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C253
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C260
Capacitor,Ceramic,Ch LGE 0CK105CD67A Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C306
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C314
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C315
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C508
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C541
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C553
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C621
Capacitor,Ceramic,Ch LGE 0CK105BCG7A Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C709
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C711
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C733
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C734
Capacitor,Ceramic,Chip LGE 0CH1225D946 Contact Us For Availability
C770
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C771
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C808
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C843
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C847
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
C1103
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C1104
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C1105
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C1108
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C1109
Capacitor,Ceramic,Axial LGE 0CN1050K948 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35758207 Contact Us For Availability
CN201
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
CN301
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN304
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN702
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN1102
Connector,FFC/FPC/PIC LGE 6630R-FB10P Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D104
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D124
Diode,Switching LGE EAH31951401 Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D127
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D127
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D805
Diode,Switching LGE EAH35293601 Contact Us For Availability
D806
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC102
Photo,Coupler LGE EAV59176001 Contact Us For Availability
IC102
Photo,Coupler LGE EAV61473101 Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC201
IC,DC,DC Converter LGE EAN61566901 Contact Us For Availability
IC203
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC204
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC206
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
IC207
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC208
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC301A
S/W,Firmware LGE SAA35419303 Contact Us For Availability
IC500
IC,Video Processors LGE EAN61608101 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61859601 Contact Us For Availability
IC603A
S/W,Firmware LGE SAA35419301 Contact Us For Availability
IC704
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
IC705
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
IC706
IC,LINEAR LGE 0ILNRUC003A Contact Us For Availability
IC707
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC805
IC,D/A Converter LGE EAN60920801 Contact Us For Availability
IC1101
IC,LED Driver LGE EAN61906001 Contact Us For Availability
JK801
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
JK802
Jack,RCA LGE 6612JH002XK Contact Us For Availability
JK803
Connector,DSUB LGE EAG55468501 Contact Us For Availability
JK803
Connector,DSUB LGE EAG40562101 Contact Us For Availability
JK804
Connector,USB LGE EAG61450402 Contact Us For Availability
JK805
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK1101
Connector,USB LGE EAG43125201 Contact Us For Availability
L101
Filter,Line Noise LGE EAM60870701 Contact Us For Availability
L122
Coil,RF LGE 6140RCC003L Contact Us For Availability
L122
COIL,RF LGE 6140RCC003H Contact Us For Availability
L201
Inductor,Wire Wound,Chip LGE EAP60684801 Contact Us For Availability
L203
Inductor,Wire Wound,Chip LGE EAP61206101 Contact Us For Availability
L203
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L261
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L503
Filter,Bead LGE 6200HJC106B Contact Us For Availability
L505
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L801
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L804
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L808
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
LED1101
LED Assembly LGE 6301R2U017W Contact Us For Availability
P101
Harness,Single LGE EAD37051303 Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q301
FET LGE EBK61313301 Contact Us For Availability
Q302
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q306
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q307
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q710
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q712
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q712
TR,Bipolar LGE EBK61012201 Contact Us For Availability
Q717
TR,Bipolar LGE EBK52465101 Contact Us For Availability
Q717
TR,Bipolar LGE EBK33822201 Contact Us For Availability
R102
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0221F608 Contact Us For Availability
R124
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R127
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R128
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R129
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R130
RESISTOR,FIXED METAL LGE 0RS2203J618 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R202
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R211
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R212
Resistor,Chip LGE 0RH2001C422 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R235
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R237
Resistor,Chip LGE 0RH0562C422 Contact Us For Availability
R238
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R239
Resistor,Chip LGE 0RH2201C422 Contact Us For Availability
R302
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R317
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R329
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R338
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R345
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R346
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R351
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R353
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R355
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R506
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R562
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R583
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R589
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R593
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R728
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R736
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R740
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R757
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R760
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R762
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R764
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R765
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R774
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R778
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R795
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R811
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R816
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R817
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R818
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R823
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R1101
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R1102
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R1103
Resistor,Carbon Film LGE 0RD2702F608 Contact Us For Availability
R1105
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R1106
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R1107
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
RA801
Resistor,Array LGE EBC41813701 Contact Us For Availability
RC1101
Receiver Module LGE EAV61494501 Contact Us For Availability
SW1104
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW1104
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW1104
Switch,Tact LGE EBF40098801 Contact Us For Availability
SW1104
Switch,Tact LGE 6600RRT001Q Contact Us For Availability
T101
Transformer,Switching LGE EBJ60770135 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
X301
Crystal LGE EAW37968901 Contact Us For Availability
X501
Crystal LGE EAW60673001 Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD306
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
× ![]()
Login and Registration Form
