Model LG BD610 – Common Parts & Diagrams

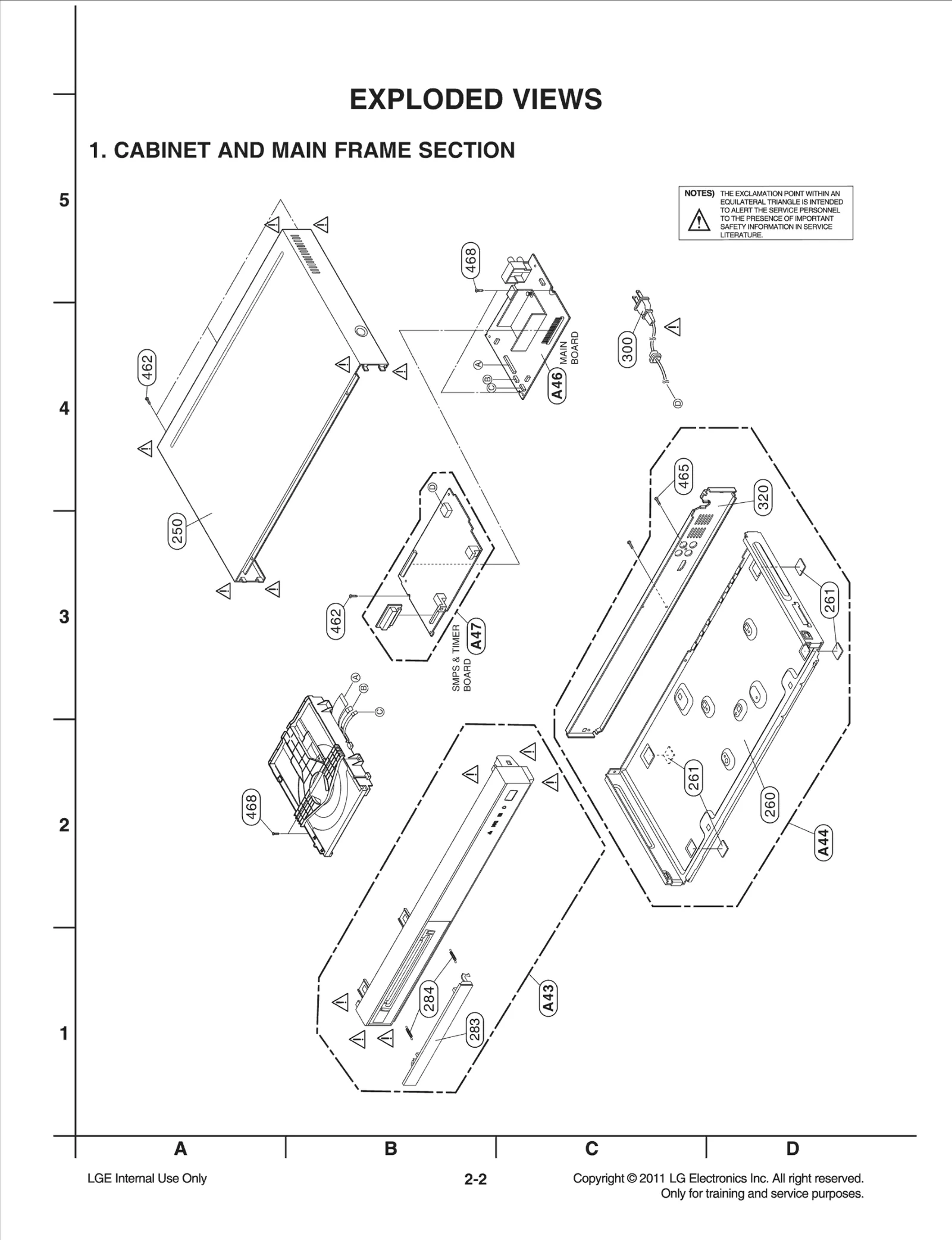

Diagram 0

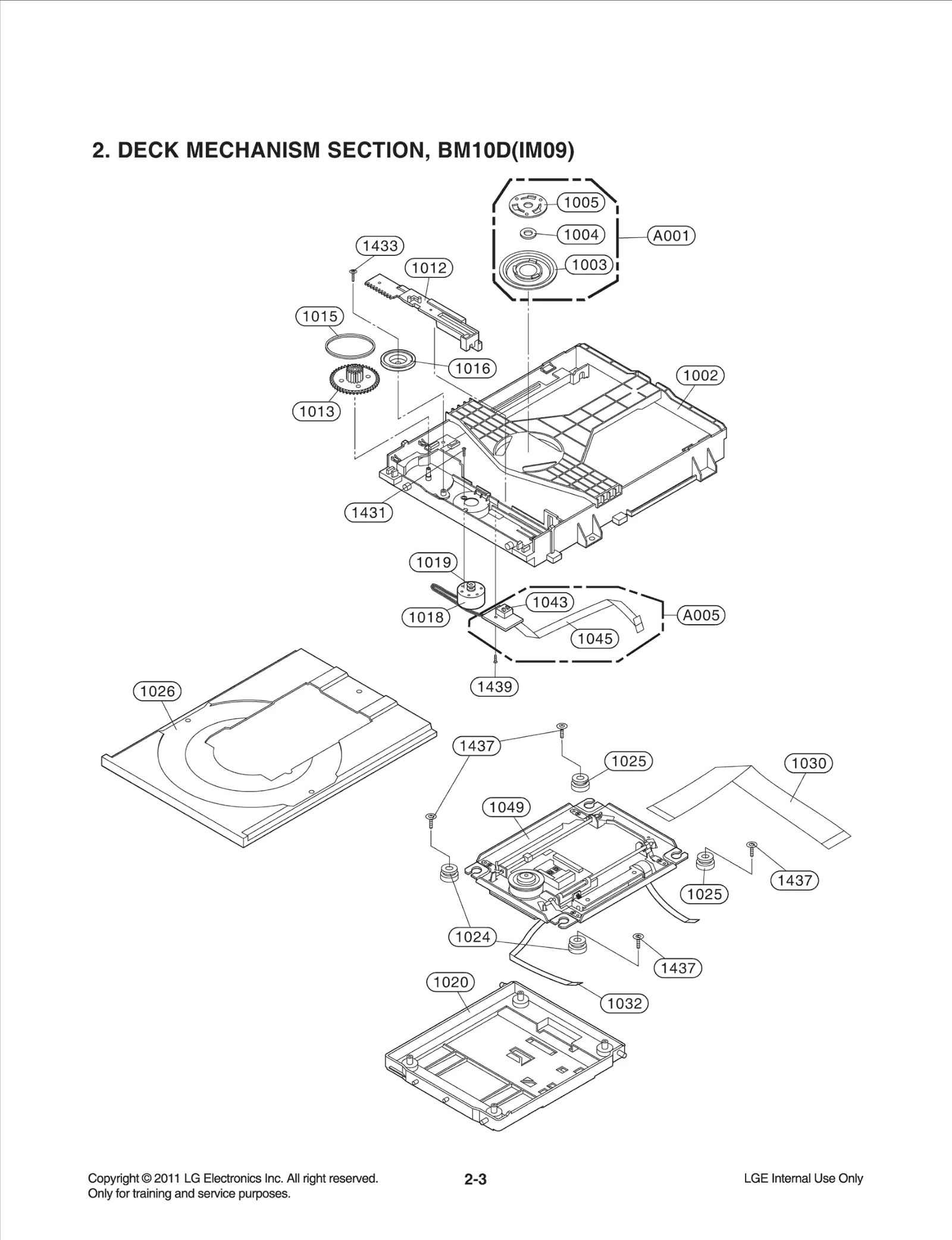

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG BD610
250
Case LGE MBN62547301 Contact Us For Availability
260
Frame LGE MDQ62897401 Contact Us For Availability
261
Damper LGE MCQ32325001 Contact Us For Availability
283
Door LGE MCV62413701 Contact Us For Availability
284
Spring LGE 4970R-0146E Contact Us For Availability
300
Power Cord LGE EAD60816603 Contact Us For Availability
320
Panel,Rear LGE MGC62622203 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75572502 Contact Us For Availability
802
Box,Master LGE MAY65147179 Contact Us For Availability
803
Packing LGE MFZ47272638 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002U Contact Us For Availability
808
Battery,Manganese LGE 6910F00010B Contact Us For Availability
813
Cable,Assembly LGE EAD38884523 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73495301 Contact Us For Availability
1002
Base LGE MAM62065401 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1012
Guide LGE MEA62192501 Contact Us For Availability
1013
Gear LGE MDT61967101 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT61967201 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62046101 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62453601 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1032
Cable,FFC LGE EAD61049009 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD54155305 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61244802 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
Screw,Customized LGE FAB30840501 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307108 Contact Us For Availability
A43
Panel Assembly LGE AGL73655303 Contact Us For Availability
A44
Frame Assembly LGE ADV73946603 Contact Us For Availability
A46
Option Code Assembly LGE EBR73514932 Contact Us For Availability
A47
PCB Assembly LGE EBR73799711 Contact Us For Availability
BD101
Diode,Rectifier LGE 0DRRE00060A Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C103
Capacitor,AL,Radial LGE EAE60776901 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C118
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C128
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C128
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C205
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C241
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C280
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C284
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C285
Capacitor,Ceramic,Chip LGE 0CZZB00055A Contact Us For Availability
C294
Capacitor,Ceramic,Ch LGE 0CK472BHG6A Contact Us For Availability
C296
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C298
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C299
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C579
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C656
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C734
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C740
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
C744
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C749
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C750
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C761
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C763
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
C766
Capacitor,Ceramic,Chip LGE 0CH1106F944 Contact Us For Availability
C767
Capacitor,Ceramic,Ch LGE 0CK104CK66A Contact Us For Availability
C804
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C809
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C864
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C901
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C906
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
CE901
Capacitor,AL,Radial LGE 0CE1074C638 Contact Us For Availability
CE902
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CE903
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
CN201
Connector,BtoB LGE 6630R-BF07T Contact Us For Availability
CN401
Connector,BtoB LGE EAG62470102 Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN901
Connector,BtoB LGE 6630R-BF03P Contact Us For Availability
CN904
Connector,BtoB LGE EAG62470101 Contact Us For Availability
D102
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D102
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D126
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D126
Diode,Rectifier LGE EAH42986001 Contact Us For Availability
D127
Diode,Schottky LGE EAH61113001 Contact Us For Availability
D127
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D216
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D801
Diode,Switching LGE EAH35293601 Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D802
Diode,Switching LGE 0DD160009AB Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC102
Photo,Coupler LGE EAV61473101 Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC102
Photo,Coupler LGE EAV59176001 Contact Us For Availability
IC103
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC201
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC203
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC207
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62228901 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61386701 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61857201 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61857101 Contact Us For Availability
IC603A
S/W,Firmware LGE SAA35419316 Contact Us For Availability
IC701
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
IC703
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
IC705
IC,Motor Driver LGE EAN62210901 Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
IC901
IC,LED Driver LGE EAN60970701 Contact Us For Availability
JK801
Jack,RCA LGE EAG57637007 Contact Us For Availability
JK802
Connector,HDMI LGE EAG62611202 Contact Us For Availability
JK901
Connector,USB LGE EAG35130901 Contact Us For Availability
L101
Filter,Line Noise LGE EAM60870701 Contact Us For Availability
L111
COIL,RF LGE 6140RCC003H Contact Us For Availability
L201
Filter,Bead LGE EAM58459401 Contact Us For Availability
L202
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L208
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L804
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
LED401
LED Display Module LGE EAV61592301 Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q501
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q803
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q804
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
R100
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R102
Resistor,Metal Oxide Film LGE EBC61596701 Contact Us For Availability
R102
Resistor,Metal Oxide Film LGE 0RS0680K690 Contact Us For Availability
R109
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R124
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R125
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R127
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R128
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R129
Resistor,Chip LGE 0RH3900D622 Contact Us For Availability
R130
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R210
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R219
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R239
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R240
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R253
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R254
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R258
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R259
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R261
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R262
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R263
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R264
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R265
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R268
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R270
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R513
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R533
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R721
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ1204C678 Contact Us For Availability
R758
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R810
Resistor,Chip LGE 0RH3602C622 Contact Us For Availability
R811
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R812
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R814
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R816
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R817
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R819
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R834
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R836
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R902
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R904
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
RC901
Receiver Module LGE EAV39117302 Contact Us For Availability
SW901
Switch,Tact LGE EBF52268801 Contact Us For Availability
T101
Transformer,Switching LGE EBJ60770145 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
X501
Crystal LGE EAW60673002 Contact Us For Availability
ZD101
Diode,Zener LGE EAH43050901 Contact Us For Availability
ZD101
Diode,Zener LGE EAH61132701 Contact Us For Availability
ZD102
Diode,Zener LGE 0DZPH00138A Contact Us For Availability
× ![]()
Login and Registration Form
