Model LG BD550 – Common Parts & Diagrams
Diagram 0
Diagram 1

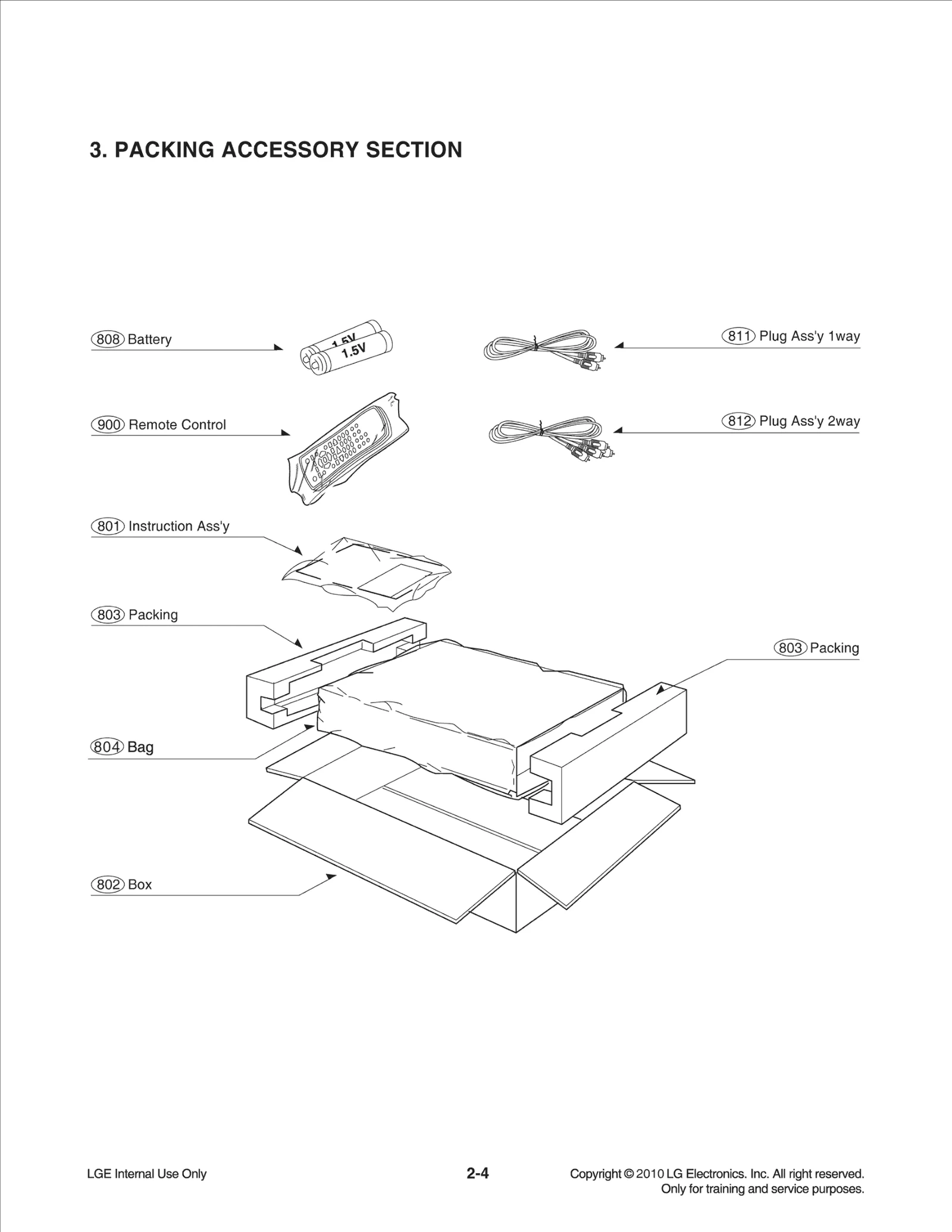

Diagram 2
Diagram 3
Common parts from model LG BD550
250
Case LGE MBN61880001 Contact Us For Availability
251
Plate LGE MGJ62209001 Contact Us For Availability
260
Frame LGE MDQ61930801 Contact Us For Availability
261
Damper LGE MCQ32325007 Contact Us For Availability
261A
Damper LGE MCQ62096404 Contact Us For Availability
261B
Damper LGE MCQ62096408 Contact Us For Availability
261C
Damper LGE MCQ62096409 Contact Us For Availability
275
Plate LGE 3300R-0211A Contact Us For Availability
275A
PLATE LGE 3300R-V127A Contact Us For Availability
283
Door LGE MCV61853101 Contact Us For Availability
284
Spring LGE 4970R-0146E Contact Us For Availability
285
Door LGE MCV61853201 Contact Us For Availability
300
Power Cord LGE EAD60816734 Contact Us For Availability
320
Panel,Rear LGE MGC61876402 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN73472181 Contact Us For Availability
802
Box,Master LGE MAY62788106 Contact Us For Availability
803
Packing LGE MFZ47272617 Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
804
Bag LGE MAF61906402 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA2F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA2H Contact Us For Availability
900
Remote Controller Assembly LGE AKB72975301 Contact Us For Availability
1001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1002
Cover LGE MCK62785301 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1011
Base LGE MAM61847301 Contact Us For Availability
1012
Guide LGE MEA61856701 Contact Us For Availability
1013
Gear - loc 1017 LGE MDT30123101 Contact Us For Availability
1015
Belt LGE 4400H-1014D Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT61842301 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM61847202 Contact Us For Availability
1024
Damper LGE MCQ62066401 Contact Us For Availability
1025
Damper LGE MCQ62066402 Contact Us For Availability
1026
Tray LGE MJS61851401 Contact Us For Availability
1030
Cable,FFC LGE EAD56949605 Contact Us For Availability
1031
Cable,FFC LGE EAD57536604 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD43082702 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ54166606 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ65103214 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307106 Contact Us For Availability
A006
PCB Assembly LGE EBR52819476 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL73013902 Contact Us For Availability
A44
Frame Assembly LGE ADV73045702 Contact Us For Availability
A46
Option Code Assembly LGE EBR60310162 Contact Us For Availability
A47
PCB Assembly LGE EBR65267451 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR64800001 Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BC101
Filter,Bead LGE EAM56488801 Contact Us For Availability
BD101
Diode,Rectifier LGE 0DRRE00060A Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C104
CAPACITOR,FIXED ELEC LGE 0CE476CQ610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C108
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C113
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C128
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C203
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C212
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C226
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C230
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C232
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C301
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C304
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C305
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C508
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C517
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C548
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C601
Capacitor,Ceramic,Ch LGE 0CK105BCG7A Contact Us For Availability
C618
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C703
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C709
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C711
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CH1225D946 Contact Us For Availability
C735
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C780
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C806
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C810
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C812
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C842
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
C844
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C1102
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C1105
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C1106
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
CA602
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
CABLE2
Cable,FFC LGE EAD35683702 Contact Us For Availability
CN201S
Connector,Wafer LGE 561-711J Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN701
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN702
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN1101
CONNECTOR (CIRC),FFC LGE 6630R-FB05T Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D104
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D124
Diode,Switching LGE EAH31951401 Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D127
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D127
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D127
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D201
DIODE,RECTIFIERS LGE 0DRRM00048A Contact Us For Availability
D202
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D301
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D812
Diode,Switching LGE EAH35293601 Contact Us For Availability
DIG1101
LED Assembly LGE 6301R2U017W Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC102
SENSOR LGE 6500RDB011B Contact Us For Availability
IC103
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC201
IC,DC,DC Converter LGE EAN39690601 Contact Us For Availability
IC202
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC203
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC206
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
IC301A
S/W,Firmware LGE SAA33408853 Contact Us For Availability
IC302
IC,Voltage Detector LGE EAN60705901 Contact Us For Availability
IC500
IC,Video Processors LGE EAN60908901 Contact Us For Availability
IC604A
S/W,Firmware LGE SAA33408848 Contact Us For Availability
IC704
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
IC705
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
IC706
IC,LINEAR LGE 0ILNRUC003A Contact Us For Availability
IC707
IC,LDO Voltage Regulator LGE EAN34180901 Contact Us For Availability
IC803
IC,D/A Converter LGE EAN60920801 Contact Us For Availability
IC805
IC,Video Amplifier LGE EAN60918701 Contact Us For Availability
IC806
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC1101
IC,LED Driver LGE EAN60970701 Contact Us For Availability
IC1101
IC,LED Driver LGE EAN60410101 Contact Us For Availability
JK801
Jack,Fiber Optic LGE EAG36157205 Contact Us For Availability
JK802
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK803
Connector,DSUB LGE EAG40562101 Contact Us For Availability
JK805
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK1101
Connector,USB LGE EAG43125201 Contact Us For Availability
L101
Filter,Line Noise LGE EAM60870702 Contact Us For Availability
L123
COIL,RF LGE 6140RCC003H Contact Us For Availability
L123
Coil,RF LGE 6140RCC003L Contact Us For Availability
L201
Inductor,Wire Wound,Chip LGE EAP60684801 Contact Us For Availability
L203
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L206
Inductor,Wire Wound,Chip LGE EAP59307001 Contact Us For Availability
L505
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L506
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L508
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
P101
Harness,Single LGE 6631R-E078V Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q305
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q306
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q713
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q717
TR,Bipolar LGE EBK33822201 Contact Us For Availability
Q807
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
R7A9
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R102
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0221F608 Contact Us For Availability
R124
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R125
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R127
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R128
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R129
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R130
RESISTOR,FIXED METAL LGE 0RS2203J618 Contact Us For Availability
R202
Resistor,Chip LGE EBC40339401 Contact Us For Availability
R203
Resistor,Chip LGE EBC31459601 Contact Us For Availability
R204
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R210
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R211
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R212
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R217
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R220
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R221
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R230
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R232
RESISTOR,METAL GLAZE LGE 0RJ3000C477 Contact Us For Availability
R236
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R237
Resistor,Chip LGE 0RH0562C422 Contact Us For Availability
R238
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R239
Resistor,Chip LGE 0RH2201C422 Contact Us For Availability
R308
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R309
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R314
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R319
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R340
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R353
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R361
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R506
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R558
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R561
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R567
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R702
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R740
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R751
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R754
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R755
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R761
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R774
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R776
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R783
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R784
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R794
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R804
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R818
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R821
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R822
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R823
RESISTOR,METAL GLAZE LGE 0RJ1300C677 Contact Us For Availability
R827
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R843
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R845
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R1101
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R1103
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R1104
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R1107
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R1108
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R1109
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R1110
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
RC1101
Receiver Module LGE EAV41920401 Contact Us For Availability
RN801
Resistor,Array LGE EBC41813701 Contact Us For Availability
SW1102
Switch,Tact LGE 6600RRT001Q Contact Us For Availability
SW1102
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW1102
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW1102
Switch,Tact LGE EBF40098801 Contact Us For Availability
T101
Transformer,Switching LGE EBJ60770103 Contact Us For Availability
V101
Varistor LGE EAF38754501 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
V101
Varistor LGE EAF43134701 Contact Us For Availability
X301
Crystal LGE EAW60803401 Contact Us For Availability
X501
Crystal LGE EAW60673001 Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD303
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
× ![]()
Login and Registration Form
