Model LG BD530 – Common Parts & Diagrams
Diagram 0
Diagram 1

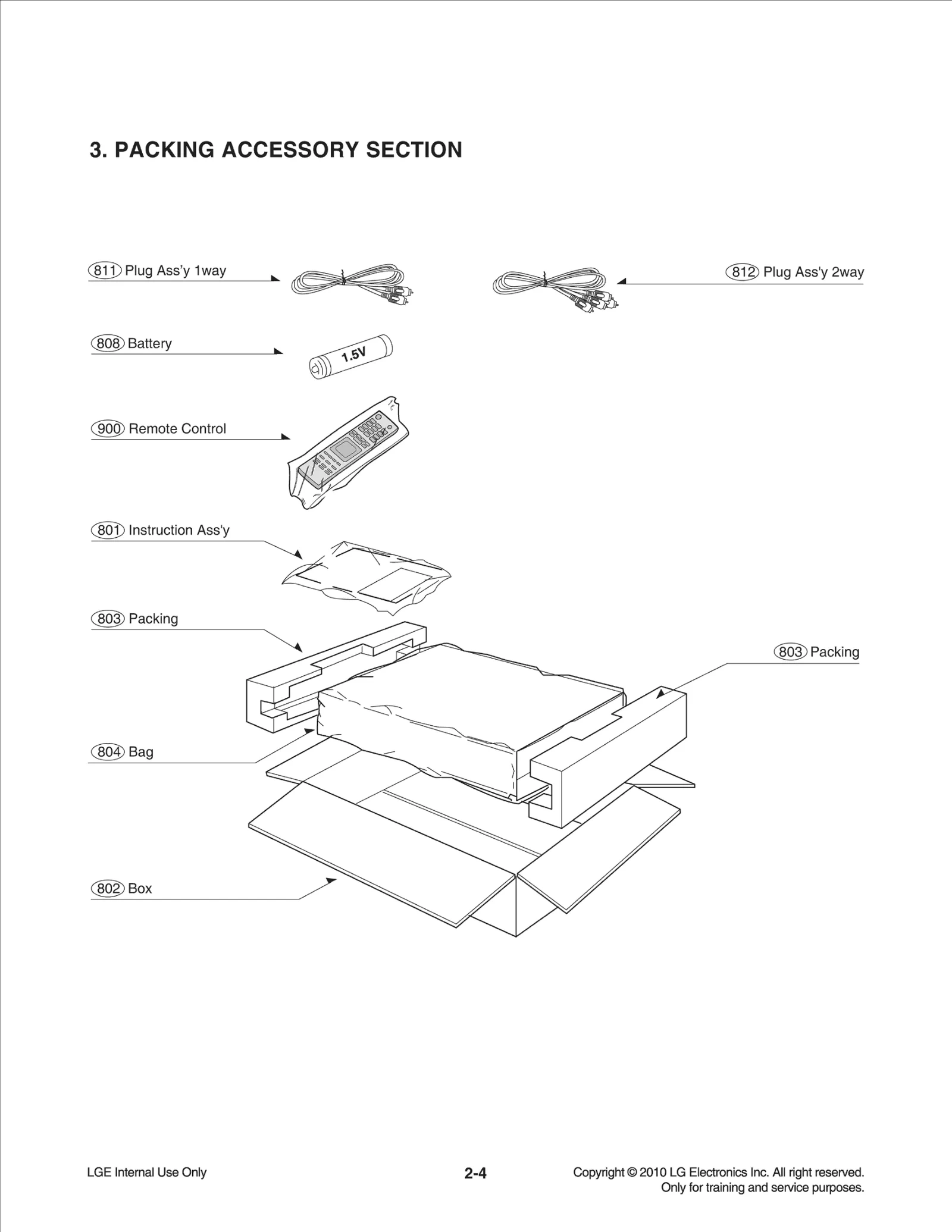

Diagram 2
Diagram 3
Common parts from model LG BD530
250
Case LGE MBN62065101 Contact Us For Availability
260
Chassis LGE MBS61985601 Contact Us For Availability
261
Damper LGE MCQ32325001 Contact Us For Availability
283
Door LGE MCV62034302 Contact Us For Availability
300
Power Cord LGE EAD60816603 Contact Us For Availability
300
Power Cord LGE EAD60816734 Contact Us For Availability
320
Panel,Rear LGE MGC62061110 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN74553002 Contact Us For Availability
802
Box,Master LGE MAY63757019 Contact Us For Availability
803
Packing LGE MFZ47272622 Contact Us For Availability
804
Bag LGE MAF37454632 Contact Us For Availability
808
Battery,Manganese LGE EAC42053701 Contact Us For Availability
811
Cable,Assembly LGE EAD38884520 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA2F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA2H Contact Us For Availability
812
Cable,Assembly LGE EAD38884512 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73215301 Contact Us For Availability
1002
Base LGE MAM62065401 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1012
Guide LGE MEA62192501 Contact Us For Availability
1013
Gear LGE MDT61967101 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT61967201 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
Pulley LGE 4560R-0008A Contact Us For Availability
1020
Base LGE MAM62085701 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62032401 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD54155305 Contact Us For Availability
1049
Traverse Assembly LGE EAZ60921101 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
Screw,Customized LGE FAB30840501 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307109 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL73160209 Contact Us For Availability
A44
Frame Assembly LGE ADV73625610 Contact Us For Availability
A46
Option Code Assembly LGE EBR71104202 Contact Us For Availability
A47
PCB Assembly LGE EBR67473721 Contact Us For Availability
C100
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C100
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C103
Capacitor,AL,Radial LGE EAE60776901 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C118
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C128
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C128
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C142
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE EAE35701401 Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C229
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C232
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C301
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C306
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C558
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C632
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C712
Capacitor,Ceramic,Ch LGE 0CK104CK66A Contact Us For Availability
C734
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C746
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C810
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C812
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C821
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CE301
Capacitor,AL,Radial LGE 0CE1074C638 Contact Us For Availability
CE302
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CE303
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
CN201
Connector,BtoB LGE 6630R-BF07T Contact Us For Availability
CN301
Connector,BtoB LGE 6630R-BF03P Contact Us For Availability
CN304
Connector,BtoB LGE EAG62470101 Contact Us For Availability
CN401
Connector,BtoB LGE EAG62470102 Contact Us For Availability
CN702
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN706
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D102
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D103
DIODE,RECTIFIERS LGE 0DRRE00203A Contact Us For Availability
D127
Diode,Schottky LGE EAH61113001 Contact Us For Availability
D127
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D216
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D216
Diode,Rectifier LGE EAH42986001 Contact Us For Availability
D216
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D803
Diode,Switching LGE EAH35293601 Contact Us For Availability
D811
Diode,Switching LGE 0DD160009AB Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC102
Photo,Coupler LGE EAV59176001 Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC104
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC201
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC201
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC202
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC202
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC203
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC204
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC207
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC301
IC,LED Driver LGE EAN60970701 Contact Us For Availability
IC501
IC,Video Processors LGE EAN61367901 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61386701 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN60899001 Contact Us For Availability
IC603A
S/W,Firmware LGE SAA35199901 Contact Us For Availability
IC701
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC702
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
IC703
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
JK301
Connector,USB LGE EAG35130901 Contact Us For Availability
JK801
Jack,RCA LGE 6612R-C013D Contact Us For Availability
JK802
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK803
Connector,DSUB LGE EAG55468503 Contact Us For Availability
JK805
Jack,Modular LGE EAG32089102 Contact Us For Availability
L101
Filter,Line Noise LGE EAM60870701 Contact Us For Availability
L111
COIL,RF LGE 6140RCC003H Contact Us For Availability
L204
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L206
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L206
Inductor,Wire Wound,Chip LGE EAP61206101 Contact Us For Availability
L702
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L704
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L801
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L803
Inductor,Multilayer, LGE 0LCCE00046A Contact Us For Availability
L805
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
LED401
LED Assembly LGE 6301R2U017Q Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q271
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q272
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q501
TR,Bipolar LGE EBK61012201 Contact Us For Availability
Q702
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q801
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q803
TR,Bipolar LGE 0TRAU80028A Contact Us For Availability
R100
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R102
Resistor,Metal Oxide Film LGE EBC61596701 Contact Us For Availability
R102
Resistor,Metal Oxide Film LGE 0RS0680K690 Contact Us For Availability
R105
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R109
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R124
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R125
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R127
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R128
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R129
Resistor,Chip LGE 0RH3900D622 Contact Us For Availability
R130
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R141
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH2001C422 Contact Us For Availability
R205
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R211
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R212
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R214
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R240
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R241
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R272
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R304
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R502
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
R503
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R529
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R531
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R532
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R533
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R701
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R727
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R729
Resistor,Chip LGE 0RJ7500C477 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R812
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R822
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R823
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R824
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R827
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R829
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R830
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R832
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R836
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
RC301
Receiver Module LGE EAV39117301 Contact Us For Availability
RN801
Resistor,Array LGE EBC41813701 Contact Us For Availability
SW303
Switch,Tact LGE EBF52268801 Contact Us For Availability
T101
Transformer,Switching LGE EBJ60770111 Contact Us For Availability
TZD130
Diode,TVS LGE EAH61192501 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
X501
Crystal LGE EAW60673001 Contact Us For Availability
ZD101
Diode,Zener LGE EAH43050901 Contact Us For Availability
ZD101
Diode,Zener LGE EAH61132701 Contact Us For Availability
ZD102
Diode,Zener LGE 0DZPH00138A Contact Us For Availability
ZD270
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
× ![]()
Login and Registration Form
