Model LG BD370 – Common Parts & Diagrams

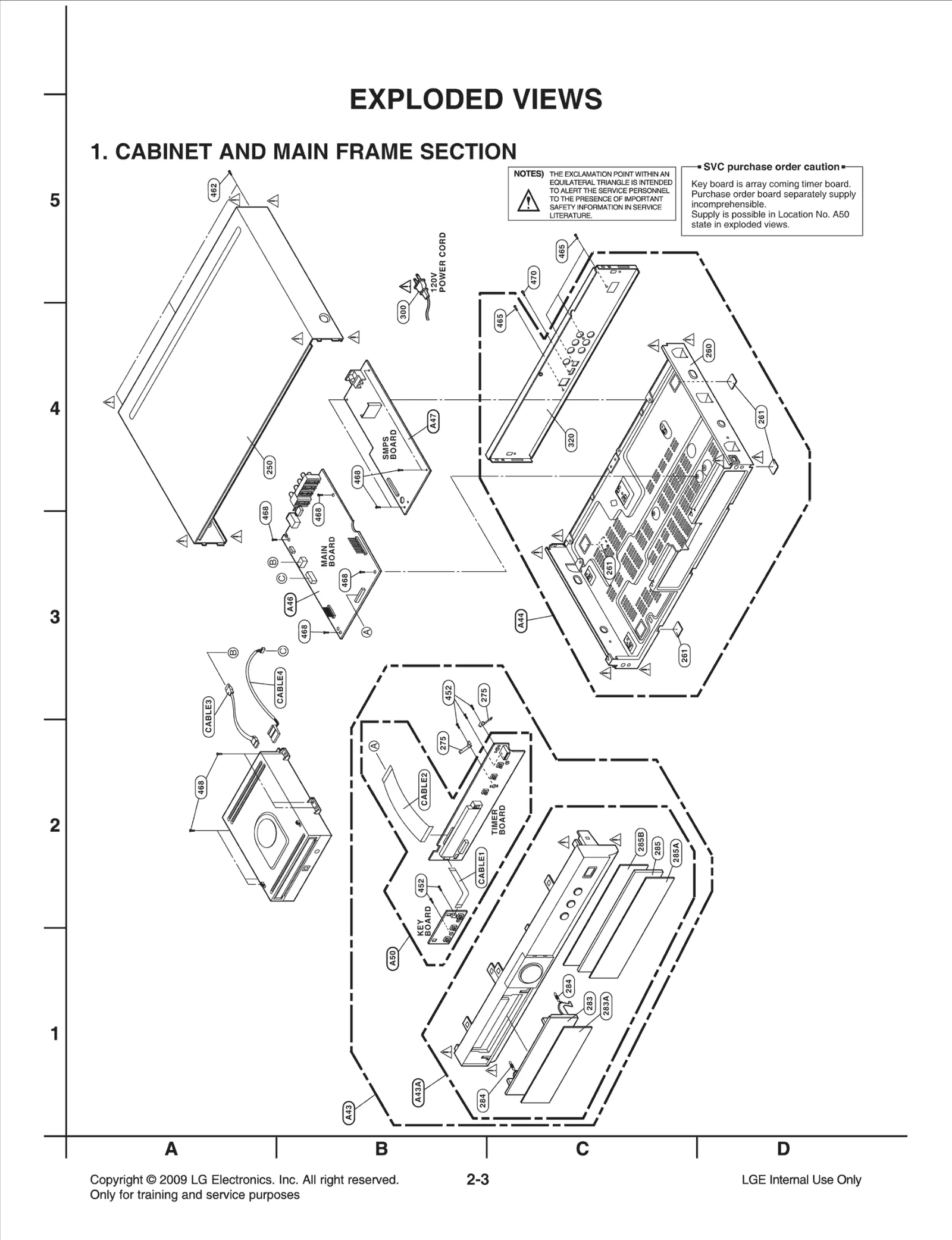

Diagram 0

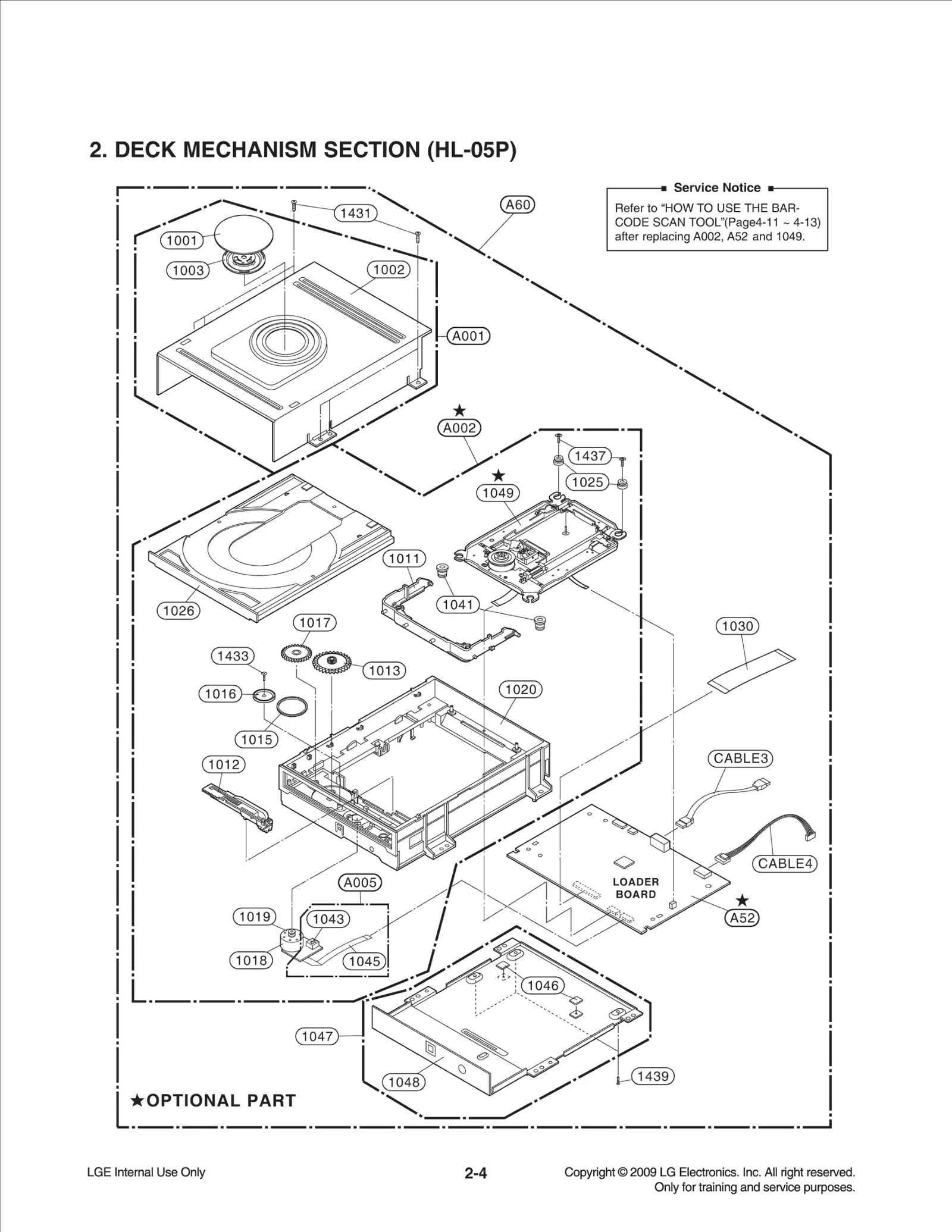

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG BD370
250
Case LGE MBN42965402 Contact Us For Availability
260
Chassis LGE MBS42965001 Contact Us For Availability
261
Damper LGE MCQ32325001 Contact Us For Availability
275
Plate LGE 3300R-0211A Contact Us For Availability
283
Door LGE MCV42965701 Contact Us For Availability
283A
Window LGE MKC57094401 Contact Us For Availability
284
Spring LGE 4970R-0146D Contact Us For Availability
285
Door LGE MCV42965801 Contact Us For Availability
285A
Window LGE MKC57094901 Contact Us For Availability
285B
Window,Decor LGE MKC42967001 Contact Us For Availability
300
Power Cord LGE 6410RGHV01A Contact Us For Availability
320
Panel,Rear LGE MGC42965135 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN73142327 Contact Us For Availability
802
Box,Master LGE MAY62106706 Contact Us For Availability
803
Packing LGE MFZ47272602 Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
804
Bag LGE 292-053Q Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
813
CABLE,COAXIAL LGE 6850R-PCA8F Contact Us For Availability
900
Remote Controller Assembly LGE AKB68183601 Contact Us For Availability
1001
Cover LGE MCK30125801 Contact Us For Availability
1002
Cover LGE MCK51179601 Contact Us For Availability
1003
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1011
Base LGE MAM51178701 Contact Us For Availability
1012
Guide LGE MEA40275901 Contact Us For Availability
1013
Gear - loc 1017 LGE MDT30123101 Contact Us For Availability
1015
BELT LGE 4400H-1014A Contact Us For Availability
1016
Pulley LGE MGN30124101 Contact Us For Availability
1017
Gear - loc 1013 LGE MDT30122801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM50148901 Contact Us For Availability
1025
RUBBER LGE 5040R-1081B Contact Us For Availability
1026
Tray LGE MJS50149001 Contact Us For Availability
1030
Cable,FFC LGE EAD56949601 Contact Us For Availability
1041
Damper LGE MCQ51197601 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD56950901 Contact Us For Availability
1045
Cable,FFC LGE EAD56950902 Contact Us For Availability
1046
Damper LGE 5040H-1023W Contact Us For Availability
1047
Cover Assembly LGE ACQ67706802 Contact Us For Availability
1048
Cover LGE MCK42305501 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60658001 Contact Us For Availability
1431
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ65103211 Contact Us For Availability
A002
Deck Assembly LGE EAZ54852085 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307103 Contact Us For Availability
A43
Board Assembly LGE AAX71868815 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL37132206 Contact Us For Availability
A44
Frame Assembly LGE ADV37132135 Contact Us For Availability
A46
Option Code Assembly LGE EBR61156707 Contact Us For Availability
A47
PCB Assembly LGE EBR37922631 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR48829275 Contact Us For Availability
A52
PCB Assembly LGE EBR52819461 Contact Us For Availability
A60
Deck Assembly,DVD LGE EAZ54850412 Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BC101
Filter,Bead LGE EAM56488801 Contact Us For Availability
BD101
Diode,Bridge LGE EAH31952001 Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRDI00201A Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE1076R610 Contact Us For Availability
C104
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C107
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C111
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C115
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C123
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C124
Capacitor,AL,Radial LGE EAE34802401 Contact Us For Availability
C124
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C125
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C126
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C133
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C143
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C153
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C235
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C280
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C280
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C433
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE 0CK104CK66A Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C523
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C526
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C612
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C678
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C688
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C690
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C735
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C736
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C762
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C774
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C783
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
CA2E1
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA348
Capacitor,AL,Chip LGE EAE33602601 Contact Us For Availability
CA628
Capacitor,AL,Chip LGE 0CH8477C611 Contact Us For Availability
CA702
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CA720
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
CA725
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD42150103 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD39815204 Contact Us For Availability
CABLE3
Cable,Assembly LGE EAD55660703 Contact Us For Availability
CABLE4
Harness,Single LGE EAD56862801 Contact Us For Availability
CE501
Capacitor,AL,Radial LGE 0CE2263F638 Contact Us For Availability
CE502
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
CE504
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CN401
Connector,FFC/FPC/PIC LGE 6630R-FB06E Contact Us For Availability
CN403
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN405
Connector,Wafer LGE EAG56285901 Contact Us For Availability
CN406
Conector,Wafer LGE EAG35550102 Contact Us For Availability
CN408
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN501
Connector,FFC/FPC/PIC LGE 6630R-FB05W Contact Us For Availability
CN502
Connector,USB LGE EAG43125201 Contact Us For Availability
CN503
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN701
Connector,BtoB LGE 6630R-BF07P Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D121
Diode,Switching LGE EAH31951401 Contact Us For Availability
D121
DIODE,SWITCHING LGE 0DSDI00110A Contact Us For Availability
D123
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D123
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D124
Diode,Schottky LGE EAH54213301 Contact Us For Availability
D125
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D125
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D131
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D132
DIODE,SWITCHING LGE 0DSNH00020B Contact Us For Availability
D132
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D501
Diode,Schottky LGE 0DRRM00138A Contact Us For Availability
D613
Diode,Zener LGE 0DZPH00028A Contact Us For Availability
D614
Diode,Switching LGE 0DS121009AA Contact Us For Availability
D701
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D702
DIODE,RECTIFIERS LGE 0DRRM00048A Contact Us For Availability
D703
Diode,Switching LGE 0DS135519AA Contact Us For Availability
DIG501
VFD LGE EAJ49965601 Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMG78398A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC102
SENSOR,PHOTO LGE 6500RDB010A Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC152
IC,LDO Voltage Regulator LGE EAN44022001 Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN43506901 Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGGM002A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC201
IC,Video Processors LGE EAN60693301 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN60658501 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN55687601 Contact Us For Availability
IC402A
S/W,Firmware LGE SAA33408830 Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN33391102 Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN33391101 Contact Us For Availability
IC502
IC,Reset LGE EAN32259901 Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC504
IC,Voltage Detector LGE EAN38941301 Contact Us For Availability
IC506
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
IC603
IC,OP Amplifier LGE 0ILNRJR014B Contact Us For Availability
IC606
IC,Video Amplifier LGE EAN40083901 Contact Us For Availability
IC607
IC,D/A Converter LGE EAN35416401 Contact Us For Availability
IC609
IC,Telecom Filter LGE EAN40273601 Contact Us For Availability
IC610
IC,Video Amplifier LGE EAN40084701 Contact Us For Availability
IC702
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC704
IC,DC,DC Converter LGE EAN31859201 Contact Us For Availability
IC706
IC,DC,DC Converter LGE EAN39690601 Contact Us For Availability
JK403
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG36157201 Contact Us For Availability
JK602
Jack,RCA LGE EAG39524801 Contact Us For Availability
JK603
Connector,DSUB LGE EAG55468501 Contact Us For Availability
JK603
Connector,DSUB LGE EAG40562101 Contact Us For Availability
L102
Filter,Line Noise LGE 6200JB8013V Contact Us For Availability
L123
COIL,RF LGE 6140RCC003H Contact Us For Availability
L406
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L514
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L616
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L619
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L719
Inductor,Wire Wound, LGE EAP39240301 Contact Us For Availability
L721
Inductor,Wire Wound,Chip LGE EAP60684801 Contact Us For Availability
LC5B0
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
LC150
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
LC201
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
LC203
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
LC240
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
LC502
CAPACITOR,FIXED CERA LGE 0CK225CF94A Contact Us For Availability
LC575
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
LC801
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
LC905
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
LC937
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
LCN700
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LD801
Diode,Schottky LGE EAH36256501 Contact Us For Availability
LED401
LED LGE 0DLAU0300AA Contact Us For Availability
LIC100
IC,Serial Flash Memory LGE 0IMMR00188B Contact Us For Availability
LIC201
IC,Motor Driver LGE EAN56819501 Contact Us For Availability
LIC501
IC,Front End LGE EAN56285401 Contact Us For Availability
LIC601
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
LIC901
IC,LDO Voltage Regulator LGE 0IPMG78430B Contact Us For Availability
LIC902
IC,LDO Voltage Regulator LGE EAN34180901 Contact Us For Availability
LIC903
IC,LDO Voltage Regulator LGE EAN56746801 Contact Us For Availability
LL803
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
LL909
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
LPB800
Connector,Wafer LGE EAG56809201 Contact Us For Availability
LPB801
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
LPF301
Connector,FFC/FPC/PIC LGE 6630X60106A Contact Us For Availability
LPM301
Connector,FFC/FPC/PIC LGE 6630X60088B Contact Us For Availability
LPM302
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
LPT302
Connector,FFC/FPC/PI LGE 6630X60027E Contact Us For Availability
LQ112
TR,Bipolar LGE 0TR390409DA Contact Us For Availability
LQ122
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
LR105
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
LR201
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
LR204
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
LR543
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
LR551
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
LR575
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
LR610
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
LR682
Resistor,Chip LGE 0RH0392C622 Contact Us For Availability
LR852
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
LR911
RESISTOR,METAL GLAZE LGE 0RJ4300C477 Contact Us For Availability
LR913
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
LR970
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
LR975
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
LR985
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
LX501
Crystal LGE 6212AB2250E Contact Us For Availability
P101
Connector,BtoB LGE 6630R-BF03P Contact Us For Availability
PW101
Socket,Power LGE EAG35192701 Contact Us For Availability
Q402
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q406
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q501
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q615
TR,Bipolar LGE 0TRKE80059A Contact Us For Availability
Q616
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q617
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q618
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
R5A1
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R5C8
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
R5D5
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R6D2
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R6D4
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R6D5
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R6F0
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R6F1
RESISTOR,METAL GLAZE LGE 0RJ1300C677 Contact Us For Availability
R6F7
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R109
RESISTOR,FIXED METAL LGE 0RS0330K618 Contact Us For Availability
R121
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R122
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
Resistor,Carbon Film LGE 0RD8202F608 Contact Us For Availability
R141
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R142
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R144
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R145
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R146
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R156
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R157
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R181
Resistor,Carbon Film LGE 0RD0152F608 Contact Us For Availability
R225
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R228
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R401
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R404
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R406
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R480
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ5620C477 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R511
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R516
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R525
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R526
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R546
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R547
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R552
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R553
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R554
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R570
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R637
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R639
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R648
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R663
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R704
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R705
Resistor,Chip LGE EBC40339401 Contact Us For Availability
R708
Resistor,Chip LGE EBC31459601 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R716
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R720
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
RC501
Receiver Module LGE EAV41920401 Contact Us For Availability
SW401
SWITCH,TACT LGE 556-219B Contact Us For Availability
T101
Transformer,Switching LGE EBJ48766701 Contact Us For Availability
V101
Varistor LGE EAF38754501 Contact Us For Availability
X501
Crystal LGE EAW32265901 Contact Us For Availability
X504
Crystal LGE EAW60673001 Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD121
Diode,Zener LGE 0DZ270009BD Contact Us For Availability
ZD502
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
ZD503
Diode,Zener LGE 0DZPH00079A Contact Us For Availability
× ![]()
Login and Registration Form
