Model LG BD300 – Common Parts & Diagrams

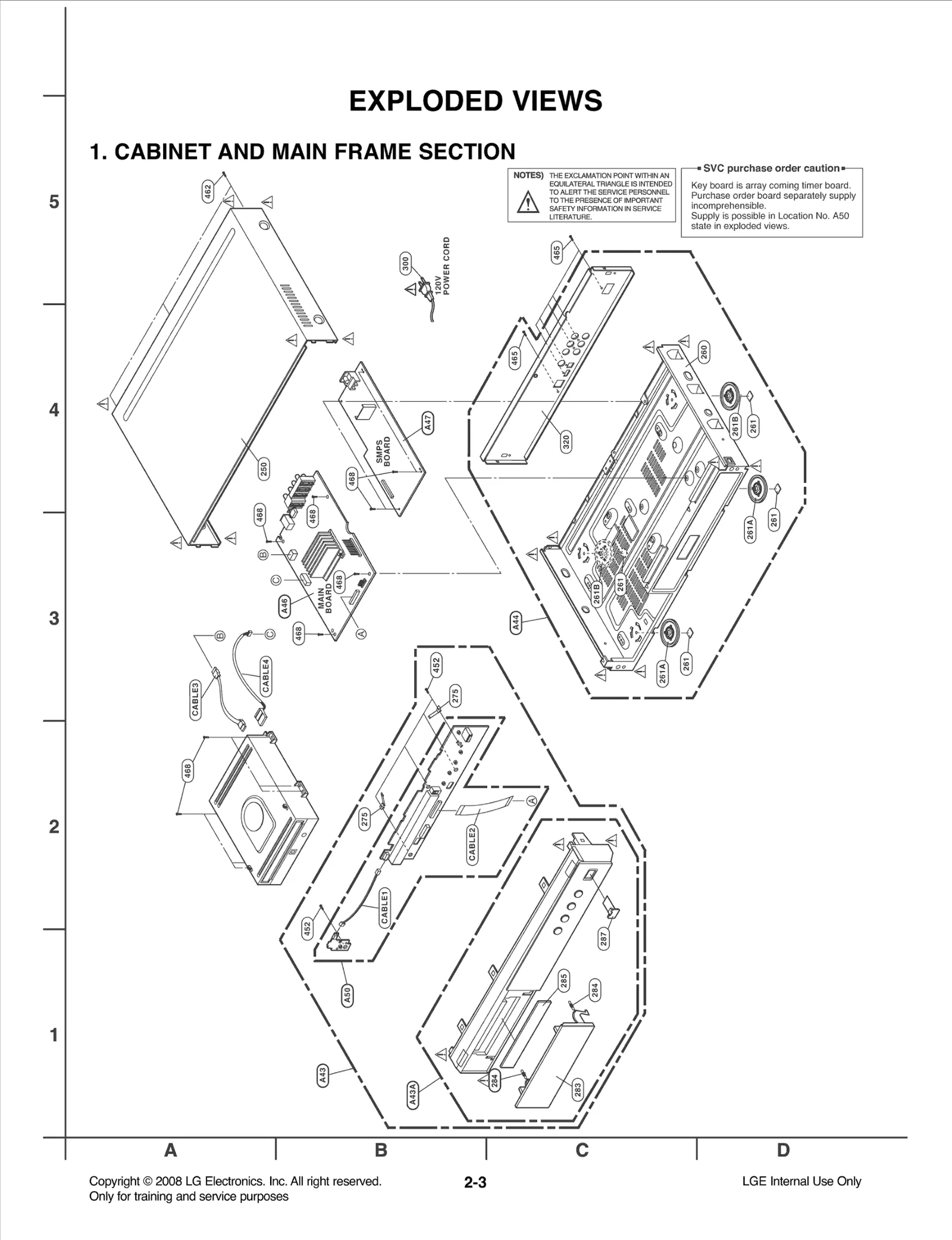

Diagram 0

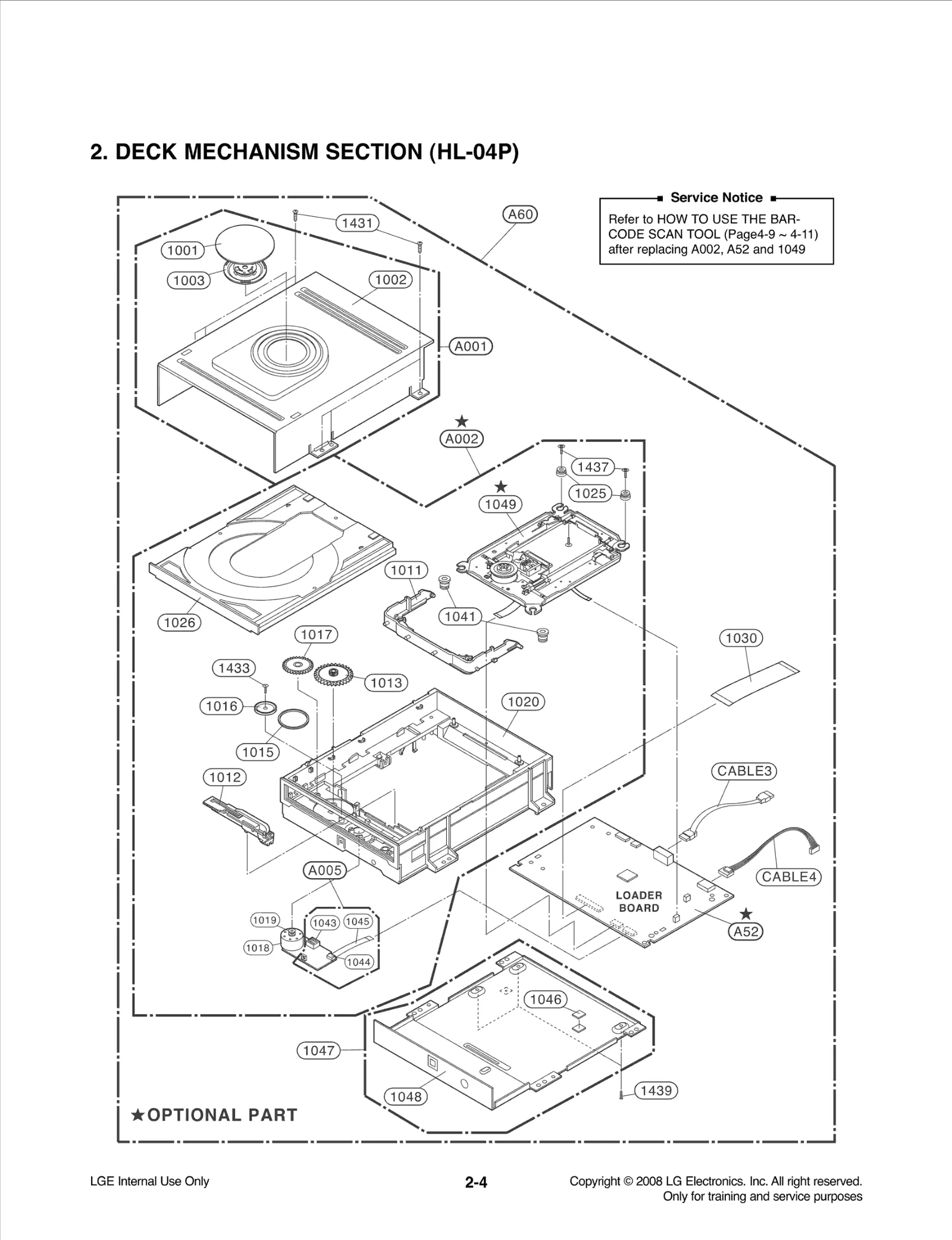

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG BD300
250
Case LGE MBN51169501 Contact Us For Availability
260
Chassis LGE MBS51169101 Contact Us For Availability
261
RUBBER LGE 5040R-0069Q Contact Us For Availability
261A
Foot LGE MDP51169301 Contact Us For Availability
261B
Foot LGE MDP51169302 Contact Us For Availability
275
Plate LGE 3300R-0211A Contact Us For Availability
283
Window LGE MKC51173801 Contact Us For Availability
284
SPRING LGE 4970R-0146B Contact Us For Availability
285
Door LGE MCV51172501 Contact Us For Availability
287
Cover LGE MCK51773401 Contact Us For Availability
300
Power Cord LGE 6410RGHV01A Contact Us For Availability
320
Panel,Rear LGE MGC51169210 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly LGE AFN35119533 Contact Us For Availability
802
Box,Master LGE MAY58758102 Contact Us For Availability
803
Packing LGE MFZ47272605 Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
804
Bag LGE 292-053Q Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910R-AB02D Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
900
Remote Controller Assembly LGE AKB65092802 Contact Us For Availability
1001
COVER LGE 3550H-1116A Contact Us For Availability
1002
Cover LGE MCK51179601 Contact Us For Availability
1003
Clamp Assembly LGE ACA65103301 Contact Us For Availability
1011
Base LGE MAM51178701 Contact Us For Availability
1012
Guide LGE MEA40275901 Contact Us For Availability
1013
GEAR LGE 4470H-1164A Contact Us For Availability
1015
BELT LGE 4400H-1014A Contact Us For Availability
1016
PULLEY LGE 4560H-1018A Contact Us For Availability
1017
GEAR LGE 4470H-1163A Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM50148901 Contact Us For Availability
1025
RUBBER LGE 5040R-1081B Contact Us For Availability
1026
Tray LGE MJS50149001 Contact Us For Availability
1030
Cable,FFC LGE EAD56949601 Contact Us For Availability
1041
Damper LGE MCQ51197601 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1044
CONNECTOR (CIRC),FFC LGE 6630X60119A Contact Us For Availability
1045
Cable,FFC LGE EAD56950902 Contact Us For Availability
1046
Damper LGE 5040H-1023W Contact Us For Availability
1047
Cover Assembly LGE ACQ67706801 Contact Us For Availability
1048
Cover LGE MCK42305501 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ54166601 Contact Us For Availability
1431
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ65103201 Contact Us For Availability
A002
Deck Assembly LGE EAZ54852001 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307101 Contact Us For Availability
A43
Board Assembly LGE AAX59251808 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL59251708 Contact Us For Availability
A44
Frame Assembly LGE ADV59248110 Contact Us For Availability
A46
Option Code Assembly LGE EBR56960702 Contact Us For Availability
A47
PCB Assembly LGE EBR37922612 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR48829203 Contact Us For Availability
A52
PCB Assembly LGE EBR52819401 Contact Us For Availability
A60
Deck Assembly,DVD LGE EAZ54850401 Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
Diode,Bridge LGE EAH31952001 Contact Us For Availability
C2E1
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE1571R6A0 Contact Us For Availability
C104
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C107
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 0CE3366J618 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C115
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C117
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C118
Capacitor,Ceramic,Chip LGE 0CH4080K412 Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C122
Capacitor,AL,Radial LGE EAE34802401 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C125
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C126
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C127
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082G Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C143
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C153
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C268
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C514
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C516
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C521
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C523
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C651
Capacitor,Ceramic,Chip LGE 0CH1471K512 Contact Us For Availability
C673
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C677
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C687
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C690
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C693
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C715
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C725
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C735
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C736
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C762
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C764
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C779
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
CA604
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CA618
Capacitor,AL,Chip LGE 0CH8477C611 Contact Us For Availability
CA631
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
CA709
Capacitor,AL,Chip LGE EAE35846401 Contact Us For Availability
CA714
Capacitor,AL,Chip LGE EAE33602601 Contact Us For Availability
CA723
Capacitor,AL,Chip LGE 0CE227WC6D8 Contact Us For Availability
CA725
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
CABLE1
Harness,Single LGE EAD56863602 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD56861101 Contact Us For Availability
CABLE3
Cable,Assembly LGE EAD55660703 Contact Us For Availability
CABLE4
Harness,Single LGE EAD56862801 Contact Us For Availability
CN402
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
CN403
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN405
Connector,Wafer LGE EAG56285901 Contact Us For Availability
CN406
Conector,Wafer LGE EAG35550102 Contact Us For Availability
CN501
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
CN502
Connector,USB LGE 6630S70048B Contact Us For Availability
CN503
Connector,Wafer LGE EAG56737401 Contact Us For Availability
CN701
Connector,BtoB LGE 6630R-BF07P Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D121
Diode,Switching LGE EAH31951401 Contact Us For Availability
D121
DIODE,SWITCHING LGE 0DSDI00110A Contact Us For Availability
D123
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D124
Diode,Schottky LGE EAH54213301 Contact Us For Availability
D126
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D126
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D130
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D132
DIODE,SWITCHING LGE 0DSKE00141A Contact Us For Availability
D400
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
D501
Diode,Switching LGE 0DSKE00028A Contact Us For Availability
D701
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D702
DIODE,RECTIFIERS LGE 0DRRM00048A Contact Us For Availability
D703
Diode,Switching LGE 0DS135519AA Contact Us For Availability
DIG501
VFD LGE 6302R-V251G Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,Video Processors LGE EAN50729101 Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMG78398A Contact Us For Availability
IC102
IC,Reset LGE EAN32259901 Contact Us For Availability
IC102
SENSOR,PHOTO LGE 6500RDB010A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC151
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC152
IC,LDO Voltage Regulator LGE 0IPMGKE053A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGGM002A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN43506901 Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC303
IC,DDR2 SDRAM LGE EAN56131001 Contact Us For Availability
IC303
IC,DDR2 SDRAM LGE EAN39677701 Contact Us For Availability
IC304
IC,DDR2 SDRAM LGE EAN33624402 Contact Us For Availability
IC402A
S/W,Firmware LGE SAA33408801 Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN33391101 Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN33391102 Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC504
IC,Voltage Detector LGE EAN38941301 Contact Us For Availability
IC601
IC,Tx/Rx LGE EAN39308101 Contact Us For Availability
IC603
IC,OP Amplifier LGE 0ILNRJR014B Contact Us For Availability
IC606
IC,Video Amplifier LGE EAN40083901 Contact Us For Availability
IC607
IC,D/A Converter LGE EAN35416401 Contact Us For Availability
IC609
IC,Telecom Filter LGE EAN40273601 Contact Us For Availability
IC610
IC,Video Amplifier LGE EAN40084701 Contact Us For Availability
IC702
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC704
IC,DC,DC Converter LGE EAN31859201 Contact Us For Availability
IC706
IC,DC,DC Converter LGE EAN39690601 Contact Us For Availability
IC708
IC,LDO Voltage Regulator LGE EAN38671001 Contact Us For Availability
JK403
Jack,Modular LGE EAG32089101 Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG36157201 Contact Us For Availability
JK602
Jack,RCA LGE EAG39524801 Contact Us For Availability
JK603
Connector,DSUB LGE EAG40562101 Contact Us For Availability
L102
Filter,Line Noise LGE 6200JB8013V Contact Us For Availability
L109
Inductor,Wire Wound, LGE 6140RF0001D Contact Us For Availability
L124
COIL,RF LGE 6140RCC003H Contact Us For Availability
L127
COIL,CHOKE LGE 633-088G Contact Us For Availability
L127
COIL,RF LGE 6140R-C011A Contact Us For Availability
L407
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L606
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L609
Filter,Bead LGE 6200HJC106B Contact Us For Availability
L614
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L618
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L719
Inductor,Wire Wound, LGE EAP39240301 Contact Us For Availability
L721
Inductor,Wire Wound,Chip LGE EAP57167401 Contact Us For Availability
LC203
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
LC226
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
LC238
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
LC601
CAPACITOR,FIXED CERA LGE 0CK225CF94A Contact Us For Availability
LC801
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
LC857
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
LC905
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
LC935
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
LC938
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
LC940
Capacitor,TA,Niobium LGE 0CS476HD6DC Contact Us For Availability
LC941
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
LCN700
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LD801
Diode,Schottky LGE EAH36256501 Contact Us For Availability
LED04
LED LGE 0DLLT0359AA Contact Us For Availability
LIC100
IC,Serial Flash Memory LGE 0IMMR00188B Contact Us For Availability
LIC201
IC,Motor Driver LGE EAN56819501 Contact Us For Availability
LIC501
IC,Front End LGE EAN56285401 Contact Us For Availability
LIC601
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
LIC901
IC,LDO Voltage Regulator LGE 0IPMG78430B Contact Us For Availability
LIC902
IC,LDO Voltage Regulator LGE EAN34180901 Contact Us For Availability
LIC903
IC,LDO Voltage Regulator LGE EAN56746801 Contact Us For Availability
LL908
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
LPB800
Connector,Wafer LGE EAG56809201 Contact Us For Availability
LPB801
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
LPF301
Connector,FFC/FPC/PIC LGE 6630X60106A Contact Us For Availability
LPM301
Connector,FFC/FPC/PIC LGE 6630X60088B Contact Us For Availability
LPM302
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
LPT301
Connector,FFC/FPC/PIC LGE EAG55700001 Contact Us For Availability
LPT302
Connector,FFC/FPC/PI LGE 6630X60027E Contact Us For Availability
LR5B1
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
LR5C80
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
LR201
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
LR204
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
LR543
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
LR545
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
LR550
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
LR552
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
LR574
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
LR575
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
LR913
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
LR953
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
P101
Connector,BtoB LGE 6630R-BF03P Contact Us For Availability
PW101
Socket,Power LGE EAG35192701 Contact Us For Availability
Q401
IC,PERIPHERALS LGE 0IPRP00664A Contact Us For Availability
Q602
TR,Bipolar LGE 0TRKE80059A Contact Us For Availability
Q610
TR,Bipolar LGE 0TR201409BB Contact Us For Availability
R1A1
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R1D0
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
R1E0
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R6B2
Resistor,Chip LGE EBC32554902 Contact Us For Availability
R6D2
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R6D3
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R6D4
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R6D9
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R6F0
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R6F1
RESISTOR,METAL GLAZE LGE 0RJ1300C677 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ5620C477 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0392F608 Contact Us For Availability
R106
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R109
RESISTOR,FIXED METAL LGE 0RS0330K618 Contact Us For Availability
R118
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R121
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R122
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
Resistor,Carbon Film LGE 0RD8202F608 Contact Us For Availability
R141
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R142
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R144
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R145
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R146
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R151
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R154
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R157
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R191
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R191
Resistor,Carbon Film LGE 0RD0152F608 Contact Us For Availability
R216
RESISTOR,METAL GLAZE LGE 0RJ3000C477 Contact Us For Availability
R224
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ1200C477 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R449
RESISTOR,METAL GLAZE LGE 0RJ0492C477 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R513
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R525
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R539
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R544
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R547
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R550
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R553
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R575
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ0372C477 Contact Us For Availability
R628
Resistor,Chip LGE EBC39488101 Contact Us For Availability
R636
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R642
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R648
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R650
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R705
Resistor,Chip LGE EBC40339401 Contact Us For Availability
R708
Resistor,Chip LGE EBC31459601 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R716
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R720
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
RA605
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
RC501
REMOTE CONTROLLER RE LGE 6712R1238GA Contact Us For Availability
SW505
Switch,Tact LGE EBF40098801 Contact Us For Availability
T101
Transformer,Switching LGE EBJ48766701 Contact Us For Availability
V101
Varistor LGE EAF38754501 Contact Us For Availability
V502
Varistor LGE 6102R7E001A Contact Us For Availability
X102
Crystal LGE EAW31525401 Contact Us For Availability
X104
Crystal LGE 6212AA2540D Contact Us For Availability
X501
Crystal LGE EAW32265901 Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD121
Diode,Zener LGE 0DZ620009EA Contact Us For Availability
ZD503
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
× ![]()
Login and Registration Form
