Model LG BD270 – Common Parts & Diagrams

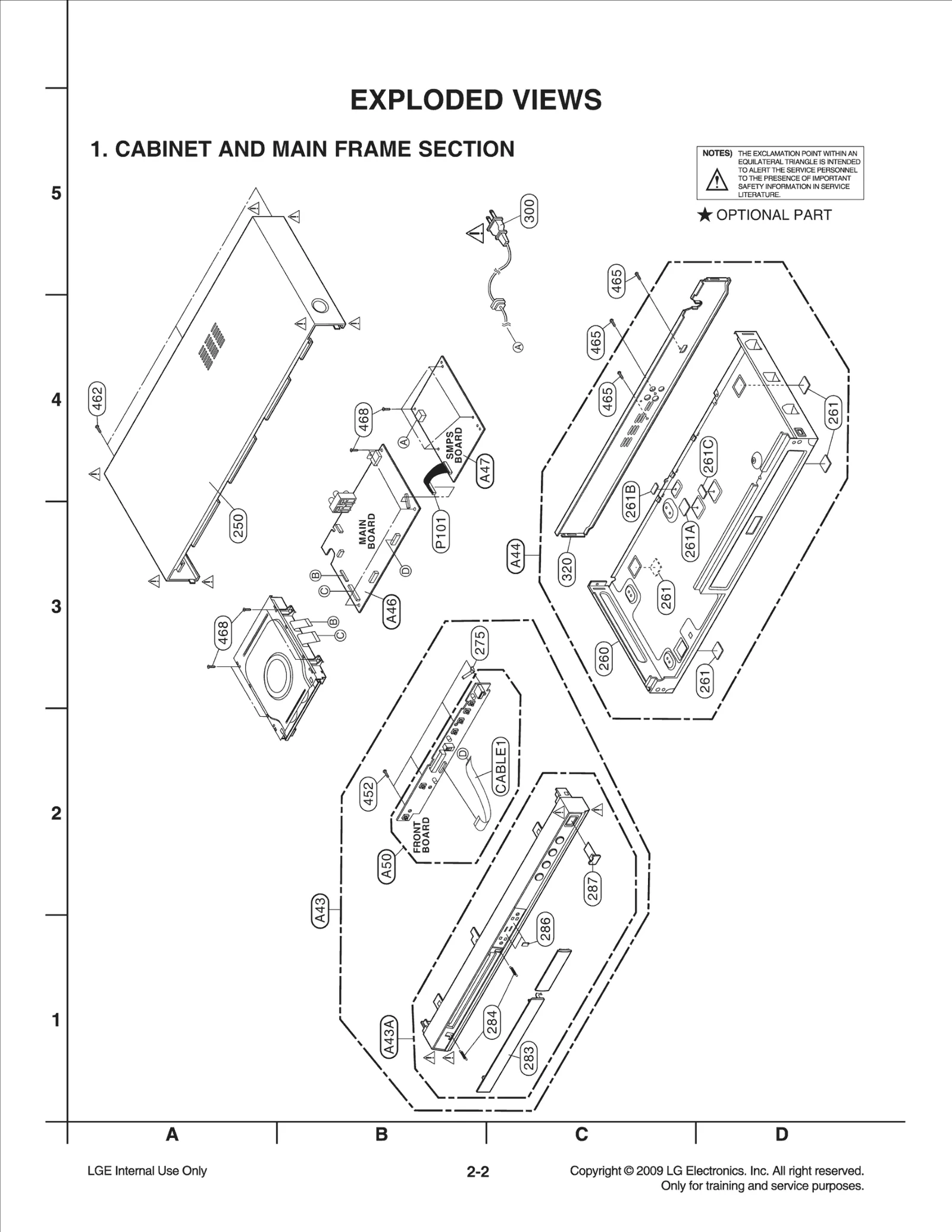

Diagram 0

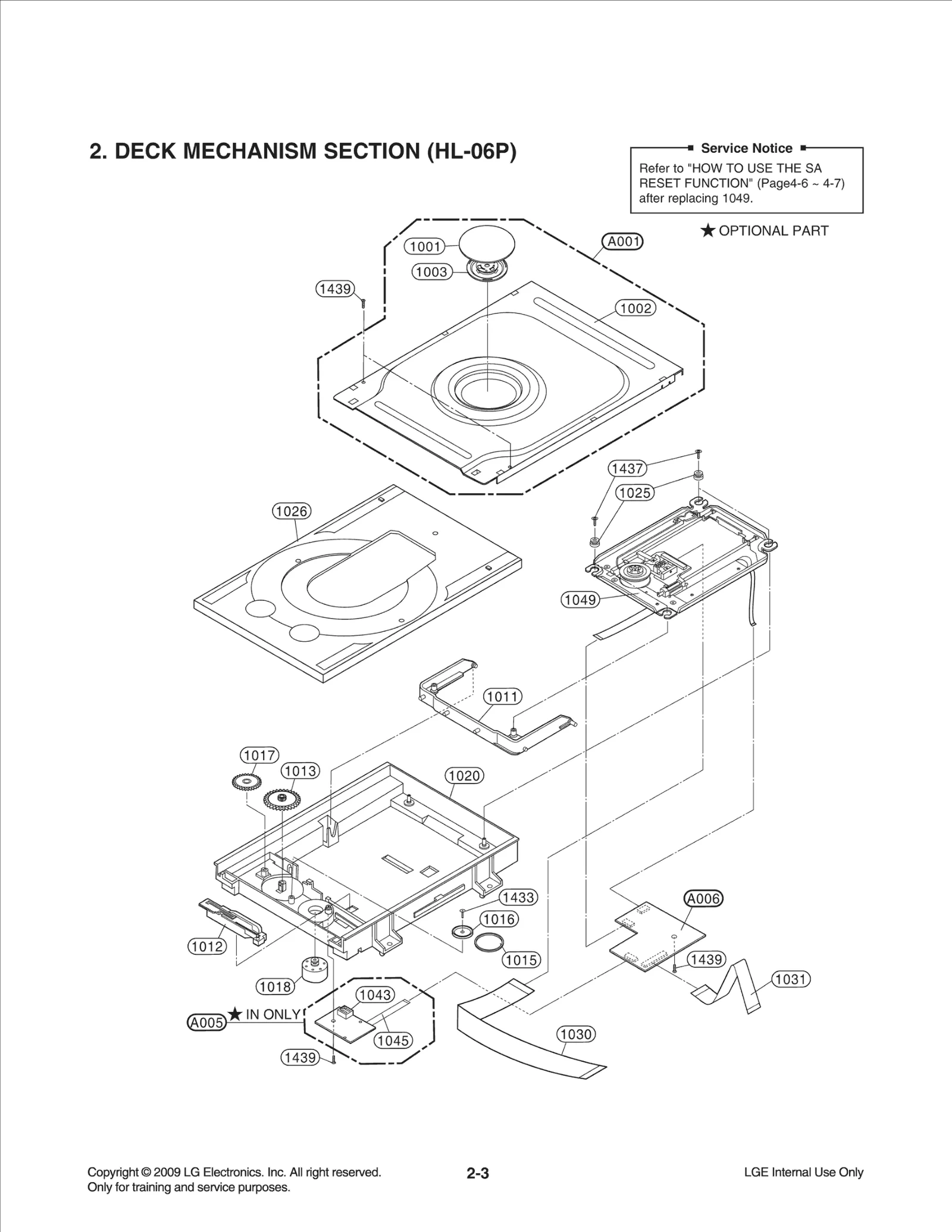

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG BD270
250
Case LGE MBN32047519 Contact Us For Availability
260
Chassis LGE MBS61843301 Contact Us For Availability
261
Damper LGE MCQ32325007 Contact Us For Availability
261A
Damper LGE MCQ62096403 Contact Us For Availability
261B
Damper LGE MCQ62096404 Contact Us For Availability
261C
Damper LGE MCQ62096405 Contact Us For Availability
275
Plate LGE 3300R-0211A Contact Us For Availability
283
Door LGE MCV61847401 Contact Us For Availability
284
Spring LGE 4970R-0146E Contact Us For Availability
286
Damper LGE MCQ60139104 Contact Us For Availability
287
Cover LGE MCK62425601 Contact Us For Availability
300
Power Cord LGE 6410RAHK02G Contact Us For Availability
320
Panel,Rear LGE MGC61856212 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN73382501 Contact Us For Availability
802
Box,Master LGE MAY62106788 Contact Us For Availability
803
Packing LGE MFZ47272613 Contact Us For Availability
804
Bag LGE MAF61906402 Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA2F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA2H Contact Us For Availability
900
Remote Controller Assembly LGE AKB72911501 Contact Us For Availability
1001
Cover LGE MCK30125801 Contact Us For Availability
1002
Cover LGE MCK62126201 Contact Us For Availability
1003
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1011
Base LGE MAM61847301 Contact Us For Availability
1012
Guide LGE MEA61856701 Contact Us For Availability
1013
Gear - loc 1017 LGE MDT30123101 Contact Us For Availability
1015
BELT LGE 4400H-1014A Contact Us For Availability
1015
Belt LGE 4400H-1014D Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT61842301 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1020
Base LGE MAM61847201 Contact Us For Availability
1020
Base LGE MAM61847202 Contact Us For Availability
1025
Damper LGE MCQ62066401 Contact Us For Availability
1026
Tray LGE MJS61846101 Contact Us For Availability
1030
Cable,FFC LGE EAD56949602 Contact Us For Availability
1031
Cable,FFC LGE EAD57536603 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD43082702 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60658002 Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ65103213 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307106 Contact Us For Availability
A006
Auto SMT PCB Assembly,Deck LGE EBR62264402 Contact Us For Availability
A43
Board Assembly LGE AAX72923307 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL72931502 Contact Us For Availability
A44
Frame Assembly LGE ADV72943012 Contact Us For Availability
A46
Option Code Assembly LGE EBR56960774 Contact Us For Availability
A47
PCB Assembly LGE EBR62601501 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR62173802 Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BC101
Filter,Bead LGE EAM56488801 Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
BD101
Diode,Rectifier LGE 0DRRE00060A Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE476CQ610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C108
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C111
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C112
CAPACITOR LGE 624-087D Contact Us For Availability
C113
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C117
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C124
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C128
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C131
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C166
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C167
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C282
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C342
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C432
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C554
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
C557
Capacitor,Ceramic,Chip LGE 0CH4020K012 Contact Us For Availability
C677
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C688
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C689
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C738
Capacitor,Ceramic,Ch LGE 0CK333BFG6A Contact Us For Availability
C751
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C782
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C783
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C906
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C907
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C908
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C950
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
CA411
Capacitor,AL,Chip LGE 0CE226WF6D8 Contact Us For Availability
CA637
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD39304205 Contact Us For Availability
CM604
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
CN1
Connector,FFC/FPC/PIC LGE 6630X60027A Contact Us For Availability
CN2
Connector,FFC/FPC/PIC LGE 6630X60051B Contact Us For Availability
CN403
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN701
Connector,Wafer LGE 561-711J Contact Us For Availability
CN903
Connector,FFC/FPC/PIC LGE 6630R-FB10P Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D101
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D104
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D104
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D104
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D124
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D124
Diode,Switching LGE EAH31951401 Contact Us For Availability
D126
Diode,Schottky LGE EAH60695602 Contact Us For Availability
D607
Diode,Switching LGE 0DS121009AA Contact Us For Availability
D702
DIODE,RECTIFIERS LGE 0DRRM00048A Contact Us For Availability
DIG901
LED Assembly LGE 6301R2U017W Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC101
IC,Video Processors LGE EAN60693301 Contact Us For Availability
IC101
IC,Video Processors LGE EAN60693302 Contact Us For Availability
IC102
SENSOR LGE 6500RDB011B Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC105
IC,LDO Voltage Regulator LGE EAN60728201 Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC303
IC,DDR2 SDRAM LGE EAN60740501 Contact Us For Availability
IC303
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC303
IC,DDR2 SDRAM LGE EAN60813001 Contact Us For Availability
IC402A
S/W,Firmware LGE SAA33408846 Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN33391102 Contact Us For Availability
IC501
IC,Microcontrollers LGE EAN33391101 Contact Us For Availability
IC603
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC606
IC,Video Amplifier LGE EAN40083901 Contact Us For Availability
IC607
IC,D/A Converter LGE EAN35416401 Contact Us For Availability
IC704
IC,DC,DC Converter LGE EAN31346001 Contact Us For Availability
IC706
IC,DC,DC Converter LGE EAN39690601 Contact Us For Availability
IC708
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC708
IC,LDO Voltage Regulator LGE EAN44022001 Contact Us For Availability
IC709
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC901
IC,LED Driver LGE EAN40504501 Contact Us For Availability
IC901
IC,LED Driver LGE EAN60410101 Contact Us For Availability
JK603
Connector,DSUB LGE EAG55468501 Contact Us For Availability
JK603
Connector,DSUB LGE EAG40562101 Contact Us For Availability
JK604
Jack,RCA LGE EAG57637003 Contact Us For Availability
JK901
Connector,USB LGE 6630S70048B Contact Us For Availability
L101
Filter,Line Noise LGE EAM60870701 Contact Us For Availability
L122
Coil,Choke LGE EAP60908301 Contact Us For Availability
L150
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L407
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L409
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L721
Inductor,Wire Wound,Chip LGE EAP60909101 Contact Us For Availability
L728
Filter,Bead LGE 0LC02491A1A Contact Us For Availability
L730
Inductor,Wire Wound,Chip LGE EAP59307001 Contact Us For Availability
LC170
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
LC173
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
LC177
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
LC187
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
LC188
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
LC202
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
LC226
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
LC320
Capacitor,Ceramic,Chip LGE 0CZZB00055A Contact Us For Availability
LC531
CAPACITOR,FIXED CERA LGE 0CK225CF94A Contact Us For Availability
LC542
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
LC729
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
LC913
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
LC6000
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
LCA98
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
LCA99
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
LCN700
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
LD901
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
LIC100
IC,Front End LGE EAN60709001 Contact Us For Availability
LIC101A
S/W,Firmware LGE SAA34843902 Contact Us For Availability
LIC200
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
LIC250
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
LIC270
IC,LINEAR LGE 0ILNRUC003A Contact Us For Availability
LIC601
IC,SDRAM LGE 0IMMREB006D Contact Us For Availability
LIC601
IC,SDRAM LGE 0IMMRCX002D Contact Us For Availability
LIC900
IC,LDO Voltage Regulator LGE 0IPMG78430B Contact Us For Availability
LIC910
IC,LDO Voltage Regulator LGE EAN56746801 Contact Us For Availability
LIC920
IC,LDO Voltage Regulator LGE EAN34180901 Contact Us For Availability
LJ303
Connector,FFC/FPC/PI LGE 6630X60027E Contact Us For Availability
LL600
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
LPM301
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
LQ531
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
LQ532
TR,Bipolar LGE EBK33822201 Contact Us For Availability
LQ702
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
LR100
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
LR131
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
LR154
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
LR186
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
LR240
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
LR277
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
LR522
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
LR533
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
LR542
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
LR545
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
LR546
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
LR634
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
LR635
INDUCTOR,CHIP LGE 0LCCE00049A Contact Us For Availability
LR923
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
LR2380
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
LRA05
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
LRA21
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
LRA73
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
LRB01
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
LRB010
RESISTOR,METAL GLAZE LGE 0RH2000C622 Contact Us For Availability
LX101
Crystal LGE 6212AB2250E Contact Us For Availability
P101
Harness,Single LGE 6631R-E078V Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q602
TR,Bipolar LGE 0TRKE80059A Contact Us For Availability
Q611
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q617
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
R6E9
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R6F0
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R6F1
RESISTOR,METAL GLAZE LGE 0RJ1300C677 Contact Us For Availability
R100
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R102
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R103
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R121
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R122
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R123
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R125
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R127
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R128
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R129
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ5620C477 Contact Us For Availability
R154
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R161
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R163
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R182
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R461
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R462
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R524
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R535
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R572
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R580
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R603
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R604
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R622
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R636
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R675
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R676
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R705
Resistor,Chip LGE EBC40339401 Contact Us For Availability
R708
Resistor,Chip LGE EBC31459601 Contact Us For Availability
R710
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R722
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R730
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R731
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R743
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R751
Resistor,Chip LGE 0RJ8201C477 Contact Us For Availability
R752
Resistor,Chip LGE 0RH2201C422 Contact Us For Availability
R903
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R904
Resistor,Chip LGE 0RH1503C622 Contact Us For Availability
R905
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R907
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R909
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R910
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R911
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
RC901
Receiver Module LGE EAV41920401 Contact Us For Availability
RN602
Resistor,Array LGE EBC41813701 Contact Us For Availability
SW903
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW903
Switch,Tact LGE 556-219D Contact Us For Availability
SW903
Switch,Tact LGE EBF40098801 Contact Us For Availability
SW903
Switch,Tact LGE EBF40098802 Contact Us For Availability
T101
Transformer,Switching LGE EBJ60667101 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
V101
Varistor LGE EAF43134701 Contact Us For Availability
V101
Varistor LGE EAF38754501 Contact Us For Availability
X102
Crystal LGE EAW60673001 Contact Us For Availability
X501
Crystal LGE 6212AA2100T Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD102
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
× ![]()
Login and Registration Form
