Model GE BCS42CKC – Common Parts & Diagrams

Common parts from model GE BCS42CKC

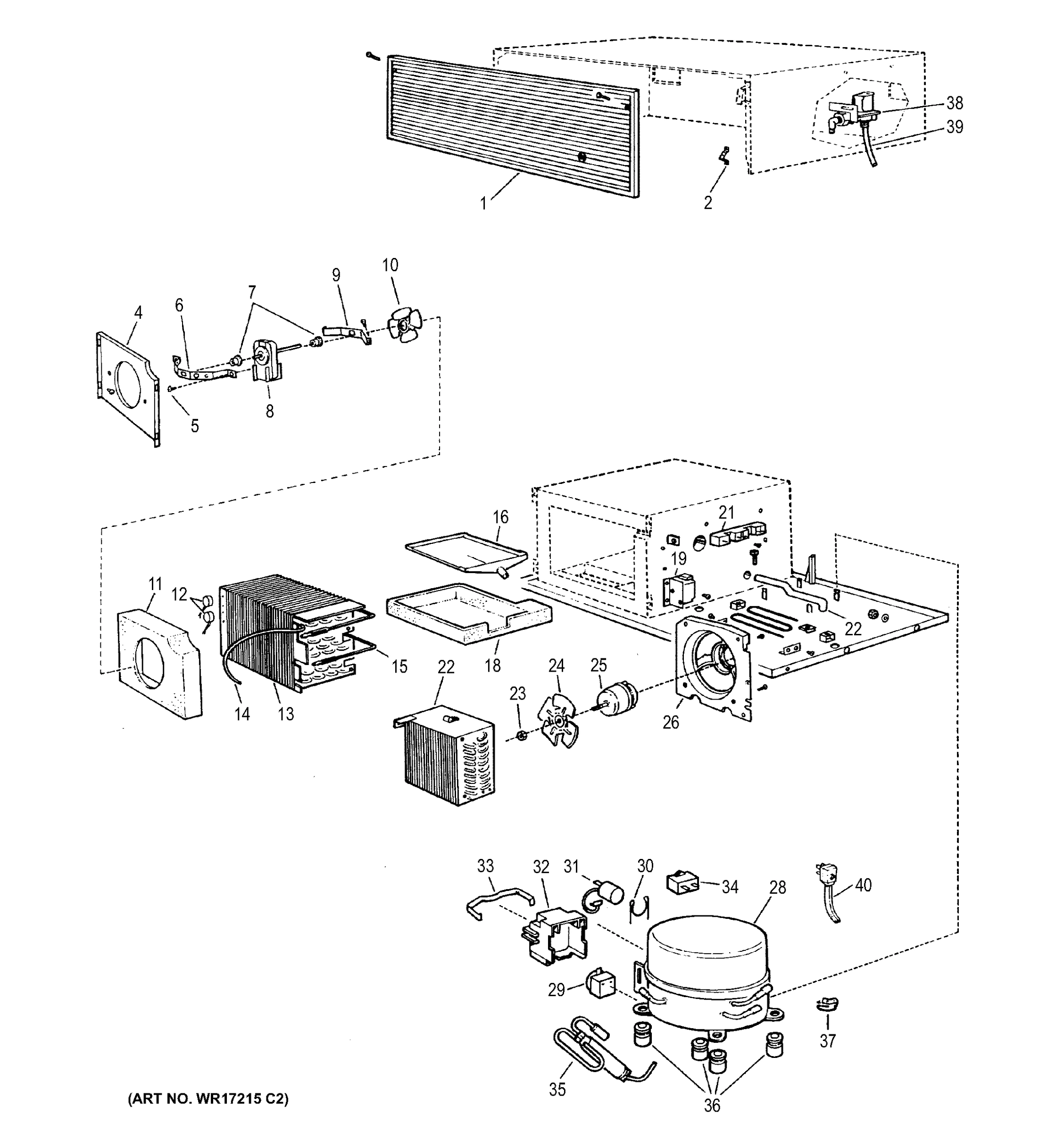

UNIT ASSEMBLY

Print

• This Diagram
• All Diagrams

1

SCREW-GRILLE TO GRILLE GEN WR01X5685 Contact Us For Availability

View on Model

1

MEDALLION GEN WR03X5133 Contact Us For Availability

View on Model

1

5C0384-03 GEN WR79X5173 Contact Us For Availability

View on Model

4

FAN ORIFICE GEN WR17X6351 Contact Us For Availability

View on Model

8

FAN MOTOR GEN WR60X0180 Contact Us For Availability

View on Model

11

FOAM BLOCK GEN WR17X6311 Contact Us For Availability

View on Model

13

EVAPORATOR GEN WR85X0223 Contact Us For Availability

View on Model

14

SUCTION & CAPILLARY TUBE GEN WR86X0089 Contact Us For Availability

View on Model

15

WR51X322 GE Refrigerator Defrost Heater In Stock GEN WR51X322 View Details $305.06

View on Model

16

WR17X10687 GEN WR17X6312 Contact Us For Availability

View on Model

18

BASE-PAN GEN WR17X6313 Contact Us For Availability

View on Model

21

5B7325-00 GEN WR23X5163 Contact Us For Availability

View on Model

22

CONDENSER GEN WR84X0136 Contact Us For Availability

View on Model

28

WR87X10082 GE Refrigerator Compressor Replace Backorder GEN WR87X10082 View Details $703.65

View on Model

29

RELAY (PTCR) GEN WR07X0190 Contact Us For Availability

View on Model

37

STEEL COLLAR GEN WR01X5648 Contact Us For Availability

View on Model

×
