Model GE BA3110 General Electric Model BA3110 – Common Parts & Diagrams
Graphic Panel, Control Hood and Controls
Inlet Hose, Filler Hose, Back Flow Preventer and Mixing Valve Mounting Bracket (Drawing 1 of 2)

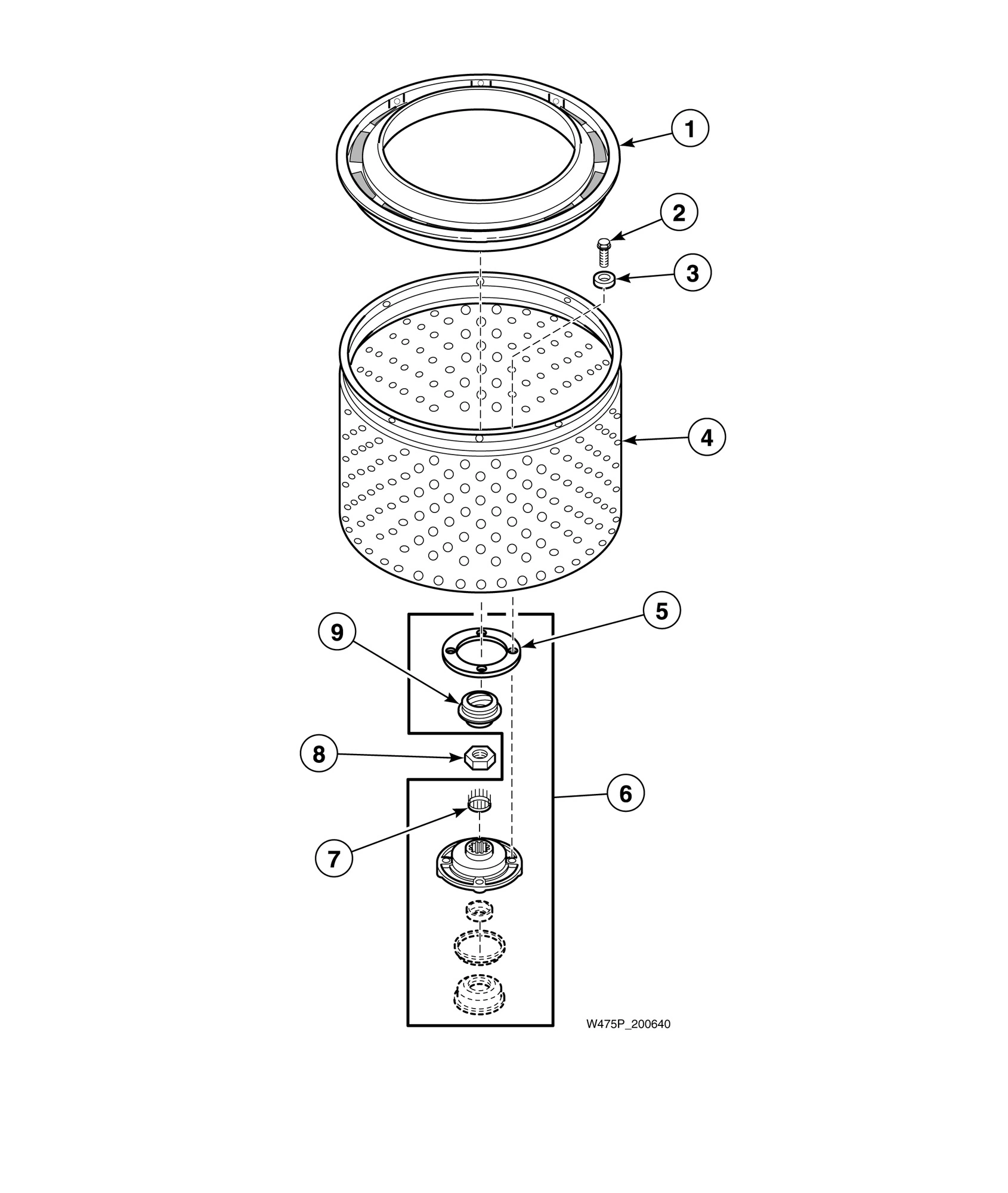

Lint Filter, Washtub and Hub (Drawing 1 of 2)

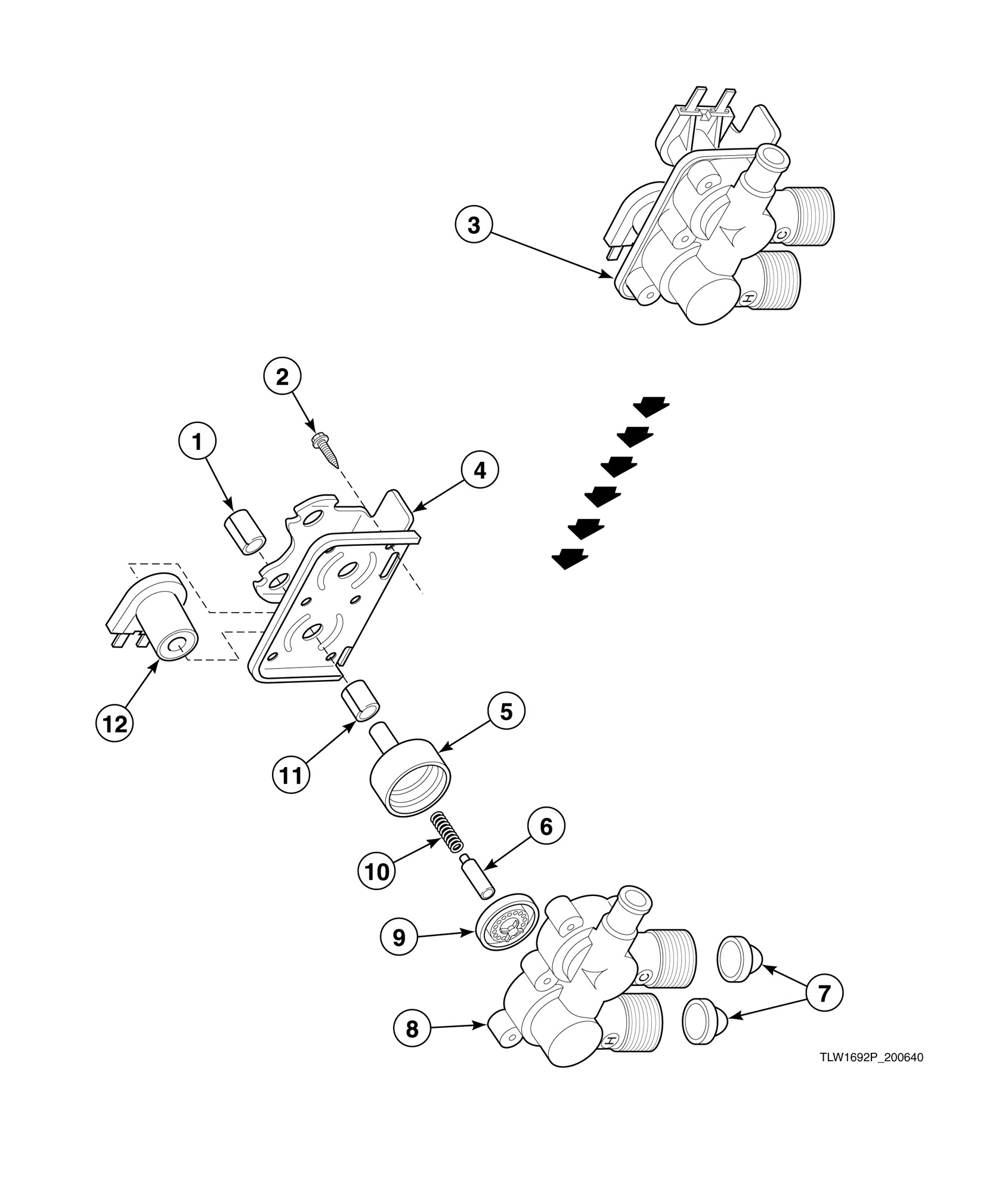

Mixing Valve Assembly

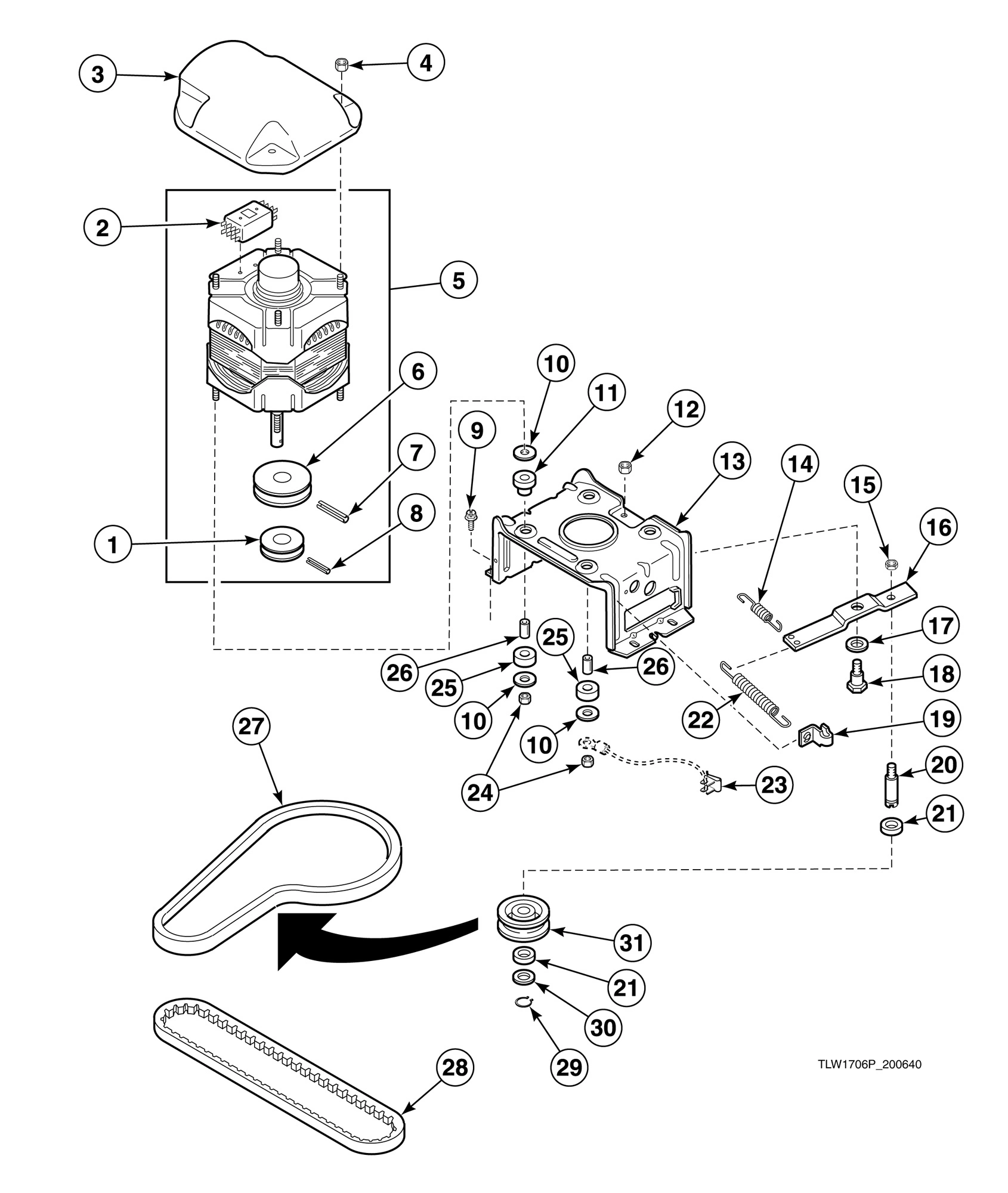

Motor, Mounting Bracket, Belts and Idler Assembly
Outer Tub, Cover and Pressure Hose

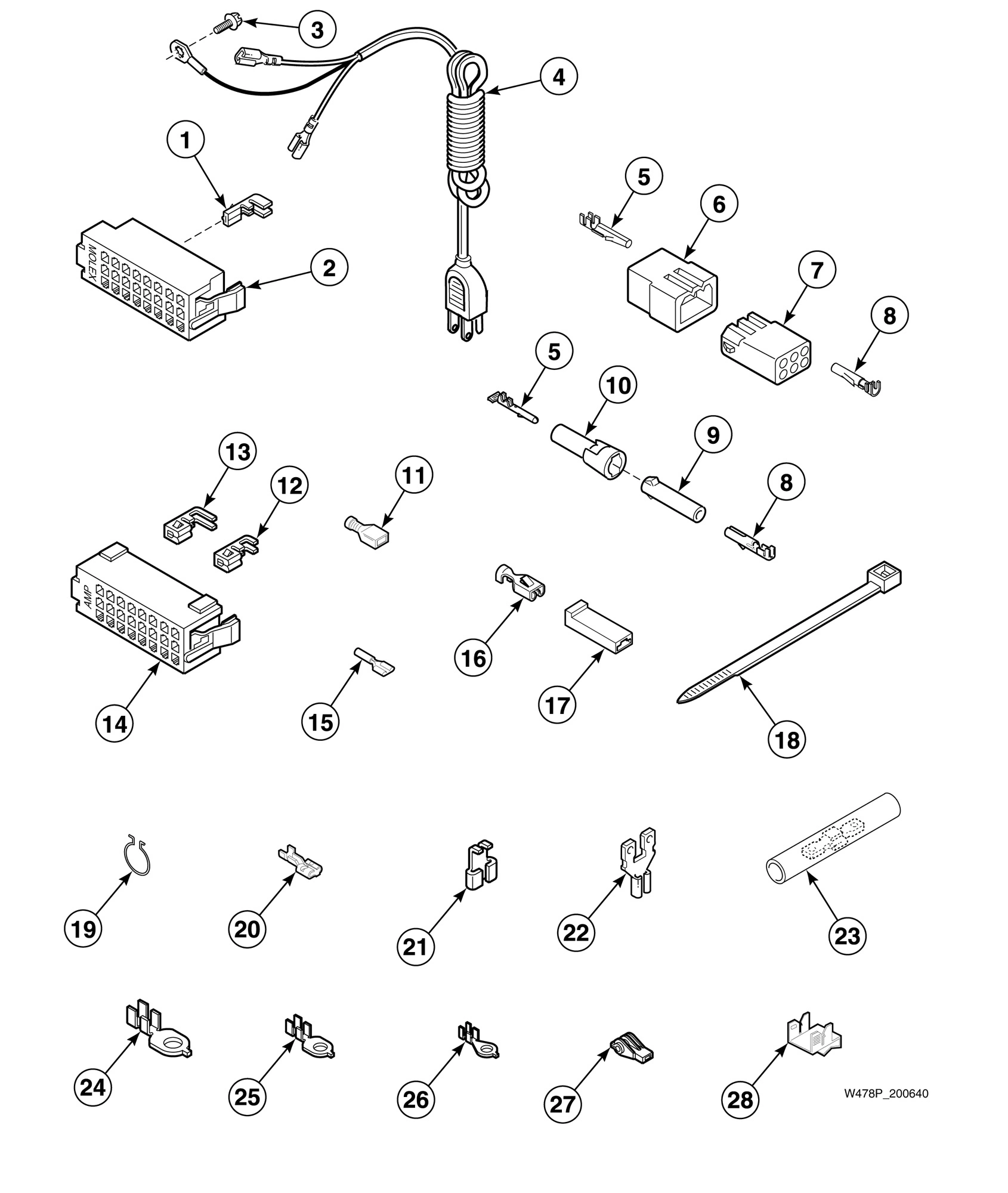

Power Cord and Wire Terminals

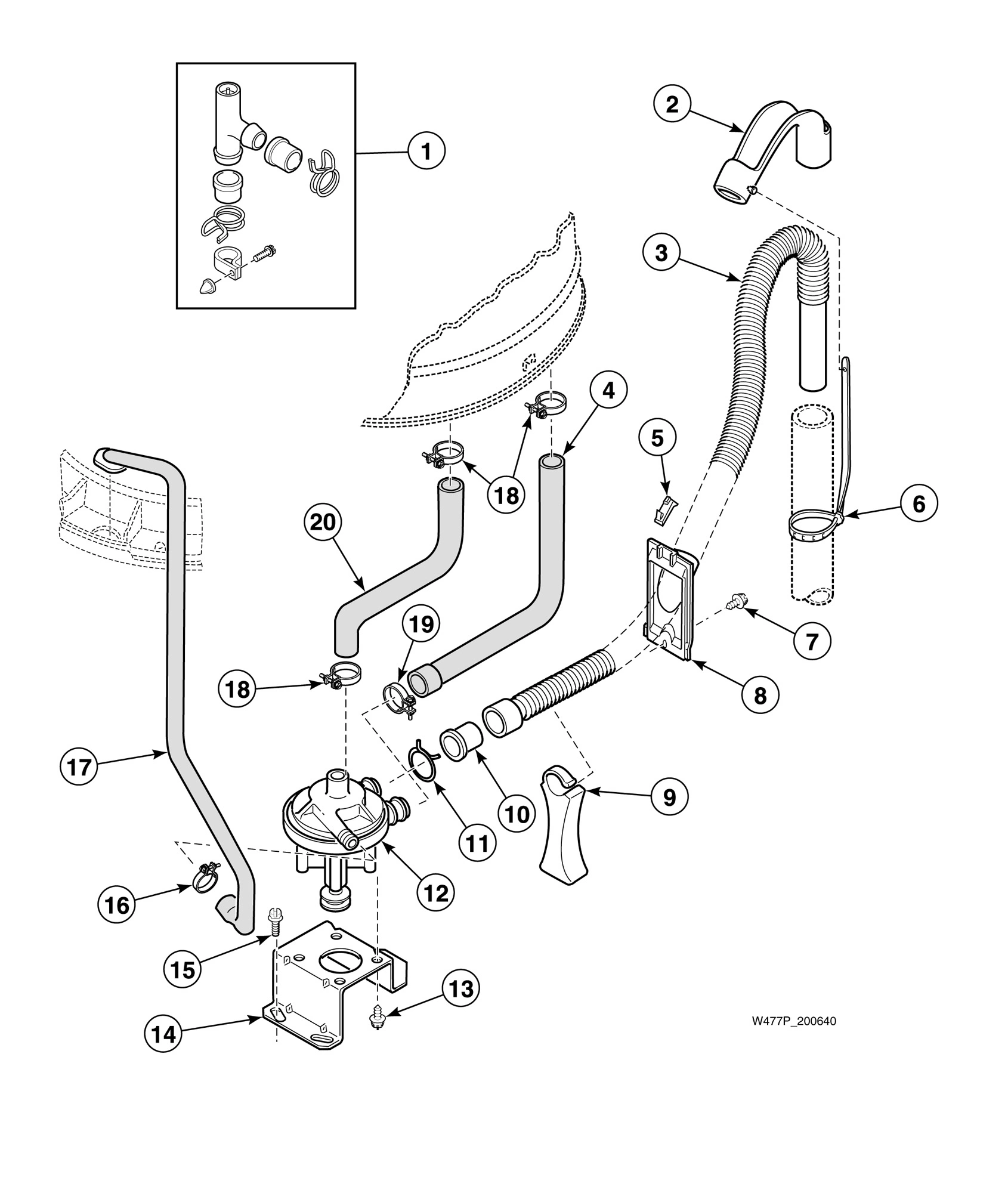

Pump Assembly, Bracket, Hoses and Siphon Break Kit
Special Tools

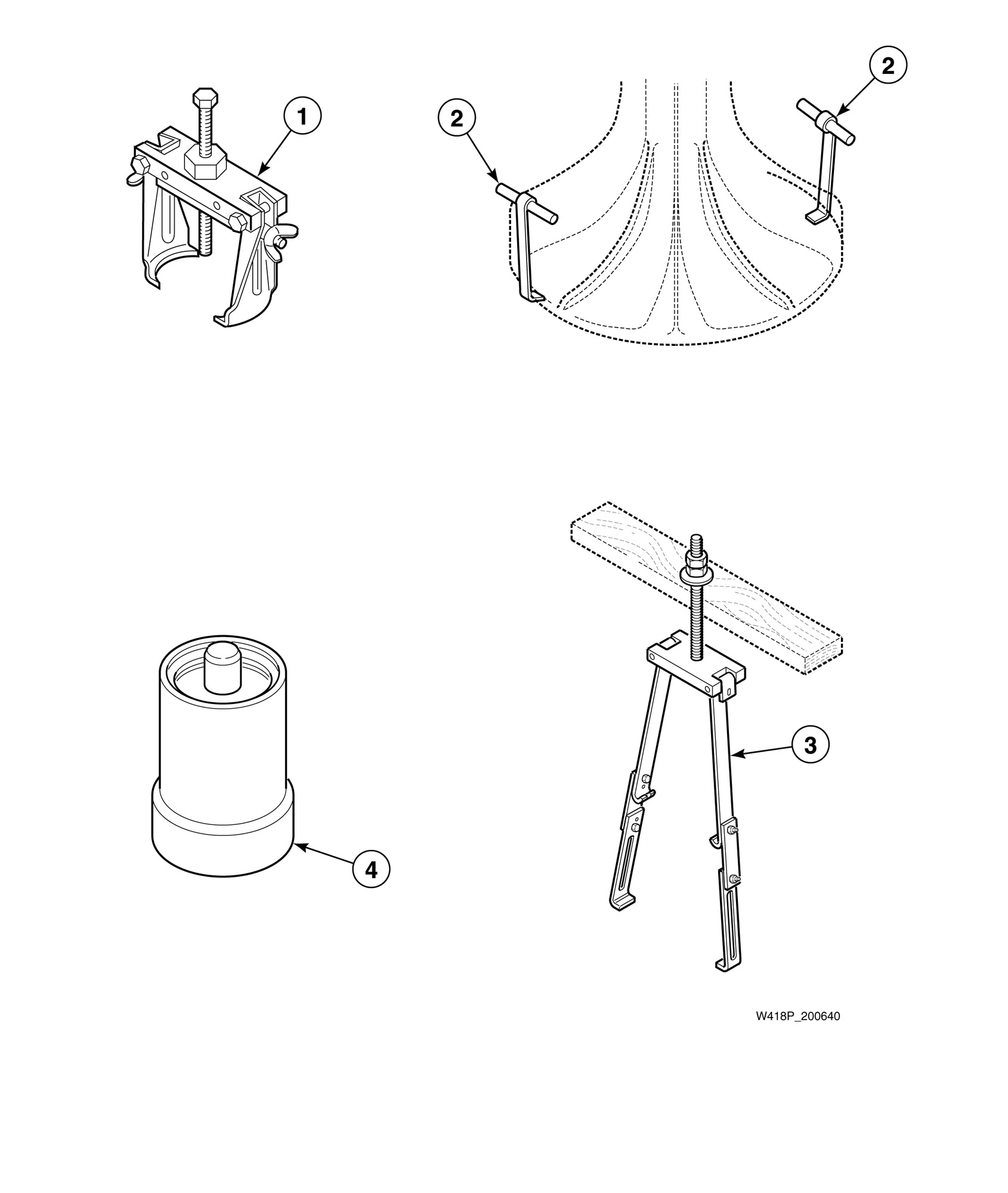

Special Tools - Short Post Models

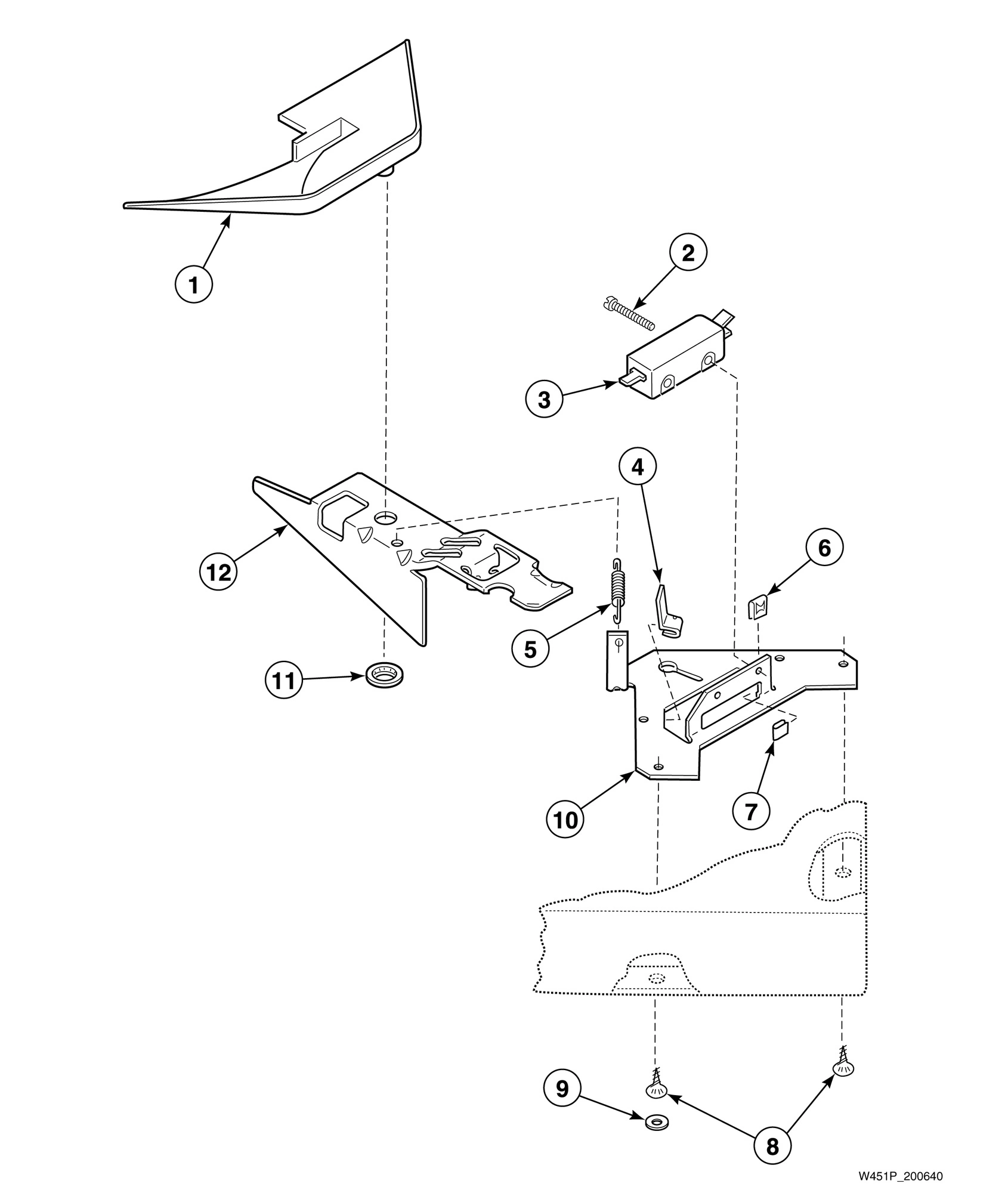

Switch and Bracket Assembly

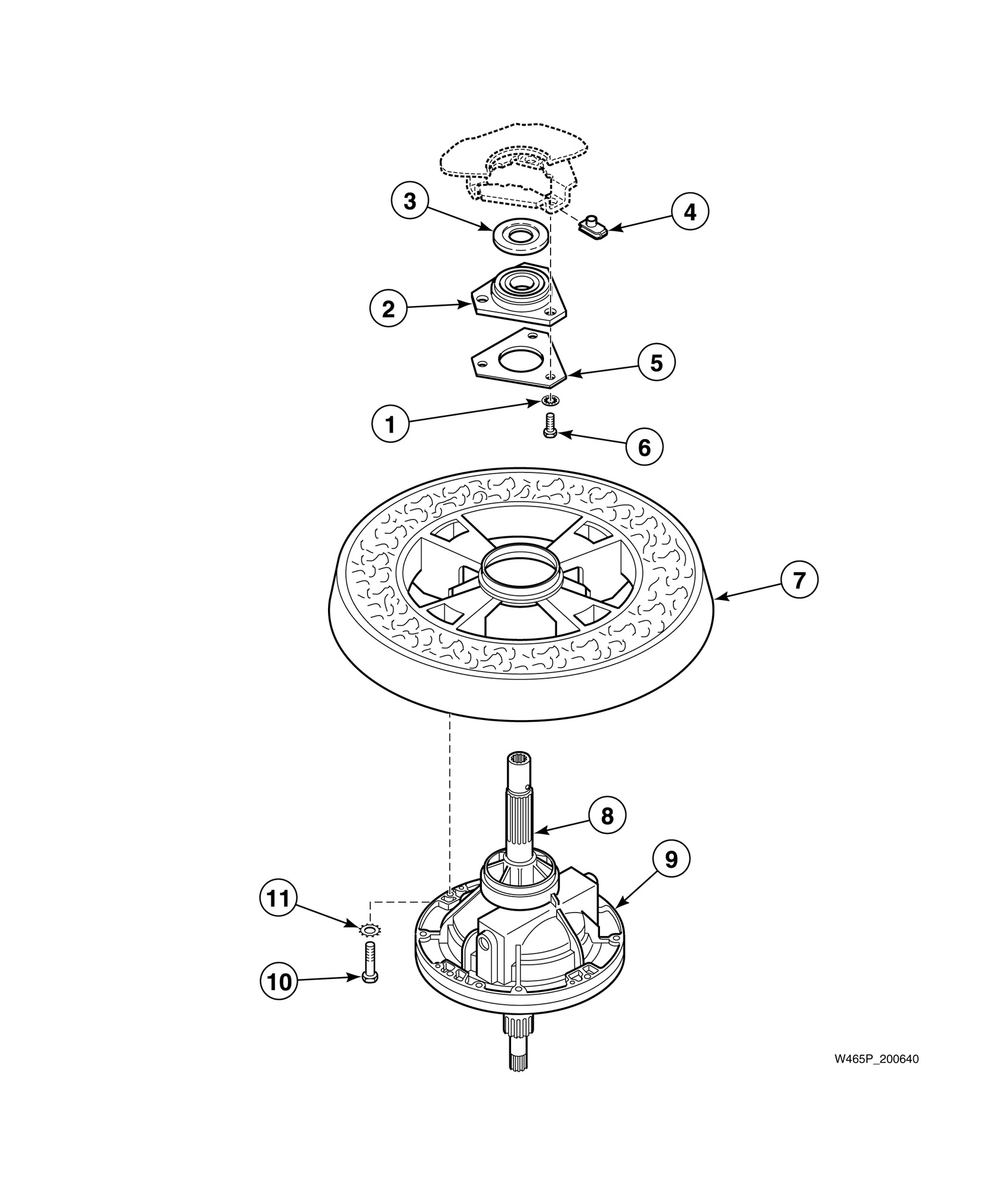

Transmission Assembly and Balance Ring - Long Post Models

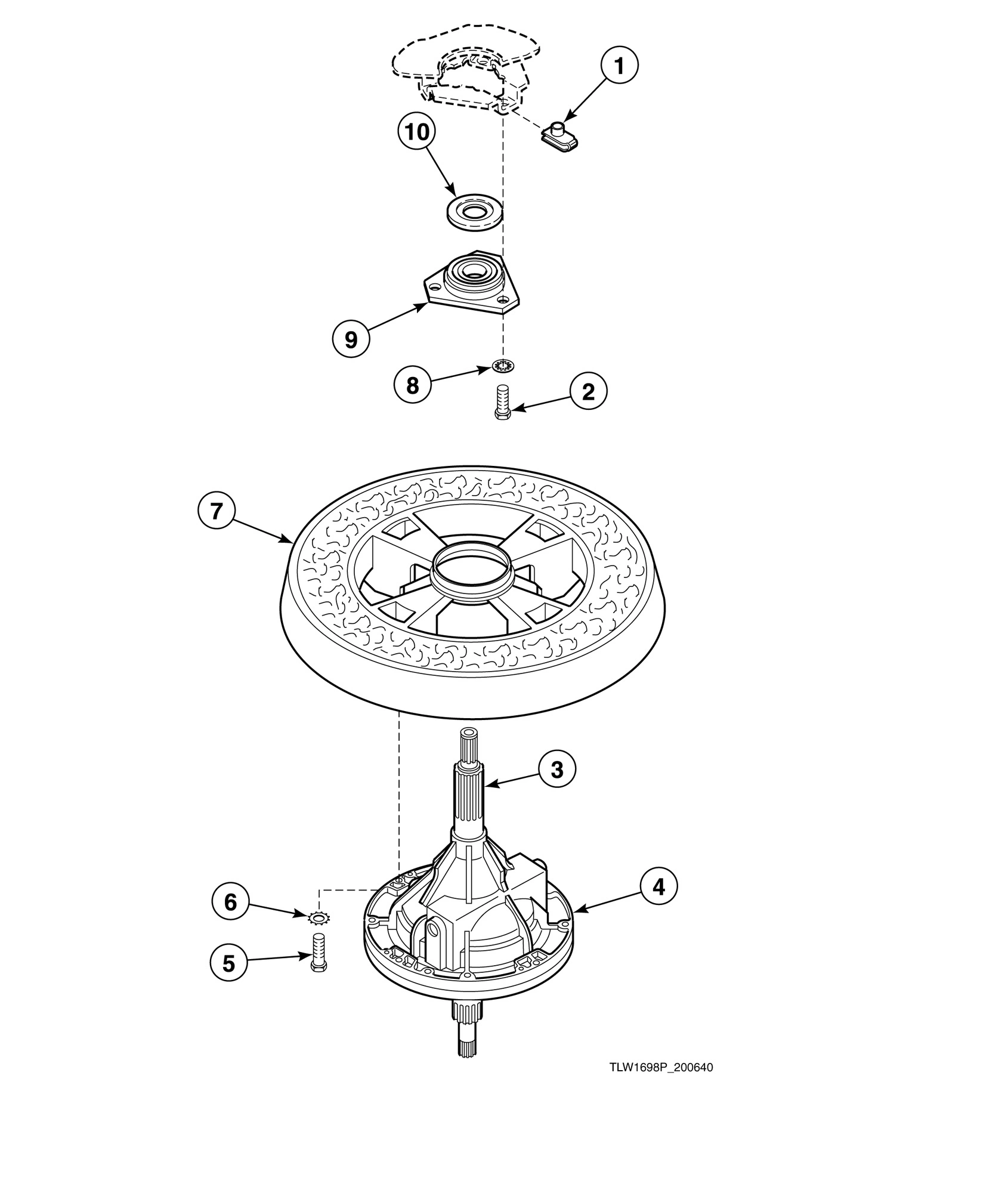

Transmission Assembly and Balance Ring - Short Post Models
Common parts from model GE BA3110 General Electric Model BA3110
1
Screw GEN 23962 Contact Us For Availability
1
Lint Filter GEN 33521 Contact Us For Availability
1
Sleeve (Comment: Long) GEN 24128 Contact Us For Availability
1
Motor Pulley (Comment: Pump) GEN 27104 Contact Us For Availability
1
Tubing GEN 202700 Contact Us For Availability
1
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
1
Siphon Break Kit (Comment: Must be installed GEN 562P3 Contact Us For Availability
1
Spring Hook Tool (Comment: Use to remove 5 ce GEN 321P4 Contact Us For Availability
1
Agitator Drive Bell Puller (Comment: Use to r GEN 294P4 Contact Us For Availability
1
Lid Switch Shield GEN 29042 Contact Us For Availability
1
Nut GEN 27222 Contact Us For Availability
2
Hose Clamp GEN 36801 Contact Us For Availability
2
Screw GEN 27202 Contact Us For Availability
2
Screw GEN 25817C Contact Us For Availability
2
Motor Switch (Comment: Used with 30895 Emerso GEN 24139 Contact Us For Availability
2
Motor Switch (Comment: Used with 30897 Emerso GEN 24140 Contact Us For Availability
2
Motor Switch (Comment: Used with 30895 Genera GEN 30895A Contact Us For Availability
2
Motor Switch (Comment: Used with 30897 Genera GEN 30897AP Contact Us For Availability
2
Plug GEN 29901 Contact Us For Availability
2
24 Position Housing GEN 32746 Contact Us For Availability
2
Drain Hose Sleeve GEN 29144 Contact Us For Availability
2
Hex Wrench Tool (Comment: Use to remove hex l GEN 306P4 Contact Us For Availability
2
Agitator Hook (Comment: Set of 2, Use to remo GEN 254P4P Contact Us For Availability
2
Screw GEN Q6516 Contact Us For Availability
2
Screw GEN M400057 Contact Us For Availability
3
Mixing Valve Hose GEN 27183 Contact Us For Availability
3
Washer GEN 28094 Contact Us For Availability
3
Mixing Valve GEN 33930P Contact Us For Availability
3
Motor Shield GEN 27136 Contact Us For Availability
3
Washer GEN 03815 Contact Us For Availability
3
Screw GEN 52909 Contact Us For Availability
3
Drain Hose GEN 39952 Contact Us For Availability
3
Guide Spindle (Comment: Use to remove hub fro GEN 230P4 Contact Us For Availability
3
Agitator Puller Assembly (Comment: Use to rem GEN 256P4P Contact Us For Availability
3
Switch GEN 27249 Contact Us For Availability
3
Anti-Seize Compound (Comment: Apply to upper GEN 27604P Contact Us For Availability
4
Tub Assembly (Comment: Porcelain) GEN 39252P Contact Us For Availability
4
Tub Assembly (Comment: Stainless steel) GEN 39387P Contact Us For Availability
4
Mounting Bracket GEN 24158 Contact Us For Availability
4
Nut GEN 27201 Contact Us For Availability
4
Lead-In Cord GEN 34458 Contact Us For Availability
4
Drain Tub-to-Pump Hose GEN 27160 Contact Us For Availability
4
Seal Installer (Comment: Use to install 356P3 GEN 241P4 Contact Us For Availability
4
Seal Tool (Comment: Use to install the seal s GEN 255P4 Contact Us For Availability
4
U-Clip GEN 27837 Contact Us For Availability
4
Transmission Assembly GEN 33227P Contact Us For Availability
5
Backflow Preventer Assembly GEN 34280 Contact Us For Availability
5
Washtub Gasket GEN 39122 Contact Us For Availability
5
Armature Guide GEN 24130 Contact Us For Availability
5
Motor Kit (Comment: 1 speed, 120 Volt/60 Hert GEN 27658P Contact Us For Availability
5
Out-of-Balance Switch Trigger GEN 27247 Contact Us For Availability
5
Male Pin Terminal GEN 00116 Contact Us For Availability
5
Hose Retainer Clip GEN 29936 Contact Us For Availability
5
Spring Installer (Comment: Use to install bra GEN 242P4 Contact Us For Availability
5
Switch Lever Spring GEN 27603 Contact Us For Availability
5
Washer GEN 27166 Contact Us For Availability
5
Screw GEN 27200 Contact Us For Availability
6
Hose Clamp (Comment: Green) GEN 35370 Contact Us For Availability
6
Hub and Seal Kit (Comment: Includes 27184 Cov GEN 495P3 Contact Us For Availability
6
Armature GEN 24132 Contact Us For Availability
6
Motor Pulley GEN 27171 Contact Us For Availability
6
Washer GEN 23425 Contact Us For Availability
6
6 Circuit Plug GEN 23041 Contact Us For Availability
6
Standpipe Strap GEN 33489 Contact Us For Availability
6
Nut GEN 27248 Contact Us For Availability
6
Washer GEN 02431 Contact Us For Availability
7
Water Inlet Hose GEN 31140 Contact Us For Availability
7
Spline Insert GEN 29728 Contact Us For Availability
7
Strainer GEN F270200 Contact Us For Availability
7
Roll Pin GEN 23750 Contact Us For Availability
7
Outer Tub Cover (Comment: Includes item 2) GEN 31153 Contact Us For Availability
7
6 Circuit Receptacle GEN 26708 Contact Us For Availability
7
Screw GEN 27196 Contact Us For Availability
7
U-Clip GEN 27610 Contact Us For Availability
7
Balance Ring Assembly GEN 34731 Contact Us For Availability
8
Hose Clamp (Comment: Red) GEN 29210 Contact Us For Availability
8
Nut GEN 29220 Contact Us For Availability
8
Valve Body GEN 24159 Contact Us For Availability
8
Roll Pin GEN 10416 Contact Us For Availability
8
Tub Cover Gasket (Comment: Included with 356P GEN 27184 Contact Us For Availability
8
Female Pin Terminal GEN 00117 Contact Us For Availability
8
Hose Retainer GEN 29131 Contact Us For Availability
8
Screw GEN 28193 Contact Us For Availability
8
Washer GEN 202010 Contact Us For Availability
9
Timer (Comment: Although these timers differ GEN 31239P Contact Us For Availability
9
Washer (Comment: Filter) GEN 803615 Contact Us For Availability
9
Drive Bell and Seal Kit GEN 39508P Contact Us For Availability
9
Diaphragm GEN 24134 Contact Us For Availability
9
Spring Clip GEN 27017 Contact Us For Availability
9
1 Circuit Plug GEN 26302 Contact Us For Availability
9
Hose Support (Comment: Mounts to washer base) GEN 29284 Contact Us For Availability
9
Washer GEN N/A Contact Us For Availability
9
Bearing Housing Assembly (Comment: Upper) GEN 27182 Contact Us For Availability
9
Transmission Assembly GEN 30946P Contact Us For Availability
10
Fill Hose Kit (Comment: Hose is equipped with GEN 38349P Contact Us For Availability
10
Water Hose (Comment: Hose is equipped with 2 GEN F200116 Contact Us For Availability
10
Spring GEN 24131 Contact Us For Availability
10
Washer GEN 03888 Contact Us For Availability
10
Outer Tub Kit GEN 507P3 Contact Us For Availability
10
1 Circuit Receptacle GEN 26301 Contact Us For Availability
10
Hose Adapter GEN 29143 Contact Us For Availability
10
Out-of-Balance Switch Bracket GEN 27250 Contact Us For Availability
10
Flinger GEN 27187 Contact Us For Availability
11
Washer GEN 20290 Contact Us For Availability
11
Sleeve (Comment: Short) GEN 24129 Contact Us For Availability
11
Rubber Motor Mount (Comment: Upper) GEN 01952A Contact Us For Availability
11
Leg Spring GEN 27239 Contact Us For Availability
11
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
11
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
11
Hose Clamp GEN 29172 Contact Us For Availability
11
Nut GEN 29043 Contact Us For Availability
12
Mixing Valve Mounting Bracket GEN 39407 Contact Us For Availability
12
Solenoid GEN 24126 Contact Us For Availability
12
Nut GEN 52566 Contact Us For Availability
12
Screw GEN 35369 Contact Us For Availability
12
Female Terminal (Comment: 1 wire) GEN 00180 Contact Us For Availability
12
Pump Assembly GEN 31968 Contact Us For Availability
12
Out-of-Balance Switch Lever GEN 27602 Contact Us For Availability
13
Nut GEN 54038 Contact Us For Availability
13
Motor Mounting Bracket GEN 28791 Contact Us For Availability
13
Leg Plate (Comment: .063 inch thick) GEN 27926 Contact Us For Availability
13
Female Terminal (Comment: 2 wire) GEN 00183 Contact Us For Availability
13
Screw GEN 31098 Contact Us For Availability
14
Idler Lever Helper Spring GEN 30620 Contact Us For Availability
14
Leg Plate (Comment: .032 inch thick) GEN 27927 Contact Us For Availability
14
24 Position Housing GEN 28856 Contact Us For Availability
14
Pump Mounting Bracket GEN 27105 Contact Us For Availability
15
Screw GEN D503661 Contact Us For Availability
15
Nut GEN 28803 Contact Us For Availability
15
Warning Sticker GEN 27195 Contact Us For Availability
15
Pre-Insulated Spade Terminal (Comment: 18 gau GEN 00214 Contact Us For Availability
15
Pre-Insulated Spade Terminal (Comment: 12 gau GEN 00215 Contact Us For Availability
16
Idler Lever GEN 31054 Contact Us For Availability
16
Grommet GEN 29175 Contact Us For Availability
16
Female Spade Terminal GEN 00115 Contact Us For Availability
16
Hose Clamp GEN 27644 Contact Us For Availability
17
Washer GEN 81392 Contact Us For Availability
17
Pressure Bulb GEN 30907 Contact Us For Availability
17
Receptacle Housing GEN 90789 Contact Us For Availability
17
Recirculating Hose GEN 27232 Contact Us For Availability
18
Screw GEN 27229 Contact Us For Availability
18
Hose Clamp GEN 39282 Contact Us For Availability
18
Harness Strap GEN 55881 Contact Us For Availability
18
Hose Clamp GEN 20391 Contact Us For Availability
19
Hose Clamp GEN 20211 Contact Us For Availability
19
Spring Clip GEN 28849 Contact Us For Availability
19
Wire Clip GEN 51291 Contact Us For Availability
20
Idler Shaft GEN 28802P Contact Us For Availability
20
Female Spade Terminal (Comment: (2) 18 gauge GEN 00121 Contact Us For Availability
20
Female Spade Terminal (Comment: (1) 18 gauge GEN 00223 Contact Us For Availability
20
Tub-to-Pump Hose GEN 27159 Contact Us For Availability
21
Washer (Comment: Felt) GEN 29443 Contact Us For Availability
21
Female Flag Terminal GEN 00120 Contact Us For Availability
22
Idler Lever Spring GEN 39666 Contact Us For Availability
22
Terminal Adapter GEN 29673 Contact Us For Availability
23
Connector GEN 21091 Contact Us For Availability
24
Nut GEN 23604 Contact Us For Availability
24
Ring Terminal (Comment: 1/4 inch ring) GEN 00113 Contact Us For Availability
25
Rubber Motor Mount (Comment: Lower) GEN 01953 Contact Us For Availability
25
Ring Terminal (Comment: Large shank, (2) 18 g GEN 00111 Contact Us For Availability
26
Motor Spacer GEN 27181 Contact Us For Availability
26
Ring Terminal (Comment: Small shank, (1) 18 g GEN 00110 Contact Us For Availability
27
Belt (Comment: Agitate and spin) GEN 28808 Contact Us For Availability
27
Insulator GEN 70210 Contact Us For Availability
28
Grounding Clip GEN 00161 Contact Us For Availability
28
Pump Belt GEN 27155 Contact Us For Availability
29
Retaining Ring GEN 23748 Contact Us For Availability
30
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
31
Idler Pulley GEN 28800P Contact Us For Availability
NA
Hi-Temp Lube (Comment: Use on idler shaft) GEN 20605 Contact Us For Availability
NA
Capacitor Kit (Comment: For areas where low v GEN 258P3 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
× ![]()
