Model Whirlpool B9907^0 BUILT-IN GAS OVEN – Common Parts & Diagrams

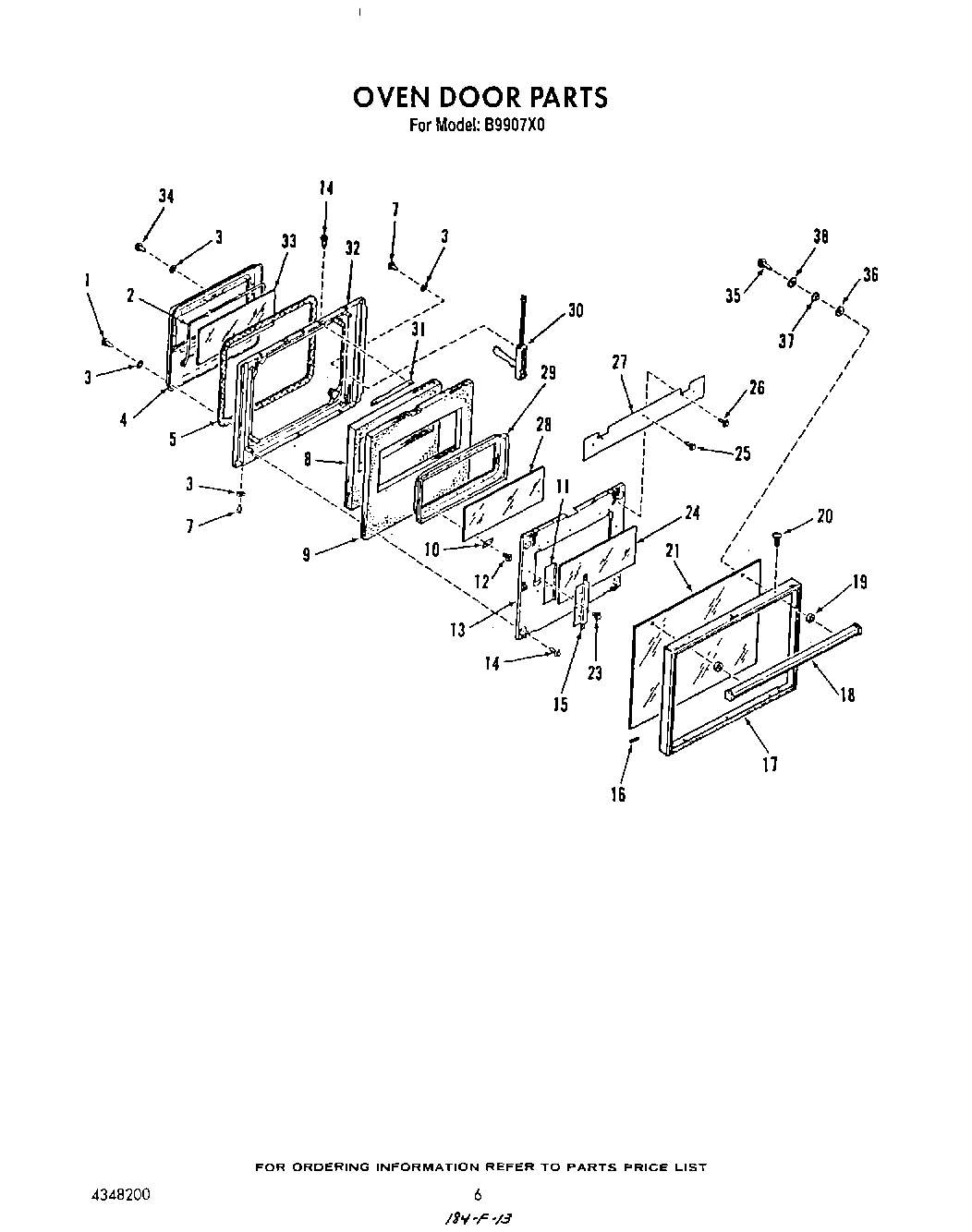

06 - OVEN DOOR, LIT/OPTIONAL

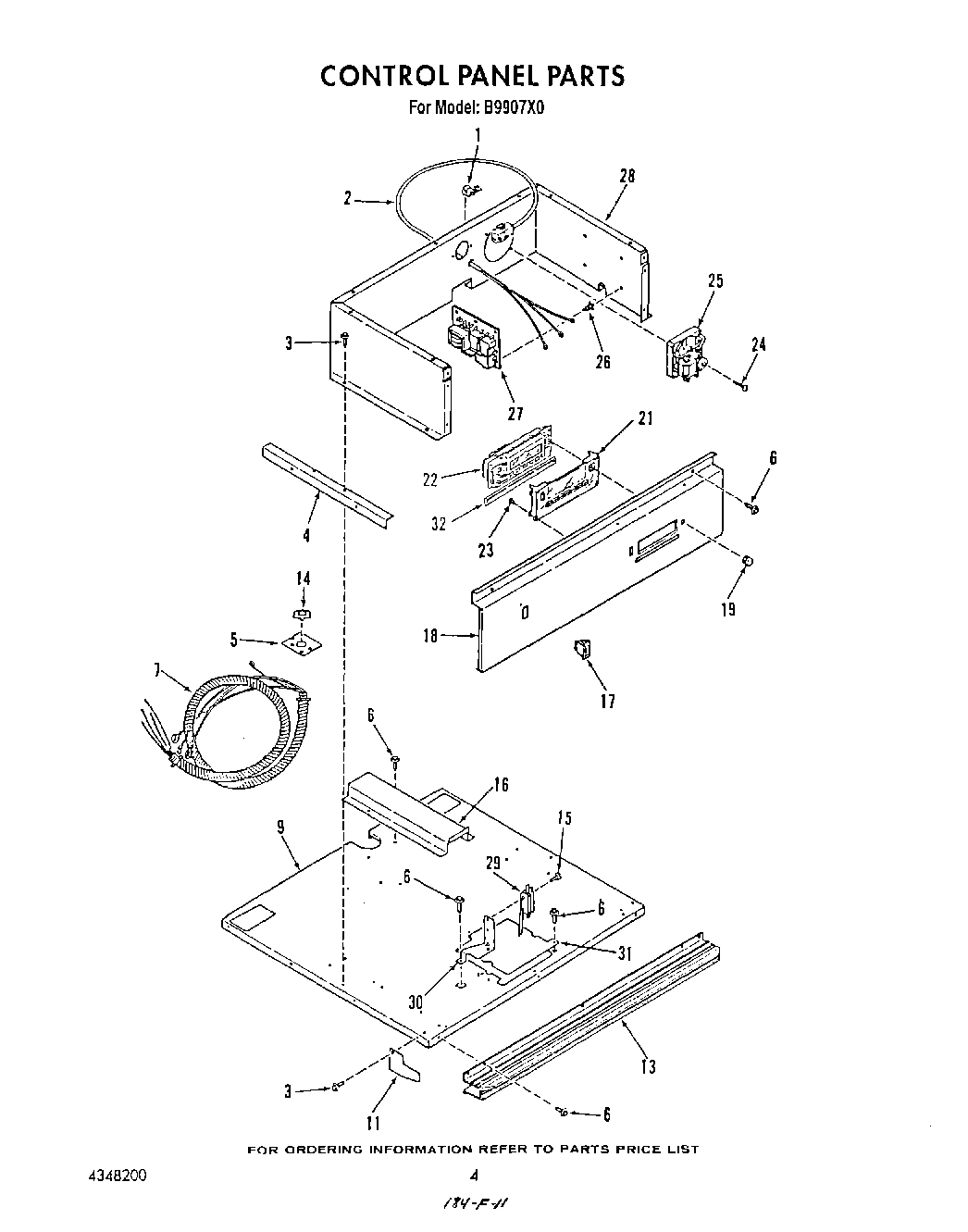

04 - CONTROL PANEL
02 - OVEN
03 - MICRO MOUNTING AND TRIM
05 - OVEN DOOR LOCK
07 - WIRING
Common parts from model Whirlpool B9907^0 BUILT-IN GAS OVEN
1
Relief, Strain WPL 4330991 Contact Us For Availability
1
Bottom Support, Module WPL 4337827 Contact Us For Availability
1
Spring WPL 4331536 Contact Us For Availability
2
Seal, Door WPL 4342634 Contact Us For Availability
2
Cord W/Plug WPL 4337394 Contact Us For Availability
2
Retainer, Insul. WPL 4333934 Contact Us For Availability
2
Extension, Vent WPL 4338204 Contact Us For Availability
3
Side-Air Channel (Lt or Rt) WPL 4338190 Contact Us For Availability
3
Fuse WPL 4323976 Contact Us For Availability
3
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
4
Plug-Oven Door WPL 4336622 Contact Us For Availability
4
Stiffener (Lt/Rt) WPL 4332204 Contact Us For Availability
4
Cover, Rear WPL 4337715 Contact Us For Availability
4
Trim-Right Side WPL 4337772 Contact Us For Availability
4
Handle, Lock WPL 4338045 Contact Us For Availability
5
Seal-Oven Door WPL 4353912 Contact Us For Availability
5
Plate (For No.7) WPL 4327503 Contact Us For Availability
5
Side, Cabinet (Left) WPL 4333955 Contact Us For Availability
5
Side, Cabinet (Right) WPL 4333956 Contact Us For Availability
5
Trim-Top WPL 4338122 Contact Us For Availability
5
Knob, Lock Handle WPL 4337568 Contact Us For Availability
6
Spacer (4) WPL 4331175 Contact Us For Availability
6
Clip, Knob WPL 4335705 Contact Us For Availability
7
Screw 10-32x3/8 WPL 4325101 Contact Us For Availability
7
Conduit WPL 4337731 Contact Us For Availability
7
Side Trim (Lt/Rt) WPL 4337702 Contact Us For Availability
7
Screw, No.10-2 x 1/2 WPL 4335315 Contact Us For Availability
7
Lock Assembly, (Inc`s Illus. No.1) WPL 4337490 Contact Us For Availability
8
Insulation-Oven Door Plug WPL 4331209 Contact Us For Availability
8
Angle, Hinge (Lt/Rt) WPL 4333676 Contact Us For Availability
8
Trim, Lower WPL 4337973 Contact Us For Availability
9
Insulation-Oven Door Lining WPL 4331210 Contact Us For Availability
9
Top-Cabinet WPL 4338048 Contact Us For Availability
9
Hinge Box Assembly Lt/Rt WPL 4333675 Contact Us For Availability
9
Trim-Left Side WPL 4337771 Contact Us For Availability
10
Retainer, Glass (4) WPL 4331472 Contact Us For Availability
10
Screw, 10-32x1/4 WPL 4323953 Contact Us For Availability
10
Holder, Fuse WPL 4338124 Contact Us For Availability
11
Spacer, Glass (Lt/Rt) WPL 4330933 Contact Us For Availability
11
Shield-Heat (Lt/Rt) WPL 4331290 Contact Us For Availability
11
Insulation (Lt/Rt) WPL 4352036 Contact Us For Availability
11
Screw No.6-32x1/2 WPL 4337861 Contact Us For Availability
12
Screw 10-32x17/32 WPL 4327611 Contact Us For Availability
12
Screw 10-32x17/32 WPL 4323776 Contact Us For Availability
13
Retainer-Insul. Oven Door WPL 4337673 Contact Us For Availability
13
Trim, Lower WPL 4337821 Contact Us For Availability
13
Nut, Speed 10-32 WPL 4324015 Contact Us For Availability
14
Nut WPL 4324132 Contact Us For Availability
14
Base (Lt/Rt) WPL 4331779 Contact Us For Availability
15
Clamp, Glass (Lt/Rt) WPL 4329928 Contact Us For Availability
15
Screw 6-32x7/8 WPL 4335220 Contact Us For Availability
15
Bottom, Cabinet WPL 4333953 Contact Us For Availability
16
Washer WPL 4323206 Contact Us For Availability
16
Cushion WPL 4324217 Contact Us For Availability
16
Cover, Wire WPL 4333946 Contact Us For Availability
17
Frame, Oven Door WPL 4337695 Contact Us For Availability
17
Retainer, Insul.-Side (Lt/Rt) WPL 4338298 Contact Us For Availability
18
Handle-Oven Door WPL 4337688 Contact Us For Availability
18
Panel, Control WPL 4337822 Contact Us For Availability
18
Vent, Oven Top WPL 4338216 Contact Us For Availability
19
Spacer, Door WPL 4323997 Contact Us For Availability
19
Knob, Clock WPL 4338513 Contact Us For Availability
19
Insulation, Back and Bottom WPL 4337725 Contact Us For Availability
20
Screw 6-20x3/8 WPL 4336048 Contact Us For Availability
20
Insulation, Lamp WPL 4353890 Contact Us For Availability
21
Glass, Outer Door WPL 4337693 Contact Us For Availability
21
Lens, Clock WPL 4337361 Contact Us For Availability
21
Back, Cabinet WPL 4338214 Contact Us For Availability
22
Clock WPL 4337856 Contact Us For Availability
22
Insulation, Top WPL 4354913 Contact Us For Availability
23
Screw No.10 x 3/4 WPL 4323387 Contact Us For Availability
23
Screw 6-32x5/16 WPL 4323476 Contact Us For Availability
23
Support, Broil Element WPL 4334358 Contact Us For Availability
24
Glass-Intermediate WPL 4330053 Contact Us For Availability
24
Retainer, Cabinet Top Insulation WPL 4336891 Contact Us For Availability
25
Fan WPL 4337808 Contact Us For Availability
26
Screw 6-32x1/4 WPL 4327216 Contact Us For Availability
26
Spacer WPL 4336562 Contact Us For Availability
26
Retainer, Oven Top Insulation WPL 4333936 Contact Us For Availability
27
Baffle-Door Lining WPL 4337672 Contact Us For Availability
27
Board, Circuit WPL 4337291 Contact Us For Availability
27
Insulation-Top & Sides (1 Piece) WPL 4353887 Contact Us For Availability
28
Glass-Door Center WPL 4327671 Contact Us For Availability
28
Housing, Control WPL 4337820 Contact Us For Availability
28
Raceway WPL 4334604 Contact Us For Availability
29
Switch, Micro WPL 4337399 Contact Us For Availability
29
Frame, Front WPL 4337816 Contact Us For Availability
30
Hinge-Door (Lt/Rt) WPL 4336474 Contact Us For Availability
30
Bracket, Lock Switch WPL 4337430 Contact Us For Availability
30
Sensor WPL 4337170 Contact Us For Availability
31
Support, Lining WPL 4331496 Contact Us For Availability
31
Plate, Cover WPL 4336895 Contact Us For Availability
31
Cover WPL 4329206 Contact Us For Availability
32
Lining-Oven Door WPL 4336626 Contact Us For Availability
32
Support, Clock WPL 4338402 Contact Us For Availability
33
Glass-Inner WPL 4337767 Contact Us For Availability
33
Oven WPL 4337685 Contact Us For Availability
34
Screw, No.10 x 1 WPL 4350930 Contact Us For Availability
35
Trim, Lower WPL 4337770 Contact Us For Availability
36
Washer, Fiber WPL 4336868 Contact Us For Availability
37
Spacer WPL 4336869 Contact Us For Availability
37
Screw 10-32x5/8 WPL 4337728 Contact Us For Availability
38
Washer WPL 4323694 Contact Us For Availability
38
Main WPL 4337733 Contact Us For Availability
38
Relay WPL 4337736 Contact Us For Availability
38
Sensor WPL 4337929 Contact Us For Availability
38
Installation Guide Wire Harness WPL 4348198 Contact Us For Availability
38
Use & Care Manual WPL 4348199 Contact Us For Availability
38
Repair Parts List WPL 4348200A Contact Us For Availability
39
Seal, Oven Lamp WPL 4324481 Contact Us For Availability
40
Element, Bake WPL 4336509 Contact Us For Availability
41
Shield-Element WPL 4336620 Contact Us For Availability
42
Retainer, Lens WPL 4324482 Contact Us For Availability
43
Lens, Oven Lamp WPL 4324415 Contact Us For Availability
45
Clamp, Vent WPL 4335624 Contact Us For Availability
46
Tube, Oven Vent WPL 4331173 Contact Us For Availability
47
Rack, Oven (2) WPL 4331177 Contact Us For Availability
48
Guide-Oven Rack (Lt/Rt) WPL 4329341 Contact Us For Availability
51
Screw, No.10 x 3/8 WPL 4323394 Contact Us For Availability
52
Plate-Lock Cover WPL 4342735 Contact Us For Availability
54
Bracket WPL 4331687 Contact Us For Availability
55
Screw WPL 4337678 Contact Us For Availability
× ![]()
