Model Whirlpool B9758B3 BUILT-IN GAS OVEN – Common Parts & Diagrams
02 - CONTROL PANEL
07 - WIRE HARNESS

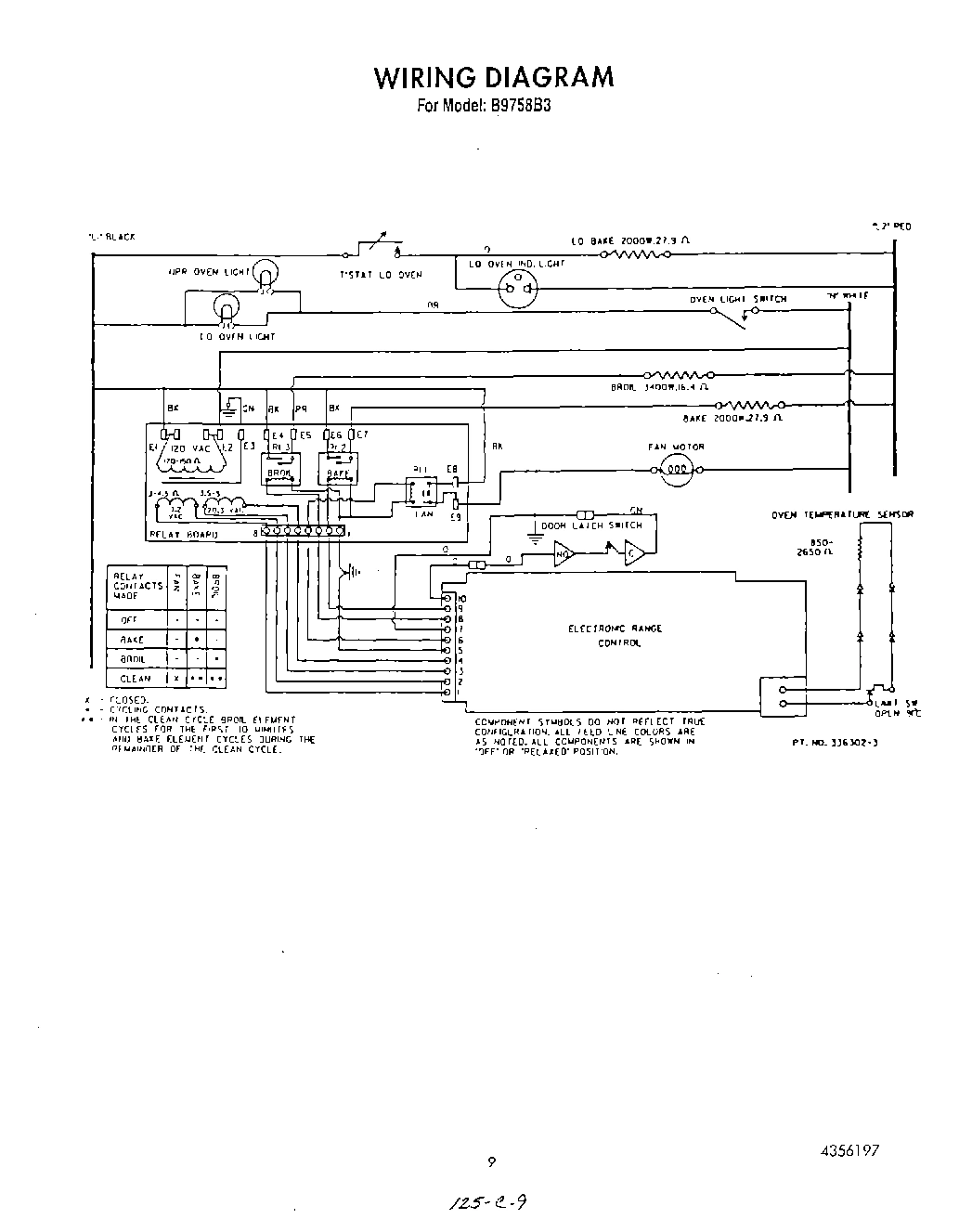

08 - WIRING DIAGRAM

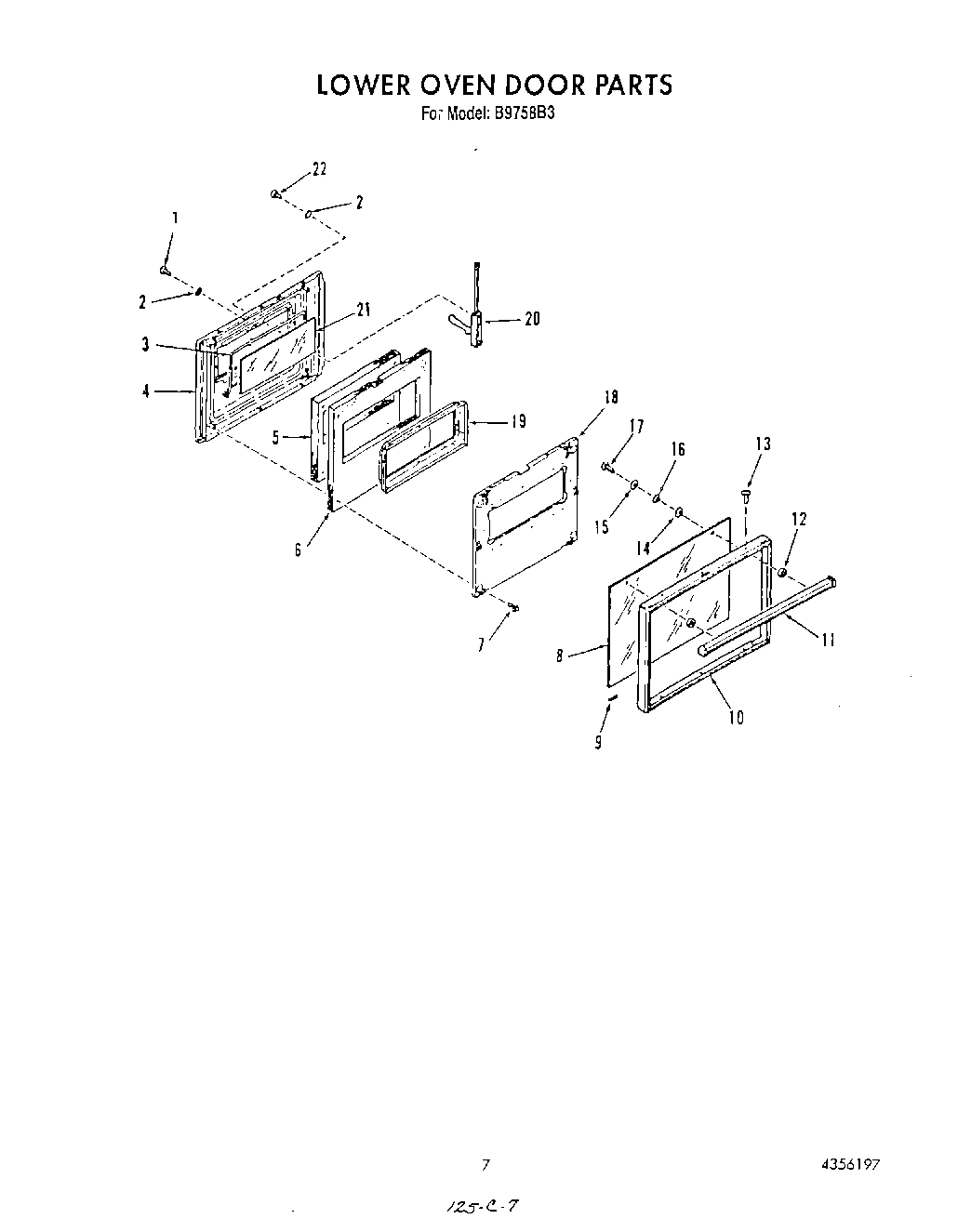

06 - LOWER OVEN DOOR

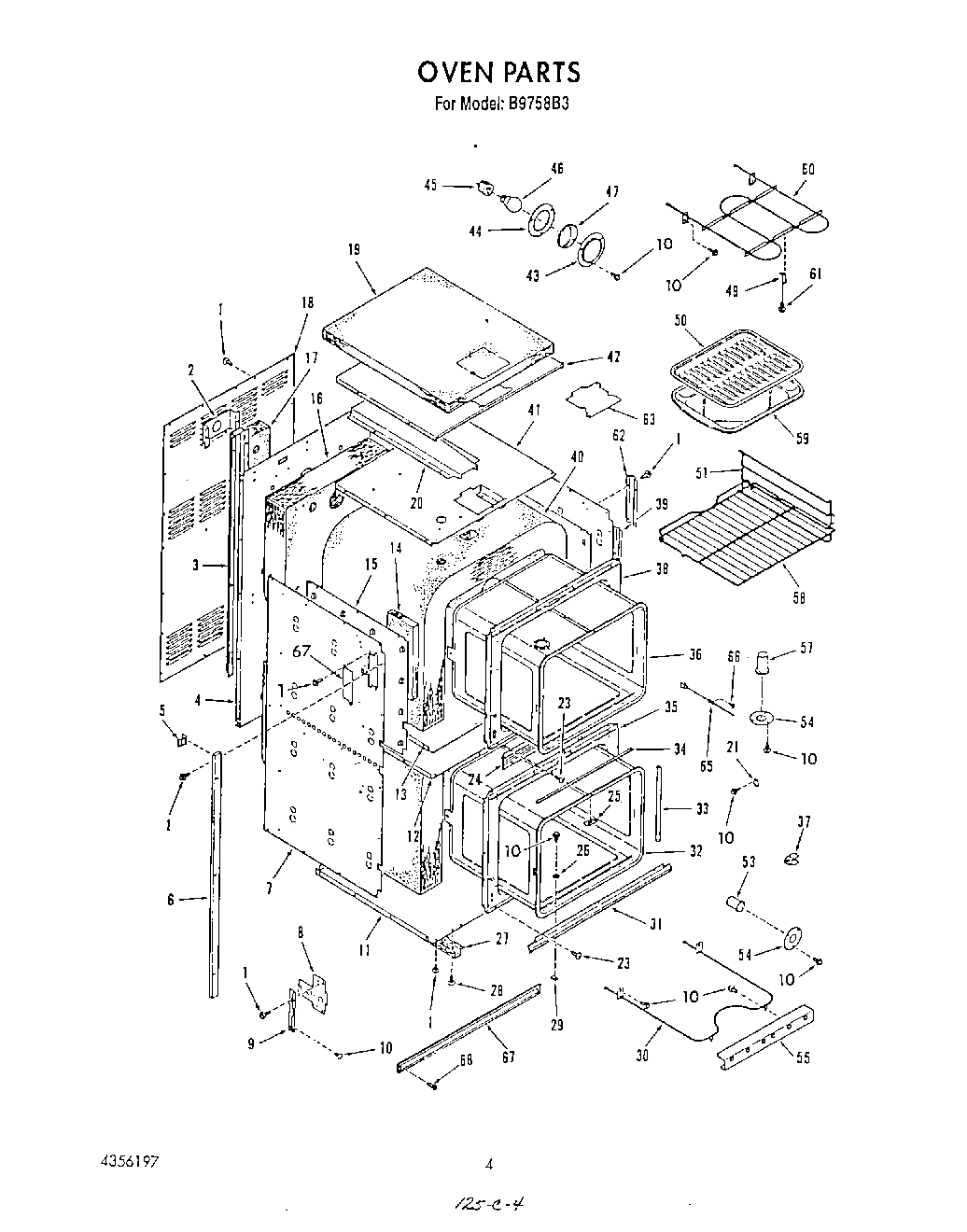

04 - OVEN

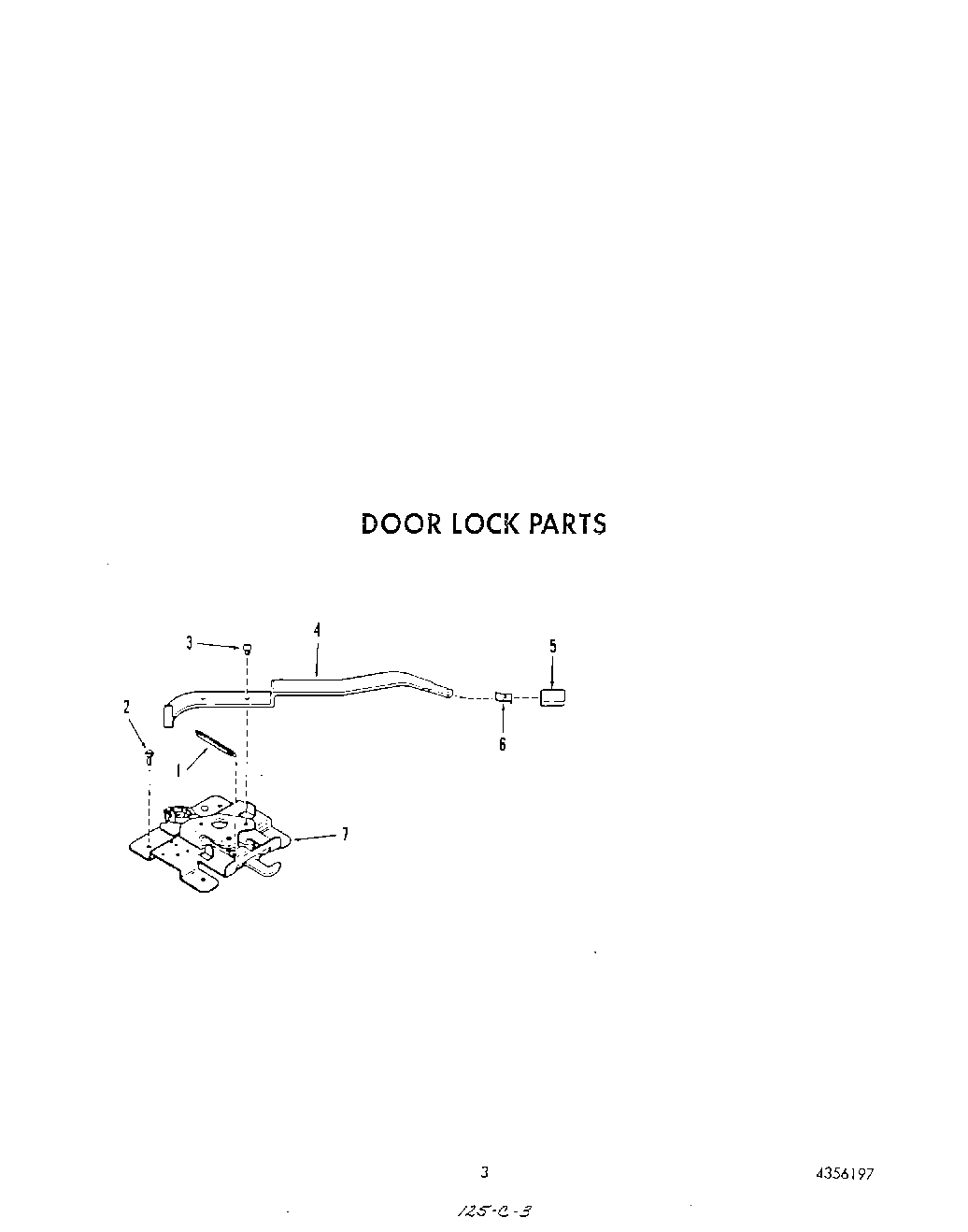

03 - DOOR LOCK

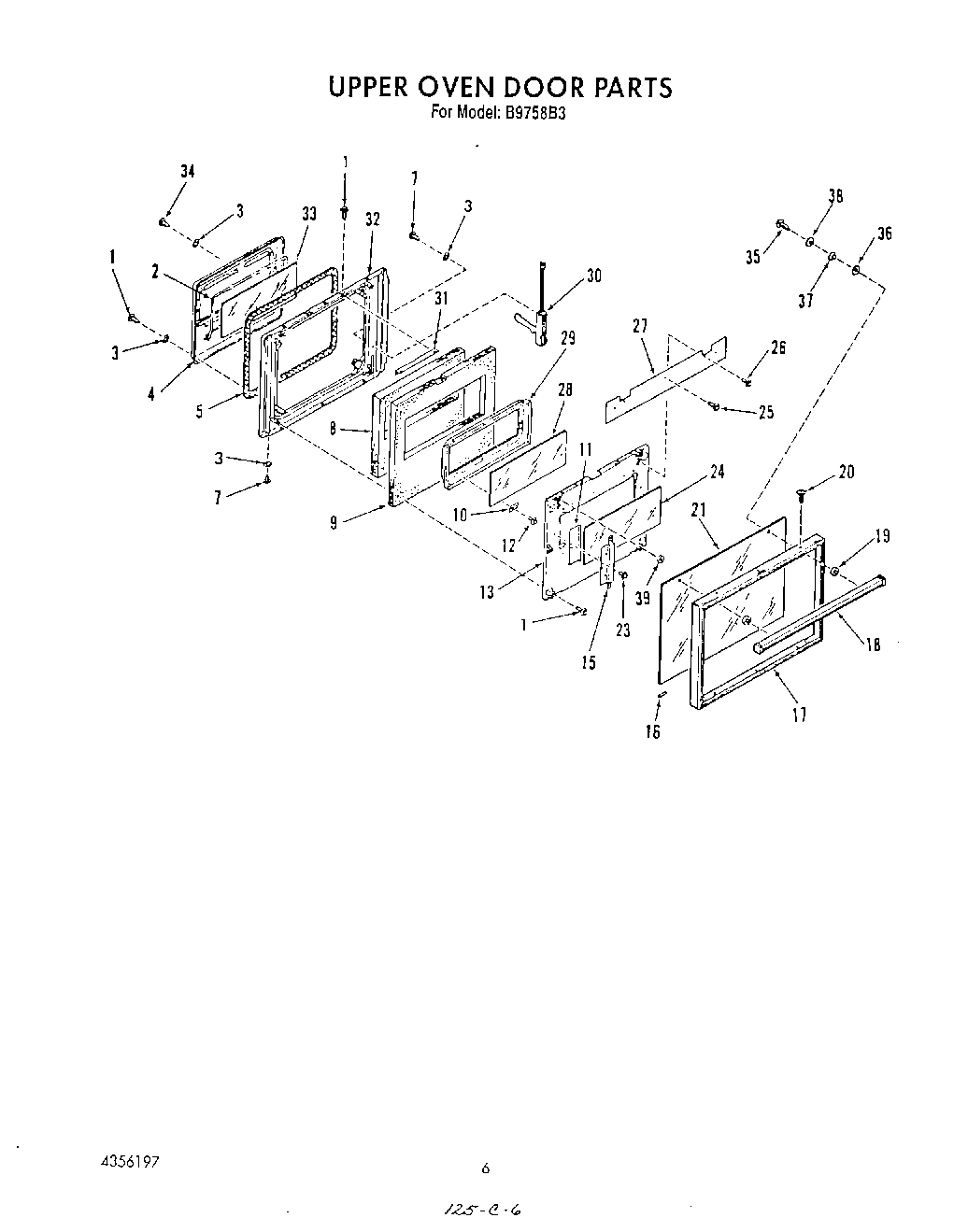

05 - UPPER OVEN DOOR
Common parts from model Whirlpool B9758B3 BUILT-IN GAS OVEN
1
Housing, Control WPL 4338552 Contact Us For Availability
1
Wire Harness (Relay) WPL 4337736 Contact Us For Availability
1
Wire Harness (Sensor) WPL 4337929 Contact Us For Availability
1
Wire Harness (Main) WPL 4342975 Contact Us For Availability
1
Spring WPL 4331536 Contact Us For Availability
2
Flag Terminal WPL 4325035 Contact Us For Availability
2
Seal, Door WPL 4342634 Contact Us For Availability
2
Retainer, Light Insulation WPL 4333934 Contact Us For Availability
3
Relay Control WPL 4338265 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 4325036 Contact Us For Availability
3
Washer WPL 4323206 Contact Us For Availability
3
Vent Box, Rear WPL 4335560 Contact Us For Availability
3
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
4
Thermal Fuse WPL 4338249 Contact Us For Availability
4
Lining WPL 4336627 Contact Us For Availability
4
Back Cover WPL 4337716 Contact Us For Availability
4
Handle, Lock WPL 4338045 Contact Us For Availability
4
Plug, Oven Door WPL 4338239 Contact Us For Availability
5
Cover, Housing WPL 4338050 Contact Us For Availability
5
Spacer (6) WPL 4331175 Contact Us For Availability
5
Knob, Lock Handle WPL 4337568 Contact Us For Availability
5
Gasket, Oven Door WPL 4353912 Contact Us For Availability
6
Panel, Control WPL 4337722 Contact Us For Availability
6
Side Trim, Lt/Rt WPL 4337703 Contact Us For Availability
6
Clip, Knob WPL 4335705 Contact Us For Availability
7
Bracket-Control Panel WPL 4338562 Contact Us For Availability
7
Screw No.10-32x3/8 WPL 4325101 Contact Us For Availability
7
Cabinet Side (Right) WPL 4334601 Contact Us For Availability
7
Cabinet Side (Left) WPL 4338168 Contact Us For Availability
7
Lock Assembly WPL 4337490 Contact Us For Availability
8
Insulation, Plug WPL 4331209 Contact Us For Availability
8
Hinge Box Assembly Lt/Rt WPL 4333675 Contact Us For Availability
9
Spacer WPL 4336562 Contact Us For Availability
9
Insulation, Lining WPL 4331210 Contact Us For Availability
9
Hinge Angle, Lt/Rt Upper & Lower Oven WPL 4333676 Contact Us For Availability
10
Control, Clock/Oven WPL 4342971 Contact Us For Availability
10
Retainer, Glass (4) WPL 4331472 Contact Us For Availability
11
Thermostat WPL 4333242 Contact Us For Availability
11
Bottom, Cabinet WPL 4333931 Contact Us For Availability
11
Spacer, Glass (Lt/Rt) WPL 4330933 Contact Us For Availability
12
Nut (For No.14) WPL 4324132 Contact Us For Availability
12
Screw, No.10-32 x 17/32 WPL 4323776 Contact Us For Availability
12
Insul. Retainer Oven Top (Lower) WPL 4333933 Contact Us For Availability
13
Plate (For No.14) WPL 4327503 Contact Us For Availability
13
Retainer, Door Insulation WPL 4337673 Contact Us For Availability
13
Insul. Retainer Oven Bottom (Upper) WPL 4333935 Contact Us For Availability
14
Conduit, Harness WPL 4337731 Contact Us For Availability
14
Insulation (Lt/Rt) WPL 4352036 Contact Us For Availability
15
Cover, Wire WPL 4335478 Contact Us For Availability
15
Insul. Retainer Side WPL 4338136 Contact Us For Availability
15
Clamp, Glass (Lt/Rt) WPL 4329928 Contact Us For Availability
16
Cushion WPL 4324217 Contact Us For Availability
16
Insulation, Back and Bottom WPL 4337725 Contact Us For Availability
17
Frame, Door WPL 4337695 Contact Us For Availability
17
Insul. Oven Light (Upper/Lower) WPL 4353890 Contact Us For Availability
18
Heat Shield, (Lt/Rt) WPL 4337717 Contact Us For Availability
18
Handle, Door WPL 4337688 Contact Us For Availability
18
Back, CAbinet WPL 4337774 Contact Us For Availability
19
Spacer WPL 4323997 Contact Us For Availability
19
Insulation, Top Cabinet WPL 4354913 Contact Us For Availability
20
Trim, Control Panel WPL 4338052 Contact Us For Availability
20
Screw No.6-32x5/16 WPL 4324614 Contact Us For Availability
20
Hinge, Lt/Rt WPL 4336475 Contact Us For Availability
20
Vent Box, Oven Top WPL 4338216 Contact Us For Availability
21
Bracket, Micro Switch WPL 4337430 Contact Us For Availability
21
Glass, Outer Door WPL 4337693 Contact Us For Availability
21
Cover Plate, Thermostat Bulb WPL 4324951 Contact Us For Availability
23
Cover Plate, Lock WPL 4342735 Contact Us For Availability
23
Screw WPL 4337728 Contact Us For Availability
23
Screw No.10 x 3/4 WPL 4323387 Contact Us For Availability
24
Screw WPL 4333427 Contact Us For Availability
24
Trim, Center Front WPL 4337704 Contact Us For Availability
24
Glass-Intermediate WPL 4330053 Contact Us For Availability
25
Micro Switch, Lock WPL 4337399 Contact Us For Availability
25
Cover, Upper/Lower WPL 4329206 Contact Us For Availability
26
Screw WPL 4335220 Contact Us For Availability
26
Screw, No.6-32 x 1/4 WPL 4327216 Contact Us For Availability
27
Channel (Lt/Rt) WPL 4338286 Contact Us For Availability
27
Baffle WPL 4337672 Contact Us For Availability
28
End Cap (Left) WPL 4337790 Contact Us For Availability
28
End Cap (Right) WPL 4337791 Contact Us For Availability
28
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
28
Glass-Center WPL 4327671 Contact Us For Availability
29
Light, Indicator WPL 4336634 Contact Us For Availability
29
Retainer, Glass WPL 4333949 Contact Us For Availability
29
Speed Nut No.10-32 Upper/Lower Oven WPL 4324015 Contact Us For Availability
30
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
30
Element, Bake (Lower Oven) WPL 4336509 Contact Us For Availability
30
Element, Bake (Upper Oven) WPL 4337607 Contact Us For Availability
30
Hinge, Lt/Rt WPL 4336474 Contact Us For Availability
31
Top, Cabinet WPL 4338047 Contact Us For Availability
31
Lower Front Trim WPL 4337705 Contact Us For Availability
31
Support, Lining WPL 4331496 Contact Us For Availability
32
Lens, Clock WPL 4337361 Contact Us For Availability
32
Oven, Lower WPL 4336615 Contact Us For Availability
32
Lining WPL 4336626 Contact Us For Availability
33
Knob, Clock WPL 4337111 Contact Us For Availability
33
Side Seal, Lower WPL 4331529 Contact Us For Availability
33
Glass-Inner WPL 4337767 Contact Us For Availability
34
Screw WPL 4323479 Contact Us For Availability
34
Screw, No.10 x 1 WPL 4350930 Contact Us For Availability
34
Top Seal, Lower WPL 4331527 Contact Us For Availability
35
Knob, Thermostat WPL 4337726 Contact Us For Availability
35
Screw WPL 4342665 Contact Us For Availability
35
Front Frame, Lower WPL 4336619 Contact Us For Availability
36
Washer, Fiber WPL 4336868 Contact Us For Availability
36
Oven, Upper WPL 4337685 Contact Us For Availability
37
Spacer WPL 4336869 Contact Us For Availability
37
Clip, Thermostat Bulb WPL 4333390 Contact Us For Availability
38
Retainer, Glass WPL 4342666 Contact Us For Availability
38
Front Frame, Upper WPL 4338139 Contact Us For Availability
39
Fan Assembly WPL 4337808 Contact Us For Availability
39
Raceway WPL 4333960 Contact Us For Availability
39
Washer, Felt WPL 4337618 Contact Us For Availability
40
Insulation, Top And Sides WPL 4353887 Contact Us For Availability
41
Retainer, Oven Top Insulation WPL 4333936 Contact Us For Availability
42
Insul. Retainer Cabinet Top WPL 4336891 Contact Us For Availability
43
Lens Retainer, Upper Oven Light WPL 4324482 Contact Us For Availability
44
Lens Gasket, Upper Oven Light WPL 4324481 Contact Us For Availability
47
Light Lens, Up WPL 4324415 Contact Us For Availability
49
WPL 4334358 WPL 4334358 Contact Us For Availability
51
WPL 4329341 WPL 4329341 Contact Us For Availability
53
WPL 4335954 WPL 4335954 Contact Us For Availability
54
WPL 4335624 WPL 4335624 Contact Us For Availability
55
WPL 4336620 WPL 4336620 Contact Us For Availability
57
WPL 4331173 WPL 4331173 Contact Us For Availability
58
WPL 4331177 WPL 4331177 Contact Us For Availability
61
WPL 4323394 WPL 4323394 Contact Us For Availability
62
WPL 4333947 WPL 4333947 Contact Us For Availability
63
WPL 4336895 WPL 4336895 Contact Us For Availability
65
WPL 4337170 WPL 4337170 Contact Us For Availability
66
WPL 4324445 WPL 4324445 Contact Us For Availability
67
WPL 4338202 WPL 4338202 Contact Us For Availability
× ![]()
