Model Whirlpool B9757X0 BUILT-IN GAS OVEN – Common Parts & Diagrams

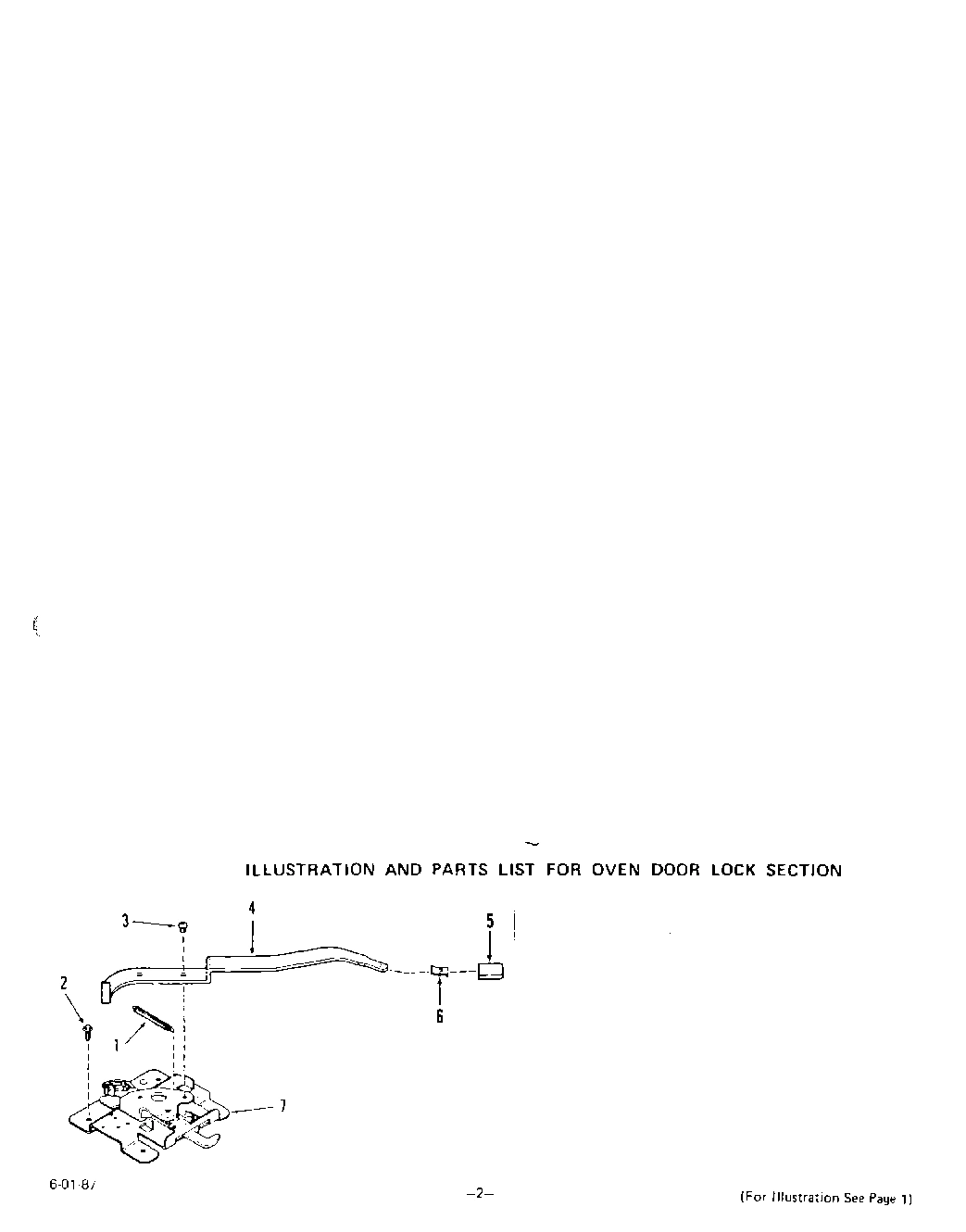

03 - OVEN DOOR LOCK

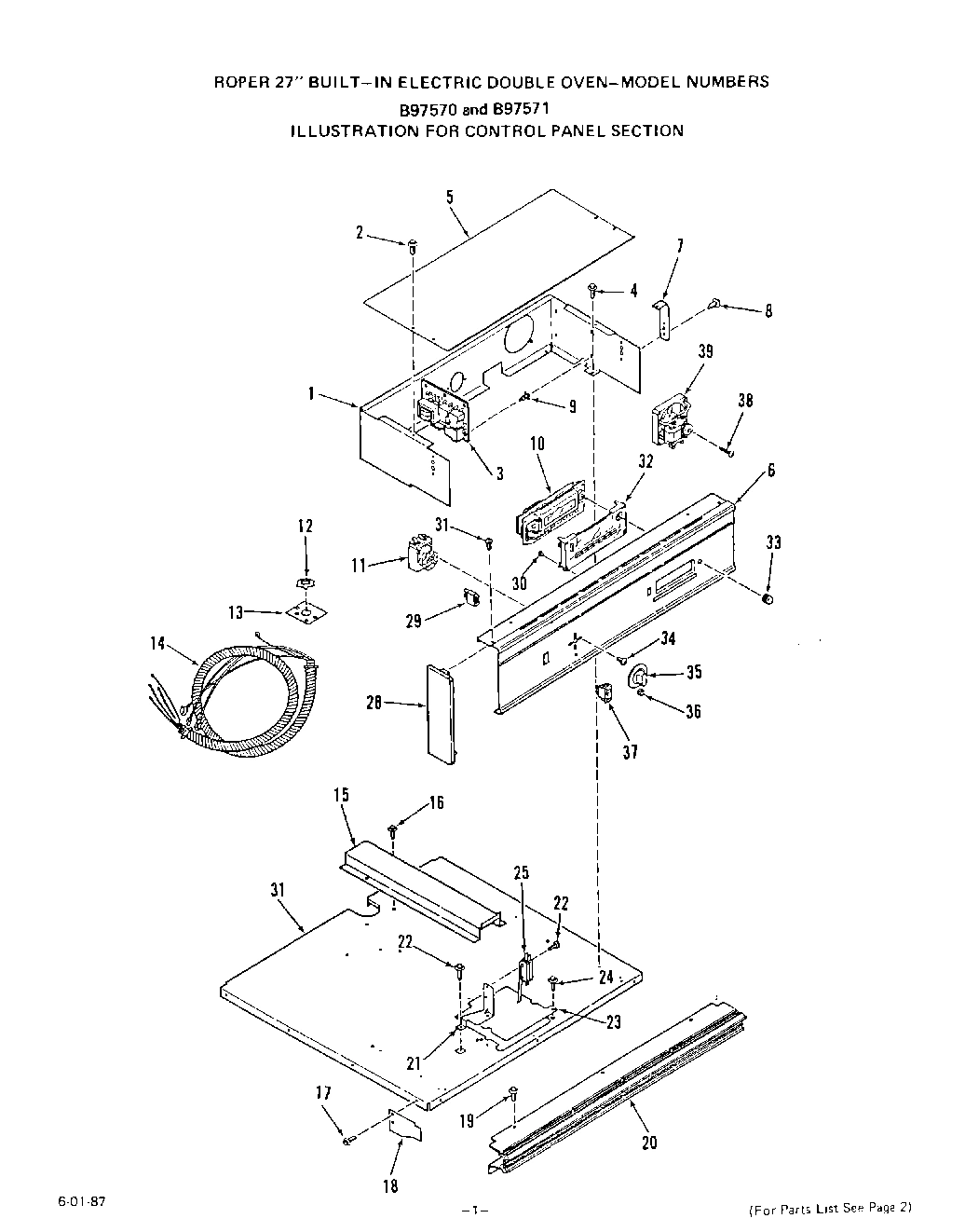

02 - CONTROL PANEL

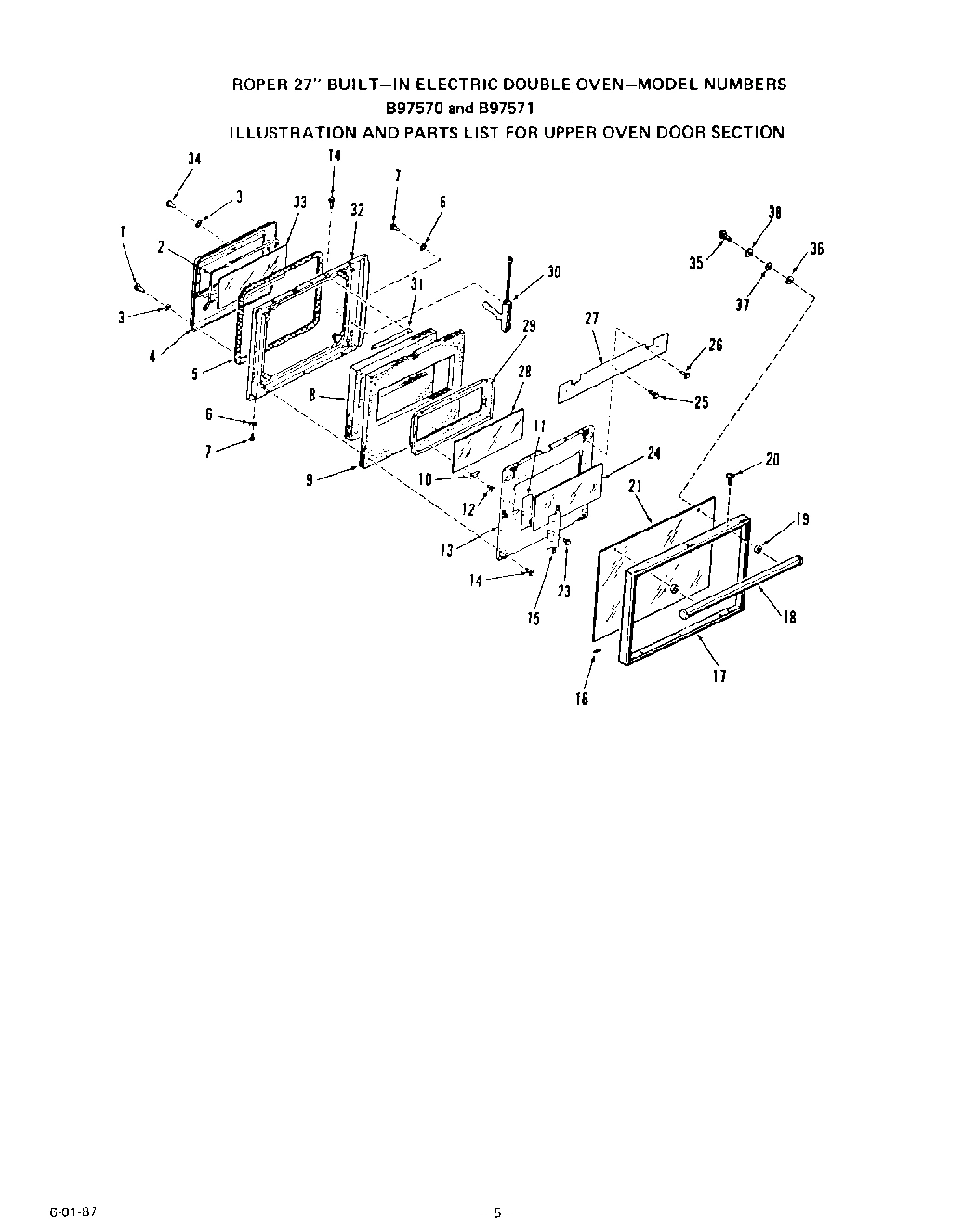

05 - UPPER OVEN DOOR
07 - WIRING DIAGRAM

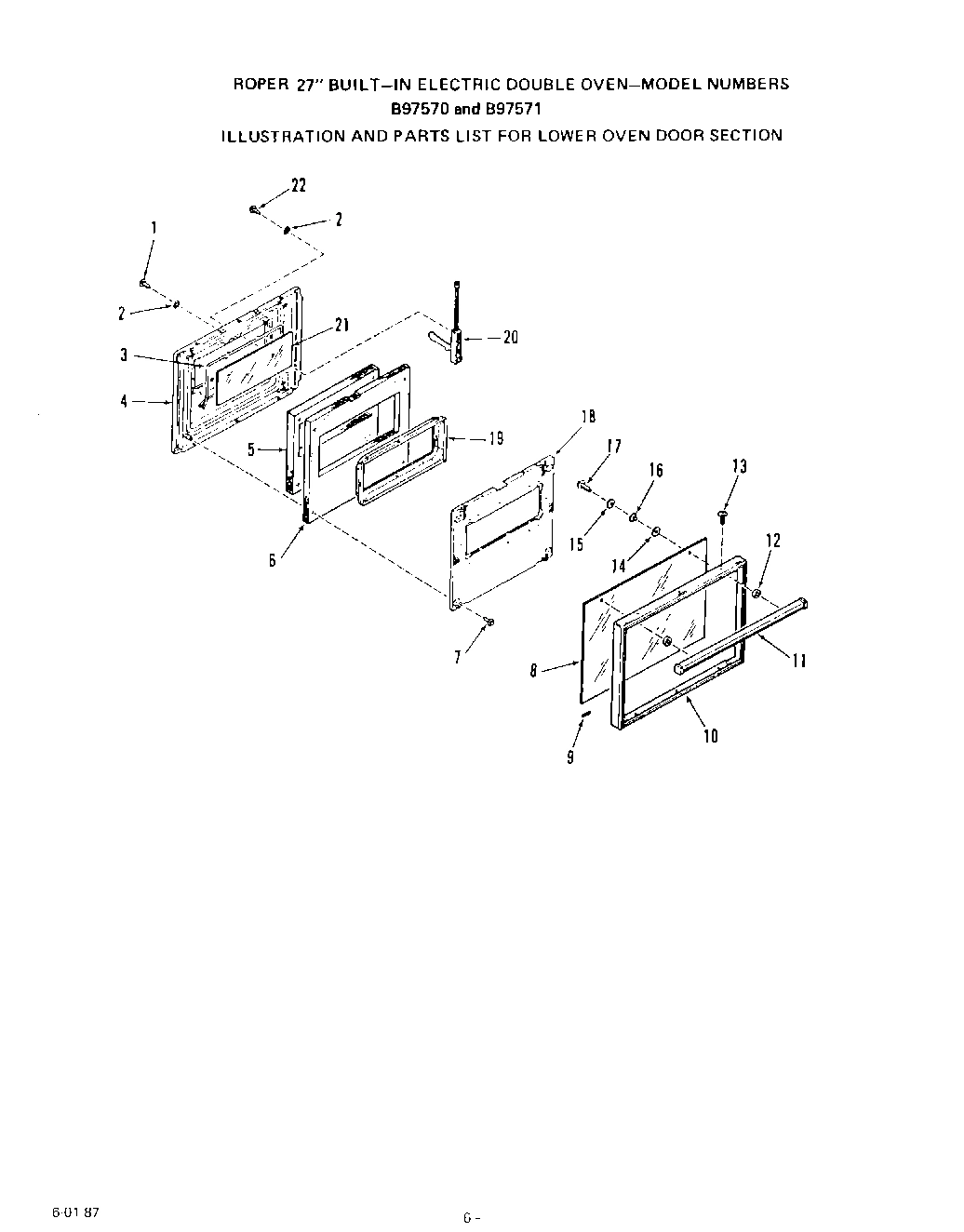

06 - LOWER OVEN DOOR

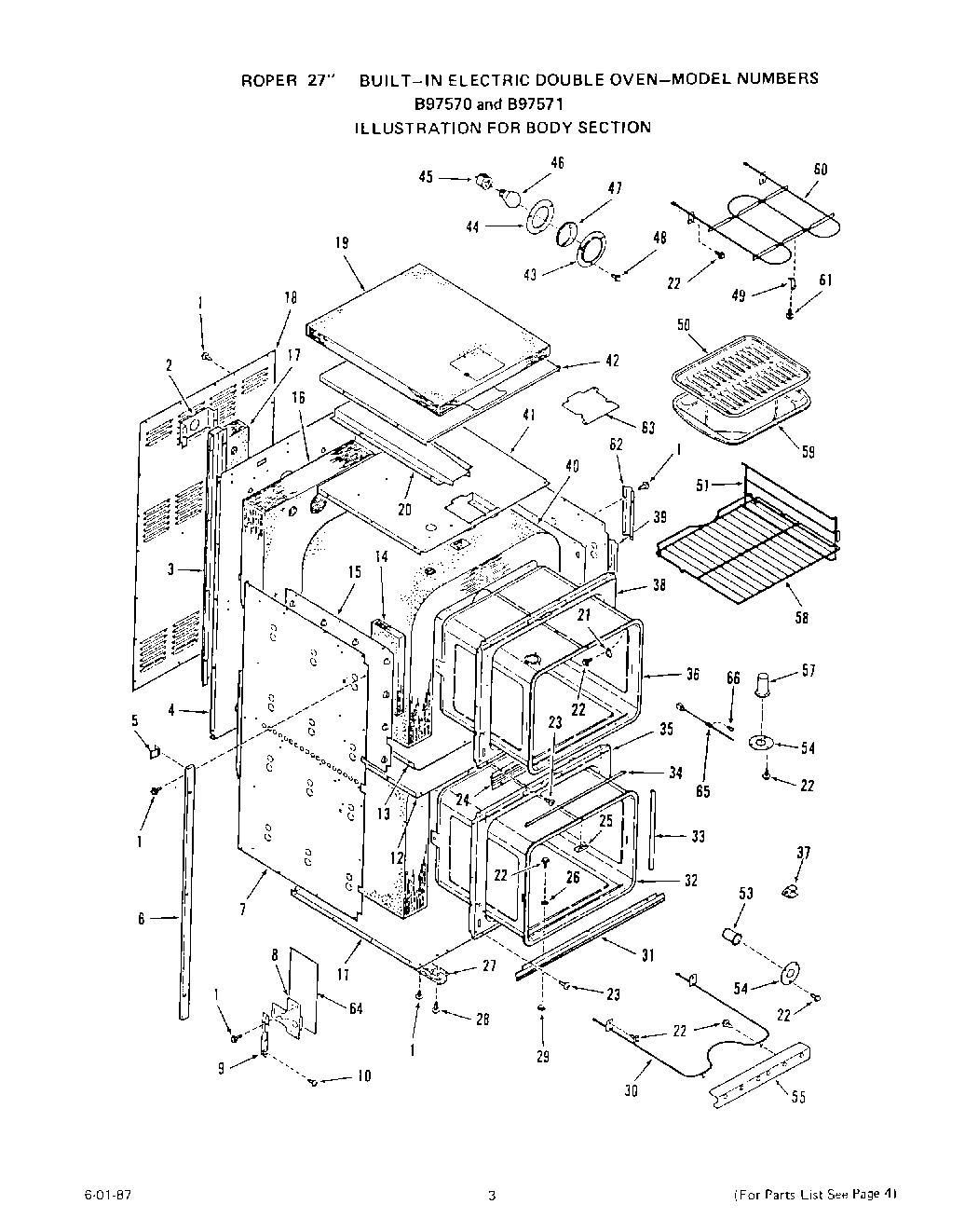

04 - BODY
Common parts from model Whirlpool B9757X0 BUILT-IN GAS OVEN
xWire Harness WPL ARI20724A3 Contact Us For Availability
1
Control Housing WPL 337413 Contact Us For Availability
1
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
1
Screw 10ABx1 WPL 105799 Contact Us For Availability
2
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
B9757X1 WPL 337633 Contact Us For Availability
3
B9757XO WPL 337672 Contact Us For Availability
3
Relay Circuit Board WPL ARI20718A9 Contact Us For Availability
3
Seal-Oven Door WPL 302935 Contact Us For Availability
3
Rear Oven Vent Box WPL 323638 Contact Us For Availability
4
Lock Handle WPL 337409 Contact Us For Availability
4
Plug-Oven Door WPL 338019 Contact Us For Availability
4
Lining-Oven Door WPL 311684 Contact Us For Availability
4
Main Back WPL 336260 Contact Us For Availability
5
Knob-Lock Handle WPL 335738 Contact Us For Availability
5
Top Cover-Control Housing WPL 337414 Contact Us For Availability
5
Oven Door Gasket WPL 311873 Contact Us For Availability
5
Insulation-Oven Door Plug WPL 311872 Contact Us For Availability
5
Spacer (6 Req) WPL 311726 Contact Us For Availability
6
Clip-Knob WPL 335692 Contact Us For Availability
6
Control Panel WPL 336281 Contact Us For Availability
6
Insulation-Oven Door Lining WPL 311874 Contact Us For Availability
6
Side Trim (Lt. or Rt.) WPL 336239 Contact Us For Availability
7
Oven Door Lock Assm. WPL 335333 Contact Us For Availability
7
Control Panel Bracket WPL 336563 Contact Us For Availability
7
Left WPL 325527 Contact Us For Availability
7
Right WPL 325528 Contact Us For Availability
7
Cabinet Side WPL ARI20722A9 Contact Us For Availability
8
Outer Door Glass WPL 336209 Contact Us For Availability
8
Hinge Box Asm. Lt or Rt WPL 322609 Contact Us For Availability
9
Spacer PCB WPL 331469 Contact Us For Availability
9
Cushion WPL 112370 Contact Us For Availability
9
Hinge Angle-Lt or Rt (Up & Lo Ov) WPL 322611 Contact Us For Availability
10
B 9757XO WPL 337088 Contact Us For Availability
10
B 9757X1 WPL 337632 Contact Us For Availability
10
Clock/Oven Control WPL ARI20719A9 Contact Us For Availability
10
Door Glass Retainer (4 Req) WPL 312888 Contact Us For Availability
10
Frame-Oven Door WPL 336211 Contact Us For Availability
11
Thermostat WPL 320938 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
11
Handle WPL 336204 Contact Us For Availability
11
Cabinet Bottom WPL 323624 Contact Us For Availability
12
Nut (For Key 14) WPL 110340 Contact Us For Availability
12
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
12
Spacer, Door Handle WPL 107158 Contact Us For Availability
12
Insulation Retainer-Ov. Top (Lo) WPL 327391 Contact Us For Availability
13
Plate (For Key 14) WPL 294983 Contact Us For Availability
13
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
13
Insulation Retainer-Ov. Btm (Up) WPL 323632 Contact Us For Availability
14
Harness Conduit Asm. WPL 336305 Contact Us For Availability
14
Fiber Washer WPL 333014 Contact Us For Availability
14
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
15
Wire Cover WPL 336780 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
15
Insulation Retainer-Body Side WPL 337729 Contact Us For Availability
16
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
16
Glass Spacer WPL 333015 Contact Us For Availability
16
Insulation-Oven Back & Bottom WPL 336287 Contact Us For Availability
17
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
17
Screw 10-32x3/4`` WPL 330864 Contact Us For Availability
18
Heat Shield (Lt. or Rt.) WPL 336275 Contact Us For Availability
18
Retainer-Oven Door Insulation WPL 336112 Contact Us For Availability
18
Cabinet Back WPL 323661 Contact Us For Availability
19
Retainer-Oven Door Glass WPL 323672 Contact Us For Availability
19
Insulation-Cabinet Top WPL 336580 Contact Us For Availability
20
Trim, Control Panel WPL 337416 Contact Us For Availability
20
Hinge-Oven Door (Rt. or Lt.) WPL 331029 Contact Us For Availability
20
Vent Box-Oven Top WPL 337944 Contact Us For Availability
21
Bracket-Micro Switch WPL 335115 Contact Us For Availability
21
Inner Door Glass WPL 296214 Contact Us For Availability
22
Screw WPL 327256 Contact Us For Availability
22
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
23
Cover Plate Lock WPL 333124 Contact Us For Availability
23
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
23
Screw WPL 336296 Contact Us For Availability
24
Oven Door Glass-Intermediate WPL 308239 Contact Us For Availability
24
Center Front Trim WPL 336241 Contact Us For Availability
25
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
25
Micro Switch-Lock WPL 334973 Contact Us For Availability
25
Cover (Lo. & Up. Ov) WPL 304835 Contact Us For Availability
26
Washer (Up. & Lo. Oven) WPL 21067 Contact Us For Availability
26
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
27
Baffle-Oven Door Lining WPL 336111 Contact Us For Availability
27
Bottom Channel-Lt. or Rt. WPL 328042 Contact Us For Availability
28
Right WPL 336511 Contact Us For Availability
28
Left WPL 336512 Contact Us For Availability
28
End Cap WPL ARI20720A7 Contact Us For Availability
28
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
29
Indicator Light WPL 331717 Contact Us For Availability
29
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
30
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
30
Oven Door Hinge (Lt. or Rt.) WPL 331028 Contact Us For Availability
30
Lower Oven WPL 331164 Contact Us For Availability
30
Upper Oven WPL 335914 Contact Us For Availability
30
Bake Element WPL ARI20723A8 Contact Us For Availability
31
Screw 10-32x1/2`` WPL 321665 Contact Us For Availability
31
Lower Front Trim WPL 336242 Contact Us For Availability
32
B 9757XO WPL 337365 Contact Us For Availability
32
B 9757X1 WPL 334898 Contact Us For Availability
32
Clock Lens Asm. WPL ARI20721A2 Contact Us For Availability
32
Oven Door Lining WPL 331682 Contact Us For Availability
32
Lower Oven Body WPL 331655 Contact Us For Availability
33
Knob-Clock WPL 334961 Contact Us For Availability
33
Oven Door Glass-Inner WPL 336442 Contact Us For Availability
33
Lower Oven Seal-Sides WPL 313059 Contact Us For Availability
34
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
34
Lower Oven Seal - Top WPL 313055 Contact Us For Availability
35
Thermostat Knob WPL 336288 Contact Us For Availability
35
Screw WPL 300864 Contact Us For Availability
35
Front Frame WPL 331669 Contact Us For Availability
36
Lens-Indicator Light WPL 331705 Contact Us For Availability
36
Upper Oven Body WPL 336186 Contact Us For Availability
37
Switch WPL 334649 Contact Us For Availability
37
Thermostat Bulb Retainer Clip WPL 321539 Contact Us For Availability
38
Screw 10-32x1`` WPL 313190 Contact Us For Availability
38
Main WPL 336311 Contact Us For Availability
38
Relay WPL 336313 Contact Us For Availability
38
Sensor WPL 336960 Contact Us For Availability
38
Sensor Limiter WPL 336961 Contact Us For Availability
38
Safety B 9657X1 Model WPL 337939 Contact Us For Availability
38
Upper Front Frame WPL 337735 Contact Us For Availability
39
Fan Asm WPL 336560 Contact Us For Availability
39
Raceway WPL 323724 Contact Us For Availability
40
Insulation-Oven Top & Sides WPL 311712 Contact Us For Availability
41
Insulation Retainer-Up. Oven Top WPL 336569 Contact Us For Availability
42
Insulation Retainer-Cabinet Top WPL 337727 Contact Us For Availability
43
Lens Retainer-Oven Light (Up. Oven) WPL 229372 Contact Us For Availability
44
Gasket-Oven Light Lens-Up. Oven WPL 229371 Contact Us For Availability
45
Oven L WPL 87883 Contact Us For Availability
46
WPL 111257 WPL 111257 Contact Us For Availability
47
WPL 114989 WPL 114989 Contact Us For Availability
48
WPL 102428 WPL 102428 Contact Us For Availability
49
WPL 324809 WPL 324809 Contact Us For Availability
50
WPL 326297 WPL 326297 Contact Us For Availability
51
WPL 305350 WPL 305350 Contact Us For Availability
53
WPL 294679 WPL 294679 Contact Us For Availability
54
WPL 328303 WPL 328303 Contact Us For Availability
55
WPL 331670 WPL 331670 Contact Us For Availability
58
WPL 311735 WPL 311735 Contact Us For Availability
59
WPL 331592 WPL 331592 Contact Us For Availability
60
WPL 319526 WPL 319526 Contact Us For Availability
61
WPL 69605 WPL 69605 Contact Us For Availability
62
WPL 323665 WPL 323665 Contact Us For Availability
63
WPL 237762 WPL 237762 Contact Us For Availability
64
WPL 114300 WPL 114300 Contact Us For Availability
65
WPL 334300 WPL 334300 Contact Us For Availability
66
WPL 336152 WPL 336152 Contact Us For Availability
× ![]()
