Model Whirlpool B9608W3 BUILT-IN GAS OVEN – Common Parts & Diagrams
03 - OVEN DOOR LOCK
05 - TRIM

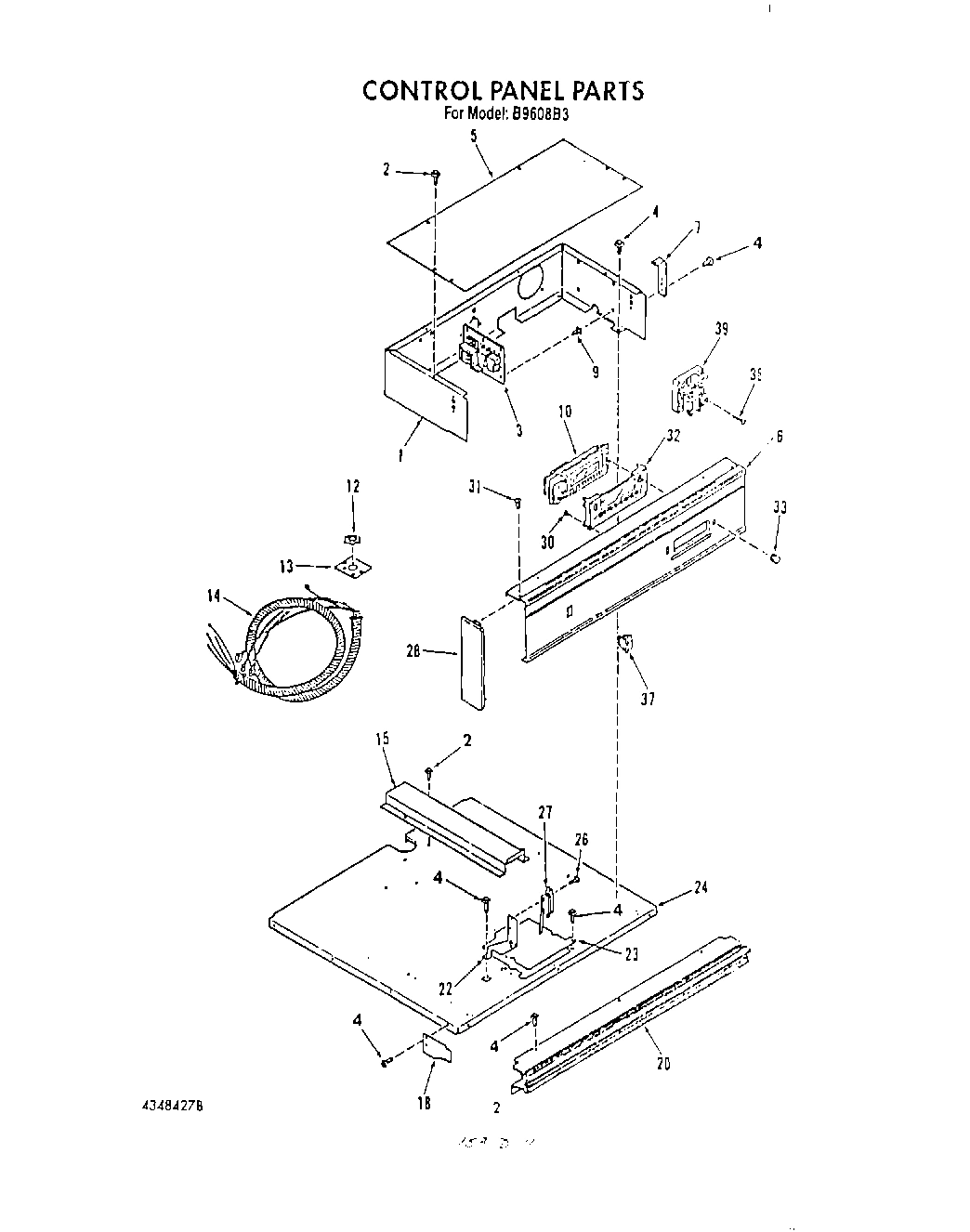

02 - CONTROL PANEL

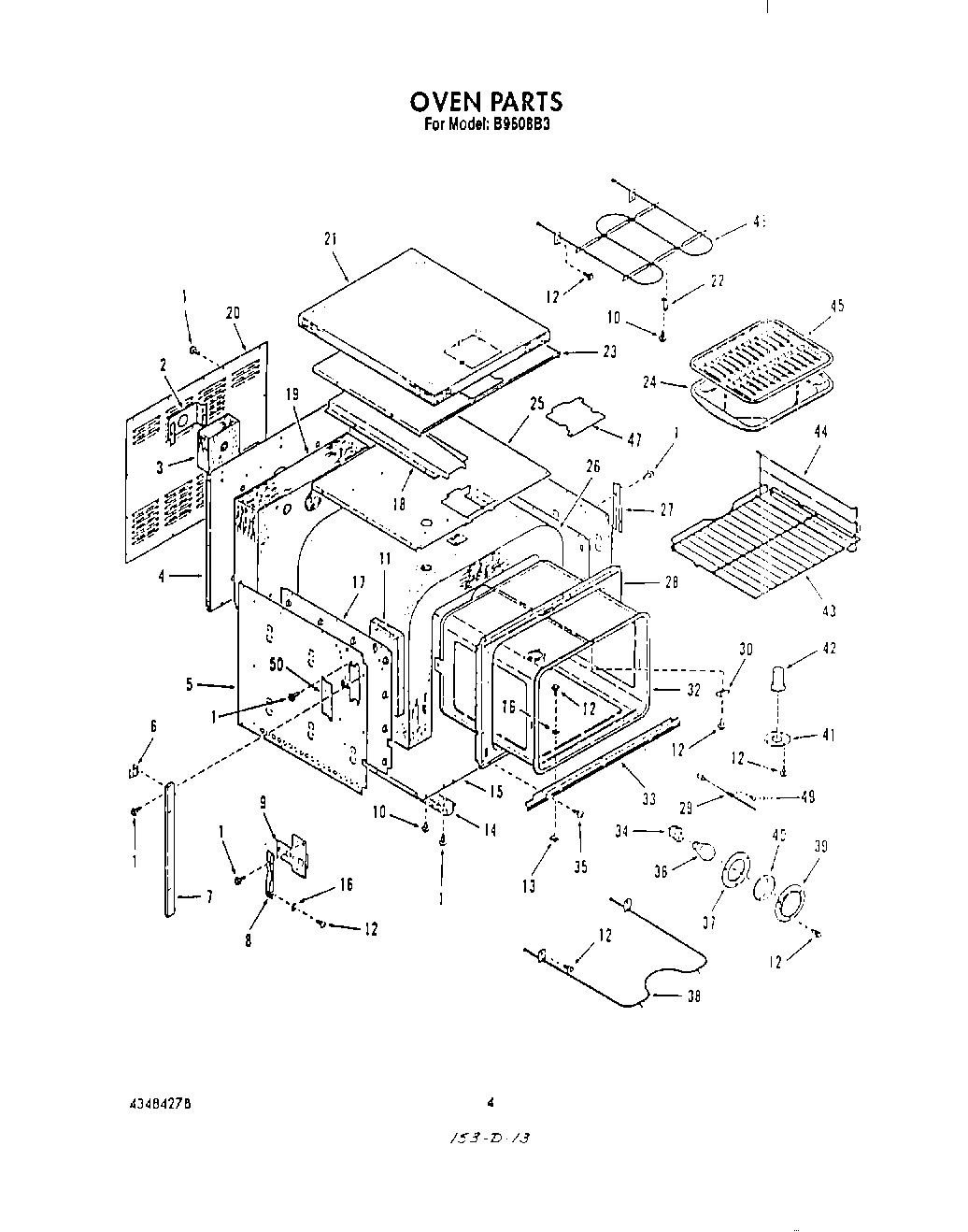

04 - OVEN

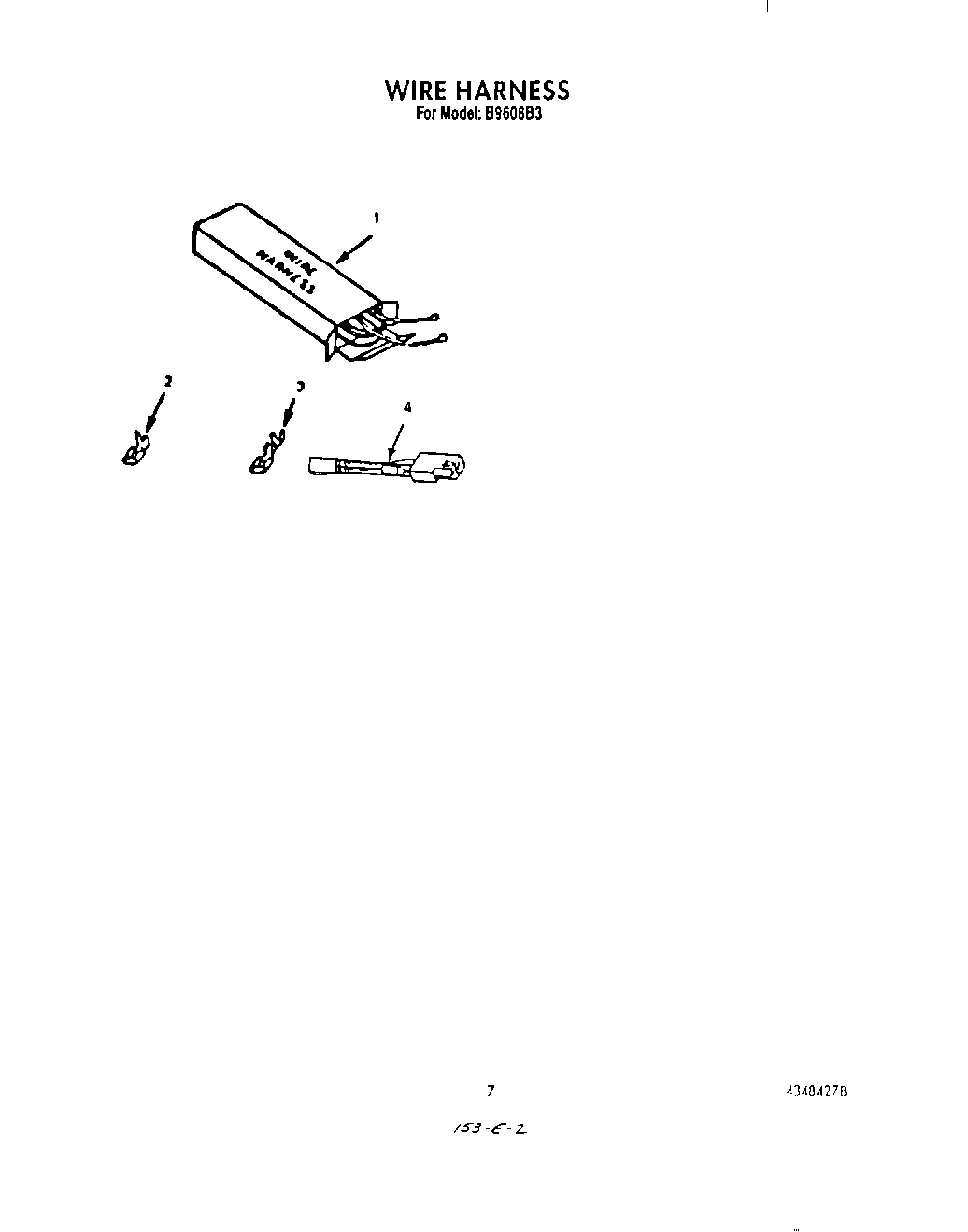

07 - WIRE HARNESS

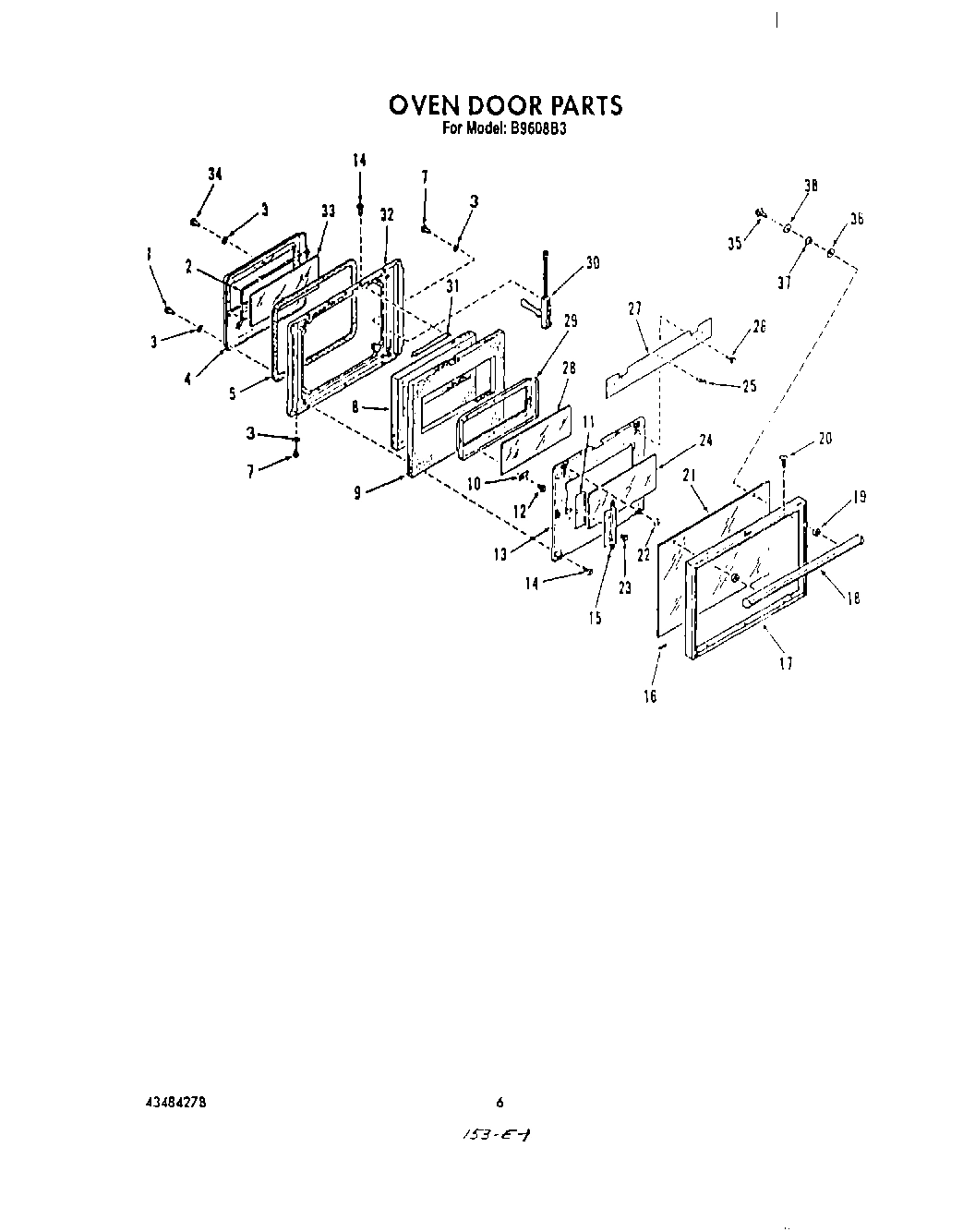

06 - OVEN DOOR , LIT/OPTIONAL

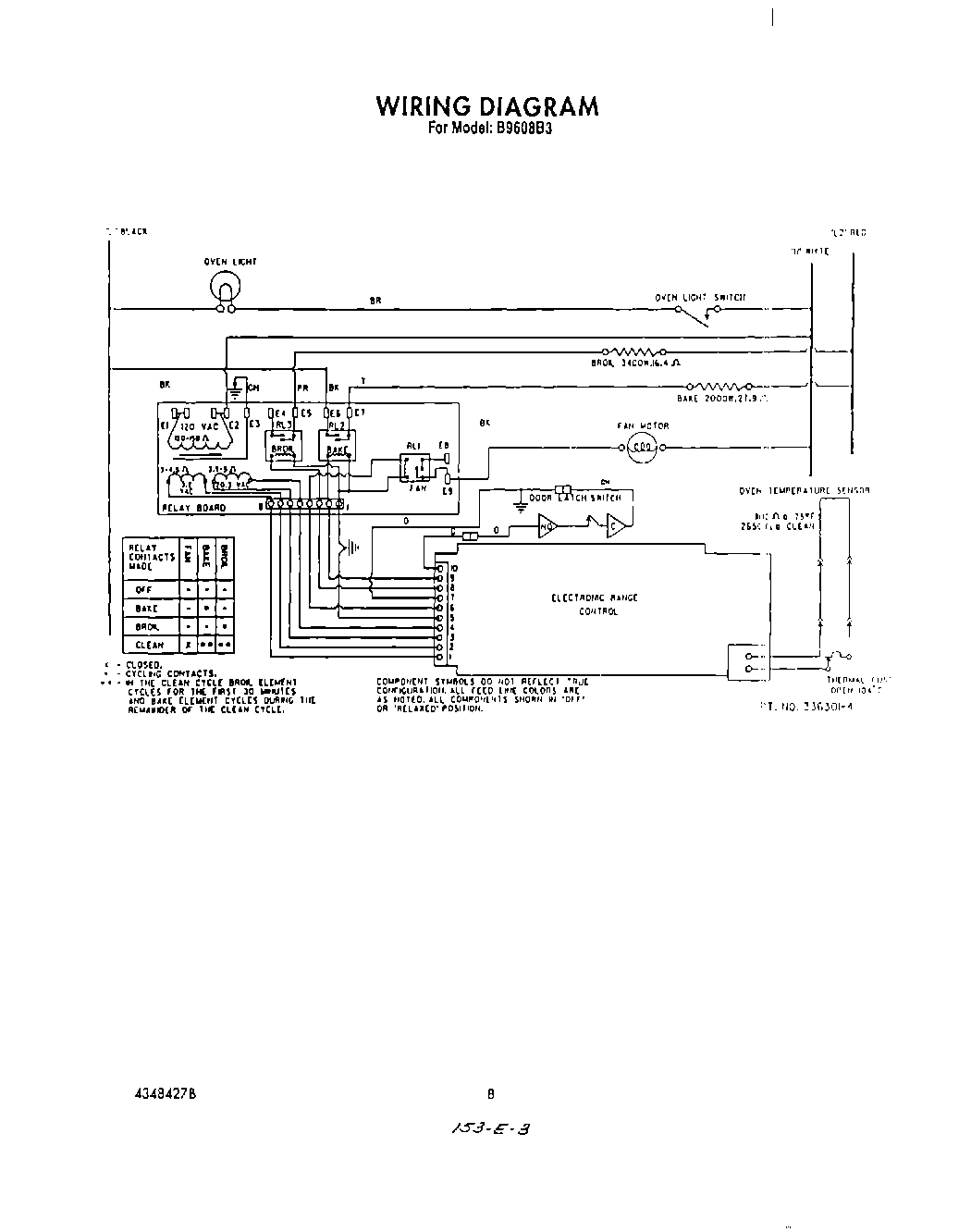

08 - WIRING DIAGRAM
Common parts from model Whirlpool B9608W3 BUILT-IN GAS OVEN
1
Spring WPL 4331536 Contact Us For Availability
1
Cabinet Trim (Black Model) WPL 4338256 Contact Us For Availability
1
Cabinet Trim (White Model) WPL 4338481 Contact Us For Availability
1
Housing, Control WPL 4338552 Contact Us For Availability
1
Wire Harness (Relay) WPL 4337736 Contact Us For Availability
1
Wire Harness (Sensor) WPL 4337929 Contact Us For Availability
1
Wire Harness (Main) WPL 4338650 Contact Us For Availability
2
Retainer, Insul. WPL 4333934 Contact Us For Availability
2
Flag Terminal WPL 4325035 Contact Us For Availability
2
Seal, Door WPL 4342634 Contact Us For Availability
3
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
3
Relay Board WPL 4338265 Contact Us For Availability
3
Insulation, Light WPL 4353890 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 4325036 Contact Us For Availability
3
Washer WPL 4323206 Contact Us For Availability
4
Handle, Lock WPL 4338045 Contact Us For Availability
4
Back, Main WPL 4337715 Contact Us For Availability
4
Fuse, Thermal WPL 4338249 Contact Us For Availability
4
Plug-Oven Door WPL 4338238 Contact Us For Availability
5
Knob, Lock Handle (Black Model) WPL 4337568 Contact Us For Availability
5
Knob, Lock Handle (White Model) WPL 4342730 Contact Us For Availability
5
Top Cover, Control Housing WPL 4338050 Contact Us For Availability
5
Side, Cabinet (Right) WPL 4333956 Contact Us For Availability
5
Side, Cabinet (Left) WPL 4338138 Contact Us For Availability
5
Seal-Oven Door WPL 4353912 Contact Us For Availability
6
Clip, Knob WPL 4335705 Contact Us For Availability
6
Control Panel (Black Model) WPL 4337721 Contact Us For Availability
6
Control Panel (White Model) WPL 4338599 Contact Us For Availability
6
Spacer (4) WPL 4331175 Contact Us For Availability
7
Lock Assembly WPL 4337490 Contact Us For Availability
7
Bracket-Control Panel WPL 4338562 Contact Us For Availability
7
Side Trim, Lt/Rt (Black Model) WPL 4337702 Contact Us For Availability
7
Side Trim, Lt/Rt (White Model) WPL 4342736 Contact Us For Availability
7
Screw No.10-32x3/8 WPL 4325101 Contact Us For Availability
8
Angle, Hinge (Lt/Rt) WPL 4333676 Contact Us For Availability
8
Insulation-Oven Door Plug WPL 4331209 Contact Us For Availability
9
Spacer WPL 4336562 Contact Us For Availability
9
Hinge Box Assembly Lt/Rt WPL 4333675 Contact Us For Availability
9
Insulation-Oven Door Lining WPL 4331210 Contact Us For Availability
10
Control, Clock/Oven WPL 4342971 Contact Us For Availability
10
Screw, 10-32x1/4 WPL 4323953 Contact Us For Availability
10
Retainer, Glass (4) WPL 4331472 Contact Us For Availability
11
Insulation (Lt/Rt) WPL 4352036 Contact Us For Availability
11
Spacer, Glass (Lt/Rt) WPL 4330933 Contact Us For Availability
12
Nut (For No.14) WPL 4324132 Contact Us For Availability
12
Screw 10-32x17/32 WPL 4323776 Contact Us For Availability
12
Screw 10-32x17/32 WPL 4327611 Contact Us For Availability
13
Plate (For No.14) WPL 4327503 Contact Us For Availability
13
Speed Nut No.10-32 WPL 4324012 Contact Us For Availability
13
Retainer-Insul. Oven Door WPL 4337673 Contact Us For Availability
14
Harness-Conduit WPL 4337730 Contact Us For Availability
14
Channel, Lt/Rt WPL 4335505 Contact Us For Availability
15
Cover, Wire WPL 4335478 Contact Us For Availability
15
Bottom, Cabinet WPL 4333962 Contact Us For Availability
15
Clamp, Glass (Lt/Rt) WPL 4329928 Contact Us For Availability
16
Washer WPL 4323979 Contact Us For Availability
16
Cushion WPL 4324217 Contact Us For Availability
17
Retainer, Insul.-Side (Lt/Rt) WPL 4338136 Contact Us For Availability
17
Frame, Black WPL 4337695 Contact Us For Availability
17
Frame, White WPL 4338292 Contact Us For Availability
18
Heat Shield, (Lt/Rt) WPL 4337717 Contact Us For Availability
18
Vent, Oven Top WPL 4338216 Contact Us For Availability
18
Handle, Black WPL 4337688 Contact Us For Availability
18
Handle, White WPL 4338478 Contact Us For Availability
19
Insulation, Back and Bottom WPL 4337725 Contact Us For Availability
19
Spacer, White WPL 4323472 Contact Us For Availability
19
Spacer, Black WPL 4323997 Contact Us For Availability
20
Trim-Control Panel (Black Model) WPL 4338052 Contact Us For Availability
20
Trim-Control Panel (White Model) WPL 4342949 Contact Us For Availability
20
Back, Cabinet WPL 4338214 Contact Us For Availability
20
Screw 6-20x3/8 (Black Model) WPL 4336048 Contact Us For Availability
20
Screw 6-20x3/8 (White Model) WPL 4338485 Contact Us For Availability
21
Insulation Cabinet Top WPL 4354913 Contact Us For Availability
21
Glass, Outer Door (Black Model) WPL 4337693 Contact Us For Availability
21
Glass, Outer Door (White Model) WPL 4338293 Contact Us For Availability
22
Bracket, Micro Switch WPL 4337430 Contact Us For Availability
22
Support, Broiler Element WPL 4334358 Contact Us For Availability
22
Washer WPL 4337618 Contact Us For Availability
23
Cover Plate, Lock WPL 4342735 Contact Us For Availability
23
Retainer, Top Insulation WPL 4336891 Contact Us For Availability
23
Screw No.10 x 3/4 WPL 4323387 Contact Us For Availability
24
Top, Cabinet WPL 4338047 Contact Us For Availability
24
Glass-Intermediate WPL 4330053 Contact Us For Availability
25
Retainer, Oven Top Insulation WPL 4333936 Contact Us For Availability
26
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
26
Insulation, Oven Top & Sides (1 Pc) WPL 4353887 Contact Us For Availability
26
Screw 6-32x1/4 WPL 4327216 Contact Us For Availability
27
Micro Switch WPL 4337399 Contact Us For Availability
27
Raceway WPL 4334604 Contact Us For Availability
27
Baffle-Door Lining WPL 4337672 Contact Us For Availability
28
End Cap (Left-Black) WPL 4337790 Contact Us For Availability
28
End Cap (Right-Black) WPL 4337791 Contact Us For Availability
28
End Cap (Left-White) WPL 4338474 Contact Us For Availability
28
End Cap (Right-White) WPL 4338475 Contact Us For Availability
28
Frame, Front WPL 4338139 Contact Us For Availability
28
Glass-Door Center WPL 4327671 Contact Us For Availability
29
Sensor WPL 4337170 Contact Us For Availability
29
Retainer, Glass WPL 4333949 Contact Us For Availability
30
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
30
Cover WPL 4329206 Contact Us For Availability
30
Hinge-Door (Lt/Rt) WPL 4336474 Contact Us For Availability
31
Screw (Black Model) WPL 4333427 Contact Us For Availability
31
Screw (White Model) WPL 4338600 Contact Us For Availability
31
Stiffener, Lining WPL 4338250 Contact Us For Availability
32
Lens, Clock WPL 4337361 Contact Us For Availability
32
Oven Body WPL 4337685 Contact Us For Availability
32
Lining-Oven Door WPL 4336626 Contact Us For Availability
33
Knob, Clock (Black Model) WPL 4338513 Contact Us For Availability
33
Knob, Clock (White Model) WPL 4338635 Contact Us For Availability
33
Lower Trim (Black Model) WPL 4337705 Contact Us For Availability
33
Lower Trim (White Model) WPL 4338482 Contact Us For Availability
33
Glass-Inner WPL 4337767 Contact Us For Availability
34
Screw, No.10 x 1 WPL 4350930 Contact Us For Availability
35
Screw No.10-32x5/8 WPL 4337728 Contact Us For Availability
36
Washer, Fiber WPL 4336868 Contact Us For Availability
37
Switch (White Model) WPL 4338536 Contact Us For Availability
37
Seal-Oven Light WPL 4324481 Contact Us For Availability
37
Spacer WPL 4336869 Contact Us For Availability
38
Element, Bake WPL 4337607 Contact Us For Availability
38
Washer WPL 4323694 Contact Us For Availability
39
Fan Assembly WPL 4337808 Contact Us For Availability
39
Retainer, Lens WPL 4324482 Contact Us For Availability
40
Lens, Oven Lamp WPL 4324415 Contact Us For Availability
41
Clamp, Vent WPL 4335624 Contact Us For Availability
42
Tube, Oven Vent WPL 4331173 Contact Us For Availability
43
Oven Rack (2) WPL 4331177 Contact Us For Availability
44
Guide-Oven Rack (Lt/Rt) WPL 4329341 Contact Us For Availability
47
Cover Plate-Lock WPL 4336895 Contact Us For Availability
49
Screw WPL 4324445 Contact Us For Availability
50
Cover Plate WPL 4338202 Contact Us For Availability
× ![]()
