Model Whirlpool B9608B0 BUILT-IN GAS OVEN – Common Parts & Diagrams
02 - CONTROL PANEL , LIT/OPTIONAL
05 - WIRE HARNESSES AND OPTIONS

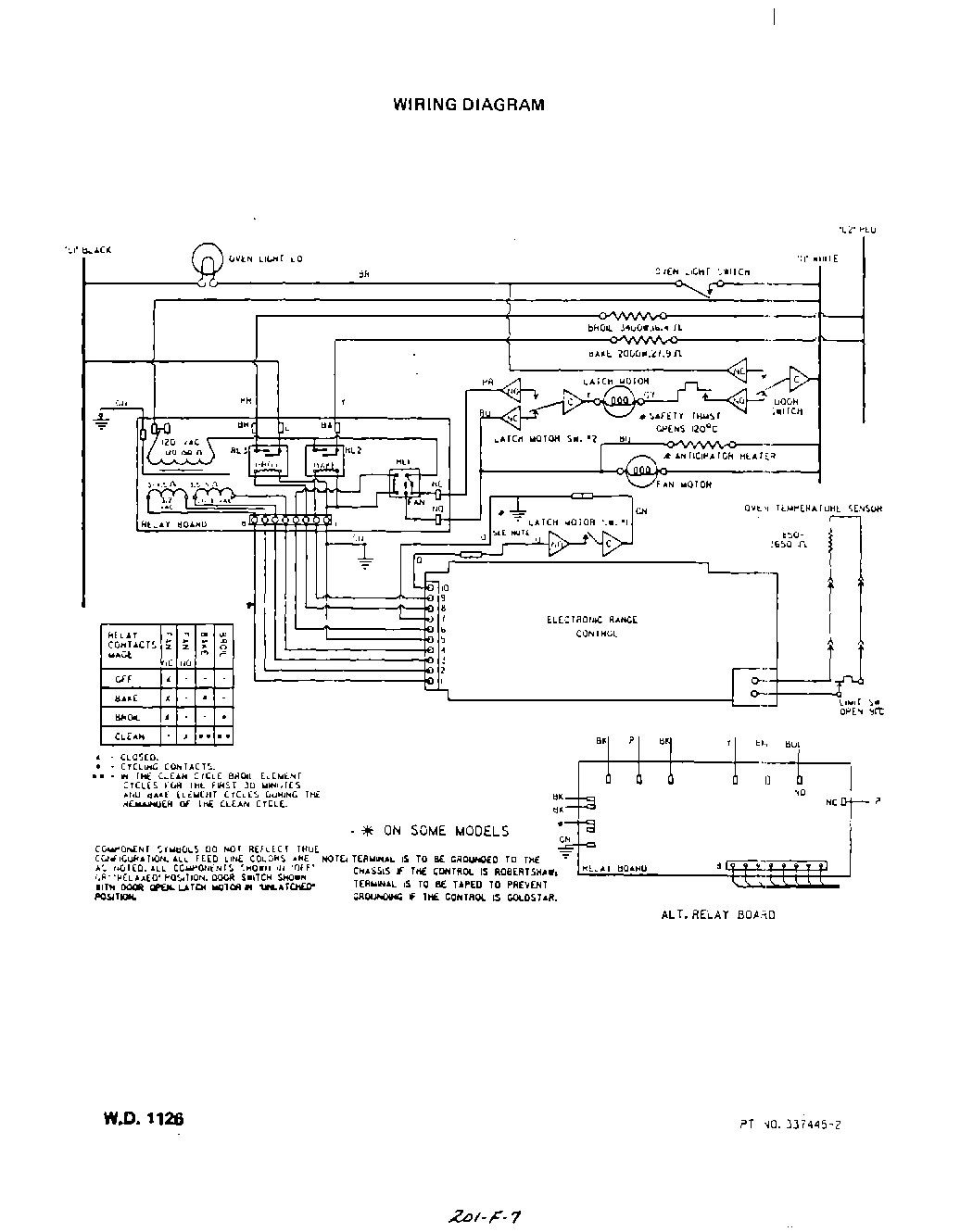

07 - WIRING DIAGRAM

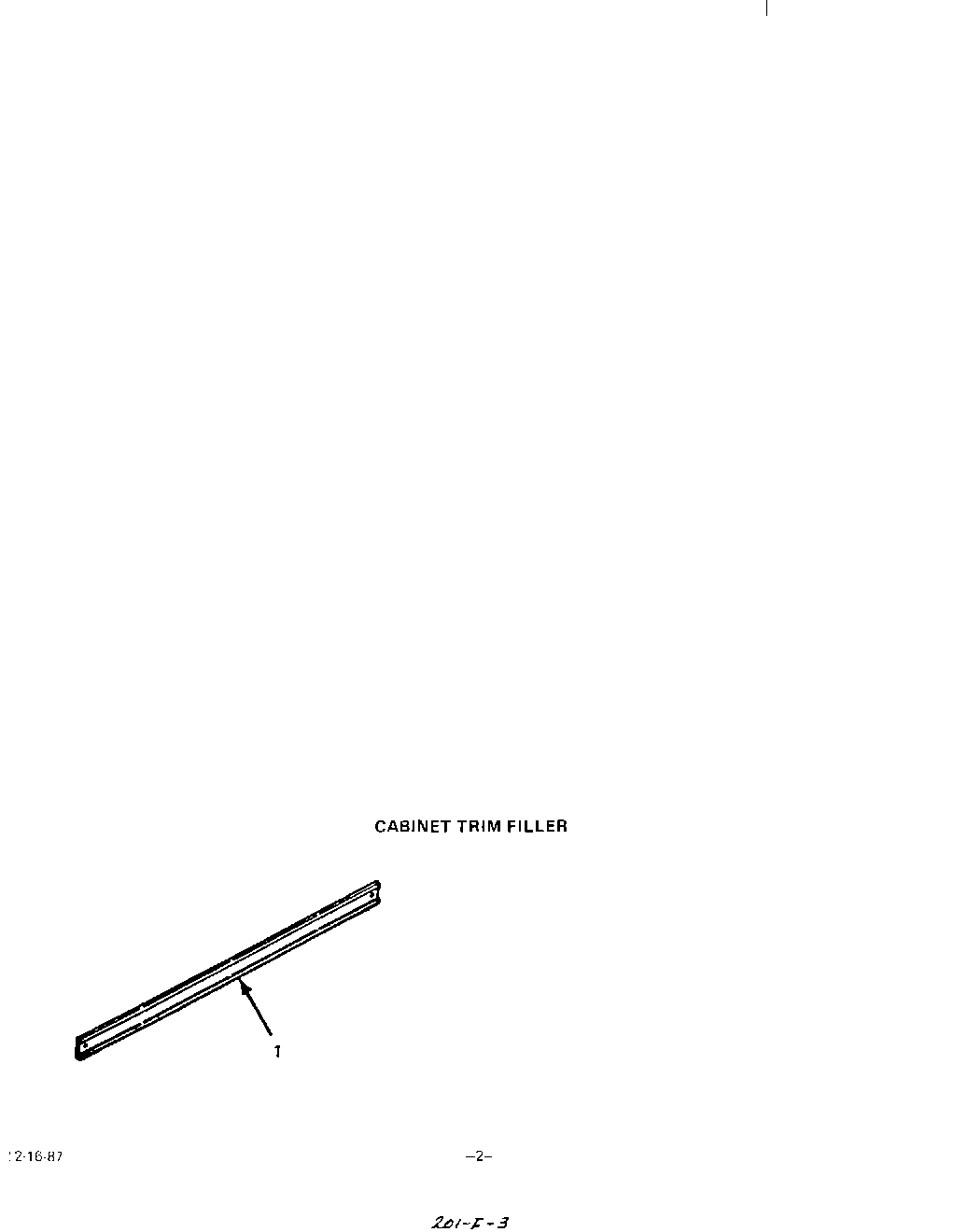

03 - CABINET TRIM FILLER

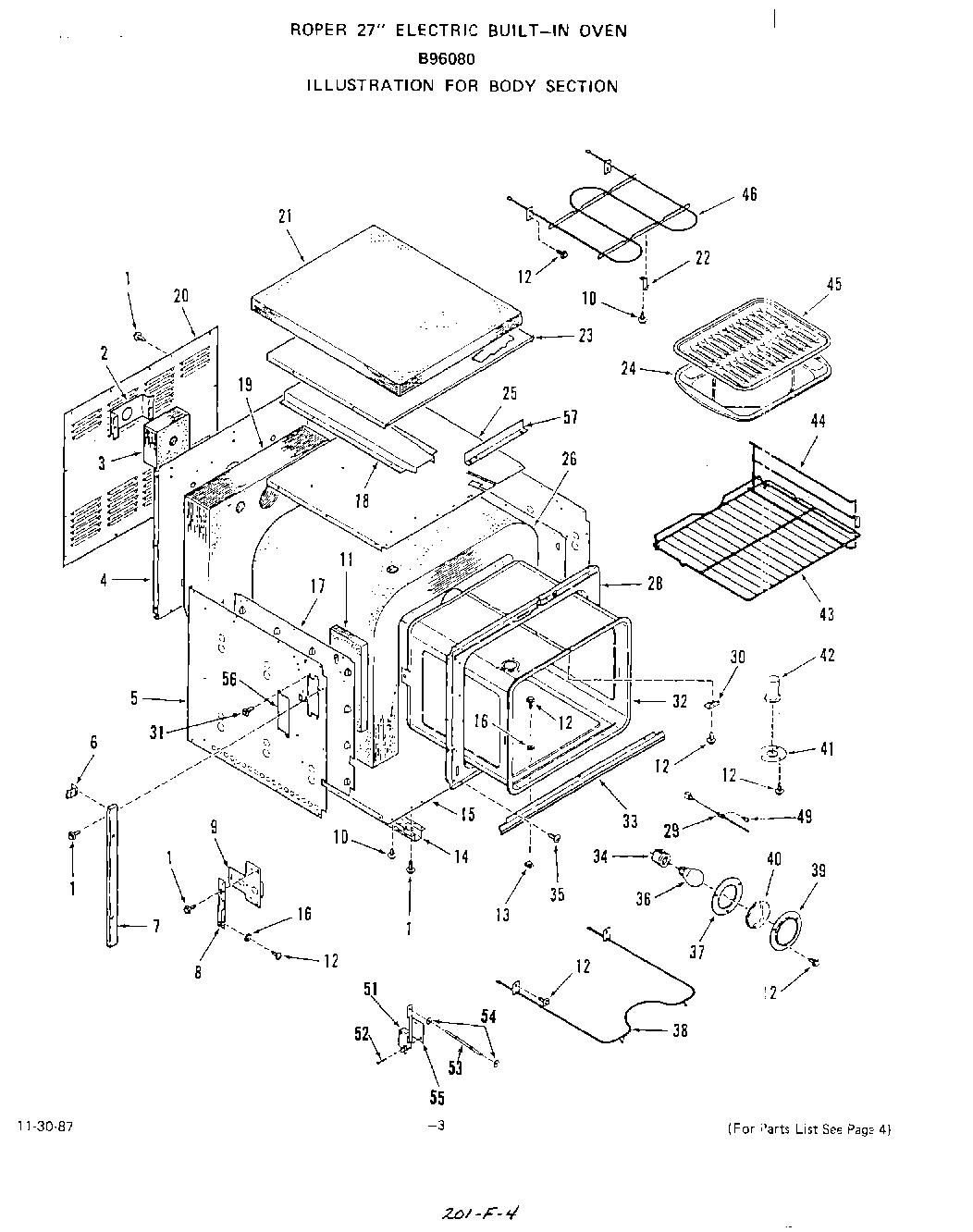

04 - BODY

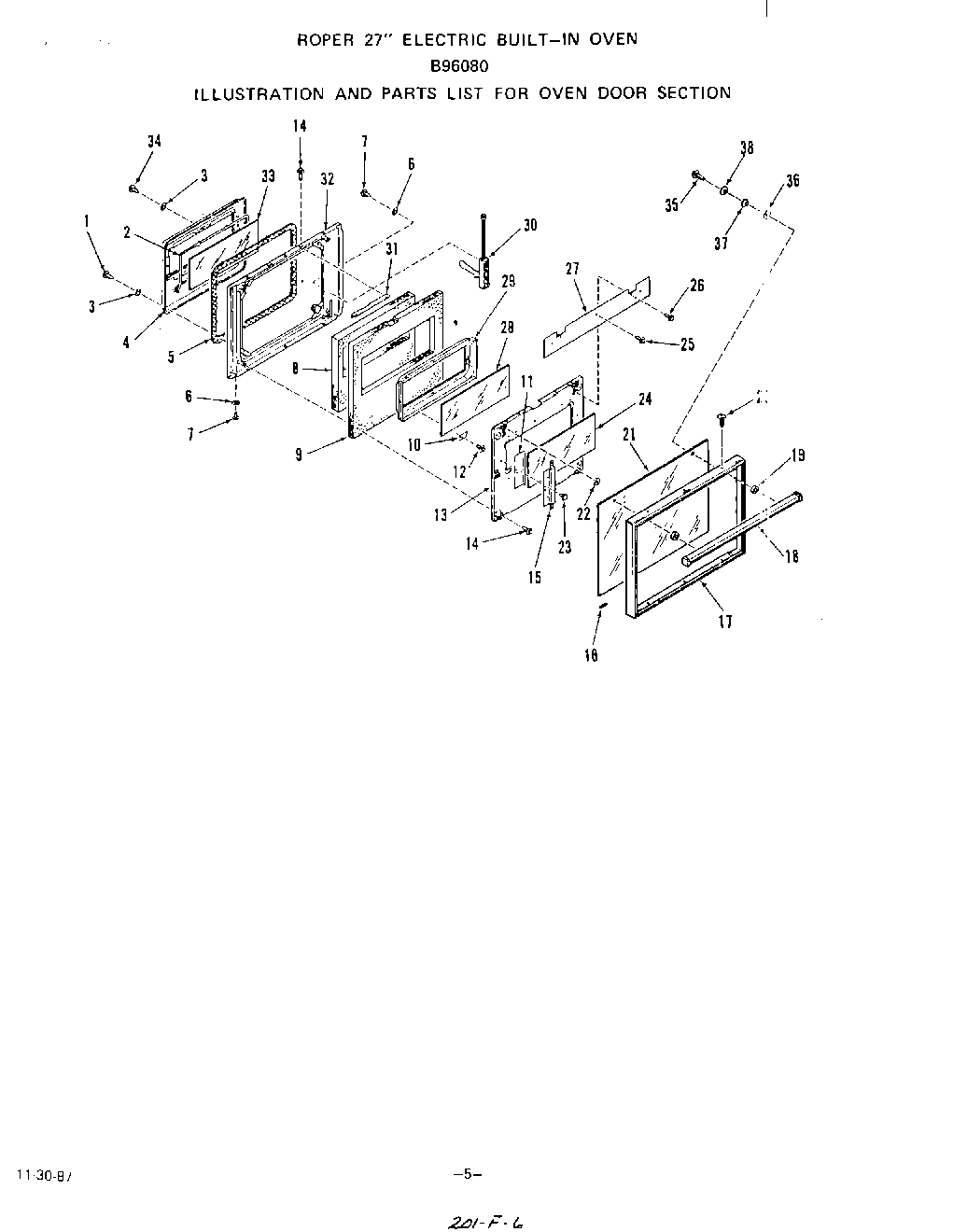

06 - OVEN DOOR
Common parts from model Whirlpool B9608B0 BUILT-IN GAS OVEN
xClock/Oven Control Lens WPL 339657 Contact Us For Availability
1
Control Housing WPL 339476 Contact Us For Availability
1
Control WPL 336304 Contact Us For Availability
1
Raley WPL 336313 Contact Us For Availability
1
Lock Switch WPL 336559 Contact Us For Availability
1
Sensor WPL 336960 Contact Us For Availability
1
Main WPL 337513 Contact Us For Availability
1
Limiter WPL 338282 Contact Us For Availability
1
Wire Harness WPL ARI20685A4 Contact Us For Availability
1
Model B9608BO WPL 338120 Contact Us For Availability
1
Model B9608WO WPL 338944 Contact Us For Availability
1
Cabinet Trim WPL ARI20679A9 Contact Us For Availability
1
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
2
Seal WPL 302935 Contact Us For Availability
3
Relay Board WPL 337672 Contact Us For Availability
3
Flag Terminal WPL 238391 Contact Us For Availability
4
3/16`` WPL 238392 Contact Us For Availability
4
1/4`` WPL 238393 Contact Us For Availability
4
Faston Terminal WPL ARI20686A2 Contact Us For Availability
4
Main Back WPL 336259 Contact Us For Availability
4
Door Plug WPL 338018 Contact Us For Availability
5
Top Cover-Control Housing WPL 337414 Contact Us For Availability
5
Right WPL 323716 Contact Us For Availability
5
Left WPL 337731 Contact Us For Availability
5
Cabinet Side WPL ARI20680A2 Contact Us For Availability
5
Gasket WPL 311873 Contact Us For Availability
6
Model B9608BO WPL 336280 Contact Us For Availability
6
Model B9608WO WPL 339699 Contact Us For Availability
6
Control Panel WPL ARI20673A7 Contact Us For Availability
6
Spacer WPL ARI20681A7 Contact Us For Availability
6
Washer WPL 21067 Contact Us For Availability
7
Bracket Control Panel WPL 336563 Contact Us For Availability
7
Model B9608BO WPL 336238 Contact Us For Availability
7
Model B9608WO WPL 339698 Contact Us For Availability
7
Side Trim Lt. or Rt. WPL ARI20682A5 Contact Us For Availability
7
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
8
Hinge Angle-Lt. or Rt. WPL 322611 Contact Us For Availability
8
Plug Insulation WPL 311872 Contact Us For Availability
9
Relay Board Spacer WPL 331469 Contact Us For Availability
9
Hinge Box-Lt. or Rt. WPL 322609 Contact Us For Availability
9
Lining Insulation WPL 311874 Contact Us For Availability
10
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
10
Glass Retainer (4 Req) WPL 312888 Contact Us For Availability
11
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
11
Glass Spacer (Lt. or Rt.) WPL 310929 Contact Us For Availability
12
Nut (For Key 14) WPL 110340 Contact Us For Availability
12
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
12
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Plate (For Key 14) WPL 294983 Contact Us For Availability
13
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
13
Insulation Retainer WPL 336112 Contact Us For Availability
14
Bottom Channel-Lt. or Rt. WPL 338208 Contact Us For Availability
15
Wire Cover WPL 336780 Contact Us For Availability
15
Cabinet Bottom WPL 323740 Contact Us For Availability
16
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
16
Washer WPL 106462 Contact Us For Availability
16
Cushion WPL 112370 Contact Us For Availability
17
Insulation Retainer-Oven Side (Lt. or Rt.) WPL 337729 Contact Us For Availability
17
Model B9608BO WPL 336211 Contact Us For Availability
17
Model B9608WO WPL 338245 Contact Us For Availability
17
Door Frame WPL ARI20687A9 Contact Us For Availability
18
Heat Shield (Lt. or Rt.) WPL 336275 Contact Us For Availability
18
Top Oven Vent Box WPL 337944 Contact Us For Availability
18
Model B9608BO WPL 336204 Contact Us For Availability
18
Model B9608WO WPL 338939 Contact Us For Availability
18
Door Handle WPL ARI20688A2 Contact Us For Availability
19
Insulation-Oven Back & Bottom WPL 336287 Contact Us For Availability
19
Model B9608BO WPL 107158 Contact Us For Availability
19
Model B9608WO WPL 77365 Contact Us For Availability
19
Spacer WPL ARI20689A4 Contact Us For Availability
20
Model B9608BO WPL 336246 Contact Us For Availability
20
Model B9608WO WPL 338934 Contact Us For Availability
20
Trim WPL ARI20674A1 Contact Us For Availability
20
Model B9608BO WPL 329382 Contact Us For Availability
20
Model B9608WO WPL 338953 Contact Us For Availability
20
Screw WPL ARI20690A3 Contact Us For Availability
21
Insulation-Cabinet Top WPL 336580 Contact Us For Availability
21
Model B9608BO WPL 336209 Contact Us For Availability
21
Model B9608WO WPL 338246 Contact Us For Availability
21
Outer Door Glass WPL ARI20691A2 Contact Us For Availability
22
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
22
Broiler Element Support WPL 324809 Contact Us For Availability
23
Lock Motor Asm WPL 338249 Contact Us For Availability
23
Insulation Retainer-Cabinet Top WPL 337727 Contact Us For Availability
23
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
24
Cabinet Top WPL 337725 Contact Us For Availability
24
Broiler Pan WPL 331592 Contact Us For Availability
24
Intermediate Door Glass WPL 308239 Contact Us For Availability
25
Insulation Retainer-Oven Top WPL 336569 Contact Us For Availability
25
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
26
Screw 8 - 32 x 3/4`` WPL 103436 Contact Us For Availability
26
Insulation Oven Top & Sides (1 Piece) WPL 311712 Contact Us For Availability
26
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
27
Lock Lever WPL 337971 Contact Us For Availability
27
Baffle WPL 336111 Contact Us For Availability
28
Left (Model B9608BO) WPL 336511 Contact Us For Availability
28
Right (Model B9608BO) WPL 336512 Contact Us For Availability
28
Left (Model B9608WO) WPL 338935 Contact Us For Availability
28
Right (Model B9608WO) WPL 338936 Contact Us For Availability
28
End Cap WPL ARI20675A8 Contact Us For Availability
28
Front Frame WPL 337735 Contact Us For Availability
28
Center Door Glass WPL 296214 Contact Us For Availability
29
Sensor WPL 334300 Contact Us For Availability
29
Glass Retainer WPL 323672 Contact Us For Availability
30
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
30
Cover WPL 304835 Contact Us For Availability
30
Hinge (Lt. or Rt.) WPL 331028 Contact Us For Availability
31
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
31
Model B9608BO WPL 336529 Contact Us For Availability
31
Model B9608WO WPL 339701 Contact Us For Availability
31
Screw WPL ARI20676A7 Contact Us For Availability
31
Lining Stiffener WPL 338104 Contact Us For Availability
32
Clock/Oven Control w/Lens WPL 338468 Contact Us For Availability
32
Oven Body WPL 336186 Contact Us For Availability
32
Lining WPL 331682 Contact Us For Availability
33
Model B9608BO WPL 334045 Contact Us For Availability
33
Model B9608WO WPL 339395 Contact Us For Availability
33
Clock Knob WPL ARI20677A5 Contact Us For Availability
33
Model B9608BO WPL 336242 Contact Us For Availability
33
Lower Front Trim WPL ARI20683A1 Contact Us For Availability
33
Door Inner Glass WPL 336442 Contact Us For Availability
34
Bulb Holder WPL 87883 Contact Us For Availability
34
Screw 10ABx1 WPL 105799 Contact Us For Availability
35
Model B9608BO WPL 336296 Contact Us For Availability
35
Model B9608WO WPL 338954 Contact Us For Availability
35
Screw WPL ARI20684A8 Contact Us For Availability
35
Screw WPL 300864 Contact Us For Availability
36
Oven Bulb WPL 111257 Contact Us For Availability
36
Washer WPL 333014 Contact Us For Availability
37
Model B9608BO WPL 334649 Contact Us For Availability
37
Model B9608WO WPL 339394 Contact Us For Availability
37
Rocker Switch WPL ARI20678A2 Contact Us For Availability
37
Light Gasket WPL 229371 Contact Us For Availability
37
Spacer WPL 333015 Contact Us For Availability
38
Bake Element WPL 335914 Contact Us For Availability
38
Washer WPL 99279 Contact Us For Availability
39
Fan WPL 336560 Contact Us For Availability
39
Lens Retainer WPL 229372 Contact Us For Availability
40
Door Lock Plate WPL 336556 Contact Us For Availability
40
Light Lens WPL 114989 Contact Us For Availability
41
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
41
Vent Clamp WPL 328303 Contact Us For Availability
43
Oven Rack (2 Req) WPL 311735 Contact Us For Availability
44
Oven Rack Guide WPL 305350 Contact Us For Availability
45
Broiler Pan Grid WPL 326297 Contact Us For Availability
46
Broiler Element WPL 319526 Contact Us For Availability
49
Screw WPL 337857 Contact Us For Availability
50
Spring WPL 337933 Contact Us For Availability
51
Switch WPL 337711 Contact Us For Availability
52
Screw WPL 328956 Contact Us For Availability
53
Push Rod WPL 337723 Contact Us For Availability
54
Flat Washer WPL 335039 Contact Us For Availability
55
Insulation Switch Valve WPL 327770 Contact Us For Availability
56
Cover Pl WPL 337907 Contact Us For Availability
57
WPL 337922 WPL 337922 Contact Us For Availability
× ![]()
