Model Whirlpool B9458B3 BUILT-IN GAS OVEN – Common Parts & Diagrams

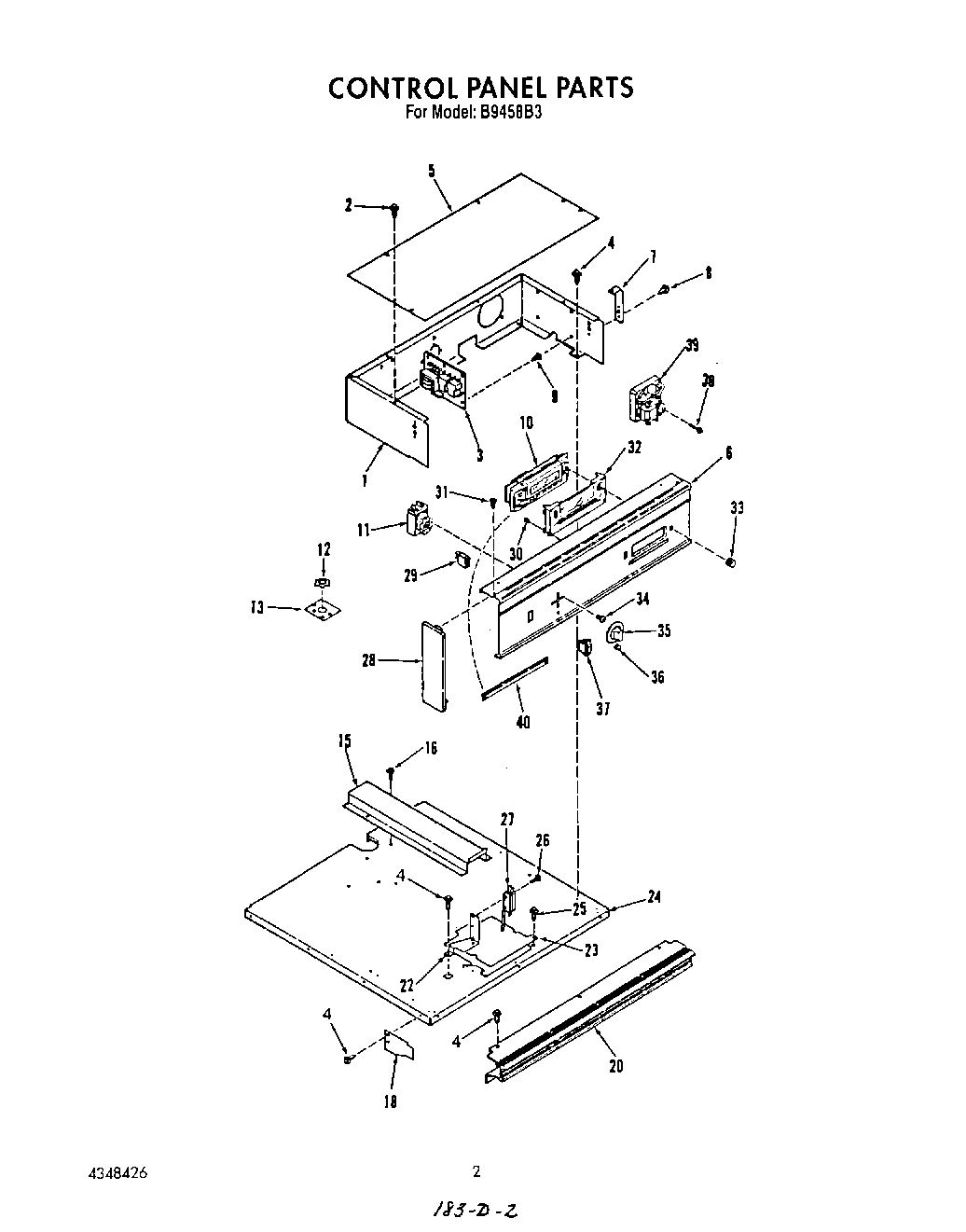

02 - CONTROL PANEL

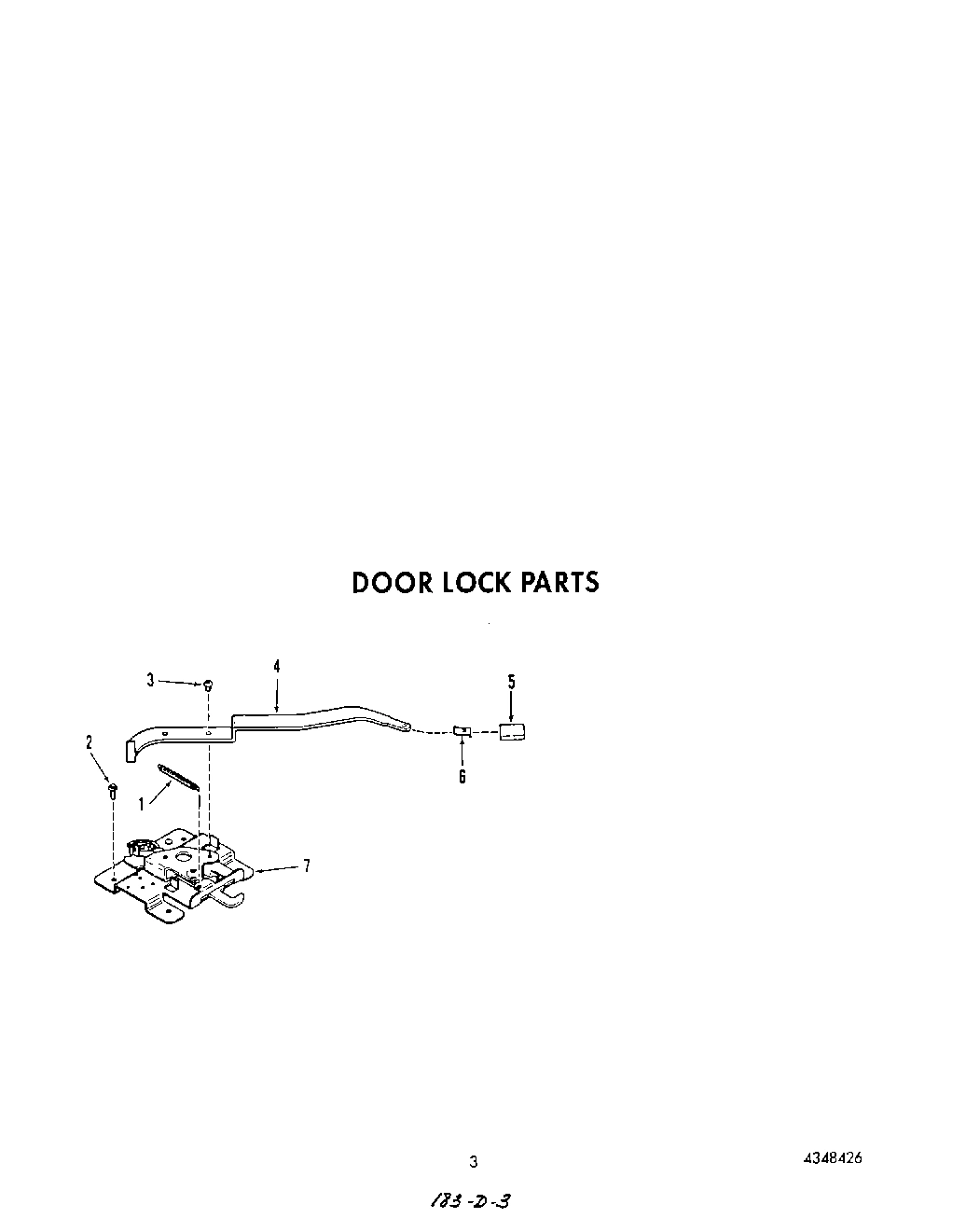

03 - DOOR LOCK
06 - LOWER DOOR
04 - LIT/OPTIONAL , OVEN
05 - UPPER DOOR
07 - WIRING DIAGRAM
Common parts from model Whirlpool B9458B3 BUILT-IN GAS OVEN
1
Control Housing WPL 4338549 Contact Us For Availability
1
Spring WPL 4331536 Contact Us For Availability
1
Plug, Door Lining WPL 4338242 Contact Us For Availability
2
Back, Cabinet WPL 4335531 Contact Us For Availability
2
Seal, Door WPL 4342634 Contact Us For Availability
3
Relay Board WPL 4338265 Contact Us For Availability
3
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
3
Insulation-Plug WPL 4354814 Contact Us For Availability
3
Retainer, Light Insulation, Upper/Lower Ovens WPL 4333934 Contact Us For Availability
4
Handle, Lock WPL 4338045 Contact Us For Availability
4
Vent Box, Rear WPL 4335560 Contact Us For Availability
4
Gasket, Oven Door WPL 4335546 Contact Us For Availability
5
Cover WPL 4338050 Contact Us For Availability
5
Knob, Lock Handle WPL 4337568 Contact Us For Availability
5
Insulation, Door Lining WPL 4354813 Contact Us For Availability
5
Spacer (6) WPL 4335524 Contact Us For Availability
6
Control Panel WPL 4337720 Contact Us For Availability
6
Clip, Knob WPL 4335705 Contact Us For Availability
6
Retainer, Insulation WPL 4337826 Contact Us For Availability
7
Bracket WPL 4338562 Contact Us For Availability
7
Lock Assembly WPL 4337490 Contact Us For Availability
8
Light Lens, Upper Oven WPL 4324415 Contact Us For Availability
8
Retainer, Door Glass (Lt/Rt) WPL 4335518 Contact Us For Availability
9
Spacer WPL 4336562 Contact Us For Availability
9
Screw, No.10-32 x 17/32 WPL 4323776 Contact Us For Availability
10
Control, Clock/Oven WPL 4342971 Contact Us For Availability
10
Door Glass, Outer WPL 4337692 Contact Us For Availability
10
Lens Retainer, Upper Oven WPL 4324482 Contact Us For Availability
11
Thermostat WPL 4333242 Contact Us For Availability
11
Cushion WPL 4324217 Contact Us For Availability
11
Seal, Oven Light, Upper Oven WPL 4324481 Contact Us For Availability
12
Nut, Conduit WPL 4324132 Contact Us For Availability
12
Door Frame WPL 4337694 Contact Us For Availability
12
Lining WPL 4338434 Contact Us For Availability
12
Spring, Oven Door (Lt/Rt) (Lower Oven) WPL 4335885 Contact Us For Availability
12
Spring, Oven Door (Lt/Rt) (Upper Oven) WPL 4335886 Contact Us For Availability
13
Plate, Service WPL 4327503 Contact Us For Availability
13
Handle WPL 4337687 Contact Us For Availability
13
Side Trim (Lt/Rt) WPL 4337710 Contact Us For Availability
14
Spacer, Handle WPL 4323997 Contact Us For Availability
14
Cover Plate (4) WPL 4335540 Contact Us For Availability
15
Cover, Wire WPL 4335478 Contact Us For Availability
15
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
15
Back WPL 4337714 Contact Us For Availability
16
Cabinet Side, (Lt/Rt) WPL 4338169 Contact Us For Availability
16
Glass, Intermediate WPL 4335509 Contact Us For Availability
17
Insulation, Lamp (Upper/Lower) WPL 4353890 Contact Us For Availability
17
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
18
Heat Shield, (Lt/Rt) WPL 4337717 Contact Us For Availability
18
Retainer, Cabinet Top Insulation WPL 4336890 Contact Us For Availability
18
Retainer, Door Glass (4) WPL 4334791 Contact Us For Availability
19
Glass, Center WPL 4335508 Contact Us For Availability
19
Insulation, Cabinet Top WPL 4337815 Contact Us For Availability
20
Trim, Control Panel WPL 4338051 Contact Us For Availability
20
Vent Box WPL 4337876 Contact Us For Availability
20
Support, Lining WPL 4338250 Contact Us For Availability
21
Retainer, Oven Top Insulation WPL 4335464 Contact Us For Availability
22
Bracket, Micro Switch WPL 4337430 Contact Us For Availability
22
Retainer, Oven Side Insulation WPL 4335530 Contact Us For Availability
22
Lining WPL 4338084 Contact Us For Availability
23
Cover Plate-Lock WPL 4336895 Contact Us For Availability
23
Retainer, Bottom Insulation (Upper Oven) WPL 4335463 Contact Us For Availability
23
Glass, Inner WPL 4335506 Contact Us For Availability
24
Top, Cabinet WPL 4338046 Contact Us For Availability
24
Trim, Center Front WPL 4343064 Contact Us For Availability
25
Washer WPL 4323694 Contact Us For Availability
25
Retainer, Oven Top Insulation, (Lower Oven) WPL 4335461 Contact Us For Availability
26
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
26
Spacer, Glass WPL 4336869 Contact Us For Availability
26
Retainer, Door Spring Insulation (Lt/Rt) WPL 4338372 Contact Us For Availability
27
Micro Switch, Lock WPL 4337399 Contact Us For Availability
27
Washer, Fiber WPL 4336868 Contact Us For Availability
27
Cabinet Bottom WPL 4335458 Contact Us For Availability
28
End Cap (Left) WPL 4337790 Contact Us For Availability
28
End Cap (Right) WPL 4337791 Contact Us For Availability
28
Hinge (Right (2)) WPL 4338609 Contact Us For Availability
28
Hinge (Left (2)) WPL 4338610 Contact Us For Availability
29
Indicator Light WPL 4336634 Contact Us For Availability
29
Screw No.10-32x5/8 WPL 4324201 Contact Us For Availability
30
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
30
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
31
Screw, No.10-32 x 1/2 WPL 4333427 Contact Us For Availability
32
Lens, Clock WPL 4337361 Contact Us For Availability
32
Channel, Lt/Rt WPL 4335505 Contact Us For Availability
33
Knob, Clock WPL 4338513 Contact Us For Availability
33
Washer WPL 4323979 Contact Us For Availability
34
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
34
Insulation, Top & Sides (1 Pc) (Upper/Lower) WPL 4354810 Contact Us For Availability
35
Knob, Thermostat WPL 4337726 Contact Us For Availability
35
Bracket (2) WPL 4331687 Contact Us For Availability
36
Lock Cover Plate WPL 4333941 Contact Us For Availability
38
Raceway WPL 4334604 Contact Us For Availability
39
Fan Assembly WPL 4337808 Contact Us For Availability
39
Front Frame (Upper) WPL 4338300 Contact Us For Availability
40
Stiffener, Clock WPL 4338402 Contact Us For Availability
40
Cover WPL 4329206 Contact Us For Availability
41
Oven Body (Upper) WPL 4337686 Contact Us For Availability
42
Front Frame (Lower) WPL 4338301 Contact Us For Availability
43
Seal, Door Top (Lower) WPL 4335832 Contact Us For Availability
44
Seal, Door Sides (Lower) Rt/Lt WPL 4335978 Contact Us For Availability
45
Ov WPL 4336613 Contact Us For Availability
46
WPL 4337706 WPL 4337706 Contact Us For Availability
47
WPL 4335541 WPL 4335541 Contact Us For Availability
48
WPL 4335624 WPL 4335624 Contact Us For Availability
49
WPL 4327463 WPL 4327463 Contact Us For Availability
50
WPL 4326912 WPL 4326912 Contact Us For Availability
51
WPL 4331173 WPL 4331173 Contact Us For Availability
52
WPL 4324951 WPL 4324951 Contact Us For Availability
54
WPL 4335557 WPL 4335557 Contact Us For Availability
57
WPL 4334358 WPL 4334358 Contact Us For Availability
58
WPL 4323394 WPL 4323394 Contact Us For Availability
59
WPL 4335542 WPL 4335542 Contact Us For Availability
60
WPL 4354811 WPL 4354811 Contact Us For Availability
63
WPL 4337170 WPL 4337170 Contact Us For Availability
64
WPL 4338182 WPL 4338182 Contact Us For Availability
65
WPL 4338202 WPL 4338202 Contact Us For Availability
66
WPL 4338255 WPL 4338255 Contact Us For Availability
67
WPL 4325035 WPL 4325035 Contact Us For Availability
67
WPL 4325036 WPL 4325036 Contact Us For Availability
67
WPL 4337729 WPL 4337729 Contact Us For Availability
67
WPL 4337736 WPL 4337736 Contact Us For Availability
67
WPL 4337929 WPL 4337929 Contact Us For Availability
67
WPL 4338249 WPL 4338249 Contact Us For Availability
67
WPL 4348175 WPL 4348175 Contact Us For Availability
67
WPL 4348176 WPL 4348176 Contact Us For Availability
67
WPL 4348426 WPL 4348426 Contact Us For Availability
× ![]()
