Model Whirlpool B9308W0 BUILT-IN GAS OVEN – Common Parts & Diagrams
06 - WIRING DIAGRAM
04 - WIRING HARNESS
05 - OVEN DOOR

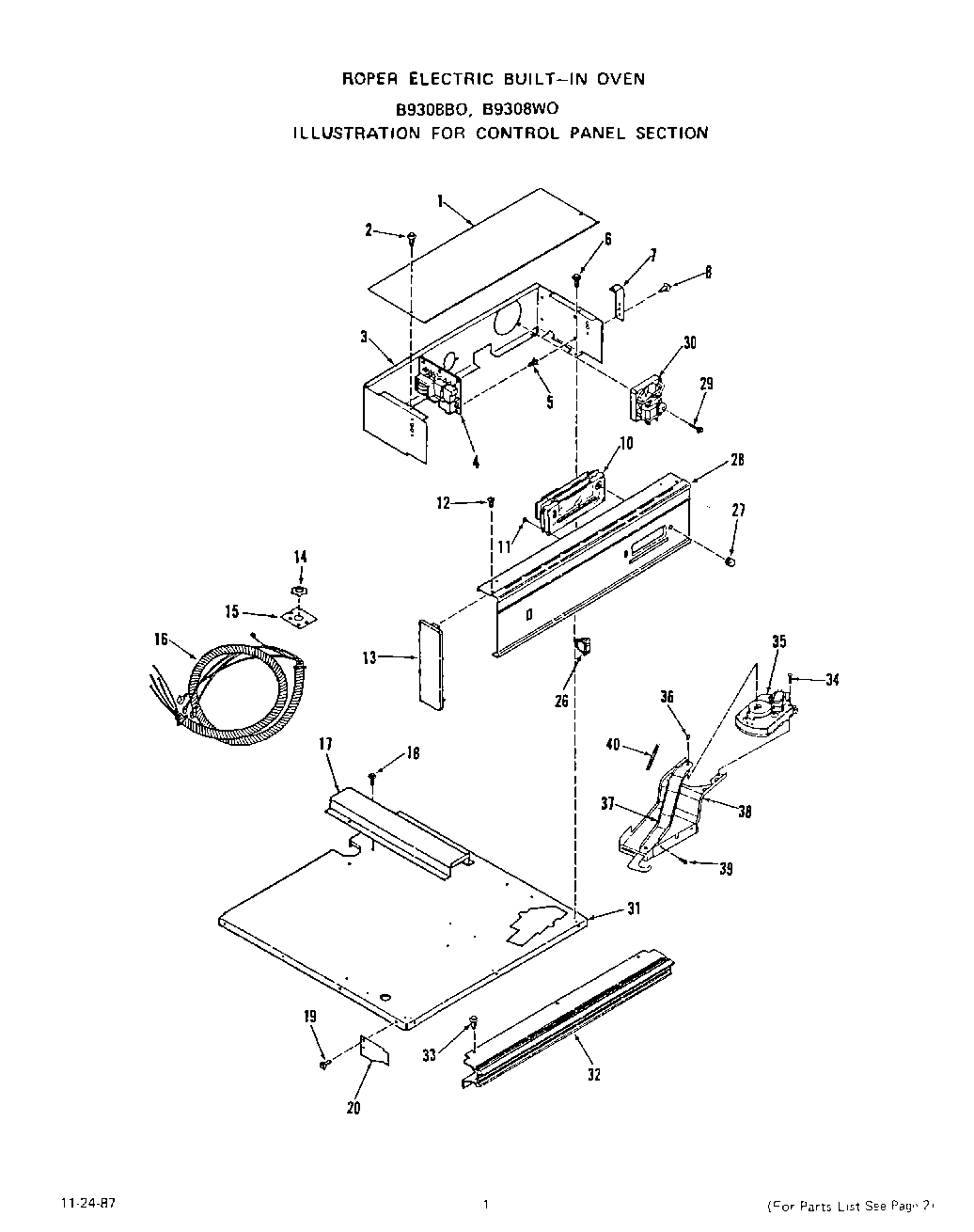

02 - CONTROL PANEL, LIT/OPTIONAL

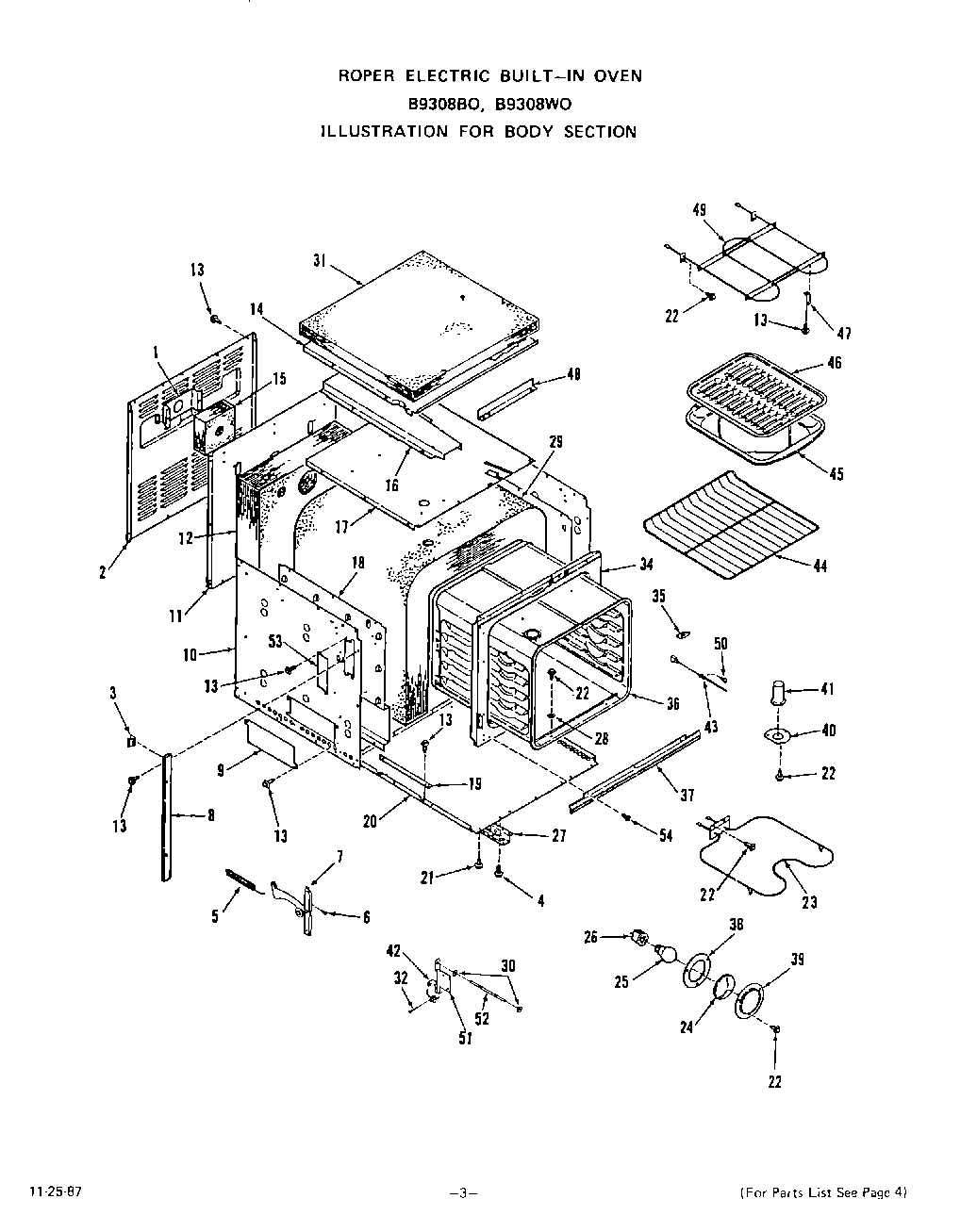

03 - BODY
Common parts from model Whirlpool B9308W0 BUILT-IN GAS OVEN
1
Wire Harness (Relay) WPL 336313 Contact Us For Availability
1
Wire Harness (Lock) WPL 336559 Contact Us For Availability
1
Wire Harness (Sensor) WPL 336960 Contact Us For Availability
1
Wire Harness (Main) WPL 337513 Contact Us For Availability
1
Wire Harness (Limiter) WPL 338283 Contact Us For Availability
1
Door Lining Plug WPL 338021 Contact Us For Availability
1
Top Cover WPL 337414 Contact Us For Availability
1
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
2
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
2
Cabinet Back WPL 337943 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
3
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
3
Door Plug Insulation WPL 328107 Contact Us For Availability
3
Control Housing WPL 339476 Contact Us For Availability
3
Spacer (B9308BO) WPL 328077 Contact Us For Availability
3
Spacer (B9308WO) WPL 340439 Contact Us For Availability
4
Door Gasket WPL 328123 Contact Us For Availability
4
Relay Circuit Board WPL 337672 Contact Us For Availability
5
Door Lining Insulation WPL 328106 Contact Us For Availability
5
Spacer PCB WPL 331469 Contact Us For Availability
5
Oven Door Spring (Lt. or Rt.) WPL 328961 Contact Us For Availability
6
Door Insulation Retainer WPL 336595 Contact Us For Availability
6
Screw WPL 331704 Contact Us For Availability
7
Bracket Control Panel WPL 336563 Contact Us For Availability
7
Hinge (Right) WPL 337371 Contact Us For Availability
7
Hinge (Left) WPL 337372 Contact Us For Availability
8
Door Glass Retainer (Lt. or Rt.) WPL 328064 Contact Us For Availability
8
Side Trim (Lt. or Rt.) (B9308BO) WPL 336237 Contact Us For Availability
8
Side Trim (Lt. or Rt.) (B9308WO) WPL 338941 Contact Us For Availability
9
Cover Plate WPL 328112 Contact Us For Availability
10
Outer Door Glass (Model B9308BO) WPL 336208 Contact Us For Availability
10
Outer Door Glass (Model B9308WO) WPL 338940 Contact Us For Availability
10
Clock/Oven Control w/Lens WPL 338468 Contact Us For Availability
10
Clock/Oven Control Lens WPL 339657 Contact Us For Availability
10
Cabinet Side-Lt. or Rt. WPL 337730 Contact Us For Availability
11
Cushion WPL 112370 Contact Us For Availability
11
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
11
Main Back WPL 336257 Contact Us For Availability
12
Door Frame (Model B9308BO) WPL 336210 Contact Us For Availability
12
Door Frame (Model B9308WO) WPL 338937 Contact Us For Availability
12
Screw 10-16 (Model B9308BO) WPL 336529 Contact Us For Availability
12
Screw 10-16 (Model B9308WO) WPL 338950 Contact Us For Availability
12
Insulation-Oven Back & Bottom (1 Piece) WPL 336286 Contact Us For Availability
13
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
13
Door Handle (Model B9308BO) WPL 336203 Contact Us For Availability
13
Door Handle (Model B9308WO) WPL 338938 Contact Us For Availability
13
End Cap (Left (Model B9308BO)) WPL 336511 Contact Us For Availability
13
End Cap (Right (Model B9308BO)) WPL 336512 Contact Us For Availability
13
End Cap (Left (Model B9308WO)) WPL 338935 Contact Us For Availability
13
End Cap (Right (Model B9308WO)) WPL 338936 Contact Us For Availability
14
Spacer (Model B9308BO) WPL 107158 Contact Us For Availability
14
Spacer (Model B9308WO) WPL 77365 Contact Us For Availability
14
Nut (For Key 16) WPL 110340 Contact Us For Availability
14
Insulation Retainer-Cabinet Top WPL 337726 Contact Us For Availability
15
Screw (Model B9308BO) WPL 329382 Contact Us For Availability
15
Screw (Model B9308WO) WPL 338953 Contact Us For Availability
15
Plate (For Key 16) WPL 294983 Contact Us For Availability
16
Intermediate Door Glass WPL 328046 Contact Us For Availability
16
Harness Wire Conduit WPL 336304 Contact Us For Availability
16
Vent Box WPL 336779 Contact Us For Availability
17
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
17
Wire Cover WPL 327990 Contact Us For Availability
17
Insulation Retainer-Oven Top WPL 336578 Contact Us For Availability
18
Door Glass Retainer (4 Req) WPL 326009 Contact Us For Availability
18
Insulation Retainer-Oven Side (Lt. or Rt.) WPL 338266 Contact Us For Availability
19
Center Door Glass WPL 328045 Contact Us For Availability
19
Insulation Retainer Bracket (Lt. or Rt.) WPL 328141 Contact Us For Availability
20
Door Lining Stiffener WPL 338104 Contact Us For Availability
20
Heat Shield WPL 336275 Contact Us For Availability
20
Cabinet Bottom WPL 327949 Contact Us For Availability
21
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
22
Door Lining WPL 337592 Contact Us For Availability
22
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
23
Inner Door Glass WPL 328043 Contact Us For Availability
23
Bake Element WPL 328113 Contact Us For Availability
24
Screw WPL 300864 Contact Us For Availability
24
Oven Light Lens WPL 114989 Contact Us For Availability
25
Fiber Washer WPL 333014 Contact Us For Availability
25
Oven Light Bulb WPL 111257 Contact Us For Availability
26
Glass Spacer WPL 333015 Contact Us For Availability
26
Switch (Model B9308BO) WPL 334649 Contact Us For Availability
26
Switch ((Model B9308WO)) WPL 339394 Contact Us For Availability
26
Oven Light Bulb Holder WPL 87883 Contact Us For Availability
27
Washer WPL 99279 Contact Us For Availability
27
Clock Knob (Model B9308BO) WPL 334045 Contact Us For Availability
27
Clock Knob ((Model B9308WO)) WPL 339930 Contact Us For Availability
27
Bottom Channel-Lt. or Rt. WPL 338208 Contact Us For Availability
28
Control Panel (Model B9308BO) WPL 336278 Contact Us For Availability
28
Control Panel (Model B9308WO) WPL 338987 Contact Us For Availability
28
Washer WPL 21067 Contact Us For Availability
29
Insulation-Oven Top & Sides (1 Piece) WPL 328103 Contact Us For Availability
30
Fan WPL 336560 Contact Us For Availability
30
Flat Washer WPL 335069 Contact Us For Availability
31
Cabinet Top WPL 337724 Contact Us For Availability
31
Insulation-Cabinet Top WPL 333118 Contact Us For Availability
32
Control Panel Trim (Model B9308BO) WPL 336245 Contact Us For Availability
32
Control Panel Trim (Model B9308WO) WPL 338933 Contact Us For Availability
32
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
34
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
34
Front Frame WPL 338269 Contact Us For Availability
35
Lock Motor Asm WPL 338249 Contact Us For Availability
35
Cover WPL 304835 Contact Us For Availability
36
Screw 8 - 32 x 3/4`` WPL 103436 Contact Us For Availability
36
Oven Body WPL 336190 Contact Us For Availability
37
Lock Lever WPL 337971 Contact Us For Availability
37
Lower Trim (Model B9308BO) WPL 336243 Contact Us For Availability
37
Lower Trim (Model B9308WO) WPL 338948 Contact Us For Availability
38
Door Lock Plate WPL 336556 Contact Us For Availability
38
Light Lens Gasket WPL 229371 Contact Us For Availability
39
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
39
Light Lens Retainer WPL 229372 Contact Us For Availability
40
xInstallation Guide WPL 337019 Contact Us For Availability
40
Owners Manual WPL 337084 Contact Us For Availability
40
Lock Spring WPL 337933 Contact Us For Availability
40
Repair Parts List WPL 339051 Contact Us For Availability
40
Vent Tube Clamp WPL 328303 Contact Us For Availability
42
Micro Switch WPL 337711 Contact Us For Availability
43
Sensor WPL 334300 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Broiler Element Support (2 Req) WPL 324809 Contact Us For Availability
48
Baffle WPL 337922 Contact Us For Availability
49
Broile WPL 328115 Contact Us For Availability
50
WPL 337857 WPL 337857 Contact Us For Availability
51
WPL 327770 WPL 327770 Contact Us For Availability
52
WPL 337723 WPL 337723 Contact Us For Availability
53
WPL 337907 WPL 337907 Contact Us For Availability
54
WPL 336296 WPL 336296 Contact Us For Availability
54
WPL 338954 WPL 338954 Contact Us For Availability
× ![]()
