Model Whirlpool B9308B4 BUILT-IN GAS OVEN – Common Parts & Diagrams

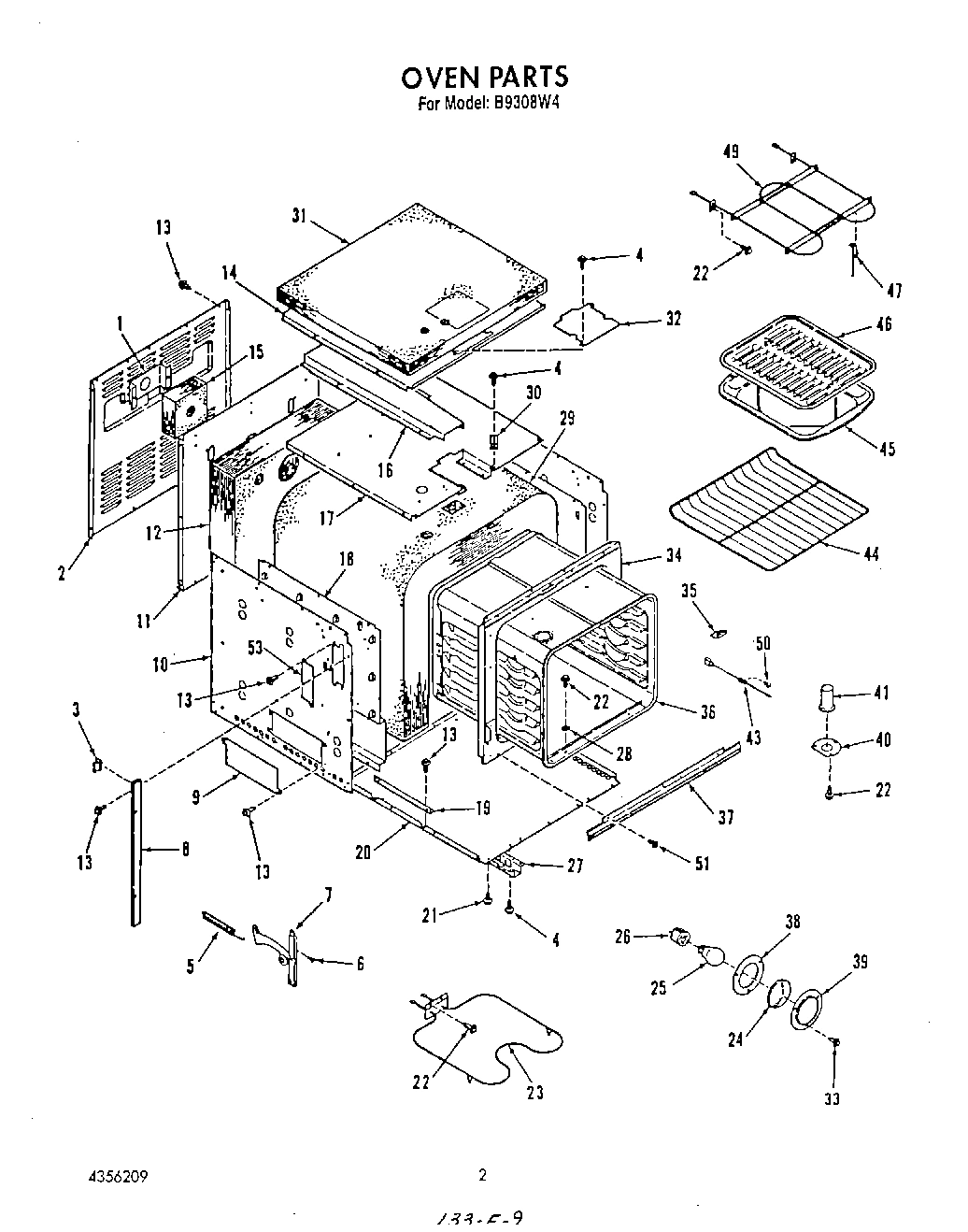

02 - OVEN

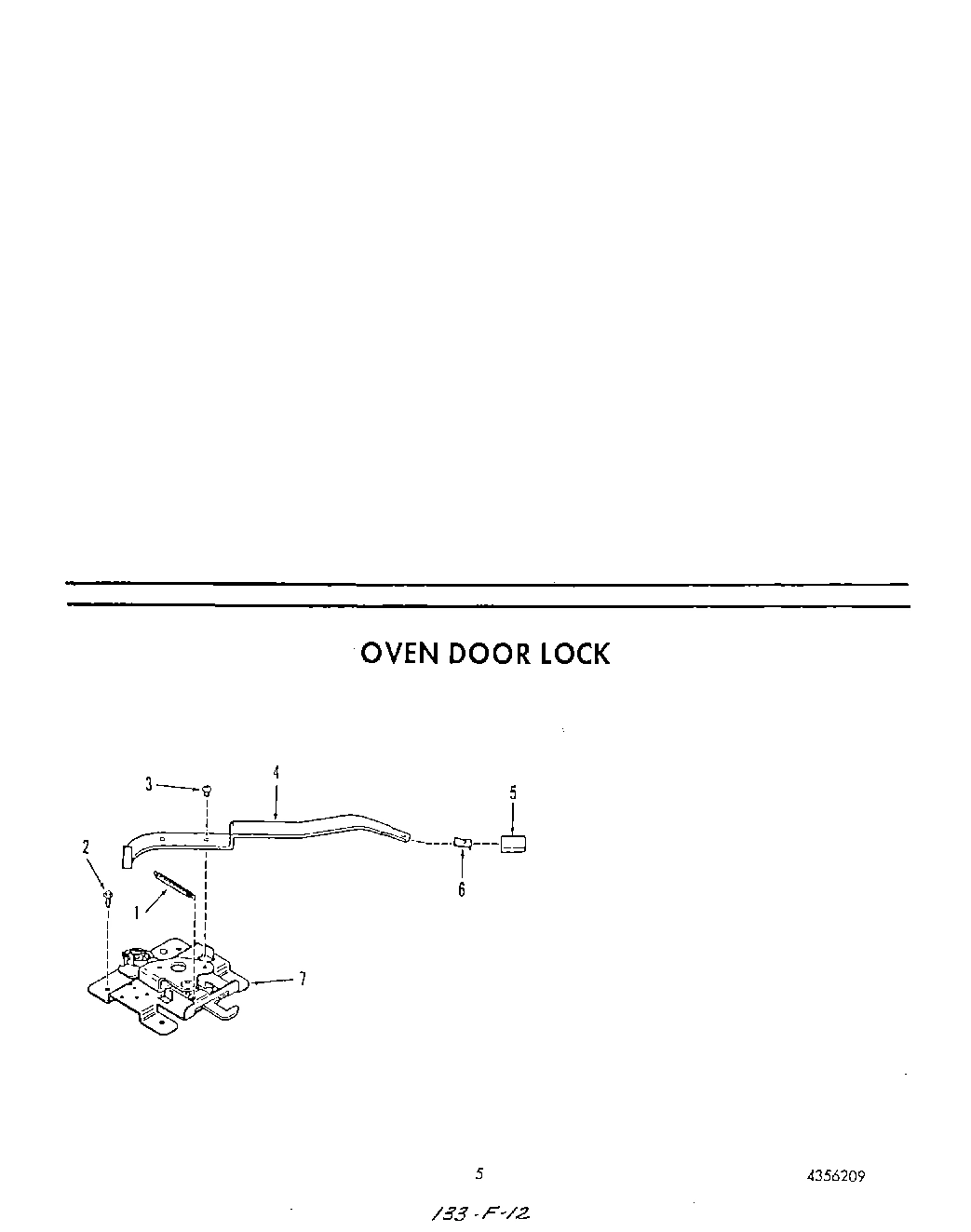

04 - OVEN DOOR LOCK

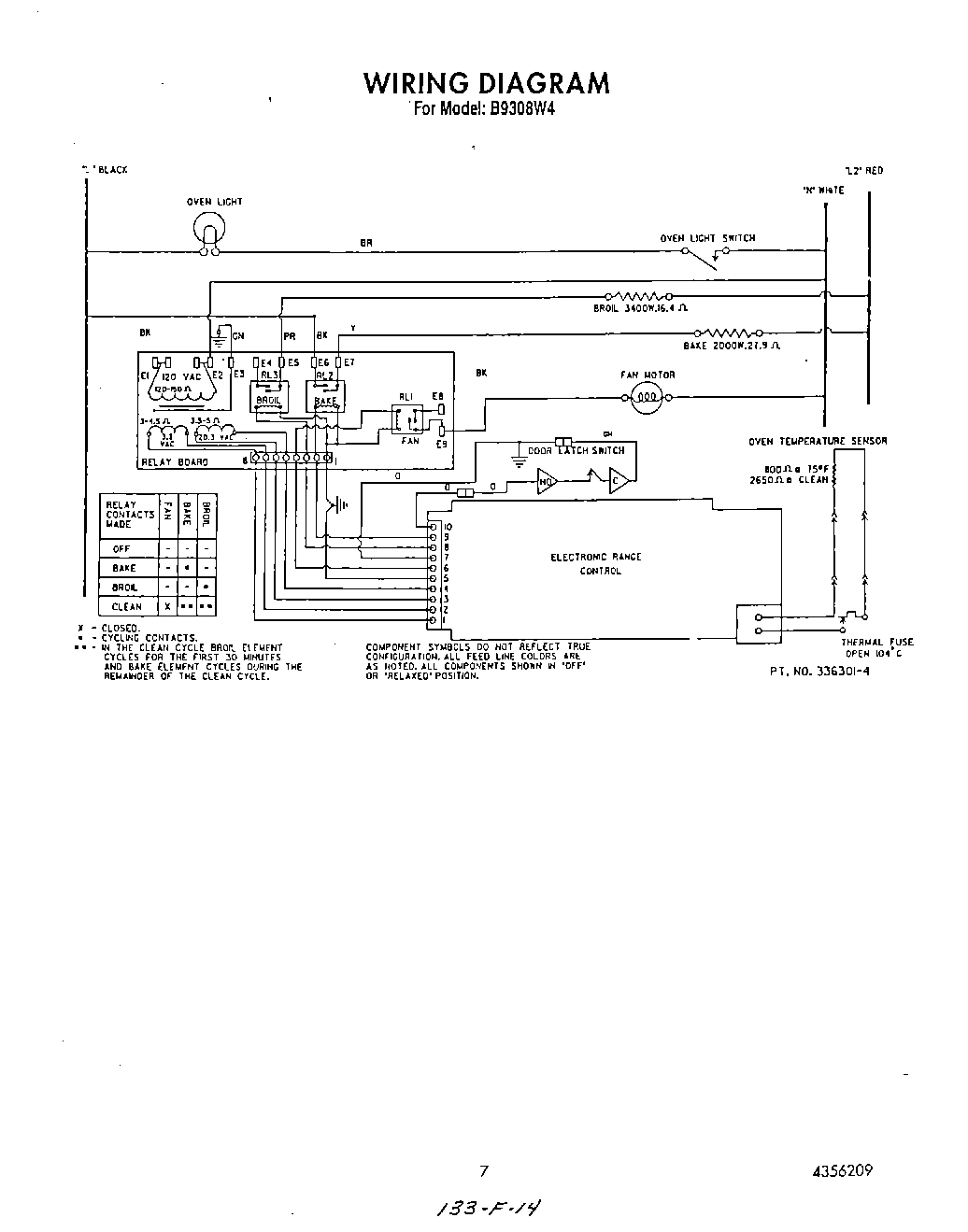

06 - WIRING DIAGRAM

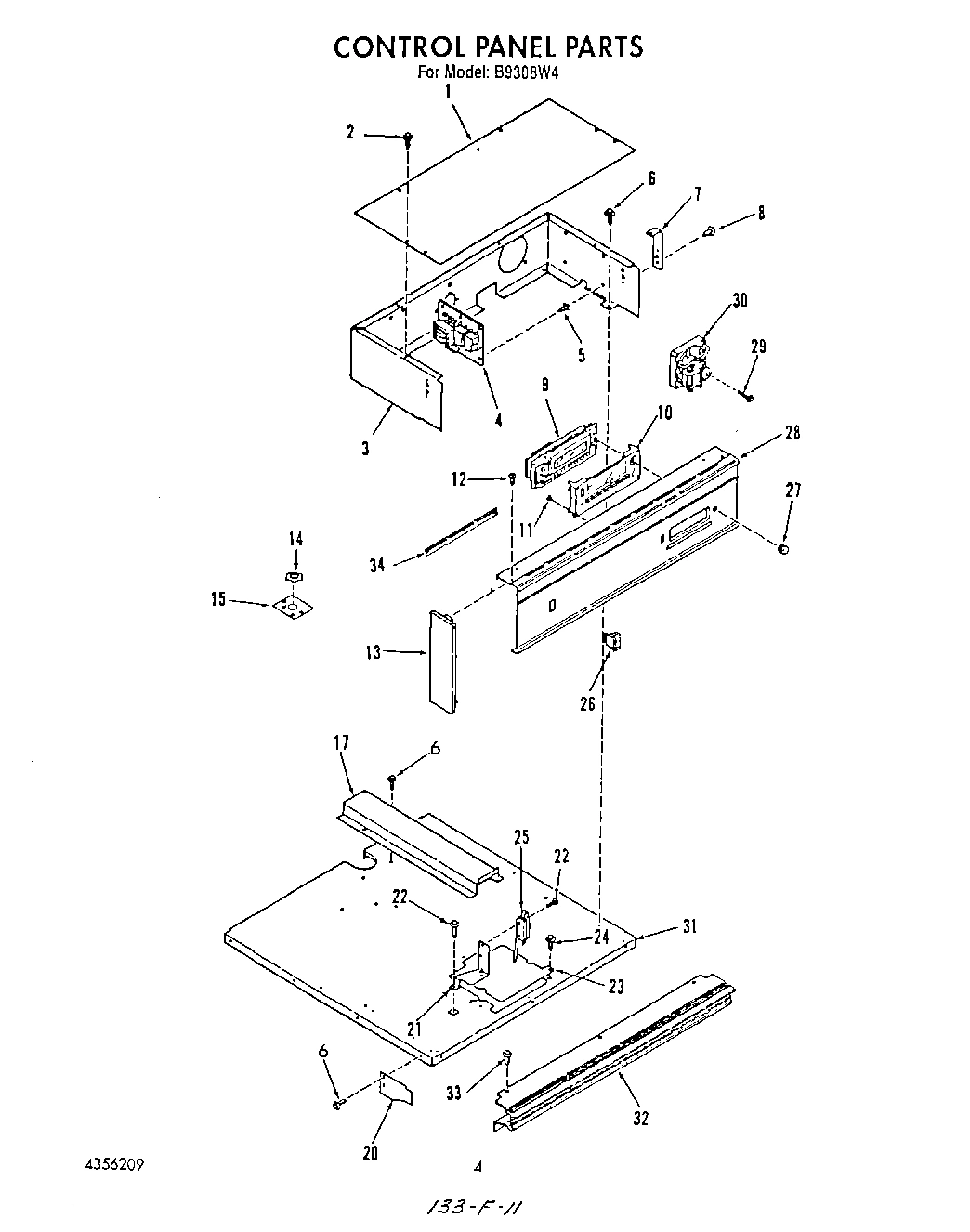

03 - CONTROL PANEL

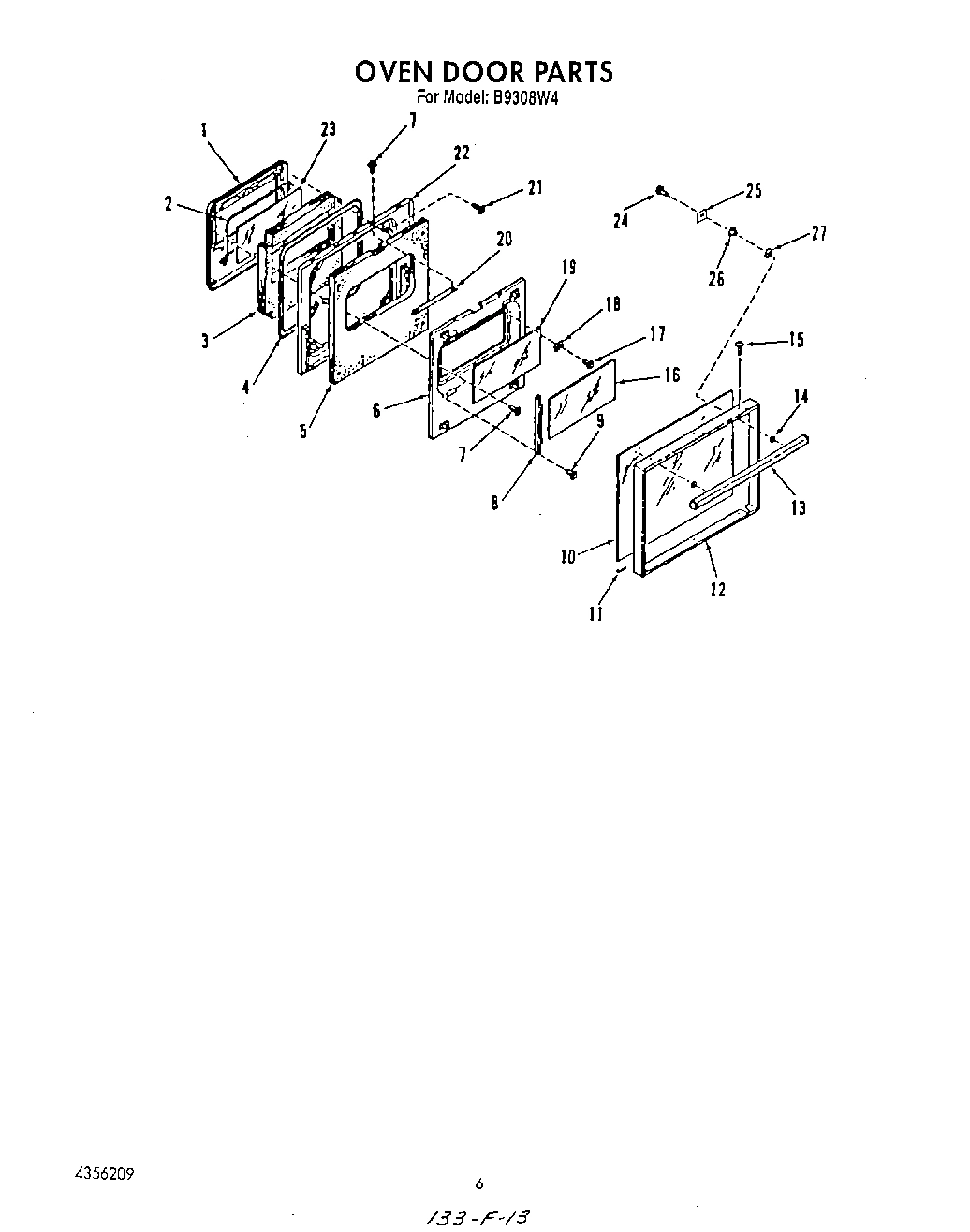

05 - OVEN DOOR
Common parts from model Whirlpool B9308B4 BUILT-IN GAS OVEN
1
Spring WPL 4331536 Contact Us For Availability
1
Cover, Top WPL 4338050 Contact Us For Availability
1
Plug, Door Lining WPL 4338241 Contact Us For Availability
2
Back, Cabinet WPL 4338215 Contact Us For Availability
2
Seal, Door WPL 4342634 Contact Us For Availability
3
Spacer (Mdl. B9308 B4) WPL 4335524 Contact Us For Availability
3
Spacer (Mdl. B9308W4) WPL 4342758 Contact Us For Availability
3
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
3
Housing, Control WPL 4338552 Contact Us For Availability
3
Insulation-Plug WPL 4354814 Contact Us For Availability
4
Handle, Lock WPL 4338045 Contact Us For Availability
4
Circuit Board WPL 4342541 Contact Us For Availability
4
Seal, Door WPL 4335546 Contact Us For Availability
5
Spring-Door (Lt/Rt) WPL 4335885 Contact Us For Availability
5
Knob-Lock Handle (Mdl. B9308B4) WPL 4337568 Contact Us For Availability
5
Knob-Lock Handle (Mdl. B9308W4) WPL 4342730 Contact Us For Availability
5
Spacer WPL 4336562 Contact Us For Availability
5
Insulation-Lining WPL 4354813 Contact Us For Availability
6
Screw WPL 4336631 Contact Us For Availability
6
Clip, Knob WPL 4335705 Contact Us For Availability
6
Retainer, Insul. WPL 4337826 Contact Us For Availability
7
Hinge (Right) WPL 4338609 Contact Us For Availability
7
Hinge (Left) WPL 4338610 Contact Us For Availability
7
Lock Assembly WPL 4337490 Contact Us For Availability
7
Bracket-Control Panel WPL 4338562 Contact Us For Availability
8
Side Trim (Lt/Rt) (Mdl. B9308B4) WPL 4337701 Contact Us For Availability
8
Side Trim (Lt/Rt) (Mdl. B9308W4) WPL 4338480 Contact Us For Availability
8
Retainer-Glass (Lt/Rt) WPL 4335518 Contact Us For Availability
9
Cover Plate WPL 4335540 Contact Us For Availability
9
Control, Clock/Oven WPL 4342971 Contact Us For Availability
10
Lens, Clock/Oven WPL 4342950 Contact Us For Availability
10
Cabinet Side (Lt/Rt) WPL 4338137 Contact Us For Availability
10
Glass, Outer Door (Mdl. B9308B4) WPL 4337692 Contact Us For Availability
10
Glass, Outer Door (Mdl. B9308W4) WPL 4338479 Contact Us For Availability
11
Cover, Rear WPL 4337713 Contact Us For Availability
11
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
11
Cushion WPL 4324217 Contact Us For Availability
12
Insulation, Back & Bottom (1 pc) WPL 4337724 Contact Us For Availability
12
Screw No.10-16 (Mdl. B9308W4) WPL 4333427 Contact Us For Availability
12
Screw No.10-16 (Mdl. B9308B4) WPL 4337797 Contact Us For Availability
12
Door Frame (Mdl. B9308B4) WPL 4337694 Contact Us For Availability
12
Door Frame (Mdl. B9308W4) WPL 4338476 Contact Us For Availability
13
End Cap (Left-Mdl.B9308B4) WPL 4337790 Contact Us For Availability
13
End Cap (Right-Mdl.B9308B4) WPL 4337791 Contact Us For Availability
13
End Cap (Left-Mdl.B9308W4) WPL 4338474 Contact Us For Availability
13
End Cap (Right-Mdl.B9308W4) WPL 4338475 Contact Us For Availability
13
Handle, Door (Mdl. B9308B4) WPL 4337687 Contact Us For Availability
13
Handle, Door (Mdl. B9308W4) WPL 4338477 Contact Us For Availability
14
Retainer-Insul. WPL 4336890 Contact Us For Availability
14
Nut (for conduit) WPL 4324132 Contact Us For Availability
14
Spacer (Mdl. B9308W4) WPL 4323472 Contact Us For Availability
14
Spacer (Mdl. B9308B4) WPL 4323997 Contact Us For Availability
15
Insul. Oven Light WPL 4353890 Contact Us For Availability
15
Plate (for conduit) WPL 4327503 Contact Us For Availability
15
Screw (Mdl. B9308B4) WPL 4336048 Contact Us For Availability
15
Screw (Mdl. B9308W4) WPL 4338485 Contact Us For Availability
16
Vent Box WPL 4337876 Contact Us For Availability
16
Glass, Intermediate WPL 4335509 Contact Us For Availability
17
Retainer, Oven Top Insulation WPL 4335464 Contact Us For Availability
17
Cover, Wire WPL 4335478 Contact Us For Availability
17
Screw 10-32x17/32 WPL 4327611 Contact Us For Availability
18
Retainer, Insul. Oven Side (Lt/Rt) WPL 4338298 Contact Us For Availability
18
Retainer-Glass (4) WPL 4334791 Contact Us For Availability
19
Bracket, Retainer (Lt/Rt) WPL 4335558 Contact Us For Availability
19
Glass-Center Door WPL 4335508 Contact Us For Availability
20
Bottom, Cabinet WPL 4335459 Contact Us For Availability
20
Heat Shield WPL 4337717 Contact Us For Availability
20
Support, Lining WPL 4338250 Contact Us For Availability
21
Bracket, Switch WPL 4337430 Contact Us For Availability
22
Screw 10-32x17/32 WPL 4323776 Contact Us For Availability
22
Screw WPL 4335220 Contact Us For Availability
22
Lining-Door WPL 4338084 Contact Us For Availability
23
Element, Bake WPL 4335541 Contact Us For Availability
23
Cover Plate-Lock WPL 4336895 Contact Us For Availability
23
Glass-Inner Door WPL 4335506 Contact Us For Availability
24
Lens, Oven Light WPL 4324415 Contact Us For Availability
24
Screw WPL 4342665 Contact Us For Availability
25
Lock-Micro Switch WPL 4337399 Contact Us For Availability
25
Retainer WPL 4342666 Contact Us For Availability
26
Switch (Mdl. B9308W4) WPL 4338536 Contact Us For Availability
26
Spacer, Glass WPL 4336869 Contact Us For Availability
27
Channel (Lt/Rt) WPL 4338286 Contact Us For Availability
27
Knob, Clock (Mdl. B9308B4) WPL 4338513 Contact Us For Availability
27
Knob, Clock (Mdl. B9308W4) WPL 4338635 Contact Us For Availability
27
Washer WPL 4336868 Contact Us For Availability
28
Washer WPL 4323979 Contact Us For Availability
28
Control Panel (Mdl. B9308B4) WPL 4337719 Contact Us For Availability
28
Control Panel (Mdl. B9308W4) WPL 4338488 Contact Us For Availability
29
Screw No.10-32x1`` WPL 4323953 Contact Us For Availability
29
Insulation-Top & Sides (1 Pc) WPL 4354810 Contact Us For Availability
30
Bracket (2) WPL 4331687 Contact Us For Availability
30
Fan WPL 4337808 Contact Us For Availability
31
Insulation-Top WPL 4354912 Contact Us For Availability
31
Top, Cabinet WPL 4338046 Contact Us For Availability
32
Trim-Control Panel (Mdl. B9308B4) WPL 4338051 Contact Us For Availability
32
Trim-Control Panel (Mdl. B9308W4) WPL 4338640 Contact Us For Availability
33
Screw (Mdl. B9308B4) WPL 4337728 Contact Us For Availability
33
Screw (Mdl. B9308W4) WPL 4338486 Contact Us For Availability
34
Frame, Front WPL 4338300 Contact Us For Availability
34
Support, Clock WPL 4338402 Contact Us For Availability
35
Cover WPL 4329206 Contact Us For Availability
36
Oven WPL 4337686 Contact Us For Availability
37
Trim, Lower (Mdl. B9308W4) WPL 4338483 Contact Us For Availability
37
Trim, Lower (Mdl. B9308B4) WPL 4338612 Contact Us For Availability
38
Seal-Oven Light WPL 4324481 Contact Us For Availability
39
Retainer, Lens WPL 4324482 Contact Us For Availability
40
Clamp, Vent Tube WPL 4335624 Contact Us For Availability
41
Vent Tube WPL 4331173 Contact Us For Availability
43
Sensor WPL 4337170 Contact Us For Availability
44
Oven Rack (2) WPL 4335557 Contact Us For Availability
47
Support-Broiler Element (2) WPL 4334358 Contact Us For Availability
49
Element, Broiler WPL 4335542 Contact Us For Availability
50
Screw WPL 4324445 Contact Us For Availability
51
Trim Screw (Mdl. B9308W4) WPL 4338484 Contact Us For Availability
53
Wire Harness (Flag Terminal 1/4 WPL 4325035 Contact Us For Availability
53
WPL 4325036 WPL 4325036 Contact Us For Availability
53
WPL 4337929 WPL 4337929 Contact Us For Availability
53
WPL 4337930 WPL 4337930 Contact Us For Availability
53
WPL 4338202 WPL 4338202 Contact Us For Availability
× ![]()
