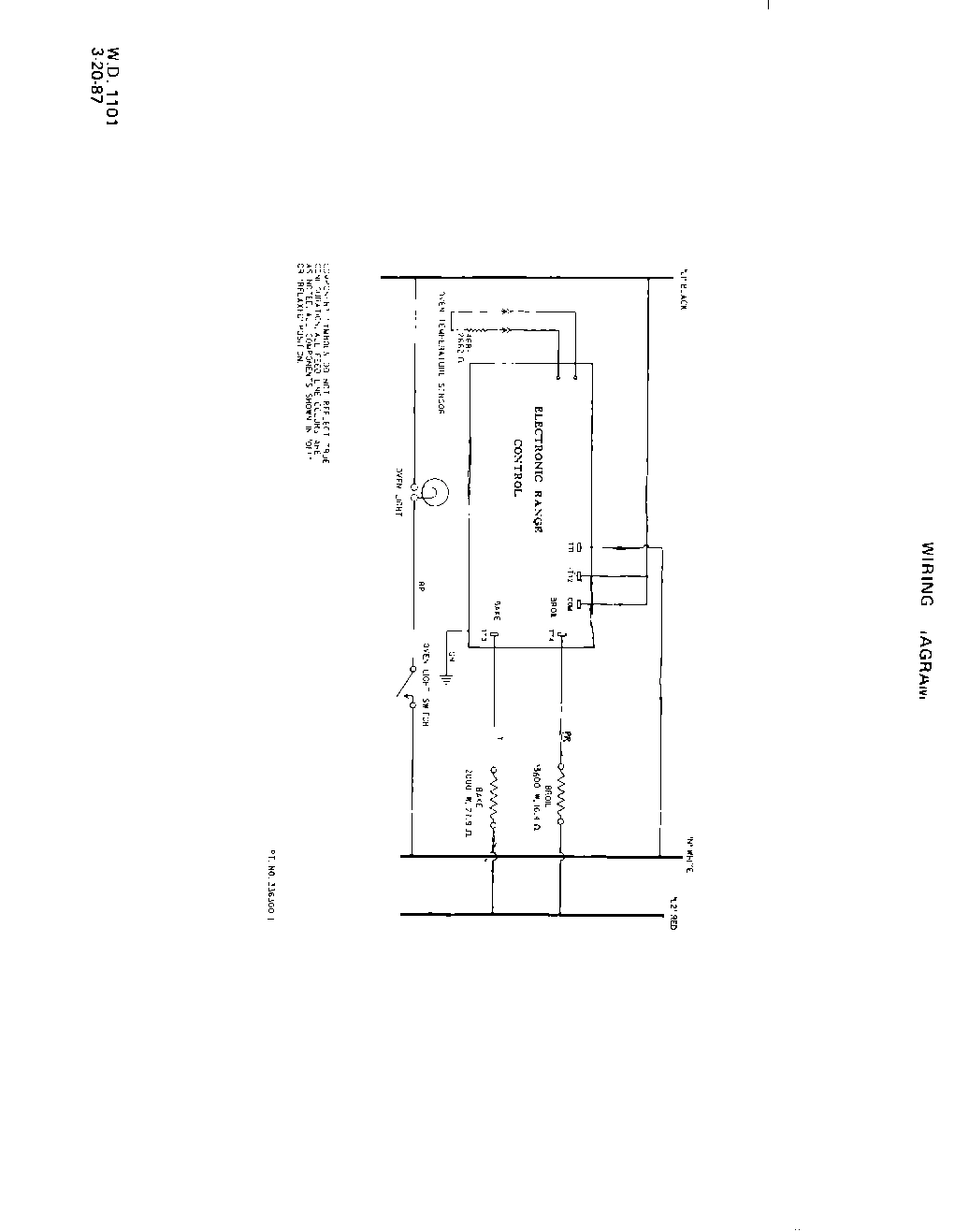

Model Whirlpool B9307X0 BUILT-IN GAS OVEN – Common Parts & Diagrams
04 - OVEN DOOR

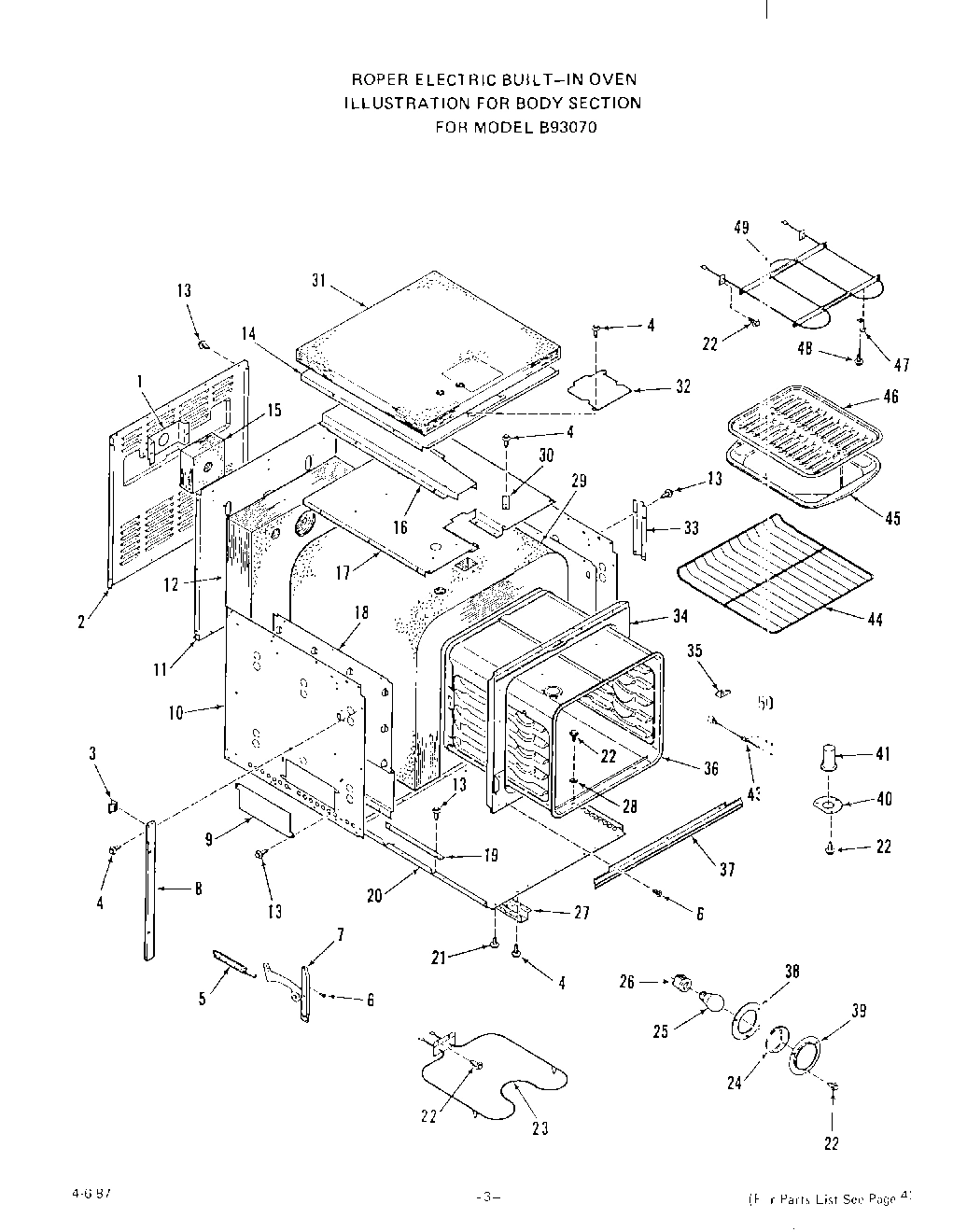

06 - SECTION
03 - BODY

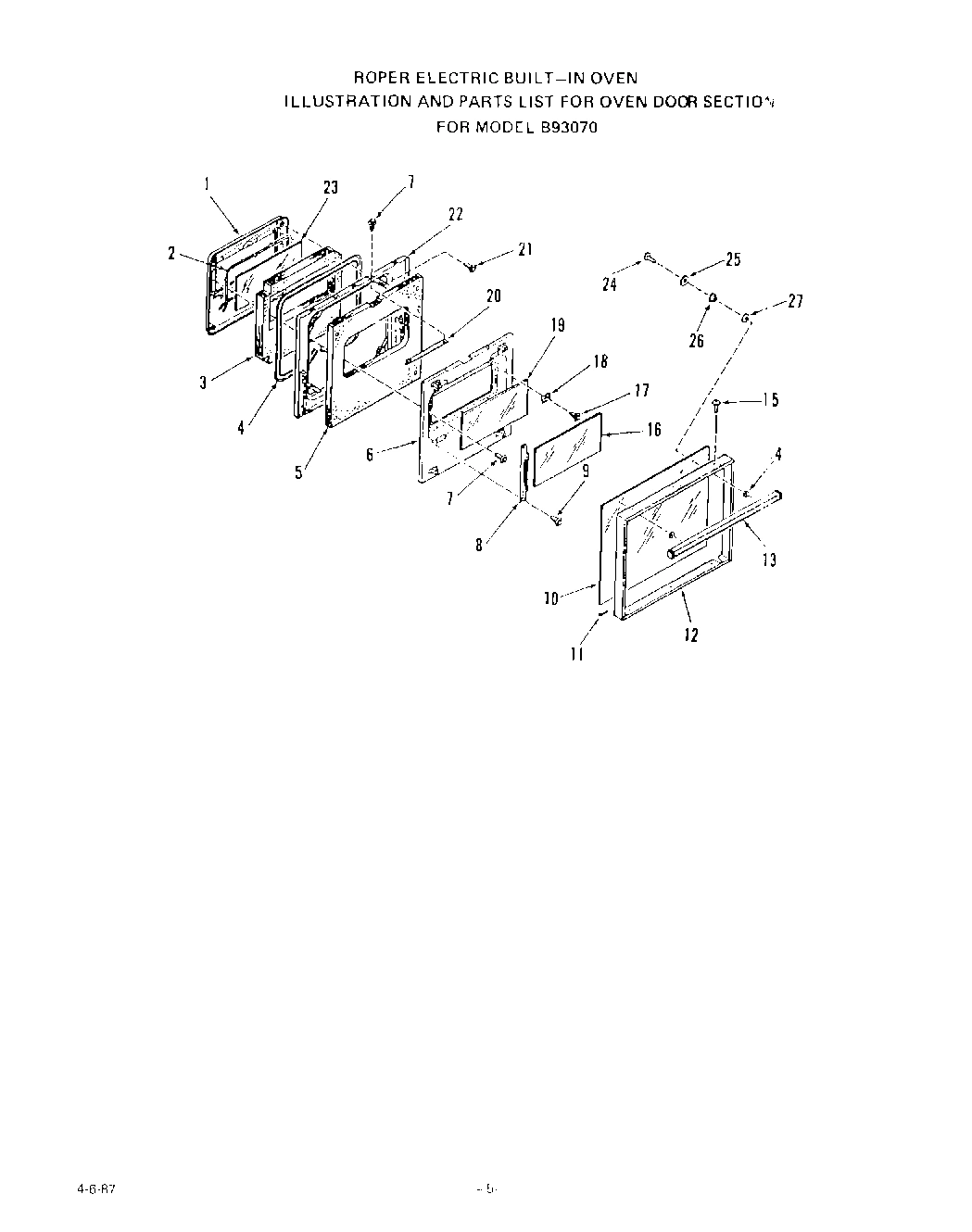

05 - OVEN DOOR

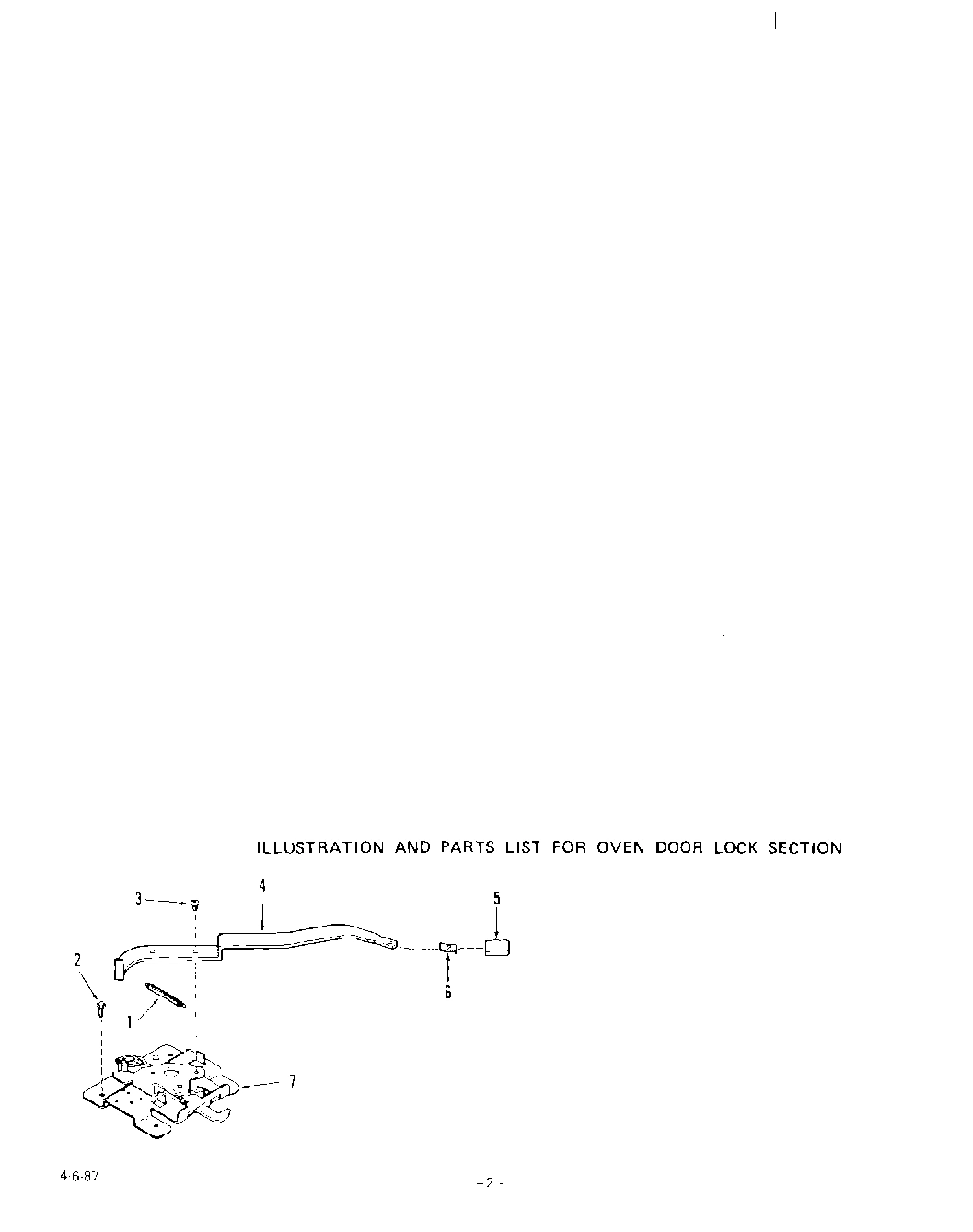

02 - OVEN DOOR LOCK

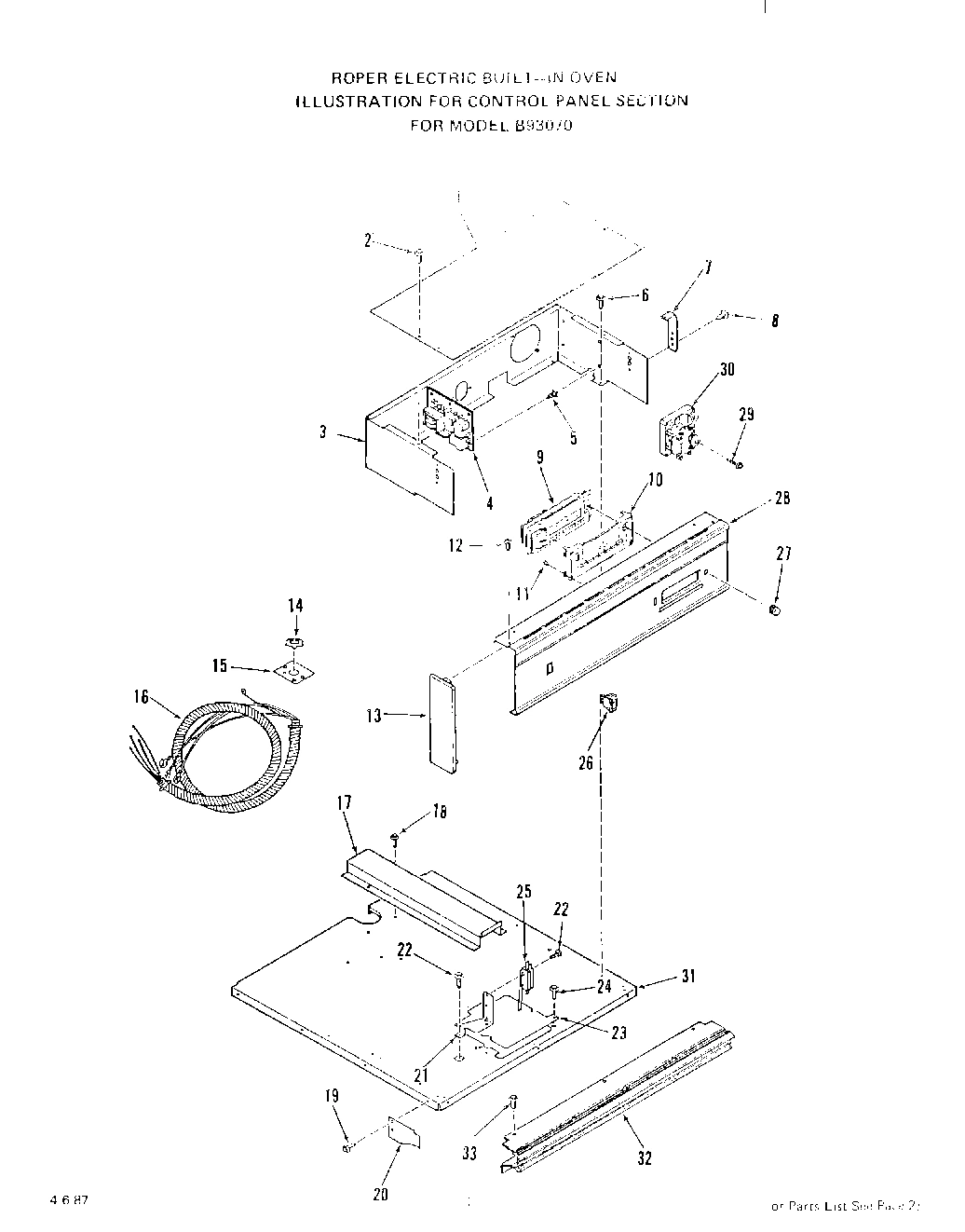

01 - CONTROL PANEL
Common parts from model Whirlpool B9307X0 BUILT-IN GAS OVEN
xWire Harness WPL ARI20650A7 Contact Us For Availability
1
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
1
Spring WPL 313075 Contact Us For Availability
1
Plug-Oven Door Lining WPL 331677 Contact Us For Availability
1
Top Cover WPL 337414 Contact Us For Availability
2
Cabinet Back WPL 328091 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
2
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
3
Spacer (4 Req) WPL 328077 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
Insulation-Oven Door Plug WPL 328107 Contact Us For Availability
3
Control Housing WPL 337413 Contact Us For Availability
4
Lock Handle WPL 337409 Contact Us For Availability
4
Gasket-Oven Door WPL 328123 Contact Us For Availability
4
Relay Circuit Board WPL 335245 Contact Us For Availability
5
Spring-Oven Door (Lt. or Rt.) WPL 328961 Contact Us For Availability
5
Knob-Lock Handle WPL 335738 Contact Us For Availability
5
Insulation-Oven Door Lining WPL 328106 Contact Us For Availability
5
Spacer PCB WPL 331469 Contact Us For Availability
6
Clip-Knob WPL 335692 Contact Us For Availability
6
Retainer-Oven Door Insulation WPL 336595 Contact Us For Availability
7
Right WPL 335599 Contact Us For Availability
7
Left WPL 335600 Contact Us For Availability
7
Hinge WPL ARI20649A3 Contact Us For Availability
7
Oven Door Lock Assm. WPL 311869 Contact Us For Availability
7
Bracket Control Panel WPL 336563 Contact Us For Availability
8
Side Trim-Lt. or Rt. WPL 336237 Contact Us For Availability
8
Retainer-Oven Door Glass (Lt. or Rt.) WPL 328064 Contact Us For Availability
9
Cover Plate WPL 328112 Contact Us For Availability
9
Clock WPL 335448 Contact Us For Availability
10
Cabinet Side-Lt or Rt. WPL 328087 Contact Us For Availability
10
Oven Door Glass-Outer WPL 336208 Contact Us For Availability
10
Clock Lens WPL 334898 Contact Us For Availability
11
Main Back WPL 336257 Contact Us For Availability
11
Cushion WPL 112370 Contact Us For Availability
11
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
12
Insulation-Oven Back & Bottom (1 Piece) WPL 336286 Contact Us For Availability
12
Frame-Oven Door WPL 336210 Contact Us For Availability
13
Handle-Oven Door WPL 336203 Contact Us For Availability
13
Right WPL 336511 Contact Us For Availability
13
Left WPL 336512 Contact Us For Availability
13
End Cap WPL ARI20648A4 Contact Us For Availability
14
Insulation Retainer-Cabinet Top WPL 333116 Contact Us For Availability
14
Spacer WPL 107158 Contact Us For Availability
14
Nut (For Key 16) WPL 110340 Contact Us For Availability
15
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
15
Plate (For Key 16) WPL 294983 Contact Us For Availability
16
Vent Box WPL 328052 Contact Us For Availability
16
Oven Door Glass-Intermediate WPL 328046 Contact Us For Availability
16
Harness Wire Conduit WPL 336304 Contact Us For Availability
17
Insulation Retainer-Oven Top WPL 327968 Contact Us For Availability
17
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
17
Wire Cover WPL 327990 Contact Us For Availability
18
Insulation Retainer-Oven Side (Lt. or Rt.) WPL 328089 Contact Us For Availability
18
Retainer-Door Glass (4 Req) WPL 326009 Contact Us For Availability
19
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
19
Bracket-Insulation Retainer (Lt. or Rt.) WPL 328141 Contact Us For Availability
19
Oven Door Glass-Center WPL 328045 Contact Us For Availability
20
Cabinet Bottom WPL 327949 Contact Us For Availability
20
Heat Shield WPL 336275 Contact Us For Availability
21
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
21
Bracket-Micro Switch WPL 335115 Contact Us For Availability
22
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
22
Lining-Oven Door WPL 331816 Contact Us For Availability
22
Screw WPL 327256 Contact Us For Availability
23
Bake Element WPL 328113 Contact Us For Availability
23
Oven Door Glass-Inner WPL 328043 Contact Us For Availability
23
Cover Plate Lock WPL 333124 Contact Us For Availability
24
Oven Light Lens WPL 114989 Contact Us For Availability
24
Screw WPL 300864 Contact Us For Availability
24
Screw WPL 295850 Contact Us For Availability
25
Oven Light Bulb WPL 111257 Contact Us For Availability
25
Washer-Fiber WPL 333014 Contact Us For Availability
25
Micro Switch-Lock WPL 334973 Contact Us For Availability
26
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
26
Spacer-Glass WPL 333015 Contact Us For Availability
26
Switch WPL 334649 Contact Us For Availability
27
Bottom Channel-Lt. or Rt. WPL 328042 Contact Us For Availability
27
Lock Switch WPL 333040 Contact Us For Availability
27
Main WPL 336310 Contact Us For Availability
27
Sensor WPL 336312 Contact Us For Availability
27
Relay WPL 336313 Contact Us For Availability
27
Washer WPL 99279 Contact Us For Availability
27
Clock Knob WPL 334914 Contact Us For Availability
28
Washer WPL 106462 Contact Us For Availability
28
Control Panel WPL 336278 Contact Us For Availability
29
Insulation-Oven Top & Sides (1 Piece) WPL 328103 Contact Us For Availability
29
Screw 10-32x1`` WPL 313190 Contact Us For Availability
30
Bracket (2 Req) WPL 313627 Contact Us For Availability
30
Fan WPL 336560 Contact Us For Availability
31
Insulation-Cabinet Top WPL 336572 Contact Us For Availability
31
Cabinet Top WPL 337410 Contact Us For Availability
32
Cover Plate-Lock WPL 323648 Contact Us For Availability
32
Control Panel Trim WPL 337415 Contact Us For Availability
33
Screw WPL 336296 Contact Us For Availability
33
Raceway WPL 324352 Contact Us For Availability
34
Front Frame WPL 336567 Contact Us For Availability
35
Cover WPL 304835 Contact Us For Availability
36
Oven Body WPL 336190 Contact Us For Availability
37
Lower Trim WPL 336243 Contact Us For Availability
38
Gasket-Oven Light WPL 229371 Contact Us For Availability
39
Lens Retainer-Oven Light WPL 229372 Contact Us For Availability
40
Clamp-Oven Vent Tube WPL 328303 Contact Us For Availability
43
Sensor WPL 334300 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broiler Element (2 Req) WPL 324809 Contact Us For Availability
48
Screw 10ABx3/8`` WPL 69065 Contact Us For Availability
49
Broiler Element WPL 328115 Contact Us For Availability
50
Screw WPL 336152 Contact Us For Availability
× ![]()
