Model Whirlpool B8758X0 BUILT-IN GAS OVEN – Common Parts & Diagrams
04 - BURNER
06 - WIRING DIAGRAM

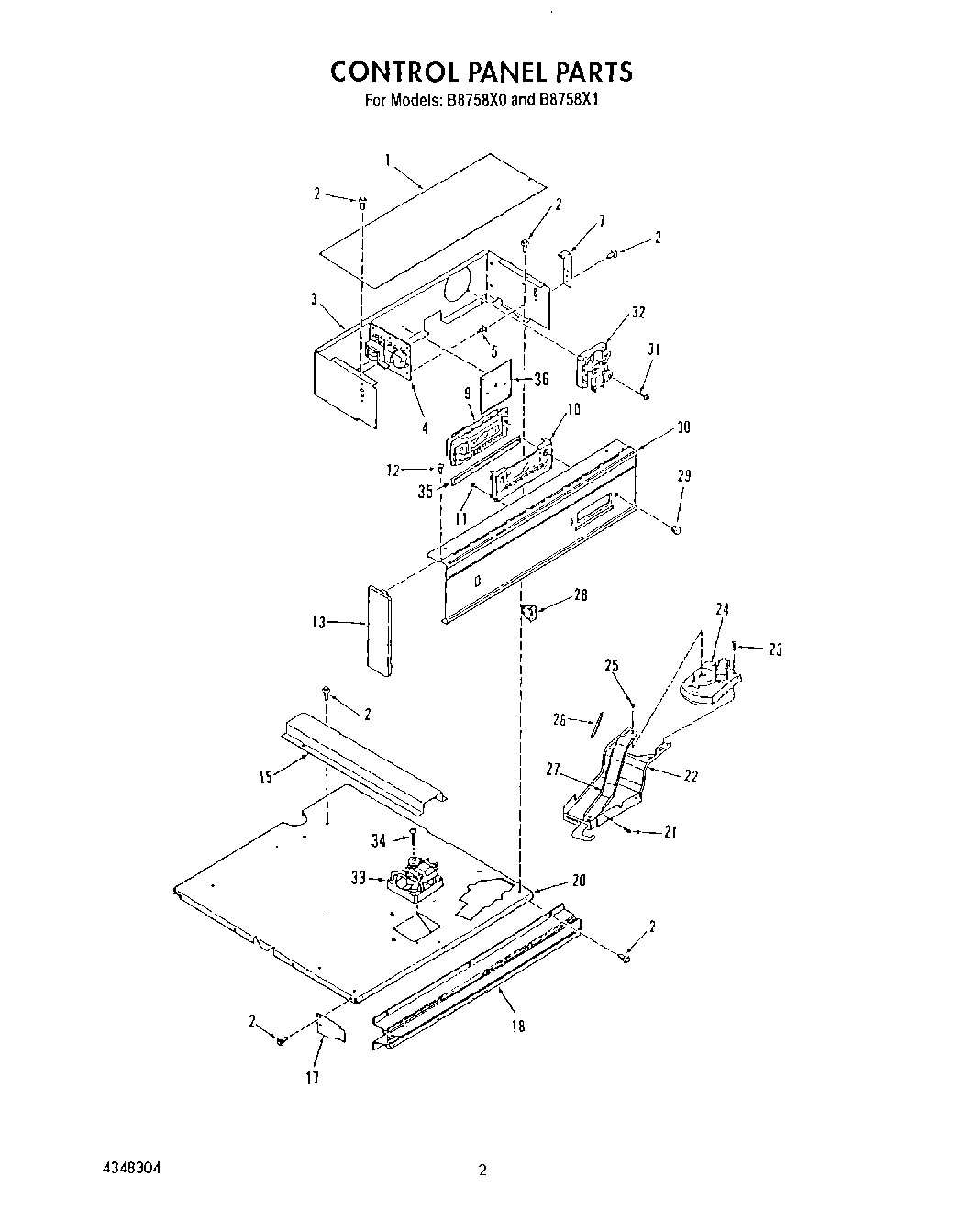

02 - CONTROL PANEL

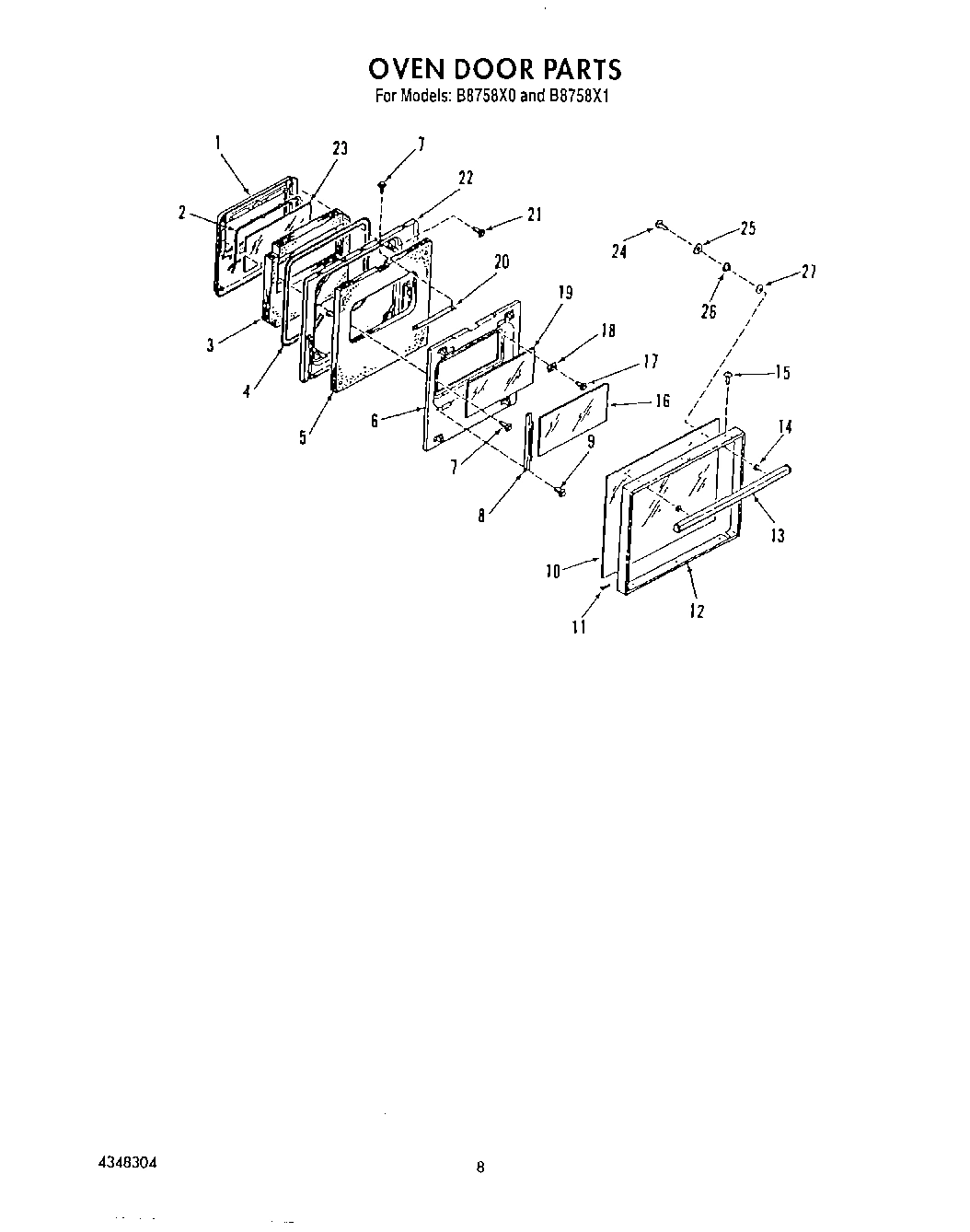

05 - OVEN DOOR, LIT/OPTIONAL

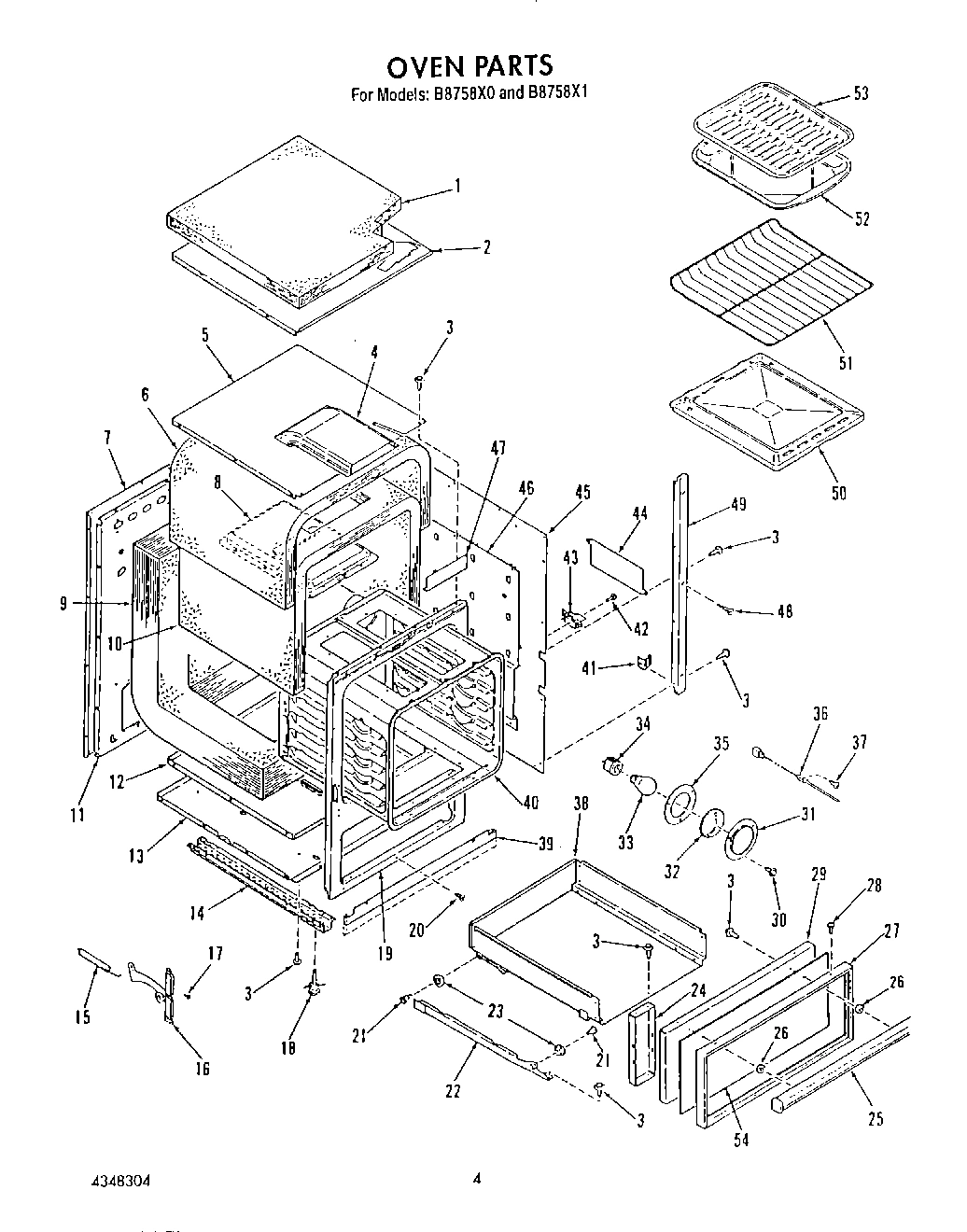

03 - OVEN
Common parts from model Whirlpool B8758X0 BUILT-IN GAS OVEN
Installation Guide WPL LIT4348300 Contact Us For Availability
Use & Care Manual WPL LIT4348301 Contact Us For Availability
Repair Parts List WPL LIT4348304 Contact Us For Availability
1
Cover, Top WPL 4338050 Contact Us For Availability
1
Plug-Inner Lining WPL 4338241 Contact Us For Availability
1
Insulation WPL 4342868 Contact Us For Availability
2
Seal, Door WPL 4342634 Contact Us For Availability
2
Retainer-Oven Top WPL 4337953 Contact Us For Availability
3
Igniter WPL 4338008 Contact Us For Availability
3
Housing, Control WPL 4338552 Contact Us For Availability
3
Insulation-Plug WPL 4354814 Contact Us For Availability
4
Cover, Igniter WPL 4337895 Contact Us For Availability
4
Circuit Board (B8758X0 Model) WPL 4338117 Contact Us For Availability
4
Circuit Board (B8758X1 Model) WPL 4338265 Contact Us For Availability
4
Seal-Oven Door WPL 4335546 Contact Us For Availability
4
Deflector, Flue WPL 4337903 Contact Us For Availability
5
Bracket-Igniter WPL 4335389 Contact Us For Availability
5
Spacer WPL 4336562 Contact Us For Availability
5
Insulation-Lining WPL 4354813 Contact Us For Availability
5
Retainer-Top Insulation WPL 4337905 Contact Us For Availability
6
Retainer-Door Insulation WPL 4337826 Contact Us For Availability
6
Insulation-Top & Outer Sides WPL 4354958 Contact Us For Availability
7
Shutter, Air WPL 4331501 Contact Us For Availability
7
Bracket WPL 4338562 Contact Us For Availability
7
Rear-Oven WPL 4337980 Contact Us For Availability
8
Orifice, Broiler WPL 4342867 Contact Us For Availability
8
Retainer-Glass (Lt/Rt) WPL 4335518 Contact Us For Availability
8
Flue WPL 4337904 Contact Us For Availability
9
Tubing WPL 4338164 Contact Us For Availability
9
Clock (B8758X1 Model) WPL 338458 Contact Us For Availability
9
Clock (B8758X0 Model) WPL 338468 Contact Us For Availability
9
B8758X1 Model WPL 4337361 Contact Us For Availability
9
B8758X0 Model WPL 4338590 Contact Us For Availability
9
Insulation-Back & Bottom WPL 4354957 Contact Us For Availability
10
Tubing-Oven Burner WPL 4338010 Contact Us For Availability
10
Lens, Clock WPL ARI20643A9 Contact Us For Availability
10
Glass-Outer Door WPL 4337692 Contact Us For Availability
11
Tubing WPL 4342731 Contact Us For Availability
11
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
11
Cushion WPL 4324217 Contact Us For Availability
11
Retainer-Rear Insulation WPL 4338191 Contact Us For Availability
12
Valve, Control WPL 4338024 Contact Us For Availability
12
Screw, No.10-32 x 1/2 WPL 4333427 Contact Us For Availability
12
Frame-Door WPL 4337694 Contact Us For Availability
12
Retainer-Bottom Insulation WPL 4337901 Contact Us For Availability
13
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
13
End Cap (Left) WPL 4337790 Contact Us For Availability
13
End Cap (Right) WPL 4337791 Contact Us For Availability
13
Bottom WPL 4337902 Contact Us For Availability
14
Cover, Valve WPL 4338227 Contact Us For Availability
14
Channel, Bottom WPL 4338286 Contact Us For Availability
15
Cover, Wire WPL 4338143 Contact Us For Availability
15
Screw No.6-20x3/8 WPL 4335339 Contact Us For Availability
15
Spring, Door (2) WPL 4335885 Contact Us For Availability
16
Disconnect WPL 4324642 Contact Us For Availability
16
Glass, Intermediate WPL 4335509 Contact Us For Availability
16
Hinge Assembly (Right) WPL 4338032 Contact Us For Availability
16
Hinge Assembly (Left) WPL 4338033 Contact Us For Availability
17
Connector WPL 4328274 Contact Us For Availability
17
Shield, Heat (Lt/Rt) WPL 4337717 Contact Us For Availability
17
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
17
Screw, Trim WPL 4336631 Contact Us For Availability
18
Regulator WPL 4338220 Contact Us For Availability
18
Trim-Control Panel WPL 4338003 Contact Us For Availability
18
Retainer-Glass (4) WPL 4334791 Contact Us For Availability
18
Leveler Leg WPL 4338309 Contact Us For Availability
19
Elbow WPL 4327545 Contact Us For Availability
19
Glass-Center Door WPL 4335508 Contact Us For Availability
19
Frame, Front WPL 4337900 Contact Us For Availability
20
Cord, Power WPL 4351570 Contact Us For Availability
20
Top, Cabinet WPL 4337891 Contact Us For Availability
20
Support-Lining WPL 4338350 Contact Us For Availability
20
Screw, Trim WPL 4337728 Contact Us For Availability
21
Cover, Wire WPL 4337977 Contact Us For Availability
21
Screw No.10-32x1/4 WPL 4332521 Contact Us For Availability
21
Rivet, Shoulder WPL 4323405 Contact Us For Availability
22
Valve, Shut-Off WPL 4333122 Contact Us For Availability
22
Plate, Door Lock WPL 4337806 Contact Us For Availability
22
Lining-Door WPL 4338084 Contact Us For Availability
22
Guide, Drawer (Right) WPL 4338013 Contact Us For Availability
22
Guide, Drawer (Left) WPL 4338014 Contact Us For Availability
23
Bracket, Igniter WPL 4331163 Contact Us For Availability
23
Screw WPL 4350821 Contact Us For Availability
23
Glass-Inner Door WPL 4335506 Contact Us For Availability
23
Bearing, Roller WPL 4323378 Contact Us For Availability
24
Box, Burner WPL 4337896 Contact Us For Availability
24
Motor, Lock WPL 4338294 Contact Us For Availability
24
Liner-Lower Panel WPL 4338305 Contact Us For Availability
25
Plate, Orifice Mounting WPL 4335704 Contact Us For Availability
25
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
25
Handle WPL 4337687 Contact Us For Availability
25
Washer WPL 4336868 Contact Us For Availability
26
Latch WPL 4335708 Contact Us For Availability
26
Spring, Lock WPL 4338207 Contact Us For Availability
26
Spacer WPL 4323997 Contact Us For Availability
26
Spacer, Glass WPL 4336869 Contact Us For Availability
27
Screw, Shoulder WPL 4335745 Contact Us For Availability
27
Lever, Lock WPL 4338225 Contact Us For Availability
27
Washer WPL 4323694 Contact Us For Availability
27
Wire Harness (Sensor) WPL 4336940 Contact Us For Availability
27
Wire Harness (Safety (B8758X1 Model)) WPL 4338211 Contact Us For Availability
27
Wire Harness (Jumper Relay (B8758X1 Model)) WPL 4338224 Contact Us For Availability
27
Frame-Lower Panel WPL 4338012 Contact Us For Availability
28
Burner, Oven WPL 4337897 Contact Us For Availability
28
Screw, Trim WPL 4338183 Contact Us For Availability
29
Shield WPL 4336678 Contact Us For Availability
29
Clock Knob (Model B8758X0) WPL 4337391 Contact Us For Availability
29
Clock Knob (Model B8758X1) WPL 4338513 Contact Us For Availability
29
Panel-Lower Front WPL 4338009 Contact Us For Availability
30
Screw WPL 4351838 Contact Us For Availability
30
Panel, Control WPL 4337719 Contact Us For Availability
31
Shutter, Air WPL 4351847 Contact Us For Availability
31
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
31
Retainer, Lens WPL 4324482 Contact Us For Availability
32
Bottom, Baffle WPL 4338511 Contact Us For Availability
32
Fan Assembly WPL 4337808 Contact Us For Availability
32
Lens, Oven Lamp WPL 4324415 Contact Us For Availability
33
Fan Assembly WPL 4338418 Contact Us For Availability
35
Burner, Broiler WPL 4337898 Contact Us For Availability
35
Support, Clock WPL 4338402 Contact Us For Availability
35
Seal, Lamp Lens WPL 4324481 Contact Us For Availability
36
Screw, Adjustment WPL 4331502 Contact Us For Availability
36
Cover, Plate WPL 4338553 Contact Us For Availability
36
Sensor WPL 4337170 Contact Us For Availability
37
Baffle, Burner WPL 4337913 Contact Us For Availability
37
Screw WPL 4337678 Contact Us For Availability
38
Drawer, Storage WPL 4338184 Contact Us For Availability
39
Trim-Lower Front (1 7/16`` Height) WPL 4338297 Contact Us For Availability
39
Front Lower Trim (7/8`` height) WPL 4338307 Contact Us For Availability
40
Baffle, Broiler WPL 4337899 Contact Us For Availability
40
Oven WPL 4337893 Contact Us For Availability
41
Washer, Spring WPL 4337031 Contact Us For Availability
41
Spacer-Front Trim WPL 4338075 Contact Us For Availability
42
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
43
Clip WPL 4323987 Contact Us For Availability
43
Switch WPL 4338223 Contact Us For Availability
44
Plate, Cover WPL 4335540 Contact Us For Availability
45
Side, Body WPL 4337954 Contact Us For Availability
46
Retainer-Side Insulation WPL 4337964 Contact Us For Availability
47
Barrier, Lock WPL 4342870 Contact Us For Availability
48
Screw WPL 4323971 Contact Us For Availability
49
Trim, Side WPL 4338011 Contact Us For Availability
50
Bottom, Oven WPL 4338114 Contact Us For Availability
51
Rack, Oven WPL 4335557 Contact Us For Availability
54
Overlay, Lower Panel WPL 4338310 Contact Us For Availability
× ![]()
