Model Whirlpool B711 ROOM AIR CONDITIONER – Common Parts & Diagrams

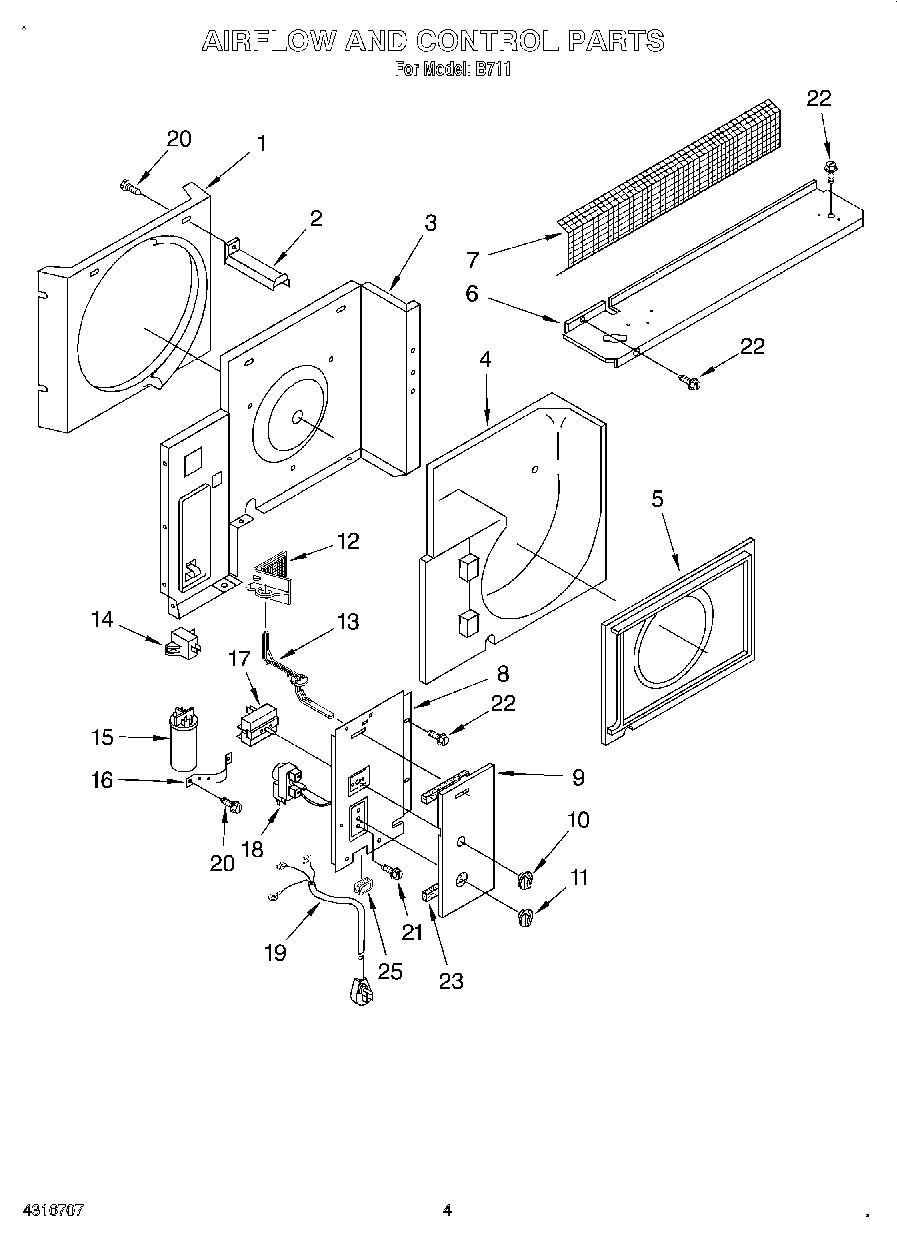

03 - AIR FLOW AND CONTROL

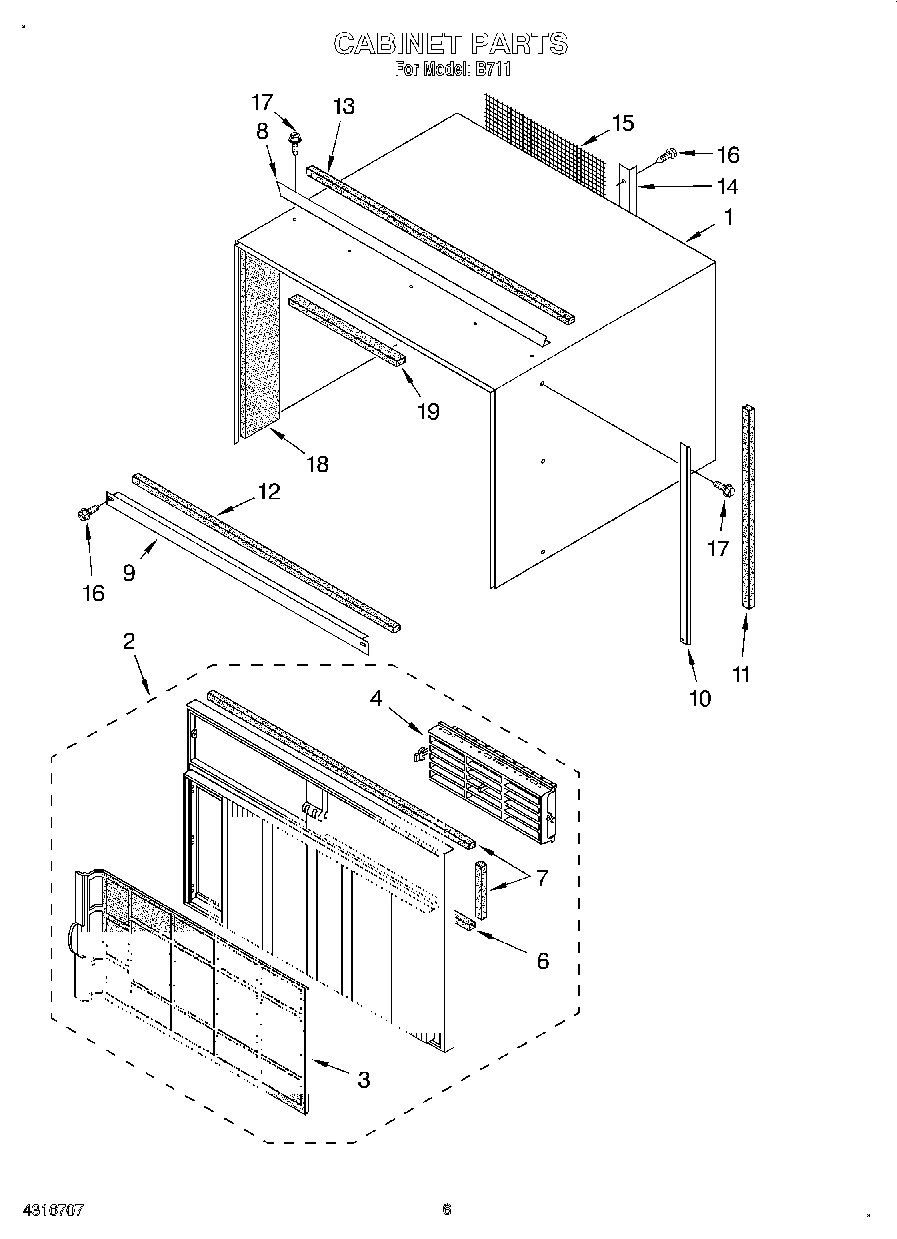

04 - CABINET
02 - UNIT, LITERATURE
Common parts from model Whirlpool B711 ROOM AIR CONDITIONER
1
Shroud, Condenser WPL 789637 Contact Us For Availability
1
Cabinet Assembly (Includes Insulation & Item WPL 789609 Contact Us For Availability
1
Base WPL 789750 Contact Us For Availability
2
Support, Unit WPL 789638 Contact Us For Availability
2
Front Assembly WPL 789608 Contact Us For Availability
2
Pan, Drain (Evaporator) WPL 789677 Contact Us For Availability
3
Wall, Dividing WPL 789748 Contact Us For Availability
3
Filter, Air WPL 789606 Contact Us For Availability
3
Cover, Drain Pan WPL 789678 Contact Us For Availability
4
Scroll, Blower WPL 789644 Contact Us For Availability
4
Louver Assembly (Not Serviced Separately) WPL ARI20640A5 Contact Us For Availability
4
Clip, Thermostat Bulb WPL 789628 Contact Us For Availability
5
Shroud, Evaporator WPL 789647 Contact Us For Availability
6
Cover, Evaporator WPL 789648 Contact Us For Availability
6
Seal, Front WPL 789736 Contact Us For Availability
6
Tube, Restrictor .049 I.D. x 28.5`` WPL 789669 Contact Us For Availability
7
Screen, Air Discharge WPL 789645 Contact Us For Availability
7
Seal, Front WPL 789737 Contact Us For Availability
7
Condenser WPL 789752 Contact Us For Availability
8
Panel, Control WPL 789616 Contact Us For Availability
8
Frame and Foam Assembly (Top) WPL 789611 Contact Us For Availability
8
Blade, Fan (Condenser) WPL 789636 Contact Us For Availability
9
Escutcheon (Also Order No. 23) WPL 789622 Contact Us For Availability
9
Frame and Foam Assembly (Bottom) WPL 789613 Contact Us For Availability
9
Motor, Fan WPL 789639 Contact Us For Availability
10
Knob, Fan Switch WPL 789618 Contact Us For Availability
10
Frame and Foam Assembly (Side) ((Left Side)) WPL 789610 Contact Us For Availability
10
Frame and Foam Assembly (Side) ((Right Side)) WPL 789612 Contact Us For Availability
11
Knob, Thermostat WPL 789620 Contact Us For Availability
11
Plate, Motor Mounting WPL 789642 Contact Us For Availability
12
Door, Exhaust WPL 789635 Contact Us For Availability
12
Wheel, Blower (Includes Clamp) WPL 789646 Contact Us For Availability
13
Actuator, Door WPL 789634 Contact Us For Availability
13
Evaporator WPL 789753 Contact Us For Availability
14
Assist, Start WPL 789633 Contact Us For Availability
14
Baffle, Condenser WPL 789615 Contact Us For Availability
14
Grommet WPL 789751 Contact Us For Availability
15
Capacitor WPL 789631 Contact Us For Availability
15
Guard, Wire WPL 789614 Contact Us For Availability
16
Strap, Capacitor WPL 789749 Contact Us For Availability
17
Switch, Rotary WPL 789629 Contact Us For Availability
17
Screw WPL 4380603 Contact Us For Availability
18
Thermostat WPL 789627 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Right Side)) WPL 789738 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Left Side)) WPL 789739 Contact Us For Availability
19
Cable, Appliance WPL 789625 Contact Us For Availability
19
Seal, Strip (Top Rear) WPL 1181046 Contact Us For Availability
19
Sleeve, Cabinet WPL 4378882 Contact Us For Availability
20
Screw No.8 x 1/2 WPL 4363526 Contact Us For Availability
20
Compressor WPL 789649 Contact Us For Availability
21
Screw 8-32 x 1/4 WPL ARI20639A1 Contact Us For Availability
21
Sleeve (3) WPL 789665 Contact Us For Availability
22
Grommet (3) WPL 789663 Contact Us For Availability
23
Washer WPL 789662 Contact Us For Availability
24
Nut WPL 789661 Contact Us For Availability
25
Relief, Strain WPL 789624 Contact Us For Availability
26
Overload WPL 789652 Contact Us For Availability
27
Spring, Overload WPL 789655 Contact Us For Availability
28
Cover, Terminal WPL 789657 Contact Us For Availability
29
Retainer, Terminal Cover WPL 789659 Contact Us For Availability
30
Screw No.8 x 1/4 WPL 3148443 Contact Us For Availability
30
Tech Sheet WPL 789602 Contact Us For Availability
30
Use and Care Guide WPL 789603 Contact Us For Availability
30
Strainer WPL 789673 Contact Us For Availability
30
Snubber, Two 1/4 Tubes WPL 789735 Contact Us For Availability
× ![]()
