Model Whirlpool B5008B1 BUILT-IN GAS OVEN – Common Parts & Diagrams
03 - CONTROL PANEL
05 - WIRING DIAGRAM

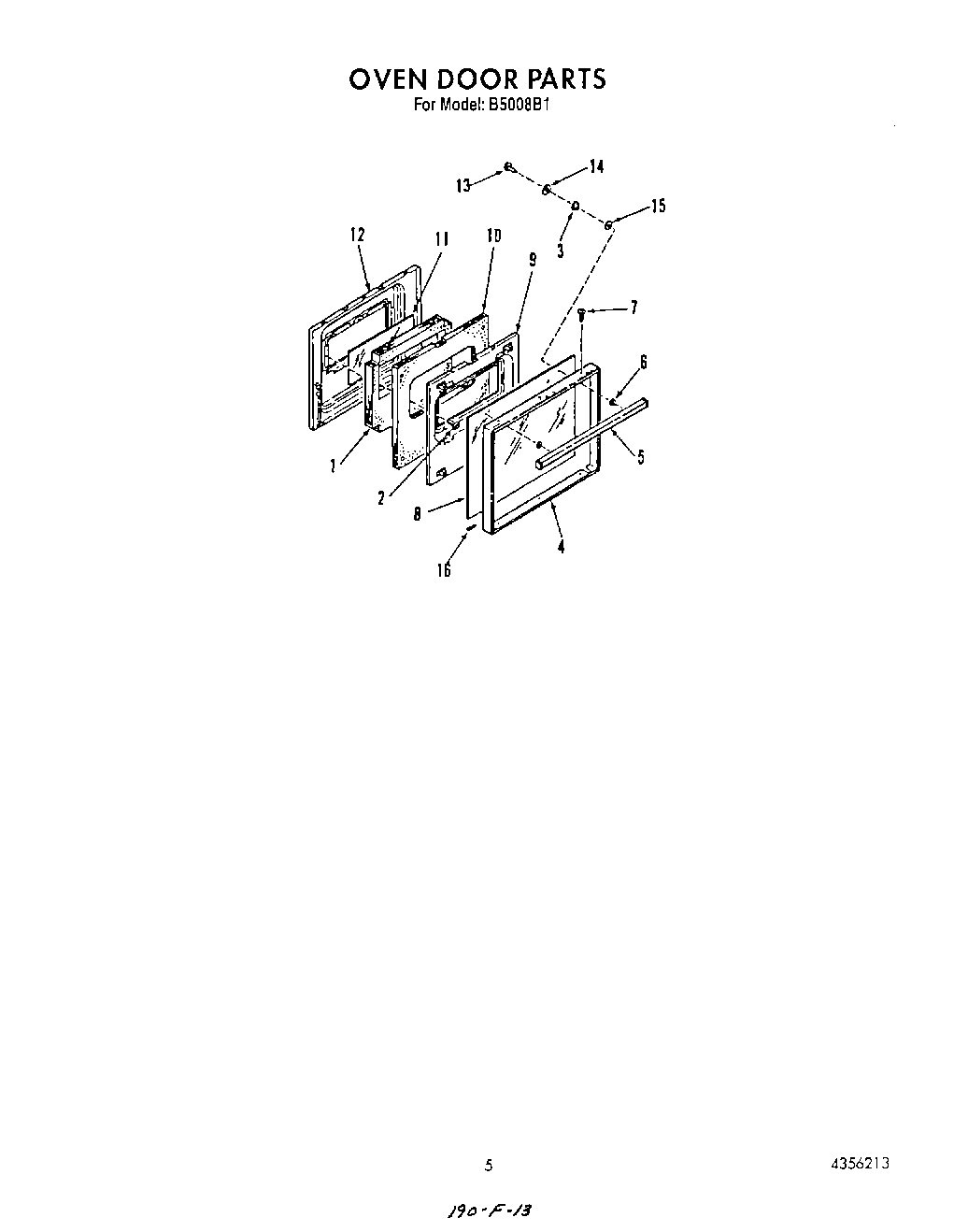

04 - OVEN DOOR , LIT/OPTIONAL

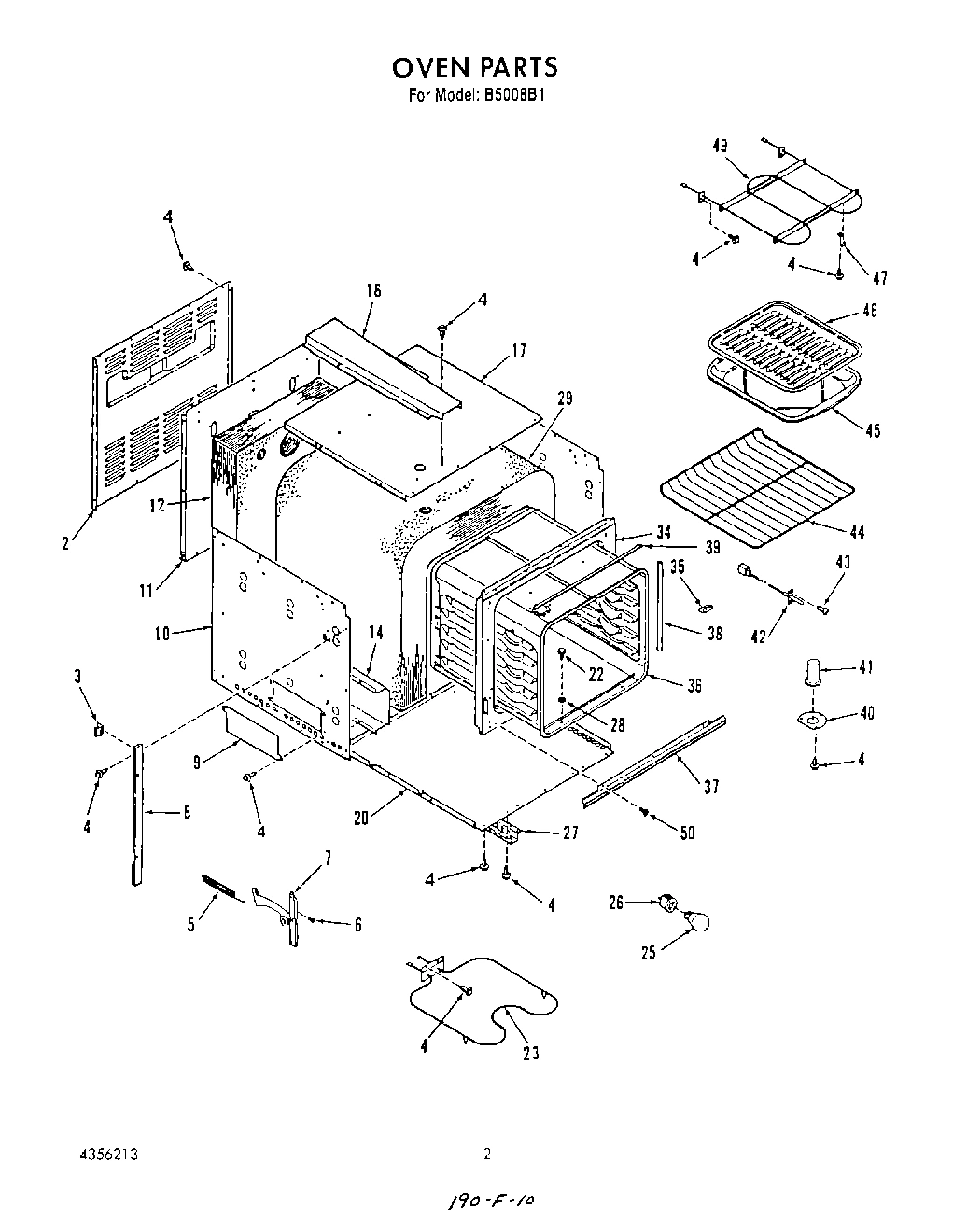

02 - OVEN
Common parts from model Whirlpool B5008B1 BUILT-IN GAS OVEN
1
Nut (for No.3) WPL 4324132 Contact Us For Availability
1
Insulation WPL 4354814 Contact Us For Availability
2
Plate (for No.3) WPL 4327503 Contact Us For Availability
2
Back, Cabinet WPL 4335532 Contact Us For Availability
3
Conduit WPL 4337730 Contact Us For Availability
3
Spacer, Glass WPL 4336869 Contact Us For Availability
3
Spacer (4) WPL 4335524 Contact Us For Availability
4
Frame, Oven Door WPL 4337694 Contact Us For Availability
5
Housing, Control WPL 4343131 Contact Us For Availability
5
Handle-Door WPL 4337687 Contact Us For Availability
5
Spring, Door (Lt/Rt) WPL 4335886 Contact Us For Availability
6
Cover, Wire WPL 4335478 Contact Us For Availability
6
Spacer, Handle WPL 4323997 Contact Us For Availability
6
Screw WPL 4336631 Contact Us For Availability
7
Top-Cabinet WPL 4338370 Contact Us For Availability
7
Screw, No.6-20x3/8 WPL 4324614 Contact Us For Availability
7
Hinge (Right) WPL 4338609 Contact Us For Availability
7
Hinge (Left) WPL 4338610 Contact Us For Availability
8
End Cap (Left) WPL 4337790 Contact Us For Availability
8
End Cap (Right) WPL 4337791 Contact Us For Availability
8
Glass-Outer Door WPL 4337692 Contact Us For Availability
8
Trim-Side (Lt/Rt) WPL 4337701 Contact Us For Availability
9
Shield, Heat (Lt/Rt) WPL 4337717 Contact Us For Availability
9
Retainer, Insul. WPL 4337826 Contact Us For Availability
9
Cover Plate WPL 4335540 Contact Us For Availability
10
Insulation WPL 4354813 Contact Us For Availability
10
Side-Cabinet (Lt/Rt) WPL 4335529 Contact Us For Availability
11
Trim WPL 4337707 Contact Us For Availability
11
Glass-Inner Door WPL 4335508 Contact Us For Availability
11
Cover, Rear WPL 4337713 Contact Us For Availability
12
Knob, Clock WPL 4338513 Contact Us For Availability
12
Lining-Oven Door WPL 4338433 Contact Us For Availability
12
Insulation, Back & Bottom (1 pc) WPL 4337724 Contact Us For Availability
13
Control Panel WPL 4337718 Contact Us For Availability
13
Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability
14
Screw WPL 4323476 Contact Us For Availability
14
Retainer WPL 4342666 Contact Us For Availability
14
Retainer, Spring Insul. (Lt/Rt) WPL 4338372 Contact Us For Availability
15
Screw WPL 4333427 Contact Us For Availability
15
Washer, Fiber WPL 4336868 Contact Us For Availability
16
Clock/Oven Control W/Lens WPL 4342995 Contact Us For Availability
16
Cushion-Glass WPL 4324217 Contact Us For Availability
16
Vent WPL 4337876 Contact Us For Availability
17
Retainer-Oven Top Insulation WPL 4335461 Contact Us For Availability
18
Bracket WPL 4338562 Contact Us For Availability
19
Screw, No.10-32x7/16 WPL 4337797 Contact Us For Availability
20
Cover, Top WPL 4338050 Contact Us For Availability
20
Bottom, Cabinet WPL 4335459 Contact Us For Availability
21
Screen, Housing WPL 4338280 Contact Us For Availability
22
Clip, Trim WPL 4323413 Contact Us For Availability
22
Wire Harness (Flag Terminal 1/4`` Faston Term WPL 4325035 Contact Us For Availability
22
Wire Harness (3/16``) WPL 4325036 Contact Us For Availability
22
Wire Harness (Sensor) WPL 4336940 Contact Us For Availability
22
Screw, No.10-32 x 17/32 WPL 4323776 Contact Us For Availability
23
Element, Bake WPL 4335541 Contact Us For Availability
27
Channel, Bottom-(Lt/Rt) WPL 4338286 Contact Us For Availability
28
Washer WPL 4323206 Contact Us For Availability
29
Insulation-Top & Sides (1 Pc) WPL 4353887 Contact Us For Availability
34
Frame, Front WPL 4338301 Contact Us For Availability
35
Cover WPL 4329206 Contact Us For Availability
36
Oven WPL 4337686 Contact Us For Availability
37
Trim, Lower WPL 4338612 Contact Us For Availability
38
Seal, Door Side (Lt/Rt) WPL 4335978 Contact Us For Availability
39
Seal, Door Top WPL 4335832 Contact Us For Availability
40
Clamp, Vent Tube WPL 4335624 Contact Us For Availability
41
Vent Tube WPL 4335954 Contact Us For Availability
42
Sensor WPL 4337170 Contact Us For Availability
43
Screw WPL 4324445 Contact Us For Availability
44
Rack, Oven (2) WPL 4335784 Contact Us For Availability
47
Support-Element (2) WPL 4334358 Contact Us For Availability
49
Element, Broiler WPL 4335542 Contact Us For Availability
50
Screw WPL 4337728 Contact Us For Availability
× ![]()
