Model Whirlpool B5007X0 BUILT-IN GAS OVEN – Common Parts & Diagrams
06 - WIRING DIAGRAM
02 - CONTROL PANEL

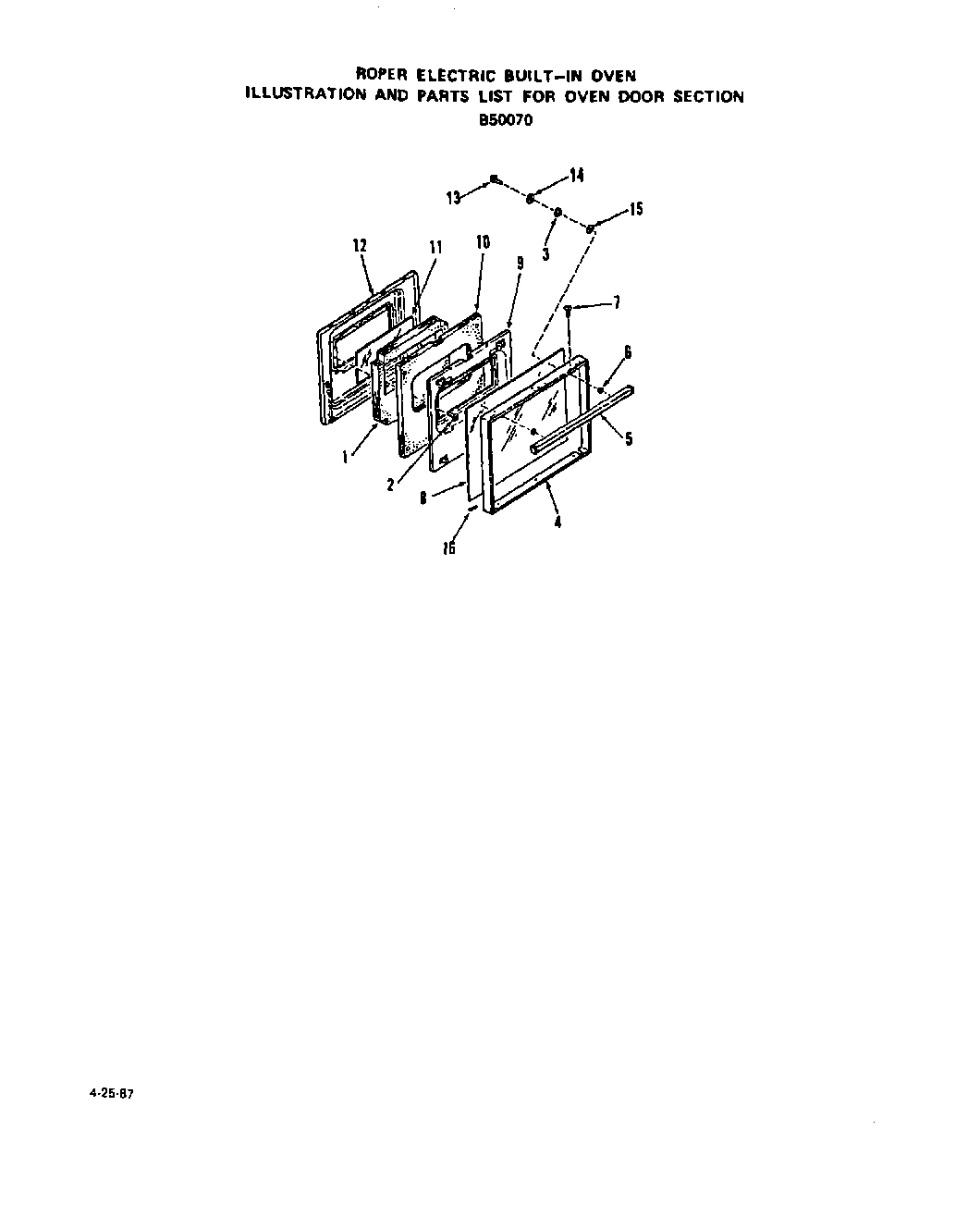

04 - OVEN DOOR, LIT/OPTIONAL

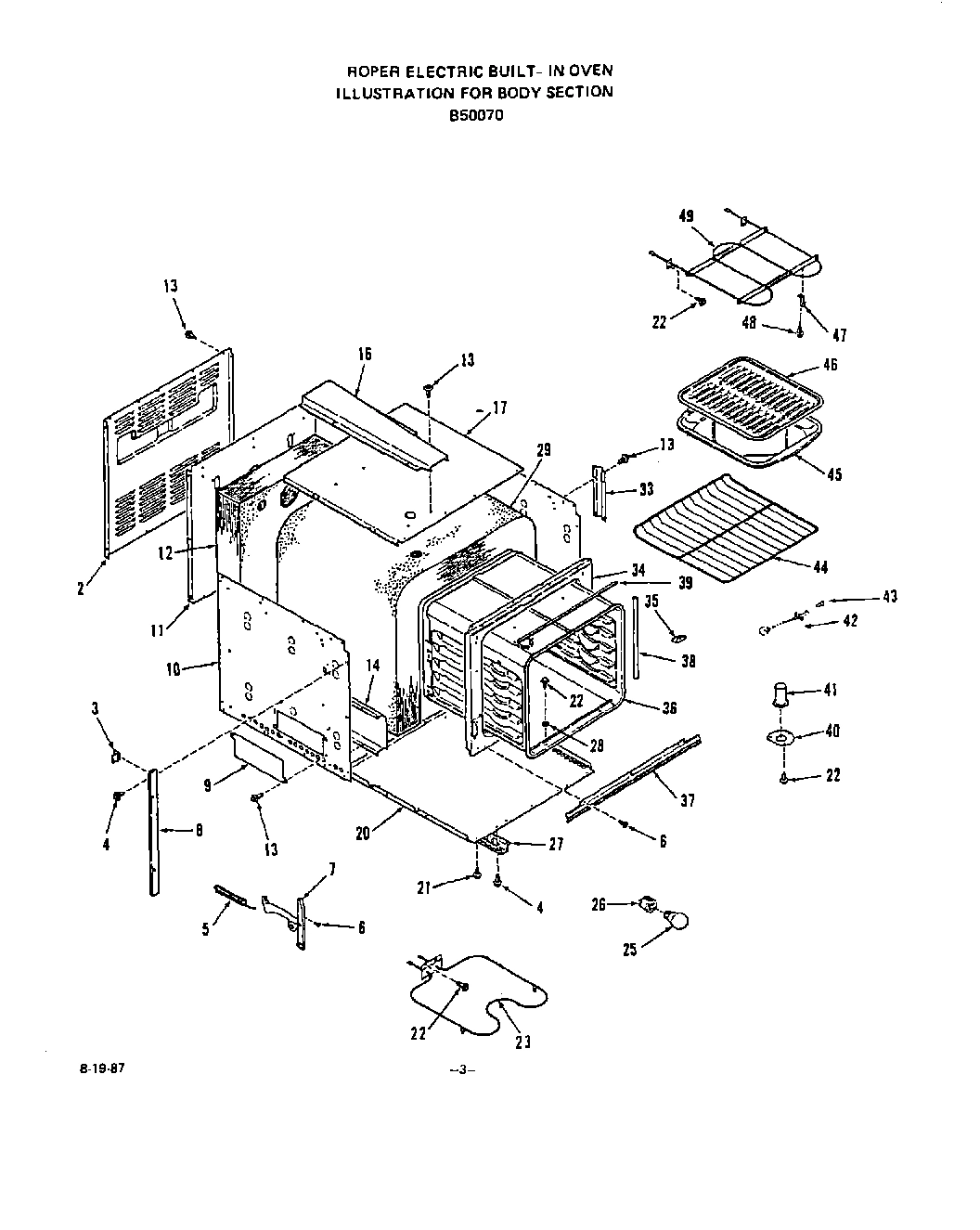

03 - BODY

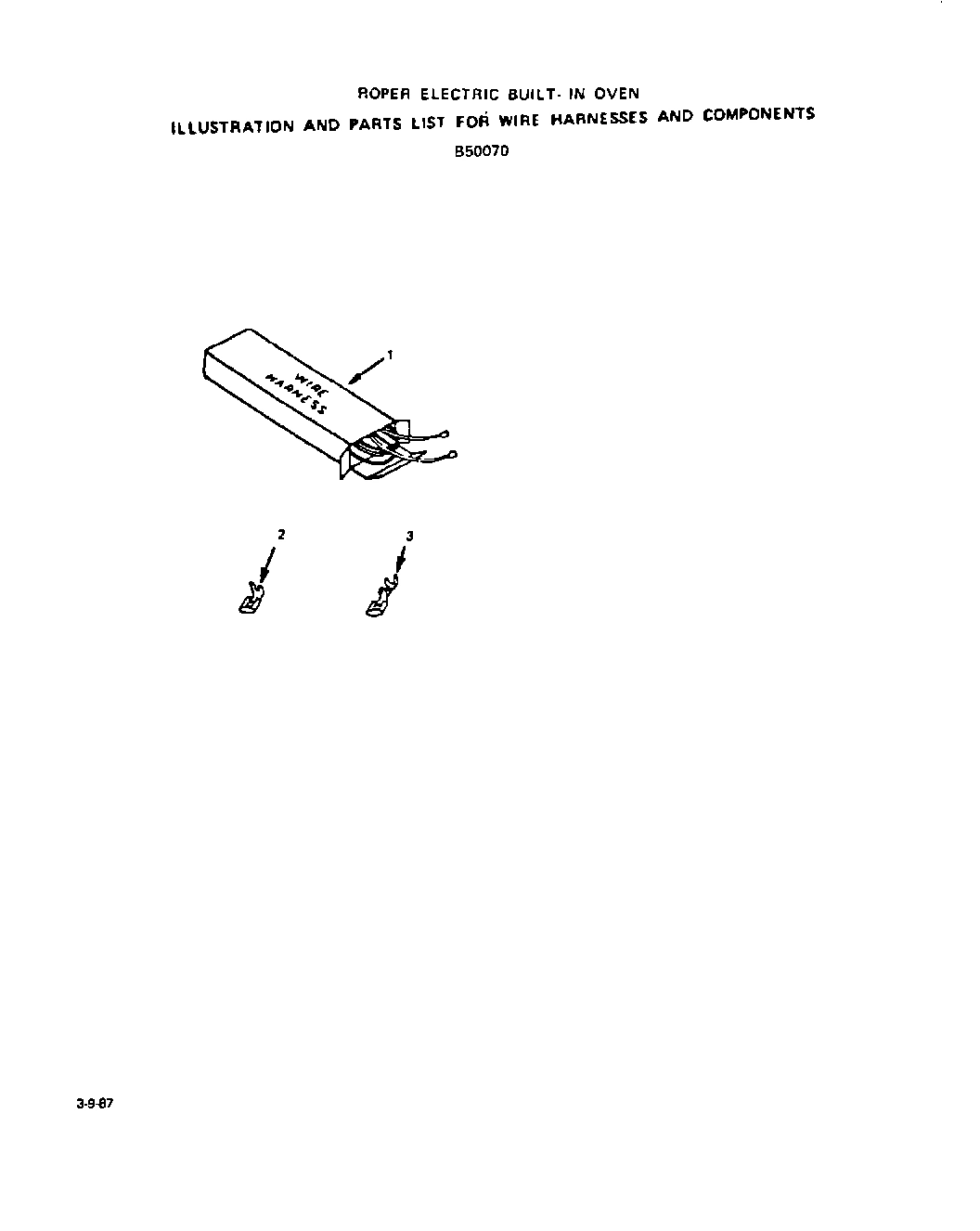

05 - WIRE HARNESS
Common parts from model Whirlpool B5007X0 BUILT-IN GAS OVEN
1
Nut (For Key 3) WPL 110340 Contact Us For Availability
1
Insulation WPL 328107 Contact Us For Availability
1
Wire Harness (Sensor) WPL 336312 Contact Us For Availability
1
Wire Harness (Main) WPL 336643 Contact Us For Availability
2
Plate (For Key 3) WPL 294983 Contact Us For Availability
2
Cabinet Back WPL 328091 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
3
Harness Conduit WPL 336304 Contact Us For Availability
3
Spacer-Door Glass WPL 333015 Contact Us For Availability
3
Spacer (4 Req) WPL 328077 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
3
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
4
Frame-Oven Door WPL 336210 Contact Us For Availability
5
Control Housing WPL 337395 Contact Us For Availability
5
Handle-Oven Door WPL 336203 Contact Us For Availability
5
Spring-Oven Door (Lt. or Rt.) WPL 328962 Contact Us For Availability
6
Wire Cover WPL 336780 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
6
Screw-Trim WPL 331704 Contact Us For Availability
7
Cabinet Top WPL 338501 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
7
Hinge (Right) WPL 335599 Contact Us For Availability
7
Hinge (Left) WPL 335600 Contact Us For Availability
8
End Caps (Left) WPL 336511 Contact Us For Availability
8
End Caps (Right) WPL 336512 Contact Us For Availability
8
Oven Door Glass-Outer WPL 336208 Contact Us For Availability
8
Side Trim-Lt. or Rt. WPL 336237 Contact Us For Availability
9
Shield-Heat (Lt. or Rt.) WPL 336275 Contact Us For Availability
9
Retainer-Oven Door Insulation WPL 336595 Contact Us For Availability
9
Cover Plate WPL 328112 Contact Us For Availability
10
Switch WPL 334649 Contact Us For Availability
10
Insulation WPL 329106 Contact Us For Availability
10
Cabinet Side-Lt or Rt. WPL 328087 Contact Us For Availability
11
Trim Control Panel WPL 336244 Contact Us For Availability
11
Oven Door Glass-Inner WPL 328045 Contact Us For Availability
11
Main Back WPL 336257 Contact Us For Availability
12
Knob-Clock WPL 334961 Contact Us For Availability
12
Lining-Oven Door WPL 331685 Contact Us For Availability
12
Insulation Oven Back and Bottom WPL 336286 Contact Us For Availability
13
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
13
Control Panel WPL 336277 Contact Us For Availability
13
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
14
Screw WPL 78153 Contact Us For Availability
14
Washer WPL 99279 Contact Us For Availability
14
Door Spring Insulation Retainer (Lt. or Rt.) WPL 328071 Contact Us For Availability
15
Screw 10-32x1/2`` WPL 336529 Contact Us For Availability
15
Washer-Fiber WPL 333014 Contact Us For Availability
16
Clock Lens WPL 335646 Contact Us For Availability
16
Cushion-Door Glass WPL 112370 Contact Us For Availability
16
Use And Care Manual WPL 336323 Contact Us For Availability
16
Installation Guide WPL 336324 Contact Us For Availability
16
Repair Parts List WPL 336330 Contact Us For Availability
16
Vent Box WPL 336779 Contact Us For Availability
17
Clock WPL 336328 Contact Us For Availability
17
Insulation Retainer-Oven Top WPL 327963 Contact Us For Availability
18
Bracket WPL 336563 Contact Us For Availability
20
Top Cover WPL 328038 Contact Us For Availability
20
Cabinet Bottom WPL 327949 Contact Us For Availability
21
Control Housing Screen WPL 338165 Contact Us For Availability
21
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
22
Trim Clip WPL 70588 Contact Us For Availability
22
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
23
Bake Element WPL 328113 Contact Us For Availability
25
Oven Light Bulb WPL 111257 Contact Us For Availability
26
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
27
Bottom Channel-Lt. or Rt. WPL 328042 Contact Us For Availability
28
Washer WPL 106462 Contact Us For Availability
29
Insulation-Oven Top and Sides (1 Piece) WPL 328103 Contact Us For Availability
33
Raceway WPL 324352 Contact Us For Availability
34
Front Frame WPL 329344 Contact Us For Availability
35
Cover WPL 304835 Contact Us For Availability
36
Oven Body WPL 336190 Contact Us For Availability
37
Lower Trim WPL 336243 Contact Us For Availability
38
Side Seal-Oven Door (Rt. or Lt.) WPL 329204 Contact Us For Availability
39
Top Seal-Oven Door WPL 328809 Contact Us For Availability
40
Clamp-Oven Vent Tube WPL 328303 Contact Us For Availability
41
Oven Vent Tube WPL 329124 Contact Us For Availability
42
Sensor WPL 338242 Contact Us For Availability
43
Screw WPL 336152 Contact Us For Availability
44
Oven Rack (2 Req) WPL 328727 Contact Us For Availability
45
Broiler Pan WPL 326300 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broiler Element (2 Req) WPL 324809 Contact Us For Availability
48
Screw 10ABx3/8`` WPL 69605 Contact Us For Availability
49
Broiler Element WPL 328115 Contact Us For Availability
× ![]()
