Model Whirlpool B4607X0 BUILT-IN GAS OVEN – Common Parts & Diagrams
05 - BURNER , LIT/OPTIONAL
06 - WIRING DIAGRAM
03 - BODY

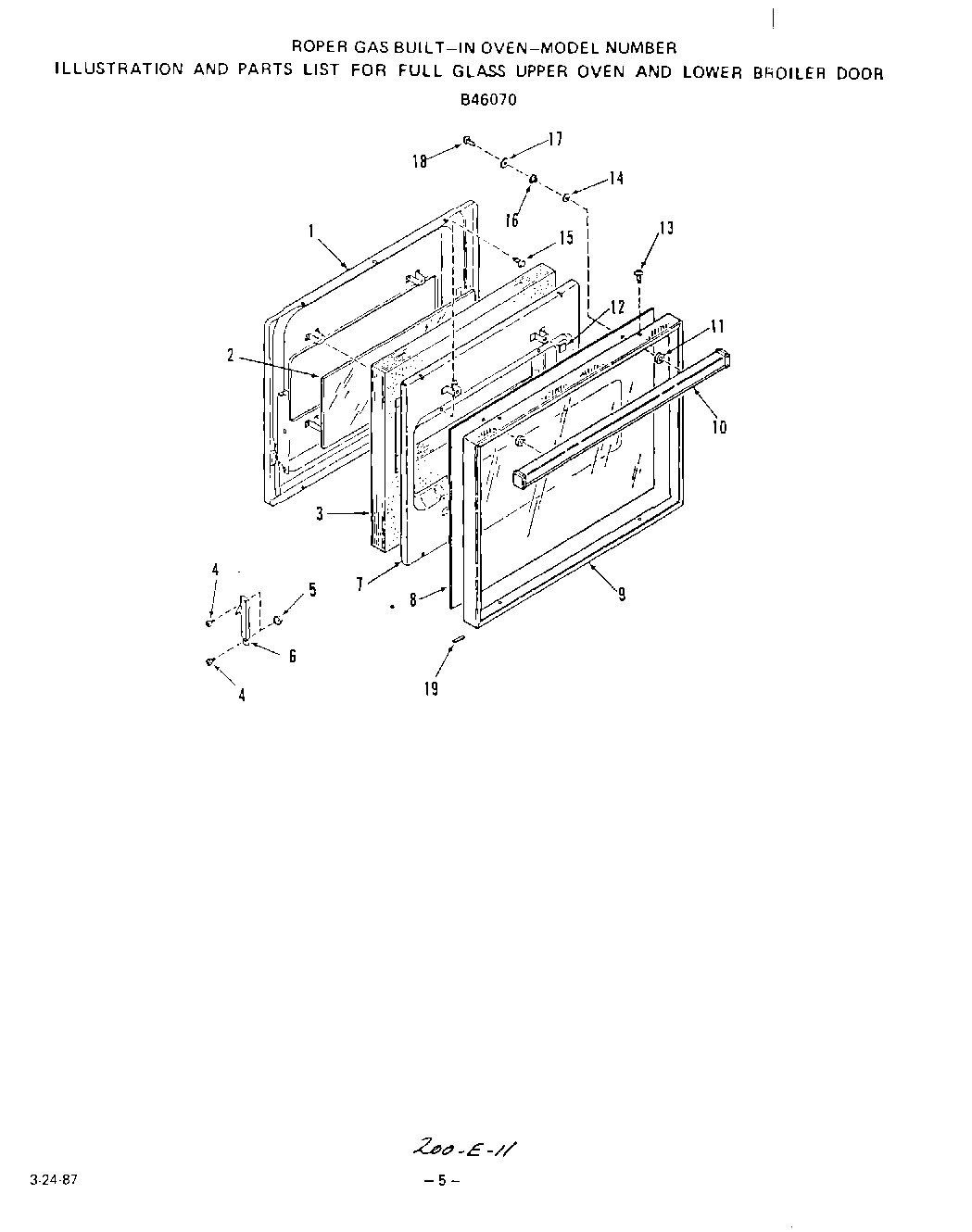

04 - GLASS UPPER OVEN AND LOWER BROILER

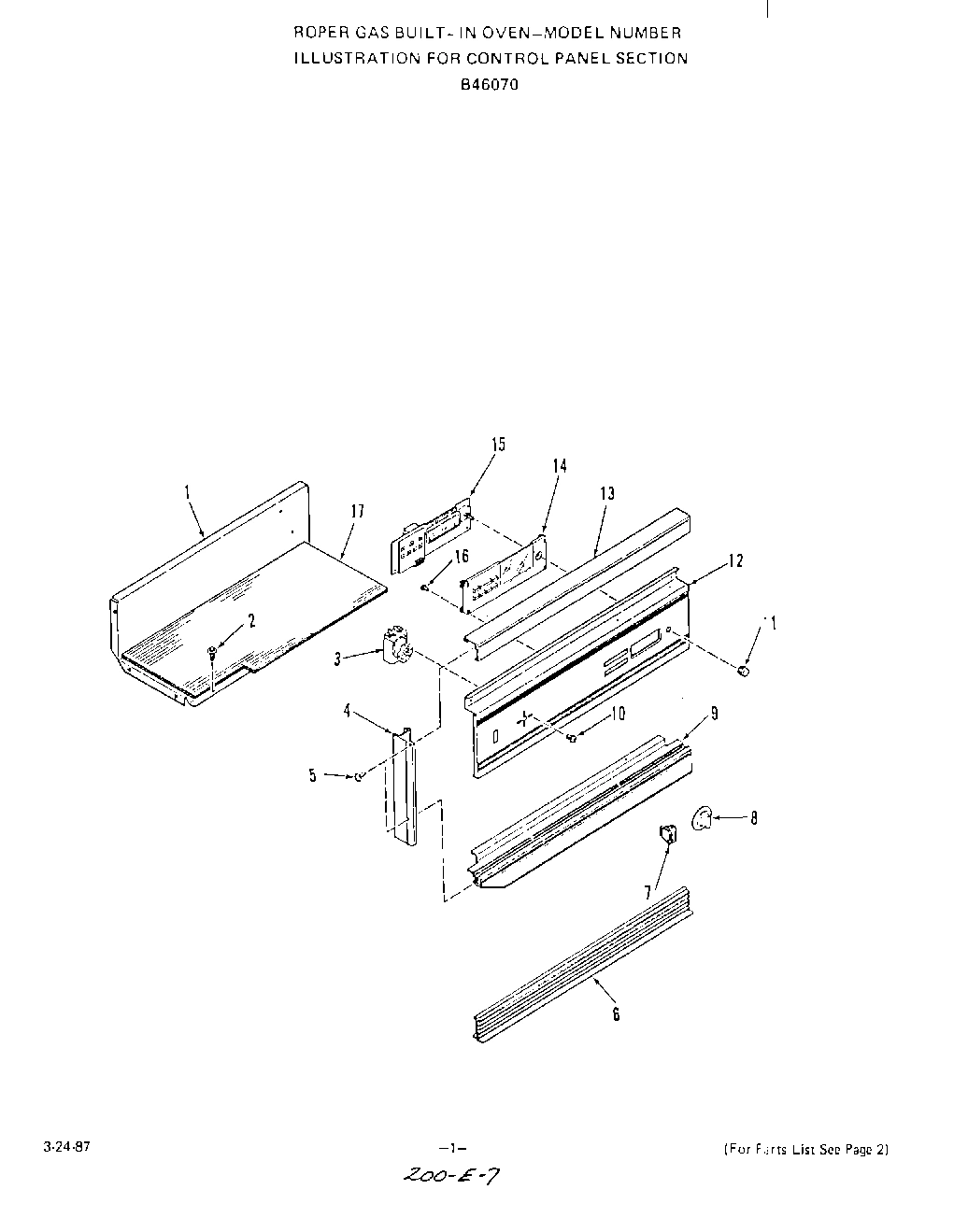

02 - CONTROL PANEL
Common parts from model Whirlpool B4607X0 BUILT-IN GAS OVEN
Sensor WPL 336312 Contact Us For Availability
Main WPL 336828 Contact Us For Availability
xWire Harness WPL ARI20601A7 Contact Us For Availability
1
Bracket-Igniter WPL 311689 Contact Us For Availability
1
Wire Cover WPL 323788 Contact Us For Availability
1
Door Lining-Upper or Lower Door WPL 311853 Contact Us For Availability
1
Baffle-Control Panel WPL 326556 Contact Us For Availability
2
Insulation-Oven Back WPL 336824 Contact Us For Availability
2
Door Glass-Inner WPL 111887 Contact Us For Availability
2
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
3
Support-Igniter Asm (Upr) WPL 307161 Contact Us For Availability
3
Vent Box WPL 323779 Contact Us For Availability
3
Insulation - Upper or Lower Door WPL 299782 Contact Us For Availability
3
Thermostat WPL 336830 Contact Us For Availability
4
Manifold Pipe w/Bracket WPL 306364 Contact Us For Availability
4
Air Chamber Cover WPL 323760 Contact Us For Availability
4
Shoulder Bolt (4 Req) WPL 97709 Contact Us For Availability
4
Right WPL 336630 Contact Us For Availability
4
Left WPL 336631 Contact Us For Availability
4
Side Trim-Control Panel WPL ARI20591A1 Contact Us For Availability
5
Union 1/2``-Std WPL 295269 Contact Us For Availability
5
Hex Nut 10-32 WPL 97816 Contact Us For Availability
6
Nipple 3/8`` x 2`` WPL 300967 Contact Us For Availability
6
Disconnect WPL 232150 Contact Us For Availability
6
Right WPL 325201 Contact Us For Availability
6
Left WPL 325203 Contact Us For Availability
6
Hinge Arm Guide WPL ARI20600A5 Contact Us For Availability
6
Trim Vent WPL 336628 Contact Us For Availability
7
Tubing3/8``(Inlet Valve To Pressure Regulator WPL 113397 Contact Us For Availability
7
Channel Trim - Lt. or Rt. WPL 315233 Contact Us For Availability
7
Insulation Retainer - Upper or Lower Door WPL 322096 Contact Us For Availability
7
Switch WPL 334649 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
Left WPL 336821 Contact Us For Availability
8
Right WPL 336822 Contact Us For Availability
8
Side Trim-Front Frame WPL ARI20592A2 Contact Us For Availability
8
Door Glass-Outer-Upper or Lower Door WPL 336207 Contact Us For Availability
8
Thermostat Knob WPL 336819 Contact Us For Availability
9
Elbow 90o WPL 295271 Contact Us For Availability
9
Oven Back WPL 336812 Contact Us For Availability
9
Door Frame-Upper or Lower Door WPL 336212 Contact Us For Availability
9
Trim-Control Panel WPL 336632 Contact Us For Availability
10
Inlet Valve WPL 320479 Contact Us For Availability
10
Spacer-Side Trim (4 Req) WPL 302862 Contact Us For Availability
10
Door Handle WPL 336205 Contact Us For Availability
10
Screw WPL 78505 Contact Us For Availability
11
Pressure Regulator WPL 295270 Contact Us For Availability
11
Accordian Rivet WPL 281160 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
11
Knob-Clock WPL 334961 Contact Us For Availability
12
Bushing-Reducer WPL 102221 Contact Us For Availability
12
Shoulder Rivet WPL 104735 Contact Us For Availability
12
Spacer (4 Req.) WPL 299314 Contact Us For Availability
12
Control Panel WPL 336818 Contact Us For Availability
13
Control Valve WPL 306467 Contact Us For Availability
13
Roller WPL 104734 Contact Us For Availability
13
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
13
Lamp Shade WPL 336629 Contact Us For Availability
14
Control Valve WPL 307006 Contact Us For Availability
14
Left (Up. or Lo. Oven) WPL 324036 Contact Us For Availability
14
Right (Up. or Lo. Oven) WPL 324037 Contact Us For Availability
14
Oven Door Hinge w/Rivet, Sleeve & Washer WPL ARI20593A5 Contact Us For Availability
14
Washer-Fiber WPL 333014 Contact Us For Availability
14
Clock Lens WPL 335646 Contact Us For Availability
15
Tubing 3/8`` w/Orifice Fitting (Cont. to Lo. WPL 314333 Contact Us For Availability
15
Hinge Pivot Sleeve WPL 97717 Contact Us For Availability
15
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
15
Clock WPL 336328 Contact Us For Availability
16
Tubing 3/8`` w/Orifice Fitting (Cont. Valve t WPL 314334 Contact Us For Availability
16
Rivet WPL 97748 Contact Us For Availability
16
Spacer-Door Glass WPL 333015 Contact Us For Availability
16
Screw WPL 78153 Contact Us For Availability
17
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
17
Washer WPL 103208 Contact Us For Availability
17
Washer WPL 99279 Contact Us For Availability
17
Corrugated INsulation WPL 326555 Contact Us For Availability
18
Igniter (Broil & Oven Burner) WPL 319887 Contact Us For Availability
18
Hinge Latch (Right) WPL 323456 Contact Us For Availability
18
Hinge Latch (Left) WPL 323457 Contact Us For Availability
18
Hinge Latch WPL ARI20594A6 Contact Us For Availability
18
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
19
Tubing 3/8`` (Cont Valve to Broil Orifice) WPL 279542 Contact Us For Availability
19
Washer WPL 97749 Contact Us For Availability
19
Cushion-Door Glass WPL 112370 Contact Us For Availability
20
Cover Plate w/Angle WPL 323782 Contact Us For Availability
20
Right (Up. or Lo. Oven) WPL 324038 Contact Us For Availability
20
Left (Up. or Lo. Oven) WPL 324039 Contact Us For Availability
20
Oven Door Arm w/Rivet, Sleeve & Washer WPL ARI20595A8 Contact Us For Availability
21
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
21
Hinge Pivot Sleeve WPL 104629 Contact Us For Availability
22
Air Shutter WPL 239267 Contact Us For Availability
22
Spring Link WPL 323454 Contact Us For Availability
23
Adjusting Screw-Air Shutter WPL 239268 Contact Us For Availability
23
Bolt 1/4-20x3/8`` WPL 288881 Contact Us For Availability
24
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
24
Screw 10Ax3/8`` WPL 71269 Contact Us For Availability
25
Upper Baffle - Broiler Burner WPL 325271 Contact Us For Availability
25
Insulation Shield (2 Req) WPL 327985 Contact Us For Availability
26
Broiler Burner (Inc Keys 25 & 27) WPL 306497 Contact Us For Availability
27
Lower Baffle-Broiler Burner WPL 281279 Contact Us For Availability
27
Washer WPL 323451 Contact Us For Availability
28
Cover Box-Venturi WPL 323768 Contact Us For Availability
28
Lockwasher WPL 69459 Contact Us For Availability
29
Orifice Fitting WPL 314335 Contact Us For Availability
29
Oven Door Spring (Up or Lo Oven) WPL 286547 Contact Us For Availability
30
Bracket-Orifice Fitting WPL 279490 Contact Us For Availability
30
Left WPL 323785 Contact Us For Availability
30
Right WPL 323786 Contact Us For Availability
30
Body Side WPL ARI20596A1 Contact Us For Availability
31
Air Shutter WPL 323455 Contact Us For Availability
31
Service Cord WPL 232132 Contact Us For Availability
32
Oven Burner WPL 331854 Contact Us For Availability
32
Clip (For Key31) WPL 97047 Contact Us For Availability
33
Burner Box WPL 323750 Contact Us For Availability
34
Cover Plate-Lower Oven WPL 323766 Contact Us For Availability
35
Oven Bottom w/Baffle WPL 331857 Contact Us For Availability
36
Insulation Retainer WPL 323774 Contact Us For Availability
37
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
38
Oven Top-Lower Oven WPL 324739 Contact Us For Availability
39
Insulation-Oven Top & Sides (1 Piece) WPL 279468 Contact Us For Availability
40
Baffle-Oven Bottom WPL 281418 Contact Us For Availability
41
Thermostat Bulb Clip (4 Req) WPL 335535 Contact Us For Availability
42
Plug Button WPL 98230 Contact Us For Availability
43
Insulation WPL 279544 Contact Us For Availability
44
Oven Top-Upper Oven WPL 336817 Contact Us For Availability
45
Vent Box WPL 313320 Contact Us For Availability
46
Insulation-Oven Top & Back (1 Piece) WPL 313321 Contact Us For Availability
47
Oven Cabinet Top WPL 323762 Contact Us For Availability
49
Insulation-Oven WPL 313324 Contact Us For Availability
51
WPL 70588 WPL 70588 Contact Us For Availability
53
WPL 331856 WPL 331856 Contact Us For Availability
54
WPL 97324 WPL 97324 Contact Us For Availability
55
WPL 331848 WPL 331848 Contact Us For Availability
56
WPL 315944 WPL 315944 Contact Us For Availability
57
WPL 315945 WPL 315945 Contact Us For Availability
58
WPL 279476 WPL 279476 Contact Us For Availability
59
WPL 331851 WPL 331851 Contact Us For Availability
60
WPL 331850 WPL 331850 Contact Us For Availability
61
WPL 279539 WPL 279539 Contact Us For Availability
62
WPL 303382 WPL 303382 Contact Us For Availability
63
WPL 306481 WPL 306481 Contact Us For Availability
64
WPL 327977 WPL 327977 Contact Us For Availability
65
WPL 108069 WPL 108069 Contact Us For Availability
66
WPL 336823 WPL 336823 Contact Us For Availability
67
WPL 323446 WPL 323446 Contact Us For Availability
68
WPL 327982 WPL 327982 Contact Us For Availability
69
WPL 327965 WPL 327965 Contact Us For Availability
71
WPL 336626 WPL 336626 Contact Us For Availability
72
WPL 231648 WPL 231648 Contact Us For Availability
73
WPL 111257 WPL 111257 Contact Us For Availability
74
WPL 87883 WPL 87883 Contact Us For Availability
75
WPL 105667 WPL 105667 Contact Us For Availability
76
WPL 303383 WPL 303383 Contact Us For Availability
77
WPL 279537 WPL 279537 Contact Us For Availability
77
WPL 279538 WPL 279538 Contact Us For Availability
77
WPL ARI20597A7 WPL ARI20597A7 Contact Us For Availability
78
WPL 331858 WPL 331858 Contact Us For Availability
78
WPL ARI20598A9 WPL ARI20598A9 Contact Us For Availability
79
WPL 331859 WPL 331859 Contact Us For Availability
79
WPL 332376 WPL 332376 Contact Us For Availability
79
WPL ARI20599A6 WPL ARI20599A6 Contact Us For Availability
80
WPL 279470 WPL 279470 Contact Us For Availability
81
WPL 323619 WPL 323619 Contact Us For Availability
82
WPL 335851 WPL 335851 Contact Us For Availability
83
WPL 336152 WPL 336152 Contact Us For Availability
× ![]()
