Model Whirlpool B4607B0 BUILT-IN GAS OVEN – Common Parts & Diagrams

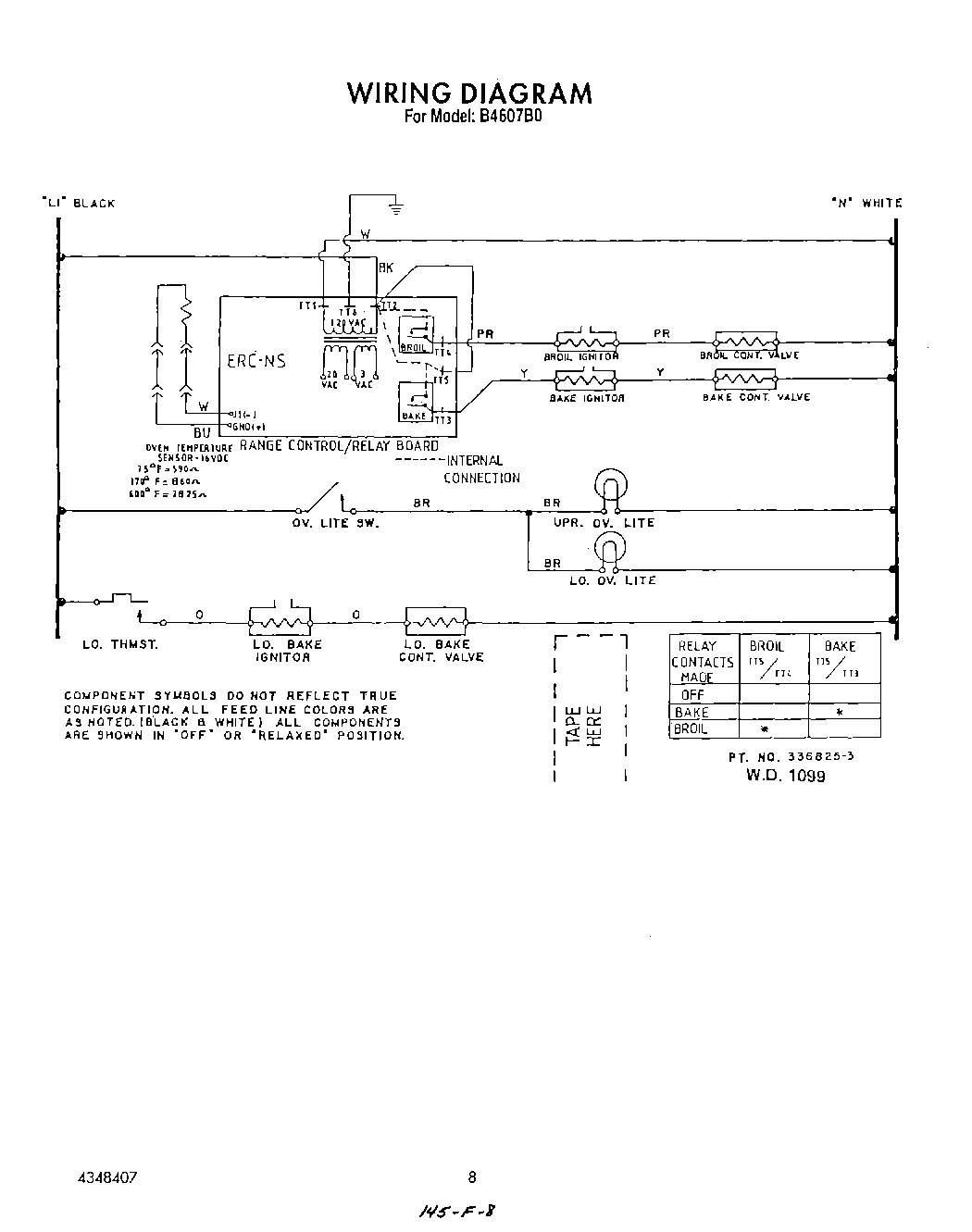

06 - WIRING DIAGRAM

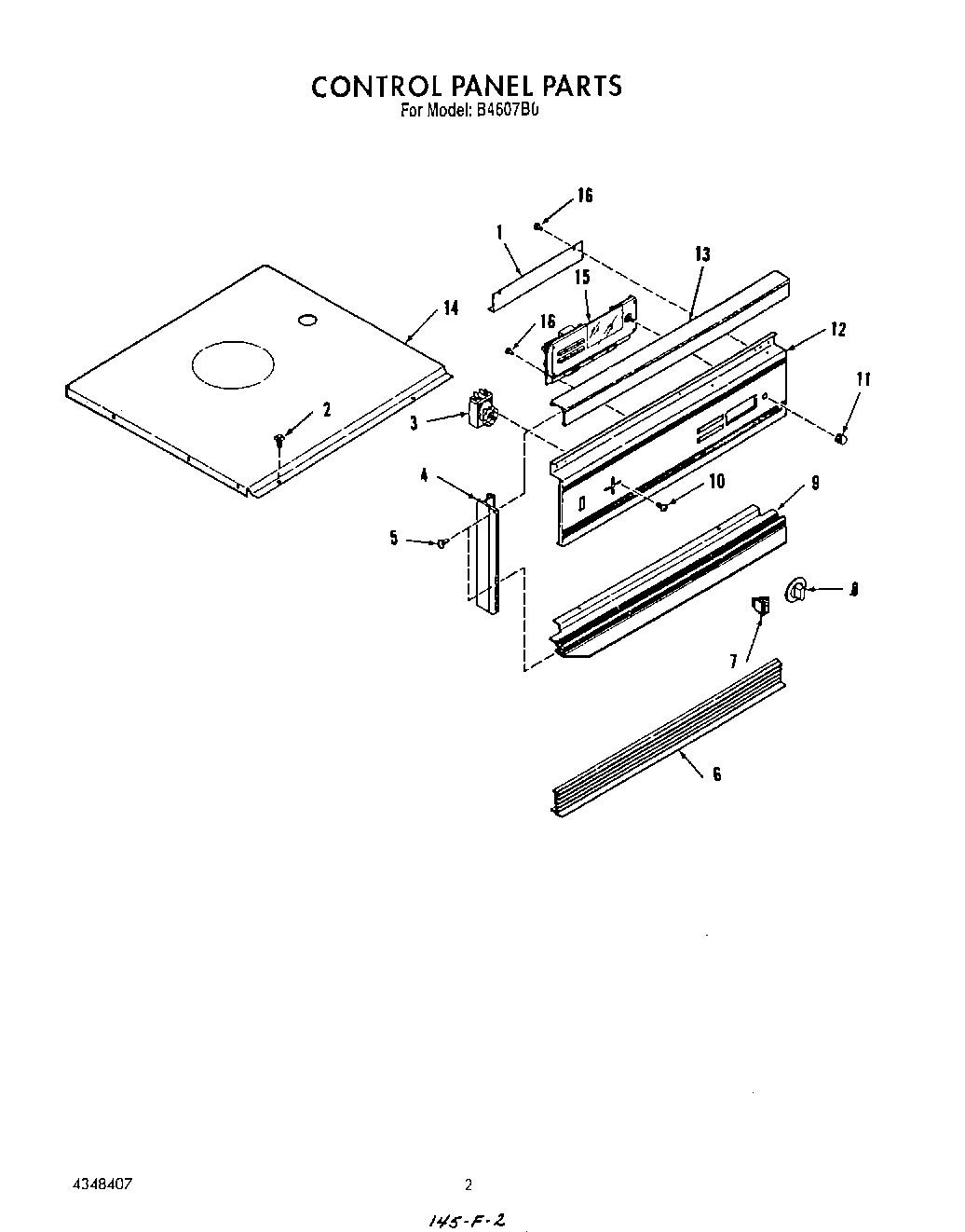

02 - CONTROL PANEL

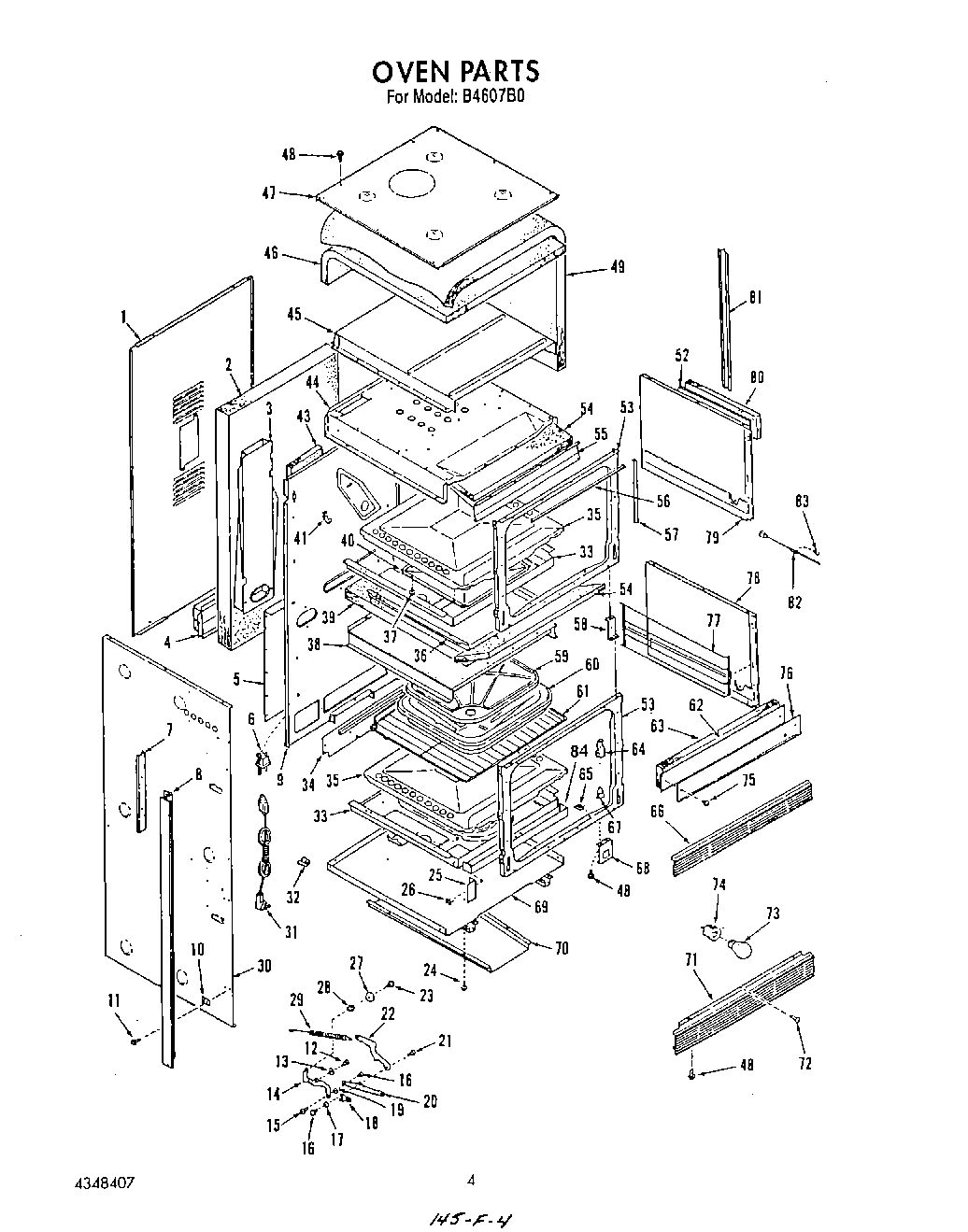

04 - OVEN

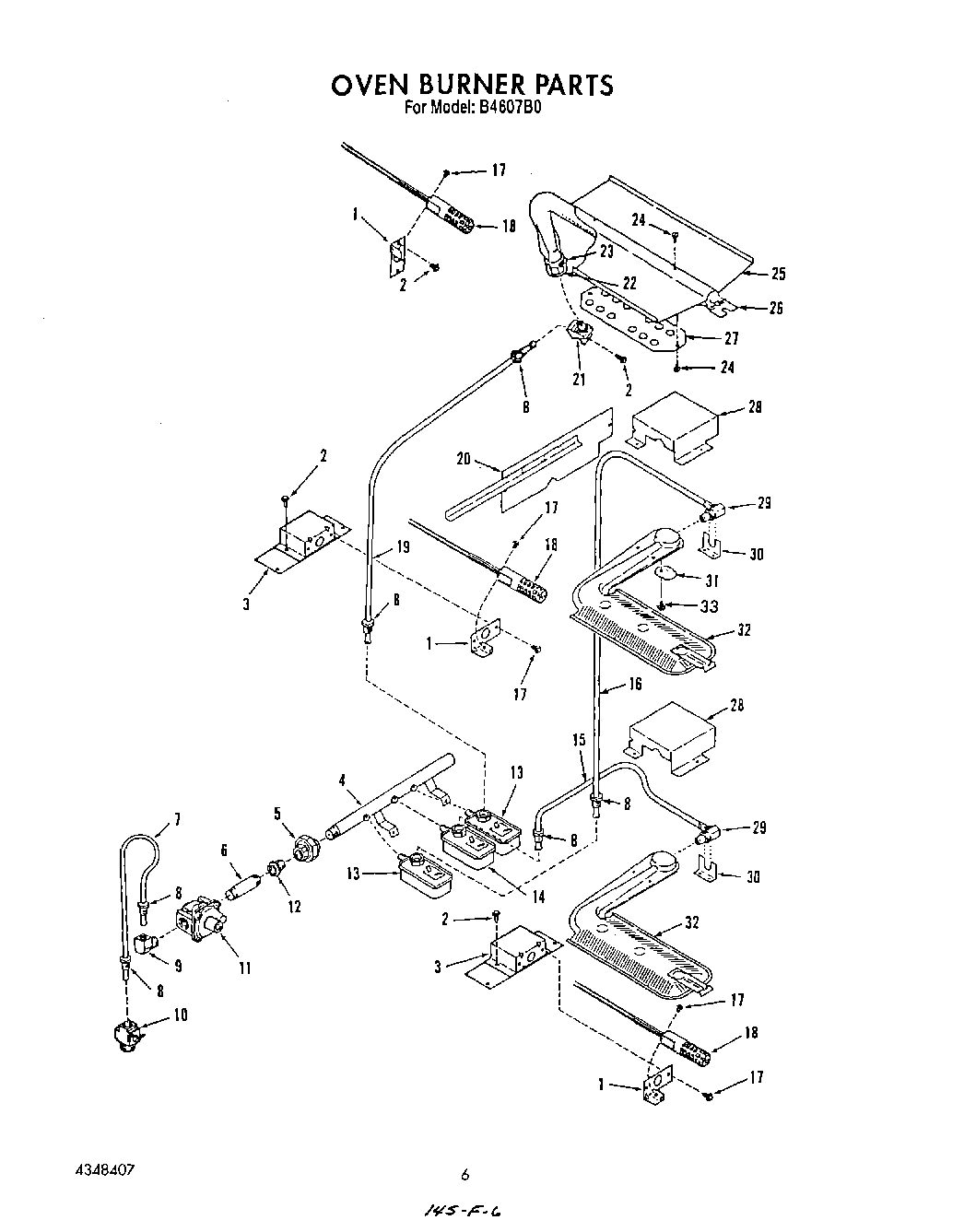

05 - OVEN BURNER

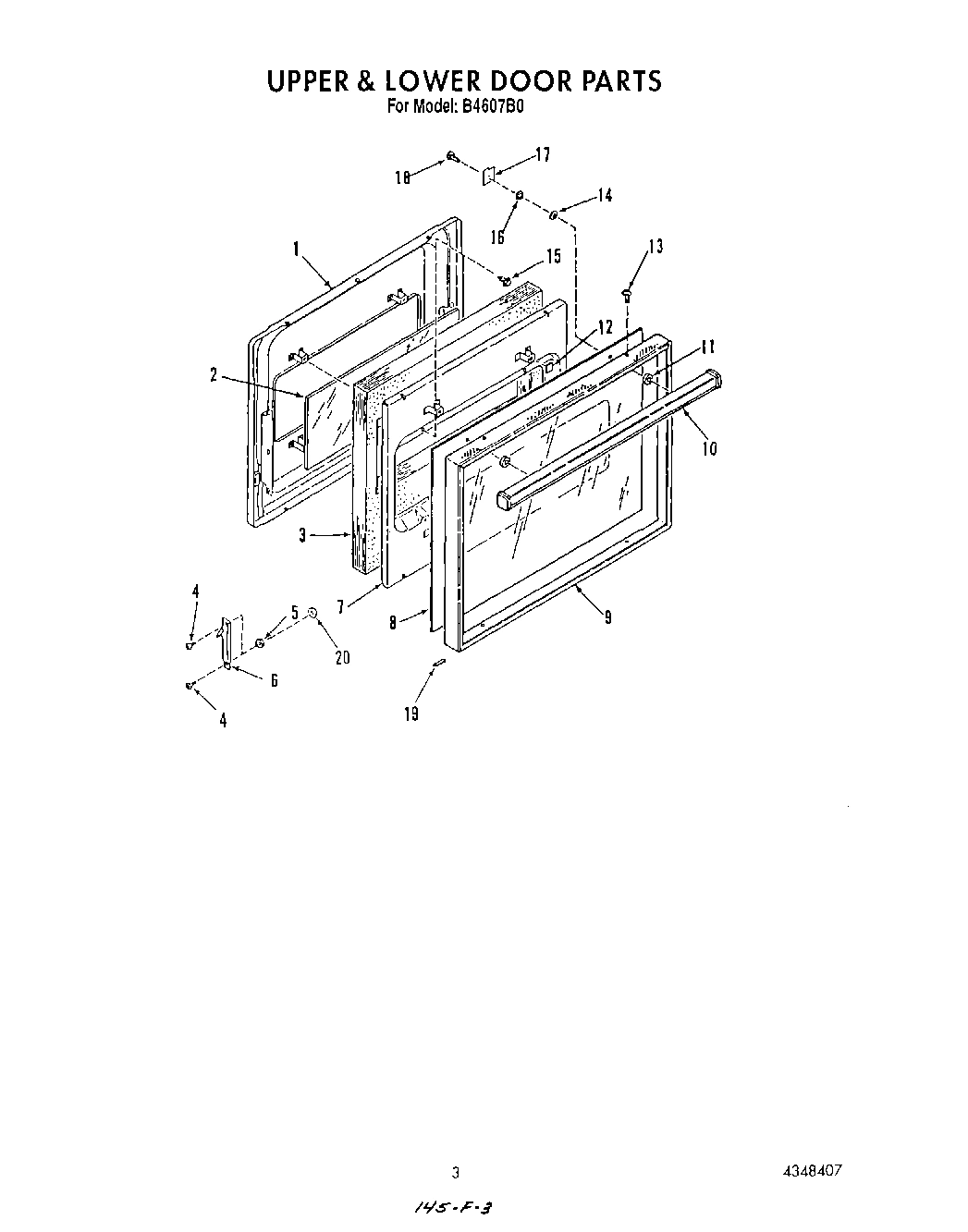

03 - UPPER AND LOWER DOOR , LIT/OPTIONAL
Common parts from model Whirlpool B4607B0 BUILT-IN GAS OVEN
Sensor WPL 4337735 Contact Us For Availability
1
Baffle WPL 4338411 Contact Us For Availability
1
Rear Cover WPL 4338331 Contact Us For Availability
1
Bracket, Igniter WPL 4331163 Contact Us For Availability
1
Door Lining WPL 4336669 Contact Us For Availability
2
Screw, No.10-32 x 5/16 WPL 4326322 Contact Us For Availability
2
Insulation, Back WPL 4337887 Contact Us For Availability
2
Glass, Inner WPL 4351196 Contact Us For Availability
3
Thermostat WPL 4337890 Contact Us For Availability
3
Vent Box WPL 4333974 Contact Us For Availability
3
Support Assembly, Igniter (Upper) WPL 4353472 Contact Us For Availability
3
Insulation WPL 4328030 Contact Us For Availability
4
Trim-Control Panel (Right) WPL 4337836 Contact Us For Availability
4
Trim-Control Panel (Left) WPL 4337837 Contact Us For Availability
4
Cover, Air Chamber WPL 4333969 Contact Us For Availability
4
Manifold Pipe, W/Bracket WPL 4329548 Contact Us For Availability
4
Shoulder Bolt (4) WPL 4323644 Contact Us For Availability
5
Screw No.6-32x1/2 WPL 4337861 Contact Us For Availability
5
Cover, Vent WPL 4325438 Contact Us For Availability
5
Fitting, 1/2`` WPL 4327543 Contact Us For Availability
5
Lockwasher WPL 4324059 Contact Us For Availability
6
Trim, Vent WPL 4337834 Contact Us For Availability
6
Disconnect WPL 4324642 Contact Us For Availability
6
Fitting, 3/8 x 2 WPL 4328274 Contact Us For Availability
6
Hinge (Right) WPL 4334476 Contact Us For Availability
6
Hinge (Left) WPL 4334477 Contact Us For Availability
7
Channel Trim Lt/Rt WPL 4332120 Contact Us For Availability
7
Tubing, 3/8`` (Shut Off Valve to Regulator) WPL 4343168 Contact Us For Availability
7
Retainer WPL 4333546 Contact Us For Availability
8
Knob, Thermostat WPL 4337884 Contact Us For Availability
8
Side Trim, Frame (Left) WPL 4337885 Contact Us For Availability
8
Side Trim, Frame (Right) WPL 4337886 Contact Us For Availability
8
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
8
Outer Door Glass WPL 4337691 Contact Us For Availability
9
Trim, Lower Panel WPL 4337838 Contact Us For Availability
9
Rear Oven Panel WPL 4337881 Contact Us For Availability
9
90o Elbow WPL 4327545 Contact Us For Availability
9
Door Frame WPL 4337696 Contact Us For Availability
10
Screw No.8-32 x 3/16 WPL 4323479 Contact Us For Availability
10
Spacer, Trim (4) WPL 4328723 Contact Us For Availability
10
Valve, Inlet WPL 4333122 Contact Us For Availability
10
Handle WPL 4337689 Contact Us For Availability
11
Knob, Clock WPL 4338513 Contact Us For Availability
11
Rivet WPL 4325611 Contact Us For Availability
11
Pressure Regulator WPL 4337029 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
12
Control Panel WPL 4337883 Contact Us For Availability
12
Rivet, Shoulder WPL 4323895 Contact Us For Availability
12
Bushing, Reducer WPL 4323759 Contact Us For Availability
12
Spacer (4) WPL 4327907 Contact Us For Availability
13
Lens, Light WPL 4337835 Contact Us For Availability
13
Roller WPL 4323894 Contact Us For Availability
13
Control Valve WPL 4342532 Contact Us For Availability
13
Screw No.6-20x5/16 WPL 4338183 Contact Us For Availability
14
Retainer, Insulation WPL 4338322 Contact Us For Availability
14
Hinge-W/Rivet, Sleeve, & Washer (Left (2)) WPL 4334088 Contact Us For Availability
14
Hinge-W/Rivet, Sleeve, & Washer (Right (2)) WPL 4334089 Contact Us For Availability
14
Control Valve WPL 4329741 Contact Us For Availability
14
Washer, Fiber WPL 4336868 Contact Us For Availability
15
Clock W/Lens WPL 4343177 Contact Us For Availability
15
Sleeve WPL 4323645 Contact Us For Availability
15
3/8 Tubing W/Orifice (Cont. Valve to Lo. Oven WPL 4331882 Contact Us For Availability
15
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
16
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
16
Lens, Clock WPL 4337553 Contact Us For Availability
16
Rivet WPL 4323646 Contact Us For Availability
16
3/8 Tubing W/Orifice (Cont. Valve to Up. Oven WPL 4331883 Contact Us For Availability
16
Spacer-Door Glass WPL 4336869 Contact Us For Availability
17
Retainer, Glass WPL 4342666 Contact Us For Availability
18
Latch, Hinge (Right) WPL 4333876 Contact Us For Availability
18
Latch, Hinge (Left) WPL 4333877 Contact Us For Availability
18
Igniter, Broil & Oven Burner WPL 4338008 Contact Us For Availability
18
Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability
19
Washer WPL 4323647 Contact Us For Availability
19
Tubing 3/8``, Control Valve to Broiler Orific WPL 4338631 Contact Us For Availability
19
Cushion WPL 4324217 Contact Us For Availability
20
Arm Assembly W/Rivet, Sleeve, Washer (Up/Lowe WPL 4334090 Contact Us For Availability
20
Arm Assembly W/Rivet, Sleeve, Washer (Up/Lowe WPL 4334091 Contact Us For Availability
20
Cover Plate, W/Angle WPL 4333975 Contact Us For Availability
20
Installation Guide WPL 4348214 Contact Us For Availability
20
Use and Care Guide WPL 4348215 Contact Us For Availability
20
Repair Parts List WPL 4348407 Contact Us For Availability
20
Wire Harness WPL ARI20590A6 Contact Us For Availability
21
Pilot Sleeve WPL 4323887 Contact Us For Availability
21
Fitting, Broiler Orifice WPL 4331233 Contact Us For Availability
22
Link, Spring WPL 4333874 Contact Us For Availability
22
Shutter, Air WPL 4351837 Contact Us For Availability
23
Screw 1/4-20x3/8 WPL 4326674 Contact Us For Availability
23
Adjusting Screw, Air Shutter WPL 4351838 Contact Us For Availability
25
Shield, Insulation (2) WPL 4335476 Contact Us For Availability
25
Upper Baffle, Broiler Burner WPL 4334487 Contact Us For Availability
26
Clip WPL 4323413 Contact Us For Availability
26
Broiler Burner, Inc`s 25 & 27 WPL 4329575 Contact Us For Availability
27
Washer WPL 4333871 Contact Us For Availability
27
Lower Baffle, Broiler Burner WPL 4325631 Contact Us For Availability
28
Lockwasher WPL 4323388 Contact Us For Availability
28
Cover, Venturi WPL 4333972 Contact Us For Availability
29
Spring (Up/Lower) WPL 4326315 Contact Us For Availability
29
Orifice Fitting WPL 4331884 Contact Us For Availability
30
Side Panel (Right) WPL 4338329 Contact Us For Availability
30
Side Panel (Left) WPL 4338330 Contact Us For Availability
30
Bracket, Orifice Fitting WPL 4325441 Contact Us For Availability
31
Power Service Cord WPL 4351570 Contact Us For Availability
31
Air Shutter WPL 4333875 Contact Us For Availability
32
Clip (for No.31) WPL 4323620 Contact Us For Availability
32
Oven Burner WPL 4336670 Contact Us For Availability
33
Burner Box WPL 4333964 Contact Us For Availability
33
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
34
Cover Plate, Lower Oven WPL 4333971 Contact Us For Availability
35
Oven Bottom, W/Baffle WPL 4336673 Contact Us For Availability
36
Retainer, Insulation WPL 4333973 Contact Us For Availability
37
Screw, No.10 x 3/8 WPL 4323394 Contact Us For Availability
38
Oven Top, Lower Oven WPL 4336805 Contact Us For Availability
39
Insulation, Top And Sides (1 Pc) WPL 4325433 Contact Us For Availability
40
Baffle-Oven Bottom WPL 4325651 Contact Us For Availability
41
Clip, Thermostat Bulb WPL 4337521 Contact Us For Availability
43
Insulation WPL 4352046 Contact Us For Availability
44
Oven Top, Upper Oven WPL 4337882 Contact Us For Availability
45
Vent Box WPL 4336668 Contact Us For Availability
46
Insulation, Top And Sides (1 Pc) WPL 4354011 Contact Us For Availability
47
Top, Oven Cabinet WPL 4333970 Contact Us For Availability
49
Insulation, Top And Sides (1 Pc) WPL 4354013 Contact Us For Availability
52
Insula WPL 4326299 Contact Us For Availability
53
WPL 4336672 WPL 4336672 Contact Us For Availability
54
WPL 4350586 WPL 4350586 Contact Us For Availability
55
WPL 4336664 WPL 4336664 Contact Us For Availability
56
WPL 4338287 WPL 4338287 Contact Us For Availability
57
WPL 4338288 WPL 4338288 Contact Us For Availability
58
WPL 4325437 WPL 4325437 Contact Us For Availability
59
WPL 4336667 WPL 4336667 Contact Us For Availability
61
WPL 4325447 WPL 4325447 Contact Us For Availability
62
WPL 4328849 WPL 4328849 Contact Us For Availability
63
WPL 4353431 WPL 4353431 Contact Us For Availability
64
WPL 4335470 WPL 4335470 Contact Us For Availability
65
WPL 4324015 WPL 4324015 Contact Us For Availability
66
WPL 4343176 WPL 4343176 Contact Us For Availability
67
WPL 4333868 WPL 4333868 Contact Us For Availability
68
WPL 4352035 WPL 4352035 Contact Us For Availability
69
WPL 4338325 WPL 4338325 Contact Us For Availability
70
WPL 4338332 WPL 4338332 Contact Us For Availability
71
WPL 4338357 WPL 4338357 Contact Us For Availability
72
WPL 4324614 WPL 4324614 Contact Us For Availability
75
WPL 4323949 WPL 4323949 Contact Us For Availability
76
WPL 4328850 WPL 4328850 Contact Us For Availability
77
WPL 4325445 WPL 4325445 Contact Us For Availability
77
WPL 4325446 WPL 4325446 Contact Us For Availability
78
WPL 4336804 WPL 4336804 Contact Us For Availability
79
WPL 4336675 WPL 4336675 Contact Us For Availability
79
WPL 4336674 WPL 4336674 Contact Us For Availability
80
WPL 4352036 WPL 4352036 Contact Us For Availability
81
WPL 4333928 WPL 4333928 Contact Us For Availability
82
WPL 4338291 WPL 4338291 Contact Us For Availability
83
WPL 4324445 WPL 4324445 Contact Us For Availability
84
WPL 4338263 WPL 4338263 Contact Us For Availability
× ![]()
