Model Whirlpool B4457B0 BUILT-IN GAS OVEN – Common Parts & Diagrams
02 - BURNER
07 - WIRE HARNESS

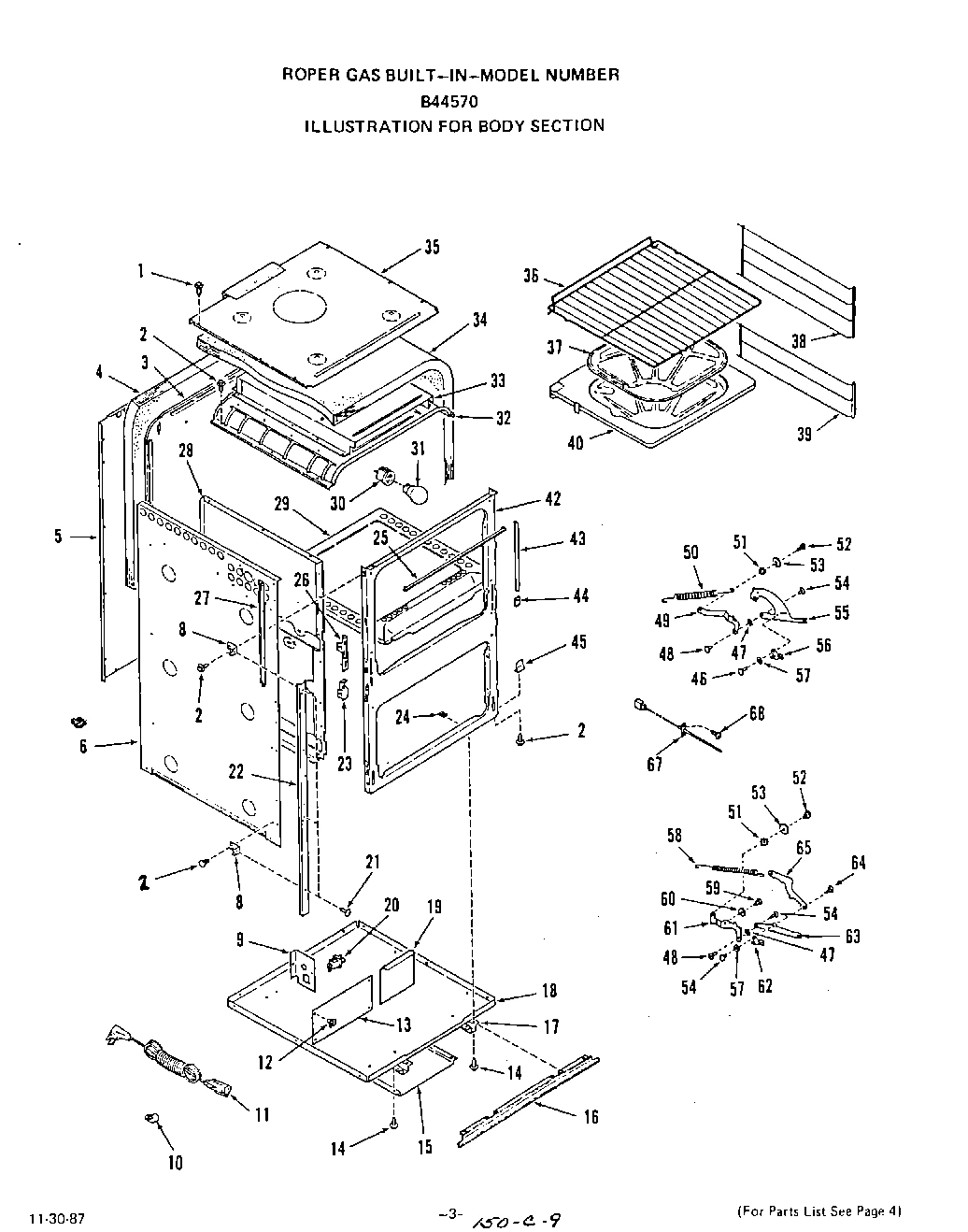

04 - BODY

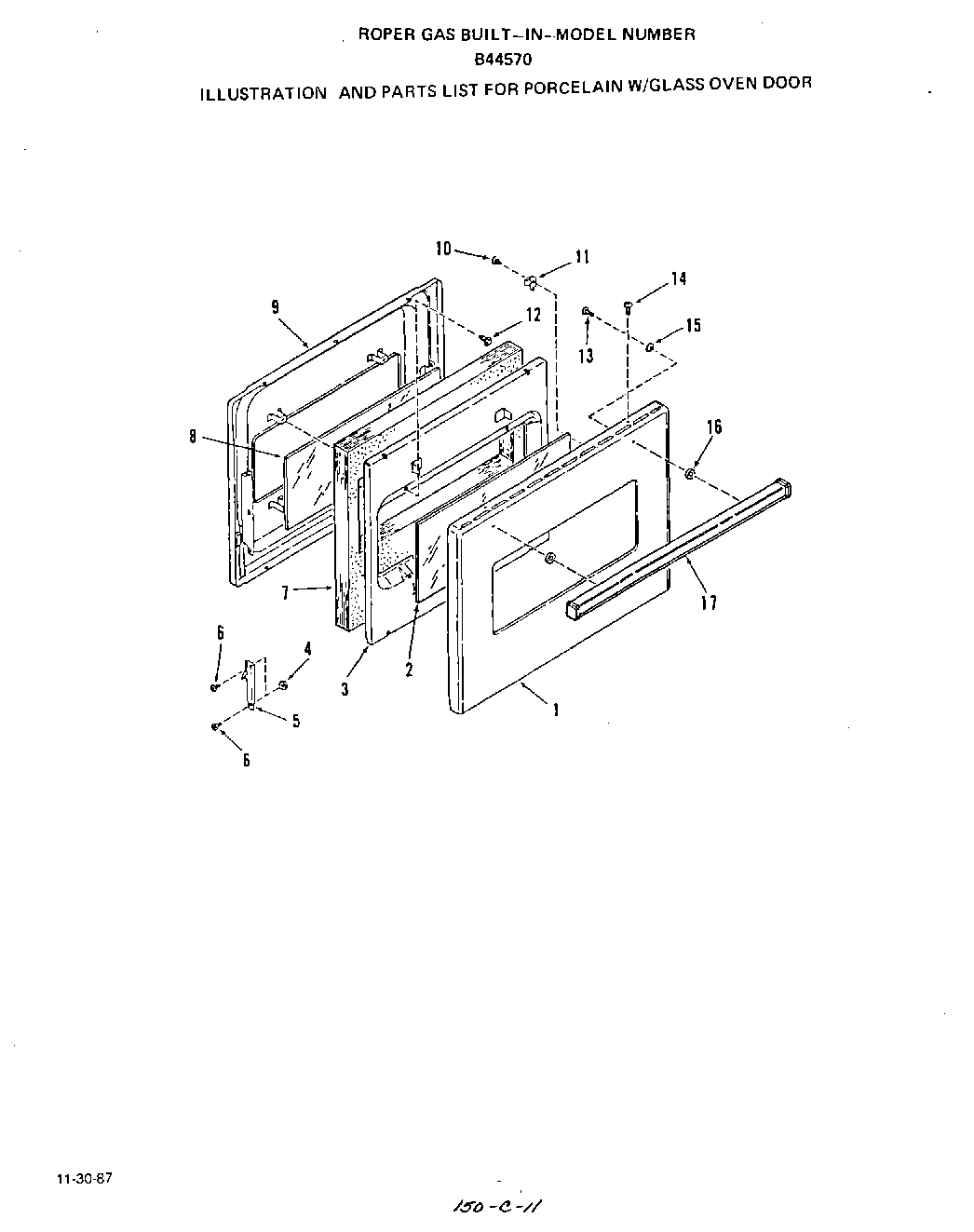

05 - PORCELAIN W/GLASS OVEN DOOR

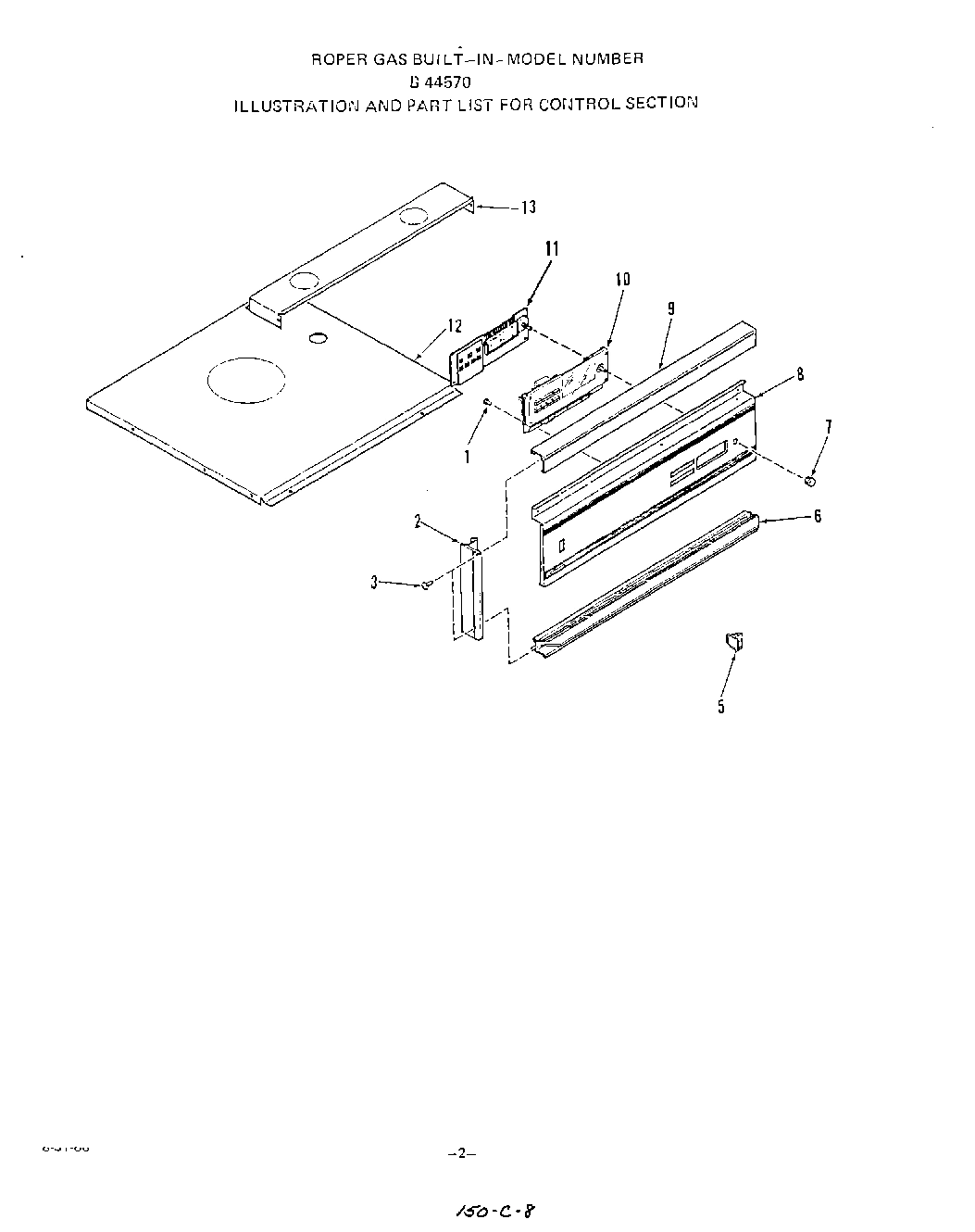

03 - CONTROL

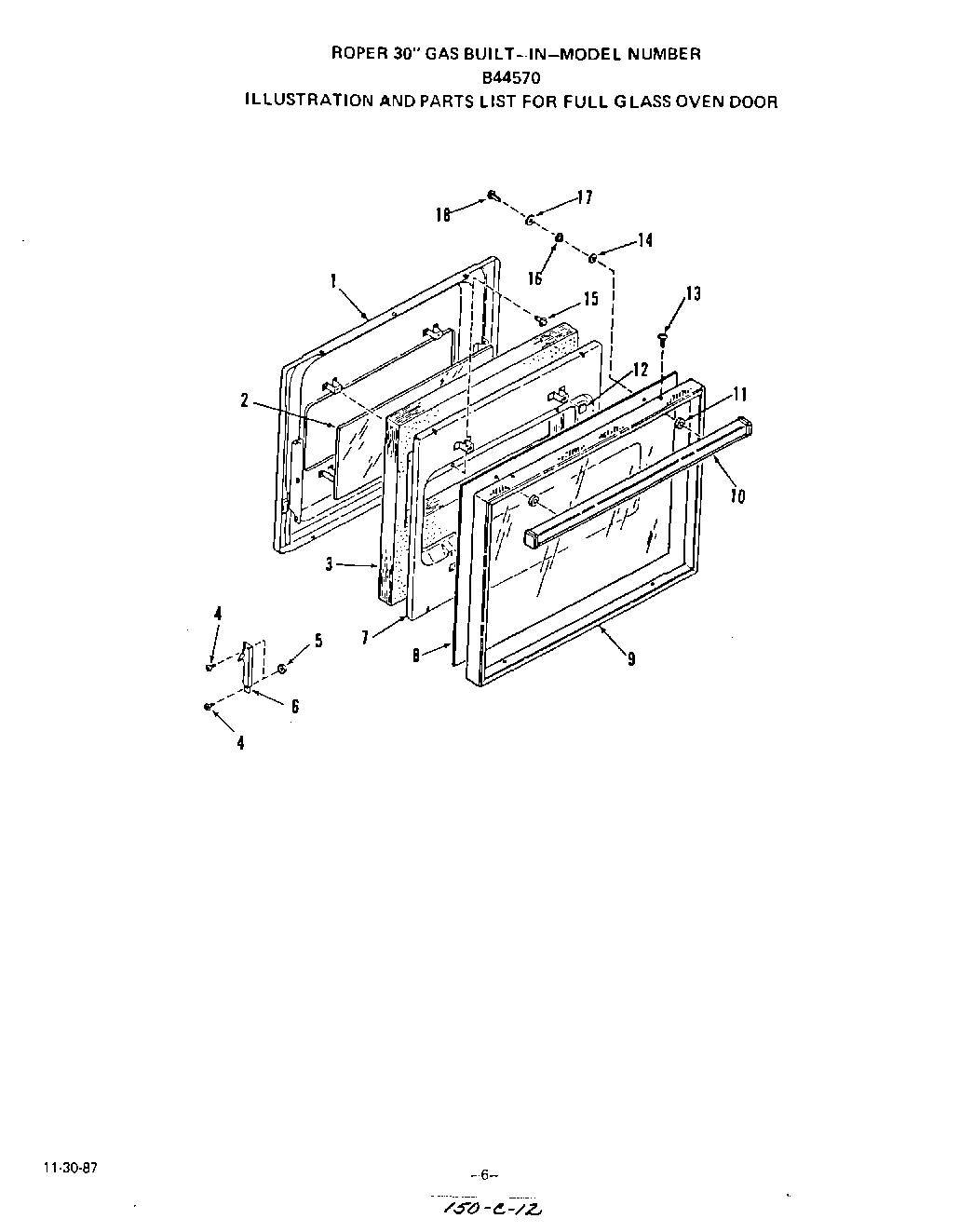

06 - FULL GLASS OVEN DOOR

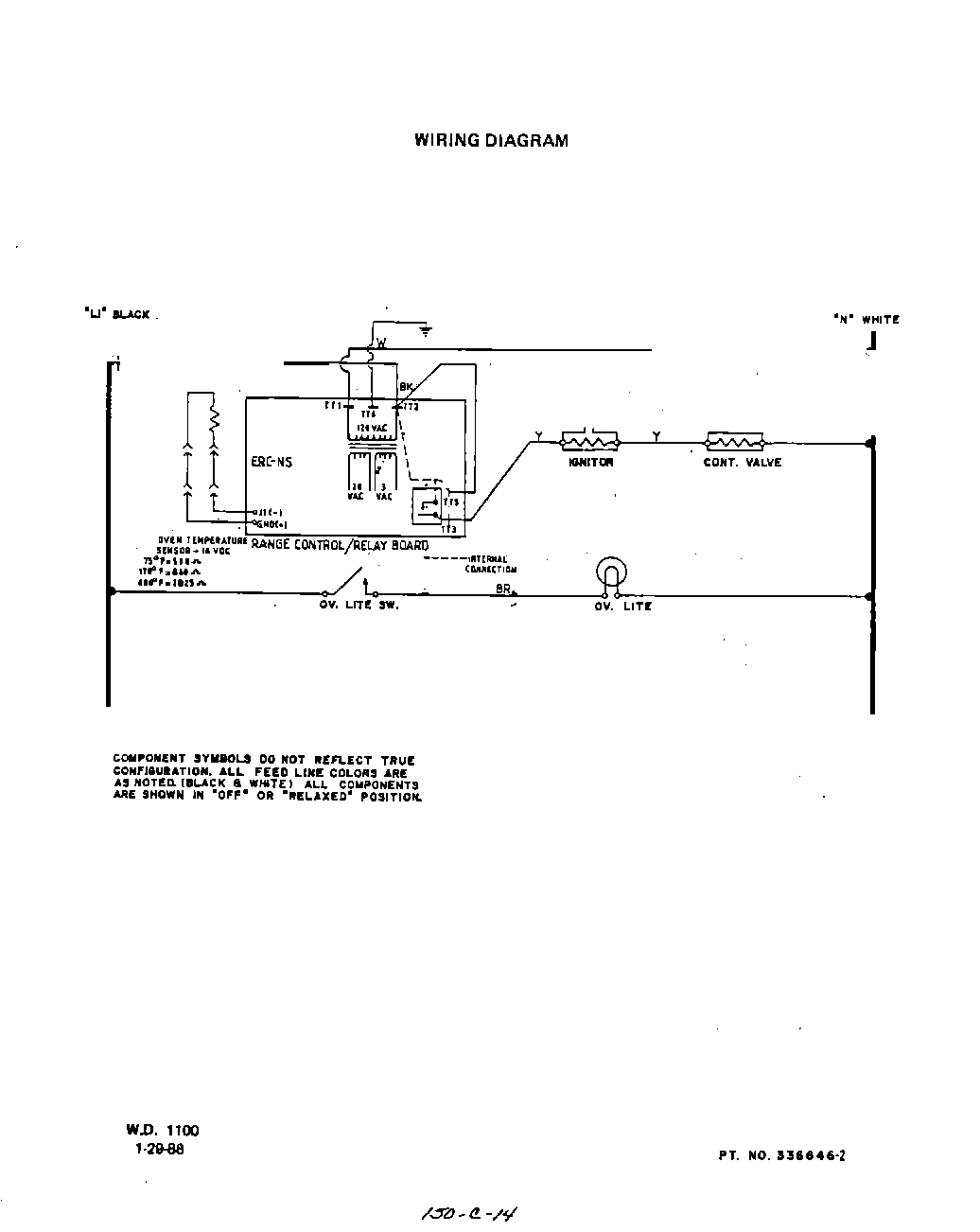

08 - WIRING DIAGRAM
Common parts from model Whirlpool B4457B0 BUILT-IN GAS OVEN
1
Oven Burner Support WPL 308417 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Sensor WPL 336312 Contact Us For Availability
1
Wire Harness WPL ARI20588A7 Contact Us For Availability
1
White WPL 336895 Contact Us For Availability
1
Almond WPL 336896 Contact Us For Availability
1
Wheat WPL 336897 Contact Us For Availability
1
White WPL 336904 Contact Us For Availability
1
Almond WPL 336905 Contact Us For Availability
1
Wheat WPL 336906 Contact Us For Availability
1
Front Panel-Oven Door w/Glass WPL ARI20575A1 Contact Us For Availability
1
Front Panel-Broiler Door w/Glass WPL ARI20576A1 Contact Us For Availability
1
Upper WPL 331853 Contact Us For Availability
1
Lower WPL 332305 Contact Us For Availability
1
Screw WPL 78153 Contact Us For Availability
1
Door Lining WPL ARI20582A2 Contact Us For Availability
2
Igniter Bracket WPL 336649 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
2
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
2
Door Glass-Outer (Oven & Broiler) WPL 284626 Contact Us For Availability
2
Door Glass Inner (Upper & Lower) WPL 111887 Contact Us For Availability
2
Right WPL 336633 Contact Us For Availability
2
Left WPL 336634 Contact Us For Availability
2
Side Trim-Control Panel WPL ARI20562A7 Contact Us For Availability
3
3/16`` WPL 238392 Contact Us For Availability
3
1/4`` WPL 238393 Contact Us For Availability
3
Faston Terminal WPL ARI20589A5 Contact Us For Availability
3
Oven Back WPL 336605 Contact Us For Availability
3
Screw 6-32x1/2`` WPL 336706 Contact Us For Availability
3
Oven Door w/Glass WPL 299549 Contact Us For Availability
3
Broiler Door w/Glass WPL 299558 Contact Us For Availability
3
Insulation Retainer WPL ARI20577A2 Contact Us For Availability
3
Upper WPL 299782 Contact Us For Availability
3
Lower WPL 299783 Contact Us For Availability
3
Insulation Oven Door WPL ARI20583A4 Contact Us For Availability
4
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
4
Insulation-Oven Back WPL 336638 Contact Us For Availability
4
Hex Nut 10-32 WPL 097816 Contact Us For Availability
4
Screw WPL 97709 Contact Us For Availability
5
Igniter WPL 336650 Contact Us For Availability
5
Wire Cover-Oven Back WPL 338525 Contact Us For Availability
5
Hinge Arm Guide WPL ARI20578A1 Contact Us For Availability
5
Switch WPL 334649 Contact Us For Availability
5
Hex Nut 10-32 WPL 97816 Contact Us For Availability
6
Tubing WPL 339848 Contact Us For Availability
6
Left WPL 338526 Contact Us For Availability
6
Right WPL 338527 Contact Us For Availability
6
Body Side WPL ARI20563A3 Contact Us For Availability
6
Right WPL 325201 Contact Us For Availability
6
Left WPL 325203 Contact Us For Availability
6
Lower Trim-Control Panel WPL 336635 Contact Us For Availability
6
Hinge Arm Guide WPL ARI20584A6 Contact Us For Availability
7
Orfice Tubing w/Nut WPL 322338 Contact Us For Availability
7
Insulation WPL ARI20579A6 Contact Us For Availability
7
Knob-Clock WPL 334961 Contact Us For Availability
7
Upper WPL 322096 Contact Us For Availability
7
Lower WPL 322099 Contact Us For Availability
7
Insulation Retainer WPL ARI20585A4 Contact Us For Availability
8
Spacer-Side Trim (4 Req) WPL 302862 Contact Us For Availability
8
Inner Glass WPL ARI20580A9 Contact Us For Availability
8
Control Panel WPL 336655 Contact Us For Availability
8
Door Glass Outer WPL ARI20586A5 Contact Us For Availability
9
Pressure Regulator WPL 333671 Contact Us For Availability
9
Disconnect Plate WPL 327976 Contact Us For Availability
9
Door Lining WPL ARI20581A8 Contact Us For Availability
9
Lamp Shade WPL 336629 Contact Us For Availability
9
Lower WPL 336206 Contact Us For Availability
9
Upper WPL 336207 Contact Us For Availability
9
Upper WPL 336212 Contact Us For Availability
9
Lower WPL 336213 Contact Us For Availability
9
Door Frame WPL ARI20587A9 Contact Us For Availability
10
Control Valve WPL 336651 Contact Us For Availability
10
Clip WPL 106767 Contact Us For Availability
10
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
10
Door Handle (Upper & Lower) WPL 336205 Contact Us For Availability
10
Clock Lens WPL 335646 Contact Us For Availability
11
Connector WPL 294391 Contact Us For Availability
11
Range Service Cord WPL 232132 Contact Us For Availability
11
Retainer-Door Glass (4 Req) WPL 299592 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
11
Clock WPL 336327 Contact Us For Availability
12
Bracket-Control Valve WPL 114660 Contact Us For Availability
12
Clip WPL 70588 Contact Us For Availability
12
Insulation Retainer WPL 338355 Contact Us For Availability
12
Spacer (4 Req.) WPL 299314 Contact Us For Availability
13
Shut-Off Valve Inlet WPL 320479 Contact Us For Availability
13
Left Cover Plate WPL 332302 Contact Us For Availability
13
Top Cover (Front) WPL 323497 Contact Us For Availability
13
Screw WPL 331704 Contact Us For Availability
14
Inverted Nut WPL 113384 Contact Us For Availability
14
Screw WPL 336152 Contact Us For Availability
14
Washer-Fiber WPL 333014 Contact Us For Availability
15
Baffle-Main Bottom WPL 279438 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
16
Air Shutter WPL 323455 Contact Us For Availability
16
Lower Trim-Front Frame WPL 336627 Contact Us For Availability
16
Spacer WPL 333015 Contact Us For Availability
17
Oven Burner WPL 332304 Contact Us For Availability
17
Channel-Bottom (Rt. or Lt.) WPL 328042 Contact Us For Availability
17
Washer WPL 99279 Contact Us For Availability
18
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
18
Main Bottom WPL 338524 Contact Us For Availability
18
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
19
Igniter Support Bracket WPL 336648 Contact Us For Availability
19
Right Cover Plate WPL 332303 Contact Us For Availability
20
Disconnect WPL 232150 Contact Us For Availability
22
Right WPL 336624 Contact Us For Availability
22
Left WPL 336625 Contact Us For Availability
22
Side Trim-Front Frame WPL ARI20564A1 Contact Us For Availability
23
Bracket-Door Spring (2 Required) WPL 327977 Contact Us For Availability
24
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
25
Seal-Oven & Broiler Door (3 Required) WPL 338209 Contact Us For Availability
26
Left WPL 327983 Contact Us For Availability
26
Right WPL 327984 Contact Us For Availability
26
Support-Oven Door Hinge WPL ARI20565A2 Contact Us For Availability
27
Channel Trim - Lt. or Rt. WPL 315233 Contact Us For Availability
28
Oven Side (Left) WPL 332348 Contact Us For Availability
28
Oven Side (Right) WPL 332349 Contact Us For Availability
28
Oven Side WPL ARI20566A6 Contact Us For Availability
29
Oven Bottom w/Baffle WPL 332351 Contact Us For Availability
30
Holder-Oven Lamp WPL 87883 Contact Us For Availability
31
Oven Lamp WPL 339665 Contact Us For Availability
32
Oven Top WPL 332350 Contact Us For Availability
33
Vent Box WPL 323487 Contact Us For Availability
34
Insulation-Oven Top & Sides (1 Piece) WPL 104991 Contact Us For Availability
35
Oven Cabinet Top WPL 323501 Contact Us For Availability
36
Oven Rack (2 Required) WPL 279539 Contact Us For Availability
37
Broiler Pan Grid WPL 331851 Contact Us For Availability
38
Oven Rack Guide (Rt. or Lt.) WPL 104702 Contact Us For Availability
39
Broiler Rack Guide (Left) WPL 232899 Contact Us For Availability
39
Broiler Rack Guide (Right) WPL 232900 Contact Us For Availability
39
Broiler Rack Guide WPL ARI20567A5 Contact Us For Availability
40
Broiler Pan WPL 332306 Contact Us For Availability
42
Front Frame WPL 332300 Contact Us For Availability
43
Seal-Oven Door (Rt. or Lt.) WPL 338210 Contact Us For Availability
44
Hinge Arm Guide Block (Right) WPL 111480 Contact Us For Availability
44
Hinge Arm Guide Block (Left) WPL 111481 Contact Us For Availability
44
Hinge Arm Guide Block WPL ARI20568A8 Contact Us For Availability
45
Support-Broiler Door Hinge (2 Required) WPL 323446 Contact Us For Availability
46
Shoulder R WPL 103314 Contact Us For Availability
47
WPL 97749 WPL 97749 Contact Us For Availability
48
WPL 97717 WPL 97717 Contact Us For Availability
49
WPL 324047 WPL 324047 Contact Us For Availability
49
WPL 324048 WPL 324048 Contact Us For Availability
49
WPL ARI20569A2 WPL ARI20569A2 Contact Us For Availability
50
WPL 105825 WPL 105825 Contact Us For Availability
51
WPL 69459 WPL 69459 Contact Us For Availability
52
WPL 288881 WPL 288881 Contact Us For Availability
53
WPL 323451 WPL 323451 Contact Us For Availability
54
WPL 97748 WPL 97748 Contact Us For Availability
55
WPL 230980 WPL 230980 Contact Us For Availability
55
WPL 230981 WPL 230981 Contact Us For Availability
55
WPL ARI20570A8 WPL ARI20570A8 Contact Us For Availability
56
WPL 97696 WPL 97696 Contact Us For Availability
56
WPL 97697 WPL 97697 Contact Us For Availability
56
WPL ARI20571A8 WPL ARI20571A8 Contact Us For Availability
57
WPL 103208 WPL 103208 Contact Us For Availability
58
WPL 307363 WPL 307363 Contact Us For Availability
59
WPL 104735 WPL 104735 Contact Us For Availability
60
WPL 104734 WPL 104734 Contact Us For Availability
61
WPL 324036 WPL 324036 Contact Us For Availability
61
WPL 324037 WPL 324037 Contact Us For Availability
61
WPL ARI20572A7 WPL ARI20572A7 Contact Us For Availability
62
WPL 323456 WPL 323456 Contact Us For Availability
62
WPL 323457 WPL 323457 Contact Us For Availability
62
WPL ARI20573A6 WPL ARI20573A6 Contact Us For Availability
63
WPL 324038 WPL 324038 Contact Us For Availability
63
WPL 324039 WPL 324039 Contact Us For Availability
63
WPL ARI20574A7 WPL ARI20574A7 Contact Us For Availability
64
WPL 104629 WPL 104629 Contact Us For Availability
65
WPL 323454 WPL 323454 Contact Us For Availability
66
WPL 281160 WPL 281160 Contact Us For Availability
67
WPL 338242 WPL 338242 Contact Us For Availability
68
WPL 120855 WPL 120855 Contact Us For Availability
× ![]()
