Model Whirlpool B4157X0 BUILT-IN GAS OVEN – Common Parts & Diagrams

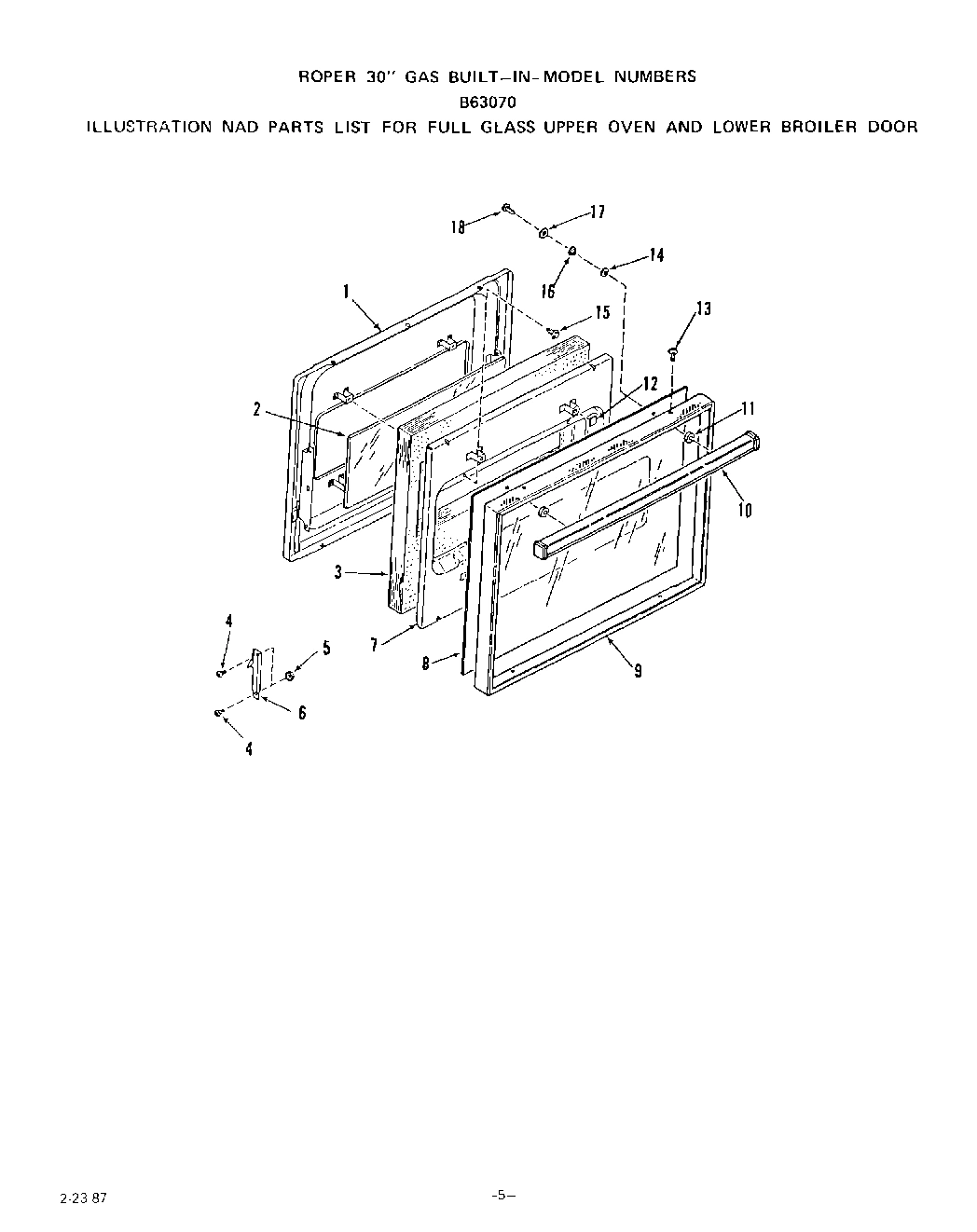

05 - FULL GLASS UPPER OVEN AND LOWER BROILER

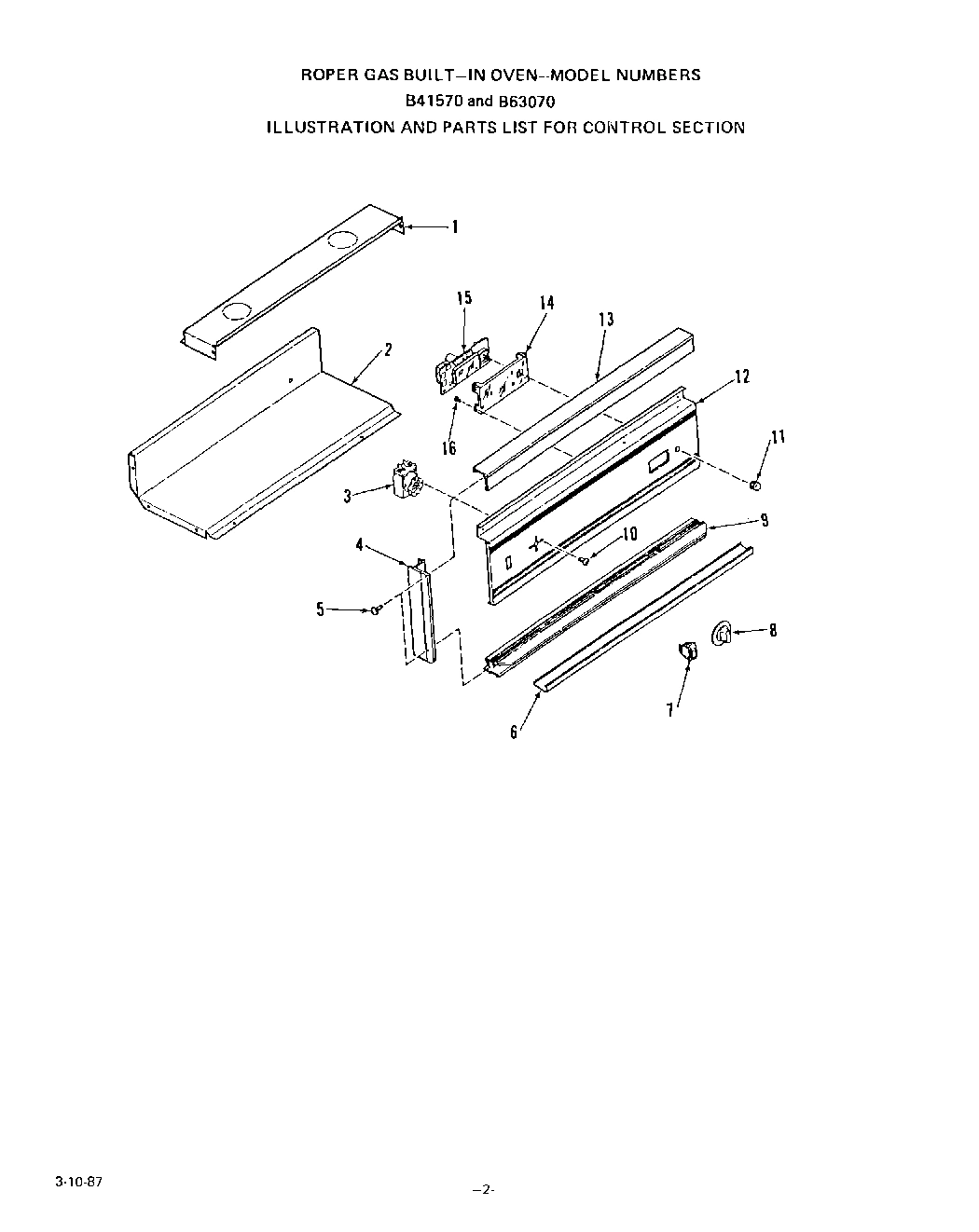

03 - CONTROL SECTION, LIT/OPTIONAL

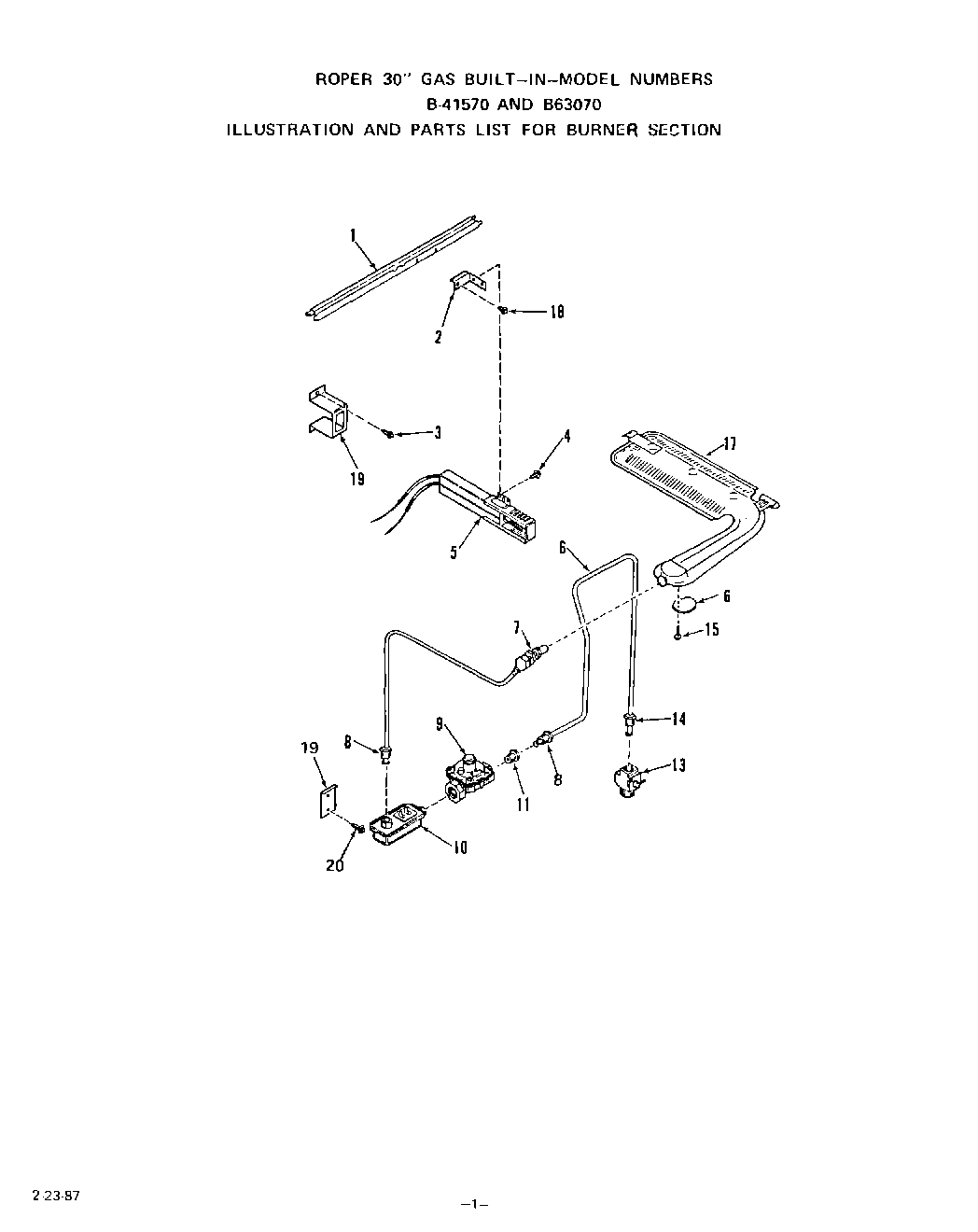

02 - BURNER SECTION

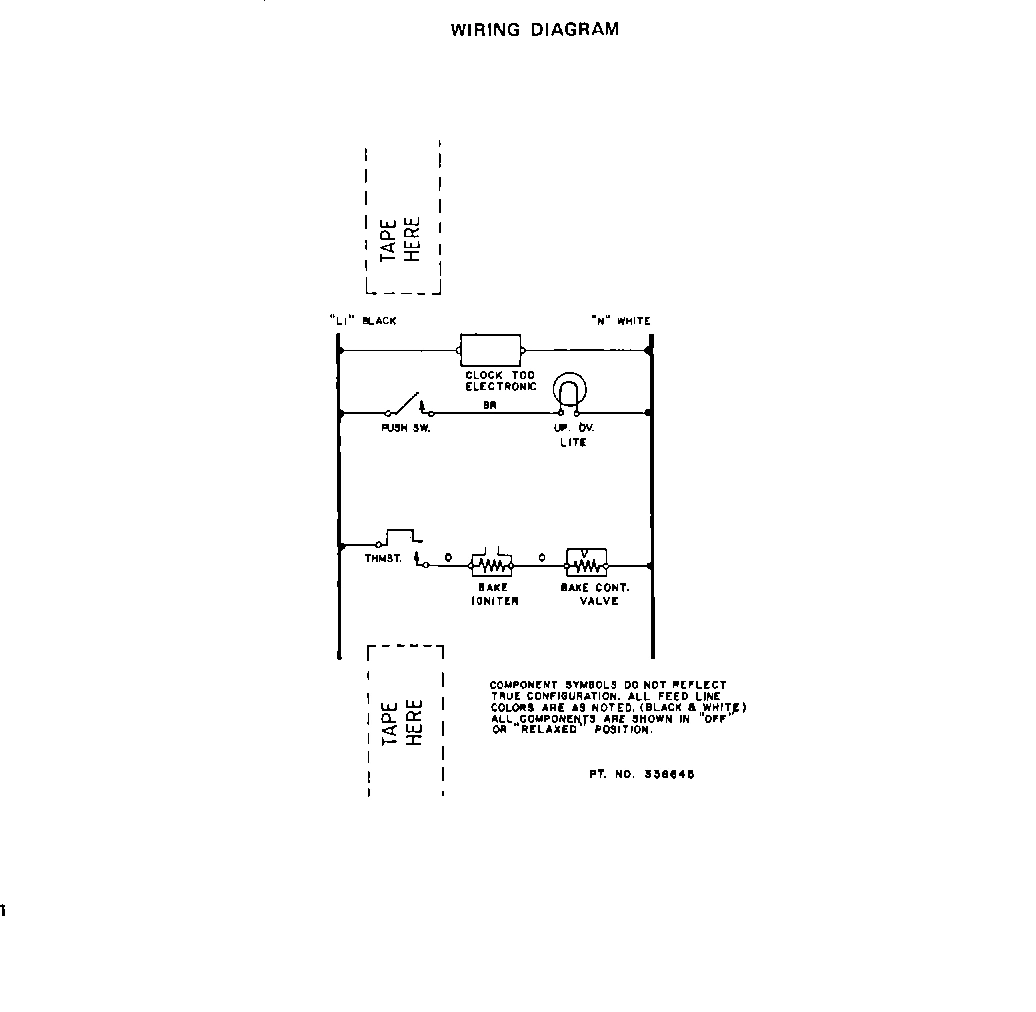

07 - WIRING DIAGRAM

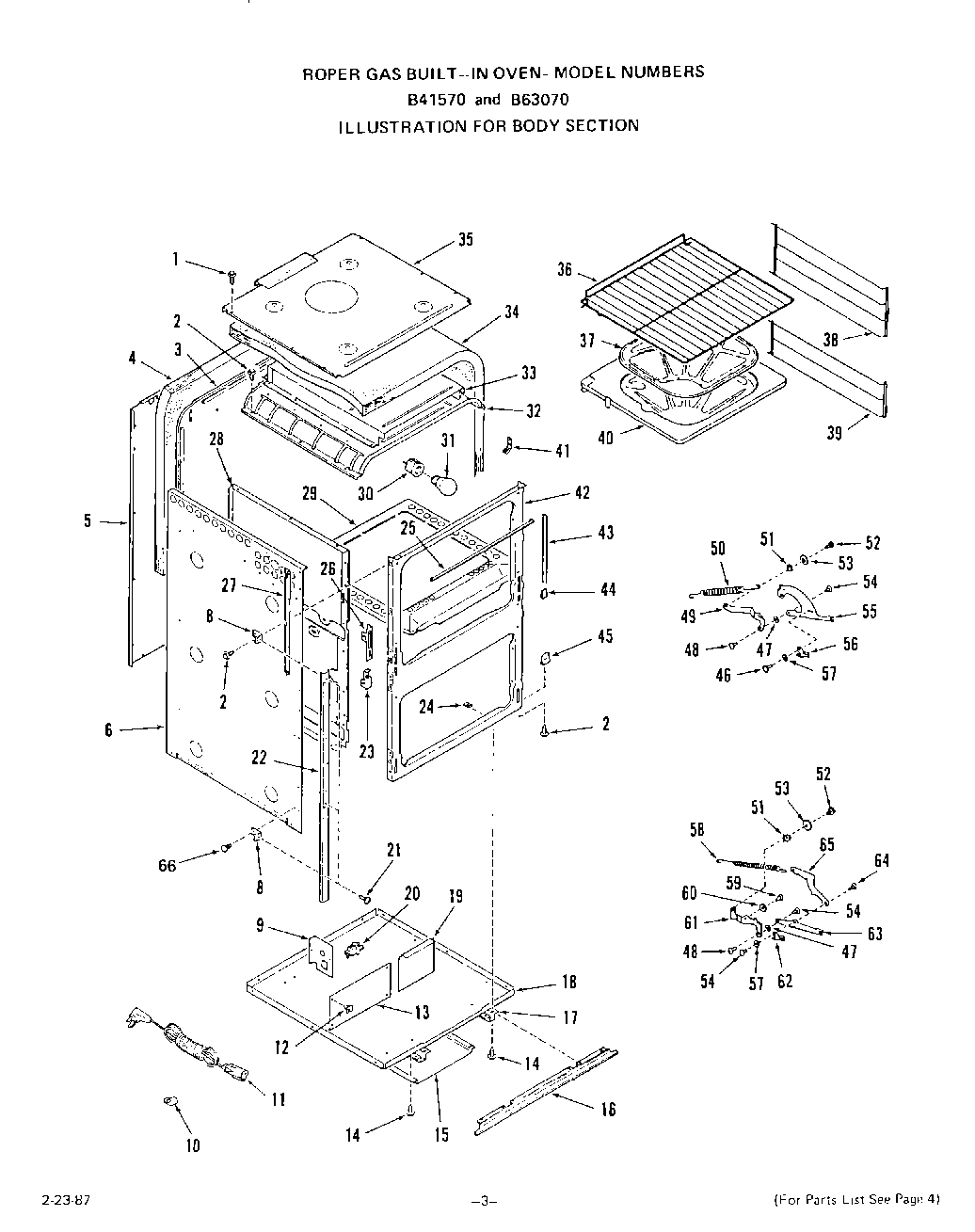

04 - BODY SECTION

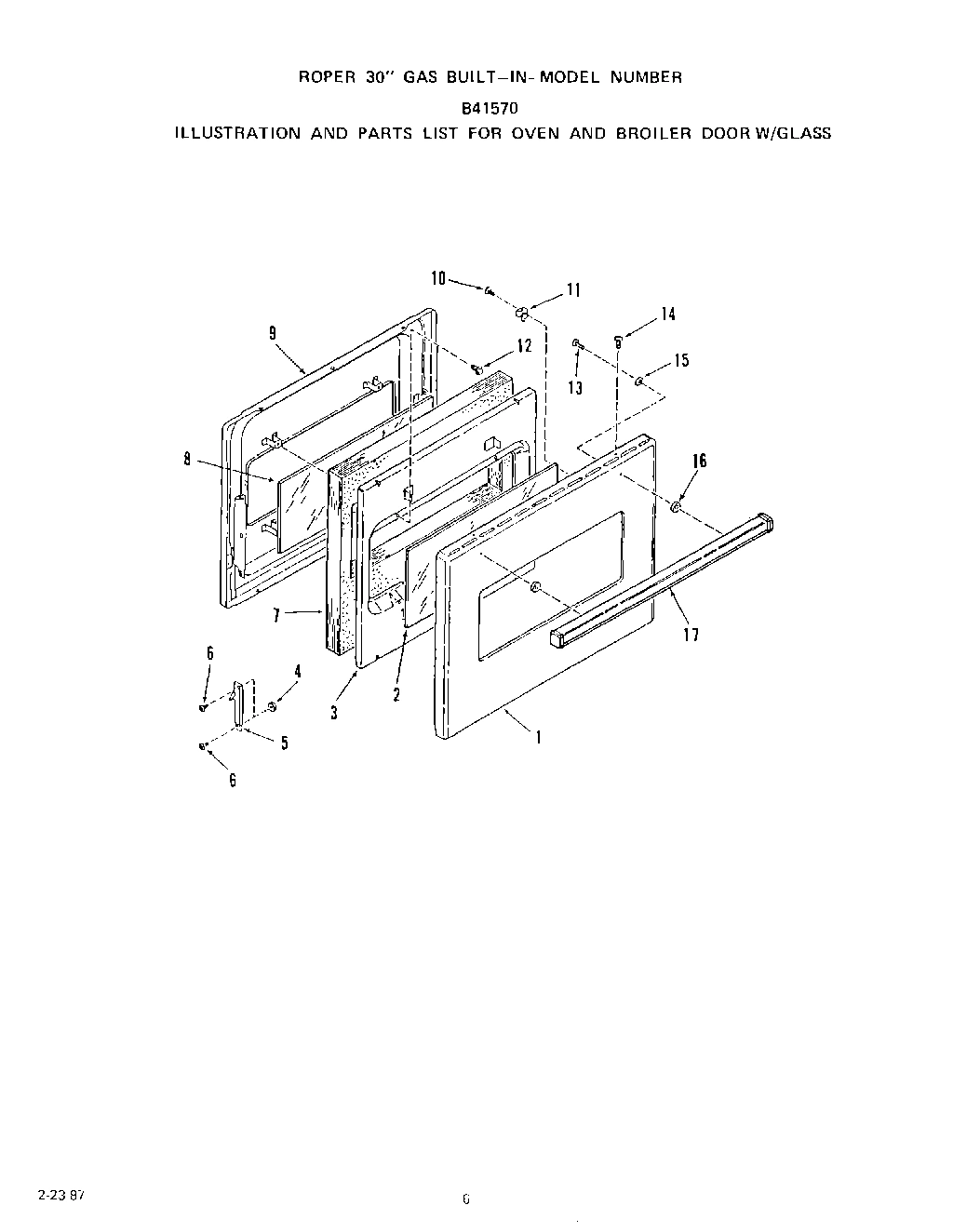

06 - OVEN AND BROILER DOOR W/GLASS
Common parts from model Whirlpool B4157X0 BUILT-IN GAS OVEN
1
Top Cover (Front) WPL 323572 Contact Us For Availability
1
Oven Burner Support WPL 308417 Contact Us For Availability
1
(Front Panel-Broiler Door w/Glass) (White) WPL 336895 Contact Us For Availability
1
(Front Panel-Broiler Door w/Glass) (Almond) WPL 336896 Contact Us For Availability
1
(Front Panel-Broiler Door w/Glass) (Wheat) WPL 336897 Contact Us For Availability
1
Front Panel-Oven Door w/Glass (White) WPL 336904 Contact Us For Availability
1
Front Panel-Oven Door w/Glass (Almond) WPL 336905 Contact Us For Availability
1
Front Panel-Oven Door w/Glass (Wheat) WPL 336906 Contact Us For Availability
1
Front Panel-Oven Door w/Glass (Coppertone) WPL 336907 Contact Us For Availability
2
Control Cover WPL 323566 Contact Us For Availability
2
Igniter Bracket WPL 336649 Contact Us For Availability
2
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
2
Door Glass-Outer (Oven & Broiler) WPL 284626 Contact Us For Availability
3
Thermostat WPL 336811 Contact Us For Availability
3
Oven Back (Model B41570) WPL 336590 Contact Us For Availability
3
Oven Back (Model B63070) WPL 336591 Contact Us For Availability
3
Insulation Retainer (Oven Door w/Glass) WPL 299549 Contact Us For Availability
3
Insulation Retainer (Broiler Door w/Glass) WPL 299558 Contact Us For Availability
4
Side Trim-Control Panel (Right) WPL 336633 Contact Us For Availability
4
Side Trim-Control Panel (Left) WPL 336634 Contact Us For Availability
4
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
4
Insulation-Oven Back WPL 336638 Contact Us For Availability
4
Hex Nut 10-32 WPL 097816 Contact Us For Availability
5
Hex Nut 10-32 WPL 97816 Contact Us For Availability
5
Hinge Arm Guide (Right) WPL 325201 Contact Us For Availability
5
Hinge Arm Guide (Left) WPL 325203 Contact Us For Availability
5
Screw 6-32x1/2`` WPL 336706 Contact Us For Availability
5
Igniter WPL 336650 Contact Us For Availability
5
Wire Cover-Oven Back WPL 338525 Contact Us For Availability
6
Shoulder Bolt-Lt. or Rt. WPL 97709 Contact Us For Availability
6
Tubing WPL 279542 Contact Us For Availability
6
Body Side (Left) WPL 338526 Contact Us For Availability
6
Body Side (Right) WPL 338527 Contact Us For Availability
7
Insulation (Oven Door w/Glass) WPL 299782 Contact Us For Availability
7
Insulation (Broiler Door w/Glass) WPL 299783 Contact Us For Availability
7
Insulation Retainer (Upper) WPL 322095 Contact Us For Availability
7
Insulation Retainer (Lower) WPL 322098 Contact Us For Availability
7
Switch WPL 334649 Contact Us For Availability
7
Orfice Tubing w/Nut WPL 322338 Contact Us For Availability
8
Inner Glass (Broiler Door w/Glass) WPL 111887 Contact Us For Availability
8
Door Glass Outer WPL ARI20533A5 Contact Us For Availability
8
Thermostat Knob WPL 336647 Contact Us For Availability
8
Spacer WPL 302862 Contact Us For Availability
9
Door Lining (Oven w/Glass) WPL 331853 Contact Us For Availability
9
Door Lining (Broiler w/Glass) WPL 332305 Contact Us For Availability
9
Lower WPL 336206 Contact Us For Availability
9
Upper WPL 336207 Contact Us For Availability
9
Door Frame (Upper) WPL 336212 Contact Us For Availability
9
Door Frame (Lower) WPL 336213 Contact Us For Availability
9
Lower Trim-Control Panel WPL 336635 Contact Us For Availability
9
Pressure Regulator WPL 333671 Contact Us For Availability
9
Disconnect Plate WPL 327976 Contact Us For Availability
10
Screw 8-32x3/16`` WPL 078565 Contact Us For Availability
10
Control Valve WPL 336651 Contact Us For Availability
10
Clip WPL 106767 Contact Us For Availability
10
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
11
Knob-Clock WPL 334961 Contact Us For Availability
11
Connector WPL 294391 Contact Us For Availability
11
Range Service Cord WPL 232132 Contact Us For Availability
11
Retainer-Door Glass (4 Req) WPL 299592 Contact Us For Availability
12
Spacer (4 Req.) WPL 299314 Contact Us For Availability
12
Control Panel WPL 336656 Contact Us For Availability
12
Bracket-Control Valve WPL 114660 Contact Us For Availability
12
Clip WPL 70588 Contact Us For Availability
13
Screw WPL 331704 Contact Us For Availability
13
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
13
Lamp Shade WPL 336629 Contact Us For Availability
13
Shut-Off Valve Inlet WPL 320479 Contact Us For Availability
13
Left Cover Plate WPL 332302 Contact Us For Availability
14
Washer-Fiber WPL 333014 Contact Us For Availability
14
Clock Lens WPL 336943 Contact Us For Availability
14
Inverted Nut WPL 113384 Contact Us For Availability
14
Screw WPL 336152 Contact Us For Availability
15
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
15
Clock WPL 335616 Contact Us For Availability
15
Installation Guide WPL 336724 Contact Us For Availability
15
Use & Care Manual WPL 336726 Contact Us For Availability
15
Repair Parts List WPL 336796 Contact Us For Availability
15
Baffle-Main Bottom WPL 279438 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
16
Spacer WPL 107158 Contact Us For Availability
16
Spacer WPL 333015 Contact Us For Availability
16
Air Shutter WPL 323455 Contact Us For Availability
16
Lower Trim WPL 336627 Contact Us For Availability
17
Oven Door Handle (Upper & Lower) WPL 336205 Contact Us For Availability
17
Washer WPL 99279 Contact Us For Availability
17
Oven Burner WPL 332304 Contact Us For Availability
17
Channel-Bottom (Rt. or Lt.) WPL 328042 Contact Us For Availability
18
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
18
Main Bottom WPL 338524 Contact Us For Availability
19
Igniter Support Bracket WPL 336648 Contact Us For Availability
19
Right Cover Plate WPL 332303 Contact Us For Availability
20
Disconnect WPL 232150 Contact Us For Availability
21
Screw 6-32x1/2`` WPL 327320 Contact Us For Availability
22
Side Trim-Front Frame (Right) WPL 336624 Contact Us For Availability
22
Side Trim-Front Frame (Left) WPL 336625 Contact Us For Availability
23
Bracket-Door Spring (2 Req) WPL 327977 Contact Us For Availability
24
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
25
Seal-Oven and Broiler Door (3 Req) WPL 338209 Contact Us For Availability
26
Support-Oven Door Hinge (Left) WPL 327983 Contact Us For Availability
26
Support-Oven Door Hinge (Right) WPL 327984 Contact Us For Availability
27
Channel Trim w/Angle (Left) WPL 327971 Contact Us For Availability
27
Channel Trim w/Angle (Right) WPL 327972 Contact Us For Availability
28
Oven Side (Left (Model B63070)) WPL 292291 Contact Us For Availability
28
Oven Side (Right (Model B63070)) WPL 292292 Contact Us For Availability
28
Oven Side (Left (Model B41570)) WPL 332348 Contact Us For Availability
28
Oven Side (Right (Model B41570)) WPL 332349 Contact Us For Availability
29
Oven Bottom w/Baffle (Model B63070) WPL 292509 Contact Us For Availability
29
Oven Bottom w/Baffle (Model B41570) WPL 332351 Contact Us For Availability
30
Holder-Oven Lamp WPL 87883 Contact Us For Availability
31
Lamp Bulb-Oven WPL 111257 Contact Us For Availability
32
Oven Top (Model B63070) WPL 292293 Contact Us For Availability
32
Oven Top (Model B41570) WPL 332350 Contact Us For Availability
33
Vent Box WPL 323487 Contact Us For Availability
34
Insulation-Oven Top & Sides (1 Piece) WPL 104991 Contact Us For Availability
35
Oven Cabinet Top WPL 323501 Contact Us For Availability
36
Oven Rack (2 Req) WPL 279539 Contact Us For Availability
37
Broiler Pan Grid WPL 331851 Contact Us For Availability
38
Oven Rac WPL 104702 Contact Us For Availability
39
WPL 232899 WPL 232899 Contact Us For Availability
39
WPL 232900 WPL 232900 Contact Us For Availability
40
WPL 332306 WPL 332306 Contact Us For Availability
41
WPL 335535 WPL 335535 Contact Us For Availability
42
WPL 332300 WPL 332300 Contact Us For Availability
43
WPL 338210 WPL 338210 Contact Us For Availability
44
WPL 111480 WPL 111480 Contact Us For Availability
44
WPL 111481 WPL 111481 Contact Us For Availability
45
WPL 323446 WPL 323446 Contact Us For Availability
46
WPL 103314 WPL 103314 Contact Us For Availability
47
WPL 97749 WPL 97749 Contact Us For Availability
48
WPL 97717 WPL 97717 Contact Us For Availability
49
WPL 324047 WPL 324047 Contact Us For Availability
49
WPL 324048 WPL 324048 Contact Us For Availability
50
WPL 105825 WPL 105825 Contact Us For Availability
51
WPL 69459 WPL 69459 Contact Us For Availability
52
WPL 288881 WPL 288881 Contact Us For Availability
53
WPL 323451 WPL 323451 Contact Us For Availability
54
WPL 97748 WPL 97748 Contact Us For Availability
55
WPL 230980 WPL 230980 Contact Us For Availability
55
WPL 230981 WPL 230981 Contact Us For Availability
56
WPL 97696 WPL 97696 Contact Us For Availability
56
WPL 97697 WPL 97697 Contact Us For Availability
57
WPL 103208 WPL 103208 Contact Us For Availability
58
WPL 307363 WPL 307363 Contact Us For Availability
59
WPL 104735 WPL 104735 Contact Us For Availability
60
WPL 104734 WPL 104734 Contact Us For Availability
61
WPL 324036 WPL 324036 Contact Us For Availability
61
WPL 324037 WPL 324037 Contact Us For Availability
62
WPL 323456 WPL 323456 Contact Us For Availability
62
WPL 323457 WPL 323457 Contact Us For Availability
63
WPL 324038 WPL 324038 Contact Us For Availability
63
WPL 324039 WPL 324039 Contact Us For Availability
64
WPL 104629 WPL 104629 Contact Us For Availability
65
WPL 323454 WPL 323454 Contact Us For Availability
66
WPL 281160 WPL 281160 Contact Us For Availability
× ![]()
